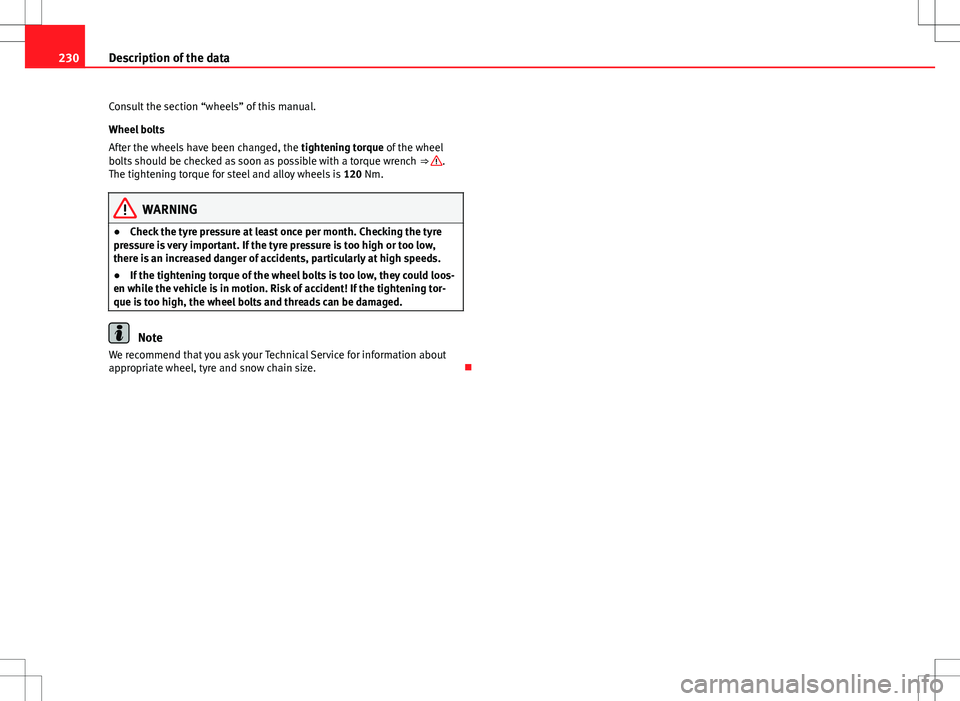

230Description of the data
Consult the section “wheels” of this manual.
Wheel bolts
After the wheels have been changed, the tightening torque of the wheel
bolts should be checked as soon as possible with a torque wrench ⇒ 
.
The tightening torque for steel and alloy wheels is 120 Nm.
WARNING
● Check the tyre pressure at least once per month. Checking the tyre
pressure is very important. If the tyre pressure is too high or too low,
there is an increased danger of accidents, particularly at high speeds.
● If the tightening torque of the wheel bolts is too low, they could loos-
en while the vehicle is in motion. Risk of accident! If the tightening tor-
que is too high, the wheel bolts and threads can be damaged.
Note
We recommend that you ask your Technical Service for information about
appropriate wheel, tyre and snow chain size. 

231
Technical Data
Technical Data
Checking fluid levels
From time to time, the levels of the different fluids in the ve-
hicle must be checked. Never fill with incorrect fluids, other-
wise serious damage to the engine may be caused.
Fig. 169 Diagram for the location of the various elements Coolant expansion tank
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Windscreen washer fluid container . . . . . . . . . . . . . . . . . . . . . . . . .182
Engine oil filler cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Engine oil level dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Brake fluid reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
The checking and replenishment of the service fluids are carried out on the
components mentioned above. These operations are described in the
⇒ page 173.
Overview
You will find further explanations, instructions and restrictions on the tech-
nical specifications as of ⇒ page 226.
Note
Availability in the engine compartment is very similar to all the petrol and
diesel engines. 
1
23456
Safety FirstOperating instructionsPractical TipsTechnical specifications

232Technical Data
Petrol engine 1.2 55 kW (75 PS)
Engine specifications
Power output in kW (PS) rpm 55 (75)/ 5400
Maximum torque in Nm at rpm 112/ 3750
No. of cylinders/capacity in cm3
4/ 1198
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 175 (5)
Acceleration from 0-80 km/h (0-62 mph) in sec. 9,3
Acceleration from 0-100 km/h (0-62 mph) in sec. 13,9
Weights
Gross vehicle weight in kg 1600
Weight in running order (with driver) in kg 1140
Gross front axle weight in kg 658
Gross rear axle weight in kg 482
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 570
Trailer with brakes, gradients up to 8% 950
Trailer with brakes, gradients up to 12% 750


233
Technical Data
Petrol engine 1.2 TSI 63 kW (85 PS)
Engine specifications Power output in kW (PS) rpm 63 (85)/ 4800
Maximum torque in Nm at rpm 160/ 1500-3500
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 183
Acceleration from 0-80 km/h (0-62 mph) in sec. 7,6
Acceleration from 0-100 km/h (0-62 mph) in sec. 11,8
Weights
Gross vehicle weight in kg 1621
Weight in running order (with driver) in kg 1161
Gross front axle weight in kg 680
Gross rear axle weight in kg 481
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1100
Trailer with brakes, gradients up to 12% 900

Safety FirstOperating instructionsPractical TipsTechnical specifications

234Technical Data
Petrol engine 1.2 77 kW (105 PS) with/without Start-Stop
Engine specifications
Power output in kW (PS) rpm 77 (105)/ 5000
Maximum torque in Nm at rpm 175/ 1500-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 195
Acceleration from 0-80 km/h (0-62 mph) in sec. 7,1
Acceleration from 0-100 km/h (0-62 mph) in sec. 10,4
Weights
Gross vehicle weight in kg 1635
Weight in running order (with driver) in kg 1175
Gross front axle weight in kg 695
Gross rear axle weight in kg 480
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1100


235
Technical Data
Petrol engine 1.4 90 kW (122 PS) Automatic
Engine specifications Power output in kW (PS) rpm 90 (122)/ 5000
Maximum torque in Nm at rpm 200/ 1500-4000
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 206
Acceleration from 0-80 km/h (0-62 mph) in sec. 6,5
Acceleration from 0-100 km/h (0-62 mph) in sec. 9,5
Weights
Gross vehicle weight in kg 1696
Weight in running order (with driver) in kg 1236
Gross front axle weight in kg 760
Gross rear axle weight in kg 476
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 610
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200

Safety FirstOperating instructionsPractical TipsTechnical specifications

236Technical Data
Diesel engine 1.6 CR 77 kW (105 PS) with/without Start-Stop
Engine specifications
Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 190
Acceleration from 0-80 km/h (0-62 mph) in sec. 7,2
Acceleration from 0-100 km/h (0-62 mph) in sec. 10,6
Weights
Gross vehicle weight in kg 1714
Weight in running order (with driver) in kg 1254
Gross front axle weight in kg 773
Gross rear axle weight in kg 481
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 620
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200


237
Technical Data
Dimensions and capacities
Dimensions
Length, width 4482 mm/1715 mm
Height at kerb weight 1466 mm
Front and rear projection 876 mm/1004 mm
Wheelbase 2602 mm
Turning circle a)
Track width b) Front
Rear
1463 mm 1500 mm
Capacities
Fuel tank 55 litres
Windscreen washer fluid container with headlight washer a)
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a) Data not available as this edition goes to print.
b) This data will change depending on the type of wheel rim. 
