SKODA CITIGO 2014 1.G Workshop Manual
Manufacturer: SKODA, Model Year: 2014, Model line: CITIGO, Model: SKODA CITIGO 2014 1.GPages: 164, PDF Size: 12.08 MB
Page 51 of 164
Lights and visibility
Lights
Introduction
This chapter contains information on the following subjects:
Operation of the light function
48
Daylight running lights (DAY LIGHT)
49
Turn signal and main beam
49
Fog lights
50
Rear fog light
50
Hazard warning light system
50
Parking light
51
Driving abroad
51
Unless otherwise stated, the lights only work when the ignition is on.
The arrangement of the controls right-hand drive models may differ from the layout shown in » Fig. 35 on page 48 . The symbols which mark the positions
of the controls are identical.
WARNING■ The activation of the lights should only be undertaken in accordance with
national legal requirements.■
The driver is always responsible for the correct settings and use of the
lights.
■
Never drive with only the side lights on! The side lights are not bright
enough to light up the road sufficiently in front of you or to be seen by oth-
er oncoming traffic. Therefore always switch on the low beam when it is
dark or if visibility is poor.
Note
■ The instruments are also illuminated when the side light or low beam light is
switched on.■
The headlights may mist up temporarily. When the driving lights are switched
on, the light outlet surfaces are free from mist after a short period, although
the headlight lenses may still be misted up in the peripheral areas. This mist
has no influence on the life of the lighting system.
Operation of the light functionFig. 35
Light switch / Knob for headlamp beam adjustment
Read and observe
on page 48 first.
Switching lights on and off
Depending on the equipment configuration, the light switch » Fig. 35 -
can
be moved to the following positions.
Turn switch Switching off lights (except daytime running lights)
Switching on the parking light or parking light » page 51
Turn on the low beam
Pull switch Switch on the front fog lamp » page 50
Switching on the rear fog light » page 50
Headlight range control
Turning the rotary switch » Fig. 35 -
from the position
to
gradually ad-
justs the headlight range control and shortens the light cone.
The positions of the width of illumination correspond approximately to the fol- lowing car load.
Front seats occupied, boot empty
All seats occupied, boot empty
All seats occupied, boot loaded
Driver seat occupied, boot loaded
48Using the system
Page 52 of 164
We recommend you adjust the headlight beam when the low beam is switched
on.WARNINGAlways adjust the headlight beam to meet the following conditions.■The vehicle does not dazzle other road users, especially oncoming vehi-
cles.■
The beam range is sufficient for safe driving.
CAUTION
If leaving the vehicle without wanting to use the parking lights, always turn
the light switch to position .
Note
If the light switch is in the position , the ignition key is removed and the
driver's door is open, an audible warning signal will sound. The audible warning
signal is switched off by means of the door contact when the driver's door is
closed, however the side lights remain on to illuminate the parked vehicle if
necessary.
Daylight running lights (DAY LIGHT)
Read and observe
on page 48 first.
The daytime running lights function provides the lighting of the front area ofthe vehicle.
The daytime running lights are switched on automatically if the following
conditions are met.
The ignition is switched on.
The light switch is in position
» Fig. 35 on page 48 .
When the daytime running lights are switched on, the lighting of the instru-
ment cluster is switched on.
WARNINGWhen the daytime running light is switched on, the side lights (neither at
the front or rear) and the number plate lights are not illuminated. Therefore
always switch on the low beam when the visibility is poor.Turn signal and main beamFig. 36
Operating lever: Turn signal and
main beam operation
Read and observe on page 48 first.
Lever positions » Fig. 36
Switch on right turn signal
Switch on left turn signal
Switch on high beam (spring-loaded position)
Switching off main beam / switching on headlamp flasher (spring-loaded
position)
Main beam
The main beam can only be switched on when the low beam lights are on.
The warning light illuminates in the instrument cluster when the high beam
is switched on.
Headlight flasher
The headlight flasher system can also be operated if the ignition is switched
off.
The instrument cluster warning light illuminates when the headlight flasher
is switched on.
Flashing
When the left flashing light is switched on, the warning light flashes in the
instrument cluster.
When the right flashing light is switched on, the warning light flashes in the
instrument cluster.
The turn signal light switches itself off automatically when driving around a
curve or after making a turn.
ABCD49Lights and visibility

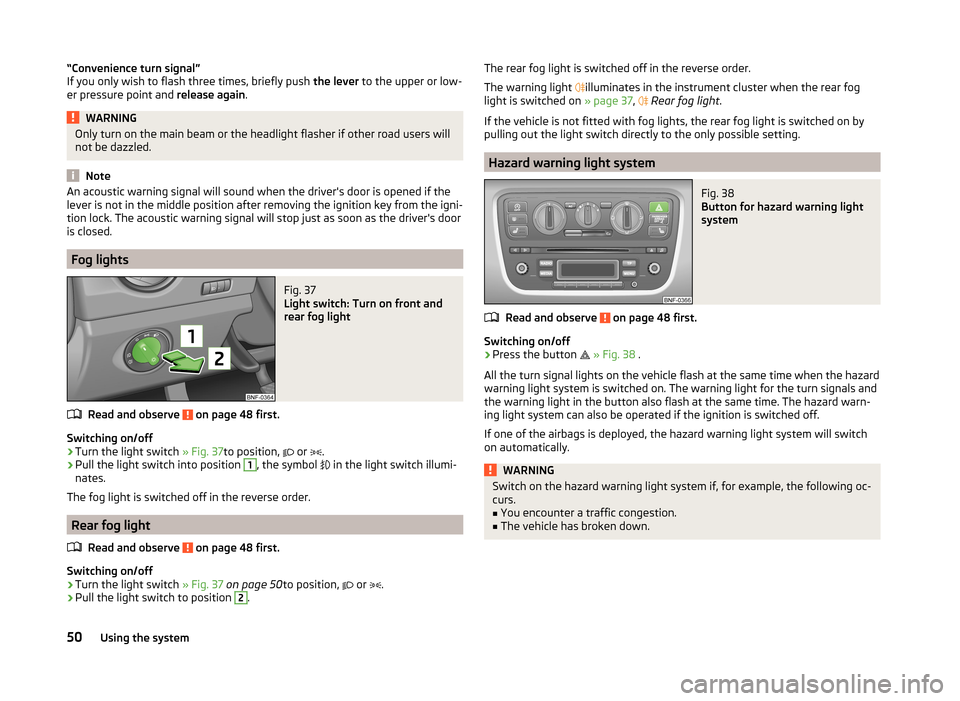

Page 53 of 164
“Convenience turn signal”
If you only wish to flash three times, briefly push the lever to the upper or low-
er pressure point and release again.WARNINGOnly turn on the main beam or the headlight flasher if other road users will
not be dazzled.
Note
An acoustic warning signal will sound when the driver's door is opened if the
lever is not in the middle position after removing the ignition key from the igni-
tion lock. The acoustic warning signal will stop just as soon as the driver's door
is closed.
Fog lights
Fig. 37
Light switch: Turn on front and
rear fog light
Read and observe on page 48 first.
Switching on/off
›
Turn the light switch » Fig. 37to position,
or
.
›
Pull the light switch into position
1
, the symbol
in the light switch illumi-
nates.
The fog light is switched off in the reverse order.
Rear fog light
Read and observe
on page 48 first.
Switching on/off
›
Turn the light switch » Fig. 37 on page 50 to position,
or
.
›
Pull the light switch to position
2
.
The rear fog light is switched off in the reverse order.
The warning light
illuminates in the instrument cluster when the rear fog
light is switched on » page 37,
Rear fog light .
If the vehicle is not fitted with fog lights, the rear fog light is switched on by
pulling out the light switch directly to the only possible setting.
Hazard warning light system
Fig. 38
Button for hazard warning light
system
Read and observe on page 48 first.
Switching on/off
›
Press the button
» Fig. 38 .
All the turn signal lights on the vehicle flash at the same time when the hazard
warning light system is switched on. The warning light for the turn signals and
the warning light in the button also flash at the same time. The hazard warn-
ing light system can also be operated if the ignition is switched off.
If one of the airbags is deployed, the hazard warning light system will switch
on automatically.
WARNINGSwitch on the hazard warning light system if, for example, the following oc-
curs.■
You encounter a traffic congestion.
■
The vehicle has broken down.
50Using the system

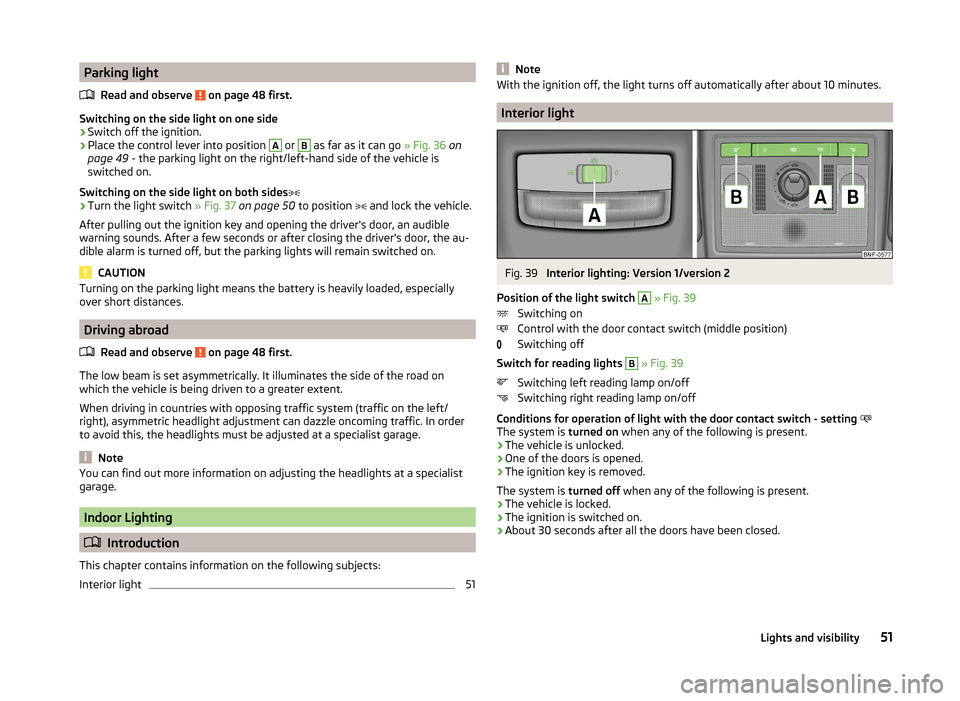

Page 54 of 164
Parking lightRead and observe
on page 48 first.
Switching on the side light on one side
›
Switch off the ignition.
›
Place the control lever into position
A
or
B
as far as it can go » Fig. 36 on
page 49 - the parking light on the right/left-hand side of the vehicle is
switched on.
Switching on the side light on both sides
›
Turn the light switch
» Fig. 37 on page 50 to position
and lock the vehicle.
After pulling out the ignition key and opening the driver's door, an audible
warning sounds. After a few seconds or after closing the driver's door, the au-
dible alarm is turned off, but the parking lights will remain switched on.
CAUTION
Turning on the parking light means the battery is heavily loaded, especially
over short distances.
Driving abroad
Read and observe
on page 48 first.
The low beam is set asymmetrically. It illuminates the side of the road on
which the vehicle is being driven to a greater extent.
When driving in countries with opposing traffic system (traffic on the left/
right), asymmetric headlight adjustment can dazzle oncoming traffic. In order
to avoid this, the headlights must be adjusted at a specialist garage.
Note
You can find out more information on adjusting the headlights at a specialist
garage.
Indoor Lighting
Introduction
This chapter contains information on the following subjects:
Interior light
51NoteWith the ignition off, the light turns off automatically after about 10 minutes.
Interior light
Fig. 39
Interior lighting: Version 1/version 2
Position of the light switch
A
» Fig. 39
Switching on
Control with the door contact switch (middle position)
Switching off
Switch for reading lights
B
» Fig. 39
Switching left reading lamp on/off
Switching right reading lamp on/off
Conditions for operation of light with the door contact switch - setting
The system is turned on when any of the following is present.
› The vehicle is unlocked.
› One of the doors is opened.
› The ignition key is removed.
The system is turned off when any of the following is present.
› The vehicle is locked.
› The ignition is switched on.
› About 30 seconds after all the doors have been closed.
51Lights and visibility

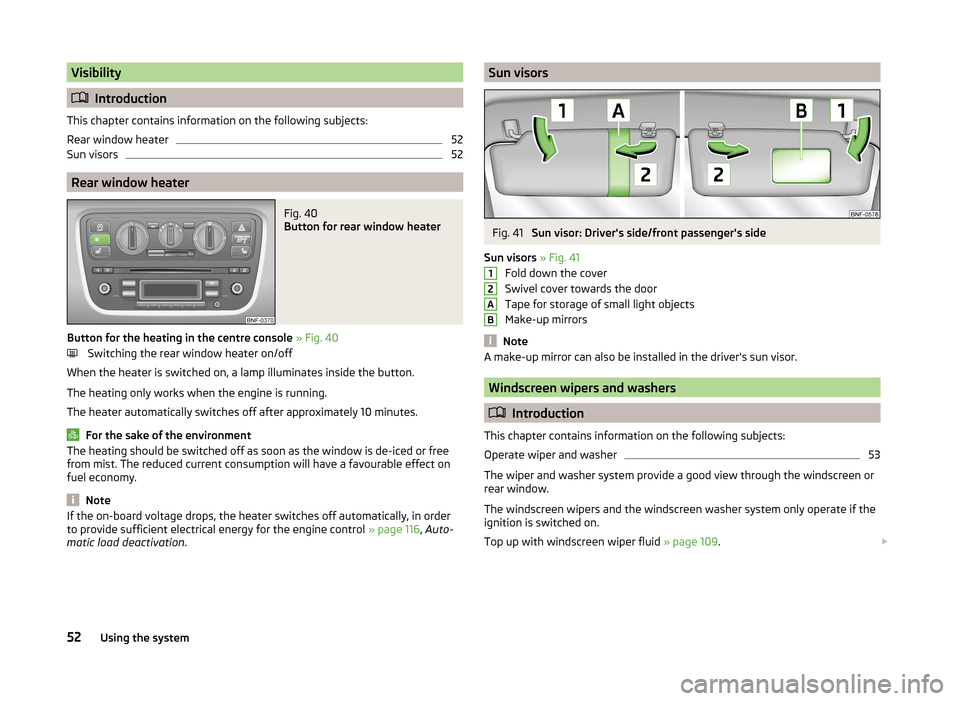

Page 55 of 164
Visibility
Introduction
This chapter contains information on the following subjects:
Rear window heater
52
Sun visors
52
Rear window heater
Fig. 40
Button for rear window heater
Button for the heating in the centre console » Fig. 40
Switching the rear window heater on/off
When the heater is switched on, a lamp illuminates inside the button.
The heating only works when the engine is running.
The heater automatically switches off after approximately 10 minutes.
For the sake of the environment
The heating should be switched off as soon as the window is de-iced or free
from mist. The reduced current consumption will have a favourable effect on
fuel economy.
Note
If the on-board voltage drops, the heater switches off automatically, in order
to provide sufficient electrical energy for the engine control » page 116, Auto-
matic load deactivation .Sun visorsFig. 41
Sun visor: Driver's side/front passenger's side
Sun visors » Fig. 41
Fold down the cover
Swivel cover towards the door
Tape for storage of small light objects
Make-up mirrors
Note
A make-up mirror can also be installed in the driver's sun visor.
Windscreen wipers and washers
Introduction
This chapter contains information on the following subjects:
Operate wiper and washer
53
The wiper and washer system provide a good view through the windscreen or
rear window.
The windscreen wipers and the windscreen washer system only operate if the
ignition is switched on.
Top up with windscreen wiper fluid » page 109.
12AB52Using the system
Page 56 of 164
WARNING■Properly maintained windscreen wiper blades are essential for clear visi-
bility and safe driving » page 134.■
Replace the windscreen wiper blades once or twice a year for safety rea-
sons. These can be purchased from a ŠKODA Partner.
■
Do not use the windscreen washer system at low temperatures, without
heating the windscreen beforehand. The window washer fluid could other-
wise freeze on the windscreen and restrict the view to the front.
CAUTION
■ If the ignition is switched off while the windscreen wipers are switched on,
the windscreen wipers will continue wiping in the same mode after the igni-
tion is turned back on. The windscreen wipers could freeze up in cold tempera-
tures between the time the ignition was turned off and when it was turned
back on again.■
In cold temperatures and during the winter, check before the journey or be-
fore switching on the ignition that the wiper blades are not frozen to the
windscreen. If the windscreen wipers are switched on when the blades are fro-
zen to the windscreen, this may damage both the blades and windscreen wip-
er motor!
■
Carefully peel frozen wiper blades off the pane.
■
Remove snow and ice from the windscreen wipers before driving.
■
If the windscreen wipers are handled carelessly, there is a risk of damage to
the windscreen.
■
Do not switch on the ignition if the front wiper arms are retracted. The wiper
arms could damage the paint of the bonnet.
■
If there is an obstacle on the windscreen, the wiper will try to push away the
obstacle. If the obstacle continues to block the wiper, the wiper stops in order
to avoid damaging the wiper. Remove the obstacle and switch the wiper on
again.
Note
To avoid streaking, the wiper blades must be kept clean » page 101.Operate wiper and washerFig. 42
Operation of the windscreen wipers and washer: front and rear
Read and observe
and on page 53 first.
Lever positions
0Wipers off1 Interval windscreen wiping2Slow windscreen wiping3Rapid windscreen wiping4Flick windscreen wiping, service position of the wiper
arms » page 134 , (spring-loaded position)5Automatic wipe/wash for windscreen (spring-tensioned position)6Wiping the rear window pane (the windscreen wiper wipes at regu-
lar intervals after a few seconds)7Automatic wipe/wash for the rear window (spring-tensioned posi-
tion)
Automatic wipe/wash for windscreen
The wash system operates immediately, the windscreen wipers wipe some-
what later.
Letting go of the operating lever will cause the windscreen wash system to
stop and the wipers to continue for another 1-3 wiper strokes (depending on
the spraying duration).
Automatic wipe/wash for the rear window
The wash system operates immediately, the windscreen wiper wipes some-
what later.
53Lights and visibility
Page 57 of 164

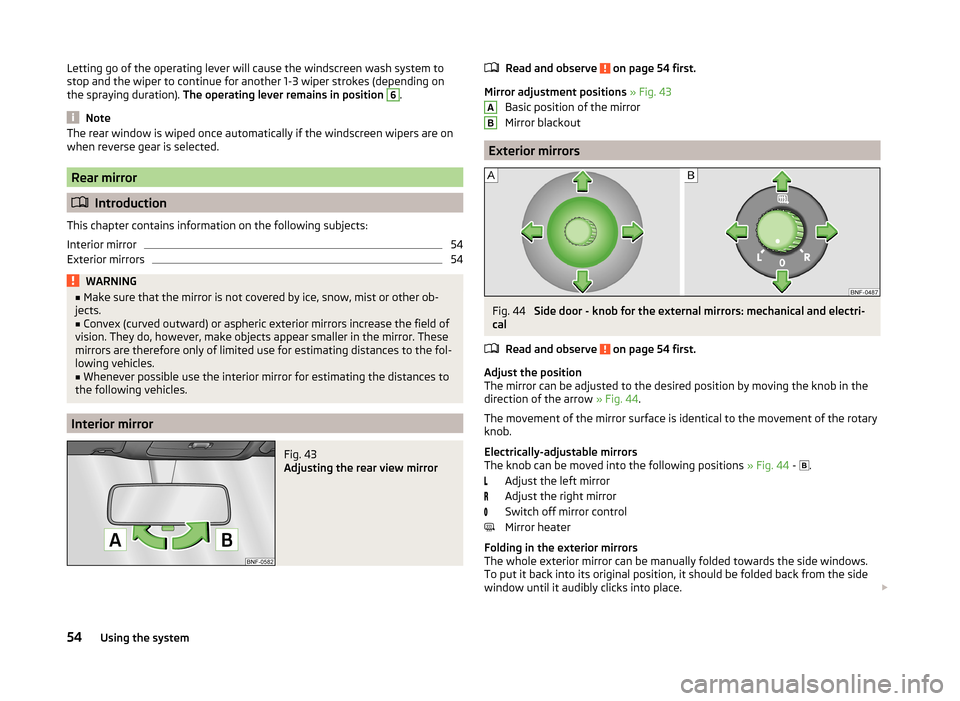

Letting go of the operating lever will cause the windscreen wash system to
stop and the wiper to continue for another 1-3 wiper strokes (depending on
the spraying duration). The operating lever remains in position 6
.
Note
The rear window is wiped once automatically if the windscreen wipers are on
when reverse gear is selected.
Rear mirror
Introduction
This chapter contains information on the following subjects:
Interior mirror
54
Exterior mirrors
54WARNING■ Make sure that the mirror is not covered by ice, snow, mist or other ob-
jects.■
Convex (curved outward) or aspheric exterior mirrors increase the field of
vision. They do, however, make objects appear smaller in the mirror. These
mirrors are therefore only of limited use for estimating distances to the fol-
lowing vehicles.
■
Whenever possible use the interior mirror for estimating the distances to
the following vehicles.
Interior mirror
Fig. 43
Adjusting the rear view mirror
Read and observe on page 54 first.
Mirror adjustment positions » Fig. 43
Basic position of the mirror
Mirror blackout
Exterior mirrors
Fig. 44
Side door - knob for the external mirrors: mechanical and electri-
cal
Read and observe
on page 54 first.
Adjust the position
The mirror can be adjusted to the desired position by moving the knob in the
direction of the arrow » Fig. 44.
The movement of the mirror surface is identical to the movement of the rotary
knob.
Electrically-adjustable mirrors
The knob can be moved into the following positions » Fig. 44 -
.
Adjust the left mirror
Adjust the right mirror
Switch off mirror control
Mirror heater
Folding in the exterior mirrors
The whole exterior mirror can be manually folded towards the side windows. To put it back into its original position, it should be folded back from the side
window until it audibly clicks into place.
AB54Using the system
Page 58 of 164
WARNINGDo not touch the exterior mirror surfaces, if the exterior mirror heating is
switched on - hazard of burning.
Note
■ The mirror heater only operates when the engine is running and up to an
outside temperature of +35 ℃.■
If the electrical mirror setting fails at any time, the mirrors can be adjusted by
hand by pressing on the edge of the mirror surface.
Seats and head restraints
Seats and head restraints
Introduction
This chapter contains information on the following subjects:
Adjusting the front seats
56
Head restraints - adjusting height
56
Headrests - removing and installing
57
The driver's seat should be adjusted in such a way that the pedals can be fully
pressed to the floor with slightly bent legs.
The seat backrest on the driver's seat should be adjusted in such a way that the upper point of the steering wheel can be easily reached with slightly bent
arms.
Correct adjustment of the seats is particularly important for the following: › Reaching the controls safely and quickly,
› A relaxed and fatigue-free body position.
› Achieving the maximum protection offered by the seat belts and the airbag
system.
WARNING■ Only adjust the driver's seat when the vehicle is stationary – risk of acci-
dent!■
Caution when adjusting the seat! You may suffer injuries or bruises as a
result of adjusting the seat without paying proper attention.
■
Never carry more people than there are number of seats in the vehicle.
■
Do not carry any objects on the front passenger seat except objects de-
signed for this purpose (e.g. child seat) – risk of accident!
Note
After a certain time, play can develop within the adjustment mechanism of the
backrest angle.55Seats and head restraints
Page 59 of 164
Adjusting the front seatsFig. 45
Controls on the driver's seat
Read and observe on page 55 first.
Controls on the driver's seat » Fig. 45
Adjusting a seat in a forward/back direction
Adjusting height of seat
Adjusting the angle of the seat backrest
Adjust the tilt of the seat back (seats with Easy Entry System)
On the passenger seat, some controls are arranged in mirror image.
Adjusting a seat in a forward/back direction
›
Pull the lever
A
» Fig. 45 in the direction of the arrow and push the seat in
the required direction.
The lock must click into place after you release the lever.
Adjusting height of seat
›
Again push or pull the lever
B
» Fig. 45 in the direction of one of the arrows.
Adjusting the angle of the seat backrest
›
The seat back release (do not lean on).
›
Pull the lever
C
in direction of arrow » Fig. 45 and with your back set the
desired inclination of the seat back.
For seats with Easy Entry system, the inclination can be adjusted using lever
D.
Fold forward and slide seat using the Easy Entry System
›
Pull lever
C
or
D
» Fig. 45 and fold the seat backrest forwards.
›
At the same time, move the seat forwards.
Restore position of the seat with Easy Entry System
›
Push the seat backwards again to its original position.
ABCD› Fold the seat backrest back.
The locking of the seat back must engage audibly - check by pulling on the
seat back.
Head restraints - adjusting height
Fig. 46
Rear headrests: Move up / move down
Read and observe
on page 55 first.
Only the rear head restraints can be removed.
Best protection is achieved if the top edge of the head rest is at the same level
as the upper part of your head.
Shift upwards
›
Grasp the support with both hands on its side and move in the direction of
1
» Fig. 46 .
Move down
›
Press the locking button
A
and hold it in arrow direction
2
» Fig. 46 .
›
Press in the support in the direction of arrow
3
.
WARNINGWith rear seats occupied, the respective head rests must be correctly set
(may not be in the bottom position) - risk of fatal injury!
CAUTION
The front headrests are integrated into the seat backrests and cannot be ad-
justed in height.56Using the system
Page 60 of 164
Headrests - removing and installingFig. 47
Rear headrests: Removing / installing
Read and observe
on page 55 first.
Only the real head restraints may be removed or installed.
Before removal and installation of the headrests, fold the respective seat
backrest forward » page 59.
Removing
›
Grasp the side of the head restraint with both hands and push it upwards.
›
Press the locking button
A
and hold it in arrow direction
1
» Fig. 47 .
›
Use the vehicle key to press the locking button in opening
B
in the direction
of arrow
2
.
›
Remove the restraint in the direction of arrow
3
.
Installing
›
Push the head restraint far enough down in the direction of arrow
4
into
the seat backrest until the locking button clicks into place.
WARNINGWith rear seats occupied, the respective head rests must be installed and
adjusted correctly - risk of fatal injury!Seat features
Introduction
This chapter contains information on the following subjects:
Front seat heating
57
Folding front passenger seat
58
Seat backrests
59
Front seat heating
Fig. 48
Buttons for heating the front
seats
The seat backrests and seats can be heated electrically.
The seat heating can only be switched on when the engine is running.
Buttons for the seat heater » Fig. 48
Left seat heating
Right seat heating
Switching on
›
Press the corresponding symbol button or
» Fig. 48 .
Pressing once switches the seat heating on at its maximum level.
With repeated pressing of the switch, the intensity of the heating is reduced
until it is switched off.
The level of the seat heating is indicated by the number of illuminated warning
lights in the switch.
57Seats and head restraints
