Unlocking and locking40
You should, however, proceed as fo llows if you wish to replace the
battery yourself:
– Fold open the key.
– Use a screwdriver to carefully lever off the front part of the key
⇒ page 39, fig. 19 from the transmitter housing .
– Take off the cover of the transmitter housing ⇒page 39, fig. 20 in
direction of arrow.
– Take the used battery out of the housing cover.
– Insert the new battery. Ensure that the “+” symbol on the battery is
facing downwards. The correct polarity is also shown on the cover
of the transmitter housing.
– Insert cover with battery in place at the rear of the transmitter
housing and press both parts together.
– Insert the transmitter housing into the front part of the key so that
the two parts lock into each other.
For the sake of the environment
Dispose of an old battery in accordance with environmental regulations.
Note
•The replacement battery must have the same specification as the original battery.
•If it is still not be possible to unloc k or lock the vehicle with the remote control even after replacing the battery this means that the system has to be synchronised ⇒page 48.
Electronic immobiliser
The electronic immobiliser prevents the vehicle being oper-
ated by an unauthorised person.
An electronic chip is integrated in the head of the key. The immobiliser is deac- tivated with the aid of this chip when the key is inserted in the ignition lock. The electronic immobiliser is automatically activated when you withdraw the igni- tion key from the lock.
Note
It is only possible to start the engine of your car with a Genuine Škoda key with the matching code ⇒page 31.
Locking
Valid for vehicles without a central locking system:
Locking from outside
The securing head will move upwards or downwards in the door when unlocking or locking.
Locking from inside
All closed vehicle doors are locked by pressing in the securing knobs from the inside. The doors cannot be opened from the outside when the securing knobs have been pressed in. The vehicle door s can be opened from the inside as follows:
•The door is unlocked by actu ating the door-opening lever.
•The door opens upon actuating the door-opening lever again.
AA
AB
NKO A05Fabia 20.book Page 40 Tuesday, September 26, 2006 8:38 AM
Page 42 of 258

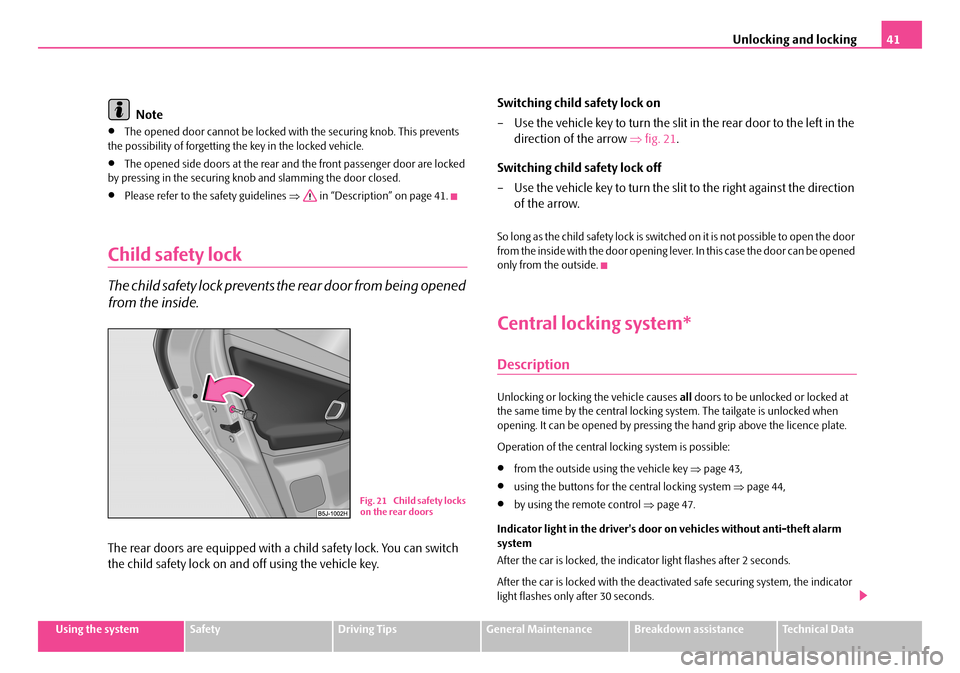

Unlocking and locking41
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
•The opened door cannot be locked with the securing knob. This prevents the possibility of forgetting the key in the locked vehicle.
•The opened side doors at the rear an d the front passenger door are locked by pressing in the securing knob and slamming the door closed.
•Please refer to the safety guidelines ⇒ in “Description” on page 41.
Child safety lock
The child safety lock prevents the rear door from being opened
from the inside.
The rear doors are equipped with a child safety lock. You can switch
the child safety lock on and off using the vehicle key.
Switching child safety lock on
– Use the vehicle key to turn the slit in the rear door to the left in the
direction of the arrow ⇒fig. 21.
Switching child safety lock off
– Use the vehicle key to turn the slit to the right against the direction
of the arrow.
So long as the child safety lock is switched on it is not possible to open the door from the inside with the door opening leve r. In this case the door can be opened only from the outside.
Central locking system*
Description
Unlocking or locking the vehicle causes all doors to be unlocked or locked at the same time by the central locking sy stem. The tailgate is unlocked when opening. It can be opened by pressing the hand grip above the licence plate.
Operation of the central locking system is possible:
•from the outside using the vehicle key ⇒page 43,
•using the buttons for the central locking system ⇒page 44,
•by using the remote control ⇒page 47.
Indicator light in the driver's door on vehicles without anti-theft alarm system
After the car is locked, the indicator light flashes after 2 seconds.
After the car is locked with the deactiva ted safe securing system, the indicator light flashes only after 30 seconds.
Fig. 21 Child safety locks on the rear doors
NKO A05Fabia 20.book Page 41 Tuesday, September 26, 2006 8:38 AM
Page 43 of 258

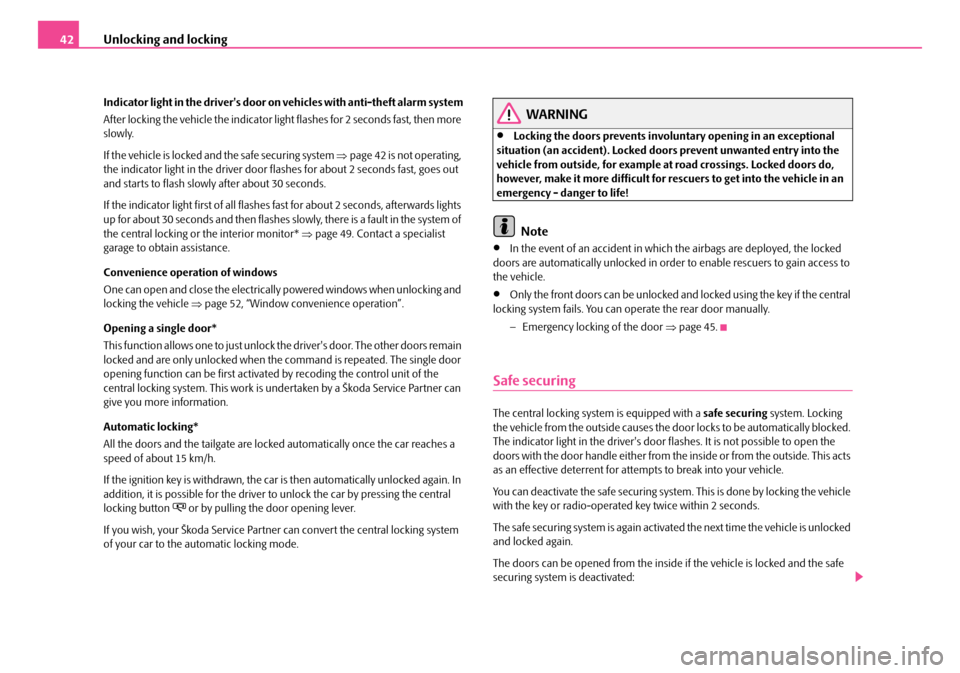

Unlocking and locking42
Indicator light in the driver's door on vehicles with anti-theft alarm system
After locking the vehicle the indicator light flashes for 2 seconds fast, then more slowly.
If the vehicle is locked and the safe securing system ⇒page 42 is not operating, the indicator light in the driver door flashes for about 2 seconds fast, goes out and starts to flash slowly after about 30 seconds.
If the indicator light first of all flashes fast for about 2 seconds, afterwards lights up for about 30 seconds and then flashes slowly, there is a fault in the system of the central locking or the interior monitor* ⇒page 49. Contact a specialist garage to obtain assistance.
Convenience operation of windows
One can open and close the electrically powered windows when unlocking and locking the vehicle ⇒page 52, “Window convenience operation”.
Opening a single door*
This function allows one to just unlock the driver's door. The other doors remain locked and are only unlocked when the command is repeated. The single door opening function can be first activate d by recoding the control unit of the central locking system. This work is und ertaken by a Škoda Service Partner can give you more information.
Automatic locking*
All the doors and the tailgate are locked automatically once the car reaches a speed of about 15 km/h.
If the ignition key is withdrawn, the ca r is then automatically unlocked again. In addition, it is possible for the driver to unlock the car by pressing the central locking button or by pulling the door opening lever.
If you wish, your Škoda Service Partner can convert the central locking system of your car to the automatic locking mode.
WARNING
•Locking the doors prevents involu ntary opening in an exceptional situation (an accident). Locked doors prevent unwanted entry into the vehicle from outside, for example at road crossings. Locked doors do, however, make it more difficult for rescuers to get into the vehicle in an emergency - danger to life!
Note
•In the event of an accident in which the airbags are deployed, the locked doors are automatically unlocked in order to enable rescuers to gain access to the vehicle.
•Only the front doors can be unlocked an d locked using the key if the central locking system fails. You can operate the rear door manually.
− Emergency locking of the door ⇒page 45.
Safe securing
The central locking system is equipped with a safe securing system. Locking the vehicle from the outside causes the d oor locks to be automatically blocked. The indicator light in the driver's door fl ashes. It is not possible to open the doors with the door handle either from th e inside or from the outside. This acts as an effective deterrent for atte mpts to break into your vehicle.
You can deactivate the safe securing syst em. This is done by locking the vehicle with the key or radio-operated key twice within 2 seconds.
The safe securing system is again activate d the next time the vehicle is unlocked and locked again.
The doors can be opened from the inside if the vehicle is locked and the safe securing system is deactivated:
NKO A05Fabia 20.book Page 42 Tuesday, September 26, 2006 8:38 AM
Page 44 of 258
Unlocking and locking43
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•The door is unlocked by actuating the door-opening lever.
•The door opens upon actuating the door-opening lever again.
WARNING
If the vehicle is locked from the outside and the safe securing system is activated, there must not be any person and animals in the vehicle as it is then not possible to open either a door or a window from the inside. The locked doors make it more difficult for rescuers to get into the vehicle in an emergency - hazard!
Unlocking the vehicle using the key
– Turn the key in the lock of the dr iver's door to the left into the
opening position ⇒fig. 22.
– Pull on the door handle and open the door.
•All the doors are unlocked.
•The tailgate is then unlocked.
•The switched on interior lights come on over the door contact.
•The safe securing system is deactivated.
•The windows are opened provided the key is held in the opening position.
•The indicator light in the driver's door stops flashing if the vehicle is not fitted with an anti-theft alarm system* ⇒page 48.
Note
If the vehicle is equipped with an anti-theft alarm system*, you must unlock the vehicle by inserting the key into the driver door you then have to insert the key into the ignition lock and switch th e ignition on within 15 seconds after unlocking the door. The alarm will be triggered if you do not switch on the ignition within 15 seconds.
Closing the vehicle with the key
– Turn the key in the lock of the dr iver door to the right into the
closing position ⇒fig. 22.
•All the doors and the tailgate are locked.
•The switched on interior lights go out over the door contact.
•The windows and the electric sliding/tilting roof* are closed provided the key is held in the locking position.
•The safe securing system is activated immediately.
•The indicator light in the driver door begins flashing.
Fig. 22 Turning the key for unlocking and locking the vehicle
AA
AB
NKO A05Fabia 20.book Page 43 Tuesday, September 26, 2006 8:38 AM
Page 45 of 258

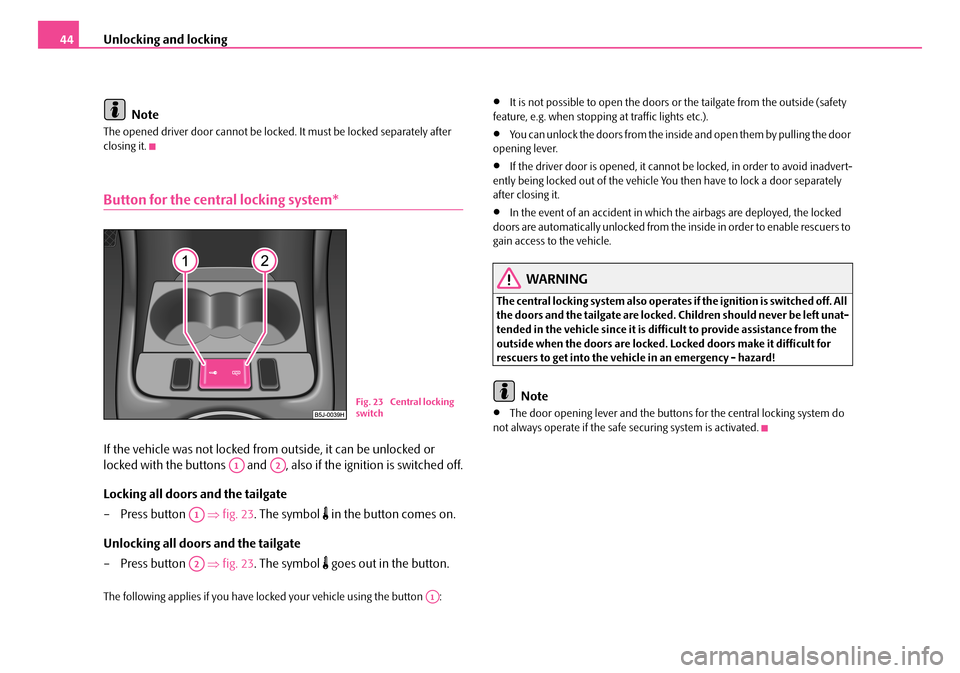

Unlocking and locking44
Note
The opened driver door cannot be locked. It must be locked separately after closing it.
Button for the central locking system*
If the vehicle was not locked from outside, it can be unlocked or
locked with the buttons and , also if the ignition is switched off.
Locking all doors and the tailgate
– Press button ⇒fig. 23. The symbol in the button comes on.
Unlocking all doors and the tailgate
– Press button ⇒fig. 23. The symbol goes out in the button.
The following applies if you have locked your vehicle using the button :
•It is not possible to open the doors or the tailgate from the outside (safety feature, e.g. when stopping at traffic lights etc.).
•You can unlock the doors from the inside and open them by pulling the door opening lever.
•If the driver door is opened, it cannot be locked, in order to avoid inadvert-ently being locked out of the vehicle You then have to lock a door separately after closing it.
•In the event of an accident in which the airbags are deployed, the locked doors are automatically unlocked from the inside in order to enable rescuers to gain access to the vehicle.
WARNING
The central locking system also operates if the ignition is switched off. All the doors and the tailgate are locked. Children should never be left unat- tended in the vehicle since it is difficult to provide assistance from the outside when the doors are locked. Locked doors make it difficult for rescuers to get into the vehicle in an emergency - hazard!
Note
•The door opening lever and the buttons for the central locking system do not always operate if the safe securing system is activated.
Fig. 23 Central locking switch
A1A2
A1
A2
A1
NKO A05Fabia 20.book Page 44 Tuesday, September 26, 2006 8:38 AM
Page 46 of 258
Unlocking and locking45
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Emergency locking of the doors
An emergency locking mechanism which is visible only after opening
the door is located on the face end of the rear doors (applies only for
vehicles with central locking).
Locking
– Remove the panel ⇒fig. 24.
– Insert the key into the opening under the panel and press the stop-
ping lever as far as the stop toward the inside.
–Re-insert the panel.
After closing the door, you can no longer op en it from outside. If the child safety lock i s not swi tche d on, it i s poss ible to open the d oor f rom the ins ide by pulli ng twice on the door handle. If the child safety lock is switched on, it is necesary to also open the door from outside besi des pulling twice on the inner door handle.
Ta i l g a t e
Opening the tailgate
– Press on the hand grip above th e licence plate and at the same
time raise the tailgate.
Closing the tailgate
– Pull the tailgate down and close it with a slight swing ⇒.
On vehicles with central locking unlock the tailgate by pressing the button on the driver door ⇒fig. 25.
On vehicles with central locking unlock the tailgate by pressing the hand grip above the licence plate.
A handle which makes the closing easier is located on the inner paneling of the tailgate.
Fig. 24 Emergency locking of the door
AA
AB
Fig. 25 Unlock tailgate
NKO A05Fabia 20.book Page 45 Tuesday, September 26, 2006 8:38 AM
Page 47 of 258
Unlocking and locking46
WARNING
•Ensure that the lock is properly engaged after closing the tailgate. Otherwise, the tailgate might open suddenly when driving even if the tailgate lid lock is closed - risk of accident!
•Never drive with the tailgate fully opened or slightly ajar otherwise exhaust gases may get into the interior of the vehicle - risk of poisoning!
•Do not press on the rear window when closing the tailgate, it could crack - risk of injury!
Note
•After closing the tailgate, it is automatically locked within 1 seconds and the anti-theft alarm system* is activated. This applies only if the vehicle was locked before closing the tailgate.
•The function of the hand grip above the licence plate is deactivated when starting off or as of a sp eed of more than 5 km/hour for vehicles with central locking. The function of the hand grip is activated again when the vehicle has stopped and a door is opened.
•Hold the tailgate when opening.
Emergency unlocking of the tailgate
If there is a fault in the central lo cking, you can open the tailgate as
follows:
– Fold one of the outer rear seats forwards.
– Move the operating lever A with the aid of a narrow object e.g.
screwdriver up to the stop in the direction of arrow; the tailgate lid
is then unlocked.
– Open the tailgate from outside.
Fig. 26 Emergency unlocking of the tailgate
NKO A05Fabia 20.book Page 46 Tuesday, September 26, 2006 8:38 AM
Page 48 of 258
Unlocking and locking47
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Remote control*
Description
You can use the remote control:
•to unlock and lock the car,
•unlock the tailgate.
The transmitter with the battery is housed in the handle of the master key. The receiver is located in the interior of th e car. The operating range of the remote control is 10 metres but this range can be reduced if the batteries are weak.
The master key has a fold-open key bit which can be used for unlocking and locking the car manually and al so for starting the engine.
If a lost key is replaced or if the rece iver unit has been repaired or a new unit installed, it is then necessary for a Škoda Service Partner to initialise the system. Only after this is it possible to again use the remote control.
Note
•The remote control is automatically deactivated when the ignition is switched on.
•The operation of the remote control may temporarily be affected by inter- ference from transmitters close to th e car and which operate in the same frequency range (e.g. mobile phone, TV transmitter).
•The battery must be replaced if the central locking or anti-theft alarm system does react to the remote control at less than 3 metres away. We recom- mend having the battery replaced by a Škoda Service Partner.
Unlocking and locking car
The radio-operated key differs according to the equipment installed
on the vehicle.
Unlocking the vehicle
– Press button for about 1 second.
Locking the vehicle
– Press button for about 1 second.
Deactivating safe securing system
– Press button twice in 2 seconds. Further information
⇒ page 41.
Tailgate release
– Press button for about 1 second ⇒fig. 27.
Fig. 27 Radio-operated key
A1
A2
A2
A4
NKO A05Fabia 20.book Page 47 Tuesday, September 26, 2006 8:38 AM
Page 49 of 258

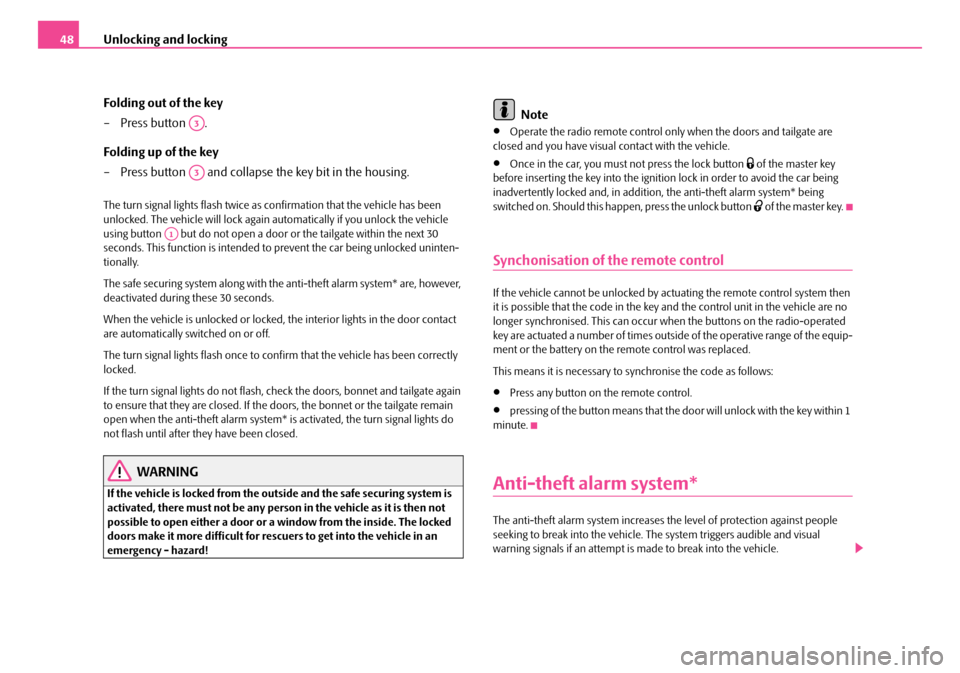

Unlocking and locking48
Folding out of the key
– Press button .
Folding up of the key
– Press button and collapse the key bit in the housing.
The turn signal lights flash twice as confirmation that the vehicle has been unlocked. The vehicle will lock again au tomatically if you unlock the vehicle using button but do not open a door or the tailgate within the next 30 seconds. This function is intended to prevent the car being unlocked uninten- tionally.
The safe securing system along with the anti-theft alarm system* are, however, deactivated during these 30 seconds.
When the vehicle is unlocked or locked, th e interior lights in the door contact are automatically switched on or off.
The turn signal lights flas h once to confirm that the vehicle has been correctly locked.
If the turn signal lights do not flash, check the doors, bonnet and tailgate again to ensure that they are closed. If the doors, the bonnet or the tailgate remain open when the anti-theft alarm system* is activated, the turn signal lights do not flash until after th ey have been closed.
WARNING
If the vehicle is locked from the outside and the safe securing system is activated, there must not be any person in the vehicle as it is then not possible to open either a door or a window from the inside. The locked doors make it more difficult for rescuers to get into the vehicle in an emergency - hazard!
Note
•Operate the radio remote control only when the doors and tailgate are closed and you have visual contact with the vehicle.
•Once in the car, you must not press the lock button of the master key before inserting the key into the ignition lock in order to avoid the car being inadvertently locked and, in addition , the anti-theft alarm system* being switched on. Should this happe n, press the unlock button of the master key.
Synchonisation of the remote control
If the vehicle cannot be unlocked by actuating the remote control system then it is possible that the code in the key and the control unit in the vehicle are no longer synchronised. This can occur when the buttons on the radio-operated key are actuated a number of times outsid e of the operative range of the equip- ment or the battery on the remote control was replaced.
This means it is necessary to synchronise the code as follows:
•Press any button on the remote control.
•pressing of the button means that the door will unlock with the key within 1 minute.
Anti-theft alarm system*
The anti-theft alarm system increases the level of protection against people seeking to break into the vehicle. The system triggers audible and visual warning signals if an attempt is made to break into the vehicle.
A3
A3
A1
NKO A05Fabia 20.book Page 48 Tuesday, September 26, 2006 8:38 AM
Page 50 of 258
Unlocking and locking49
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
How is the alarm system switched on?
The anti-theft alarm system is activated automatically when the vehicle is locked with the key on the closed driver's door or by using the remote control. It is activated 30 seconds after closing the door.
How is the alarm sy stem switched off?
The anti-theft alarm system is switched off if the vehicle is unlocked by only using the remote control. The vehicle is automatically locked again if the vehicle is not opened within 30 seconds after reactivating the anti-theft alarm system.
Once you unlock the vehicle by inserting the key into the driver door you then have to insert the key into the ignition lock and switch the ignition on within 15 seconds after unlocking the door in order to deactivate the anti-theft alarm system. The alarm will be triggered if you do not switch on the ignition within 15 seconds.
When is the alarm triggered?
The following security areas of the locked vehicle are monitored:
•Bonnet,
•Tailgate,
•Doors,
•Ignition lock,
•Vehicle interior* ⇒page 49,
•Angle of the vehicle*,
•A drop in voltage of the on-board power supply.
An alarm is immediately triggered if either of the two battery terminals is disconnected while the anti-theft alarm system is activated.
How is the alarm switched off?
You switch the alarm off if you unlock th e car with the radio remote control in the key or if you switch the ignition on.
Note
•The working life of the alarm siren is 5 years. More detailed information is available from your Škoda Service Partner.
•Before leaving the car, check that all the doors, windows and the electric sliding/tilting roof* are properly closed in order to ensure that the anti-theft alarm system is fully operational.
•Coding of the radio remote control and the receptor part precludes the use of the radio remote control from other vehicles.
Interior monitor* and Towing
protection*
The interior monitor and the to wing protection detect move-
ments inside the vehicle interi or and then trigger the alarm.
Fig. 28 Interior monitor pushbutton
NKO A05Fabia 20.book Page 49 Tuesday, September 26, 2006 8:38 AM
