SKODA FABIA 2009 2.G / 5J Owner's Manual

Technical Data 230Engine oil specificationsThe grade of engine oil should be selected in accordance with
precise specifications.The engine of your vehicle has been factory-filled with a high-grade oil which you
can use throughout the year - except in extreme climatic regions.
You can mix various oils together with each other when refilling with oil. This does
not, however, apply for models with flexible service intervals (QG1).
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publication.
Specialist garages are informed by Škoda Auto about current changes. We recom-
mend having this oil change undertaken by a specialist garage.
Engine oil specifications for vehicles with fixed service intervals (QG0, QG2)
Engine oil specifications for models with flexible service intervals (QG1)
Caution
Only the above-mentioned oils may be used on vehicles with flexible service inter-
vals (QG1). We recommend always refilling with oil of the same specification since
this will maintain the properties of the oil. In exceptional cases, you must top up
only once engine oil complying with Specification VW 502 00 (only for petrol
engines) or Specification VW 505 01 (only for diesel engines) to maximum 0.5 litres.
You must not use other engine oils - risk of engine damage!
Note
•
Before a long drive we recommend that you purchase and carry with you
engine oil which complies with the specification for your vehicle. Consequently,
you will always have the correct engine oil for refilling.
•
We recommend using a preservative from the Škoda original accessories
offered by your Škoda dealer.
•
For further information - see Service shedule.
Engine oil specifications
Petrol engines
VW 501 01
VW 502 00
VW 504 00
ACEA A2
a) or A3
a)
a)Only to be used in exceptional cases if the oils specified above are not available.Diesel engines
VW 505 01
b)
VW 507 00
c)
b)Only for engines without diesel particle filter ⇒page 34.c)Only for engines with diesel particle filter ⇒page 34.
Engine oil specifications
Petrol engines
VW 504 00
alternative VW 503 00
Diesel engines
VW 507 00
alternative VW 506 01
a)
a)Only for engines without diesel particle filter ⇒page 34.
s3f4.1.book Page 230 Thursday, June 18, 2009 11:07 AM

Technical Data231
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
1.2 ltr./44 kW - EU 4/EU 2DDKEngine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
44/5200
Maximum torque
Nm per rpm
108/3000
Number of cylinders/Displacement (cm
3)
3/1198
Fuel - unleaded petrol min. RON
95
FA B I A
COMBI
Maximum speed
km/h
155
156
Acceleration 0 - 100 km/h
s
16,5
16,8
Urban
7,8
Non-urban
4,8
Combination
5,9
CO2 emission - combination
140
s3f4.1.book Page 231 Thursday, June 18, 2009 11:07 AM

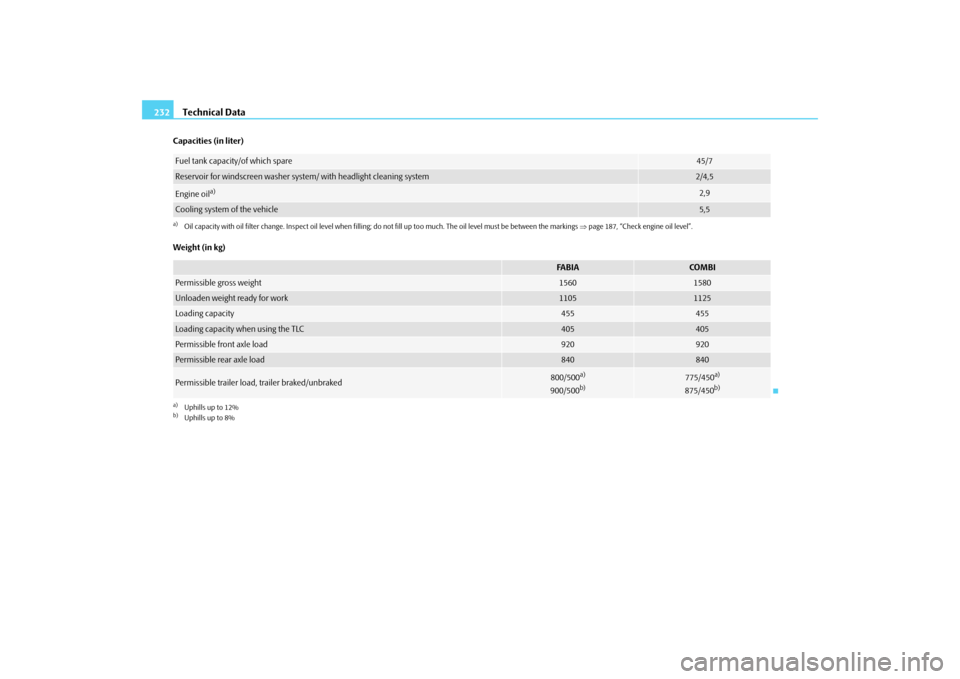

Technical Data 232Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
45/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187, “Check engine oil level”.
2,9
Cooling system of the vehicle
5,5
FA B I A
COMBI
Permissible gross weight
1560
1580
Unloaden weight ready for work
1105
1125
Loading capacity
455
455
Loading capacity when using the TLC
405
405
Permissible front axle load
920
920
Permissible rear axle load
840
840
Permissible trailer load, trailer braked/unbraked
800/500
a)
900/500b)
a)Uphills up to 12%b)Uphills up to 8%
775/450
a)
875/450b)
s3f4.1.book Page 232 Thursday, June 18, 2009 11:07 AM

Technical Data233
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
1.2 ltr./51 kW - EU 4/EU 2DDKEngine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
51/5400
Maximum torque
Nm per rpm
112/3000
Number of cylinders/Displacement (cm
3)
3/1198
Fuel - unleaded petrol min. RON
95
FA B I A
CO M B I
Maximum speed
km/h
163
164
Acceleration 0 - 100 km/h
s
14,9
15,1
Urban
7,7
Non-urban
4,9
Combination
5,9
CO2 emission - combination
140
s3f4.1.book Page 233 Thursday, June 18, 2009 11:07 AM

Technical Data 234Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
45/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
2,9
Cooling system of the vehicle
5,5
FA B I A
COMBI
Permissible gross weight
1565
1585
Unloaden weight ready for work
1110
1130
Loading capacity
455
455
Loading capacity when using the TLC
405
405
Permissible front axle load
920
920
Permissible rear axle load
840
840
Permissible trailer load, trailer braked/unbraked
(800/500)
a)
(900/500)b)
a)Uphills up to 12%b)Uphills up to 8%
(800/450)
a)
(900/450)b)
s3f4.1.book Page 234 Thursday, June 18, 2009 11:07 AM

Technical Data235
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
1.4 ltr./63 kW - EU 4/EU 2DDKEngine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
63/5000
Maximum torque
Nm per rpm
132/3800
Number of cylinders/Displacement (cm
3)
4/1390
Fuel - unleaded petrol min. RON
95
FA B I A
COMBI
SCOUT
Maximum speed
km/h
174
175
173
Acceleration 0 - 100 km/h
s
12,3
12,7
12,7
Urban
8,6
Non-urban
5,3
Combination
6,5
CO2 emission - combination
154
s3f4.1.book Page 235 Thursday, June 18, 2009 11:07 AM

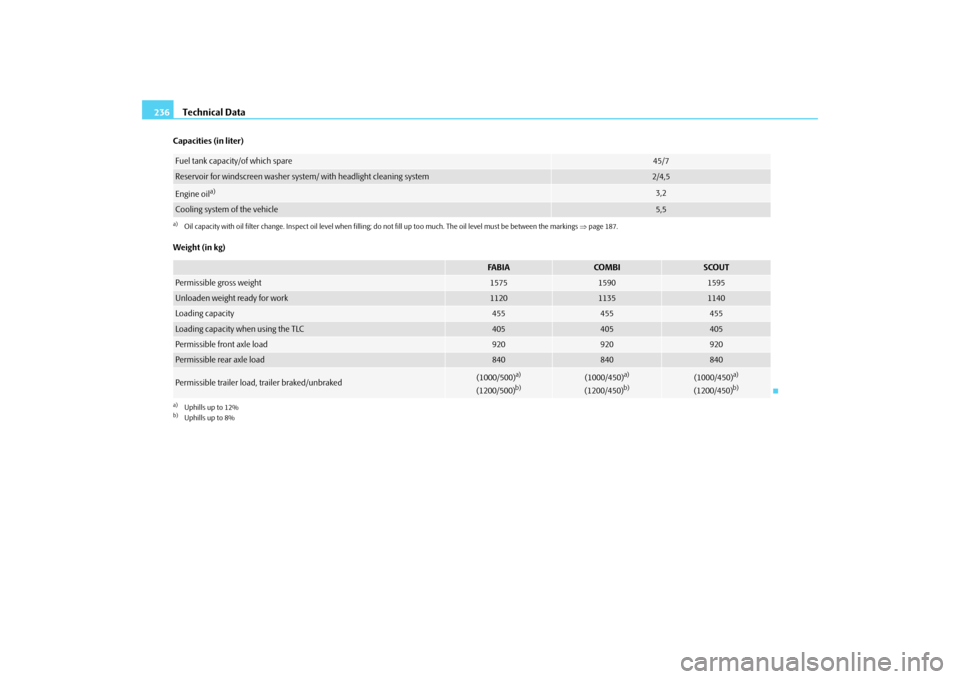

Technical Data 236Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
45/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,2
Cooling system of the vehicle
5,5
FA B I A
COMBI
SCOUT
Permissible gross weight
1575
1590
1595
Unloaden weight ready for work
1120
1135
1140
Loading capacity
455
455
455
Loading capacity when using the TLC
405
405
405
Permissible front axle load
920
920
920
Permissible rear axle load
840
840
840
Permissible trailer load, trailer braked/unbraked
(1000/500)
a)
(1200/500)
b)
a)Uphills up to 12%b)Uphills up to 8%
(1000/450)
a)
(1200/450)
b)
(1000/450)
a)
(1200/450)
b)
s3f4.1.book Page 236 Thursday, June 18, 2009 11:07 AM

Technical Data237
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
1.6 ltr./77 kW - EU 4/EU 2DDKEngine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
77/5600
Maximum torque
Nm per rpm
153/3800
Number of cylinders/Displacement (cm
3)
4/1598
Fuel - unleaded petrol min. RON
95
FA B I A
COMBI
SCOUT
M5
AG6
M5
AG6
M5
AG6
Maximum speed
km/h
190
185
192
186
189
183
Acceleration 0 - 100 km/h
s
10,1
11,5
10,4
11,8
10,4
11,8
M5
AG6
Urban
9,1
10,2
Non-urban
5,6
6,0
Combination
6,9
7,5
CO2 emission - combination
165
180
s3f4.1.book Page 237 Thursday, June 18, 2009 11:07 AM

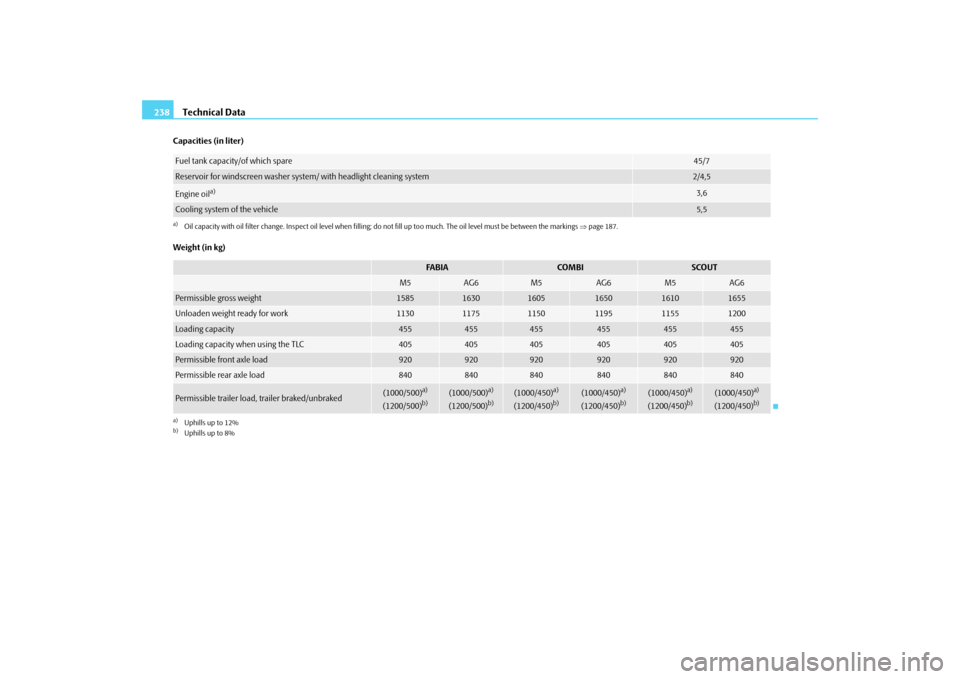

Technical Data 238Capacities (in liter)
Weight (in kg)Fuel tank capacity/of which spare
45/7
Reservoir for windscreen washer system/ with headlight cleaning system
2/4,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 187.
3,6
Cooling system of the vehicle
5,5
FA B I A
COMBI
SCOUT
M5
AG6
M5
AG6
M5
AG6
Permissible gross weight
1585
1630
1605
1650
1610
1655
Unloaden weight ready for work
1130
1175
1150
1195
1155
1200
Loading capacity
455
455
455
455
455
455
Loading capacity when using the TLC
405
405
405
405
405
405
Permissible front axle load
920
920
920
920
920
920
Permissible rear axle load
840
840
840
840
840
840
Permissible trailer load, trailer braked/unbraked
(1000/500)
a)
(1200/500)
b)
a)Uphills up to 12%b)Uphills up to 8%
(1000/500)
a)
(1200/500)
b)
(1000/450)
a)
(1200/450)
b)
(1000/450)
a)
(1200/450)
b)
(1000/450)
a)
(1200/450)
b)
(1000/450)
a)
(1200/450)
b)
s3f4.1.book Page 238 Thursday, June 18, 2009 11:07 AM

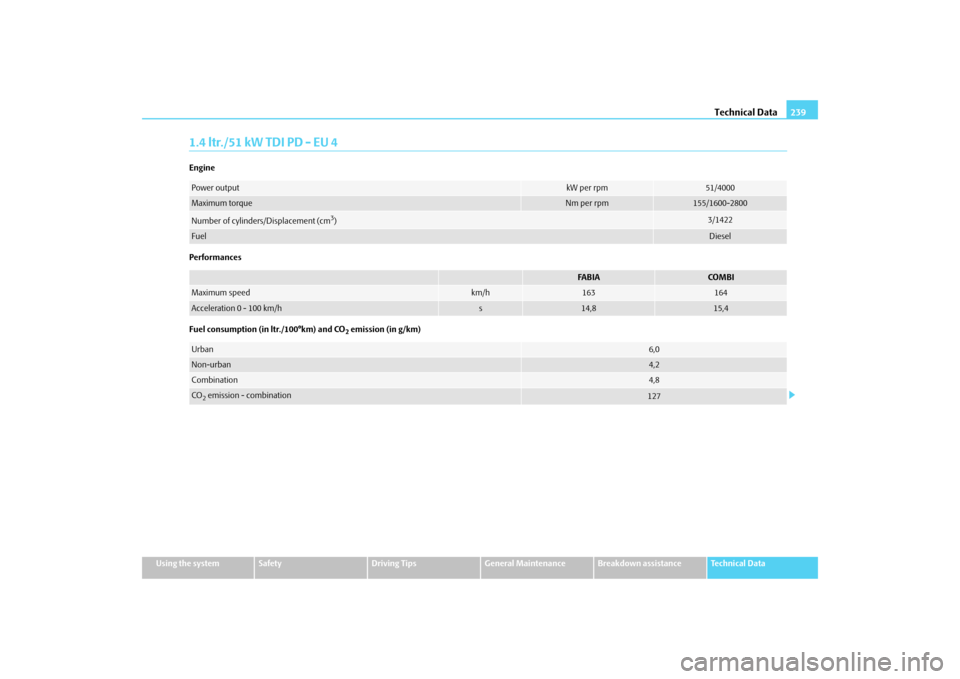

Technical Data239
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
1.4 ltr./51 kW TDI PD - EU 4Engine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
51/4000
Maximum torque
Nm per rpm
155/1600-2800
Number of cylinders/Displacement (cm
3)
3/1422
Fuel
Diesel
FA B I A
COMBI
Maximum speed
km/h
163
164
Acceleration 0 - 100 km/h
s
14,8
15,4
Urban
6,0
Non-urban
4,2
Combination
4,8
CO2 emission - combination
127
