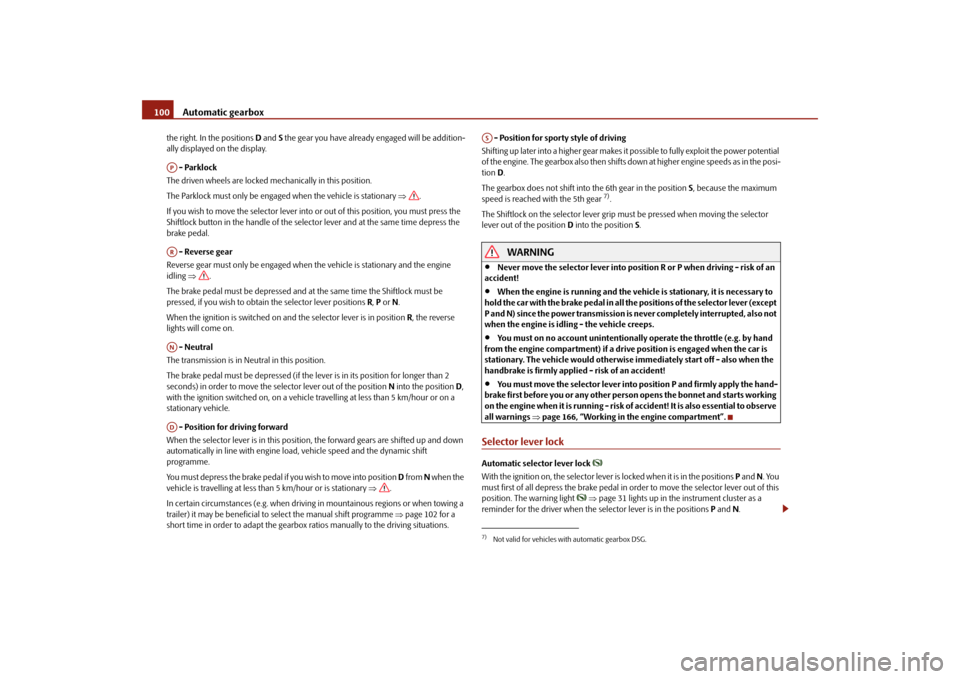

Automatic gearbox
100
the right. In the positions
D and
S the gear you have already engaged will be addition-
ally displayed on the display. - Parklock The driven wheels are locked me
chanically in this position.
The Parklock must only be engage
d when the vehicle is stationary

.
If you wish to move the selector lever into
or out of this position, you must press the
Shiftlock button in the handle of the select
or lever and at the same time depress the
brake pedal. - Reverse gear Reverse gear must only be engaged when the vehicle is stationary and the engine idling

.
The brake pedal must be depressed and at
the same time the Shiftlock must be
pressed, if you wish to obtain the selector lever positions
R, P or N.
When the ignition is switched on an
d the selector lever is in position
R, the reverse
lights will come on. - Neutral The transmission is in Neutral in this position. The brake pedal must be depressed (if the le
ver is in its position for longer than 2
seconds) in order to move the selector lever out of the position
N into the position
D,
with the ignition switched on, on a vehicle travelling at less than 5 km/hour or on a stationary vehicle. - Position for driving forward When the selector lever is in this position
, the forward gears are shifted up and down
automatically in line with engine lo
ad, vehicle speed and the dynamic shift
programme. You must depress the brake pedal if you wish to move into position
D from
N when the
vehicle is travelling at less th
an 5 km/hour or is stationary

.
In certain circumstances (e.g. when driving
in mountainous regions or when towing a
trailer) it may be beneficial to
select the manual shift programme
page 102 for a
short time in order to adapt the gearbox
ratios manually to the driving situations.
- Position for sporty style of driving Shifting up later into a higher gear makes it
possible to fully exploit the power potential
of the engine. The gearbox also then shifts down at higher engine speeds as in the posi-tion
D.
The gearbox does not shift into the 6th gear in the position
S, because the maximum
speed is reached with the 5th gear
7).
The Shiftlock on the selector lever grip mu
st be pressed when moving the selector
lever out of the position
D into the position
S.
WARNING

Never move the selector lever into position R or P when driving - risk of an
accident!
When the engine is running and the vehi
cle is stationary, it is necessary to
hold the car with the brake pedal in all the positions of the selector lever (except P and N) since the power transmission is never completely interrupted, also not when the engine is idling - the vehicle creeps. 
You must on no account unintentionally operate the throttle (e.g. by hand
from the engine compartment) if a driv
e position is engaged when the car is
stationary. The vehicle would otherwise
immediately start o
ff - also when the
handbrake is firmly applied - risk of an accident!
You must move the selector lever into position P and firmly apply the hand-
brake first before you or any other person opens the bonnet and starts working on the engine when it is running - risk of accident! It is also essential to observe all warnings
page 166, “Working in the engine compartment”.
Selector lever lockAutomatic selector lever lock

With the ignition on, the selector lever is locked when it is in the positions
P and
N. You
must first of all depress the brake pedal in or
der to move the selector lever out of this
position. The warning light
 page 31 lights up in the instrument cluster as a
reminder for the driver when the selector lever is in the positions
P and
N.
APARANAD
7)Not valid for vehicles with automatic gearbox DSG.AS
s3j8.a.book Page 100 Tuesday, April 20, 2010 1:10 PM

Automatic gearbox
101
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
A time delay element ensures that the selector lever is not blocked when rapidly switching over the position
N (e.g. from
R to D). This does, for example, allow one to
seesaw out a stuck vehicle. The selector lever lo
ck will click into place if the lever is in
the
N position for more than 2 seconds without the brake pedal being pressed.
The selector lever lock is only active if the
vehicle is stationary or
moving at speed of
less than 5 km/hour. The lock is swit
ched off automatically into position
N when the
car is travelling at a higher speed. Shiftlock button The Shiftlock button in the hand
le of selector lever prevents certain selector lever posi-
tions being engaged inadvertently. The selector lever lock is cancelled when you press the Shiftlock button. Keylock
8)- Ignition key withdrawal lock
You can only withdraw the ignition key after switching off the ignition if the selector lever is in position
P. If the ignition key is withdrawn, the selector lever is blocked in
position
P.
Kickdown function The kickdown function provides you with maximum acceleration power.Fully depressing the accelerator pedal allows
the kickdown function to be activated in
the desired driving program. This function has precedence over the driving programme and serves for maximum acceleration of the vehicle when exploiting the maximum power potential of the engine wi
thout taking into account the current
selector lever position (
D, S or Tiptronic
). The gearbox shifts down to one or several
gears in line with the driving state and the vehicle accelerates. The gearbox does not shift up into the highest gear until the en
gine has reached its maximum revolutions for
this gear range.
WARNING
Please note that using the kickdown function can result in the driven wheels spinning on a smooth or slippery road surface - risk of skidding!
Dynamic shift programmeThe automatic gearbox of your vehicle is
controlled electronically. Shifting up and
down through the gears is performed automatically on the basis of pre-defined driving programmes. Adopting a
moderate style of driving
will cause the gearbox to select the most
economical driving programme. Shifting up into a higher gear as soon as possible and shifting down as late as po
ssible will have a favourable effect on your fuel consump-
tion. Adopting a
sporty style of driving
with rapid movements of the accelerator pedal
combined with sharp acceleration and freque
nt changes in speed, exploiting the top
speed of the car or depressing the accele
rator pedal (kickdown function), will cause
the gearbox to switch over to this style of driving and shift down earlier with frequent changes in gears in comparison to the moderate style of driving. Selecting the most appropriate driving programme for the particular style of driving is a continuous process. Irrespective of this it is, however, possible to switch or shift down into a dynamic shift programme by depressi
ng the accelerator rapidly. The gearbox
shifts down into a lower gear matching the speed of the car and this allows you to accelerate rapidly (e.g. when overtaking)
without having to depress the accelerator
pedal fully into the kickdown range. The or
iginal programme will be reactivated to
match your particular styl
e of driving once the gearbox has shifted up again.
When driving in hilly regions, the gears are selected to match uphill and downhill sections. This avoids the gearbox frequently
shifting up and down when negotiating an
uphill stretch. When driving downhill, it is
possible to shift do
wn into the Tiptronic
position, in order to exploit the engine brake torque.
8)Only valid for some countries.
s3j8.a.book Page 101 Tuesday, April 20, 2010 1:10 PM

Automatic gearbox
102

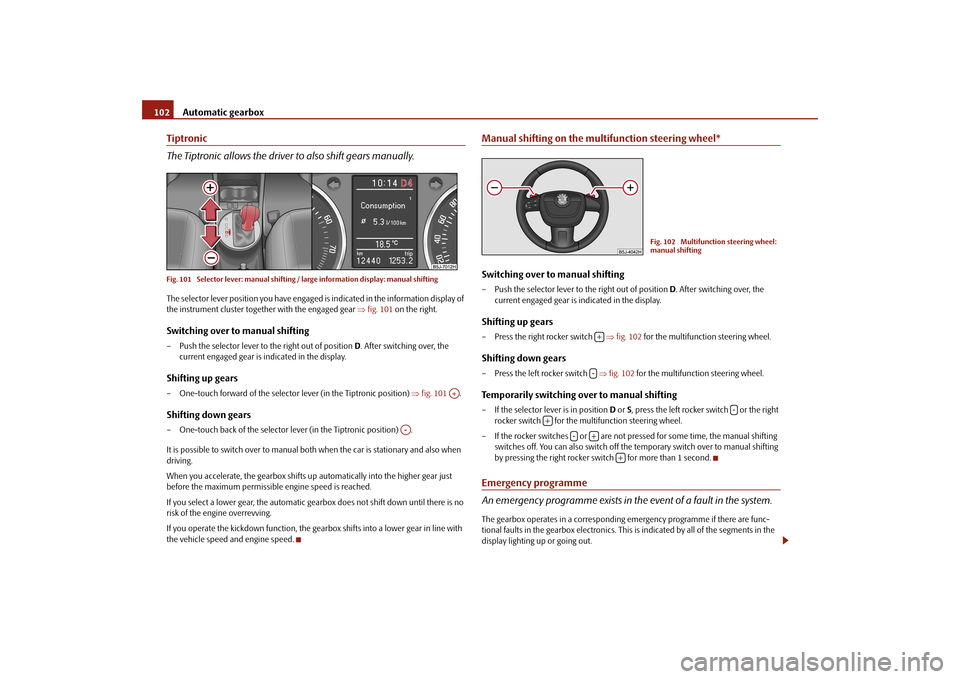

Tiptronic The Tiptronic allows the driver
to also shift gears manually.
Fig. 101 Selector lever: manual shifting / large information display: manual shiftingThe selector lever position you have engaged is indicated in the information display of the instrument cluster together with the engaged gear
fig. 101
on the right.
Switching over to manual shifting– Push the selector lever to the right out of position
D. After switching over, the
current engaged gear is indicated in the display.
Shifting up gears– One-touch forward of the selector
lever (in the Ti
ptronic position)
fig. 101
.
Shifting down gears– One-touch back of the selector lever (in the Tiptronic position) . It is possible to switch over to manual both
when the car is stat
ionary and also when
driving. When you accelerate, the gearbox shifts up
automatically into the higher gear just
before the maximum permissible engine speed is reached. If you select a lower gear, the automatic gearbox does not shift down until there is no risk of the engine overrevving. If you operate the kickdown function, the gearbox shifts into a lower gear in line with the vehicle speed and engine speed.
Manual shifting on the multifunction steering wheel*Switching over to manual shifting– Push the selector lever to the right out of position
D. After switching over, the
current engaged gear is indicated in the display.
Shifting up gears– Press the right rocker switch
fig. 102
for the multifunction steering wheel.
Shifting down gears– Press the left rocker switch
fig. 102
for the multifunction steering wheel.
Temporarily switching over to manual shifting– If the selector lever is in position
D or S, press the left rocker switch or the right
rocker switch for the multifunction steering wheel.
– If the rocker switches or are not pr
essed for some time, the manual shifting
switches off. You can also switch off the
temporary switch over to manual shifting
by pressing the right
rocker switch for more than 1 second.
Emergency programme An emergency programme exists in the event of a fault in the system.The gearbox operates in a corresponding emergency programme if there are func- tional faults in the gearbox electronics. This
is indicated by all of
the segments in the
display lighting up or going out.
A+
A-
Fig. 102 Multifunction steering wheel: manual shifting
+-
-
+
-
+
+
s3j8.a.book Page 102 Tuesday, April 20, 2010 1:10 PM

Automatic gearbox
103
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
A functional fault can have the following effect:
The gearbox only shifts into certain gears.

The reverse gear
R cannot be used.

The manual shift programme (Tiptronic) is switched off in the emergency mode.
If the gearbox has switch
ed over to emergency mode, drive to the nearest
specialist garage in order to have the fault rectified.Selector lever-emergency unlockingIn case of interruption of the power supply (e
.g. flat vehicle battery, defective fuse) or
defect of the selector lever lock, the select
or lever can no longer be shifted from the
position
P in the normal way and the vehicle ca
n no longer be moved. The selector
lever must be unlocked in case of emergency. – Apply the handbrake firmly.– Carefully pull up the front left and right cover.– Pull up rear cover.– Use the finger to press the yellow plastic part downwards
fig. 103
.
– Simultaneously press the shiftlock button in
the handle of the selector lever in the
position
N9).
Tow-starting and towing vehicle Tow-starting a vehicle It is not possible to tow-start or push-sta
rt vehicles fitted wi
th automatic gearbox.
you can use jump-start
cables connected to the battery of another vehicle for starting
your car if the vehicle battery is flat
page 190.
Towing a vehicle Please pay attention to the following information if it comes necessary to tow-in your car
page 192.
9)If the selector lever is moved again into the position
P, it is once again blocked.Fig. 103 Selector lever-emergency unlocking
s3j8.a.book Page 103 Tuesday, April 20, 2010 1:10 PM

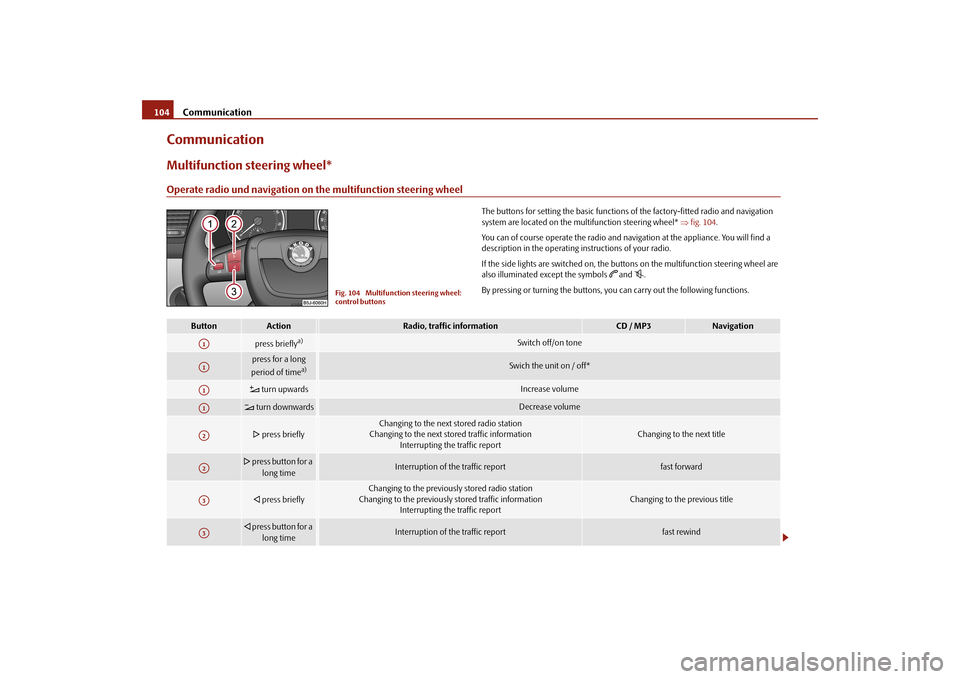

Communication
104
CommunicationMultifunction steering wheel*Operate radio und navigation on the multifunction steering wheel
The buttons for setting the basic functions of
the factory-fitted radio and navigation
system are located on the multifunction steering wheel*
fig. 104
.
You can of course operate the radio and navi
gation at the appliance. You will find a
description in the operating instructions of your radio. If the side lights are switched on, the buttons on the multifunction steering wheel are also illuminated except the symbols
 and
.
By pressing or turning the buttons, yo
u can carry out the following functions.
Fig. 104 Multifunction steering wheel: control buttons
Button
Action
Radio, traffic information
CD / MP3
Navigation
press briefly
a)
Switch off/on tone
press for a long period of time
a)
Swich the unit on / off*

 turn upwards
Increase volume

 turn downwards
Decrease volume

 press briefly
Changing to the next
stored radio station
Changing to the next stored traffic information
Interrupting the traffic report
Changing to the next title

 press button for a
long time
Interruption of the traffic report
fast forward

 press briefly
Changing to the previously stored radio station Changing to the previously stored traffic information
Interrupting the traffic report
Changing to the previous title

 press button for a
long time
Interruption of the traffic report
fast rewind
A1A1A1A1A2A2A3A3
s3j8.a.book Page 104 Tuesday, April 20, 2010 1:10 PM

Communication
105
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The buttons apply for the respective operating mode of the current radio or navigation system.
Note

The loudspeakers in the vehicle are matched to a power output of the radio and
navigation system of 4x 20°W.
For the equipment sound system*, the loudspeakers are matched to a power
output of the amplifier of 4x40°W + 6x20 W.Mobile phones and tw
o-way radio systems
The installation of a mobile phone and two-way radio system in a vehicle should be carried out by a specialist garage. Mobile phones send and receive radio wave
s during a conversation as well as in
standby mode. Radio waves can be harmful
to the human body if their frequency
exceeds certain limit values. Škoda Auto permits the operation of mobile
phones and two-way radio systems with
a professionally installed external aerial and a maximum transmission power of up to 10 watts. It is essential that you inform a specialist garage about the possibilites to assemble and operate mobile phones and two-way radio sets which have a power output of more than 10 W. They will inform you which technical possibilities exist for retrofitting mobile phones. When using a mobille phone inside the vehicl
e, which is not inserted into the phone
adapter, and thus has no connection to the
external aerial, the electromagnetic radia-
tion can exceed the current limit value. We therefore recommend to operate a mobile phone in the vehicle only when it is conne
cted to an external aerial via the phone
adapter. This improves the quality of the connection. Operation of mobile phones or two-way ra
dio systems may interfere with functioning
of the electronic systems of your vehicle. The reasons for this may be:
no external aerial,

external aerial incorrectly installed,

transmission power gr
eater than 10 watts.
WARNING

If a mobile phone or a two-way radio
system is operated in the vehicle
without using a special external aerial
or an external aerial which has been
incorrectly installed, this can increase
the strength of the electromagnetic field
in the interior of the vehicle.
Please concentrate fully at
all times on your driving!

You must not install two-way radio systems, mobile phones or mounts on
the covers of the airbags or within the immediate deployment range of airbags. This might result in injuries to the
occupants in the event of an accident.

Never leave a mobile phone on a seat, on
the dash panel or in another area,
from which it can be thrown during a sudden braking manoeuver, an accident or a collision. In this case, the occupants of the vehicle might be injured.
Note
Observe the country-specific regulations for the use of mobile phones in vehicles.Universal telephone preinstallation GSM II*IntroductionThe universal telephone preinstallation GSM
II is a built-in “hands-free system”, it
provides a voice operated convenience mode via the multifunction steering wheel* or the navigation system*. All communication between a telephone and
the hands-free system of your vehicle
can only be established with the help of the Bluetooth
® technology. The adapter*
serves only for charging the telephone and fo
r transmitting the signal to the external
aerial of the vehicle.
a)On vehicles which are equipped with the universal telephone prei
nstallation GSM II, pressing the button only allows to operate
the telephone.
A1
s3j8.a.book Page 105 Tuesday, April 20, 2010 1:10 PM

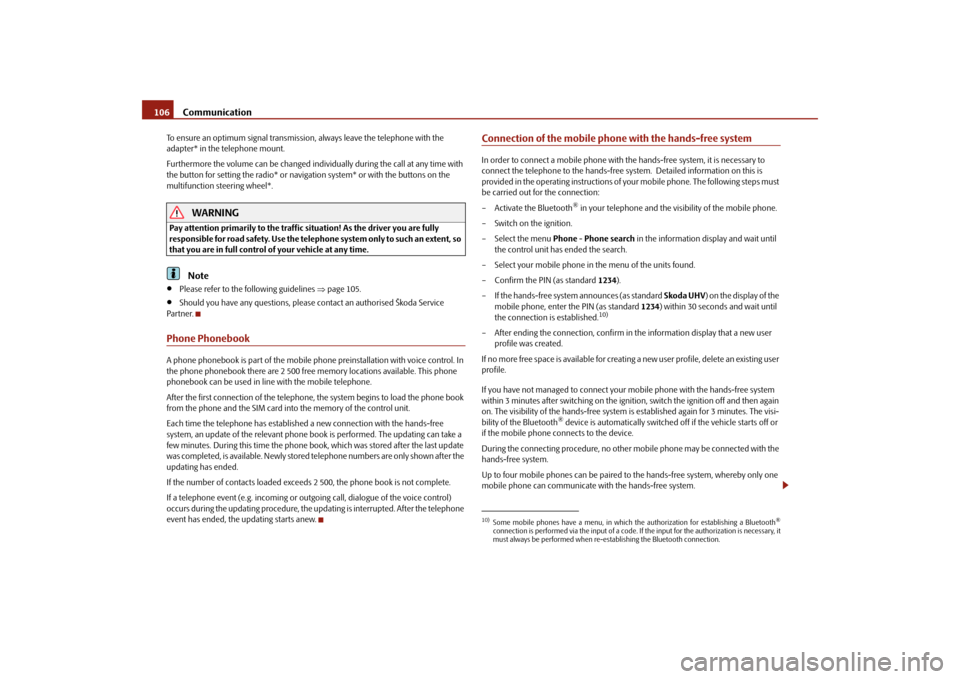

Communication
106
To ensure an optimum signal transmission, always leave the telephone with the adapter* in the telephone mount. Furthermore the volume can be changed indivi
dually during the call at any time with
the button for setting the radio* or navigation system* or with the buttons on the multifunction steering wheel*.
WARNING
Pay attention primarily to the traffic situation! As the driver you are fully responsible for road safety. Use the teleph
one system only to such an extent, so
that you are in full control of your vehicle at any time.
Note

Please refer to the following guidelines
page 105.

Should you have any questions, please
contact an authorised Škoda Service
Par tner.Phone PhonebookA phone phonebook is part of the mobile ph
one preinstallation with voice control. In
the phone phonebook there are 2 500 free memory locations available. This phone phonebook can be used in line
with the mobile telephone.
After the first connection of the telephone, the system begins to load the phone book from the phone and the SIM card into the memory of the control unit. Each time the telephone has establishe
d a new connection with the hands-free
system, an update of the relevant phone b
ook is performed. The updating can take a
few minutes. During this time the phone book, which was stored after the last update was completed, is available. Newly stored telephone numbers are only shown after the updating has ended. If the number of contacts loaded exceed
s 2 500, the phone book is not complete.
If a telephone event (e.g. incoming or outgoing call, dialogue of the voice control) occurs during the updating pr
ocedure, the updating is interrupted. After the telephone
event has ended, the updating starts anew.
Connection of the mobile phone with the hands-free systemIn order to connect a mobile phone with th
e hands-free system, it is necessary to
connect the telephone to the hands-free sy
stem. Detailed information on this is
provided in the operating instructions of your mobile phone. The following steps must be carried out for the connection: – Activate the Bluetooth
® in your telephone and the visibility of the mobile phone.
– Switch on the ignition.– Select the menu
Phone
- Phone search
in the information display and wait until
the control unit has ended the search.
– Select your mobile phone in the menu of the units found.–Confirm the PIN (as standard
1234
).
– If the hands-free system
announces (as standard
Skoda UHV
) on the display of the
mobile phone, enter the PIN (as standard
1234
) within 30 seconds and wait until
the connection is established.
10)
– After ending the connection, confirm in the information display that a new user
profile was created.
If no more free space is available for creating a new user profile, delete an existing user profile. If you have not managed to
connect your mobile phone with the hands-free system
within 3 minutes after switching on the ignition, switch the ignition off and then again on. The visibility of the hands-free system is established again for 3 minutes. The visi- bility of the Bluetooth
® device is automatically switched
off if the vehicle starts off or
if the mobile phone connects to the device. During the connecting procedure, no other
mobile phone may be connected with the
hands-free system. Up to four mobile phones ca
n be paired to the hands-fr
ee system, whereby only one
mobile phone can communicate
with the hands-free system.
10)Some mobile phones have a menu, in which the authorization for establishing a Bluetooth
®
connection is performed via the input of a code. If the input for the authorization is necessary, it must always be performed when re-e
stablishing the Bluetooth connection.
s3j8.a.book Page 106 Tuesday, April 20, 2010 1:10 PM

Communication
107
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Connection with an already paired mobile phone After switching on the ignition, the connect
ion is automatically established for the
already paired mobile phone
10). Check on the mobile unit if the automatic connection
was established. Disconnecting the connection
By withdrawing the ignition key.

By disconnecting the device in the information display.

By disconnecting the device in the mobile phone.
Solving connection problems If the system announces
No paired phone found
, check the operating state of the
telephone:
Is the telephone switched on?

Is the PIN code entered?

Is Bluetooth
® active?

Is the visibility of the mobile phone active?

Was the telephone already paired with the hands-free system?
WARNING
In the event of air transport, the Bluetooth
® function of the hands-free system
must be switched off by a specialist garage!
Note

Not valid for all mobile phones which enable a communication via Bluetooth
®.
You can ask at an authorised Škoda Service Partner if your telephone is compatible with the universal telephone preinstallation GSM II.
Please operate your mobile phone exclusiv
ely with a suitable adapter in order to
keep a low radiation in the vehicle.
Inserting the mobile phone into the adapter ensures an optimal sending and
receiving power and offers at the same ti
me the advantage of the battery charging.

The range of the Bluetooth
® connection to the hands-free system is restricted to
the vehicle interior. The range is dependent on local factors, e.g. obstacles between the
devices and mutual interferences with other de
vices. If your mobile phone is e.g. in a
jacket pocket, this can lead to diffic
ulties when establishing the Bluetooth
® connection
with the hands-free system or the data transfer.Inserting the mobile phone with the adapter*Only one telephone mount* is factory-fitted. An adapter for the telephone can be purchased from the range of the Škoda original accessories.Inserting the mobile phone with the adapter– First of all push the adapter in the direction of arrow
fig. 105
up to the stop
into the mount. Press the adapter slightly downwards, until it locks securely into position.
– Insert the mobile phone into the adap
ter (as specified in manufacturer's
instructions).
Removing the mobile phone with the adapter– Press simultaneouly the side locks of the mount and remove the mobile phone and
adapter
fig. 105
.
Caution
Taking the mobile phone out of the adapter du
ring the call can lead to interruption of
the connection. When taking out the mobi
le phone, the connection to the factory-
fitted antenna is interrupted, this reduces the quality of the transmitting and receiving signal. The charging of the mobile
phone battery is also interrupted.
Fig. 105 Universal preparation for the phone
AA
AA
s3j8.a.book Page 107 Tuesday, April 20, 2010 1:10 PM

Communication
108
Operating telephone calls with the aid of the adapter*.Fig. 106 Illustration image: Single
-button adapter / two-button adapter
The voice control of the telephone is acti
vated by briefly pressing the PTT button

(push to talk) on the adapter*
fig. 106
.
Aside from the PTT button, the SOS button
can be found on certain adapters* on the
right
fig. 106
. After pressing the button for 2 seconds, the number 112 (Emergency
call) is dialed.
Note
The adapters illustrated
are only prime examples.
Operation of the telephone on the multifunction steering wheel*
The driver can set the basic functions of th
e telephone by simply operating the buttons
located on the steering wheel so that he can concentrate on the traffic situation without being distracted as little as
possible by operating the telephone
fig. 107
.
This applies only if your vehicle has been equipped with the telephone preinstallation at the factory. If the side lights are switched on, the buttons on the multifunction steering wheel are also illuminated except the symbols
 and
.
Overview of the functions of the multifunction steering wheel with mobile phone operation:
Fig. 107 Multifunction steering wheel: Mobile phone operation
Button
Action
Operation

 press briefly
Accept call, end call, entry in
the main menu of the telephone, list of
the dialed numbers, deactivate voice control

 press button for a long
time
Activate voice control (PTT button - Push to talk),
reject call

 turn upwards
Increase volume

 turn downwards
Decrease volume
A1A1A1A1
s3j8.a.book Page 108 Tuesday, April 20, 2010 1:10 PM

Communication
109
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The buttons operate the functions for the operating mode of the current telephone.Operate the telephone via the information display*The display of texts in the menu
Phone
is possible in the following languages:
Czech, English, German, French, Italia
n, Spanish, Russian and Portuguese.
In the menu
Phone
you can select the following menu points:

Phone book

Dial number

Call register

Voice mailbox

Bluetooth

Settings

Back
Phone book In the menu point
Phone book
is the list of the loaded contacts from the telephone
memory and the SIM card of the mobile phone. In the phone phonebook there are 2 500 free memory locations available. Dial number In the menu point
Dial number
, you can write any telephone number. Select in
sequence the desired digits with the aid of
the handwheel and confirm it by pressing
the handwheel. You can select the numbers
0 - 9
, the symbols
+, , # and the func-
tions
Delete, Call, Cancel
.
Call register In the menu point
Call register
, you can select the following menu points:

Missed calls

Received calls

Last calls
Voice mailbox In the menu
Voice mailbox
, it is possible to set the number of the voice mailbox and
then dial the number. Bluetooth In the menu
Bluetooth
you can select the following menu points:

User
- the overview of the stored users

New user
- Search for new telephones which are in the reception range

Visibility
- Switching on the visibility of
the telephone unit for other devices

Media player
Active device

Paired devices

Search

Phone name
- the possibility to change the name of the telephone unit (pre-set
SKODA UHV) Settings In the menu
Settings
you can select the following menu points:

Phone book
Update

List
Surname

First name

Ring tone
Back Return in the basic menu of the telephone.
Note
The readout of the menu
Phone
and the voice control are no
t possible in the Chinese
language.
s3j8.a.book Page 109 Tuesday, April 20, 2010 1:10 PM
