SKODA FABIA 2010 2.G / 5J Service Manual
Manufacturer: SKODA, Model Year: 2010, Model line: FABIA, Model: SKODA FABIA 2010 2.G / 5JPages: 244, PDF Size: 29.53 MB
Page 41 of 244
Unlocking and locking
40 Locking– Remove the panel
page 39, fig. 28
.
– Insert the key into the opening under the panel and press the stopping lever as
far as the stop toward the inside.
– Re-insert the panel. After closing the door, you can no
longer open it from outsid
e. If the child safety lock
is not switched on, it is possible to open
the door from the inside by pulling twice on
the door opening lever. If the child safety lock
is activated (only on the rear doors), first
of all it is necessary to pull once on the in
ner door handle and then open the door from
the outside.Boot lid*Fig. 29 Unlock the boot lid / handle of the boot lidOpening the boot lid–
On vehicles with central locking
unlock the boot lid by pressing the button on the
driver door
fig. 29
.
On vehicles with central locking
unlock the boot lid by pressing the hand grip above
the licence plate.Closing the boot lid– Pull the boot lid down and cl
ose it with a slight swing
.
A handle which makes the closing easier is located on the inner paneling of the boot lid.
WARNING
Ensure that the lock is properly enga
ged after closing the boot lid. Other-
wise, the boot lid might open suddenly when
driving even if the boot lid lock is
closed - risk of accident!
Never drive with the boot lid fully open
ed or slightly ajar otherwise exhaust
gases may get into the interior of the vehicle - risk of poisoning!
Do not press on the rear window when closing the boot lid, it could crack -
risk of injury!
Note
After closing the boot lid, it is automatically locked within 1 seconds and the
anti-theft alarm system* is activated.
This applies only if
the vehicle was locked
before closing the boot lid.
The function of the hand grip above the li
cence plate is deactivated when starting
off or as of a speed of more than 6 km/hour
for vehicles with central locking. The func-
tion of the hand grip is activated again
when the vehicle has stopped and a door is
opened.Emergency unlocking of the boot lidIf there is a fault in the central locking, you can open the boot lid as follows:
AA
AB
Fig. 30 Emergency unlocking of the boot lid
s3j8.a.book Page 40 Tuesday, April 20, 2010 1:10 PM
Page 42 of 244
Unlocking and locking
41
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Fold one of the outer rear seats forwards. – Move the operating lever with the aid of a
narrow object, e.g. a screwdriver, up to
the stop in the direction of arrow
page 40, fig. 30
and then unlock in the
direction of arrow .
– Open the boot lid from the outside.Remote control*DescriptionYou can use the remote control:
to unlock and lock the vehicle;
unlocking boot lid.
The transmitter with the battery is incorporat
ed in the handle of the master key. The
receiver is located in the interior of the car. The operating range of the remote control key is approx. 10 m. But this range can be reduced if the batteries are weak. The master key has a fold-open key bit which can be used for unlocking and locking the car manually and also for starting the engine. If a lost key is replaced or if the receiver unit has been repaired or a new unit installed, it is then necessary for a specialist garage to adapt the system. Only after this is it possible to again use the remote control.
Note
The remote control is automatically deactivated when the ignition is switched on.
The operation of the remote control may temporarily be affected by interference
from transmitters close to th
e car and which operate in the same frequency range (e.g.
mobile phone, TV transmitter).
The battery must be replaced if the centra
l locking or anti-theft alarm system does
not react to the remote control at less th
an 3 metres away. We recommend having the
battery replaced by
a specialist garage.
Unlocking and locking the vehicleUnlocking the vehicle
– Press the button
fig. 31
for about 1 second.
Locking the vehicle
– Press button for about 1 second.Deactivating safe securing system– Press button twice in 2 seconds. Further information
page 37.
Boot lid remote release
– Press button for about 1 second
fig. 31
.
Folding out of the key– Press button .Folding up of the key– Press button and collapse the key bit in the housing. The turn signal lights flash twice as confir
mation that the vehicl
e has been unlocked.
The vehicle will lock again automatically if
you unlock the vehicle using button but
do not open a door or the boot lid within th
e next 30 seconds. This
function is intended
to prevent the car being unlocked unintentionally.
A1
A2
Fig. 31 Remote control key
A1
A3A3A2A4A4
A1
s3j8.a.book Page 41 Tuesday, April 20, 2010 1:10 PM
Page 43 of 244
Unlocking and locking
42The safe securing system along with the anti-theft alarm system* are, however, deac- tivated during these 30 seconds. When the vehicle is unlocked or locked, the interior lights in the door contact are auto- matically switched on or off. Display of the locking The turn signal lights flash once to confir
m that the vehicle has been correctly locked.
If the vehicle is locked by pr
essing the button and some doors or the boot lid are
not closed, the turn signal lights flash only after closing.
WARNING
If the vehicle is locked from the outside and the safe securing system is acti-vated, there must not be any person in the vehicle as it is then not possible to open either a door or a window from the inside. The locked doors make it more difficult for rescuers to get into th
e vehicle in an emergency - hazard!
Note
Operate the radio remote control only when
the doors and boot lid are closed and
you have visual contact with the vehicle.
Once in the vehicle, you must not press the lock button
of the master key before
inserting the key into the ignition lock in
order to avoid the vehicle being inadvertently
locked and the anti-theft alarm system* being switched on. Should this happen, press the unlock button
of the master key.
Syncronisation of the remote controlIf the vehicle cannot be unlocked by actuatin
g the remote control system then it is
possible that the code in the key and the co
ntrol unit in the vehicle are no longer
synchronised. This can occur when the buttons on the radio-operated key are actuated a number of times outside of the operative
range of the equipment or the battery on
the remote control was replaced. This means it is necessary to
synchronise the code as follows:
press any button on the remote control;
pressing of the button means that the door will unlock with the key within 1
minute.Anti-theft alarm system*DescriptionThe anti-theft alarm system increases the level of protection against people seeking to break into the vehicle. The system triggers audible and visual warning signals if an attempt is made to break into the vehicle. How is the alarm
system activated?
The anti-theft alarm system is activated au
tomatically when the
unlocked vehicle is
locked with the key inserted in the driver's
door or with the remote control key. It is
activated 30 seconds after locking the door. How is the alarm system deactivated? The anti-theft alarm system is deactivated if
the vehicle is unlocked by only using the
radio remote control. The anti-theft alarm system is reactivated if the vehicle is not opened within 30 seconds after transmitting the radio signal. Once you unlock the vehicle by inserting the ke
y into the driver door you then have to
insert the key into the ignition lock and sw
itch the ignition on within 15 seconds after
opening the door in order to deactivate the anti-theft alarm system. The
alarm will be
triggered
if you do
not switch on
the ignition within 15 seconds.
When is the alarm triggered? The following security areas of
the locked vehicle are monitored:
bonnet;
boot lid;
doors;
ignition lock;
vehicle interior*
page 43;
Angle of the vehicle*
page 43;
Decoupling of the attached trailer;
A3
s3j8.a.book Page 42 Tuesday, April 20, 2010 1:10 PM
Page 44 of 244
Unlocking and locking
43
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
A drop in voltage of the on-board power supply.
An alarm is immediately triggered if either of the two battery terminals is disconnected while the anti-theft alarm system is activated. How is the alarm switched off? You switch the alarm off if you unlock the vehi
cle with the radio remote control or if you
switch the ignition on.
Note
The working life of the alarm siren is 5 years. More detailed information is available
by a specialist garage.
Before leaving the car, check that all the doors, windows and the electric
sliding/tilting roof* are properly closed in order to ensure that the anti-theft alarm system is fully operational.
Coding of the radio remote control and th
e receiver unit precludes the use of the
radio remote control from other vehicles.Interior monitor* and Towi
ng protection monitoring*
The interior monitor and the towing protection monitoring detect movements inside the vehicle interior and then trigger the alarm.The interior monitor and the towing protec
tion monitoring are operated with the
button
. You can switch the interior monitor
and the towing protection monitoring
off if there is a possibility that movements from (e.g. children or animals) inside the
vehicle interior or if the vehi
cle must be transported (e.g. by train or ship) or towed,
might trigger the alarm.Switch off the interior monitor and towing protection monitoring– Switch off the ignition. – Open the driver door.– Press the button
on the driver door
fig. 32
.
– Lock the vehicle within 30 seconds. The in
terior monitor and the towing protection
monitoring are switched off.
The interior monitor and the towing protec
tion monitoring are switched on again
automatically the next ti
me the car is locked.
Note
You can also switch off the interior moni
tor and the towing protection monitoring,
by deactivating the sa
fe securing system
page 38.
When the ignition key is removed or a door is opened, the symbol in the button
lights up red.
Lighting up of the symbol in the button
does not confirm that the interior monitor
and the towing protection mo
nitoring are switched on.
Fig. 32 Interior monitor pushbutton
s3j8.a.book Page 43 Tuesday, April 20, 2010 1:10 PM
Page 45 of 244
Unlocking and locking
44Electrical power windows*Buttons for electrical power windowsFig. 33 Buttons on the driver's door / Buttons on the rear doorsThe power windows operate only when ignition is switched on.Opening a window– A window is opened by pressing lightly on
the respective button in the door. The
process stops when one releases the button.
– Additionally you can open the window auto
matically (fully opened) by pressing the
button up to the stop. Renewe
d pressing of the button causes the window to stop
immediately.
Closing a window– A window is closed through pulling lightly on the respective button in the door. The
closing process stops when
one releases the button.
– Additionally you can close the window auto
matically (fully clos
ed) by pulling the
button up to the stop. Renewed pulling of the button causes the window to stop immediately.
The buttons for the individual windows are located in the operating part of the armrest of the driver's door
fig. 33
, front passenger door and on the rear doors*.
Buttons for the power windows in the armrest for the driver Button for the power window in the driver's door
Button for the power window in the front passenger's door Button for the power window in the rear door on the right* Button for the power window in the rear door on the left* Safety pushbutton* Safety pushbutton* You can deactivate the buttons for power wind
ows at rear doors by pressing the safety
pushbutton
fig. 33
. The buttons for power windows at rear doors are activated
again by pressing
the safety pushbutton again.
If the buttons for the rear doors are deactivated, the indicator light
in the safety
switch lights up.
WARNING
If you lock the vehicle from the outside, do not leave any person in the
vehicle since it is no longer possible to open the windows from the inside in an emergency.
The system is fitted with a force limiter
page 45. If there is an obstacle, the
closing process is stopped and the window goes down by several centimeters. You should then take particular care when closing the windows! You may otherwise suffer severe injuries as a re
sult of getting an arm, for example,
jammed in the window!
Caution
It is recommended to deactivate the electr
ically operated power windows in the rear
doors (safety pushbutton)
fig. 33
when children are being transported on the
rear seats.
Note
In the event of a freezing up of the windscreen, first of all eliminate the ice
page 157
and then operate the power windows otherwise the power window mechanism could be damaged.
AA
ABACADAS
AS
AS
AS
AS
s3j8.a.book Page 44 Tuesday, April 20, 2010 1:10 PM
Page 46 of 244
Unlocking and locking
45
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
After switching the ignition off, it is still possible to open or close the windows for a
further 10 minutes. The power windows are
switched off completely once you open
the driver or front passenger door.
When driving always use the existing he
ating, air conditioning and ventilation
system for ventilating the interior of the vehicle. If the windows are opened, dust as well as other dirt can get into the vehicle
and in addition the wind noise is more at
certain speeds.Force limiter of the power windowsThe electrically operated power windows are fitted with a force limiter. It reduces the risk of bruises or injuries when closing the windows. If there is an obstacle, the closing process is stopped and the window goes down by several centimeters. If the obstacle prevents the window from being closed during the next 10 seconds, the closing process is interrupted once agai
n and the window goes down by several
centimeters. You must try to close the window once agai
n within 10 seconds after the window has
gone down twice, even if the obstacle was not yet removed, the closing process is stopped. During this time it is not poss
ible to automatically
close the window. The
force limiter is still switched on. The force limiter is only switched off, if yo
u attempt to close the window within the next
10 seconds -
the window closes now with full strength!
If you wait longer than 10 seconds, the force limiter is switched on again.
WARNING
You should take particular care when closing the windows! You may otherwise suffer severe injuries as a result of getting an arm, for example, jammed in the window!Window convenience operationYou can open and close the electrically po
wered windows as follows when unlocking
and locking the vehicle (only close the sliding/tilting roof):
Opening a window– Hold the key in the locking cylinder of the
driver's door in the
unlock position or
press the unlock button of the radio re
mote control until all the windows are
opened.
Closing a window– Hold the key in the locking cylinder of the driver's door in the lock position or press
the lock button of the radio remote co
ntrol until all the windows are closed.
You can interrupt the opening or closing
operation of the windows immediately by
releasing the key or the lock button.
WARNING
The system is fitted with a force limiter
page 45. If there is an obstacle, the
closing process is stopped and the window goes down by several centimeters. You should then take particular care when closing the windows! You may otherwise suffer severe injuries as a re
sult of getting an arm, for example,
jammed in the window!Operational faultsElectrically operated powe
r windows do not operate
If the battery of the car has been disconnect
ed and then reconnected, the electrically
operated power windows do not operate. Th
e system must be activated. Proceed as
follows in order to re-establish the function:
Switch on the ignition,
slightly pull on the upper edge of the rele
vant button and hold it until the window
is closed,
release the switch,
you must pull the respective switch again in upward direction for approx. 3
seconds.
s3j8.a.book Page 45 Tuesday, April 20, 2010 1:10 PM
Page 47 of 244
Unlocking and locking

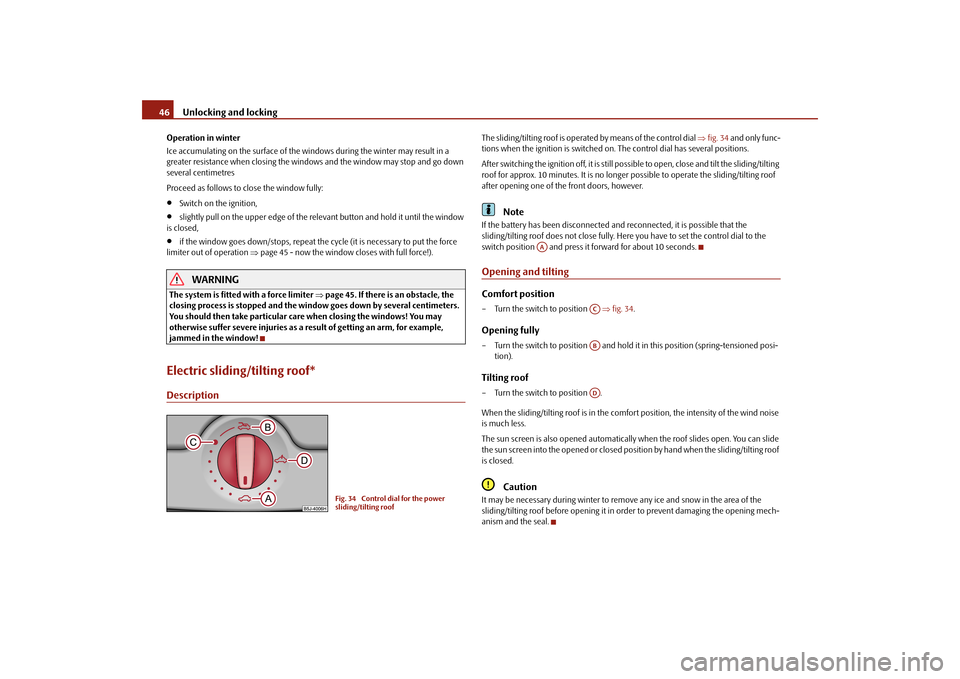

46Operation in winter Ice accumulating on the surface of the wi
ndows during the winter may result in a
greater resistance when closing the windows and the window may stop and go down several centimetres Proceed as follows to close the window fully:
Switch on the ignition,
slightly pull on the upper edge of the rele
vant button and hold it until the window
is closed,
if the window goes down/stops, repeat th
e cycle (it is necessary to put the force
limiter out of operation
page 45 - now the window closes with full force!).
WARNING
The system is fitted with a force limiter
page 45. If there is an obstacle, the
closing process is stopped and the window
goes down by several centimeters.
You should then take particular care when closing the windows! You may otherwise suffer severe injuries as a re
sult of getting an arm, for example,
jammed in the window!Electric sliding/tilting roof*Description
The sliding/tilting roof is operated by means of the control dial
fig. 34
and only func-
tions when the ignition is switched on. The control dial has several positions. After switching the ignition off, it is still poss
ible to open, close and
tilt the sliding/tilting
roof for approx. 10 minutes. It is no longer possible to operate the sliding/tilting roof after opening one of the front doors, however.
Note
If the battery has been disc
onnected and reconnected, it is possible that the
sliding/tilting roof does not close fully. He
re you have to set the control dial to the
switch position and press it forward for about 10 seconds.Opening and tiltingComfort position– Turn the switch to position
fig. 34
.
Opening fully– Turn the switch to position and hold it
in this position (spring-tensioned posi-
tion).
Tilting roof– Turn the switch to position . When the sliding/tilting roof is in the comfort position, the intensity of the wind noise is much less. The sun screen is also opened automatically when the roof slides open. You can slide the sun screen into the opened or closed position by hand when the sliding/tilting roof is closed.
Caution
It may be necessary during winter to remove any ice and snow in the area of the sliding/tilting roof before opening it in
order to prevent damaging the opening mech-
anism and the seal.
Fig. 34 Control dial for the power sliding/tilting roof
AA
ACABAD
s3j8.a.book Page 46 Tuesday, April 20, 2010 1:10 PM
Page 48 of 244
Unlocking and locking
47
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
ClosingSliding closed/closing the sliding/tilting roof– Turn the switch to position
page 46, fig. 34
.
Safety closing The sliding/tilting roof is fitted with a force limiter. The sliding/tilting roof stops and moves back several centimetres when it ca
nnot be closed because there is something
in the way (e.g. ice). You can close the sliding/tilting roof completely without force limiter by pressing the sw
itch to the position
page 46, fig. 34
at the front for as
long as it takes for the sliding/
tilting roof to close completely
.
WARNING
Close the sliding/tilting roof carefully - risk of injury!Convenience operationYou can also close an open sliding/tilting roof from the outside. – Hold the key in the locking cylinder of the dr
iver's door in the lo
ck position or press
the lock button of the remote control unt
il the sliding/tilting roof is closed.
The closing operation stops when one re
leases the key or the lock button.
Note
The force limiter also operates for convenience closing.
Emergency operationFig. 35 Detail of the headliner: Points for
positioning screwdriver / opening for positioning
the keyYou can close and/or open the sliding/tiltin
g roof by hand if the system is defect.
– Position the flat blade of a screwdriver carefully against the rear edge of the cover
for the electrical drive at the points of the arrows
fig. 35
on the left.
–Pull the cover down.– Insert an Allen key, Group 4, up to the stop into the opening at the point of the
arrow and close and/or open
the sliding/tilting roof
fig. 35
on the right.
– Press on the cover again by first of all in
serting the plastic lugs and then pushing the
cover up.
– Have the malfunction rectified by a specialist garage.
Note
It is necessary after each emergency op
eration (using Allen key) to move the
sliding/tilting roof into the basic position
. Here you have to tu
rn the control dial
forward to the switch position
page 46, fig. 34
and press for about 10 seconds.
AA
AA
A1
A2
AA
s3j8.a.book Page 47 Tuesday, April 20, 2010 1:10 PM
Page 49 of 244
Lights and Visibility
48Lights and VisibilityLightsSwitching lights on and off

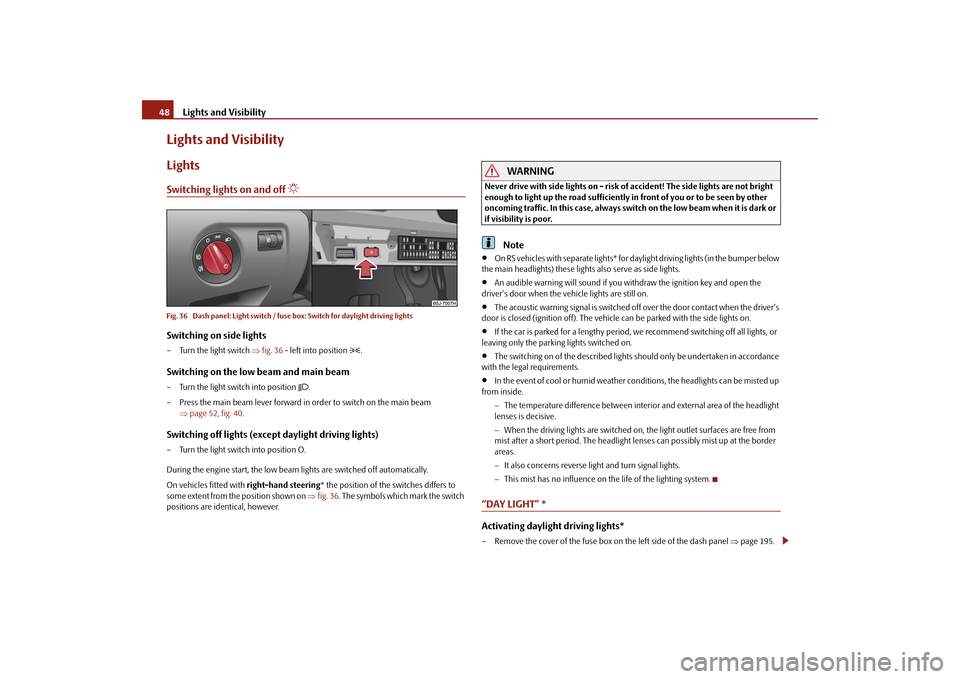

Fig. 36 Dash panel: Light switch / fuse box: Switch for daylight driving lightsSwitching on side lights– Turn the light switch
fig. 36
- left into position
.
Switching on the low beam and main beam– Turn the light switch into position
.
– Press the main beam lever forward in order to switch on the main beam
page 52, fig. 40
.
Switching off lights (except daylight driving lights)– Turn the light switch into position O. During the engine start, the low beam
lights are switched off automatically.
On vehicles fitted with
right-hand steering
* the position of the switches differs to
some extent from the position shown on
fig. 36
. The symbols which mark the switch
positions are identical, however.
WARNING
Never drive with side lights on - risk of accident! The side lights are not bright enough to light up the road sufficiently in front of you or to be seen by other oncoming traffic. In this case, always switch on the low beam when it is dark or if visibility is poor.
Note
O n R S v e h i c l e s w i t h s e p a ra t e l i g h t s * f o r d a
ylight driving lights (in the bumper below
the main headlights) these lights also serve as side lights.
An audible warning will sound if you wi
thdraw the ignition key and open the
driver's door when the vehicle lights are still on.
The acoustic warning signal is switched off over the door contact when the driver's
door is closed (ignition off). The vehicle
can be parked with
the side lights on.
If the car is parked for a lengthy period,
we recommend switching off all lights, or
leaving only the parking lights switched on.
The switching on of the described lights
should only be undertaken in accordance
with the legal requirements.
In the event of cool or humid
weather conditions
, the headlights can be misted up
from inside.
The temperature difference between interior and external area of the headlight lenses is decisive. When the driving lights are switched on,
the light outlet surfaces are free from
mist after a short period. The headlight lens
es can possibly mist up at the border
areas. It also concerns reverse light and turn signal lights. This mist has no influence on th
e life of the lighting system.
“DAY LIGHT” *Activating daylight driving lights*– Remove the cover of the fuse box on
the left side of the dash panel
page 195.
s3j8.a.book Page 48 Tuesday, April 20, 2010 1:10 PM
Page 50 of 244
Lights and Visibility
49
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Turn the light switch into position O
page 48, fig. 36
- left.
– Switch on the switch for daylight driving lights
page 48, fig. 36
- right.
Activating daylight driving lights*
on vehicles with the “START-STOP”
system– Pull the turn signal light lever towards the
steering wheel, at the same time slide it
to the top and hold it in this position.
– Switch on the ignition - the right turn signal light flashes 4x.– Switch off the ignition - an audible signal
sounds, which confirms
the activation of
the daylight driving lights.
– Release the turn signal light lever.Deactivating daylight driving lights*– Switch off the switch for daylight driving lights
page 48, fig. 36
- right.
– Turn the light switch to the position side lights
or low beam
page 48,
fig. 36
- left.
Deactivating daylight driving ligh
ts* on vehicles with the “START-
STOP” system– Pull the turn signal light lever towards the
steering wheel, at the same time slide it
to the bottom and hold it in this position.
– Switch on the ignition - the left turn signal light flashes 4x.– Switch off the ignition - an audible signal
sounds, which confir
ms the deactivation
of the daylight driving lights.
– Release the turn signal light lever. On vehicles with separate ligh
ts* for daylight driving lights in the fog lights or in the
front bumper, the parking lights and the lice
nce plate light do not come on when acti-
vating the function daylight drivin
g lights (neither front nor rear).
If the vehicle is not equipped with separate lights* for daylight driving lights, the combination of the low beam, the parking ligh
ts (front and rear) including the licence
plate light is used as daylight driving lights.
In some countries, the national
legal provisions require that the rear parking lights also
come on together with the separate lights* for daylight driving lights when activating the function daylight driving lights.Halogen projector headlights with cornering light function*For a better cornering illumination, the halogen projector headlights with cornering light function are set in the optimal position in line with the vehicle speed and the steering angle. If the warning light
comes on while driving or after the ignition is switched on, a
fault is confirmed.
WARNING
If there is a fault in the halogen projec
tor headlights with
cornering light func-
tion, the warning light
lights up in the instrument cluster. The halogen
projector headlights with cornering light function are automatically lowered to the emergency position, which prevents a po
ssible dazzling of oncoming traffic.
Thus the illuminated length of the road is shortened. Drive carefully and have the car inspected immediately by a specialist garage.Tourist light*Halogen projector headlights with cornering light functionThis mode makes it possible to drive in countries with opposing traffic system, driving on the left/right, without dazzling the oncoming vehicles. When the mode “tourist light” is active, the side to side swivel of the headlights is deactivated.Activating tourist lightBefore activating the tourist light,
the following condit
ions must be met:
Ignition switched off, light switched off (light switch in the position O), control dial for the headlamp beam adjustment in the position
0, no gear engaged or selector lever in
the position
N (automatic gearbox), tourist light deactivated.
– Switch on the ignition.Up to 10 seconds after the ignition is switched on:
s3j8.a.book Page 49 Tuesday, April 20, 2010 1:10 PM
