SKODA OCTAVIA 2005 1.G / (1U) Owner's Manual

Seats and Stowage
100
– Pull the cross rod back slightly, first on the one side then on the other side and take the cross rod out of the mount
⇒page 99, fig. 86 .
– Hold the cross rod in such a way that the net partition can roll
up slowly and without damage into housing .
– Fold the stowage compartment cover downwards.
If you wish to use the entire luggage compartment, you can remove the
luggage compartment cover ⇒ page 98, fig. 83.
WARNING
•First check for yourself that the cross road is inserted into the
mounts in the front position!
•Pay attention that the rear seat backrest is correctly interlocked.
It is only then that the three-point seat belt for the middle seat can
reliably fulfil its function.
Use behind the front seats
Unrolling
– Fold the rear seats forwards ⇒page 89
– Pull the net partiton net at the plate out of the housing ⇒fig. 87.
– Insert the cross rod into the mount first on the one side and push the cross rod forward.
– In the same way, fix the cross rod to the other side of the vehicle, mount .
Rolling up
– Pull the cross rod back slightly, first on the one side then on the other side and take the cross rod out of the mount
⇒fig. 87.
AC
AB
AC
Fig. 87 Unrolling net
partition
AAAB
AC
AC
AC
s24s.book Page 100 Thursday, November 24, 2005 12:27 PM

Seats and Stowage101
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
–Hold the cross rod in such a way that the net partition can roll
up slowly and without damage into housing .
– Fold the rear seats back into its original position.
WARNING
•The belt locks and the belts must be in their original position
after folding back the rear seats and seat backrests - they must be
ready to use.
•The seat backrests must be securely interlocked in position so
that no objects in the luggage compartment can slide into the
passenger compartment if there is sudden braking - risk of injury.
•Pay attention that the rear seat backrest is correctly interlocked.
It is only then that the three-point seat belt for the middle seat can
reliably fulfil its function.
•First check for yourself that the cross road is inserted into the
mounts in the front position!
Removing and installing net partition housing
Removing
– Fold the rear seats forwards ⇒page 89
– Open the right rear door.
– Push the net partition housing ⇒fig. 88 in the direction of
arrow and take it out of the mounts of the rear seat back-
rests in the direction of the arrow .
Installing
– Position the net partition housing into the mounts of the seat backrest.
– Push the net partition housing in the opposite direction of arrow as far as the stop.
– Fold the rear seats back into its original position.
AB
AC
Fig. 88 Rear seats: Net
partition housing
AA
A1
A2
A1
s24s.book Page 101 Thursday, November 24, 2005 12:27 PM

Seats and Stowage
102

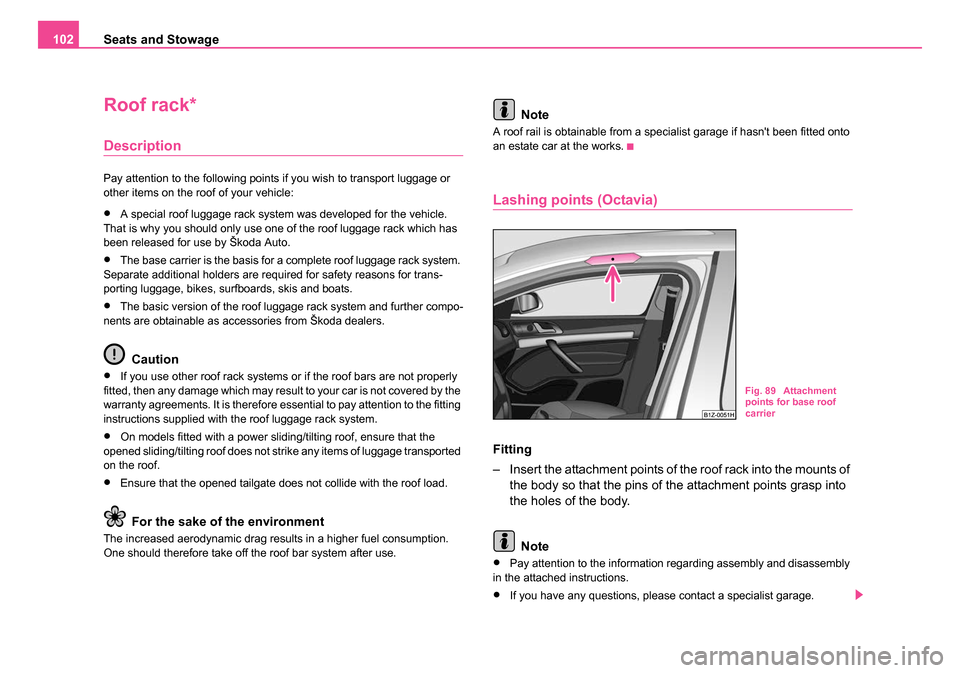

Roof rack*
Description
Pay attention to the following points if you wish to transport luggage or
other items on the roof of your vehicle:
•A special roof luggage rack system was developed for the vehicle.
That is why you should only use one of the roof luggage rack which has
been released for use by Škoda Auto.
•The base carrier is the basis for a complete roof luggage rack system.
Separate additional holders are required for safety reasons for trans-
porting luggage, bikes, surfboards, skis and boats.
•The basic version of the roof luggage rack system and further compo-
nents are obtainable as accessories from Škoda dealers.
Caution
•If you use other roof rack systems or if the roof bars are not properly
fitted, then any damage which may result to your car is not covered by the
warranty agreements. It is therefore essential to pay attention to the fitting
instructions supplied with the roof luggage rack system.
•On models fitted with a power sliding/tilting roof, ensure that the
opened sliding/tilting roof does not strike any items of luggage transported
on the roof.
•Ensure that the opened tailgate does not collide with the roof load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption.
One should therefore take off the roof bar system after use.
Note
A roof rail is obtainable from a specialist garage if hasn't been fitted onto
an estate car at the works.
Lashing points (Octavia)
Fitting
– Insert the attachment points of the roof rack into the mounts of
the body so that the pins of the attachment points grasp into
the holes of the body.
Note
•Pay attention to the information regarding assembly and disassembly
in the attached instructions.
•If you have any questions, please contact a specialist garage.
Fig. 89 Attachment
points for base roof
carrier
s24s.book Page 102 Thursday, November 24, 2005 12:27 PM

Seats and Stowage103
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•The figure is not valid for an estate car.
Roof load
Distribute weight evenly over the roof luggage rack system. The maximum
permissible roof load (including roof rack system) of 75 kg and the
maximum permissible total weight of the vehicle should not be exceeded.
You cannot make full use of the permissible roof load if you use a roof
luggage rack system with a lower load carrying capacity. The load trans-
ported on the roof luggage rack system must not exceed the weight limit
which is stated in the fitting instructions.
WARNING
•The items which you transport on the roof bar system must be
reliably attached - risk of accident!
•You must on no account exceed the permissible roof load, the
permissible axle loads and the permissible gross weight of your
vehicle - risk of accident!
•Please note that the handling properties of your vehicle change
when you transport heavy or bulky items on the roof bar system as
a result of the displacement of the centre of gravity and the
increased wind attack area - risk of accident! You must absolutely
adapt your style of driving and the speed of the vehicle to the
specific circumstances.
Cup holder
Cup holder in front centre console
You can place two cups or beverage cans into the recesses ⇒fig. 90 .
WARNING
•Do not place any hot beverages into the cup holder. If the
vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle mate-
rial (e.g. glass, porcelain). You might be injured by them in the
event of an accident.
Caution
Do not open the beverages in the cup holder while driving. They may spill
when braking and while doing so damage the vehicle.
Fig. 90 Front centre
console: Cup holder
s24s.book Page 103 Thursday, November 24, 2005 12:27 PM

Seats and Stowage
104
Cup holder in rear centre console*
– Press on the panel in the area ⇒fig. 91 - the cup holder
comes out.
– Pull the cup holder out as far as the stop.
– Adjust the cup holder by moving the locking plate .
WARNING
•Do not place any hot beverages into the cup holder while the car
is moving. The hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle mate-
rial (e.g. glass, porcelain). You might be injured by them in the
event of an accident.
Note holder
The note holder is designed e.g. for attaching a car park ticket in parking
areas.
The attached note must always be removed before starting off in order
not to restrict the driver's vision.
Fig. 91 Centre console
at rear: Cup holder
AA
AB
Fig. 92 Windscreen:
Note holder
s24s.book Page 104 Thursday, November 24, 2005 12:27 PM

Seats and Stowage105
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Ashtrays
Front ashtray
Opening ashtray
– Press on the bottom part of the cover of the ashtray - refer to
⇒ fig. 93.
Removing ashtray insert
– Press on the ashtray insert in the area (the insert comes out) and you can take it out.
Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Rear ashtray - low centre console
Opening ashtray
– Grasp the ashtray cover at the lower edge and fold it open in the direction of arrow ⇒fig. 94.
Removing ashtray
– Grasp the ashtray at the handle and pull it out in an upward direction.
Replacing ashtray
– Insert the ashtray into the console and press it in.
Fig. 93 Centre
console: Front ashtray
AA
AB
Fig. 94 Low centre
console: Rear ashtray
AA
AB
s24s.book Page 105 Thursday, November 24, 2005 12:27 PM

Seats and Stowage
106
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Rear ashtray - high centre console*
Opening ashtray
– Press on the top part of the cover of the ashtray in area
⇒fig. 95 .
Removing ashtray insert
– Press the cover of the ashtray down slightly as far as the stop.
– Grasp the ashtray insert at the cover and pull it out. Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
There is a drinks can holder attached to the inner side of the ashtray
cover.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Cigarette lighter*, power sockets
Cigarette lighter
You can also use the socket on the cigarette lighter for
other electrical appliances.
Fig. 95 High centre
console: Rear ashtray
AA
ABFig. 96 Centre
console: Cigarette
lighter
s24s.book Page 106 Thursday, November 24, 2005 12:27 PM

Seats and Stowage107
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒page 106, fig. 96 .
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the socket of the cigarette lighter.
The 12 volt power socket can also be used to supply power to electrical
accessories with a power uptake up to 180 watts.
WARNING
•Take care when using the cigarette lighter! Not paying proper
attention or incorrect use the cigarette lighter in an uncontrolled
manner may result in burns.
•The cigarette lighter and the power socket also operates when
the ignition is switched off or the ignition key withdrawn. You
should therefore never leave children unattended in the vehicle.
Caution
Always use matching plugs to avoid damaging the power sockets.
Note
•Connecting electrical components when the engine is not
running will drain the battery of the vehicle - risk of battery draining!
•Further information ⇒page 270, “Accessories, changes and replace-
ment of parts”.
Power socket in the luggag e compartment (estate car)
– Open the cover of the power socket ⇒fig. 97.
– Connect the plug of the electrical appliance to the socket.
You can only use the power socket for the connection of approved elec-
trical accessories with a power uptake up to 180 watts. The vehicle battery
will be discharged in the process if the engine is stationary.
The same principles apply here as for ⇒page 106.
Fig. 97 Luggage
compartment: Power
socket
s24s.book Page 107 Thursday, November 24, 2005 12:27 PM

Seats and Stowage
108
Further information ⇒page 270, “Accessories, changes and replacement
of parts”.

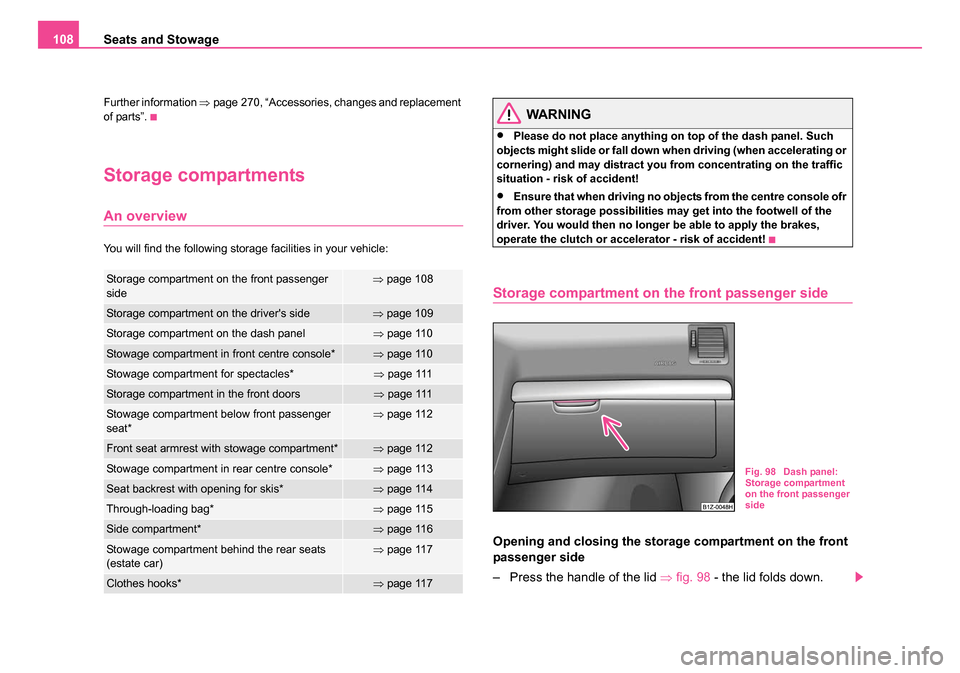

Storage compartments
An overview
You will find the following storage facilities in your vehicle:
WARNING
•Please do not place anything on top of the dash panel. Such
objects might slide or fall down wh en driving (when accelerating or
cornering) and may distract you from concentrating on the traffic
situation - risk of accident!
•Ensure that when driving no objects from the centre console ofr
from other storage possibilities may get into the footwell of the
driver. You would then no longer be able to apply the brakes,
operate the clutch or accelerator - risk of accident!
Storage compartment on the front passenger side
Opening and closing the storage compartment on the front
passenger side
– Press the handle of the lid ⇒fig. 98 - the lid folds down.
Storage compartment on the front passenger
side⇒page 108
Storage compartment on the driver's side⇒page 109
Storage compartment on the dash panel⇒page 110
Stowage compartment in front centre console*⇒page 110
Stowage compartment for spectacles*⇒page 111
Storage compartment in the front doors⇒page 111
Stowage compartment below front passenger
seat*⇒page 112
Front seat armrest with stowage compartment*⇒page 112
Stowage compartment in rear centre console*⇒page 113
Seat backrest with opening for skis*⇒page 114
Through-loading bag*⇒page 115
Side compartment*⇒page 116
Stowage compartment behind the rear seats
(estate car)⇒page 117
Clothes hooks*⇒page 117
Fig. 98 Dash panel:
Storage compartment
on the front passenger
side
s24s.book Page 108 Thursday, November 24, 2005 12:27 PM

Seats and Stowage109
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Raise the lid and press it until the catch is heard to engage.
There is a holder for a pen and note book on the inside of the lid.
WARNING
•The storage compartment must always be closed when driving
for safety reasons.
•The beverage holder should not be used while driving.
Cooling of storage compar tment on front passenger
side*
The storage compartment is for vehicles fitted with an air-
conditioning system with a closable inlet for cooled air.
– You can switch the cooling system on or off using the control
dial ⇒fig. 99.
Opening the air inlet when the air conditioning system is on causes fresh
or interior air to flow into the storage compartment.
The cooling of the storage compartment operates only if the air condi-
tioning system is switched on. We recommend that you switch off the
cooling (opening concealed) if it is operating in the heating mode or if you
are not using the cooling system for the storage compartment.
Storage compartment on the driver's side
– The storage compartment is opened by lifting the handle and
folding open in the direction of arrow ⇒fig. 100 .Fig. 99 Storage
compartment: Using
cooling system
Fig. 100 Dash panel:
Storage compartment
on the driver's side
s24s.book Page 109 Thursday, November 24, 2005 12:27 PM
