key SKODA OCTAVIA 2005 1.G / (1U) Owner's Guide

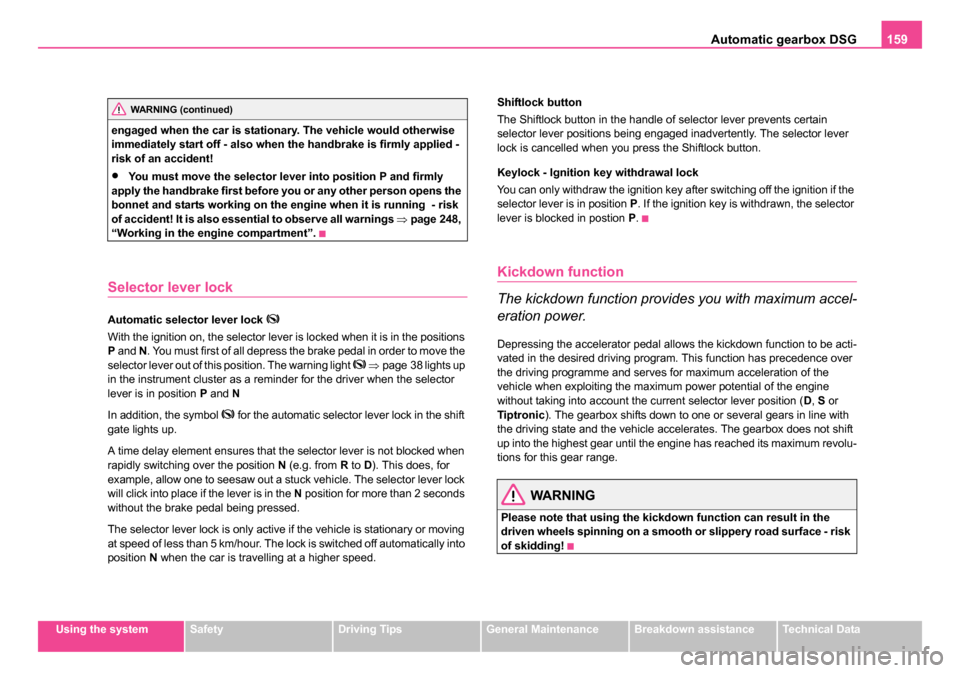

Automatic gearbox DSG159
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
engaged when the car is stationary. The vehicle would otherwise
immediately start off - also when the handbrake is firmly applied -
risk of an accident!
•You must move the selector lever into position P and firmly
apply the handbrake first before you or any other person opens the
bonnet and starts working on the engine when it is running - risk
of accident! It is also essential to observe all warnings ⇒page 248,
“Working in the engine compartment”.
Selector lever lock
Automatic selector lever lock 
With the ignition on, the selector lever is locked when it is in the positions
P and N. You must first of all depress the brake pedal in order to move the
selector lever out of this position. The warning light
 ⇒ page 38 lights up
in the instrument cluster as a reminder for the driver when the selector
lever is in position P and N
In addition, the symbol
 for the automatic selector lever lock in the shift
gate lights up.
A time delay element ensures that the selector lever is not blocked when
rapidly switching over the position N (e.g. from R to D). This does, for
example, allow one to seesaw out a stuck vehicle. The selector lever lock
will click into place if the lever is in the N position for more than 2 seconds
without the brake pedal being pressed.
The selector lever lock is only active if the vehicle is stationary or moving
at speed of less than 5 km/hour. The lock is switched off automatically into
position N when the car is travelling at a higher speed. Shiftlock button
The Shiftlock button in the handle of selector lever prevents certain
selector lever positions being engaged inadvertently. The selector lever
lock is cancelled when you press the Shiftlock button.
Keylock - Ignition key withdrawal lock
You can only withdraw the ignition key after switching off the ignition if the
selector lever is in position
P. If the ignition key is withdrawn, the selector
lever is blocked in postion P.
Kickdown function
The kickdown function provides you with maximum accel-
eration power.
Depressing the accelerator pedal allows the kickdown function to be acti-
vated in the desired driving program. This function has precedence over
the driving programme and serves for maximum acceleration of the
vehicle when exploiting the maximum power potential of the engine
without taking into account the current selector lever position ( D, S or
Tiptronic ). The gearbox shifts down to one or several gears in line with
the driving state and the vehicle accelerates. The gearbox does not shift
up into the highest gear until the engine has reached its maximum revolu-
tions for this gear range.
WARNING
Please note that using the kickdown function can result in the
driven wheels spinning on a smooth or slippery road surface - risk
of skidding!
WARNING (continued)
s24s.book Page 159 Thursday, November 24, 2005 12:27 PM

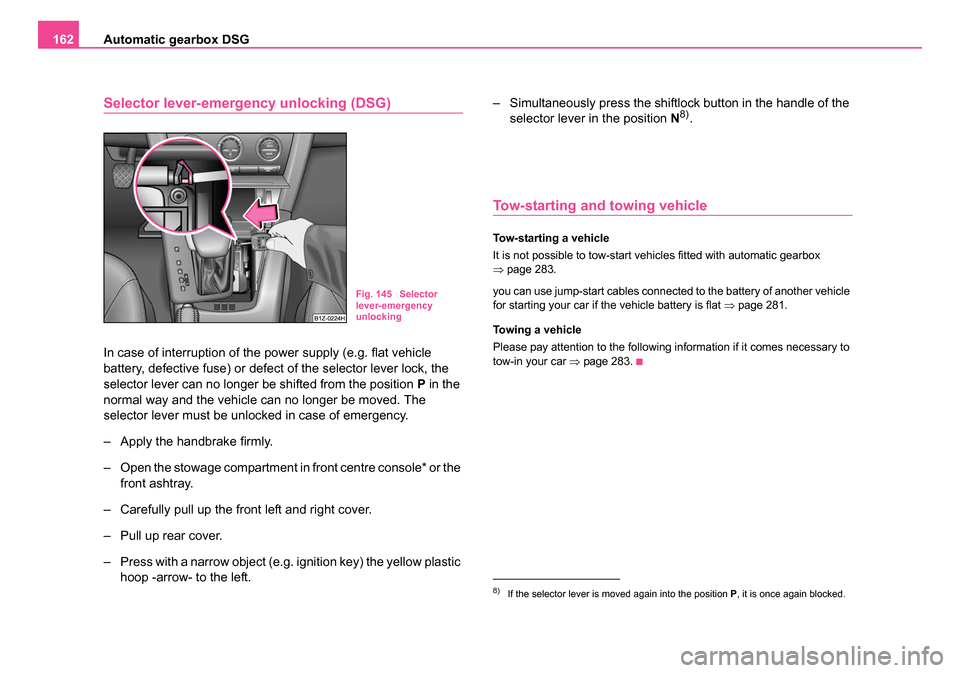

Automatic gearbox DSG
162
Selector lever-emergency unlocking (DSG)
In case of interruption of the power supply (e.g. flat vehicle
battery, defective fuse) or defect of the selector lever lock, the
selector lever can no longer be shifted from the position P in the
normal way and the vehicle can no longer be moved. The
selector lever must be unlocked in case of emergency.
– Apply the handbrake firmly.
– Open the stowage compartment in front centre console* or the front ashtray.
– Carefully pull up the front left and right cover.
– Pull up rear cover.
– Press with a narrow object (e.g. ignition key) the yellow plastic hoop -arrow- to the left. – Simultaneously press the shiftlock button in the handle of the
selector lever in the position N
8).
Tow-starting and towing vehicle
Tow-starting a vehicle
It is not possible to tow-start vehicles fitted with automatic gearbox
⇒page 283.
you can use jump-start cables connected to the battery of another vehicle
for starting your car if the vehicle battery is flat ⇒page 281.
Towing a vehicle
Please pay attention to the following information if it comes necessary to
tow-in your car ⇒page 283.
Fig. 145 Selector
lever-emergency
unlocking
8)If the selector lever is moved again into the position P, it is once again blocked.
s24s.book Page 162 Thursday, November 24, 2005 12:27 PM

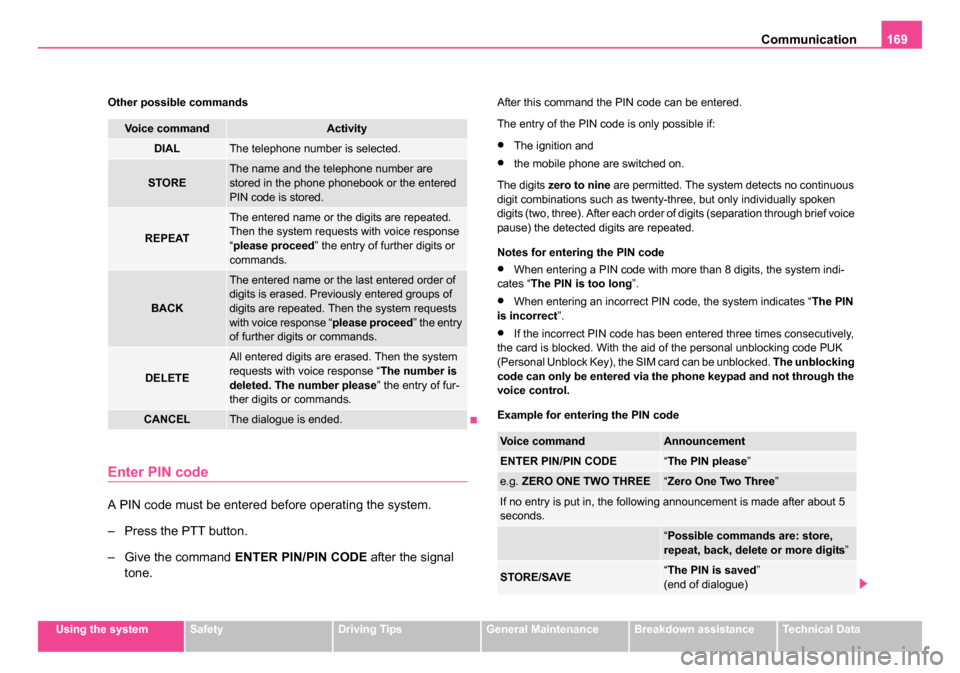

Communication169
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Other possible commands
Enter PIN code
A PIN code must be entered
before operating the system.
– Press the PTT button.
– Give the command ENTER PIN/PIN CODE after the signal
tone.
After this command the PIN code can be entered.
The entry of the PIN code is only possible if:
•The ignition and
•the mobile phone are switched on.
The digits zero to nine are permitted. The system detects no continuous
digit combinations such as twenty-three, but only individually spoken
digits (two, three). After each order of digits (separation through brief voice
pause) the detected digits are repeated.
Notes for entering the PIN code
•When entering a PIN code with more than 8 digits, the system indi-
cates “ The PIN is too long ”.
•When entering an incorrect PIN code, the system indicates “ The PIN
is incorrect ”.
•If the incorrect PIN code has been entered three times consecutively,
the card is blocked. With the aid of the personal unblocking code PUK
(Personal Unblock Key), the SIM card can be unblocked. The unblocking
code can only be entered via the phone keypad and not through the
voice control.
Example for entering the PIN code
Voice commandActivity
DIALThe telephone number is selected.
STOREThe name and the telephone number are
stored in the phone phonebook or the entered
PIN code is stored.
REPEAT
The entered name or the digits are repeated.
Then the system requests with voice response
“ please proceed ” the entry of further digits or
commands.
BACK
The entered name or the last entered order of
digits is erased. Previously entered groups of
digits are repeated. Then the system requests
with voice response “ please proceed” the entry
of further digits or commands.
DELETE
All entered digits are erased. Then the system
requests with voice response “ The number is
deleted. The number please ” the entry of fur-
ther digits or commands.
CANCELThe dialogue is ended.
Voice commandAnnouncement
ENTER PIN/PIN CODE“ The PIN please ”
e.g. ZERO ONE TWO THREE“Zero One Two Three ”
If no entry is put in, the following announcement is made after about 5
seconds.
“Possible commands are: store,
repeat, back, delete or more digits ”
STORE/SAVE“The PIN is saved ”
(end of dialogue)
s24s.book Page 169 Thursday, November 24, 2005 12:27 PM

Communication
174
– Select the corresponding menu option on the mobile phone, which searches for suitable Bluetooth devices (hands-free
system).
– If the hands-free system on the display of the mobile tele- phone announces Skoda UHV, enter the PIN 1234 within 30
seconds and wait, until the connection is established.
9)
In the modern business world as well as within the private sector the
mobile communication gains increasingly on importance. Mobile phones
from different manufacturers can be connected with the hands-free
system by means of Bluetooth. During the connecting procedure, no other
mobile phone may be connected via Bluetooth with the hands-free
system.
Up to four mobile phones can be connected to the hands-free system by
means of Bluetooth, whereby only one mobile phone can communicate
via Bluetooth with the hands-free system. If a fifth mobile phone is
connected to the handsfree-system, then the telephone, which has not
been used together with the handsfree system for the longest period, is
disconnected.
Establishing the Bluetooth connection
After switching on the ignition, the Bluetooth connection is automatically
established for the already adapted mobile phone
9). You can hear an
increasing tone sequence from the loudspeakers of the vehicle.
Disconnecting the Bluetooth connection
After withdrawing the ignition key, the Bluetooth connection is dison-
nected. You can hear an increasing tone sequence from the loudspeakers
of the vehicle.
WARNING
•Pay attention primarily to the traffic situation! As the driver you
are fully responsible for the traffic safety. Use the telephone
system only to such an extent, so that you are in full control of your
vehicle at any time - risk of accident!
•In the event of air transport, the Bluetooth function of the hands-
free-system must be switched off by a specialist garage.
Caution
Taking the mobile phone out of the adapter during the call can lead to
interruption of the connection. When taking out the mobile phone, the
connection to the factory-fitted antenna is interrupted, this reduces the
quality of the transmitting and receiving signal. This might result addition-
ally in harmful radiation from the mobile phone in the interior of the vehicle
and the charging of the telephone battery is interrupted.
Note
•Not valid for all mobile phones which enable a communication via
Bluetooth.
•Please operate your mobile phone exclusively with a suitable adapter,
in order to keep a low radiation in the vehicle.
•Inserting the mobile phone into the adapter ensures an optimal
sending and receiving power and offers at the same time the advantage
of the battery charging.
•If you insert the mobile telephone into the adapter, the connection is
established via the interface in the adapter set and the Bluetooth connec-
tion is disconnected. You can hear an increasing tone sequence from the
loudspeakers of the vehicle.
•Note that the range of the Bluetooth connection to the handsfree-
system is limited to the vehicle interior. The range is dependent on local
factors, e.g. obstacles between the devices and interferences with other 9)Some mobile phones have a menu, in which the authorization for establishing a
Bluetooth connection is performed via the input of a code. If the input for the au-
thorization is necessary, it must always be performed when re-establishing the
Bluetooth connection.
s24s.book Page 174 Thursday, November 24, 2005 12:27 PM

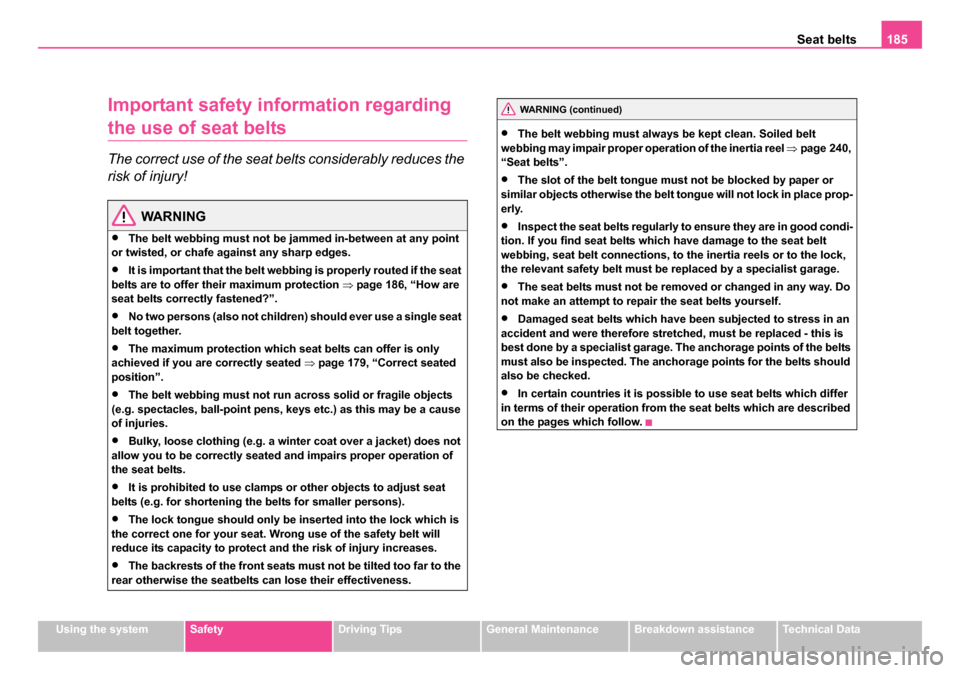

Seat belts185
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Important safety information regarding
the use of seat belts
The correct use of the seat belts considerably reduces the
risk of injury!
WARNING
•The belt webbing must not be jammed in-between at any point
or twisted, or chafe against any sharp edges.
•It is important that the belt webb ing is properly routed if the seat
belts are to offer their maximum protection ⇒page 186, “How are
seat belts correctly fastened?”.
•No two persons (also not children) should ever use a single seat
belt together.
•The maximum protection which seat belts can offer is only
achieved if you are correctly seated ⇒page 179, “Correct seated
position”.
•The belt webbing must not run across solid or fragile objects
(e.g. spectacles, ball-point pens, keys etc.) as this may be a cause
of injuries.
•Bulky, loose clothing (e.g. a winter coat over a jacket) does not
allow you to be correctly seated and impairs proper operation of
the seat belts.
•It is prohibited to use clamps or other objects to adjust seat
belts (e.g. for shortening the belts for smaller persons).
•The lock tongue should only be inserted into the lock which is
the correct one for your seat. Wrong use of the safety belt will
reduce its capacity to protect and the risk of injury increases.
•The backrests of the front seats must not be tilted too far to the
rear otherwise the seatbelts can lose their effectiveness.
•The belt webbing must always be kept clean. Soiled belt
webbing may impair proper operation of the inertia reel ⇒page 240,
“Seat belts”.
•The slot of the belt tongue must not be blocked by paper or
similar objects otherwise the belt tongue will not lock in place prop-
erly.
•Inspect the seat belts regularly to ensure they are in good condi-
tion. If you find seat belts which have damage to the seat belt
webbing, seat belt connections, to the inertia reels or to the lock,
the relevant safety belt must be replaced by a specialist garage.
•The seat belts must not be removed or changed in any way. Do
not make an attempt to repair the seat belts yourself.
•Damaged seat belts which have been subjected to stress in an
accident and were therefore stretched, must be replaced - this is
best done by a specialist garage. The anchorage points of the belts
must also be inspected. The anchorage points for the belts should
also be checked.
•In certain countries it is possible to use seat belts which differ
in terms of their operation from the seat belts which are described
on the pages which follow.
WARNING (continued)
s24s.book Page 185 Thursday, November 24, 2005 12:27 PM

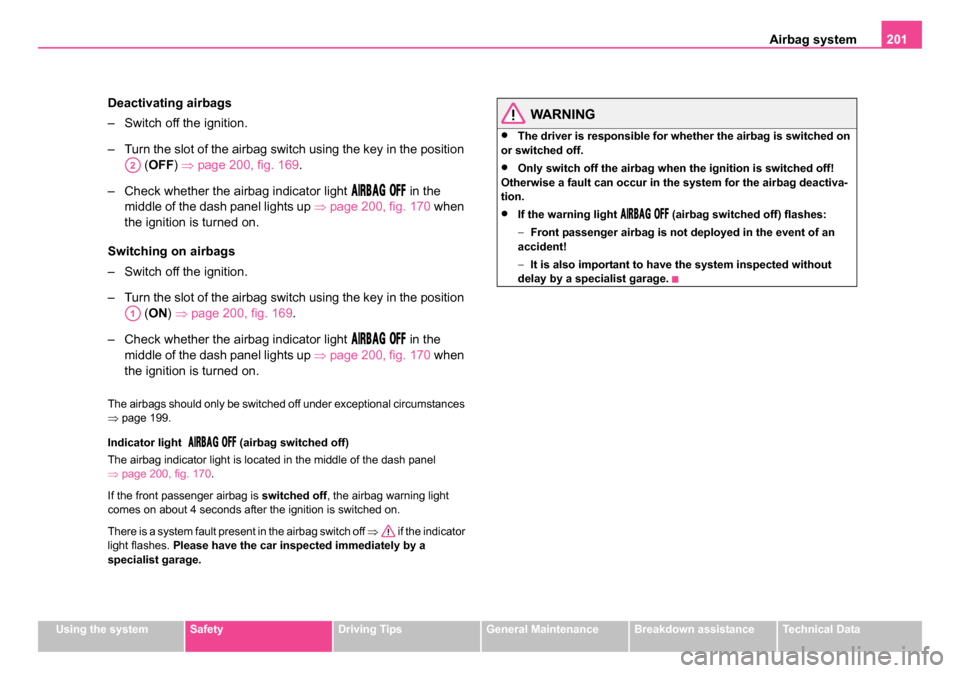

Airbag system201
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Deactivating airbags
– Switch off the ignition.
– Turn the slot of the airbag switch using the key in the position
(OFF ) ⇒ page 200, fig. 169 .
– Check whether the airbag indicator light
  in the
middle of the dash panel lights up ⇒page 200, fig. 170 when
the ignition is turned on.
Switching on airbags
– Switch off the ignition.
– Turn the slot of the airbag switch using the key in the position (ON ) ⇒ page 200, fig. 169.
– Check whether the airbag indicator light
  in the
middle of the dash panel lights up ⇒page 200, fig. 170 when
the ignition is turned on.
The airbags should only be switched off under exceptional circumstances
⇒ page 199.
Indicator light
  (airbag switched off)
The airbag indicator light is located in the middle of the dash panel
⇒ page 200, fig. 170 .
If the front passenger airbag is switched off, the airbag warning light
comes on about 4 seconds after the ignition is switched on.
There is a system fault present in the airbag switch off ⇒ if the indicator
light flashes. Please have the car inspected immediately by a
specialist garage.
WARNING
•The driver is responsible for whether the airbag is switched on
or switched off.
•Only switch off the airbag when the ignition is switched off!
Otherwise a fault can occur in the system for the airbag deactiva-
tion.
•If the warning light   (airbag switched off) flashes:
− Front passenger airbag is not deployed in the event of an
accident!
− It is also important to have the system inspected without
delay by a specialist garage.
A2
A1
s24s.book Page 201 Thursday, November 24, 2005 12:27 PM

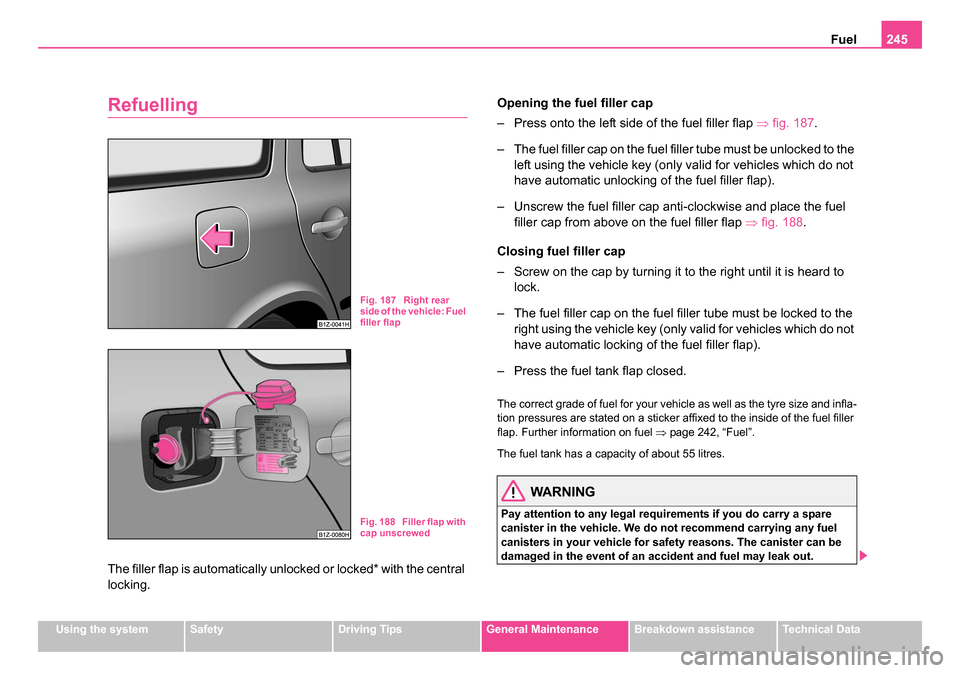

Fuel245
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Refuelling
The filler flap is automatically unlocked or locked* with the central
locking. Opening the fuel filler cap
– Press onto the left side of the fuel filler flap
⇒fig. 187 .
– The fuel filler cap on the fuel filler tube must be unlocked to the left using the vehicle key (only valid for vehicles which do not
have automatic unlocking of the fuel filler flap).
– Unscrew the fuel filler cap anti-clockwise and place the fuel filler cap from above on the fuel filler flap ⇒fig. 188 .
Closing fuel filler cap
– Screw on the cap by turning it to the right until it is heard to lock.
– The fuel filler cap on the fuel filler tube must be locked to the right using the vehicle key (only valid for vehicles which do not
have automatic locking of the fuel filler flap).
– Press the fuel tank flap closed.
The correct grade of fuel for your vehicle as well as the tyre size and infla-
tion pressures are stated on a sticker affixed to the inside of the fuel filler
flap. Further information on fuel ⇒page 242, “Fuel”.
The fuel tank has a capacity of about 55 litres.
WARNING
Pay attention to any legal requirements if you do carry a spare
canister in the vehicle. We do not recommend carrying any fuel
canisters in your vehicle for safety reasons. The canister can be
damaged in the event of an accident and fuel may leak out.
Fig. 187 Right rear
side of the vehicle: Fuel
filler flap
Fig. 188 Filler flap with
cap unscrewed
s24s.book Page 245 Thursday, November 24, 2005 12:27 PM

Inspecting and Replenishing
248
Opening the bonnet
– Unlock the bonnet ⇒page 247, fig. 189 .
– Ensure that the arms of the windscreen wipers are correctly in place against the windscreen before opening the bonnet
otherwise damage could occur to the paintwork.
– Pulling on the handle ⇒page 247, fig. 190 will lock the bonnet
fully.
– Grip with the hand under the radiator grille and lift up the bonnet.
– Take the bonnet support out of its holder and set it in the opening designed for it ⇒page 247, fig. 191.
Closing the bonnet
– Lift the bonnet slightly and unhook the bonnet support. Press the bonnet support into the holder designed to hold it.
– Allow the bonnet to drop from a height of about 30 cm into the lock - bonnet do not press down on it !
WARNING
•Never open the bonnet if you see that steam or coolant is
flowing out of the engine compartment - risk of scalding! Wait long
enough until the steam or coolant has stopped escaping.
•For safety reasons, the bonnet must always be properly closed
when driving. One should therefore check that the lock has in fact
engaged properly after closing the bonnet.
•Stop your vehicle immediately whil e driving if you notice that
the lock is not properly engaged and close the bonnet properly -
risk of an accident!
Caution
Never open the bonnet using the handle - danger of causing damage.
Working in the engine compartment
Particular care is required when carrying out any work in
the engine compartment!
There is a risk of injuries, scalding, accidents and fire when working
in the engine compartment, e.g. inspecting and replenishing oil and
other fluids. For this reason, it is essential to comply with the
warning instructions stated below and with the general applicable
rules of safety. The engine compartment of your car is a hazardous
area ⇒ .
WARNING
•Never open the bonnet if you see that steam or coolant is
flowing out of the engine compartment - risk of scalding! Wait long
enough until the steam or coolant has stopped escaping.
•Switch off the engine and pull out the ignition key.
•Apply the handbrake firmly.
•If your vehicle is fitted with a manual gearbox, move the gear-
shift lever into Neutral, or if it is fitted with automatic gearbox,
move the selector lever into position P.
WARNING (continued)
s24s.book Page 248 Thursday, November 24, 2005 12:27 PM

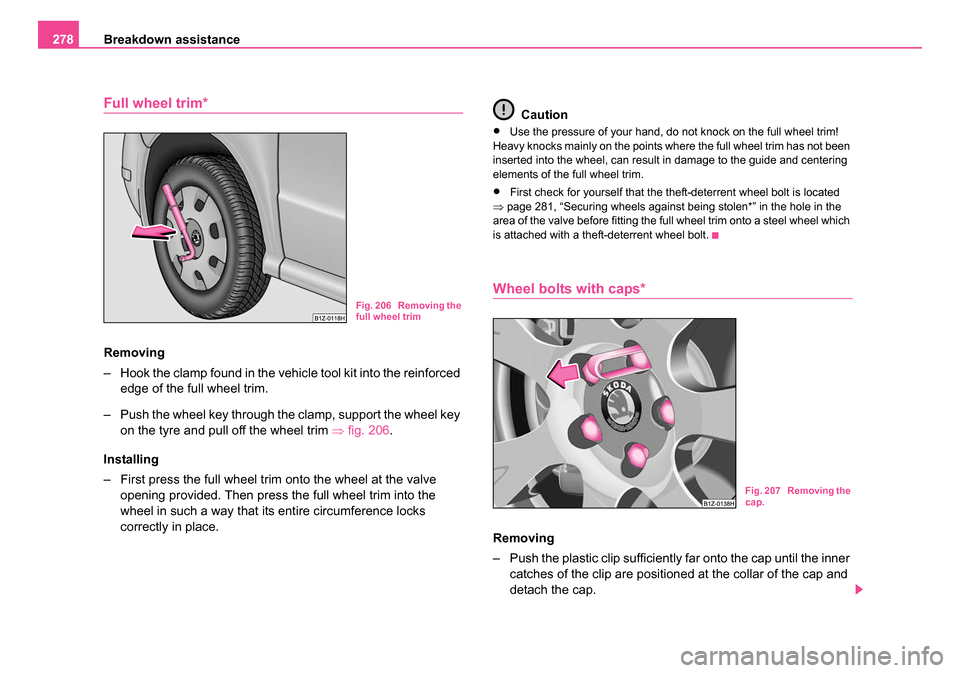

Breakdown assistance
278
Full wheel trim*
Removing
– Hook the clamp found in the vehicle tool kit into the reinforced
edge of the full wheel trim.
– Push the wheel key through the clamp, support the wheel key on the tyre and pull off the wheel trim ⇒fig. 206.
Installing
– First press the full wheel trim onto the wheel at the valve opening provided. Then press the full wheel trim into the
wheel in such a way that its entire circumference locks
correctly in place. Caution
•Use the pressure of your hand, do not knock on the full wheel trim!
Heavy knocks mainly on the points where the full wheel trim has not been
inserted into the wheel, can result in damage to the guide and centering
elements of the full wheel trim.
•First check for yourself that the theft-deterrent wheel bolt is located
⇒ page 281, “Securing wheels against being stolen*” in the hole in the
area of the valve before fitting the full wheel trim onto a steel wheel which
is attached with a theft-deterrent wheel bolt.
Wheel bolts with caps*
Removing
– Push the plastic clip sufficiently far onto the cap until the inner catches of the clip are positioned at the collar of the cap and
detach the cap.
Fig. 206 Removing the
full wheel trim
Fig. 207 Removing the
cap.
s24s.book Page 278 Thursday, November 24, 2005 12:27 PM

Index
308
J
Jacking points . . . . . . . . . . . . . . . . . . . . . . . 280
Jump-starting . . . . . . . . . . . . . . . . . . . 281, 282
K
Keeping windows demisted
The air conditioning system . . . . . . . . . 125
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
L
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . 93
Leather care . . . . . . . . . . . . . . . . . . . . . . . . 239
light Changing bulbs . . . . . . . . . . . . . . . . . . . 294
Lighting of the interior of the vehicle . . . . . . . 70
Lights Automatic . . . . . . . . . . . . . . . . . . . . . . . . 64
Converting/masking over . . . . . . . . . . . 228
Range adjustment . . . . . . . . . . . . . . . . . . 67
switching them on and off . . . . . . . . . . . . 63
Warning lights . . . . . . . . . . . . . . . . . . . . . 30
Lights and Visibility . . . . . . . . . . . . . . . . . . . . 67
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . 36
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Central locking system . . . . . . . . . . . . . . 48
Remote control . . . . . . . . . . . . . . . . . . . . 52 locking
Central locking system . . . . . . . . . . . . . . 47
Locking and unlocking from inside . . . . . . . . 48
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Luggage compartment . . . . . . . . . . . . . . 50, 92 Folding double hooks . . . . . . . . . . . . . . . 95
Folding hooks . . . . . . . . . . . . . . . . . . . . . 96
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . 93
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . 102M
Main beam . . . . . . . . . . . . . . . . . . . . . . . 63, 68 Warning light . . . . . . . . . . . . . . . . . . . . . . 32
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 142
Manual shifting of gears . . . . . . . . . . . . . . . 142
Memory for the on-board computer . . . . . . . 18
Mobile phone . . . . . . . . . . . . . . . . . . . 165, 175 Bluetooth™ . . . . . . . . . . . . . . . . . . . . . . 173
Motoring abroad . . . . . . . . . . . . . . . . . . . . . 228
Multifunction steering wheel . . . . . . . . . . . . 163
Multi-functional indicator . . . . . . . . . . . . . . . . 18
N
Navigation system . . . . . . . . . . . . . . . . . . . . . 26
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . 104
O
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 Warning light . . . . . . . . . . . . . . . . . . . . . . 37
Onboard computer . . . . . . . . . . . . . . . . . . . . 18
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . 37
Opening a single door . . . . . . . . . . . . . . . . . . 46
Opening for skis . . . . . . . . . . . . . . . . . . . . . 114
Operation in winter De-icing windows . . . . . . . . . . . . . . . . . . 236
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . 244
The battery . . . . . . . . . . . . . . . . . . . . . . . 260
Overview of the engine compartment . . . . . 250
P
Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Paint damage . . . . . . . . . . . . . . . . . . . . . . . 236
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Parking aid at the rear . . . . . . . . . . . . . . . . . . . . . . . . 144
front and rear . . . . . . . . . . . . . . . . . . . . . 145
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . 63
Parking the vehicle . . . . . . . . . . . . . . . . . . . 144
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . 177
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Petrol engines Starting engine . . . . . . . . . . . . . . . . . . . . 141
s24s.book Page 308 Thursday, November 24, 2005 12:27 PM
