SKODA OCTAVIA 2008 2.G / (1Z) Owner's Manual

Seats and Stowage
100
Opening the air inlet when the air conditioning system is on causes fresh or interior
air to flow into the storage compartment.
Storage compartment on the driver's side
– The storage compartment is opened by lifting the handle and folding
open in the direction of arrow ⇒fig. 118 .
WARNING
The storage compartment must always be closed when driving for safety
reasons.
Storage compartment on the dash panel*
– Press in the middle of the storage compartment ⇒fig. 119 - the lid
folds open
Certain model versions are equipped without lid for the storage compartment.
WARNING
•The storage compartment is not a substitute for the ashtray and must
also not be used for such purposes - risk of fire!
•The pull-out storage compartment mu st always be kept closed when
driving for safety reasons.
•Do not put any highly inflammable objects or objects which are sensitive
to heat (e.g. lighters, sprays, spectacles or carbonated drinks) in the storage
compartment.
Fig. 118 Dash panel: Storage
compartment on the driver's
side
Fig. 119 Dash panel: Storage
compartment
20A5Facelift.book Page 100 Saturday, September 6, 2008 2:13 PM

Seats and Stowage101
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

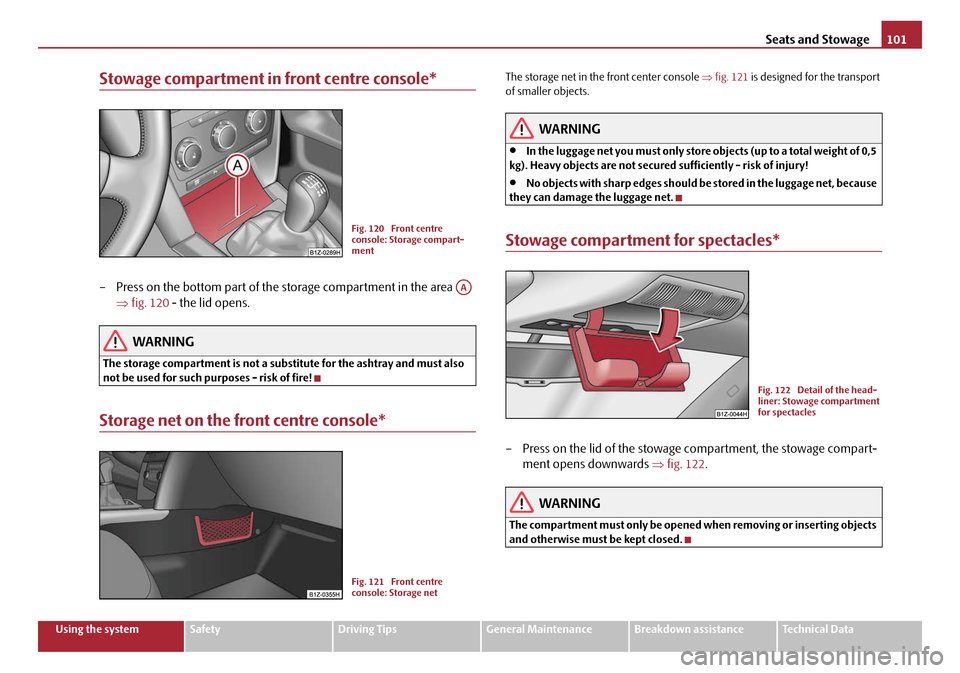

Stowage compartment in front centre console*
– Press on the bottom part of the storage compartment in the area
⇒fig. 120 - the lid opens.
WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire!
Storage net on the front centre console*
The storage net in the front center console ⇒fig. 121 is designed for the transport
of smaller objects.
WARNING
•In the luggage net you must only store objects (up to a total weight of 0,5
kg). Heavy objects are not secured sufficiently - risk of injury!
•No objects with sharp edges should be stored in the luggage net, because
they can damage the luggage net.
Stowage compartment for spectacles*
– Press on the lid of the stowage compartment, the stowage compart-
ment opens downwards ⇒fig. 122 .
WARNING
The compartment must only be opened when removing or inserting objects
and otherwise must be kept closed.
Fig. 120 Front centre
console: Storage compart-
ment
AA
Fig. 121 Front centre
console: Storage net
Fig. 122 Detail of the head-
liner: Stowage compartment
for spectacles
20A5Facelift.book Page 101 Saturday, September 6, 2008 2:13 PM

Seats and Stowage
102
Storage compartment in the front doors
A bottle holder is located in the area of the storage compartment for the front
doors.
WARNING
Use the area ⇒fig. 123 of the storage compartment only for storing
objects which do not project so that the effectiveness of the side airbag is not
impaired.
Stowage compartment below front passenger seat*
The storage compartment is foreseen for storing small objects of up to 1,5
kg. in weight.
– Tilt the lock to open the flap and pull out the flap ⇒fig. 124 .
– Tilt the lock to close the flap and press flap close.
Front seat armrest with storage compartment*
Fig. 123 Storage compart-
ment in the front doors
AB
AA
Fig. 124 Front passenger
seat: Storage compartment
Fig. 125 Armrest: Storage
compartment
20A5Facelift.book Page 102 Saturday, September 6, 2008 2:13 PM

Seats and Stowage103
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

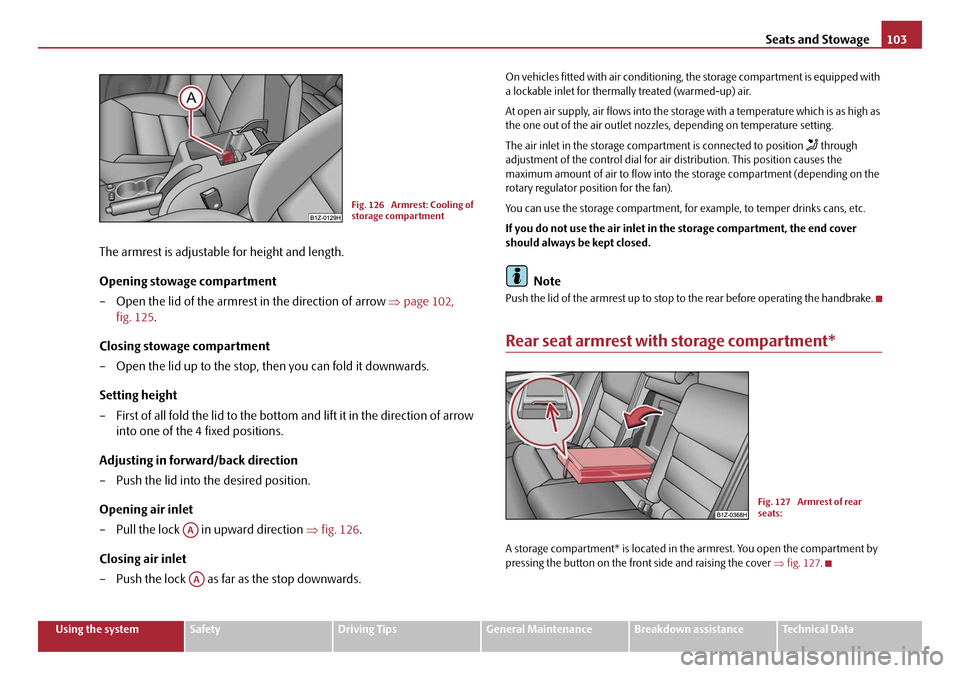

The armrest is adjustable for height and length.
Opening stowage compartment
– Open the lid of the armrest in the direction of arrow ⇒page 102,
fig. 125 .
Closing stowage compartment
– Open the lid up to the stop, then you can fold it downwards.
Setting height
– First of all fold the lid to the bottom and lift it in the direction of arrow into one of the 4 fixed positions.
Adjusting in forward/back direction
– Push the lid into the desired position.
Opening air inlet
– Pull the lock in upward direction ⇒fig. 126 .
Closing air inlet
– Push the lock as far as the stop downwards.
On vehicles fitted with air conditioning, the storage compartment is equipped with
a lockable inlet for thermally treated (warmed-up) air.
At open air supply, air flows into the storage with a temperature which is as high as
the one out of the air outlet nozzles, depending on temperature setting.
The air inlet in the storage compar tment is connected to position
 through
adjustment of the control dial for air distribution. This position causes the
maximum amount of air to flow into th e storage compartment (depending on the
rotary regulator position for the fan).
You can use the storage compartment, for example, to temper drinks cans, etc.
If you do not use the air inlet in the storage compartment, the end cover
should always be kept closed.
Note
Push the lid of the armrest up to stop to the rear before operating the handbrake.
Rear seat armrest with storage compartment*
A storage compartment* is located in the armrest. You open the compartment by
pressing the button on the front side and raising the cover ⇒fig. 127 .
Fig. 126 Armrest: Cooling of
storage compartment
AA
AA
Fig. 127 Armrest of rear
seats:
20A5Facelift.book Page 103 Saturday, September 6, 2008 2:13 PM

Seats and Stowage
104

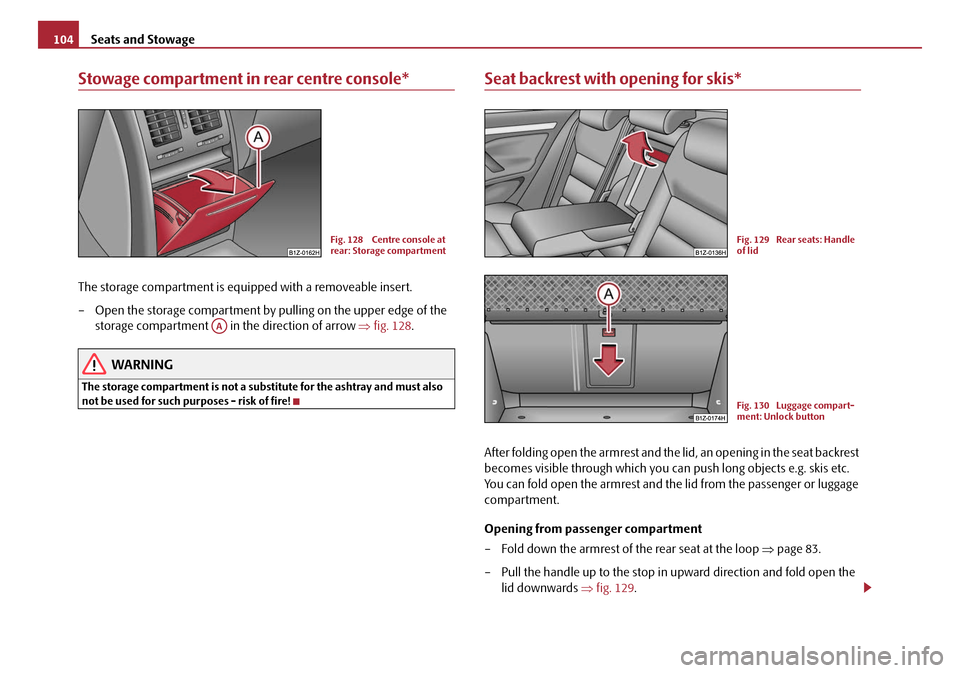

Stowage compartment in rear centre console*
The storage compartment is equipped with a removeable insert.
– Open the storage compartment by pu lling on the upper edge of the
storage compartment in the direction of arrow ⇒fig. 128 .
WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire!
Seat backrest with opening for skis*
After folding open the armrest and the li d, an opening in the seat backrest
becomes visible through which you can push long objects e.g. skis etc.
You can fold open the armrest and th e lid from the passenger or luggage
compartment.
Opening from passenger compartment
– Fold down the armrest of the rear seat at the loop ⇒page 83.
– Pull the handle up to the stop in upward direction and fold open the lid downwards ⇒fig. 129 .
Fig. 128 Centre console at
rear: Storage compartment
AA
Fig. 129 Rear seats: Handle
of lid
Fig. 130 Luggage compart-
ment: Unlock button
20A5Facelift.book Page 104 Saturday, September 6, 2008 2:13 PM

Seats and Stowage105
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Opening from luggage compartment
– Push the unlock button downwards ⇒page 104, fig. 130 and fold
the lid (with armrest) to the front.
Closing
– Fold the lid and the armrest up to the stop in upward direction - the lid must click into place audibly.
Ensure that the armrest is always locked into place after closing. You can recognize
this on the fact that the red field above the unlocking button of the luggage
compartment is not visible.
Through-loading bag*
Loading
– Open the boot lid/luggage compartment door.
– Push the unlock button downwards ⇒fig. 131 and fold the lid
(with armrest) to the front.
– Place the empty through-loading bag in such a way that the end of the bag with the zip lies in the boot.
– Push the objects into the through-loading bag from the boot ⇒.
Securing
– Insert the securing belt of the through-loading bag into the middle seat belt buckle ⇒fig. 132 .
– Place the securing belt on ski sport articles in the middle between the bindings ⇒.
– Pull the securing belt tight at the free end of the belt .
Stowing
– Fold the lid and the armrest up to the stop in upward direction - the lid must click into place audibly. You can recognize this on the fact that
the red field above the unlocking button of the luggage compart-
ment is not visible ⇒fig. 131.
AA
AA
Fig. 131 Luggage compart-
ment: Unlock button
Fig. 132 Attaching through-
loading bag to middle seat
belt buckle of rear seats
AA
AA
AC
AB
AA
20A5Facelift.book Page 105 Saturday, September 6, 2008 2:13 PM

Seats and Stowage
106

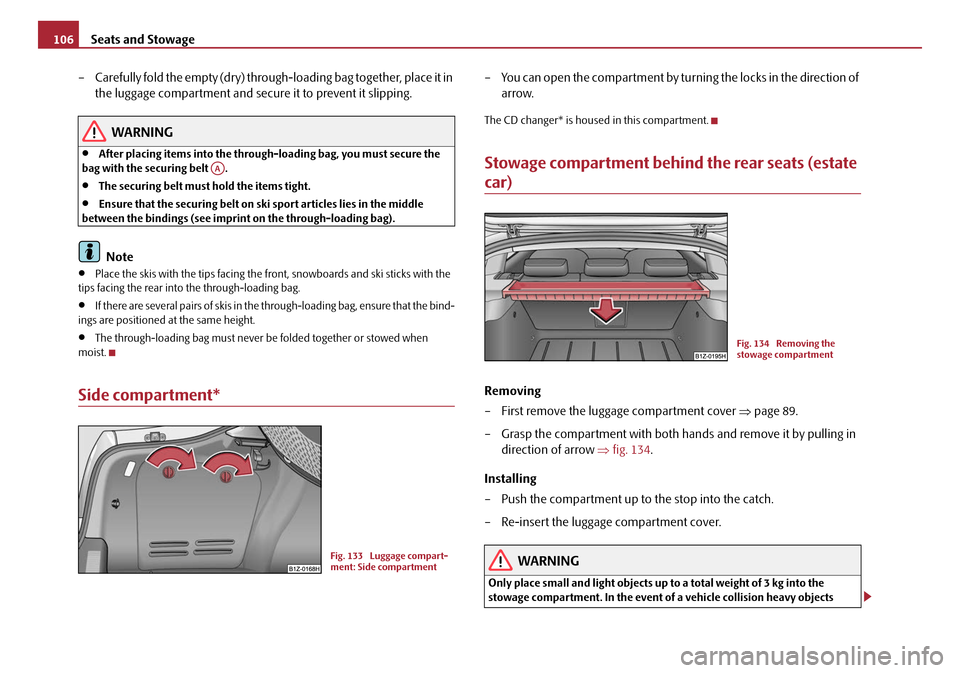

– Carefully fold the empty (dry) through-loading bag together, place it in the luggage compartment and secure it to prevent it slipping.
WARNING
•After placing items into the through- loading bag, you must secure the
bag with the securing belt .
•The securing belt must hold the items tight.
•Ensure that the securing belt on ski sport articles lies in the middle
between the bindings (see imprint on the through-loading bag).
Note
•Place the skis with the tips facing the front, snowboards and ski sticks with the
tips facing the rear into the through-loading bag.
•If there are several pairs of skis in the through-loading bag, ensure that the bind-
ings are positioned at the same height.
•The through-loading bag must never be folded together or stowed when
moist.
Side compartment*
– You can open the compartment by turning the locks in the direction of arrow.
The CD changer* is housed in this compartment.
Stowage compartment behind the rear seats (estate
car)
Removing
– First remove the luggage compartment cover ⇒page 89.
– Grasp the compartment with both hands and remove it by pulling in direction of arrow ⇒fig. 134 .
Installing
– Push the compartment up to the stop into the catch.
– Re-insert the luggage compartment cover.
WARNING
Only place small and light objects up to a total weight of 3 kg into the
stowage compartment. In the event of a vehicle collision heavy objects
AA
Fig. 133 Luggage compart-
ment: Side compartment
Fig. 134 Removing the
stowage compartment
20A5Facelift.book Page 106 Saturday, September 6, 2008 2:13 PM

Seats and Stowage107
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
could be thrown out of the compartment - risk of injuries! For this reason,
the front part of the luggage compartmen
t cover must always cover over the
stowage compartment.

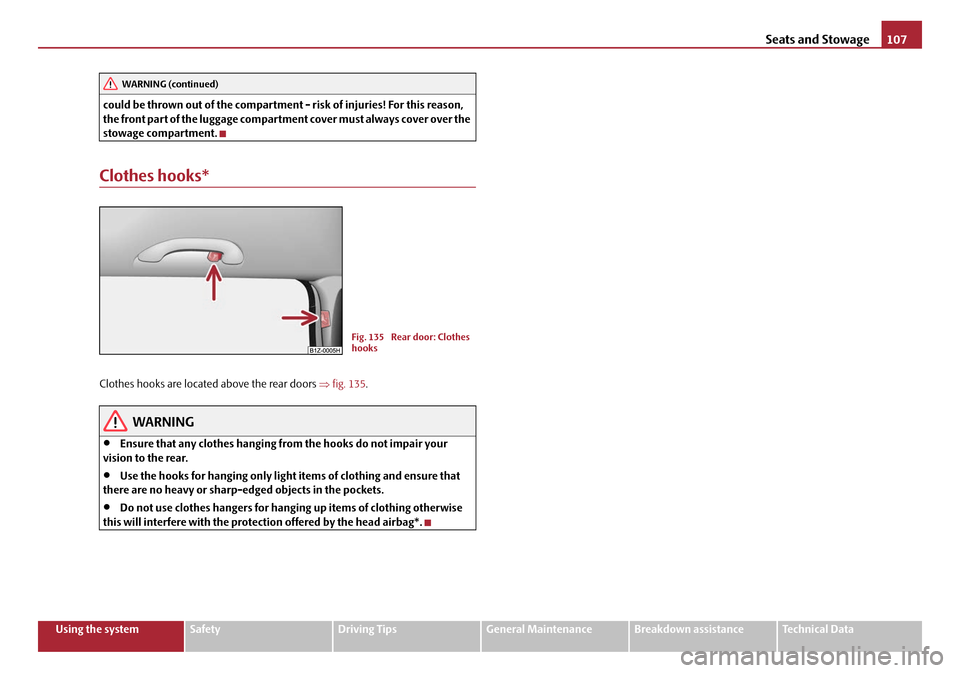

Clothes hooks*
Clothes hooks are located above the rear doors ⇒fig. 135 .
WARNING
•Ensure that any clothes hanging from the hooks do not impair your
vision to the rear.
•Use the hooks for hanging only light items of clothing and ensure that
there are no heavy or sharp- edged objects in the pockets.
•Do not use clothes hangers for hanging up items of clothing otherwise
this will interfere with the protection offered by the head airbag*.
WARNING (continued)
Fig. 135 Rear door: Clothes
hooks
20A5Facelift.book Page 107 Saturday, September 6, 2008 2:13 PM

Heating and air conditioning system
108

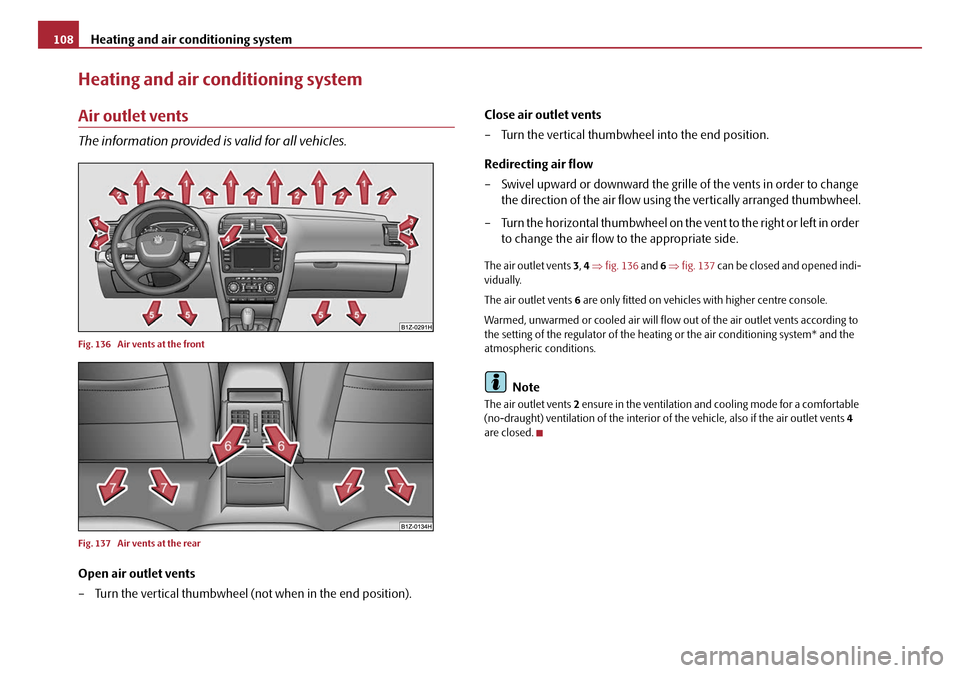

Heating and air conditioning system
Air outlet vents
The information provided is valid for all vehicles.
Fig. 136 Air vents at the front
Fig. 137 Air vents at the rear
Open air outlet vents
– Turn the vertical thumbwheel (not when in the end position). Close air outlet vents
– Turn the vertical thumbwheel into the end position.
Redirecting air flow
– Swivel upward or downward the grille of the vents in order to change
the direction of the air flow using the vertically arranged thumbwheel.
– Turn the horizontal thumbwheel on the vent to the right or left in order to change the air flow to the appropriate side.
The air outlet vents 3, 4 ⇒ fig. 136 and 6 ⇒ fig. 137 can be closed and opened indi-
vidually.
The air outlet vents 6 are only fitted on vehicles with higher centre console.
Warmed, unwarmed or cooled air will flow ou t of the air outlet vents according to
the setting of the regulator of the heatin g or the air conditioning system* and the
atmospheric conditions.
Note
The air outlet vents 2 ensure in the ventilation and cooling mode for a comfortable
(no-draught) ventilation of the interior of the vehicle, also if the air outlet vents 4
are closed.
20A5Facelift.book Page 108 Saturday, September 6, 2008 2:13 PM

Heating and air conditioning system109
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Heating
Using the system
The heating system delivers air into the interior of the vehicle and
warms it as required.
Fig. 138 Heating: Control elements
Setting temperature
– Turn the control dial ⇒fig. 138 to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera- ture.
Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in order to switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower off. – Pressing button causes the recirculating air system
⇒ to be
switched on.
Control for air distribution
– You can adjust the direction of the air flow using the air distribution control ⇒page 108.
Rear window heater
– Press button . Further information ⇒page 67, “Rear window
heater”.
Auxiliary heating (auxiliary heating)*
– Press the button in order to directly switch on/off the auxiliary heating (auxiliary heating and ve ntilation). Further information
⇒ page 119, “Auxiliary heating (auxiliary heating and ventilation)*”.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order
to ensure that the heating and ventilation systems operate properly.
The heating effect is dependent upon th e coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature.
The blower should aways be on to prevent the windows from misting up.
WARNING
You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your
attention and also cause the windows to mist up. The risk of having an acci-
dent increases. Switch recirculated air mode off as soon as the windows
begin misting up.
Note
•The whole heat output will be needed to unfrost the windscreen and side
windows. No warm air will be fed to the footwell. This can lead to restriction of the
heating comfort.
AA
AA
AB
AB
A1
AC
A2
A3
20A5Facelift.book Page 109 Saturday, September 6, 2008 2:13 PM
