Seats and Stowage81
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The head restraints must be adjusted to
match the size of the seat occupant.
Correctly adjusted head restraints together with the seat belts offer effective
protection for the occupants ⇒page 164, “Correct seated position”.
WARNING
•The head restraints must be correctly adjusted in order to offer effective
protection for the occupants in the event of an accident.
•Do not drive under any circumstance with removed head restraints - risk
of injury!
•If the rear seats are occupied, the rear head restraint must not be in the
lower position.
Middle rear head restraint*
IIn certain countries national legal pr ovisions also require the equipment
of the rear seat with fixing eyes for child seat using the “Top Tether” system
⇒ page 191. For vehicles, which are equipped with such fixing eyes, a
deviating sequence for removing the middle head restraint must be
observed. Removing and installing the rear middle head restraint
– Pull the head restraint out of the back
rest of the seat as far as the stop.
– Press the locking button in the direction of arrow , press simultane- ously the locking button into the opening using a flat screwdriver
with a width of maximum 5 mm an d pull out the head restraint.
– To re-insert the head restraint, push it down into the backrest of the
seat far enough until you hear the locking button engage.
WARNING
•The head restraints must be correctly adjusted in order to offer effective
protection for the occupants in the event of an accident.
•Do not drive under any circumstance with removed head restraints - risk
of injury!
•If the rear seats are occupied, the rear head restraint must not be in the
lower position.
Rear seats
Folding the rear seats forwards
Fig. 81 Rear seats: middle
head restraint
AA
AB
Fig. 82 Folding the rear seat
forwards
20A5Facelift.book Page 81 Saturday, September 6, 2008 2:13 PM

Seats and Stowage83
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•Pay attention that the rear seat backresst are correctly interlocked. It is
only then that the three-point seat belt for the middle seat can reliably fulfil
its function.
•Before folding the seat backrest back into the secure position, place the
rear lateral seat belt behind the edge of the side trim panel. Take suitable
measures to prevent that the seat belt is jammed between the seat backrest
and the side trim panel is thus damaged.
Remove the rear seat
You can enlarge the luggage compartment on vehicles with divided rear
seats* by removing the rear seat.
Removing
– Fold the rear seat forwards.
– Press the wire clamps in the direction of the arrow ⇒fig. 85 and
remove the rear seat from its holder. Installing
– Press the wire clamp in the direction of the arrow and place the seat
upholstery in its holder.
– Fold the rear seat back into its original position.
Caution
For vehicles with heated rear seats* it is necessary to disconnect the plug connec-
tion for the power supply before removing the rear seat bench. For re-installation it
is necessary to re-connect the plug connection.
Rear seat armrest*
– You can fold down the armrest at the loop to enhance occupant comfort ⇒fig. 86 .
WARNING (continued)
Fig. 85 Remove the rear
seats
Fig. 86 Rear seats: Armrest
20A5Facelift.book Page 83 Saturday, September 6, 2008 2:13 PM

Seats and Stowage85
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Note
•The seat heating should only be switched on when the engine is running. This
has a significant effect of sa ving on the battery capacity.
•If the on-board voltage drop s, the seat heating is switched off automatically, in
order to provide sufficient electrical energy for the engine control.
Pedals
Concerning a secure depressing of the pe dal, you should use only footmats from
the Škoda genuine accessories.
Operation of the pedals must not be hindered!
WARNING
•Greater pedal distances may be needed when there is a fault in the brake
system.
•Do not place any footmats or other additional floor coverings in the area
of the pedals in order to ensure that all the pedals can be fully depressed and
are able to return unobstructed to their initial position - risk of accident!
•There must be no objects on the floor which could roll under the pedals.
You would then no longer be able to apply the brakes, operate the clutch or
accelerator - risk of accident!
luggage compartment
Loading the luggage compartment
Please observe the following in the inte rest of having good handling char-
acteristics of your vehicle:
– Distribute the items of luggage as evenly as possible.
– Place heavy objects as far forward as possible. – Attach the items of luggage to the lashing eyes or the safety net*
⇒page 86.
In the event of an accident, there is such a high kinetic energy which is produced by
small and light objects that they can caus e severe injuries. The magnitude of the
kinetic energy depends on the speed at wh ich the vehicle is travelling and on the
weight of the object. The speed at which the vehicle is travelling is in this case the
more significant factor.
Example: In the event of a frontal collision at a speed of 50 km/h, an unsecured
object with a weight of 4.5 kg produces an energy, which corresponds to 20 times
its own weight. This means that it results in a weight of approx. 90 kg. You can
imagine the injuries that can occur, if this “bullet” is flying through the interior
compartment and hits an occupant.
WARNING
•Store the objects in the luggage compartment and attach them to the
lashing eyes.
•Loose objects in the passenger co mpartment can be thrown forward
during a sudden manoeuvre or in case of an accident and can injure the
occupants or other oncoming traffic. This risk is still increased, if the objects
which are flying around are hit by a deployed airbag. In this case, the objects
which are thrown back can injure the occupants - hazard.
•Please note that the handling properties of your vehicle may be affected
when transporting heavy objects as a result of the displacement of the
centre of gravity. The speed and style of driving must be adjusted accord-
ingly.
•The items carried in the luggage compartment should be stored in such
a way that no objects are able to slip forward if there are any sudden driving
or braking manoeuvres under taken - risk of injury!
•Never drive with the boot lid fully opened or slightly ajar otherwise
exhaust gases may get into the interior of the vehicle - risk of poisoning!
•On no account exceed the permissible axle loads and the permissible
gross weight of the vehicle - risk of accident!
•Never transport occupants in the luggage compartment!
20A5Facelift.book Page 85 Saturday, September 6, 2008 2:13 PM

Seats and Stowage87
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Folding double hooks for attaching small
items of luggage, such as bags etc.
⇒ page 86, fig. 91 are provided on one or both sides of the luggage compartment
depending on the equipment installed in the vehicle.
An item of luggage weighing up to 5 kg can be attached to each side of the double
hook.
Folding hooks (Combi)
Folding hooks for attaching small items of luggage, such as bags etc., are provided
on both sides of the luggage compartment ⇒fig. 92 .
An item of luggage weighi ng up to 10 kg can be attached to the hook.
Fixing floor covering of the luggage compartment
There is a loop (Octavia) or there are hooks (estate car) located on the floor
covering of the luggage compartment. You can fix the raised floor cover with a hook
to the luggage compartment cover (Octavia) ⇒fig. 93 as if one needs to reach the
spare wheel or to the frame of the boot lid (estate car) ⇒fig. 94 .
Fig. 92 Luggage compart-
ment: folding hooks
Fig. 93 Luggage compart-
ment: Fixing of the floor
covering (Octavia)
Fig. 94 Luggage compart-
ment: Fixing of the floor
covering (Estate car)
20A5Facelift.book Page 87 Saturday, September 6, 2008 2:13 PM

Seats and Stowage89
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Caution
Please ensure that the heating elements of the rear window heater are not
damaged as a result of objects placed in this area.
Note
Opening the tailgate also lifts up the luggage compartment cover.
Luggage compartment cover (estate car)
Unrolling
– Pull the luggage compartment cover in direction of arrow as far as
the stop into the secured position ⇒fig. 97 .
Rolling up
– Press the cover in the handle area in direction of arrow , the cover
rolls up automatically.
Removing
– Have the luggage compartment cover removed to transport bulky goods. Press the slider from the si de in the direction of arrow and
remove the luggage compartment cover in the direction of arrow
⇒ fig. 98 .
WARNING
No objects should be placed on the luggage compartment cover.
Caution
Please ensure that the heating elements of the rear window heater and luggage
compartment cover are not damaged as a re sult of objects placed in this area.
Fig. 97 Luggage compart-
ment: The luggage compart-
ment cover
Fig. 98 Luggage compart-
ment: removing the luggage
compartment cover
A1
A2
A3
A4
20A5Facelift.book Page 89 Saturday, September 6, 2008 2:13 PM

Seats and Stowage91
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Net partition (Estate)*
Use the net partition behind the rear seats
Unrolling
– Fold down the stowage compartment cover behind the rear seats
⇒fig. 102.
– Pull the net partition at the bracket out of the housing in direc- tion of the holders ⇒fig. 103 .
– Insert the cross rod into one of the mounts and push the cross rod forward. – In the same way, fix the cross rod to the other side of the vehicle,
mount .
– Fold the stowage compartment cover downwards.
Rolling up
– Fold down the stowage compartment cover behind the rear seats ⇒fig. 102 .
– Pull the cross rod back slightly, first on the one side then on the other side and take the cross rod out of the mount ⇒fig. 103 .
– Hold the cross rod in such a way that the net partition can roll up
slowily and without damage into housing .
– Fold the stowage compartment cover downwards.
If you wish to use the entire luggage compartment, you can remove the luggage
compartment cover ⇒page 89, fig. 97 .
WARNING
•First check for yourself that the cros s road is inserted into the mounts
in the front position!
•Pay attention that the rear seat backrest is correctly interlocked. It is only
then that the three-point seat belt for the middle seat can reliably fulfil its
function.
Fig. 102 Folding down the
stowage compartment cover
Fig. 103 Unrolling net parti-
tion
AAAB
AC
AC
AC
AC
AB
AC
20A5Facelift.book Page 91 Saturday, September 6, 2008 2:13 PM

Seats and Stowage93
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Installing
– Position the net partition housing in to the mounts of the seat backrest.
– Push the net partition housing in the opposite direction of arrow as far as the stop.
– Fold the rear seats back in to its original position.
The roof rack*
Description
Pay attention to the following points if you wish to transport luggage or other items
on the roof of your vehicle:
•A special roof luggage rack system was developed for the vehicle, that is why
you should only use a roof luggage rack which has been released for use by Škoda
Auto a.s.
•The base carrier is the basis for a comple te roof luggage rack system. Separate
additional holders are required for safety reasons for transporting luggage, bikes,
surfboards, skis and boats.
•The basic version of the roof luggage ra ck system and further components are
obtainable as accessories from Škoda Service Partners.
Caution
•If you use other roof rack systems or if the roof bars are not properly fitted, then
any damage which may result to your ca r is not covered by the warranty agree-
ments. It is therefore essential to pay attention to the fitting instructions supplied
with the roof luggage rack system.
•On models fitted with a power sliding/tilting roof, ensure that the opened
sliding/tilting roof does not strike any items of luggage transported on the roof.
•Ensure that the opened boot lid do es not collide with the roof load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption. One should
therefore take off the roof bar system after use.
Note
A roof rail is obtainable from a specialist garage if hasn't been fitted onto an estate
car at the works, which carries out the professional fitting.
Lashing points (Octavia)
Fitting
– Insert the attachment points of the roof rack into the mounts of the
body so that the pins of the attach ment points grasp into the holes of
the body.
Note
•Pay attention to the information regarding assembly and disassembly in the
attached instructions.
•If you have any questions, please contact a specialist garage.
•The figure is not valid for an estate car.
A1
Fig. 106 Attachment points
for base roof carrier
20A5Facelift.book Page 93 Saturday, September 6, 2008 2:13 PM

Seats and Stowage95
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Cup holder in rear centre console*
– Press on the panel in the area ⇒fig. 108 - the cup holder comes
out.
– Pull the cup holder out as far as the stop.
– Adjust the cup holder by moving the locking plate .
WARNING
•Do not place any hot beverages into the cup holder while the car is
moving. The hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). You might be injured by them in the event of an accident.
Note holder
The note holder is designed e.g. for attaching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to
restrict the driver's vision.
Ashtray*
Front ashtray
Fig. 108 Centre console at
rear: Cup holder
AA
AB
Fig. 109 Windscreen: Note
holder
Fig. 110 Centre console:
Front ashtray
20A5Facelift.book Page 95 Saturday, September 6, 2008 2:13 PM

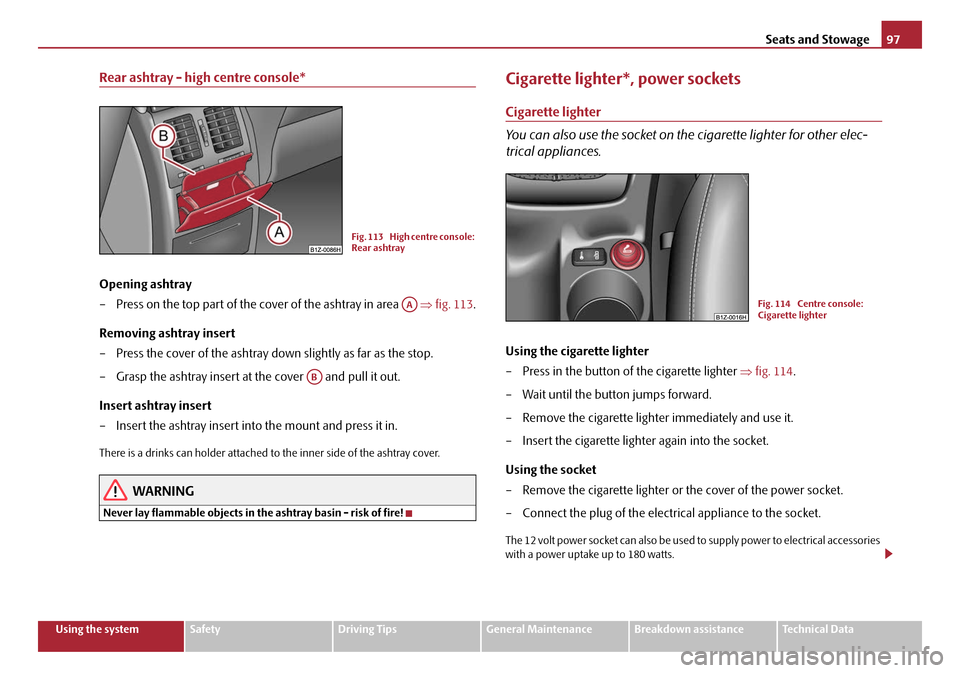

Seats and Stowage97
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Rear ashtray - high centre console*
Opening ashtray
– Press on the top part of the cover of the ashtray in area ⇒fig. 113 .
Removing ashtray insert
– Press the cover of the ashtray down slightly as far as the stop.
– Grasp the ashtray insert at the cover and pull it out.
Insert ashtray insert
– Insert the ashtray insert into the mount and press it in.
There is a drinks can holder attached to the inner side of the ashtray cover.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Cigarette lighter*, power sockets
Cigarette lighter
You can also use the socket on the cigarette lighter for other elec-
trical appliances.
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒fig. 114 .
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the socket
– Remove the cigarette lighter or the cover of the power socket.
– Connect the plug of the electrical appliance to the socket.
The 12 volt power socket can also be used to supply power to electrical accessories
with a power uptake up to 180 watts.
Fig. 113 High centre console:
Rear ashtray
AA
AB
Fig. 114 Centre console:
Cigarette lighter
20A5Facelift.book Page 97 Saturday, September 6, 2008 2:13 PM

Seats and Stowage99
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Please do not place anything on top of the dash panel. Such objects
might slide or fall down when driving (when accelerating or cornering) and
may distract you from concentrating on the traffic situation - risk of acci-
dent!
•Ensure that when driving no objects from the centre console of from
other storage possibilities may get into the footwell of the driver. You would
then no longer be able to apply the br akes, operate the clutch or accelerator
- risk of accident!
Storage compartment on the front passenger side
Opening and closing the storage compartment on the front
passenger side
– Press the handle of the lid ⇒fig. 116 - the lid folds down. – Raise the lid and press it until the catch is heard to engage.
There is a holder for a pen and note book on the inside of the lid.
WARNING
•The storage compartment must always
be closed when driving for safety
reasons.
•Do not place any beverages into the cup holder while driving. Spilled
beverages can damage the electrical sy stem and the upholstery. Hot bever-
ages may result in burns.
Cooling of storage compartment on front passenger
side*
The storage compartment is for vehi cles fitted with an air-condi-
tioning system with a closable air supply.
– You can switch the air supply on or off using the control dial
⇒fig. 117 .
Opening the air supply when the air condit ioning system is switched on allows
cooled air to flow into the storage compartment.
Side compartment*⇒ page 106
Stowage compartment behind the rear seats (estate
car)⇒page 106
Clothes hooks*⇒page 107
Fig. 116 Dash panel: Storage
compartment on the front
passenger side
Fig. 117 Storage compart-
ment: Using cooling system
20A5Facelift.book Page 99 Saturday, September 6, 2008 2:13 PM
