Page 31 of 45

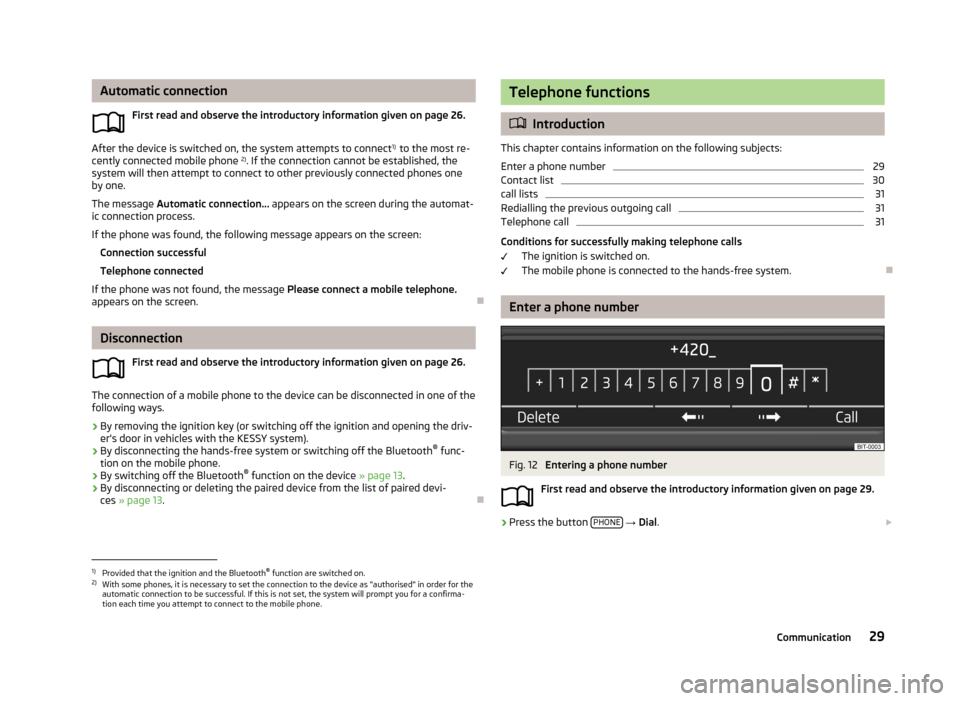

Automatic connectionFirst read and observe the introductory information given on page 26.
After the device is switched on, the system attempts to connect 1)
to the most re-
cently connected mobile phone 2)
. If the connection cannot be established, the
system will then attempt to connect to other previously connected phones one
by one.
The message Automatic connection... appears on the screen during the automat-
ic connection process.
If the phone was found, the following message appears on the screen: Connection successful
Telephone connected
If the phone was not found, the message Please connect a mobile telephone.
appears on the screen.
Disconnection
First read and observe the introductory information given on page 26.
The connection of a mobile phone to the device can be disconnected in one of the
following ways.
› By removing the ignition key (or switching off the ignition and opening the driv-
er's door in vehicles with the KESSY system).
› By disconnecting the hands-free system or switching off the Bluetooth ®
func-
tion on the mobile phone.
› By switching off the Bluetooth ®
function on the device » page 13.
› By disconnecting or deleting the paired device from the list of paired devi-
ces » page 13 .
Telephone functions
Introduction
This chapter contains information on the following subjects:
Enter a phone number
29
Contact list
30
call lists
31
Redialling the previous outgoing call
31
Telephone call
31
Conditions for successfully making telephone calls The ignition is switched on.
The mobile phone is connected to the hands-free system.
Enter a phone number
Fig. 12
Entering a phone number
First read and observe the introductory information given on page 29.
›
Press the button PHONE
→ Dial .
1)
Provided that the ignition and the Bluetooth®
function are switched on.
2)
With some phones, it is necessary to set the connection to the device as "authorised" in order for the
automatic connection to be successful. If this is not set, the system will prompt you for a confirma-
tion each time you attempt to connect to the mobile phone.
29Communication

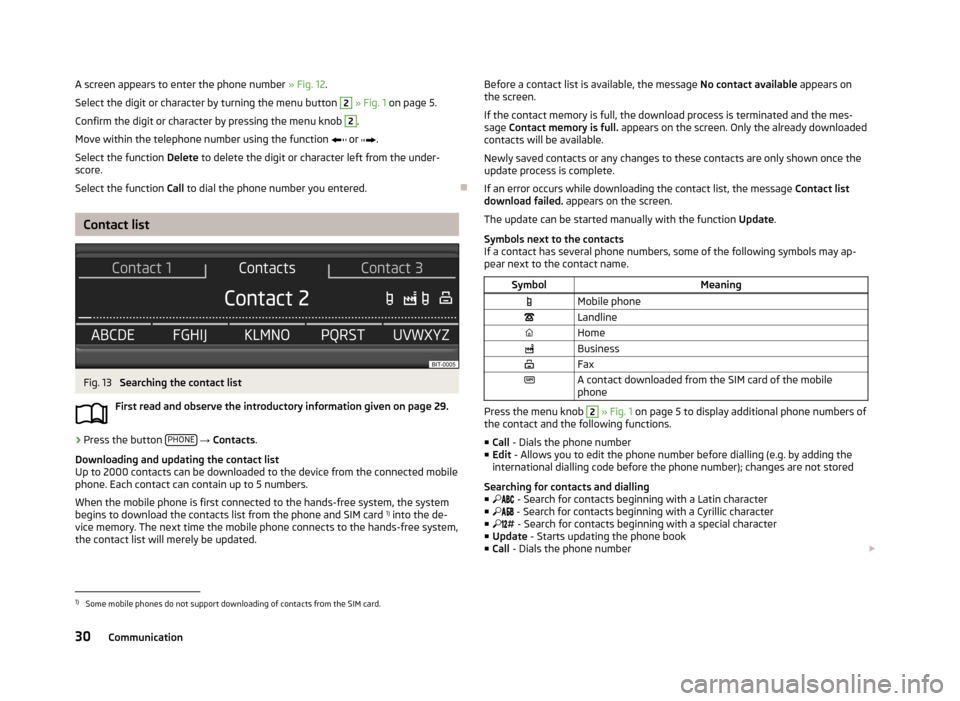

Page 32 of 45
A screen appears to enter the phone number » Fig. 12.
Select the digit or character by turning the menu button 2
» Fig. 1 on page 5.
Confirm the digit or character by pressing the menu knob
2
.
Move within the telephone number using the function or .
Select the function Delete to delete the digit or character left from the under-
score.
Select the function Call to dial the phone number you entered.
Contact list
Fig. 13
Searching the contact list
First read and observe the introductory information given on page 29.
›
Press the button PHONE
→ Contacts .
Downloading and updating the contact list Up to 2000 contacts can be downloaded to the device from the connected mobile
phone. Each contact can contain up to 5 numbers.
When the mobile phone is first connected to the hands-free system, the system
begins to download the contacts list from the phone and SIM card 1)
into the de-
vice memory. The next time the mobile phone connects to the hands-free system,
the contact list will merely be updated.
Before a contact list is available, the message No contact available appears on
the screen.
If the contact memory is full, the download process is terminated and the mes-
sage Contact memory is full. appears on the screen. Only the already downloaded
contacts will be available.
Newly saved contacts or any changes to these contacts are only shown once the update process is complete.
If an error occurs while downloading the contact list, the message Contact list
download failed. appears on the screen.
The update can be started manually with the function Update.
Symbols next to the contacts
If a contact has several phone numbers, some of the following symbols may ap-
pear next to the contact name.SymbolMeaningMobile phoneLandlineHomeBusinessFaxA contact downloaded from the SIM card of the mobile
phone
Press the menu knob
2
» Fig. 1 on page 5 to display additional phone numbers of
the contact and the following functions.
■ Call - Dials the phone number
■ Edit - Allows you to edit the phone number before dialling (e.g. by adding the
international dialling code before the phone number); changes are not stored
Searching for contacts and dialling
■
- Search for contacts beginning with a Latin character
■
- Search for contacts beginning with a Cyrillic character
■
# - Search for contacts beginning with a special character
■ Update - Starts updating the phone book
■ Call - Dials the phone number
1)
Some mobile phones do not support downloading of contacts from the SIM card.
30Communication

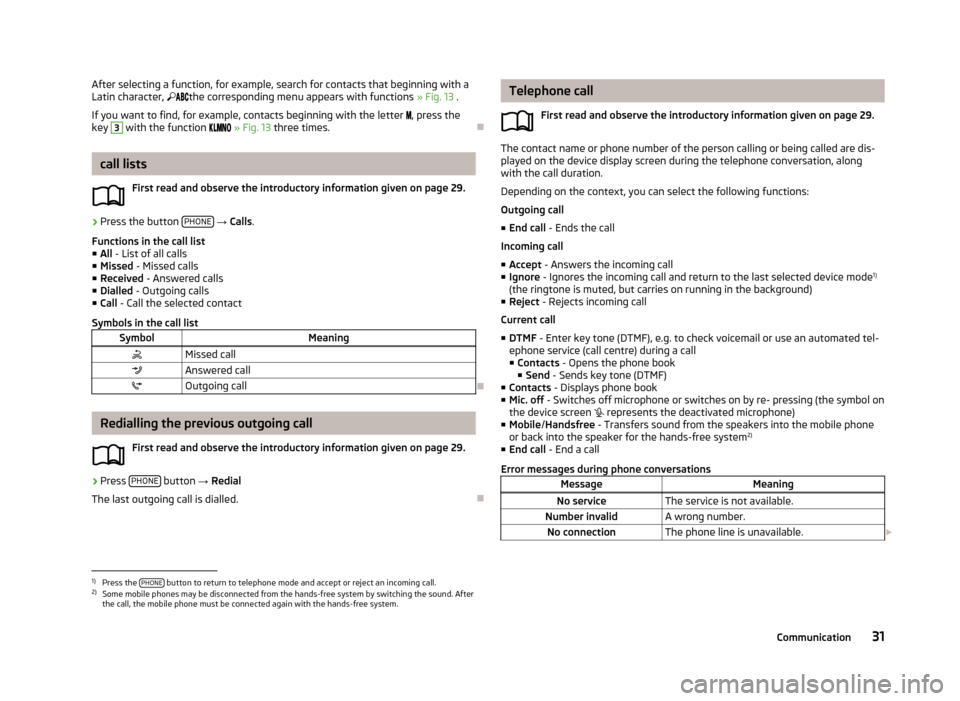

Page 33 of 45
After selecting a function, for example, search for contacts that beginning with a
Latin character, the corresponding menu appears with functions » Fig. 13 .
If you want to find, for example, contacts beginning with the letter , press the
key 3
with the function » Fig. 13 three times.
call lists
First read and observe the introductory information given on page 29.
›
Press the button PHONE
→ Calls .
Functions in the call list
■ All - List of all calls
■ Missed - Missed calls
■ Received - Answered calls
■ Dialled - Outgoing calls
■ Call - Call the selected contact
Symbols in the call list
SymbolMeaningMissed callAnswered callOutgoing call
Redialling the previous outgoing call
First read and observe the introductory information given on page 29.
›
Press PHONE button
→ Redial
The last outgoing call is dialled.
Telephone call
First read and observe the introductory information given on page 29.
The contact name or phone number of the person calling or being called are dis-
played on the device display screen during the telephone conversation, along
with the call duration.
Depending on the context, you can select the following functions:
Outgoing call
■ End call - Ends the call
Incoming call ■ Accept - Answers the incoming call
■ Ignore - Ignores the incoming call and return to the last selected device mode 1)
(the ringtone is muted, but carries on running in the background)
■ Reject - Rejects incoming call
Current call
■ DTMF - Enter key tone (DTMF), e.g. to check voicemail or use an automated tel-
ephone service (call centre) during a call
■ Contacts - Opens the phone book
■ Send - Sends key tone (DTMF)
■ Contacts - Displays phone book
■ Mic. off - Switches off microphone or switches on by re- pressing (the symbol on
the device screen
represents the deactivated microphone)
■ Mobile /Handsfree - Transfers sound from the speakers into the mobile phone
or back into the speaker for the hands-free system 2)
■ End call - End a call
Error messages during phone conversations
MessageMeaningNo serviceThe service is not available.Number invalidA wrong number.No connectionThe phone line is unavailable.
1)
Press the
PHONE button to return to telephone mode and accept or reject an incoming call.
2)
Some mobile phones may be disconnected from the hands-free system by switching the sound. After
the call, the mobile phone must be connected again with the hands-free system.
31Communication

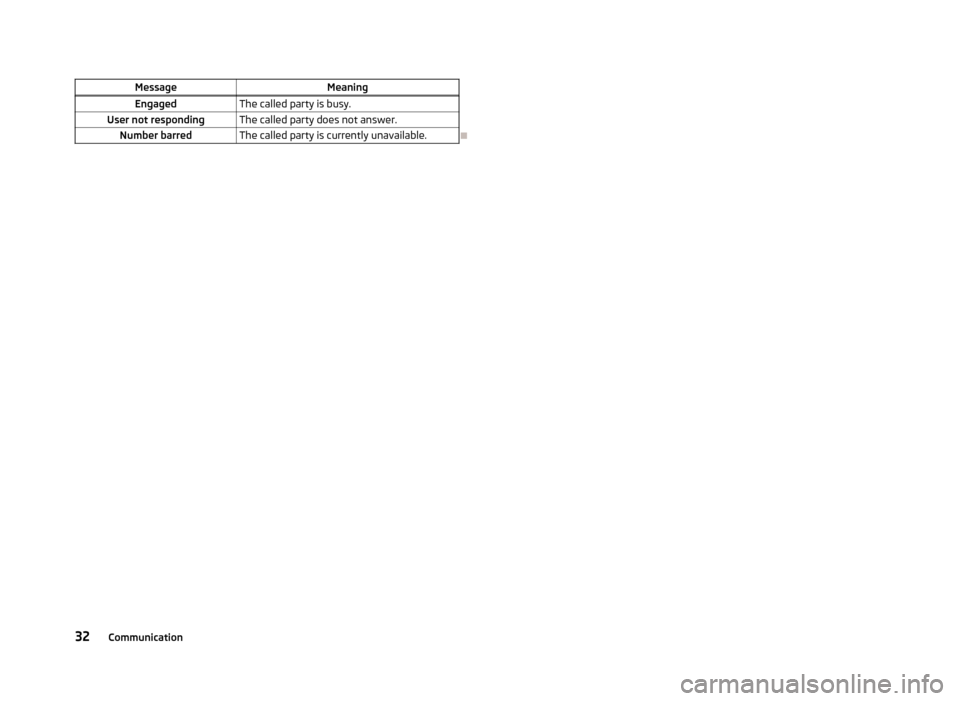

Page 34 of 45
MessageMeaningEngagedThe called party is busy.User not respondingThe called party does not answer.Number barredThe called party is currently unavailable.
32Communication
Page 35 of 45

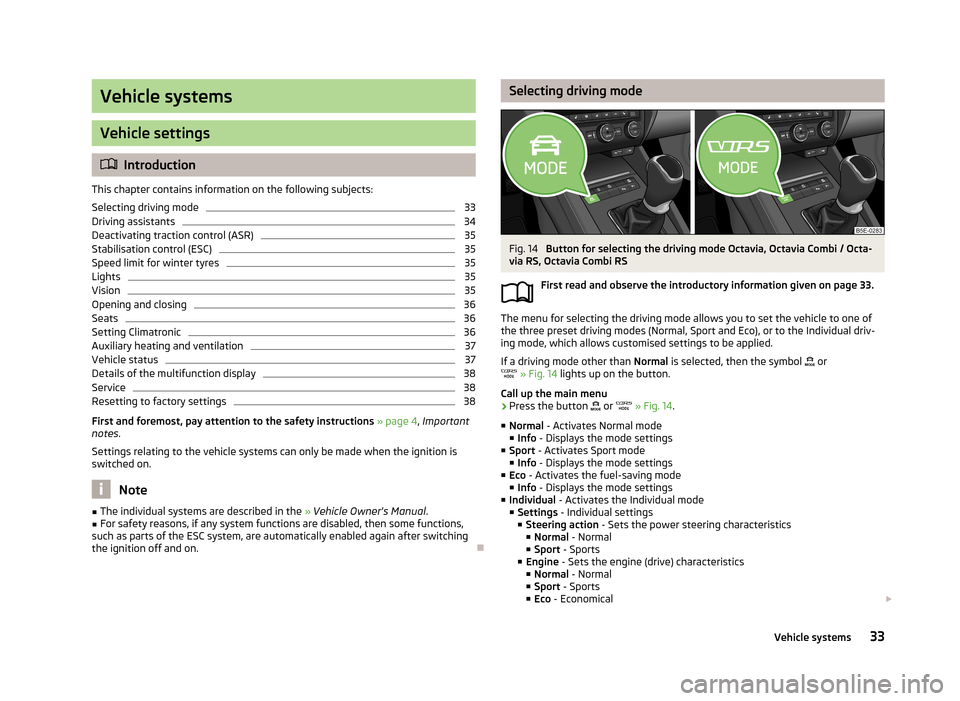

Vehicle systems
Vehicle settings
Introduction
This chapter contains information on the following subjects:
Selecting driving mode
33
Driving assistants
34
Deactivating traction control (ASR)
35
Stabilisation control (ESC)
35
Speed limit for winter tyres
35
Lights
35
Vision
35
Opening and closing
36
Seats
36
Setting Climatronic
36
Auxiliary heating and ventilation
37
Vehicle status
37

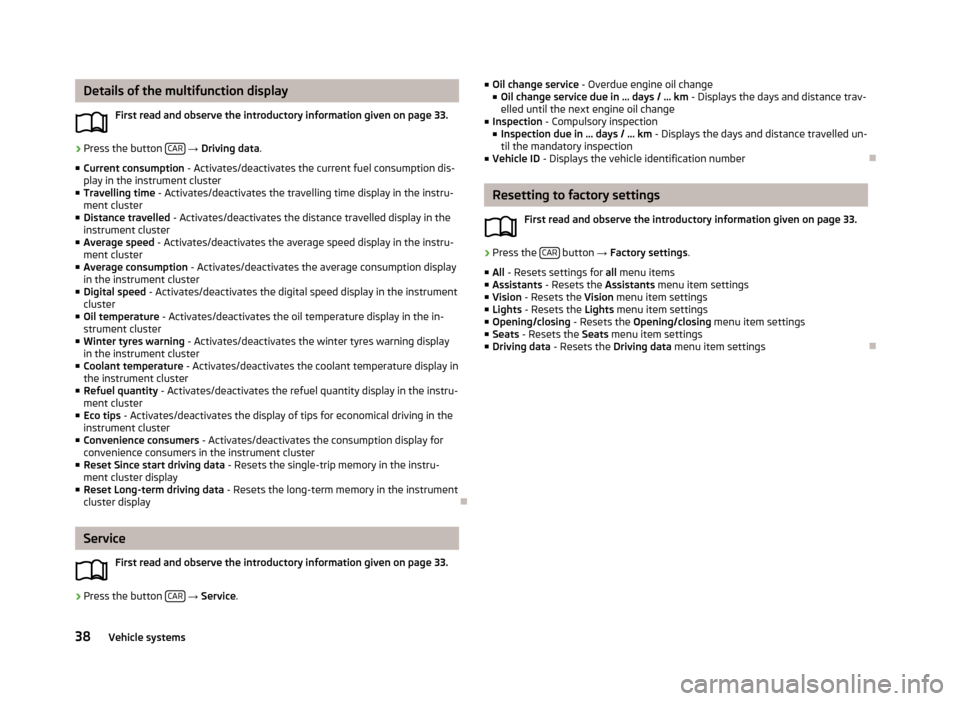

Details of the multifunction display
38
Service
38
Resetting to factory settings
38
First and foremost, pay attention to the safety instructions » page 4 , Important
notes .
Settings relating to the vehicle systems can only be made when the ignition is
switched on.
Note
■ The individual systems are described in the » Vehicle Owner's Manual .■For safety reasons, if any system functions are disabled, then some functions,
such as parts of the ESC system, are automatically enabled again after switching
the ignition off and on.
Selecting driving modeFig. 14
Button for selecting the driving mode Octavia, Octavia Combi / Octa-
via RS, Octavia Combi RS
First read and observe the introductory information given on page 33.
The menu for selecting the driving mode allows you to set the vehicle to one of
the three preset driving modes (Normal, Sport and Eco), or to the Individual driv-
ing mode, which allows customised settings to be applied.
If a driving mode other than Normal is selected, then the symbol
or
» Fig. 14 lights up on the button.
Call up the main menu
›
Press the button
or
» Fig. 14 .
■ Normal - Activates Normal mode
■ Info - Displays the mode settings
■ Sport - Activates Sport mode
■ Info - Displays the mode settings
■ Eco - Activates the fuel-saving mode
■ Info - Displays the mode settings
■ Individual - Activates the Individual mode
■ Settings - Individual settings
■ Steering action - Sets the power steering characteristics
■ Normal - Normal
■ Sport - Sports
■ Engine - Sets the engine (drive) characteristics
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
33Vehicle systems
Page 36 of 45
■ACC driving programme - Sets the vehicle acceleration when adaptive cruise
control is activated ■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Advanced FrontLighting System (AFS) - Sets the characteristics of the
adaptive headlights
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Air conditioning - Sets the characteristics of Climatronic
■ Normal - Normal
■ Eco - Economical
■ Reset - Sets the mode to Normal
Note
If the device is not operated for longer than 10 seconds in the "Select driving
mode" main menu, it will switch to the most recently selected menu or switch it-
self off.
Driving assistants
Fig. 15
Parking assistance: illustrations
First read and observe the introductory information given on page 33.
Parking assistance: Explanation of graphic
Obstacle detected in the scanned area (the vehicle can still continue to travel
in the direction of the obstacle)
Obstacle detected in the collision area (do not continue to drive in the direc- tion of the obstacle)
More information on the parking assistance can be found in the » Vehicle Owner's
Manual , chapter Assistance systems .
›
Press the button CAR
→ Assistants .
■ Front Assist - Sets the assistant for distance monitoring to the vehicles ahead
■ Active - Activate/deactivate the assistant
■ Advance warning - Activate/deactivate advance warning
■ Display distance warning - Activate/deactivate distance warnings
■ ACC (adaptive cruise control) - Sets the adaptive cruise control
■ Distance - Sets the distance monitoring to the vehicles ahead
■ Very close - Very small distance
■ Close - Small distance
■ Medium - Medium distance
■ Far - Large distance
■ Very far - Very large distance
■ Last distance selected - Last selected distance on/off
■ Driving programme - Sets the vehicle acceleration when adaptive cruise con-
trol is active 1)
■ Normal - Normal
■ Sport - Sports
■ Eco - Economical
■ Park Assist - Sets the park assistance
■ Front volume - Adjusts the volume of the front sensors
■ Front tone setting - Adjusts the tone of the front sensors
■ Rear volume - Adjusts the volume of the rear sensors
■ Rear tone setting - Adjusts the tone of the rear sensors
■ Audio lowering - Lowers the volume
■ Off - No lowering of the volume
■ Light - Light lowering of the volume
■ Medium - Medium lowering of the volume
■ Strong - Strong lowering of the volume
AB1)
This can be set in the menu on vehicles with a travel mode option
» page 33, Selecting driving mode .
34Vehicle systems
Page 37 of 45
■ProActive passenger protection - Activate/deactivate proactive passenger pro-
tection
■ Fatigue detection - Activate/deactivate the driver alert system
Deactivating traction control (ASR)
First read and observe the introductory information given on page 33.
›
Press the CAR button
→ ASR off - Switches deactivation of traction control
(ASR) on/off.
Stabilisation control (ESC)
First read and observe the introductory information given on page 33.
›
Press button CAR
→ Stabilisation control (ESC) 1)
.
■ Activated - Switch on all components of the ESC system
■ ASR off - Switch off the ASR system
■ ESC Sport - activation of ESC Sport
Speed limit for winter tyres
First read and observe the introductory information given on page 33.
›
Press the button CAR
→ Winter tyres limit .
■ Winter tyres warning - Switches the winter tyres warning function on/off
■ Warning at: ... km/h - Sets the speed for the warning
Note
This function is, for example, used for winter tyres where the maximum permissi-
ble speed is lower than the maximum speed of the vehicle.
Lights
First read and observe the introductory information given on page 33.›
Press the button CAR
→ Lights .
■ Light Assist - Sets the light assist
■ Switch-on time - Sets the sensibility of the light sensor against the change in
intensity of the ambient light
■ Early - High sensibility
■ Medium - Medium sensibility
■ Late - Low sensibility
■ Head Light Assist - Switch on/off the head light assist
■ Automatic headlight control (rain) - Activate/deactivate automatic headlight
control in rain
■ Daytime running lights - Activate/deactivate daytime running lights
■ Lane change flash - Activate/deactivate lane change flashing
■ Travel mode - Travel mode on/off
■ Left-hand traffic - For left-hand traffic
■ Right-hand traffic - For right-hand traffic
■ Interior lighting - Sets the interior lighting
■ Instrument lighting - Sets the brightness of the instrument/switch lighting
■ Footwell light - Sets the brightness of the footwell light
■ Coming home - Activates/deactivates the function and sets the illumination pe-
riod after leaving the vehicle (5-30 seconds)
■ Leaving home - Activates/deactivates the function and sets the illumination pe-
riod after locking the vehicle (5-30 seconds)
Vision
First read and observe the introductory information given on page 33.
›
Press the button CAR
→ Vision .
1)
Applies to vehicles with the function ESC sport.
35Vehicle systems
Page 38 of 45
■Mirrors - Adjusts the mirrors
■ Synchronous mirror adjustment - Activate/deactivate synchronous mirror ad-
justment
■ Lowering in reverse - Activates/deactivates the lowering of the front passen-
ger mirror when reversing
■ Fold in while parking - Activate/deactivate folding the mirror via the remote
control or by using the sensor in the handle (KESSY)
■ Wipers - Adjusts the windscreen wipers
■ Automatic wiping in rain - Activate/deactivate automatic windscreen wiping
in rain
■ Automatic rear wiper - Activate/deactivate automatic rear window wiping
Opening and closing
First read and observe the introductory information given on page 33.
›
Press the button CAR
→ Opening/closing .
■ Windows - Sets the window operation
■ Convenience opening - Sets the convenience opening
■ Off - Deactivates the convenience opening
■ All windows - All windows
■ Driver - Driver's window only
■ Central locking - Settings for opening and closing of doors
■ Door unlocking - Sets the door unlocking
■ All - All doors
■ Single door - Driver's door or driver's or passenger door with KESSY system
■ Driver side - Doors on the driver's side or on the driver's or passenger's side
with KESSY system
■ Automatic locking - Activates/deactivates automatic locking when setting off
and unlocking after removing the ignition key
■ Alarm system confirmation - Activates/deactivates acoustic signals when un-
locking/locking a vehicle with an anti-theft alarm system
Seats
First read and observe the introductory information given on page 33.
›
Press the button CAR
→ Seats .
■
Store driver's seat position on key - Activates/deactivates the storage of the
driver's seat position and exterior mirror position in the remote control key
when locking the vehicle
Setting Climatronic

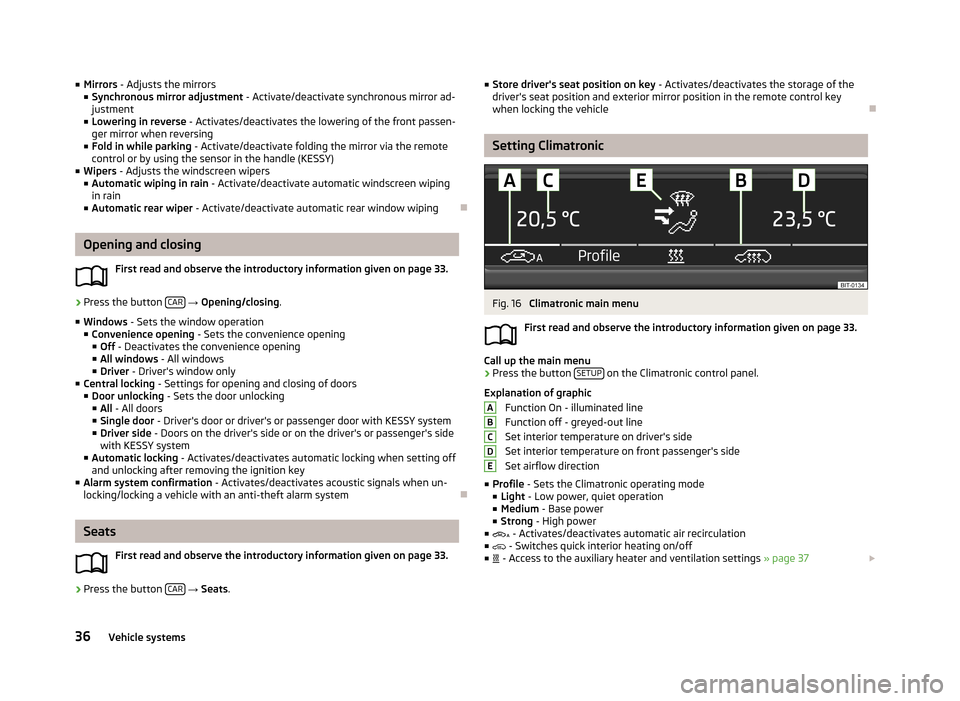

Fig. 16
Climatronic main menu
First read and observe the introductory information given on page 33.
Call up the main menu
›
Press the button SETUP on the Climatronic control panel.
Explanation of graphic Function On - illuminated line
Function off - greyed-out line
Set interior temperature on driver's side
Set interior temperature on front passenger's side Set airflow direction
■ Profile - Sets the Climatronic operating mode
■ Light - Low power, quiet operation
■ Medium - Base power
■ Strong - High power
■ - Activates/deactivates automatic air recirculation
■ - Switches quick interior heating on/off
■ - Access to the auxiliary heater and ventilation settings » page 37
ABCDE36Vehicle systems
Page 39 of 45
Note■The Climatronic Profile mode can be set by re-pressing the key 3 » Fig. 1 on
page 5.■
If the device is not operated for longer than 10 seconds in the Climatronic menu,
it will switch to the most recently selected menu or switch itself off.
Auxiliary heating and ventilation

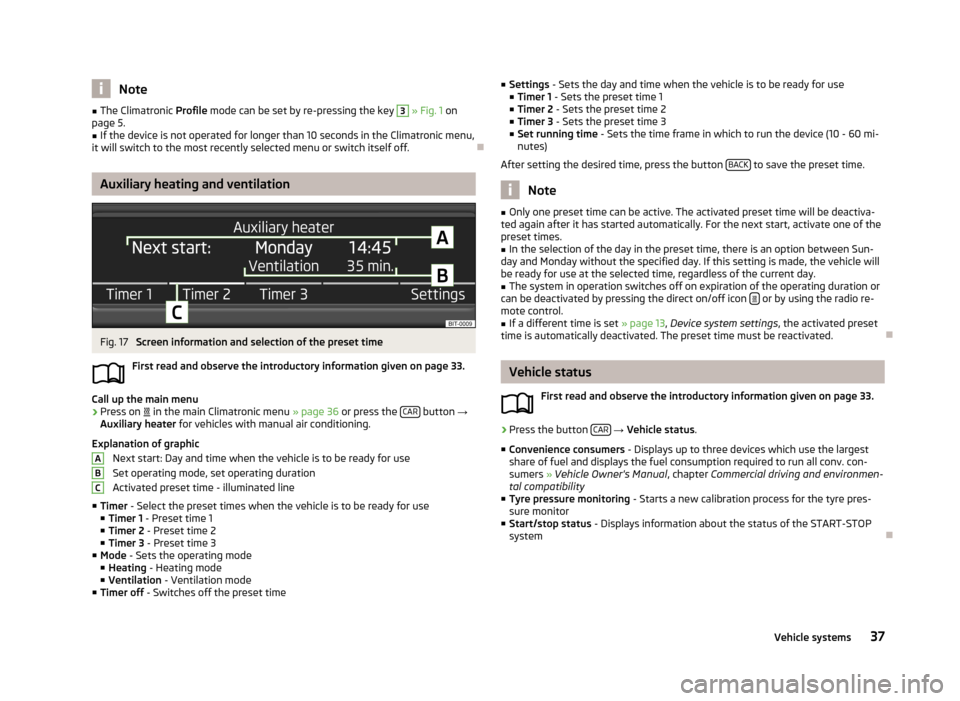

Fig. 17
Screen information and selection of the preset time
First read and observe the introductory information given on page 33.
Call up the main menu
›
Press on
in the main Climatronic menu » page 36 or press the CAR button
→
Auxiliary heater for vehicles with manual air conditioning.
Explanation of graphic Next start: Day and time when the vehicle is to be ready for use
Set operating mode, set operating duration
Activated preset time - illuminated line
■ Timer - Select the preset times when the vehicle is to be ready for use
■ Timer 1 - Preset time 1
■ Timer 2 - Preset time 2
■ Timer 3 - Preset time 3
■ Mode - Sets the operating mode
■ Heating - Heating mode
■ Ventilation - Ventilation mode
■ Timer off - Switches off the preset time
ABC■
Settings - Sets the day and time when the vehicle is to be ready for use
■ Timer 1 - Sets the preset time 1
■ Timer 2 - Sets the preset time 2
■ Timer 3 - Sets the preset time 3
■ Set running time - Sets the time frame in which to run the device (10 - 60 mi-
nutes)
After setting the desired time, press the button BACK
to save the preset time.
Note
■
Only one preset time can be active. The activated preset time will be deactiva-
ted again after it has started automatically. For the next start, activate one of the preset times.■
In the selection of the day in the preset time, there is an option between Sun-
day and Monday without the specified day. If this setting is made, the vehicle will
be ready for use at the selected time, regardless of the current day.
■
The system in operation switches off on expiration of the operating duration or
can be deactivated by pressing the direct on/off icon or by using the radio re-
mote control.
■
If a different time is set » page 13, Device system settings , the activated preset
time is automatically deactivated. The preset time must be reactivated.
Vehicle status
First read and observe the introductory information given on page 33.
›
Press the button CAR
→ Vehicle status .
■ Convenience consumers - Displays up to three devices which use the largest
share of fuel and displays the fuel consumption required to run all conv. con- sumers » Vehicle Owner's Manual , chapter Commercial driving and environmen-
tal compatibility
■ Tyre pressure monitoring - Starts a new calibration process for the tyre pres-
sure monitor
■ Start/stop status - Displays information about the status of the START-STOP
system
37Vehicle systems
Page 40 of 45
Details of the multifunction displayFirst read and observe the introductory information given on page 33.›
Press the button CAR
→ Driving data .
■ Current consumption - Activates/deactivates the current fuel consumption dis-
play in the instrument cluster
■ Travelling time - Activates/deactivates the travelling time display in the instru-
ment cluster
■ Distance travelled - Activates/deactivates the distance travelled display in the
instrument cluster
■ Average speed - Activates/deactivates the average speed display in the instru-
ment cluster
■ Average consumption - Activates/deactivates the average consumption display
in the instrument cluster
■ Digital speed - Activates/deactivates the digital speed display in the instrument
cluster
■ Oil temperature - Activates/deactivates the oil temperature display in the in-
strument cluster
■ Winter tyres warning - Activates/deactivates the winter tyres warning display
in the instrument cluster
■ Coolant temperature - Activates/deactivates the coolant temperature display in
the instrument cluster
■ Refuel quantity - Activates/deactivates the refuel quantity display in the instru-
ment cluster
■ Eco tips - Activates/deactivates the display of tips for economical driving in the
instrument cluster
■ Convenience consumers - Activates/deactivates the consumption display for
convenience consumers in the instrument cluster
■ Reset Since start driving data - Resets the single-trip memory in the instru-
ment cluster display
■ Reset Long-term driving data - Resets the long-term memory in the instrument
cluster display
Service
First read and observe the introductory information given on page 33.
›
Press the button CAR
→ Service .
■
Oil change service - Overdue engine oil change
■ Oil change service due in … days / … km - Displays the days and distance trav-
elled until the next engine oil change
■ Inspection - Compulsory inspection
■ Inspection due in … days / … km - Displays the days and distance travelled un-
til the mandatory inspection
■ Vehicle ID - Displays the vehicle identification number
Resetting to factory settings
First read and observe the introductory information given on page 33.
›
Press the CAR button
→ Factory settings .
■ All - Resets settings for all menu items
■ Assistants - Resets the Assistants menu item settings
■ Vision - Resets the Vision menu item settings
■ Lights - Resets the Lights menu item settings
■ Opening/closing - Resets the Opening/closing menu item settings
■ Seats - Resets the Seats menu item settings
■ Driving data - Resets the Driving data menu item settings
38Vehicle systems
