SKODA ROOMSTER 2011 1.G Owner's Manual

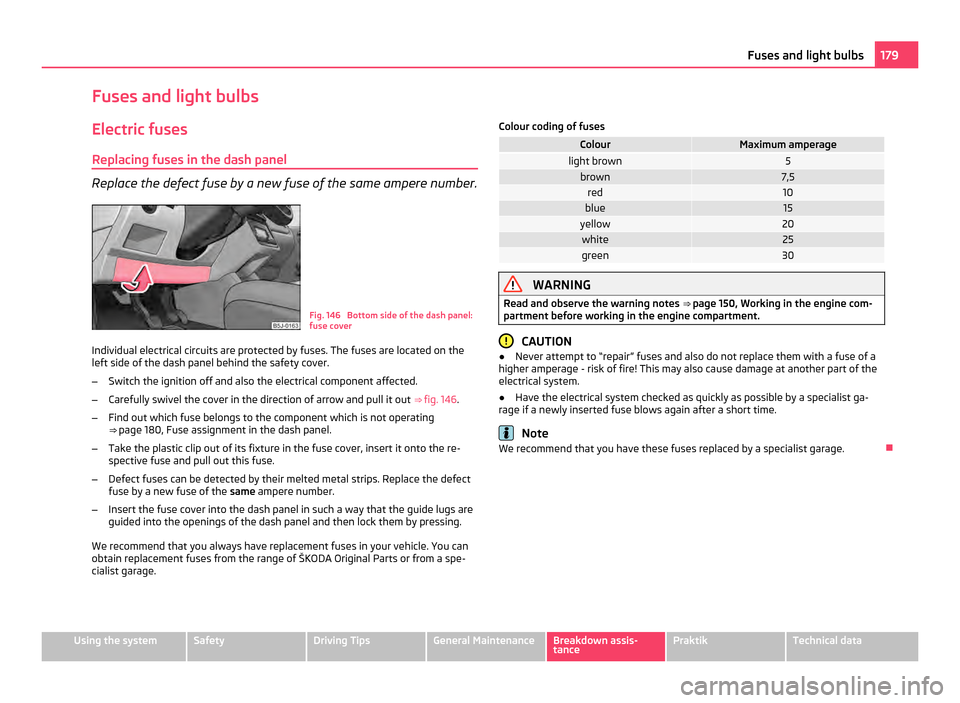

Fuses and light bulbs
Electric fuses Replacing fuses in the dash panel Replace the defect fuse by a new fuse of the same ampere number.
Fig. 146 Bottom side of the dash panel:
fuse cover
Individual electrical circuits are protected by fuses. The fuses are located on the
left side of the dash panel behind the safety cover.
– Switch the ignition off and also the electrical component affected.
– Carefully swivel the cover in the direction of arrow and pull it out ⇒ fig. 146 .
– Find out which fuse belongs to the component which is not operating
⇒ page 180
, Fuse assignment in the dash panel.
– Take the plastic clip out of its fixture in the fuse cover, insert it onto the re-
spective fuse and pull out this fuse.
– Defect fuses can be detected by their melted metal strips. Replace the defect
fuse by a new fuse of the same ampere number.
– Insert the fuse cover into the dash panel in such a way that the guide lugs are
guided into the openings of the dash panel and then lock them by pressing.
We recommend that you always have replacement fuses in your vehicle. You can
obtain replacement fuses from the range of

ŠKODA Original Parts or from a spe-
cialist garage. Colour coding of fuses Colour Maximum amperage
light brown 5
brown 7,5
red 10
blue 15
yellow 20
white 25
green 30
WARNING
Read and observe the warning notes ⇒ page 150
, Working in the engine com-
partment before working in the engine compartment. CAUTION
● Never attempt to
“repair” fuses and also do not replace them with a fuse of a
higher amperage - risk of fire! This may also cause damage at another part of the
electrical system.
● Have the electrical system checked as quickly as possible by a specialist ga-
rage if a newly inserted fuse blows again after a short time. Note
We recommend that you have these fuses replaced by a specialist garage.  179
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assis-
tance Praktik Technical data

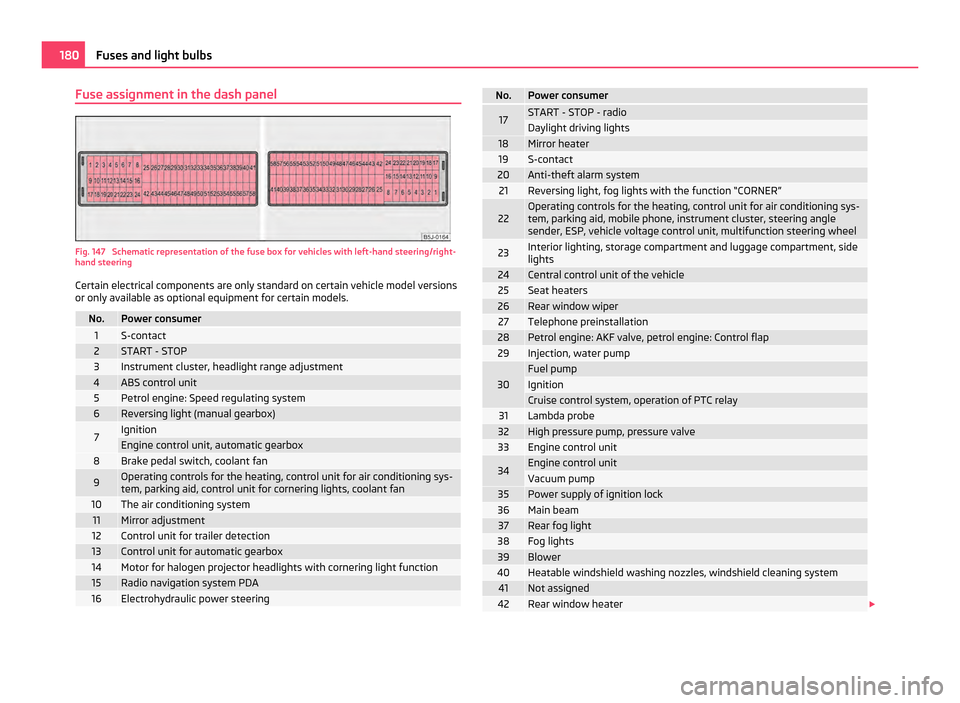

Fuse assignment in the dash panel
Fig. 147 Schematic representation of the fuse box for vehicles with left-hand steering/right-
hand steering
Certain electrical components are only standard on certain vehicle model versions
or only available as optional equipment for certain models. No. Power consumer
1 S-contact
2 START - STOP
3 Instrument cluster, headlight range adjustment
4 ABS control unit
5 Petrol engine: Speed regulating system
6 Reversing light (manual gearbox)
7 Ignition
Engine control unit, automatic gearbox
8 Brake pedal switch, coolant fan
9 Operating controls for the heating, control unit for air conditioning sys-
tem, parking aid, control unit for cornering lights, coolant fan
10 The air conditioning system
11 Mirror adjustment
12 Control unit for trailer detection
13 Control unit for automatic gearbox
14 Motor for halogen projector headlights with cornering light function
15 Radio navigation system PDA
16 Electrohydraulic power steering No. Power consumer
17 START - STOP - radio
Daylight driving lights
18 Mirror heater
19 S-contact
20 Anti-theft alarm system
21 Reversing light, fog lights with the function “CORNER”
22 Operating controls for the heating, control unit for air conditioning sys-
tem, parking aid, mobile phone, instrument cluster, steering angle
sender, ESP, vehicle voltage control unit, multifunction steering wheel
23 Interior lighting, storage compartment and luggage compartment, side
lights
24 Central control unit of the vehicle
25 Seat heaters
26 Rear window wiper
27 Telephone preinstallation
28 Petrol engine: AKF valve, petrol engine: Control flap
29 Injection, water pump
30 Fuel pump
Ignition
Cruise control system, operation of PTC relay
31 Lambda probe
32 High pressure pump, pressure valve
33 Engine control unit
34 Engine control unit
Vacuum pump
35 Power supply of ignition lock
36 Main beam
37 Rear fog light
38 Fog lights
39 Blower
40 Heatable windshield washing nozzles, windshield cleaning system
41 Not assigned
42 Rear window heater
£180
Fuses and light bulbs

No. Power consumer
43 Horn
44 Front window wiper
45 Central control unit for convenience system
46 Engine control unit
Engine control unit
Fuel pump relay
Fuel pump control unit
47 Cigarette lighter, power socket in the luggage compartment
a)48 ABS, START-STOP - DC/DC converter ESP
49 Turn signal lights, brake lights
50 START-STOP - DC/DC converter infotainment
Radio
51 Electrical power window (front and rear) - left side
52 Electrical power window (front and rear) - right side
53 Parking light - left side
Electric sliding/tilting roof
54 START-STOP - instrument cluster
Anti-theft alarm system
55 Control unit for automatic gearbox DSG
56 Headlight cleaning system
Parking light - right side
57 Left low beam, headlight range adjustment
58 Low beam on the right
a)
If the engine is switched off already one electrical component which is connected can discharge the

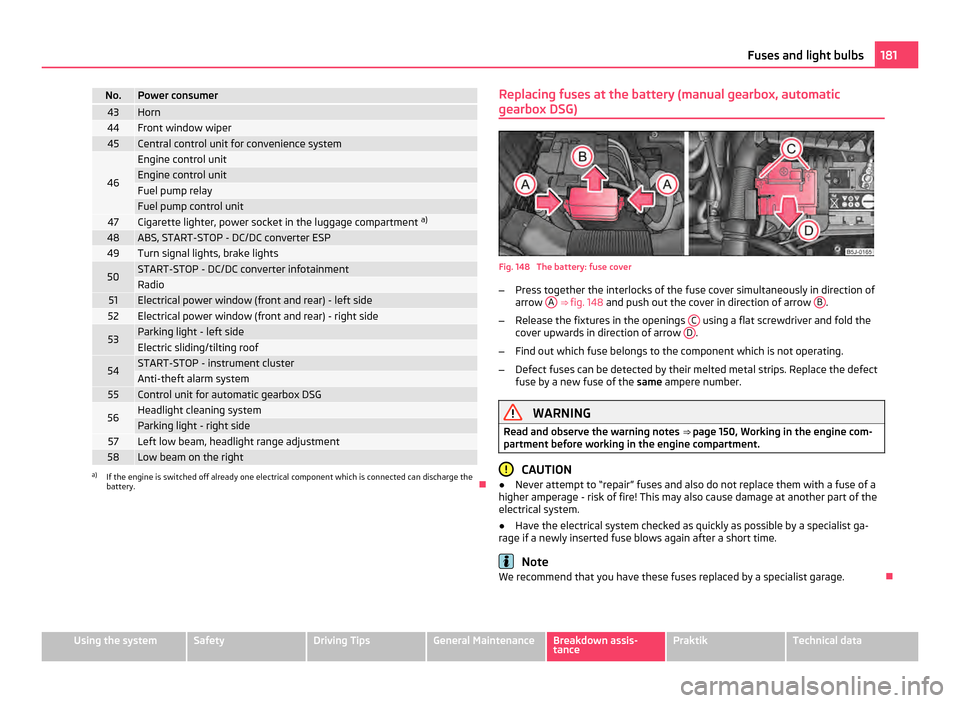

battery. Replacing fuses at the battery (manual gearbox, automatic
gearbox DSG) Fig. 148 The battery: fuse cover
– Press together the interlocks of the fuse cover simultaneously in direction of
arrow A
⇒  fig. 148 and push out the cover in direction of arrow B .
– Release the fixtures in the openings C using a flat screwdriver and fold the
cover upwards in direction of arrow D .
– Find out which fuse belongs to the component which is not operating.
– Defect fuses can be detected by their melted metal strips. Replace the defect
fuse by a new fuse of the same ampere number. WARNING
Read and observe the warning notes ⇒ page 150 , Working in the engine com-
partment before working in the engine compartment. CAUTION
● Never attempt to
“repair” fuses and also do not replace them with a fuse of a
higher amperage - risk of fire! This may also cause damage at another part of the
electrical system.
● Have the electrical system checked as quickly as possible by a specialist ga-
rage if a newly inserted fuse blows again after a short time. Note
We recommend that you have these fuses replaced by a specialist garage.  181
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assis-
tance Praktik Technical data

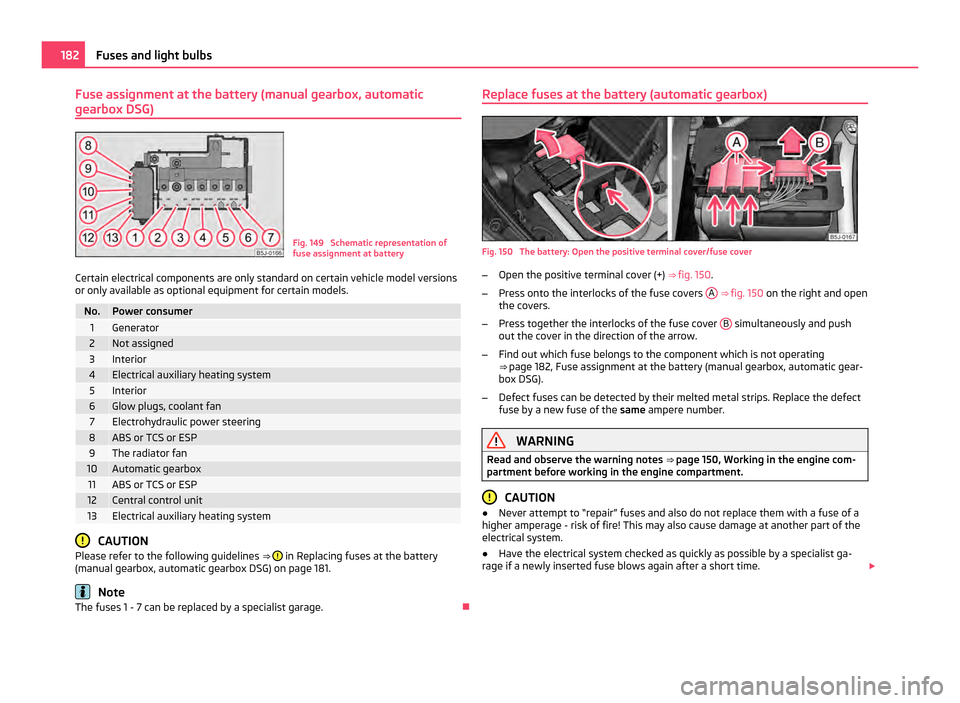

Fuse assignment at the battery (manual gearbox, automatic
gearbox DSG) Fig. 149 Schematic representation of
fuse assignment at battery
Certain electrical components are only standard on certain vehicle model versions
or only available as optional equipment for certain models. No. Power consumer
1 Generator
2 Not assigned
3 Interior
4 Electrical auxiliary heating system
5 Interior
6 Glow plugs, coolant fan
7 Electrohydraulic power steering
8 ABS or TCS or ESP
9 The radiator fan
10 Automatic gearbox
11 ABS or TCS or ESP
12 Central control unit
13 Electrical auxiliary heating system
CAUTION
Please refer to the following guidelines ⇒   in Replacing fuses at the battery
(manual gearbox, automatic gearbox DSG) on page 181 . Note
The fuses 1 - 7 can be replaced by a specialist garage. Replace fuses at the battery (automatic gearbox)
Fig. 150 The battery: Open the positive terminal cover/fuse cover
–
Open the positive terminal cover (+) ⇒ fig. 150.
– Press onto the interlocks of the fuse covers A
⇒
 fig. 150 on the right and open
the covers.
– Press together the interlocks of the fuse cover B simultaneously and push
out the cover in the direction of the arrow.
– Find out which fuse belongs to the component which is not operating
⇒ page 182, Fuse assignment at the battery (manual gearbox, automatic gear-
box DSG)

.
– Defect fuses can be detected by their melted metal strips. Replace the defect
fuse by a new fuse of the same ampere number. WARNING
Read and observe the warning notes ⇒ page 150
, Working in the engine com-
partment before working in the engine compartment. CAUTION
● Never attempt to
“repair” fuses and also do not replace them with a fuse of a
higher amperage - risk of fire! This may also cause damage at another part of the
electrical system.
● Have the electrical system checked as quickly as possible by a specialist ga-
rage if a newly inserted fuse blows again after a short time. £182
Fuses and light bulbs

Note
● We recommend that you have these fuses replaced by a specialist garage.
● Some vehicles are only fitted with the cover B ⇒ fig. 150
on the right. 

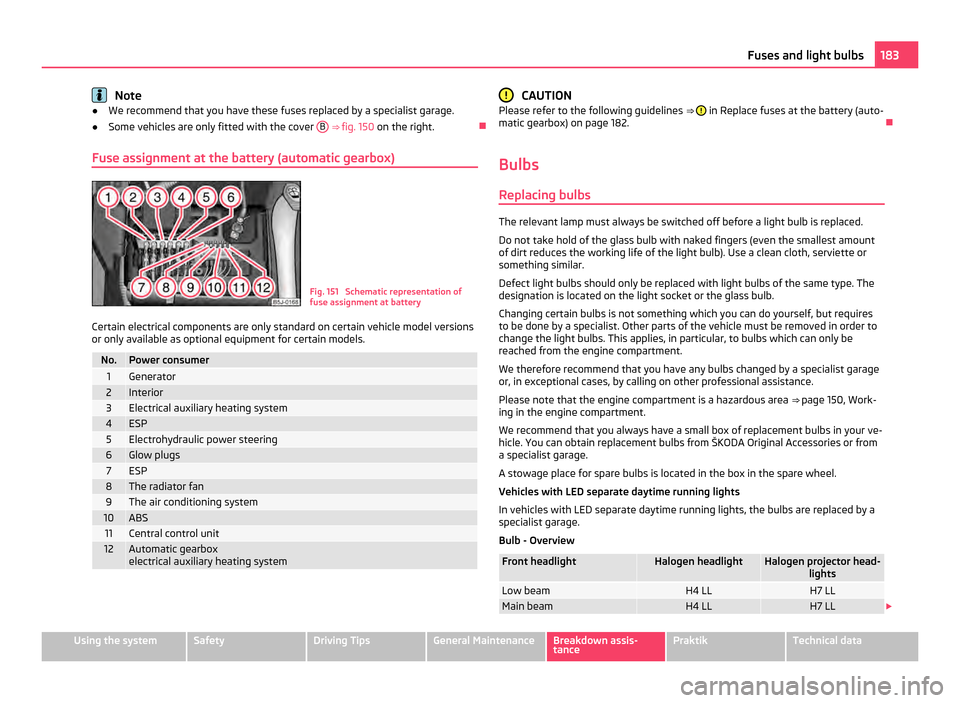

Fuse assignment at the battery (automatic gearbox) Fig. 151 Schematic representation of
fuse assignment at battery
Certain electrical components are only standard on certain vehicle model versions
or only available as optional equipment for certain models. No. Power consumer
1 Generator
2 Interior
3 Electrical auxiliary heating system
4 ESP
5 Electrohydraulic power steering
6 Glow plugs
7 ESP
8 The radiator fan
9 The air conditioning system
10 ABS
11 Central control unit
12 Automatic gearbox
electrical auxiliary heating system CAUTION
Please refer to the following guidelines ⇒   in Replace fuses at the battery (auto-
matic gearbox)
on page 182. 
Bulbs Replacing bulbs The relevant lamp must always be switched off before a light bulb is replaced.
Do not take hold of the glass bulb with naked fingers (even the smallest amount
of dirt reduces the working life of the light bulb). Use a clean cloth, serviette or
something similar.
Defect light bulbs should only be replaced with light bulbs of the same type. The
designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but requires
to be done by a specialist. Other parts of the vehicle must be removed in order to
change the light bulbs. This applies, in particular, to bulbs which can only be
reached from the engine compartment.
We therefore recommend that you have any bulbs changed by a specialist garage
or, in exceptional cases, by calling on other professional assistance.
Please note that the engine compartment is a hazardous area ⇒ page 150

, Work-
ing in the engine compartment.
We recommend that you always have a small box of replacement bulbs in your ve-
hicle. You can obtain replacement bulbs from ŠKODA Original Accessories or from
a specialist garage.
A stowage place for spare bulbs is located in the box in the spare wheel.
Vehicles with LED separate daytime running lights
In vehicles with LED separate daytime running lights, the bulbs are replaced by a
specialist garage.
Bulb - Overview Front headlight Halogen headlight Halogen projector head-
lights Low beam H4 LL H7 LL
Main beam H4 LL H7 LL
£ 183
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assis-
tance Praktik Technical data

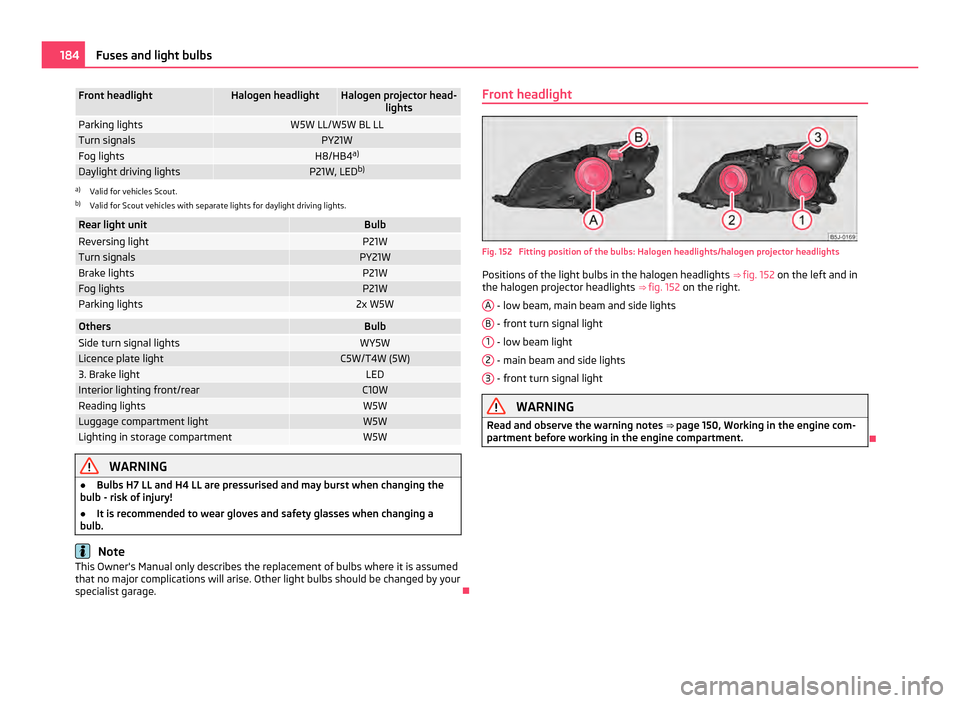

Front headlight Halogen headlight Halogen projector head-
lightsParking lights W5W LL/W5W BL LL
Turn signals PY21W
Fog lights H8/HB4
a)Daylight driving lights P21W, LED
b)a)
Valid for vehicles Scout.
b) Valid for Scout vehicles with separate lights for daylight driving lights. Rear light unit Bulb
Reversing light P21W
Turn signals PY21W
Brake lights P21W
Fog lights P21W
Parking lights 2x W5W
Others Bulb
Side turn signal lights WY5W
Licence plate light C5W/T4W (5W)
3. Brake light LED
Interior lighting front/rear C10W
Reading lights W5W
Luggage compartment light W5W
Lighting in storage compartment W5W
WARNING
● Bulbs H7 LL and H4 LL are pressurised and may burst when changing the
bulb - risk of injury!
● It is recommended to wear gloves and safety glasses when changing a
bulb. Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications will arise. Other light bulbs should be changed by your
specialist garage. Front headlight
Fig. 152 Fitting position of the bulbs: Halogen headlights/halogen projector headlights
Positions of the light bulbs in the halogen headlights
⇒
 fig. 152 on the left and in
the halogen projector headlights ⇒ fig. 152 on the right.
A - low beam, main beam and side lights
B - front turn signal light
1 - low beam light
2 - main beam and side lights
3 - front turn signal light
WARNING
Read and observe the warning notes ⇒ page 150
, Working in the engine com-
partment before working in the engine compartment. 184
Fuses and light bulbs

Low beam and main beam (halogen headlights)
Fig. 153 Removing the light bulb for the
low beam and main beam light
– Remove the protective cap A
⇒  fig. 152.
– Pull off the connector from the lamp, release the sprung wire clamp and pull
out the lamp towards the rear ⇒

 fig. 153.
– Replace the lamp H4 LL, insert into the opening in the reflector (with the fixing
lugs in the recesses), secure with the sprung wire clamp, mount the connector
and position the protective cap.
– We recommend that you have the headlight setting checked by a Skoda Serv-
ice Partner after replacing the light bulb. 
Low beam (halogen projector headlights) Fig. 154 Removing the light bulb for the
low beam light
– Remove the protective cap 1
⇒
 fig. 152 on the right.
– Turn the connector with the light bulb up to the stop towards the left
⇒ fig. 154 and remove. –
Replace the halogen lamp H7 LL, insert the connector with the new halogen
lamp and turn to the right up to the stop.
– Insert the protective cap.
– We recommend that you have the headlight setting checked by a Skoda Serv-
ice Partner after replacing the light bulb. 
Main beam (halogen projector headlights) Fig. 155 Removing the light bulb for the
main beam light
– Remove the protective cap 2
⇒
 fig. 152 -right.
– Turn the connector with the light bulb up to the stop towards the left
⇒  fig. 155 and remove.
– Replace the halogen lamp H7, insert the connector with the new halogen lamp
and turn to the right up to the stop.
– Insert the protective cap.
– We recommend that you have the headlight setting checked by a Skoda Serv-
ice Partner after replacing the light bulb. 
Turn signal light (at the front) –
Turn the socket B
⇒  fig. 152 or the socket 3 to the left and take it out to-
gether with the light bulb for the turn signal light.
– Replace the defective light bulb.
– Insert the lamp holder with light bulb into the headlight. Secure the lamp hold-
er by turning it to the right until it locks in place.  185
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assis-
tance Praktik Technical data

Parking light at the front
–
Remove the protective cap A or
2 ⇒ fig. 152
.
– Grasp the light bulb holder and pull it out of the headlight.
– Replace the light bulb in the light bulb holder and re-insert into the headlight. 
Daylight driving lights and fog lights Fig. 156 Front bumper: Protective grille/removing the fog light
–
Switch the ignition and all lights off.
– Grasp the grille at the points marked with the arrows ⇒ fig. 156 on the left and
take it out.
– Guide your hand into the opening in which the grille was located and press the
spring bolt ⇒

 fig. 156 on the right.
– Take out the fog light.
– Turn the socket A with the bulb for daylight driving light or the socket
Bwith the bulb of the fog light to the left up to stop and take it out.
– Replace the lamp, insert the connector with the new lamp and turn to the
right up to the stop.
– For the installation, first of all insert the fog light with the interlock to the side
far away from the marking of the vehicle.
– Press into place the headlight onto the side facing the marking.
– First of all put the grille with the latch in place on the side opposite the mark-
ing.
– Press into place the protective grille onto the side facing the marking. Cover of fog lights - Roomster Scout
Fig. 157 Front bumper: Roomster Scout
Removing the cover - Roomster Scout
– Switch the ignition and all lights off.
– Guide the wire clamp from the vehicle tool kit into the opening above the fog
light ⇒ fig. 157 and remove the cover. 
Fog lights - Roomster Scout Fig. 158 Front bumper: Fog lights/changing the bulb
£186
Fuses and light bulbs

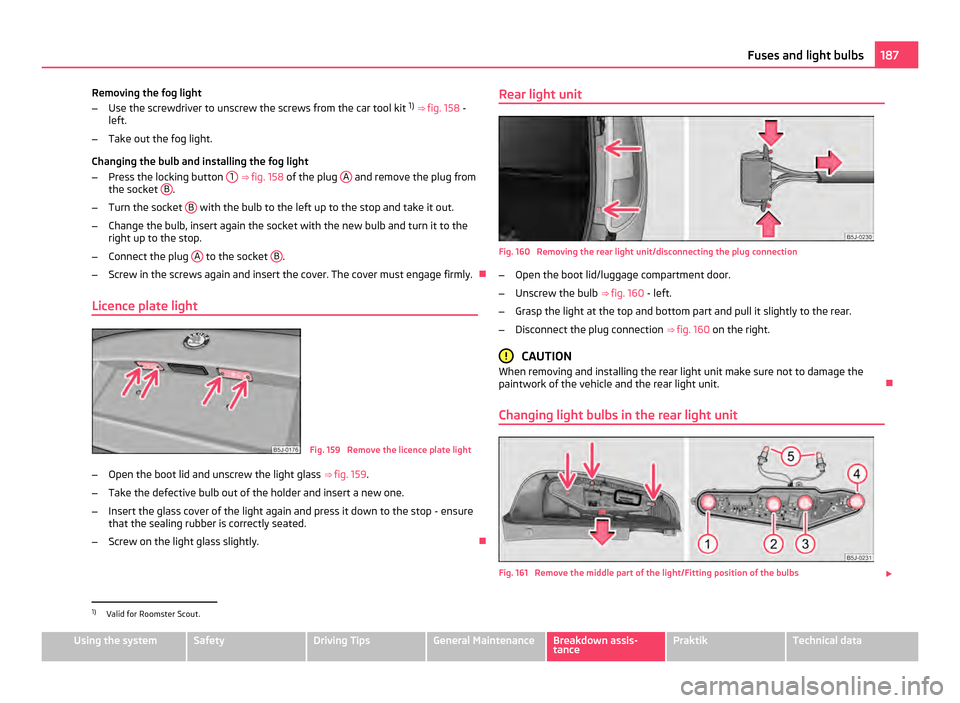

Removing the fog light
–
Use the screwdriver to unscrew the screws from the car tool kit 1)
⇒  fig. 158 -
left.
– Take out the fog light.
Changing the bulb and installing the fog light
– Press the locking button 1 ⇒ fig. 158
of the plug A and remove the plug from
the socket B .
– Turn the socket B with the bulb to the left up to the stop and take it out.
– Change the bulb, insert again the socket with the new bulb and turn it to the
right up to the stop.
– Connect the plug A to the socket
B .
– Screw in the screws again and insert the cover. The cover must engage firmly. 
Licence plate light Fig. 159 Remove the licence plate light
– Open the boot lid and unscrew the light glass ⇒
 fig. 159 .
– Take the defective bulb out of the holder and insert a new one.
– Insert the glass cover of the light again and press it down to the stop - ensure
that the sealing rubber is correctly seated.
– Screw on the light glass slightly. Rear light unit
Fig. 160 Removing the rear light unit/disconnecting the plug connection
–
Open the boot lid/luggage compartment door.
– Unscrew the bulb ⇒ fig. 160 - left.
– Grasp the light at the top and bottom part and pull it slightly to the rear.
– Disconnect the plug connection ⇒ fig. 160 on the right. CAUTION
When removing and installing the rear light unit make sure not to damage the
paintwork of the vehicle and the rear light unit. 
Changing light bulbs in the rear light unit Fig. 161 Remove the middle part of the light/Fitting position of the bulbs
£1)
Valid for Roomster Scout. 187
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assis-
tance Praktik Technical data

–
Unscrew the middle part of the light and slacken the interlock in order to
reach the bulbs ⇒ fig. 161 - left.
– Replace the defective light bulb.
– To replace the bulb of the parking light, turn the fixture of the bulb 5 to the
left up to the stop (in the direction of the arrows on the housing) and take the
fixture out of the housing ⇒
 fig. 161 .
– Replace the light bulb, put the bulb connector back into the housing and turn
it to the right up to the stop (in the opposite direction of the arrows on the
housing).
– Screw the middle part of the light onto the housing.
– Reconnect the plug connector and insert the bulb in the original position.
– Screw on the light ⇒ fig. 160 on the left.
Fitting position of the light bulbs in the rear light unit ⇒ fig. 161 on the right.
1 - Brake lights
2 - Turn signal lights
3 - Reversing light
4 - Rear fog light
5 - parking lights
188
Fuses and light bulbs
