It is possible to individually adjust this
speed dependent volume control.
• Select GALA in the Setup menu."SETUP GALA" and the current setting
are shown in the display.
• Use the control knob/push button
1to
select the desired setting. The setting
range is 1 – 9.
1 = minimum effect
9 = maximum effect
Select the "NO" option to switch the
GALA function off.
Use the control knob/push button
1to
adjust the basic volume (e.g. for different
radio stations or cassettes). The speed
dependent volume control continues to
operate automatically
CODE/SAFE
If "CODE" appears in the display, coding
is not activated.
If "SAFE" appears in the display, coding is
activated.
The way how to activate and deactivate
the coding is described on the the follow-
ing pages.

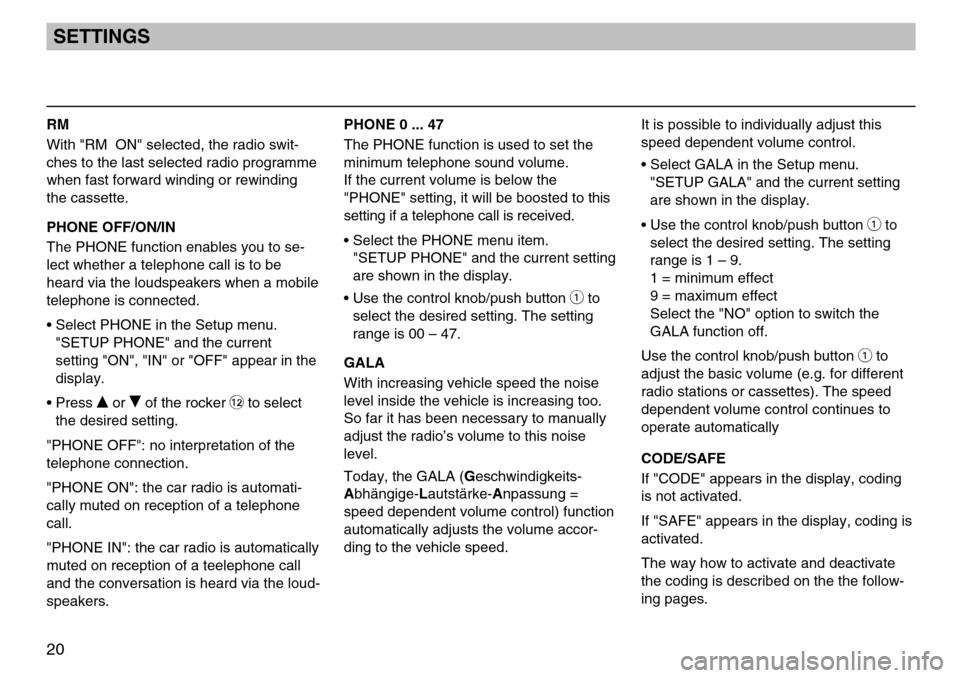

RM
With "RM ON" selected, the radio swit-
ches to the last selected radio programme
when fast forward winding or rewinding
the cassette.
PHONE OFF/ON/IN
The PHONE function enables you to se-
lect whether a telephone call is to be
heard via the loudspeakers when a mobile
telephone is connected.
• Select PHONE in the Setup menu. "SETUP PHONE" and the current
setting "ON", "IN" or "OFF" appear in the
display.
• Press
or of the rocker ß`to select
the desired setting.
"PHONE OFF": no interpretation of the
telephone connection.
"PHONE ON": the car radio is automati-
cally muted on reception of a telephone
call.
"PHONE IN": the car radio is automatically
muted on reception of a teelephone call
and the conversation is heard via the loud-
speakers.
SETTINGS
PHONE 0 ... 47
The PHONE function is used to set the
minimum telephone sound volume.
If the current volume is below the
"PHONE" setting, it will be boosted to this
setting if a telephone call is received.
• Select the PHONE menu item. "SETUP PHONE" and the current setting
are shown in the display.
• Use the control knob/push button
1to
select the desired setting. The setting
range is 00 – 47.
GALA
With increasing vehicle speed the noise
level inside the vehicle is increasing too.
So far it has been necessary to manually
adjust the radio’s volume to this noise
level.
Today, the GALA (Geschwindigkeits-
Abhängige-Lautstärke-Anpassung =
speed dependent volume control) function
automatically adjusts the volume accor-
ding to the vehicle speed.
Page 22 of 26
21
GB

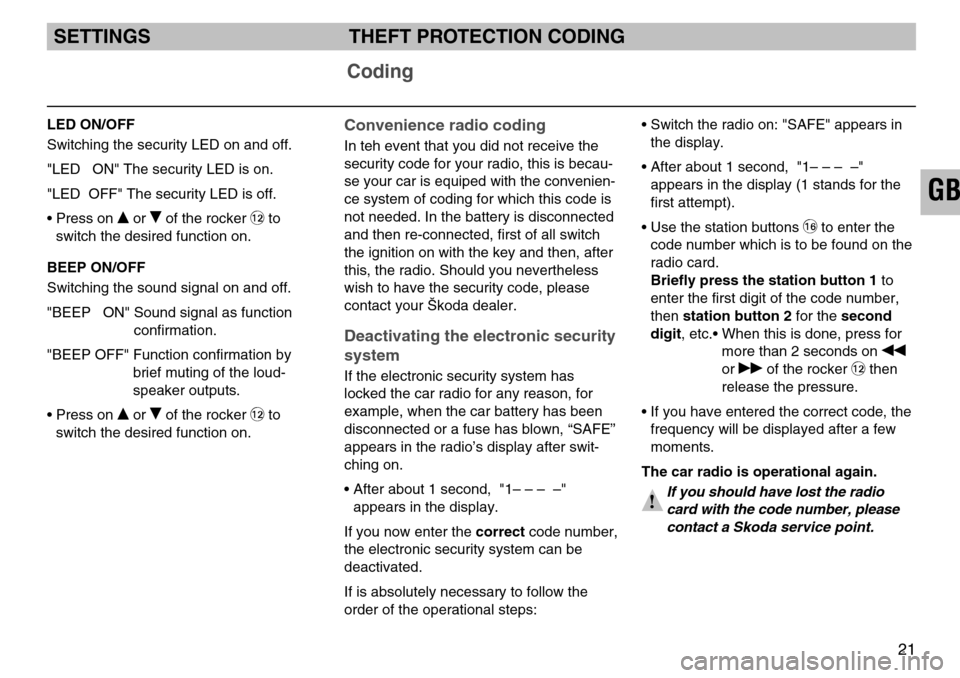

LED ON/OFF
Switching the security LED on and off.
"LED ON" The security LED is on.
"LED OFF" The security LED is off.
• Press on
or of the rocker ß`to
switch the desired function on.
BEEP ON/OFF
Switching the sound signal on and off.
"BEEP ON" Sound signal as function confirmation.
"BEEP OFF" Function confirmation by brief muting of the loud-
speaker outputs.
• Press on
or of the rocker ß`to
switch the desired function on.
Convenience radio coding
In teh event that you did not receive the
security code for your radio, this is becau-
se your car is equiped with the convenien-
ce system of coding for which this code is
not needed. In the battery is disconnected
and then re-connected, first of all switch
the ignition on with the key and then, after
this, the radio. Should you nevertheless
wish to have the security code, please
contact your ·koda dealer.
Deactivating the electronic security
system
If the electronic security system has
locked the car radio for any reason, for
example, when the car battery has been
disconnected or a fuse has blown, “SAFE”
appears in the radio’s display after swit-
ching on.
• After about 1 second, "1– – – –" appears in the display.
If you now enter the correct code number,
the electronic security system can be
deactivated.
If is absolutely necessary to follow the
order of the operational steps:
• Switch the radio on: "SAFE" appears in the display.
• After about 1 second, "1– – – –" appears in the display (1 stands for the
first attempt).
• Use the station buttons
ßRto enter the
code number which is to be found on the
radio card.
Briefly press the station button 1 to
enter the first digit of the code number,
then station button 2 for the second
digit, etc.• When this is done, press for more than 2 seconds on
or of the rocker ß`then
release the pressure.
• If you have entered the correct code, the frequency will be displayed after a few
moments.
The car radio is operational again.
!If you should have lost the radio
card with the code number, please
contact a Skoda service point.
Coding
SETTINGS THEFT PROTECTION CODING
Page 23 of 26
22

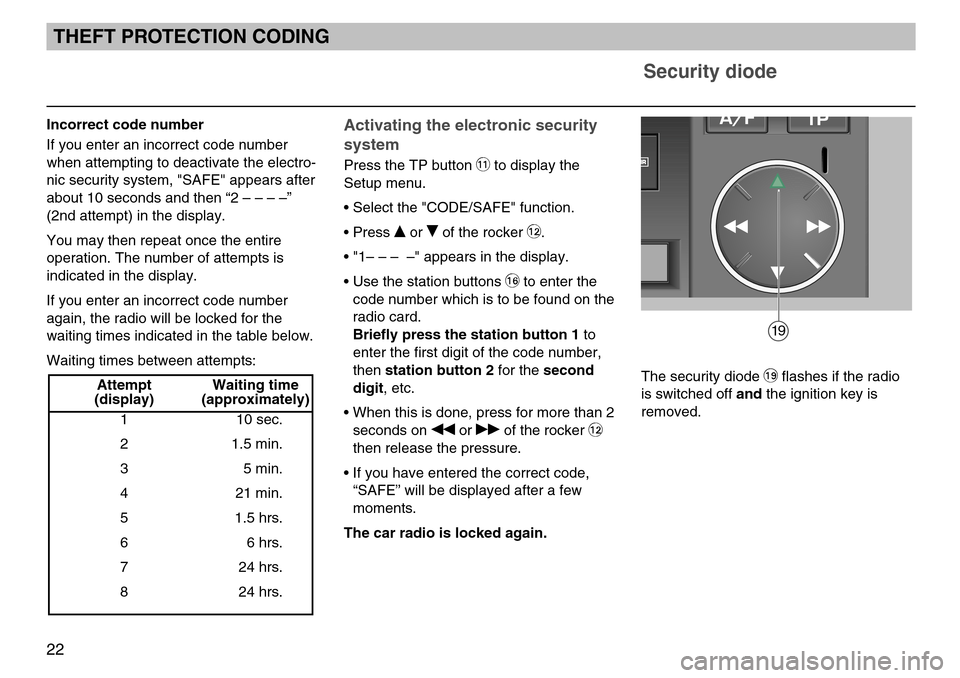

Security diode
Activating the electronic security
system
Press the TP button ß?to display the
Setup menu.
• Select the "CODE/SAFE" function.
• Press
or of the rocker ß`.
• "1– – – –" appears in the display.
• Use the station buttons
ßRto enter the
code number which is to be found on the
radio card.
Briefly press the station button 1 to
enter the first digit of the code number,
then station button 2 for the second
digit, etc.
• When this is done, press for more than 2 seconds on
or of the rocker ß`
then release the pressure.
• If you have entered the correct code, “SAFE” will be displayed after a few
moments.
The car radio is locked again.
THEFT PROTECTION CODING
The security diode ßUflashes if the radio
is switched off and the ignition key is
removed.
›19
Incorrect code number
If you enter an incorrect code number
when attempting to deactivate the electro-
nic security system, "SAFE" appears after
about 10 seconds and then “2 – – – –”
(2nd attempt) in the display.
You may then repeat once the entire
operation. The number of attempts is
indicated in the display.
If you enter an incorrect code number
again, the radio will be locked for the
waiting times indicated in the table below.
Waiting times between attempts:
Attempt Waiting time
(display) (approximately)1 10 sec.
2 1.5 min.
3 5 min.
4 21 min.
5 1.5 hrs.
6 6 hrs.
7 24 hrs.
8 24 hrs.
Page 24 of 26
23
GB

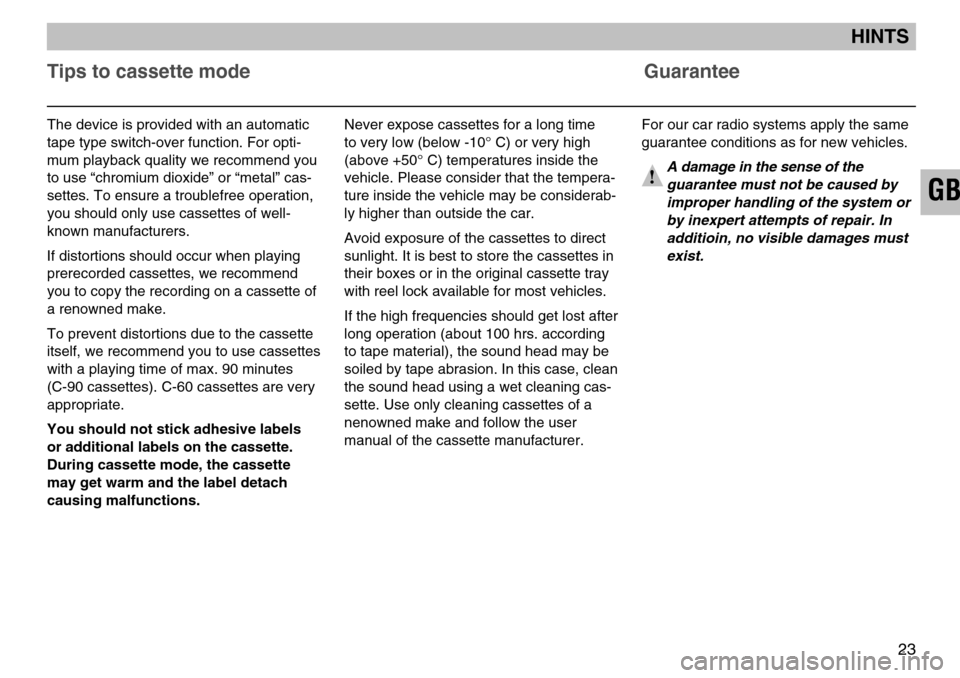

The device is provided with an automatic
tape type switch-over function. For opti-
mum playback quality we recommend you
to use “chromium dioxide” or “metal” cas-
settes. To ensure a troublefree operation,
you should only use cassettes of well-
known manufacturers.
If distortions should occur when playing
prerecorded cassettes, we recommend
you to copy the recording on a cassette of
a renowned make.
To prevent distortions due to the cassette
itself, we recommend you to use cassettes
with a playing time of max. 90 minutes
(C-90 cassettes). C-60 cassettes are very
appropriate.
You should not stick adhesive labels
or additional labels on the cassette.
During cassette mode, the cassette
may get warm and the label detach
causing malfunctions.
Tips to cassette modeGuarantee
Never expose cassettes for a long time
to very low (below -10° C) or very high
(above +50° C) temperatures inside the
vehicle. Please consider that the tempera-
ture inside the vehicle may be considerab-
ly higher than outside the car.
Avoid exposure of the cassettes to direct
sunlight. It is best to store the cassettes in
their boxes or in the original cassette tray
with reel lock available for most vehicles.
If the high frequencies should get lost after
long operation (about 100 hrs. according
to tape material), the sound head may be
soiled by tape abrasion. In this case, clean
the sound head using a wet cleaning cas-
sette. Use only cleaning cassettes of a
nenowned make and follow the user
manual of the cassette manufacturer.For our car radio systems apply the same
guarantee conditions as for new vehicles.
!A damage in the sense of the
guarantee must not be caused by
improper handling of the system or
by inexpert attempts of repair. In
additioin, no visible damages must
exist.
HINTS
Page 25 of 26
24

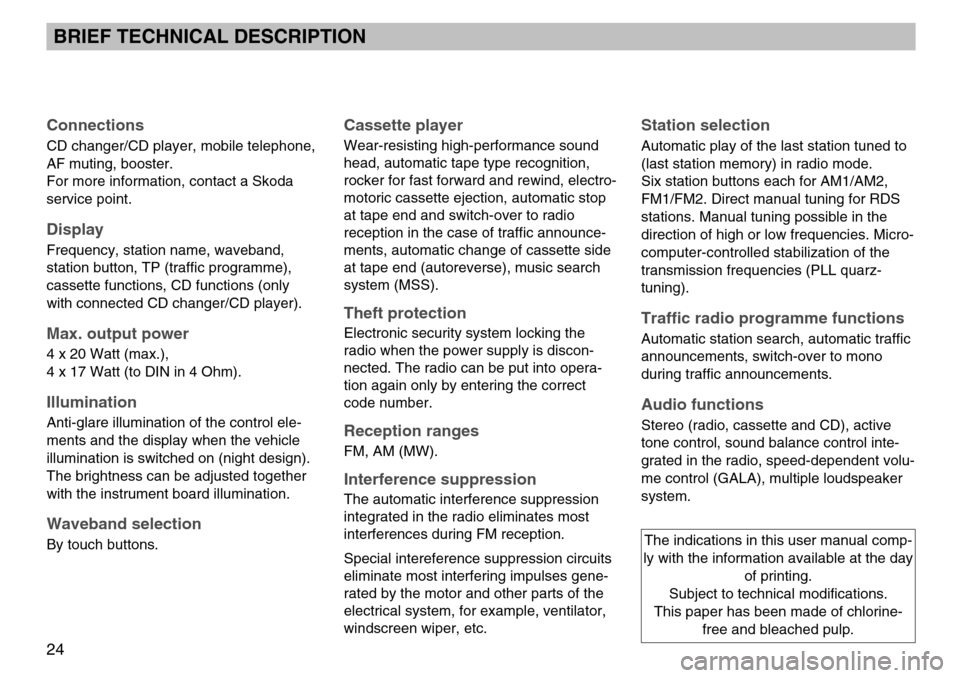

Connections
CD changer/CD player, mobile telephone,
AF muting, booster.
For more information, contact a Skoda
service point.
Display
Frequency, station name, waveband,
station button, TP (traffic programme),
cassette functions, CD functions (only
with connected CD changer/CD player).
Max. output power
4 x 20 Watt (max.),
4 x 17 Watt (to DIN in 4 Ohm).
Illumination
Anti-glare illumination of the control ele-
ments and the display when the vehicle
illumination is switched on (night design).
The brightness can be adjusted together
with the instrument board illumination.
Waveband selection
By touch buttons.
Cassette player
Wear-resisting high-performance sound
head, automatic tape type recognition,
rocker for fast forward and rewind, electro-
motoric cassette ejection, automatic stop
at tape end and switch-over to radio
reception in the case of traffic announce-
ments, automatic change of cassette side
at tape end (autoreverse), music search
system (MSS).
Theft protection
Electronic security system locking the
radio when the power supply is discon-
nected. The radio can be put into opera-
tion again only by entering the correct
code number.
Reception ranges
FM, AM (MW).
Interference suppression
The automatic interference suppression
integrated in the radio eliminates most
interferences during FM reception.
Special intereference suppression circuits
eliminate most interfering impulses gene-
rated by the motor and other parts of the
electrical system, for example, ventilator,
windscreen wiper, etc.
Station selection
Automatic play of the last station tuned to
(last station memory) in radio mode.
Six station buttons each for AM1/AM2,
FM1/FM2. Direct manual tuning for RDS
stations. Manual tuning possible in the
direction of high or low frequencies. Micro-
computer-controlled stabilization of the
transmission frequencies (PLL quarz-
tuning).
Traffic radio programme functions
Automatic station search, automatic traffic
announcements, switch-over to mono
during traffic announcements.
Audio functions
Stereo (radio, cassette and CD), active
tone control, sound balance control inte-
grated in the radio, speed-dependent volu-
me control (GALA), multiple loudspeaker
system.
BRIEF TECHNICAL DESCRIPTION
The indications in this user manual comp-
ly with the information available at the day of printing.
Subject to technical modifications.
This paper has been made of chlorine- free and bleached pulp.
