Balance (BAL)
With this function you may adjust the
volume balance of the left/right loud-
speakers.
• "BAL" and the current setting (from LEFT15 via CENTER to RIGHT 15) appear in
the display.
• Turn the control knob/push button
1to
the left or the right to adjust the desired
setting.
• If you wish to adjust the Balance control immediately to its centre setting, press
the GEO button
3until "CENTER"
appears in the display.
• When this is done, press the GEO button
3again to store the setting.
• To go directly to the balance control mode, press the GEO button
3briefly
twice.
3– Tone balance button
After pressing the GEO button 3, the
following indications appear in the display:
• Fader (FAD)
• Balance (BAL)
Turn the control knob/push button
1to
the left or the right to change the desired
setting.
TP
Fader (FAD)
With this function you may adjust the volu-
me balance of the front/rear loudspeakers.
• Press the GEO button
3.
"FAD" and the current setting (from
FRONT 15 via CENTER to REAR 15)
appear in the display.
• Turn the control knob/push button
1to
the left or the right to adjust the desired
setting.
• If you wish to adjust the Fader control immediately to its centre setting, press
the GEO button
3until "CENTER"
appears in the display.
• When this is done, press the GEO button
3again to store the setting. This
will select at the same time the Balance
control mode.
10

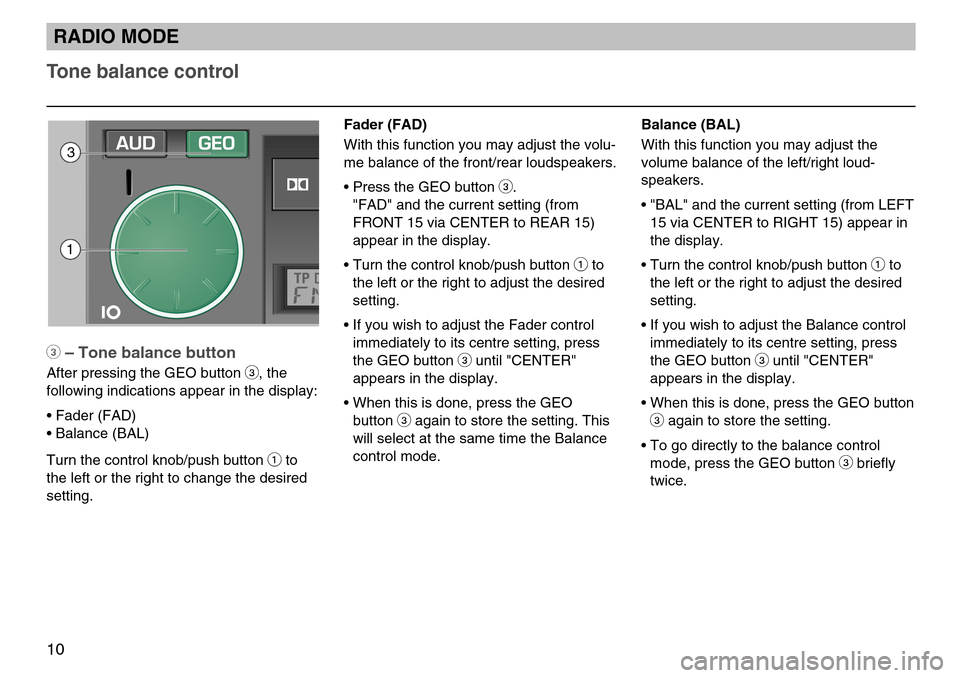

Tone balance control
RADIO MODE
1
3
Page 12 of 26
11
GB
When storing RDS stations you should
press the corresponding station button
only when the station name appears in
the display. This ensures that all RDS
information has been interpreted and
stored automatically.
When calling up stored RDS stations,
the corresponding station name is display-
ed. If the stored frequency is too weak for
good reception, the radio searches auto-
matically for an appropriate alternative fre-
quency (best station function).
If non of the stored alternative frequencies
is strong enough for good reception, the
desired station cannot be received at the
moment. In this case, tune to another sta-
tion.
!Please make sure that the station
name is displayed when the station
is stored. If a moving text should be
displayed, this will be stored
instead of the station name.

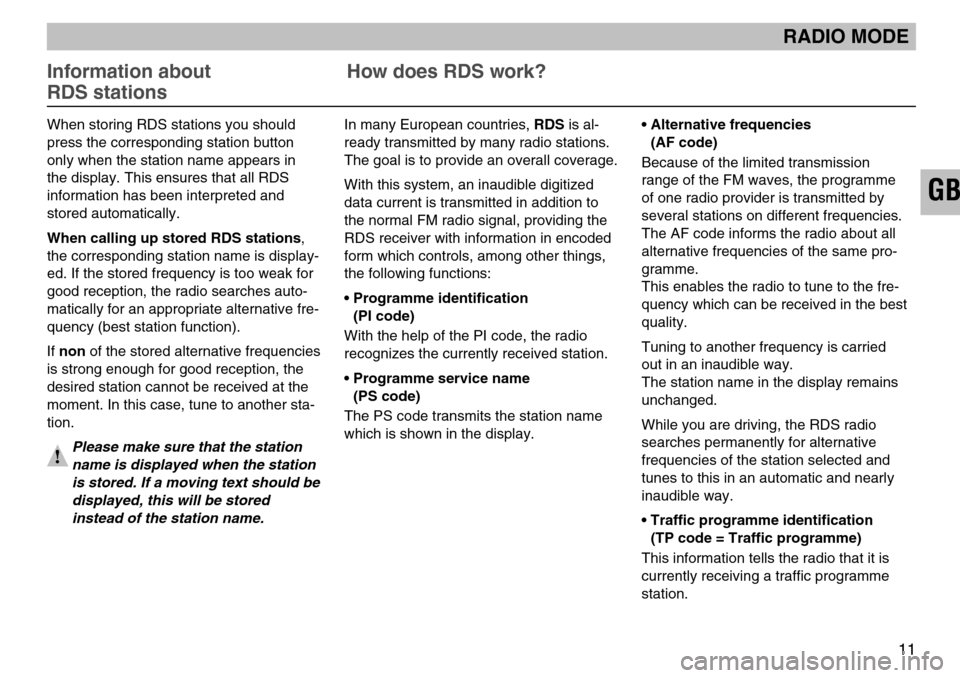

Information about How does RDS work?
RDS stations
In many European countries, RDSis al-
ready transmitted by many radio stations.
The goal is to provide an overall coverage.
With this system, an inaudible digitized
data current is transmitted in addition to
the normal FM radio signal, providing the
RDS receiver with information in encoded
form which controls, among other things,
the following functions:
• Programme identification (PI code)
With the help of the PI code, the radio
recognizes the currently received station.
• Programme service name (PS code)
The PS code transmits the station name
which is shown in the display.• Alternative frequencies (AF code)
Because of the limited transmission
range of the FM waves, the programme
of one radio provider is transmitted by
several stations on different frequencies.
The AF code informs the radio about all
alternative frequencies of the same pro-
gramme.
This enables the radio to tune to the fre-
quency which can be received in the best
quality.
Tuning to another frequency is carried
out in an inaudible way.
The station name in the display remains
unchanged.
While you are driving, the RDS radio
searches permanently for alternative
frequencies of the station selected and
tunes to this in an automatic and nearly
inaudible way.
• Traffic programme identification (TP code = Traffic programme)
This information tells the radio that it is
currently receiving a traffic programme
station.
RADIO MODE
Page 13 of 26
ßQ– AIM button
Using the AIM function (Automatic Infor-
mation Memory), you may store automati-
cally up to 9 traffic announcements with a
total length of 4 minutes with the help of
the integrated digital voice memory.
Storing traffic announcements
There are 3 different possibilities of storing
traffic announcements:
• When the radio is switched on, every traffic announcement of the station tuned
to is stored as soon as the “TP” function
has been selected ("TP" in the display).
TP
12

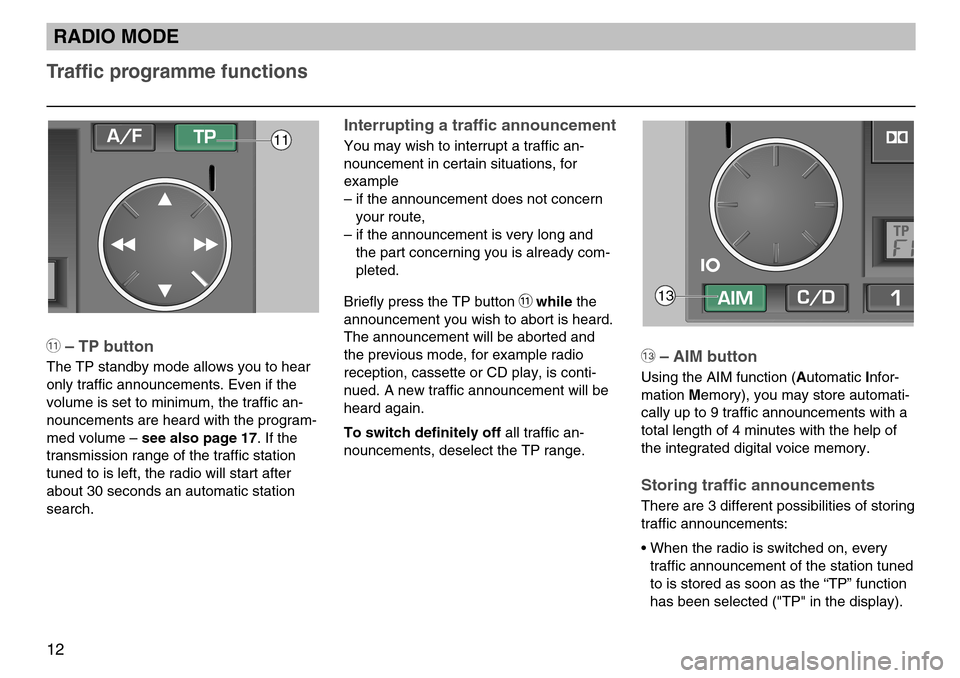

ß?– TP button
The TP standby mode allows you to hear
only traffic announcements. Even if the
volume is set to minimum, the traffic an-
nouncements are heard with the program-
med volume – see also page 17. If the
transmission range of the traffic station
tuned to is left, the radio will start after
about 30 seconds an automatic station
search.
Interrupting a traffic announcement
You may wish to interrupt a traffic an-
nouncement in certain situations, for
example
– if the announcement does not concern your route,
– if the announcement is very long and the part concerning you is already com-
pleted.
Briefly press the TP button
ß?while the
announcement you wish to abort is heard.
The announcement will be aborted and
the previous mode, for example radio
reception, cassette or CD play, is conti-
nued. A new traffic announcement will be
heard again.
To switch definitely off all traffic an-
nouncements, deselect the TP range.
RADIO MODE
Traffic programme functions
11
13
Page 14 of 26
Playback of traffic announcements
in chronological order
Press the AIM buttonßQ. Playback is started
with the last stored traffic announcement
and is continued till the oldest announce-
ment. The display indicates, for example,
"AIM 4 15:35".
– "AIM" AIM playback
– "4" 4th announcement
– "15:35" Time of storage
If no traffic announcement has been stored,
"AIM NO MSG" appears in the display.
Playback of traffic announcements
in random order
• With the AIM function activated, press quickly twice on the manual tuning
rocker
ß`during playback.
• You may then use the rocker
ß`to skip
forward and reverse between the stored
traffic announcements.
Repeating traffic announcements
Press on the left side of the manual tuning
rocker
ß`during playback. The current
traffic announcement is repeated.
13
GB
• Storage standby: 2 hours.
1 – Activate the TP function using the TP button
ß?.
2 – Switch the radio off.
"AIM 2 h" appears in the display. This
means that 2 hours of traffic announce-
ments will be stored.
• Storage standby: 24 hours.
Proceed as described above.
3 – Press the AIM button
ßQfor about
1 second.
The station last tuned to and then
"AIM 24 h" appears in the display. Now
24 hours of traffic announcements will be
stored.
!If the voice memory is full, the
oldest announcement will be
overwritten (deleted).
!In the case of a message having a
length of more than 4 minutes the
beginning is overwritten.
A signal sounds to indicate you that
the entire message could not be
recorded.

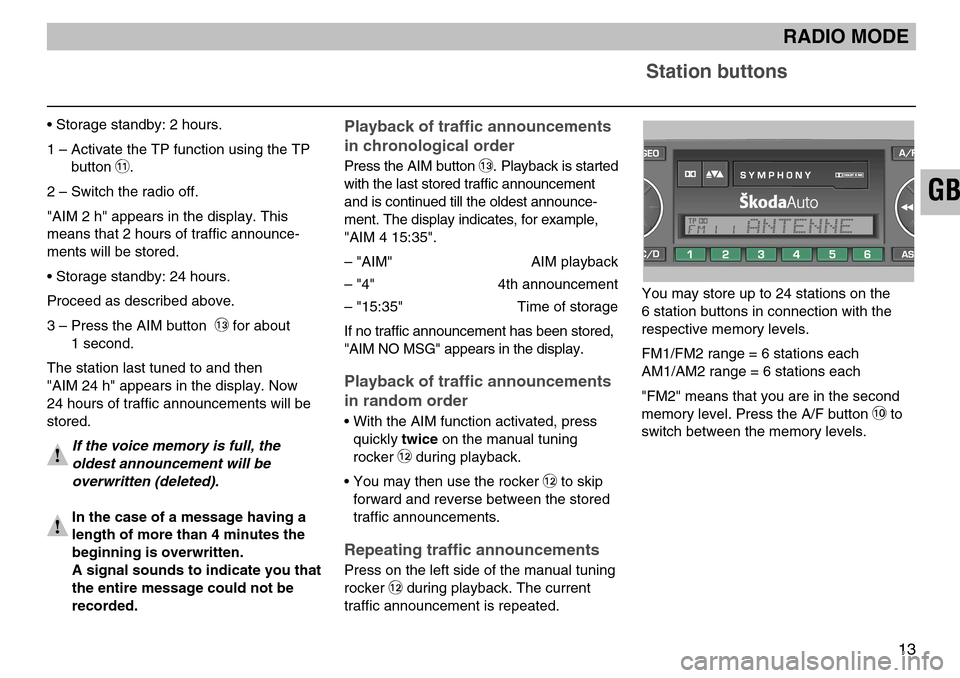

Station buttons
You may store up to 24 stations on the
6 station buttons in connection with the
respective memory levels.
FM1/FM2 range = 6 stations each
AM1/AM2 range = 6 stations each
"FM2" means that you are in the second
memory level. Press the A/F button
ßIto
switch between the memory levels.
ANTENNETP
RADIO MODE
Page 15 of 26

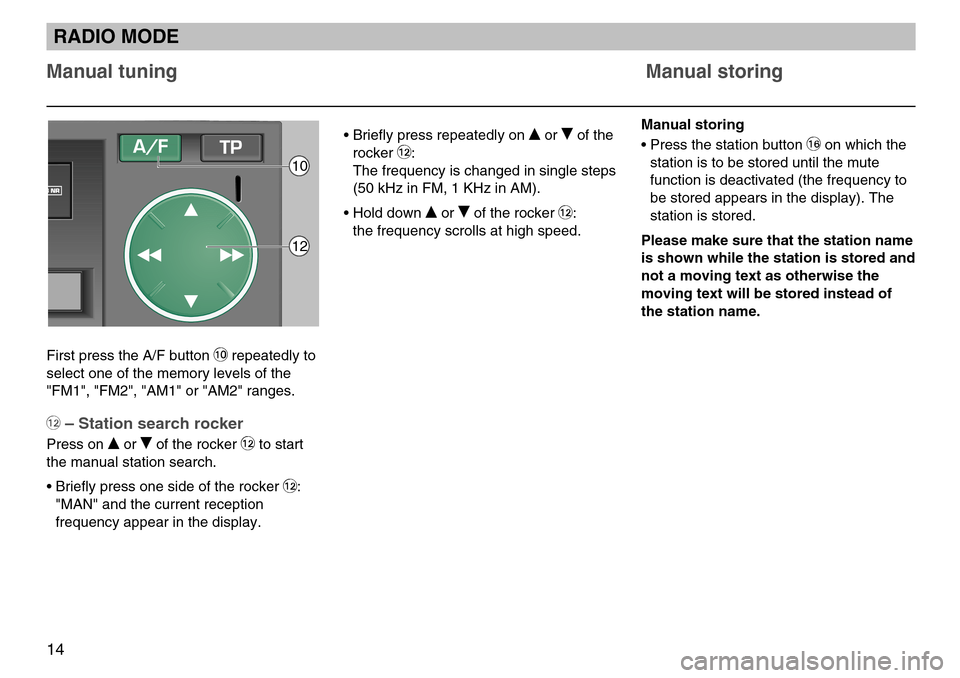

Manual tuningManual storing
14
First press the A/F button ßIrepeatedly to
select one of the memory levels of the
"FM1", "FM2", "AM1" or "AM2" ranges.
ß`– Station search rocker
Press on or of the rocker ß`to start
the manual station search.
• Briefly press one side of the rocker
ß`:
"MAN" and the current reception
frequency appear in the display.
• Briefly press repeatedly on or of the
rocker
ß`:
The frequency is changed in single steps
(50 kHz in FM, 1 KHz in AM).
• Hold down
or of the rocker ß`:
the frequency scrolls at high speed.
Manual storing
• Press the station button
ßRon which the
station is to be stored until the mute
function is deactivated (the frequency to
be stored appears in the display). The
station is stored.
Please make sure that the station name
is shown while the station is stored and
not a moving text as otherwise the
moving text will be stored instead of
the station name.
RADIO MODE
12
10
Page 16 of 26
7Reverse button
• Briefly press the button 7during cas-
sette play to select the other cassette
side. The tape run direction is indicated
by "PLAY FOR" or "PLAY REV" in the
display.
If the cassette side changes automatically
during cassette play, the casssette may
jam. In this case, select the fast wind or
rewind function. If this does not remove
the fault, use another cassette.
ANT
TP

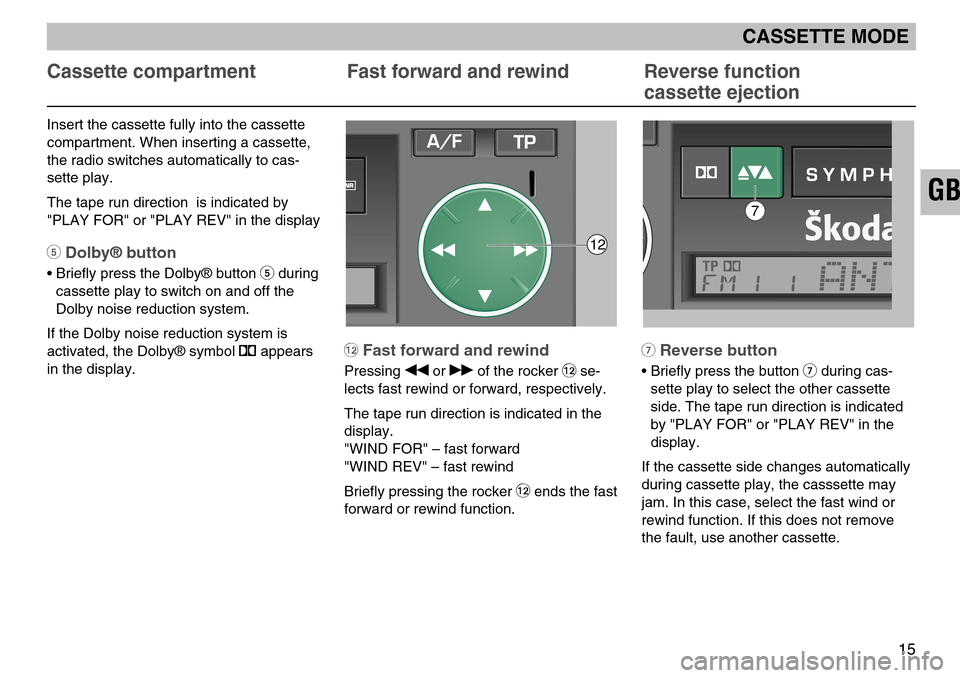

Insert the cassette fully into the cassette
compartment. When inserting a cassette,
the radio switches automatically to cas-
sette play.
The tape run direction is indicated by
"PLAY FOR" or "PLAY REV" in the display
5Dolby® button
• Briefly press the Dolby® button 5during
cassette play to switch on and off the
Dolby noise reduction system.
If the Dolby noise reduction system is
activated, the Dolby® symbol
appears
in the display.ß`Fast forward and rewind
Pressing or of the rocker ß`se-
lects fast rewind or forward, respectively.
The tape run direction is indicated in the
display.
"WIND FOR" – fast forward
"WIND REV" – fast rewind
Briefly pressing the rocker
ß`ends the fast
forward or rewind function.
15
GB
CASSETTE MODE
Cassette compartment Fast forward and rewind Reverse function
cassette ejection
12
7
Page 17 of 26

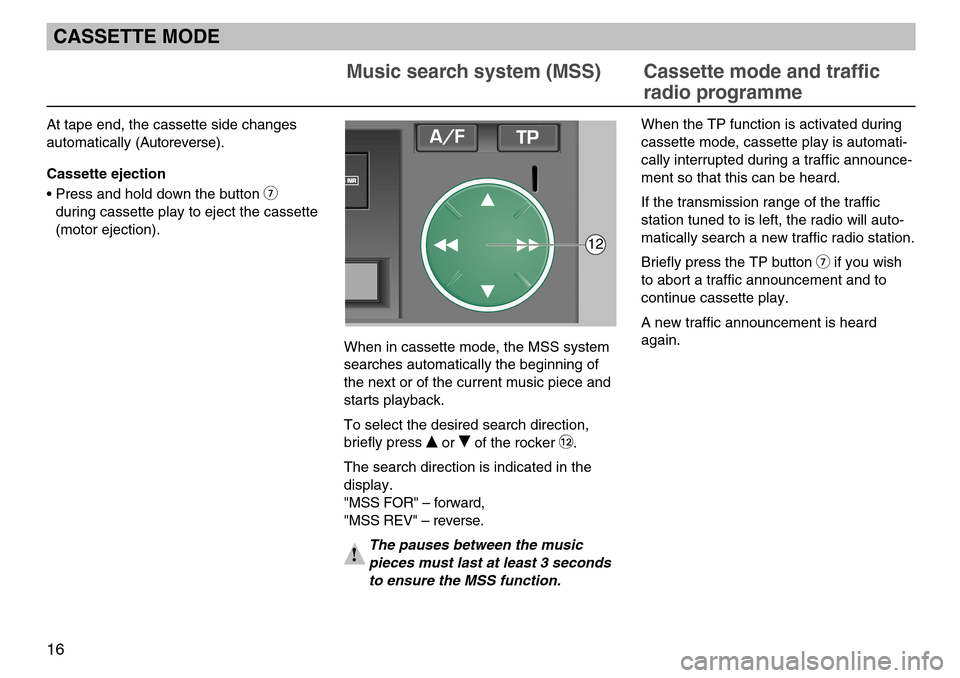

At tape end, the cassette side changes
automatically (Autoreverse).
Cassette ejection
• Press and hold down the button
7
during cassette play to eject the cassette
(motor ejection).
When in cassette mode, the MSS system
searches automatically the beginning of
the next or of the current music piece and
starts playback.
To select the desired search direction,
briefly press
or of the rocker ß`.
The search direction is indicated in the
display.
"MSS FOR" – forward,
"MSS REV" – reverse.
!The pauses between the music
pieces must last at least 3 seconds
to ensure the MSS function.
When the TP function is activated during
cassette mode, cassette play is automati-
cally interrupted during a traffic announce-
ment so that this can be heard.
If the transmission range of the traffic
station tuned to is left, the radio will auto-
matically search a new traffic radio station.
Briefly press the TP button
7if you wish
to abort a traffic announcement and to
continue cassette play.
A new traffic announcement is heard
again.
16
Music search system (MSS) Cassette mode and traffic
radio programme
CASSETTE MODE
12
Page 18 of 26

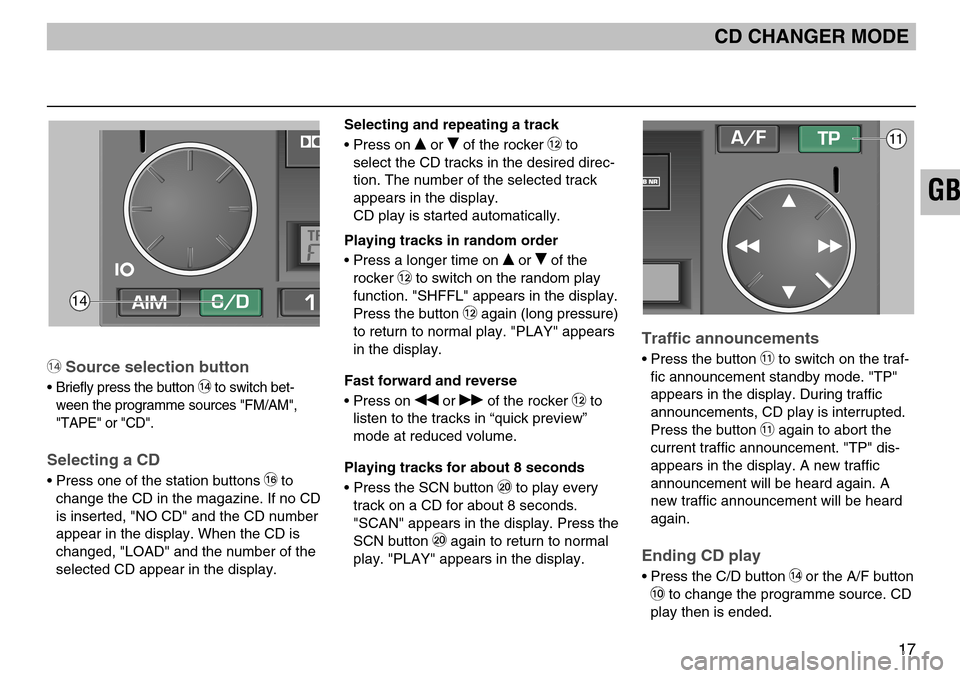

ßWSource selection button
• Briefly press the button ßWto switch bet-
ween the programme sources "FM/AM",
"TAPE" or "CD".
Selecting a CD
• Press one of the station buttons ßRto
change the CD in the magazine. If no CD
is inserted, "NO CD" and the CD number
appear in the display. When the CD is
changed, "LOAD" and the number of the
selected CD appear in the display.
TP
Selecting and repeating a track
• Press on
or of the rocker ß`to
select the CD tracks in the desired direc-
tion. The number of the selected track
appears in the display.
CD play is started automatically.
Playing tracks in random order
• Press a longer time on
or of the
rocker
ß`to switch on the random play
function. "SHFFL" appears in the display.
Press the button
ß`again (long pressure)
to return to normal play. "PLAY" appears
in the display.
Fast forward and reverse
• Press on
or of the rocker ß`to
listen to the tracks in “quick preview”
mode at reduced volume.
Playing tracks for about 8 seconds
• Press the SCN button
´Ito play every
track on a CD for about 8 seconds.
"SCAN" appears in the display. Press the
SCN button
´Iagain to return to normal
play. "PLAY" appears in the display.
Traffic announcements
• Press the button ß?to switch on the traf-
fic announcement standby mode. "TP"
appears in the display. During traffic
announcements, CD play is interrupted.
Press the button
ß?again to abort the
current traffic announcement. "TP" dis-
appears in the display. A new traffic
announcement will be heard again. A
new traffic announcement will be heard
again.
Ending CD play
• Press the C/D buttonßWor the A/F button
ßIto change the programme source. CD
play then is ended.
17
GB
CD CHANGER MODE
11
14
Page 19 of 26

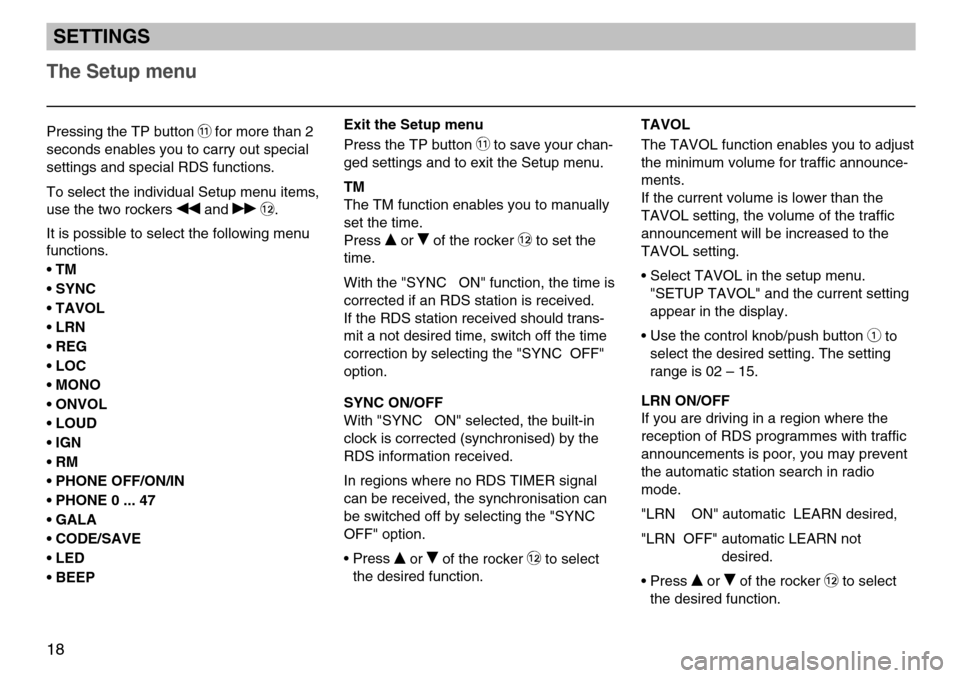

Pressing the TP buttonß?for more than 2
seconds enables you to carry out special
settings and special RDS functions.
To select the individual Setup menu items,
use the two rockers
and ß`.
It is possible to select the following menu
functions.
• TM
• SYNC
• TAVOL
• LRN
• REG
• LOC
• MONO
• ONVOL
• LOUD
• IGN
• RM
• PHONE OFF/ON/IN
• PHONE 0 ... 47
• GALA
• CODE/SAVE
• LED
• BEEP
Exit the Setup menu
Press the TP button
ß?to save your chan-
ged settings and to exit the Setup menu.
TM
The TM function enables you to manually
set the time.
Press
or of the rocker ß`to set the
time.
With the "SYNC ON" function, the time is
corrected if an RDS station is received.
If the RDS station received should trans-
mit a not desired time, switch off the time
correction by selecting the "SYNC OFF"
option.
SYNC ON/OFF
With "SYNC ON" selected, the built-in
clock is corrected (synchronised) by the
RDS information received.
In regions where no RDS TIMER signal
can be received, the synchronisation can
be switched off by selecting the "SYNC
OFF" option.
• Press
or of the rocker ß`to select
the desired function. TAVOL
The TAVOL function enables you to adjust
the minimum volume for traffic announce-
ments.
If the current volume is lower than the
TAVOL setting, the volume of the traffic
announcement will be increased to the
TAVOL setting.
• Select TAVOL in the setup menu.
"SETUP TAVOL" and the current setting
appear in the display.
• Use the control knob/push button
1to
select the desired setting. The setting
range is 02 – 15.
LRN ON/OFF
If you are driving in a region where the
reception of RDS programmes with traffic
announcements is poor, you may prevent
the automatic station search in radio
mode.
"LRN ON" automatic LEARN desired,
"LRN OFF" automatic LEARN not desired.
• Press
or of the rocker ß`to select
the desired function.
18
The Setup menu
SETTINGS
Page 20 of 26

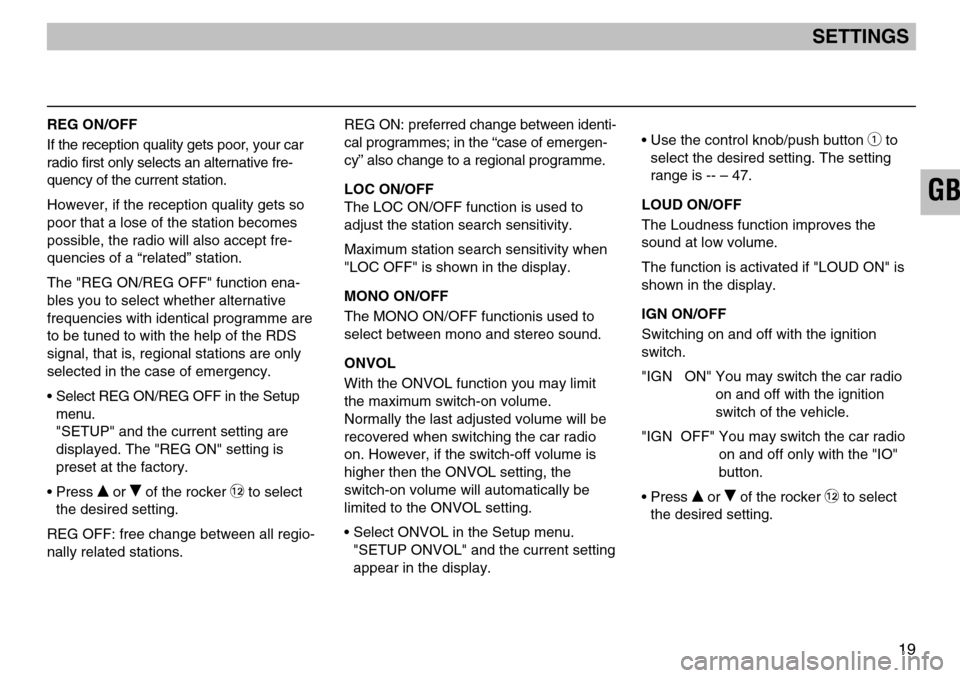

• Use the control knob/push button 1to
select the desired setting. The setting
range is -- – 47.
LOUD ON/OFF
The Loudness function improves the
sound at low volume.
The function is activated if "LOUD ON" is
shown in the display.
IGN ON/OFF
Switching on and off with the ignition
switch.
"IGN ON" You may switch the car radio on and off with the ignition
switch of the vehicle.
"IGN OFF" You may switch the car radio on and off only with the "IO"
button.
• Press
or of the rocker ß`to select
the desired setting.
REG ON/OFF
If the reception quality gets poor, your car
radio first only selects an alternative fre-
quency of the current station.
However, if the reception quality gets so
poor that a lose of the station becomes
possible, the radio will also accept fre-
quencies of a “related” station.
The "REG ON/REG OFF" function ena-
bles you to select whether alternative
frequencies with identical programme are
to be tuned to with the help of the RDS
signal, that is, regional stations are only
selected in the case of emergency.
• Select REG ON/REG OFF in the Setup menu.
"SETUP" and the current setting are
displayed. The "REG ON" setting is
preset at the factory.
• Press
or of the rocker ß`to select
the desired setting.
REG OFF: free change between all regio-
nally related stations.
REG ON: preferred change between identi-
cal programmes; in the “case of emergen-
cy” also change to a regional programme.
LOC ON/OFF
The LOC ON/OFF function is used to
adjust the station search sensitivity.
Maximum station search sensitivity when
"LOC OFF" is shown in the display.
MONO ON/OFF
The MONO ON/OFF functionis used to
select between mono and stereo sound.
ONVOL
With the ONVOL function you may limit
the maximum switch-on volume.
Normally the last adjusted volume will be
recovered when switching the car radio
on. However, if the switch-off volume is
higher then the ONVOL setting, the
switch-on volume will automatically be
limited to the ONVOL setting.
• Select ONVOL in the Setup menu. "SETUP ONVOL" and the current setting
appear in the display.
19
GB
SETTINGS
