SKODA SUPERB 2009 2.G / (B6/3T) Bolero Car Radio Manual

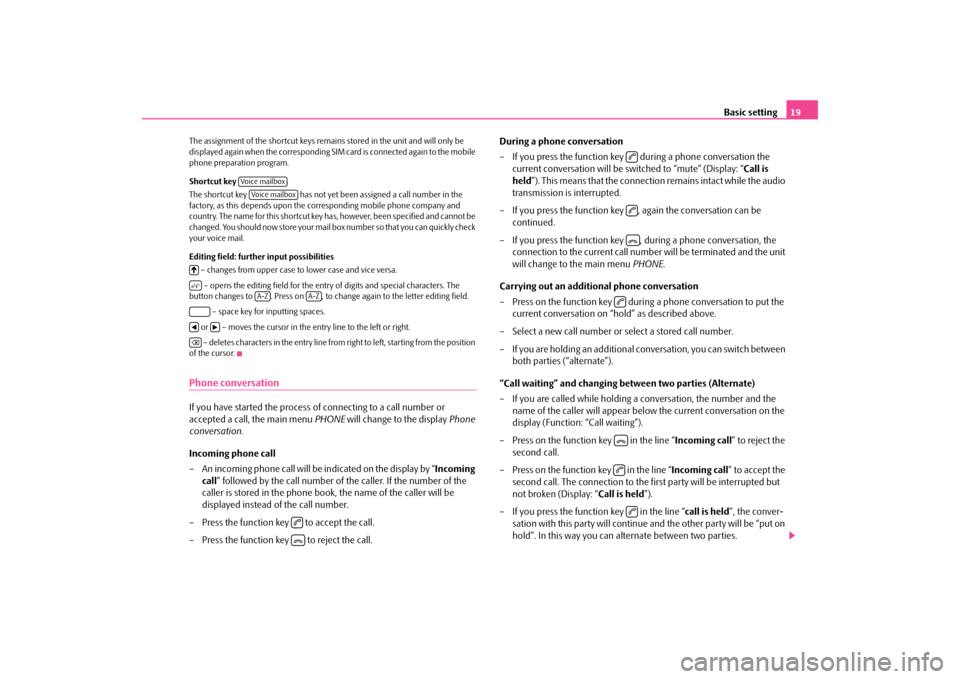

Basic setting
19
The assignment of the shortcut keys remains stored in the unit and will only be displayed again when the corresponding SIM
card is connected again to the mobile
phone preparation program. Shortcut key The shortcut key has not yet been
assigned a call number in the
factory, as this depends upon the co
rresponding mobile phone company and
country. The name for this shortcut key ha
s, however, been specified and cannot be
changed. You should now store your mail box number so that you can quickly check your voice mail. Editing field: further input possibilities – changes from upper case to lower case and vice versa. – opens the editing field for the entry of digits and special characters. The
button changes to . Press on , to change again to the letter editing field.
– space key for inputting spaces. or – moves the cursor in the entry line to the left or right. – deletes characters in the entry line from right to left, starting from the position
of the cursor.Phone conversationIf you have started the process
of connecting to a call number or
accepted a call, the main menu
PHONE
will change to the display
Phone
conversation
.
Incoming phone call – An incoming phone call will be indicated on the display by “
Incoming
call
” followed by the call number of the caller. If the number of the
caller is stored in the phone book
, the name of the caller will be
displayed instead of the call number.
– Press the function key to accept the call.– Press the function key to reject the call.
During a phone conversation – If you press the function key during a phone conversation the
current conversation will be switched to “mute” (Display: “
Call is
held
”). This means that the connection remains intact while the audio
transmission is interrupted.
– If you press the function key ,
again the conversation can be
continued.
– If you press the function key , during a phone conversation, the
connection to the current call number
will be terminated and the unit
will change to the main menu
PHONE
.
Carrying out an additional phone conversation – Press on the function key during a phone conversation to put the
current conversation on “hold” as described above.
– Select a new call number or select a stored call number. – If you are holding an additional co
nversation, you can switch between
both parties (“alternate”).
“Call waiting” and changing be
tween two parties (Alternate)
– If you are called while holding a conversation, the number and the
name of the caller will appear below the current conversation on the display (Function: “Call waiting”).
– Press on the function key in the line “
Incoming call
” to reject the
second call.
– Press on the function key in the line “
Incoming call
” to accept the
second call. The connection to the
first party will be interrupted but
not broken (Display: “
Call is held
”).
– If you press the function key in the line “
call is held
”, the conver-
sation with this party will continue and the other party will be “put on hold”. In this way you can alternate between two parties.
Voice mailboxVoice mailbox

A-Z
A-Z







s1ok.1a.book Page 19 Monday, March 30, 2009 3:29 PM

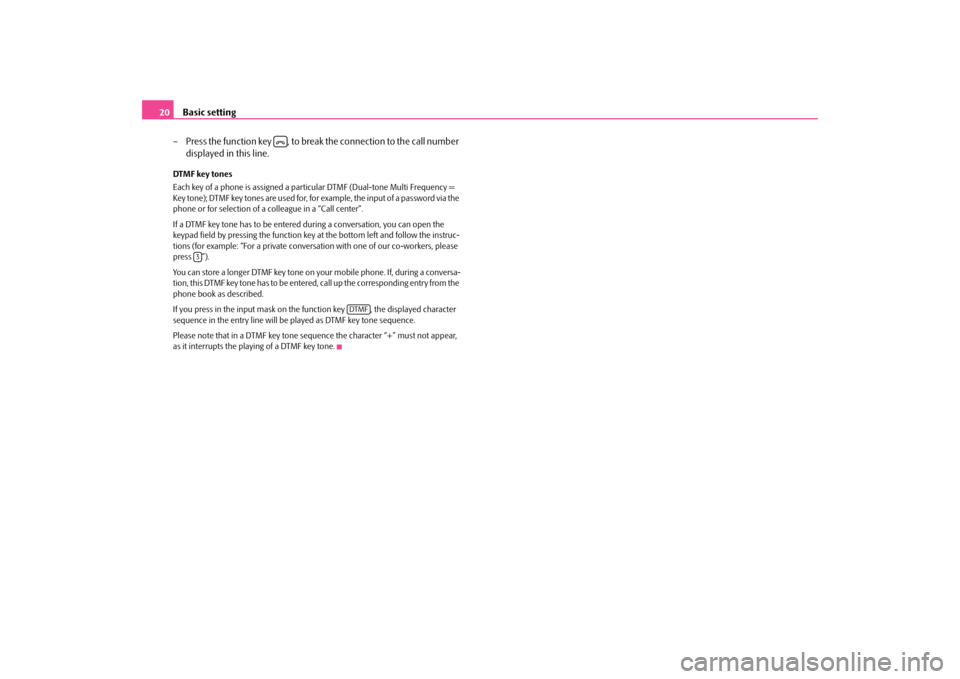

Basic setting
20
– Press the function key , to break the connection to the call number
displayed in this line.
DTMF key tones Each key of a phone is assigned a partic
ular DTMF (Dual-tone Multi Frequency =
Key tone); DTMF key tones are used for, for example, the input of a password via the phone or for selection of a colleague in a “Call center”. If a DTMF key tone has to be entered
during a conversation, you can open the
keypad field by pressing th
e function key at the bottom left and follow the instruc-
tions (for example: “For a private conversation with one of our co-workers, please press ”). You can store a longer DTMF key tone on yo
ur mobile phone. If, during a conversa-
tion, this DTMF key tone has to be entered, call up the corresponding entry from the phone book as described. If you press in the input mask on the function key , the displayed character sequence in the entry line will be played as DTMF key tone sequence. Please note that in a DTMF key tone sequence the character “+” must not appear, as it interrupts the playing of a DTMF key tone.

3
DTMF
s1ok.1a.book Page 20 Monday, March 30, 2009 3:29 PM

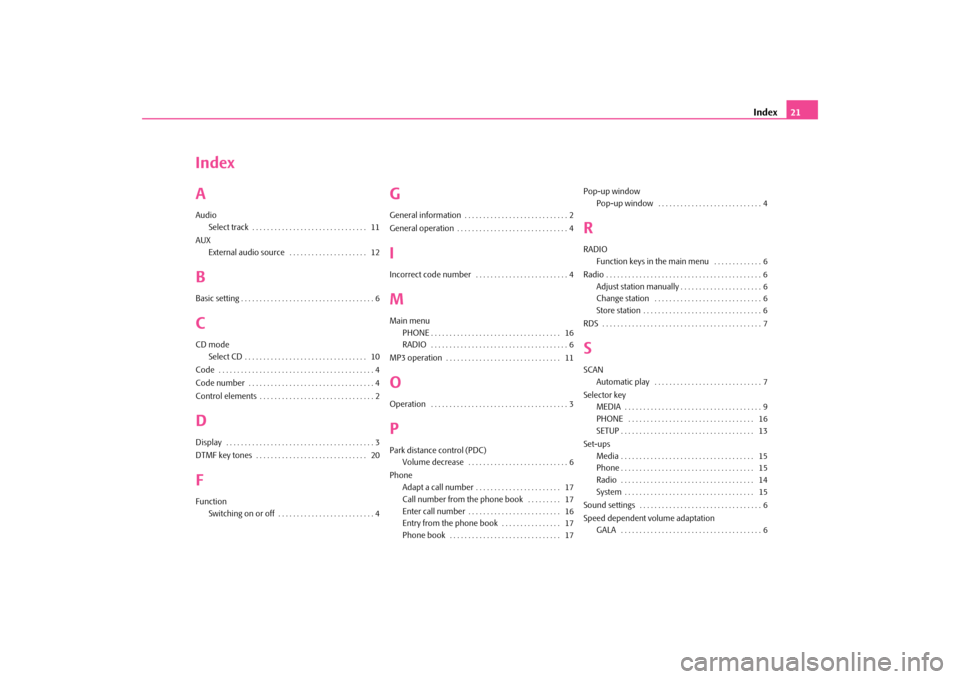

Index
21
Index AAudio
Select track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
AUX
External audio source . . . . . . . . . . . . . . . . . . . . . 12
BBasic setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6CCD mode
Select CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Code number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Control elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2DDisplay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 DTMF key tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20FFunction
Switching on or off . . . . . . . . . . . . . . . . . . . . . . . . . . 4
GGeneral information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 General operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4IIncorrect code number . . . . . . . . . . . . . . . . . . . . . . . . . 4MMain menu
PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MP3 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11OOperation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3PPark distance control (PDC)
Volume decrease . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Phone
Adapt a call number . . . . . . . . . . . . . . . . . . . . . . . 17Call number from the phone book . . . . . . . . . 17Enter call number . . . . . . . . . . . . . . . . . . . . . . . . . 16Entry from the phone book . . . . . . . . . . . . . . . . 17Phone book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Pop-up window
Pop-up window . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
RRADIO
Function keys in the main menu . . . . . . . . . . . . . 6
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjust station manually . . . . . . . . . . . . . . . . . . . . . . 6Change station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Store station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7SSCAN
Automatic play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Selector key
MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Set-ups
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Speed dependent volume adaptation
GALA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
s1ok.1a.book Page 21 Monday, March 30, 2009 3:29 PM

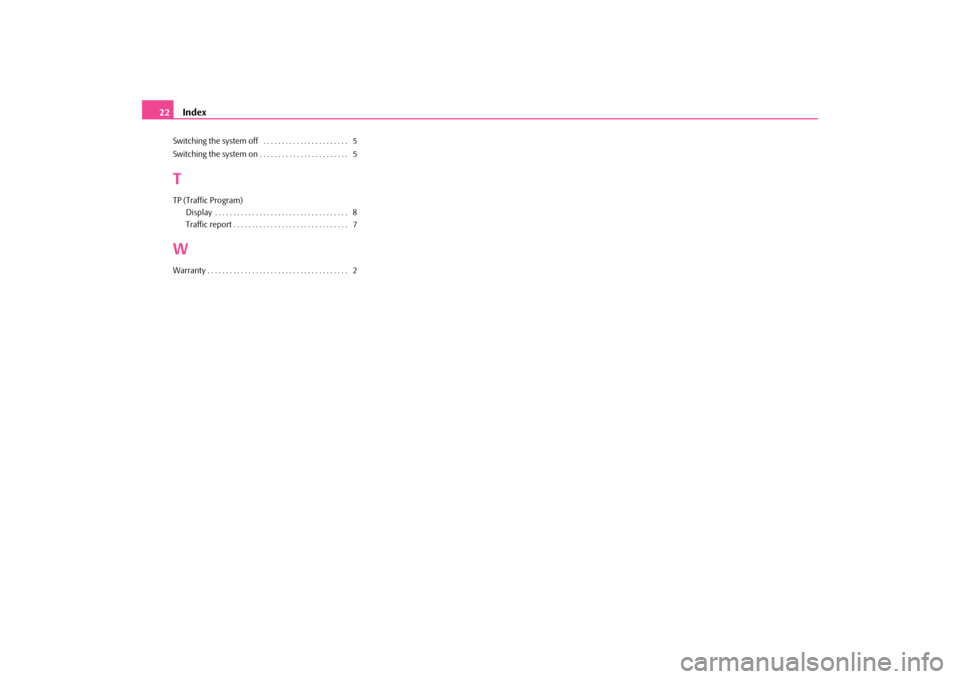

Index
22
Switching the system off . . . . . . . . . . . . . . . . . . . . . . . 5 Switching the system on . . . . . . . . . . . . . . . . . . . . . . . . 5TTP (Traffic Program)
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Traffic report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
WWarranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2s1ok.1a.book Page 22 Monday, March 30, 2009 3:29 PM

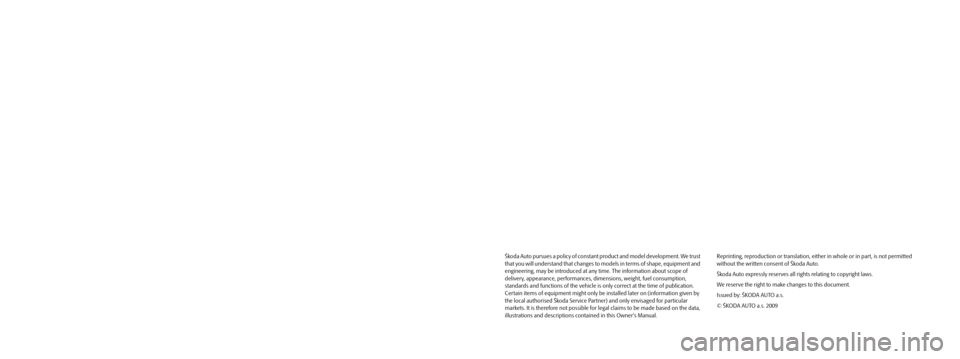

Škoda Auto pursues a policy of constant product and model development. We trust
that you will understand that changes to models in terms of shape, equipment and
engineering, may be introduced at any time. The information about scope of
delivery, appearance, performances, dimensions, weight, fuel consumption,
standards and functions of the vehicle is only correct at the time of publication.
Certain items of equipment might only be installed later on (information given by
the local authorised Škoda Service Partner) and only envisaged for particular
markets. It is therefore not possible for legal claims to be made based on the data,
illustrations and descriptions contained in this Owner's Manual.Reprinting, reproduction or translation, either in whole or in part, is not permitted
without the written consent of Škoda Auto.
Škoda Auto expressly reserves all rights relating to copyright laws.
We reserve the right to make changes to this document.
Issued by: ŠKODA AUTO a.s.
© ŠKODA AUTO a.s. 2009
