Communication
161
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Ejecting a CD – Touch the button , in order to eject a CD. For assigned memory
spaces, now the LEDs light up in the buttons .
– Touch the corresponding button . The CD is ejected. Ejecting all CDs – Hold the button pressed for more than 2 seconds, in order to eject
the CDs. All CDs in the CD-cha
nger are ejected consecutively.
Note
•
Always guide the CD into the CD-cas
e with the printed side pointing
upwards.•
Never push the CD with force into the
CD-case as the insertion is performed
automatically.•
After loading a CD into the CD-changer
, you must wait until the LED of the
corresponding button lights up. Then th
e CD-case is free to load the next
CD.•
If you have selected a position, on which a CD is already located, this CD will be
ejected. Take out the ejected CD and load the desired CD.
AA
AD
AD
AA
AB
AD
AB
s2dk.1.book Page 161 Wednesday, April 8, 2009 12:23 PM
Page 164 of 294
Passive Safety
163
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
SafetyPassive SafetyBasic informationDriving the safe way Passive safety measures reduce the risk of injury in accident situa- tions.In this section you will find important inform
ation, tips and notes on the subject of
passive safety in your vehicle. We ha
ve combined everything here which you
should be familiar with, for
example, regarding seat belts, airbags, child seats and
safety of children. It is therefore importan
t, in particular, to comply with the notes
and warnings in this section for your own interest and in the interest of those trav- elling with you.
WARNING
•
This chapter contains important information on how to use the vehicle
for the driver and his occupants. You will find further information on safety, which concerns you and those travelling with you, in the following chapters of this Owner's Manual.•
The complete on-board literature should always be in the vehicle. This
applies in particular, if you rent out or sell the vehicle.Safety equipment The safety equipment is part of the occupant protection and it can reduce the risk of injuries in accident situations.“Do not put at risk” your safety and the safety of those travelling with you . In the event of an accident, the safety equipmen
t can reduce the risk of injuries. The
following list contains part of th
e safety equipment in your vehicle:
•
Three-point seat belts for all the seats,
•
belt force limiter for front and outer rear seats*,
•
belt tensioner for front and outer rear seats*,
•
seat belt height adjuster for front seats,
•
front airbag for the driver and front passenger,
•
Driver's knee airbag*,
•
front side airbags,
•
rear side airbags*,
•
head airbags*,
•
anchoring points for child seat using the “ISOFIX” system,
•
anchoring points for child seat
using the “Top Tether” system,
•
head restraint adjustable for height,
•
adjustable steering column.
The specified safety equipment works toge
ther, in order to optimally protect you
and those travelling with you in accident
situations. The safety
equipment does not
protect you or the people travelling with
you, if you or your occupants adopt an
incorrect seated position or the equipmen
t is not correctly
adjusted or used.
Fo r t h i s re a s o n y o u w i l l b e p ro v i d e d w i th i n fo rm a ti o n o n w hy t h i s e q u i p m e nt i s v e r y important, how it protects you and the o
ccupants, what should be observed when
using the equipment and how you and the pe
ople travelling with you can make full
use of the existing safety equipment.
This Owner's Manual contains important
warning notes, which you and those travelli
ng with you should pay attention to in
order to reduce a risk of injury. Safety concerns everybody!
s2dk.1.book Page 163 Wednesday, April 8, 2009 12:23 PM
Page 166 of 294
Passive Safety
165
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
For your own safety and to reduce the risk of injury in the event of an accident, we recommend the following setting.•
Adjust the steering wheel so that the distance between the steering wheel and
your chest is at least 25 cm
⇒page 164, fig. 160
.
•
Position the driver seat in the forward/back direction so that you are able to
press the pedals with your
legs at a slight angle .
•
Adjust the backrest so that you are able
to reach the highest point of the steering
wheel with your arms at a slight angle.•
Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head
⇒fig. 161
.
•
Fasten the seat belt correctly
⇒page 170, “How are seat belts correctly
fastened?”. Manual driver seat adjustment
⇒page 78, “Adjusting the front seats”.
Electrical driver seat adjustment
⇒page 79, “Adjusting front seats electrically*”.
WARNING
•
The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be correctly fastened in order to provide an optimal protection for you and your occupants.
•
The driver must maintain a distance of at least 25 cm to the steering
wheel
⇒page 164, fig. 160
. Not maintaining this minimum distance will
mean that the airbag system will not be able to properly protect you - hazard!•
When driving, hold the steering wheel
with both hands firmly on the
outer edge in the 9 o'clock and 3 o'clock position. Never hold the steering wheel firmly in the 12 o'clock position or in another way (e.g. in the middle of the steering wheel or
at the inner steering wheel edge). In such cases,
injuries to the arms, the hands and
the head can occur when the driver
airbag is deployed.•
The backrests must not be angled to
o far back when driving otherwise
this will affect proper operation of the seat belts and of the airbag system - risk of injury!•
Ensure that there are no objects in the footwell as any objects may get
behind the pedals during a driving or
braking manoeuvre. You would then
no longer be able to operate the clutch, to brake or accelerate.Correct seated position for the front passenger The front passenger must maintain a distance of at least 25 cm from the dash panel so that the airbag offers the greatest possible safety when an airbag is deployed.For the safety of the front passenger and to
reduce the risk of injury in the event of
an accident, we recommend the following setting.•
Adjust the front passenger seat as far as possible to the rear.
•
Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head
⇒fig. 161
.
•
Fasten the seat belt correctly
⇒page 170, “How are seat belts correctly
fastened?”. In exceptional cases the front pass
enger airbag can be deactivated
⇒page 182,
“Deactivating an airbag”.
Fig. 161 The correct head restraint adjustment for the driver
WARNING (continued)
s2dk.1.book Page 165 Wednesday, April 8, 2009 12:23 PM
Page 168 of 294
Passive Safety
167
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•
lean against the dash panel,
•
lie on the rear seats,
•
only sit on the front area of the seat,
•
sit to the side,
•
lean out of the window,
•
put the feet out of the window,
•
put the feet on the dash panel,
•
put the feet on the seat upholstery,
•
occupy the footwell,
•
have the seat belt not fastened,
•
occupy the luggage compartment.
WARNING
•
If the occupant adopts an incorrect seated position, he is exposed to life-
threatening injuries, in case he
is hit by a deployed airbag.
•
Before setting off, please adopt the correct seated position and do not
change this seated position while the car is moving. Also advise your occu- pants to adopt the correct seated position and not to change this seated position while the car is moving.
s2dk.1.book Page 167 Wednesday, April 8, 2009 12:23 PM
Page 170 of 294
Seat belts
169
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The physical principle of a frontal collisionThe physical principle of a frontal a
ccident can be explained quite simply:
Motion energy, so-called kinetic energy, is
produced as soon as the vehicle is
moving, both for the vehicle and its occupants. The magnitude of this kinetic energy depends essentially on the speed at which the vehicle is travelling and on the weight of the vehicle and the occupants. The greater the speed and weight increase,
the greater the amount of energy which has to be absorbed in the event of an acci- dent. The speed of the vehicle is, nevertheless,
the most important factor. Doubling the
speed of the vehicle from 25 km/h up to
50 km/hour increases the kinetic energy
four times. The common opinion that it is possible to
support your body
in a minor accident
with your hands, is incorrect. Even in a
collision at only a low speed, the forces
acting on the body are such that it is
no longer possible to support your body.
Even if you only drive at a speed within the range from 30 km/hour to 50 km/hour, the forces which are produced on your body
in the event of an accident can easily
exceed 10.000 N (Newton). This equals a weight of one tonne (1 000 kg). In the event of a frontal collision, occupants of the car not wearing a seat belt, are thrown forward and strike in an uncontrolled way parts of the interior of the car, such as steering wheel, dash panel, windscreen,
⇒fig. 163
. The occupants of a
vehicle who have not fastened their seat belts may even be thrown out of the vehicle. This can resu
lt in fatal injuries.
It is also important that rear seat occupants fasten their seat belts as they will other- wise be thrown through the vehicle in an
uncontrolled manner in the event of an
accident A rear seat passenger who has not
fastened the seat belt is a danger not
only to himself but also fo
r those seated at the front
⇒fig. 164
.
Important safety information regarding the use of seat beltsThe correct use of the seat belts considerably reduces the risk of injury!
WARNING
•
The belt webbing must not be jammed in-between at any point or
twisted, or chafe ag
ainst any sharp edges.
•
It is important that the belt webbing is properly routed if the seat belts
are to offer their maximum protection
⇒page 170, “How are seat belts
correctly fa
stened?”.
Fig. 163 The driver is thrown forward if not wearing a beltFig. 164 The rear seat occu-pant is thrown forward if not wearing a belt
s2dk.1.book Page 169 Wednesday, April 8, 2009 12:23 PM
Page 172 of 294
Seat belts
171
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Slowly pull the belt webbing at the to
ngue of the lock over your chest
and pelvis
⇒
.
– Insert the tongue of the lock into th
e seat belt buckle belonging to the
seat until it is heard to lock in place.
– Pull on the belt to check that it has also reliably engaged in the lock.Each three-point seat belt is equipped with an inertia reel. This inertia reel offers you complete freedom of movement if the
belt is unreeled slowly. If the brakes are
applied suddenly, the inertia reel will block. It also blocks the belts when the car accelerates, when driving uphill and when cornering. Expectant mothers must also wear the seat belt
⇒
.
WARNING
•
The shoulder part of the seat belt must never run across your neck but
must run approximately over the middl
e of the shoulder and fit snugly
against the chest. The lap part of the
belt must run across the hip and must
never be routed across the stomach. It must always fit snugly
⇒page 170,
fig. 165
. Adjust the belt webbing as required.
•
The lap part of the belt should be positioned as low as possible at the
pelvis of an expectant mother in order to avoid exerting any pressure on the lower abdomen
⇒page 170, fig. 166
.
•
Always ensure that the webbing of the
seat belts is properly routed. Seat
belts which are not correctly adjusted ca
n themselves cause injuries even in
minor accidents.•
A seat belt which is hanging too loose can result in injuries as your body
is moved forward by the kinetic energy produced in an accident and is then suddenly held firm by the belt.•
Only insert the lock tongue into the lo
ck which is the correct one for your
seat. This will affect the protection whic
h the belt offers and increase the risk
of an injury.
Seat belt height adjusterThe seat belt height adjuster makes it possible for you to adapt the routing of the three-point seat belt in
the area of the shoulder to match
your body size. – Move the height adjuster in the desired direction up or down
⇒
fig. 167
.
– Then pull firmly on the belt to ensure
that the seat belt height adjuster
has correctly locked in place.
WARNING
Adjust the height of the belt in such a way that the shoulder part of the belt is positioned approximately across the middle of your shoulder - on no account across your neck.
Note
It is also possible to adapt the routing
of the belt webbing at the front seats by
adjusting the height of the seat.
Fig. 167 Front seat: Seat belt height adjuster
s2dk.1.book Page 171 Wednesday, April 8, 2009 12:23 PM
Page 174 of 294
Seat belts
173
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•

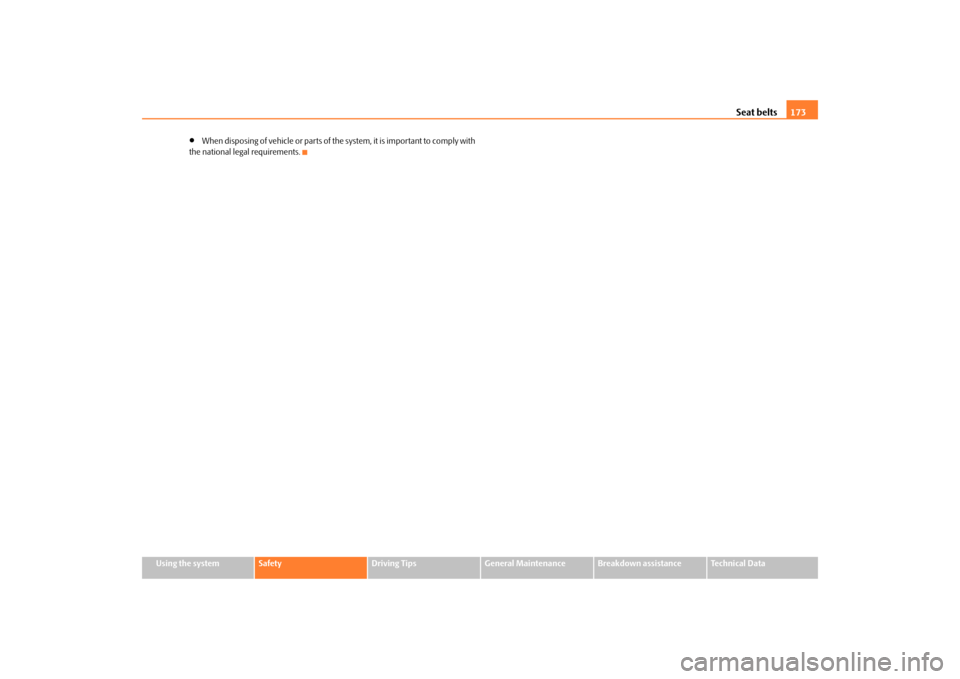

When disposing of vehicle or parts of the system, it is important to comply with
the national legal requirements.
s2dk.1.book Page 173 Wednesday, April 8, 2009 12:23 PM
Page 176 of 294
Airbag system
175
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•
When disposing of vehicle or parts of the airbag system, it is important
to comply with the national legal requirements.When are the airbags deployed?The airbag system is designed in such
a way that the driver and front passenger
airbag are deployed in the event of a
frontal collision
of major severity.
In the case of a
violent side crash
, the front side airbag* on the side of the car at
which the collision occurs, is deployed toge
ther with the rear side airbag and the
head airbag*. In certain accident situa
tions, the front airbags, side airbags as well as the relevant
head airbag may be
deployed together.
The airbags
are not deployed
in the case of
minor
frontal and side collisions, in the
case of rear-end collisi
ons and vehicle rollover.
Deployment factors It is not possible to state globally which
deployment conditions apply to the airbag
system in every situation as the circumstances which exist in the case of accidents vary greatly. An important role in this case
, for example, is played by factors such as
the type of object (hard, soft) against whic
h the vehicle impacts or the type of object
against which the vehicle impa
cts, the angle of impact,
the relative vehicle speed
during the accident etc. A decisive factor for the deployment of the airbags is the deceleration which occurs during a collision. The control unit analyses
the nature of the collision and activates
the relevant restraint system. If the vehi
cle deceleration which occurs and is meas-
ured during the collision remains below the prescribed reference values specified in the control unit, the airbags are not
deployed although the vehicle may well
suffer severe damage to the bodywork
as a consequence of the accident.
The airbags are not deployed if:•
ignition off,
•
a minor frontal collision,
•
a minor side collision,
•
a rear-end collision,
•
Rollover of the vehicleNote
•
A grey white, non harmful gas is released when airbag is inflated. This is
perfectly normal and is not an indi
cation of a fire in the vehicle.
•
The dash panel must be replaced afte
r the front passenger airbag has been
deployed.•
In the event of an accident in which the airbags are deployed: − The interior lighting comes on (if the switch for the interior light is in the door contact position), − The hazard warning light is switched on, − All the doors are unlocked, − the battery in the luggage compartment* is switched off, − the fuel supply to the engine is interrupted.
WARNING (continued)
s2dk.1.book Page 175 Wednesday, April 8, 2009 12:23 PM
Page 178 of 294
Airbag system
177
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
In certain accident situations, the front, side and head airbag are deployed together. If the airbags are deployed, the airbags are filled with a propellant gas and inflated in front of the driver and front passenger
⇒fig. 171
. The airbags inflate in fractions
of a second and at a high speed in order to
be able to offer that additional protec-
tion in the event of an accident. The forward movement of the driver and of the front passenger is cushioned when they make
contact with the fully inflated airbag
and the risk of injury to head and chest is thus reduced. The specially developed airbag allows the gas
to flow out of the inflated airbag in a
controlled manner (depending on the load
of the particular car occupant) in order
to cushion head and chest areas. The airbag
then deflates subsequently to such an
extent, after an accident, to again provide a clear view forward. A grey white, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an indication of a fire in the vehicle. The airbag develops enormous forces when triggered, which can lead to injuries if the sitting position or seated position is not correct
⇒
in “Important safety
information regarding the front airbag system” on page 177.Important safety information regarding the front airbag system Correct use of the airbag system considerably reduces the risk of injury!
WARNING
•
Never transport children on the front seat of a vehicle without using a
proper restraint system. If airbags are
deployed in the event of an accident,
the child might suffer severe or even fatal injuries!•
For the driver and front passenger it is important to maintain a distance
of at least 25 cm from the steering wheel or dash panel
⇒fig. 172
. Not main-
taining this minimum distance will mean that the airbag system will not be able to properly protect you - hazard!
The front seats and the head restraints
must always also be correctly adjusted to match the body size of the occu- pant.•
It is essential to always switch off
⇒page 182, “Deactivating an airbag”
the front passenger airbag when attaching a child safety seat on the front passenger seat where the child is seated
with its back facing in direction of
travel (in some countries al
so when the child is facing the direction of travel).
If this is not done, there is a risk of
the child suffering severe or even fatal
injuries if the front passenger airbag
is deployed. In certain countries
national legal provisions also requir
e that the side or head passenger
airbags be deactivated. When transpor
ting a child on the front passenger
seat, please comply with the appropriate national regulations regarding the use of child safety seats.•
There must not by any further persons, animals or objects positioned
between the front seated occupants and the deployment area of the airbag.•
The steering wheel and the surface of
the airbag module in the dash
panel on the passenger side must not be stuck onto, covered or modified in any other way. These parts should only be cleaned with a dry cloth or a cloth moistened with water. No objects such as cup holders, mobile phone mounts, etc. may be attached to the covers of the airbag modules or be located within the immediate area.•
No modifications of any kind may be made to parts of the airbag system.
Any work on the airbag system includ
ing installing and removing system
components because of other repair
work (e.g. removing the steering
wheel) must only be carried
out by a specialist garage.
•
Never carry out changes on the front bumper or on the body.
Fig. 172 Safe distance to steering wheel
s2dk.1.book Page 177 Wednesday, April 8, 2009 12:23 PM
Page 180 of 294
Airbag system
179
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

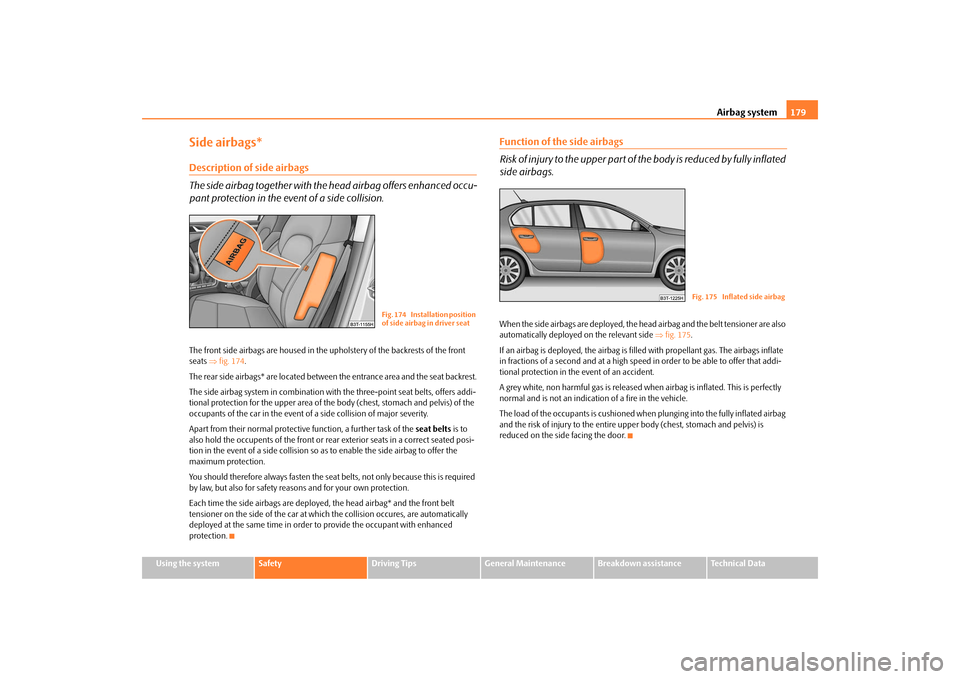

Side airbags*Description of side airbags The side airbag together with the
head airbag offers enhanced occu-
pant protection in the event of a side collision.The front side airbags are housed in the upholstery of the backrests of the front seats
⇒fig. 174
.
The rear side airbags* are located between the entrance area and the seat backrest.The side airbag system in combination with
the three-point seat belts, offers addi-
tional protection for the upper area of th
e body (chest, stomach and pelvis) of the
occupants of the car in the event of
a side collision of major severity.
Apart from their normal protective function, a further task of the
seat belts
is to
also hold the occupents of the front or rear exterior seats in a correct seated posi- tion in the event of a side collision so
as to enable the side airbag to offer the
maximum protection. You should therefore always fasten the seat
belts, not only because this is required
by law, but also for safety reasons and for your own protection. Each time the side airbags are deployed
, the head airbag* and the front belt
tensioner on the side of the car at whic
h the collision occure
s, are automatically
deployed at the same time in order to
provide the occupant with enhanced
protection.
Function of the side airbags Risk of injury to the upper part of the body is reduced by fully inflated side airbags.When the side airbags are deployed, the head
airbag and the belt tensioner are also
automatically deployed
on the relevant side
⇒fig. 175
.
If an airbag is deployed, the airbag is fill
ed with propellant gas. The airbags inflate
in fractions of a second and at a high spee
d in order to be able to offer that addi-
tional protection in the event of an accident. A grey white, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an indication of a fire in the vehicle. The load of the occupants is cushioned when
plunging into the fully inflated airbag
and the risk of injury to the entire up
per body (chest, stomach and pelvis) is
reduced on the side facing the door.
Fig. 174 Installation position of side airbag in driver seat
Fig. 175 Inflated side airbag
s2dk.1.book Page 179 Wednesday, April 8, 2009 12:23 PM
