SKODA SUPERB 2013 2.G / (B6/3T) Owners Manual

Luggage compartment coverFig. 86
Removing/installing the luggage
compartment cover
First read and observe the introductory information and safety warn-
ings on page 84.
Removing
›
Hook the support straps
1
» Fig. 86 onto the tailgate.
›
Place the cover in the horizontal position.
›
Pull the cover out of the holders
2
horizontally towards the rear.
The removed boot cover can be stowed behind the seat backrest.
Install
›
Push the boot cover into the brackets
2
» Fig. 86 .
›
Hook the support straps
1
onto the tailgate.
WARNINGNo objects should be placed on the boot cover, the vehicle occupants could be
endangered if there is sudden braking or the vehicle collides with something.
CAUTION
Please ensure that the heating elements for the rear window heater are not dam-
aged as a result of objects placed in this area.
Note
If the retaining strips 1 are attached to the tailgate, the boot cover will raise
when you open the tailgate.
Roll-up boot cover (Superb Combi)Fig. 87
Foldable luggage compartment cover: pull out and roll up / take out
First read and observe the introductory information and safety warn-
ings
on page 84.
Pulling out
›
Pull the foldable boot cover as far as the stop into the secured position
2
» Fig. 87 .
Folding
›
Press the cover in the handle area in the direction of the arrow
3
» Fig. 87 , and
the cover automatically rolls up into position
1
.
Press in the grip area again and the cover will roll up.
Removing/inserting
The fully rolled-up boot cover can be removed (e.g. for the transport of bulky ob-
jects).
›
Push on the side of the crossbar in the direction of the arrow
4
» Fig. 87 and
remove the cover in the direction of the arrow
5
.
Insertion takes place in the reverse order.
WARNINGNo objects should be placed on the foldable boot cover.

88Using the system

Automatic Retractable cargo cover (Superb Combi)First read and observe the introductory information and safety warn-
ings
on page 84.
The automatic rolling up of the foldable boot cover enables an easier entry into
the boot.
›
Open the boot lid.
The foldable boot cover rolls up automatically in the position
1
to » Fig. 87 on
page 88.
›
Push the cover in the area of the handle in the direction of the arrow
3
.
The cover retracts completely.
When the boot lid is opened quickly, the automatic rolling up of the foldable boot
cover is blocked for a delay time of approx. 2 seconds.
The function to automatically roll up the foldable boot cover can be activated/de- activated via the MAXI DOT display in the menu:
■ Settings
■ Auto Rollo

Side pockets in luggage compartment
Fig. 88
Superb boot: Open side compartment left / right
Fig. 89
Superb Combi boot: Open right
compartment
First read and observe the introductory information and safety warn-
ings on page 84.
Open / close compartment (Superb)
›
Turn the bolts in direction of arrow » Fig. 88 .
Closing takes place in the reverse order.
The CD changer and TV tuner are located in the right compartment » Fig. 88.
The first-aid box can also be stored in this compartment.
Open and close compartment / (Superb Combi)
›
Pull the handle in the direction of the arrow » Fig. 89.
Closing takes place in the reverse order.
The CD changer and TV Tuner are housed in this compartment.
The first-aid box and warning triangle can also be stored in this compartment.

89Seats and useful equipment

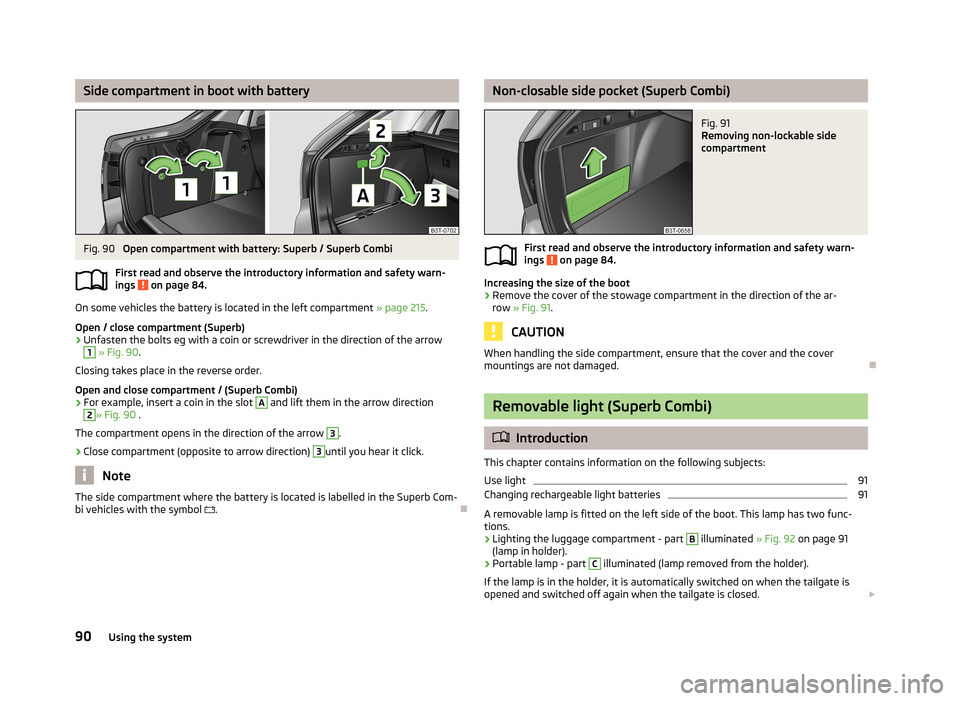

Side compartment in boot with batteryFig. 90
Open compartment with battery: Superb / Superb Combi
First read and observe the introductory information and safety warn- ings
on page 84.
On some vehicles the battery is located in the left compartment » page 215.
Open / close compartment (Superb)
›
Unfasten the bolts eg with a coin or screwdriver in the direction of the arrow
1
» Fig. 90 .
Closing takes place in the reverse order.
Open and close compartment / (Superb Combi)
›
For example, insert a coin in the slot
A
and lift them in the arrow direction
2
» Fig. 90 .
The compartment opens in the direction of the arrow
3
.
›
Close compartment (opposite to arrow direction)
3
until you hear it click.
Note
The side compartment where the battery is located is labelled in the Superb Com-
bi vehicles with the symbol .
Non-closable side pocket (Superb Combi)Fig. 91
Removing non-lockable side
compartment
First read and observe the introductory information and safety warn-
ings on page 84.
Increasing the size of the boot
›
Remove the cover of the stowage compartment in the direction of the ar- row » Fig. 91 .
CAUTION
When handling the side compartment, ensure that the cover and the cover
mountings are not damaged.
Removable light (Superb Combi)
 Introduction
This chapter contains information on the following subjects:
Use light
91
Changing rechargeable light batteries
91
A removable lamp is fitted on the left side of the boot. This lamp has two func-
tions.
› Lighting the luggage compartment - part
B
illuminated
» Fig. 92 on page 91
(lamp in holder).
› Portable lamp - part
C
illuminated (lamp removed from the holder).
If the lamp is in the holder, it is automatically switched on when the tailgate is
opened and switched off again when the tailgate is closed. 
90Using the system

The lamp is supplied by three rechargeable type AAA batteries. The rechargeable
batteries are constantly charged when the engine is running. It takes approx. 3
hours to fully charge the rechargeable batteries.
The lamp is fitted with magnets. Therefore it is possible to attach the lamp, forexample on the vehicle body, after removing it.
CAUTION
The removable lamp is not watertight and must therefore be protected against
moisture.
Note
■ If the lamp is not correctly inserted into the holder, it does not light up when
the boot lid is opened and the rechargeable batteries are not charged.■
If the lamp is not switched off and it is correctly inserted in the holder, the bulbs
in the front part
C
» Fig. 92 on page 91 of the lamp are automatically switched
off.

Use light
Fig. 92
Use light / remove light
First read and observe the introductory information and safety warn-
ings
on page 90.
Use light
›
If you press button
A
» Fig. 92 once, the lamp lights up with 100 % light inten-
sity.
›
If you press button
A
again, the lamp lights up with 50 % light intensity.
›
Press
A
button once again - the light goes out.
Remove the lamp from the holder›Grasp the lamp in the areas of the arrows D » Fig. 92 and swivel it in the direc-
tion of the arrow E
.
Reinserting the lamp the holder
›
First of all place the deactivated lamp in the holder on the side facing the boot lid and then press on the lamp from the other side until it is clicks into place.

Changing rechargeable light batteries
First read and observe the introductory information and safety warn-ings
on page 90.
Proceed as follows if you wish to replace the faulty rechargeable batteries your-
self:
›
Remove the lamp.
›
Lever off the cover for the rechargeable batteries with a narrow and pointed object from the location of the lock-off clips
F
» Fig. 92 on page 91.
›
Remove the faulty rechargeable batteries from the lamp.
›
Insert the new rechargeable batteries.
›
Insert the cover for the rechargeable batteries and press it down until it clicks
into place.
CAUTION
We recommend having faulty rechargeable batteries replaced by a ŠKODA service
partner. If the lamp is not correctly opened, it can be damaged.
For the sake of the environment
Dispose of used rechargeable batteries in accordance with national legal provi-
sions.
Note
■ Pay attention to the correct polarity when changing the rechargeable batteries.■The replacement rechargeable batteries must have the same specification as
the original rechargeable batteries. If other types of rechargeable batteries are
used, the power output can be reduced or it can lead to a malfunction of the
lamp.

91Seats and useful equipment

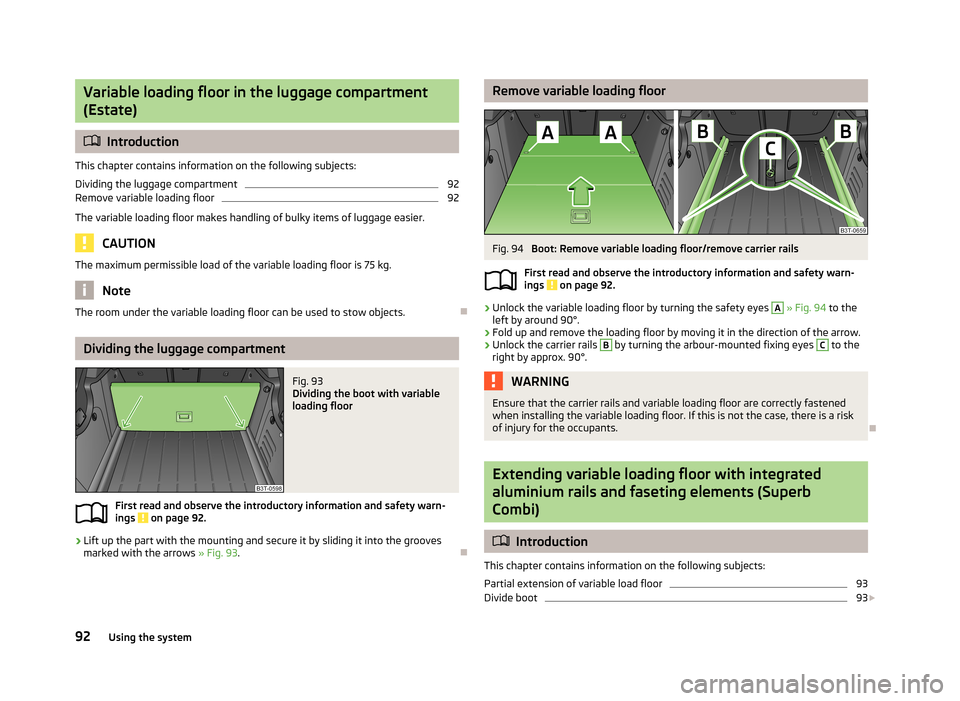

Variable loading floor in the luggage compartment(Estate)
 Introduction
This chapter contains information on the following subjects:
Dividing the luggage compartment
92
Remove variable loading floor
92
The variable loading floor makes handling of bulky items of luggage easier.
CAUTION
The maximum permissible load of the variable loading floor is 75 kg.
Note
The room under the variable loading floor can be used to stow objects.
Dividing the luggage compartment
Fig. 93
Dividing the boot with variable
loading floor
First read and observe the introductory information and safety warn- ings on page 92.
›
Lift up the part with the mounting and secure it by sliding it into the grooves marked with the arrows » Fig. 93.

Remove variable loading floorFig. 94
Boot: Remove variable loading floor/remove carrier rails
First read and observe the introductory information and safety warn-
ings
on page 92.
›
Unlock the variable loading floor by turning the safety eyes
A
» Fig. 94 to the
left by around 90°.
›
Fold up and remove the loading floor by moving it in the direction of the arrow.
›
Unlock the carrier rails
B
by turning the arbour-mounted fixing eyes
C
to the
right by approx. 90°.
WARNINGEnsure that the carrier rails and variable loading floor are correctly fastened
when installing the variable loading floor. If this is not the case, there is a risk
of injury for the occupants.

Extending variable loading floor with integrated
aluminium rails and faseting elements (Superb
Combi)
 Introduction
This chapter contains information on the following subjects:
Partial extension of variable load floor
93
Divide boot
93

92Using the system

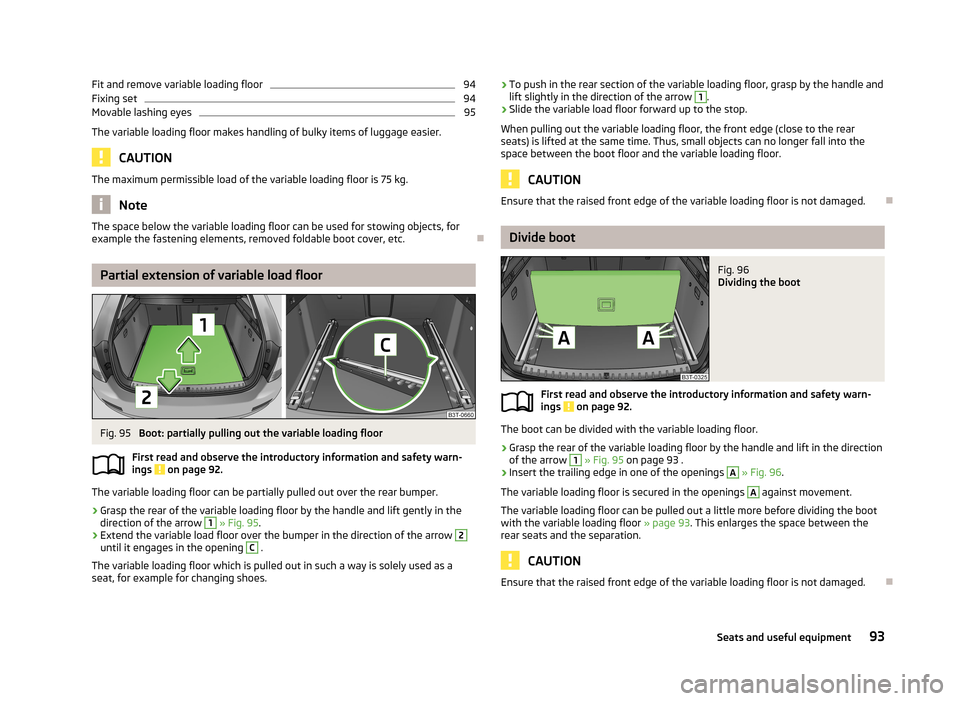

Fit and remove variable loading floor94Fixing set94
Movable lashing eyes
95
The variable loading floor makes handling of bulky items of luggage easier.
CAUTION
The maximum permissible load of the variable loading floor is 75 kg.
Note
The space below the variable loading floor can be used for stowing objects, for
example the fastening elements, removed foldable boot cover, etc.
Partial extension of variable load floor
Fig. 95
Boot: partially pulling out the variable loading floor
First read and observe the introductory information and safety warn- ings
on page 92.
The variable loading floor can be partially pulled out over the rear bumper.
›
Grasp the rear of the variable loading floor by the handle and lift gently in the direction of the arrow
1
» Fig. 95 .
›
Extend the variable load floor over the bumper in the direction of the arrow
2
until it engages in the opening
C
.
The variable loading floor which is pulled out in such a way is solely used as a seat, for example for changing shoes.
› To push in the rear section of the variable loading floor, grasp by the handle and
lift slightly in the direction of the arrow 1.›
Slide the variable load floor forward up to the stop.
When pulling out the variable loading floor, the front edge (close to the rear seats) is lifted at the same time. Thus, small objects can no longer fall into the
space between the boot floor and the variable loading floor.
CAUTION
Ensure that the raised front edge of the variable loading floor is not damaged.
Divide boot
Fig. 96
Dividing the boot
First read and observe the introductory information and safety warn- ings on page 92.
The boot can be divided with the variable loading floor.
›
Grasp the rear of the variable loading floor by the handle and lift in the direction
of the arrow
1
» Fig. 95 on page 93 .
›
Insert the trailing edge in one of the openings
A
» Fig. 96 .
The variable loading floor is secured in the openings
A
against movement.
The variable loading floor can be pulled out a little more before dividing the boot
with the variable loading floor » page 93. This enlarges the space between the
rear seats and the separation.
CAUTION
Ensure that the raised front edge of the variable loading floor is not damaged.
93Seats and useful equipment

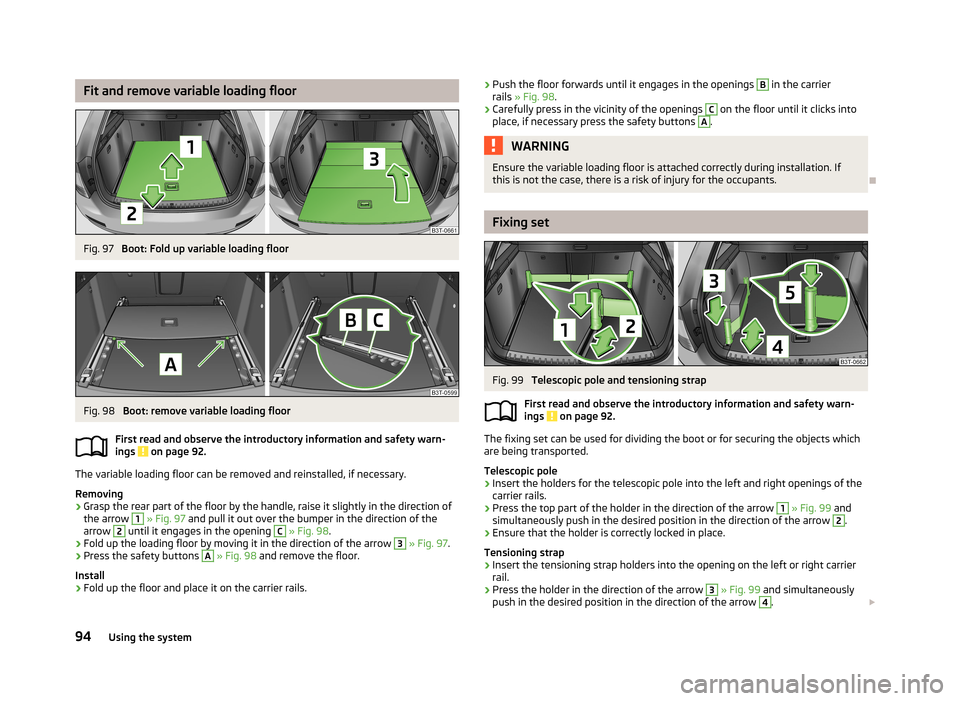

Fit and remove variable loading floorFig. 97
Boot: Fold up variable loading floor
Fig. 98
Boot: remove variable loading floor
First read and observe the introductory information and safety warn-
ings
on page 92.
The variable loading floor can be removed and reinstalled, if necessary.
Removing
›
Grasp the rear part of the floor by the handle, raise it slightly in the direction of the arrow
1
» Fig. 97 and pull it out over the bumper in the direction of the
arrow
2
until it engages in the opening
C
» Fig. 98 .
›
Fold up the loading floor by moving it in the direction of the arrow
3
» Fig. 97 .
›
Press the safety buttons
A
» Fig. 98 and remove the floor.
Install
›
Fold up the floor and place it on the carrier rails.
› Push the floor forwards until it engages in the openings B in the carrier
rails » Fig. 98 .›
Carefully press in the vicinity of the openings
C
on the floor until it clicks into
place, if necessary press the safety buttons
A
.
WARNINGEnsure the variable loading floor is attached correctly during installation. If
this is not the case, there is a risk of injury for the occupants.

Fixing set
Fig. 99
Telescopic pole and tensioning strap
First read and observe the introductory information and safety warn- ings
on page 92.
The fixing set can be used for dividing the boot or for securing the objects which are being transported.
Telescopic pole
›
Insert the holders for the telescopic pole into the left and right openings of the
carrier rails.
›
Press the top part of the holder in the direction of the arrow
1
» Fig. 99 and
simultaneously push in the desired position in the direction of the arrow
2
.
›
Ensure that the holder is correctly locked in place.
Tensioning strap
›
Insert the tensioning strap holders into the opening on the left or right carrier rail.
›
Press the holder in the direction of the arrow
3
» Fig. 99 and simultaneously
push in the desired position in the direction of the arrow
4
. 
94Using the system

›Ensure that the holder is correctly locked in place.›Place the object that is to be secured behind the tensioning strap.›
Press the button
5
on the top side of the holder and tighten the strap.
WARNINGThe objects in the boot must be firmly secured with the fixing set so that they
cannot move freely and uncontrollably and to prevent damage to objects or
injuries to occupants.
Note
■ Do not use the fixing set to secure objects that might damage the fixing set.■The tensioning strap can also be fully reeled up by pressing the button5
» Fig. 99 .


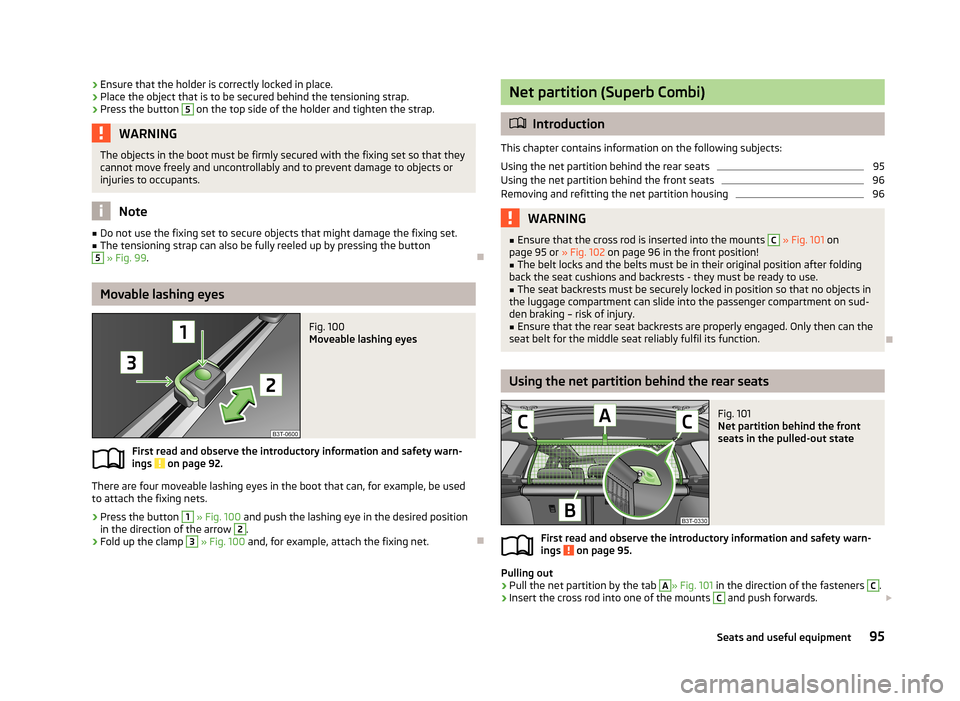

Movable lashing eyes
Fig. 100
Moveable lashing eyes
First read and observe the introductory information and safety warn-
ings on page 92.
There are four moveable lashing eyes in the boot that can, for example, be used
to attach the fixing nets.
›
Press the button
1
» Fig. 100 and push the lashing eye in the desired position
in the direction of the arrow
2
.
›
Fold up the clamp
3
» Fig. 100 and, for example, attach the fixing net.

Net partition (Superb Combi)
Introduction
This chapter contains information on the following subjects:
Using the net partition behind the rear seats
95
Using the net partition behind the front seats
96
Removing and refitting the net partition housing
96WARNING■ Ensure that the cross rod is inserted into the mounts C » Fig. 101 on
page 95 or » Fig. 102 on page 96 in the front position!■
The belt locks and the belts must be in their original position after folding
back the seat cushions and backrests - they must be ready to use.
■
The seat backrests must be securely locked in position so that no objects in
the luggage compartment can slide into the passenger compartment on sud-
den braking – risk of injury.
■
Ensure that the rear seat backrests are properly engaged. Only then can the
seat belt for the middle seat reliably fulfil its function.

Using the net partition behind the rear seats
Fig. 101
Net partition behind the front
seats in the pulled-out state
First read and observe the introductory information and safety warn-
ings on page 95.
Pulling out
›
Pull the net partition by the tab
A
» Fig. 101 in the direction of the fasteners
C
.
›
Insert the cross rod into one of the mounts
C
and push forwards. 
95Seats and useful equipment

›In the same way, insert the cross rod into the mount C on the other side of the
vehicle.
Folding›
First pull the cross rod back slightly on the one side and then on the other side and remove it from the mounts
C
» Fig. 101 .
›
Hold the cross rod in such a way that the net partition can slowly roll up into the
housing
B
without being damaged.
Note
If you wish to use the entire luggage compartment, the roll-up luggage compart-
ment cover can be removed » page 88.

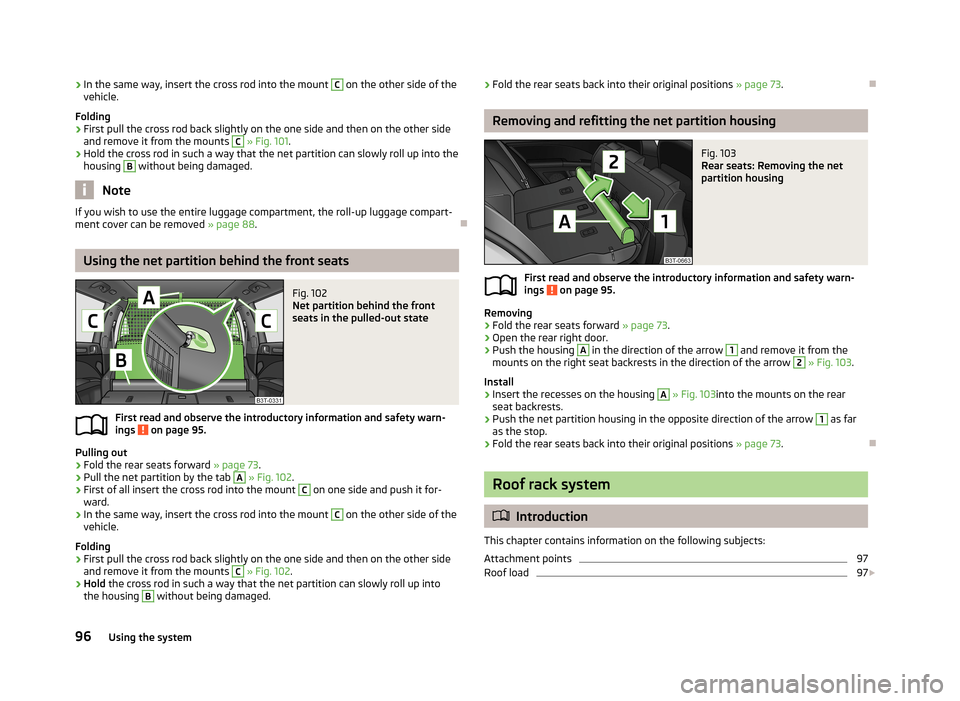

Using the net partition behind the front seats
Fig. 102
Net partition behind the front
seats in the pulled-out state
First read and observe the introductory information and safety warn-
ings on page 95.
Pulling out
›
Fold the rear seats forward » page 73
.
›
Pull the net partition by the tab
A
» Fig. 102 .
›
First of all insert the cross rod into the mount
C
on one side and push it for-
ward.
›
In the same way, insert the cross rod into the mount
C
on the other side of the
vehicle.
Folding
›
First pull the cross rod back slightly on the one side and then on the other side and remove it from the mounts
C
» Fig. 102 .
›
Hold the cross rod in such a way that the net partition can slowly roll up into
the housing
B
without being damaged.
› Fold the rear seats back into their original positions
» page 73.

Removing and refitting the net partition housing
Fig. 103
Rear seats: Removing the net
partition housing
First read and observe the introductory information and safety warn- ings on page 95.
Removing
›
Fold the rear seats forward » page 73.
›
Open the rear right door.
›
Push the housing
A
in the direction of the arrow
1
and remove it from the
mounts on the right seat backrests in the direction of the arrow
2
» Fig. 103 .
Install
›
Insert the recesses on the housing
A
» Fig. 103 into the mounts on the rear
seat backrests.
›
Push the net partition housing in the opposite direction of the arrow
1
as far
as the stop.
›
Fold the rear seats back into their original positions » page 73.


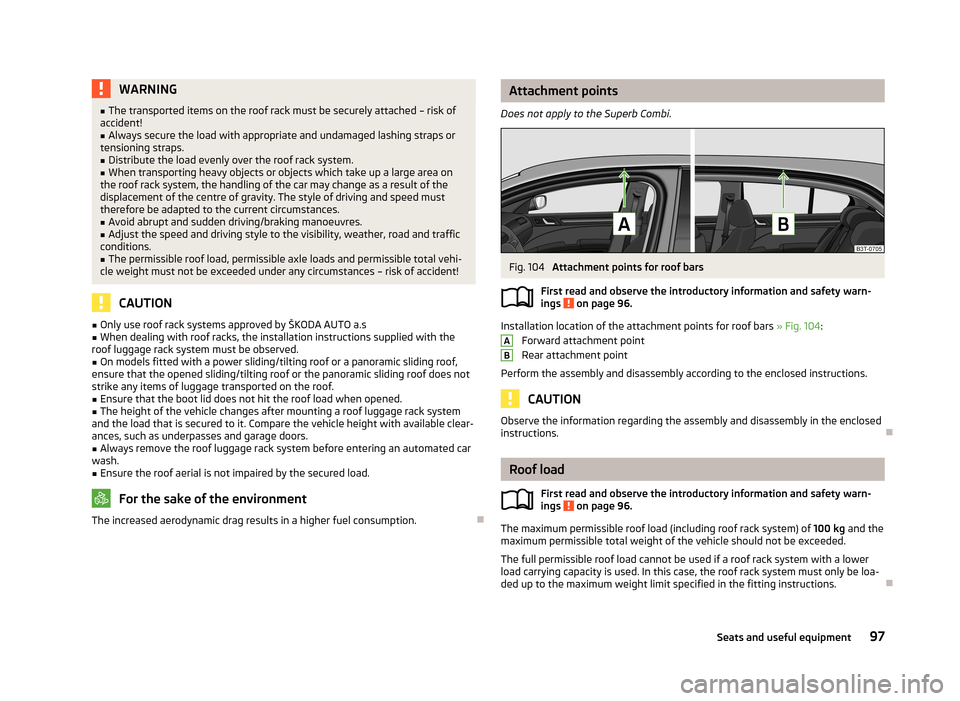

Roof rack system

Introduction
This chapter contains information on the following subjects:
Attachment points
97
Roof load
97

96Using the system

WARNING■The transported items on the roof rack must be securely attached – risk of
accident!■
Always secure the load with appropriate and undamaged lashing straps or
tensioning straps.
■
Distribute the load evenly over the roof rack system.
■
When transporting heavy objects or objects which take up a large area on
the roof rack system, the handling of the car may change as a result of the displacement of the centre of gravity. The style of driving and speed musttherefore be adapted to the current circumstances.
■
Avoid abrupt and sudden driving/braking manoeuvres.
■
Adjust the speed and driving style to the visibility, weather, road and traffic
conditions.
■
The permissible roof load, permissible axle loads and permissible total vehi-
cle weight must not be exceeded under any circumstances – risk of accident!
CAUTION
■ Only use roof rack systems approved by ŠKODA AUTO a.s■When dealing with roof racks, the installation instructions supplied with the
roof luggage rack system must be observed.■
On models fitted with a power sliding/tilting roof or a panoramic sliding roof,
ensure that the opened sliding/tilting roof or the panoramic sliding roof does not strike any items of luggage transported on the roof.
■
Ensure that the boot lid does not hit the roof load when opened.
■
The height of the vehicle changes after mounting a roof luggage rack system
and the load that is secured to it. Compare the vehicle height with available clear-
ances, such as underpasses and garage doors.
■
Always remove the roof luggage rack system before entering an automated car
wash.
■
Ensure the roof aerial is not impaired by the secured load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption.
Attachment points
Does not apply to the Superb Combi.Fig. 104
Attachment points for roof bars
First read and observe the introductory information and safety warn-
ings
on page 96.
Installation location of the attachment points for roof bars » Fig. 104:
Forward attachment point
Rear attachment point
Perform the assembly and disassembly according to the enclosed instructions.
CAUTION
Observe the information regarding the assembly and disassembly in the enclosed
instructions.
Roof load
First read and observe the introductory information and safety warn-
ings
on page 96.
The maximum permissible roof load (including roof rack system) of 100 kg and the
maximum permissible total weight of the vehicle should not be exceeded.
The full permissible roof load cannot be used if a roof rack system with a lower
load carrying capacity is used. In this case, the roof rack system must only be loa-
ded up to the maximum weight limit specified in the fitting instructions.

AB97Seats and useful equipment
