Reducing or increasing the curvature of the lumbar support›Push the switch A in the region of one of the arrows2» Fig. 49 .
Raising or lowering the curvature of the lumbar support›
Push the switch
A
in the region of one of the arrows 1» Fig. 49 .
The adjusted driver's seat position can be set in the memory of the
seat » page 69 or the remote control key » page 69.
Note
If the setting procedure is interrupted, you will need to press the button again.
Head restraints
Fig. 51
Headrest: adjusting / removing
Fig. 52
Rear centre head rests in vehi-
cles with the TOP TETHER sys-
tem
First read and observe the introductory information and safety warn-
ings on page 66.
Best protection is achieved if the top edge of the head rest is at the same level as the upper part of your head.
Setting height
›
Grasp the side of the head restraint with both hands and push it upwards as re-
quired » Fig. 51 -  .
›
To move the head restraint downwards, press and hold the safety but-
ton » Fig. 51 -  with one hand and press the head restraint downwards with
the other hand.
The front seats and head rests must be adjusted to match the body size at all
times and the seat belt must always be fastened properly to provide the most ef-
fective levels of protection to the passengers » page 170, Correct seated posi-
tion .
Removing/installing
›
Pull the head restraint up out of the seat backrest as far as the stop (for the rear head restraints fold the seat backrest forward).
›
Press the locking button in direction of the arrow » Fig. 51 - 
and pull the head
restraint out.
›
To re-insert the head restraint, push it far enough down into the seat backrest until the locking button clicks into place.
Removing and installing rear middle head rest Applies to vehicles using the TOP TETHER system.
›
Pull the head restraint out of the seat backrest as far as the stop.
›
Press the locking button in the direction of arrow
1
» Fig. 52 , simultaneously
press the locking button into the opening
2
using a flat screwdriver with a
width of maximum 5 mm and pull out the head rest.
›
To re-insert the head restraint, push it far enough down into the seat backrest until the locking button clicks into place.
WARNING■ The head rests must be correctly adjusted to avoid risk of injury.■Never drive with the head restraints removed - risk of injury.■
If the rear seats are occupied, the rear head rests must not be in the lower
position. 68Using the system

NoteThe middle rear head restraint is adjustable in two positions.
Memory function of the electrically adjustable seat
Fig. 53
Memory buttons and SET button
First read and observe the introductory information and safety warn-
ings on page 66.
The memory function for the driver's seat provides the option to store the posi-
tions of the driver's seat and the external mirrors. Each of the three memory but-
tons
B
» Fig. 53 can be assigned a set position.
Storing seat and exterior mirror settings for driving forward
›
Switch on the ignition.
›
Adjust the seat to the desired position.
›
Adjust both of the exterior mirrors » page 65.
›
Press the button SET
A

» Fig. 53 .
›
Within 10 seconds after pressing the SET button, press the desired memory
button
B
.
An acknowledgment sound confirms the storage.
Saving front passenger mirror settings when reversing
›
Switch on the ignition.
›
Press the required memory button
B
» Fig. 53 .
›
Move the rotary knob for the exterior mirror control into position 
» page 65 .
›
Engage reverse gear.
›
Adjust the front passenger's mirror to the desired position » page 65.
›Disengage reverse gear.
The set position of the exterior mirror is stored.
Retrieving the saved setting›
Briefly press the desired memory button
B
» Fig. 53 with the ignition on.
or
›
Press and hold the desired memory button
B
with the ignition off or when the
ignition is on and travelling at a speed of more than 5 km / h.
Stopping the ongoing adjustment
›
Press any button on the driver's seat or the button  on the remote control
key.
Note
Each time new seat and exterior mirror settings for forward travel are saved, the
individual setting for the right exterior mirror for reverse travel must also be
saved again.
Memory function of the remote control key
First read and observe the introductory information and safety warn-ings
on page 66.
The automatic storage of the driver's seat and exterior mirror positions when
locking the vehicle can be turned on in the memory of the remote control key (af-
terwards only as function of automatic storage).
Storing seat and exterior mirror settings for driving forward
›
Enable automatic storage.
When automatic storage is activated, the current positions of the driver's seat
and the external mirrors are saved in the memory of the remote control key each
time the vehicle is locked. When the vehicle is next unlocked using the same key,
the driver's seat and the external mirrors assume the positions stored in the
memory of this key 1)
.
Saving front passenger mirror settings when reversing
›
Unlock the vehicle with the remote control key. 

1)
The vehicle must be locked and unlocked with the same key to save the seat and exterior mirror po-
sition to the key.
69Seats and useful equipment

›Switch on the ignition.›Turn dial for the exterior mirror control into position
 » page 65 .›
Engage reverse gear.
›
Adjust the front passenger's mirror to the desired position » page 65.
›
Disengage reverse gear.
The adjusted position of the exterior mirror is stored in the remote control key
memory.
Enable automatic storage
›
Unlock the vehicle with the remote control key.
›
Press and hold any memory button
B
» Fig. 53 on page 69. After the seat has
assumed the position stored under this button, at the same time press the but-
ton 
on the remote control key within 10 seconds.
The successful activation of the automatic storage function for each key is con-
firmed by an acoustic signal.
The seat and external mirror positions which are already saved in the memory
button are not saved in the memory of the key.
The seat can be adjusted to the required position if necessary » page 67.
After locking the vehicle, the current positions of the driver's seat and the exter-
nal mirrors are saved in the memory of the remote control key.
Disable the function of automatic storage
›
Unlock the vehicle with the remote control key.
›
Press and hold the SET button
A

» Fig. 53 on page 69. At the same time, press
the button  on the remote control key within 10 seconds.
The successful deactivation of the automatic storage function for each key is con-
firmed by an acoustic signal.
Stopping the ongoing adjustment
›
Press any button on the driver's seat or the button  on the remote control
key.

Seat features
 Introduction
This chapter contains information on the following subjects:
Seat heaters
70
Ventilated front seats
71
Convenience features of passenger seat
72
Armrest, front
72
Armrest rear
73
Seat backrests
73
Rear seat folded forward (Superb Combi)
74
Seat heaters
Fig. 54
Heating: Front seats/ rear seats
First read and observe the introductory information given on page 70.
The seat backrests and surfaces of the front seats and the two outer rear seats
can be heated electrically.
The seat heating can only be switched on when the engine is running.
Switching on the front seat heater
›
Press the controller in the area of the symbols 
and 
» Fig. 54 - 
.
Switch on rear seat heater
›
Press the symbol button 
or 
» Fig. 54 - 
. 
70Using the system

By pressing the button once, the heating is switched to the highest intensity -level 3, which is indicated by all three of the indicator lights in the switch lightingup.
With repeated pressing of the switch, the heating is turned down until it goes off. The seat heating level is indicated by the number of illuminated warning lights inthe respective control.WARNINGIf you have a subdued pain and/or temperature sensitivity, e.g. through medi-
cation, paralysis or because of chronic illness (e.g. diabetes), we recommend
not to use the seat heating. This can lead to burns on the back, the posterior
and the legs which are difficult to heal. If the seat heating is used, we recom-
mend to make regular breaks in your journey when driving long distances, so
that the body can recuperate from the stress of the journey. Please consult
your doctor, who can evaluate your specific condition.
CAUTION
■ Do not kneel on the seats or otherwise apply concentrated pressure to them.■Do not turn on the seat heater if seats are not occupied.■
Do not switch on the seat heating if the seats have objects attached to or
placed on them, for example a child seat, a bag, etc. A fault of the heating ele-
ments in the seat heating can occur.
■
If additional seat covers or protective covers are attached to the seats, do not
turn on the seat heater - there is a risk of damaging the seat covers and seat
heating.
■
Do not clean the seats using moisture » page 203, Seat covers .
Note
■
If the on-board voltage drops, the seat heating is switched off automatically, in
order to provide sufficient electrical energy for the engine control » page 218.■
If the heaters for the rear seats are set to the highest intensity - level 3, they
are automatically switched over to level 2 after 10 minutes (two indicator lights
are illuminated on the switch).

Ventilated front seatsFig. 55
Rocker switch for the seat venti-
lation
First read and observe the introductory information given on page 70.
Heat and condensation can be removed from the seat cushions and seat backr- ests on the front seats.
The ventilation is operated using the rocker switch » Fig. 55 in the front part of
the seat cushion, in front of the seat control elements for the electric front seat
adjustment.
Switching on
›
Switch the rocker switch to position 1 - lower intensity and to position 2 - higher
intensity.
Switching off
›
Switch the rocker switch to the centre position 
.
WARNINGIf you or a passenger have limited pain and/or temperature sensitivity, e.g.
caused by medication, paralysis or because of chronic illness (e.g. diabetes),
we recommend that you consult your physician before using the ventilated
front seat.
CAUTION
■ Do not kneel on the seats or otherwise apply concentrated pressure to them.■The fan is located underneath the front seat cushion. Do not place any objects
in this area - it may damage the fan.■
Do not clean the seats using moisture » page 203, Seat covers . 
71Seats and useful equipment

Note■The ventilation should only be switched on when the engine is running. This
has a significant effect of saving on the battery capacity.■
We do not recommend using the front seat ventilation and heating at the same
time. Using the ventilation to cool the seat surface considerably reduces the
heating capacity, at the same time affecting the ability of the control unit to de-
tect the right seat surface temperature.

Convenience features of passenger seat
Fig. 56
Operating passenger seat from
the rear seat
First read and observe the introductory information given on page 70.
The front passenger seat can also be operated from the rear seat.
Adjusting the angle of the seat backrest
›
Push the switch
A
in the direction of one of the arrows 1 » Fig. 56 .
Adjusting a seat in a forward/back direction
›
Push the switch
B
in the direction of one of the arrows 2 » Fig. 56 .

Armrest, frontFig. 57
Adjusting armrest
First read and observe the introductory information given on page 70.
The armrest is adjustable for height and length.
Setting height
›
First of all fold the cover downwards and then lift it in the direction of the arrow
1
» Fig. 57 to one of the 4 fixed positions.
Move
›
Move the cover into the desired position in the direction of the arrow
2
» Fig. 57 .
The armrest includes a storage compartment underneath » page 79.
Note
Push the armrest cover all the way back to the stop before applying the hand-
brake.
72Using the system

Armrest rearFig. 58
Fold the armrest forwards
First read and observe the introductory information given on page 70.
Folding forward
›
Fold down the armrest in the direction of the arrow » Fig. 58 .
A cup holder may be located in the armrest » page 76.

Seat backrests
Fig. 59
Seat back: unlock / lock
First read and observe the introductory information given on page 70.
The luggage compartment can be increased in size by folding the seat backrests
forward. The seat backrests can be folded forward individually on vehicles with
divided rear seats.
Folding forward
Before folding the seat backrests forwards, adapt the position of the front seats
in such a way that they are not damaged by the folded seat backrests 1)
.
›
Push the lever
A
» Fig. 59 and fold the seat backrest completely forwards.
Folding backward
›
If you removed the head restraint, you need to reinsert it with the backrest til- ted slightly forwards » page 68.
›
Hold the rear outer seat belt
C
» Fig. 59 against the side trim panel.
›
Then push the seat backrest back into the upright position until the securing
knob
A
clicks into place – check by pulling on the seat backrest » .
›
Make sure that the red pin
B
is hidden.
WARNING■
The seat belts and the belt locks must be in their original position after fold-
ing back the seat backrests – they must be ready to use.■
The seat backrests must be securely locked in position so that no objects in
the luggage compartment can slide into the passenger compartment on sud-
den braking – risk of injury.
■
Ensure that the rear seat backrests are properly engaged. Only then can the
seat belt for the middle seat reliably fulfil its function.
CAUTION
Ensure that the seat belts are not damaged when operating the seat backrests. Under no circumstances must the rear seat belts be jammed by the folded back
seat backrests.

1)
If the front seats are too far back, we recommend removing the rear head restraints before the seat
backrests are folded forward, to achieve a loading space that is as horizontal as possible. Store the
removed head restraints in such a way that they are not be damaged or soiled.
73Seats and useful equipment

Rear seat folded forward (Superb Combi)Fig. 60
Folding the seat cushion for-
wards
First read and observe the introductory information given on page 70.
›
Pull up the seat cushion in the direction of the arrow
1
» Fig. 60 and fold for-
wards in the direction of the arrow
2
.
Note
To achieve a loading space that is as horizontal as possible, the rear head re-
straints can be removed before folding the seat backrests forwards. Store the re- moved head restraints in such a way that they are not be damaged or soiled.
Practical equipment
 Introduction
This chapter contains information on the following subjects:
Car park ticket holder
75
Storage compartment on the driver's side
75
Storage compartments in the doors
75
Storage compartment in the front centre console
76
Cup holders
76
Cigarette lighter
77
Ashtray
77
12-Volt power outlet
78
Storage compartment under the armrest, front
79Storage net in the front centre console79Glasses storage box80
Storage compartment on the passenger side
80
Storage compartment under the passenger seat
81
Clothes hook
81
Storage pockets on the front seats
82
Storage compartment for umbrella
82
Storage compartment in rear centre console
82
Storage compartment in the rear armrest
83
Rear seat backrest with long-cargo channel
83
Removable ski bag
84WARNING■ Do not place anything on the dash panel. These objects might slide or fall
down when driving (when accelerating or cornering) and may distract you
from concentrating on the traffic – there is the risk of an accident.■
When driving, ensure that no objects from the centre console or from other
storage compartments can get into the driver's footwell. You would then no
longer be able to apply the brakes or operate the clutch or accelerator pedal –
risk of accident!
■
No objects should be placed in the storage compartments nor in the drinks
holders; the vehicle occupants could be endangered if there is sudden braking
or the vehicle collides with something.
■
Ash and cigarette or cigar stubs must only be discarded in ashtrays!

74Using the system

Car park ticket holderFig. 61
Windscreen: Parking ticket hold-
er
First read and observe the introductory information and safety warn-
ings on page 74.
The note holder is designed e.g. for attaching car park tickets.
WARNINGThe attached note has to always be removed before starting off in order not
to restrict the driver's vision.

Storage compartment on the driver's side
Fig. 62
Storage compartment on the
driver's side
First read and observe the introductory information and safety warn- ings on page 74.
Opening
›
Raise the handle
A
» Fig. 62 and open out the compartment in the direction of
the arrow.
Closing›Swivel the lid against the direction of the arrow until it clicks into place.WARNINGThe storage compartment must always be closed when driving for safety rea-
sons.

Storage compartments in the doors
Fig. 63
Storage compartment: in the front door/in the rear door
First read and observe the introductory information and safety warn-
ings
on page 74.
WARNINGUse the storage compartment only for storing objects which do not project so
that the effectiveness of the side airbag is not impaired.

75Seats and useful equipment

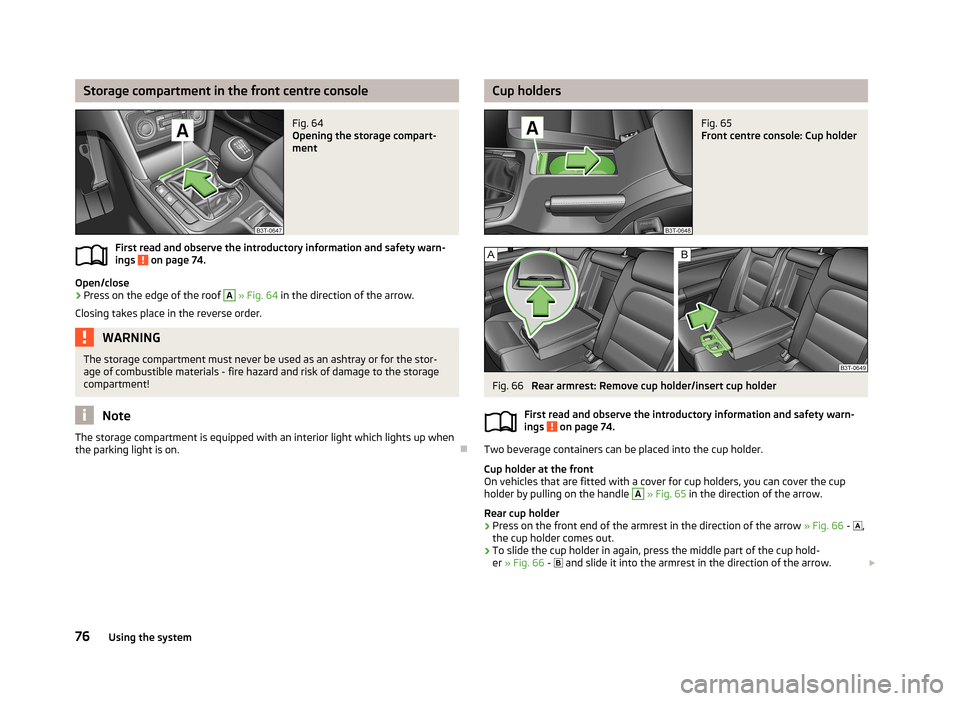

Storage compartment in the front centre consoleFig. 64
Opening the storage compart-
ment
First read and observe the introductory information and safety warn-
ings on page 74.
Open/close
›
Press on the edge of the roof
A
» Fig. 64 in the direction of the arrow.
Closing takes place in the reverse order.
WARNINGThe storage compartment must never be used as an ashtray or for the stor-
age of combustible materials - fire hazard and risk of damage to the storage
compartment!
Note
The storage compartment is equipped with an interior light which lights up when
the parking light is on.
Cup holdersFig. 65
Front centre console: Cup holder
Fig. 66
Rear armrest: Remove cup holder/insert cup holder
First read and observe the introductory information and safety warn-
ings
on page 74.
Two beverage containers can be placed into the cup holder.
Cup holder at the front
On vehicles that are fitted with a cover for cup holders, you can cover the cup
holder by pulling on the handle
A
» Fig. 65 in the direction of the arrow.
Rear cup holder
›
Press on the front end of the armrest in the direction of the arrow » Fig. 66 -
 ,
the cup holder comes out.
›
To slide the cup holder in again, press the middle part of the cup hold- er » Fig. 66 -
 and slide it into the armrest in the direction of the arrow. 
76Using the system

WARNING■Never put hot beverage containers in the cup holder. If the vehicle moves,
they may spill – risk of scalding!■
Do not use any cups or beakers which are made of brittle material (e.g. glass,
porcelain). This could lead to injuries in the event of an accident.
CAUTION
■ Do not leave open beverage containers in the cup holder during the journey.
There is a risk of spilling e.g. when braking which may cause damage to the elec- trical components or seat upholstery.■
Slide in the cup holder before raising the rear armrest.

Cigarette lighter
Fig. 67
Centre console: Cigarette lighter, front/rear
First read and observe the introductory information and safety warn- ings
on page 74.
Usage
›
Press the button of the cigarette lighter
A
or
B
» Fig. 67 .
›
Wait until the button pops forward.
›
Remove the cigarette lighter immediately and use.
›
Place the cigarette lighter back into the socket.
WARNING■
Take care when using the cigarette lighter! Improper usage can case burns.■The cigarette lighter also operates when the ignition is switched off or the
ignition key withdrawn. Therefore never leave children unattended in the ve-
hicle.
Note
■ The cigarette lighter socket can also be used as a 12Volt socket for electrical ap-
pliances » page 78 , 12-Volt power outlet .■
Further information » page 193, Services, modifications, and technical altera-
tions .

Ashtray
Fig. 68
Centre console: Ashtray at the front/rear
First read and observe the introductory information and safety warn- ings
on page 74.
The ashtray can be used for discarding ash, cigarettes, cigars and the like » .
Removing/inserting the front ash tray
›
Open the ashtray » Fig. 64 on page 76.
›
Grasp the ashtray insert in the area
A
» Fig. 68 and remove it in the direction of
the arrow
1
.
Insertion takes place in the reverse order.
Removing/inserting the rear ashtray insert
›
Open the ashtray » Fig. 77 on page 82. 
77Seats and useful equipment
