Removing›Pull the head restraint out of the seat backrest as far as the stop.›
Press down the locking button
A
in the direction of arrow
1
» Fig. 84 , while
at the same time using a flat screwdriver with a max. width of 5 mm to press
the locking button in opening
B
in the direction of arrow
2
.
›
Remove the restraint in the direction of arrow
3
.
Fitting
›
Slide the restraint into the seat backrest in the direction of arrow
4
until the
locking button clicks into place.
CAUTION
Store the head restraints that were removed in such a way that they are not
damaged or soiled.
Seat heating and ventilation
 Introduction
Fig. 85
Button arrangement: Heated front seats (and ventilation) / rear
seat heating
Fig. 86
Display of the front seat heating (and ventilation) with control
lamps
This chapter contains information on the following subjects:
Front seats with heating
89
Front seats with heating and ventilation
89
Rear seats with seat heating
90
The front seats can be heated depending on the equipment or heated and
ventilated.
Only the outboard rear seats can be heated.
Buttons for the heating and ventilation » Fig. 85
Left seat heating
Right seat heating
Seat heating and ventilation left
Seat heating and ventilation right
Indicator lamp display » Fig. 86
Vehicles with seat heating - seat heating is switched on at maximum heat
Vehicles fitted with seat heating and ventilation - seat heating is switched
on with maximum heating capacity
Vehicles fitted with seat heating and ventilation - seat ventilation is
switched on with maximum ventilation capacity
Vehicles with seat heating and ventilation - seat heating and ventilation is
switched on
The seat heater and seat ventilation can already be set with the ignition on,
however it only comes on after starting the engine. 
88Using the system

The setting of the heating / ventilation level by pressing the keys  and is
not possible .
Rear seats with seat heating
Fig. 88
The seat heating is switched on
at maximum heat
Read and observe and on page 89 first.
The level of the seat heating is indicated by the number of illuminated warning
lights in the switch.
Seat heating operation
›
Press button  or
.
The seat heating is switched on at maximum heat » Fig. 88.
With repeated pressing of the switch, the level is down-regulated up to the
switch-off.
The adjustment of the heating power can be locked and unlocked in the Info-
tainment with the function key 
» Owner´s Manual Infotainment , chap-
ter Adjustment of the heating and cooling system . In the locked setting the
heating power can only be adjusted down to turn off.
Transporting and practical equipment
Useful equipment
 Introduction
This chapter contains information on the following subjects:
Car park ticket holder
91
Storage compartment on the driver's side
91
stowage compartments in the doors
91
Storage compartment in the front centre console
92
Cup holders
92
Waste container
93
Storage compartment under the front arm rest
94
Glasses compartment
95
Storage compartment on the front passenger side
95
Storage compartment under passenger seat
96
Clothes hook
96
Storage pockets on the backs of the front seats
97
Storage pockets on the inner sides of the front seats
97
Storage compartments for umbrella
97
Storage compartment in the rear centre console
98
Storage compartment in the rear armrest
98
Removable through-loading bag
98
AUX and USB inputs
99WARNING■ Do not place anything on the dash panel. These objects might slide or fall
down when driving (when accelerating, cornering or with an incorrect driv-
ing action) and may distract you from concentrating on the traffic – there is
the risk of an accident.■
When driving, ensure that no objects from the centre console or from oth-
er storage compartments can get into the driver's footwell. You would not
be able to brake, operate the clutch pedal or accelerate - danger of causing
an accident!
■
No objects should be placed in the storage compartments nor in the
drinks holders; the vehicle occupants could be endangered if there is sud-
den braking or the vehicle collides with something.
■
Ash, cigarettes, cigars and the like. may only be placed in the ashtray!
90Using the system

Closing takes place in reverse order.
Replace bags›
Remove the waste container from the slot.
›
Press the two locking lugs on the frame in the direction of arrow
4
» Fig. 97 .
›
Pull the bag together with the frame down in the direction of arrow
5
.
›
Remove the bag from the frame.
›
Pull the new bag through the frame and pull it over the frame in the direction
of arrow
6
.
›
Place the bag containing the frame in the direction of arrow
7
into the con-
tainer body, so that the two lugs engage audibly to the frame.
WARNINGNever use the waste container as an ashtray - risk of fire!
Note
We recommend that you use 20x30 cm bags.
Storage compartment under the front arm rest
Fig. 98
Open tray / control air supply
Fig. 99
Open storage compartment for
the tablet
Read and observe on page 90 first.
The storage compartment is equipped with an interior light which illuminates when the parking or dipped head lights are on.
Opening the storage compartment
›
Raise the armrest in the direction of the arrow
1
» Fig. 98 .
Closing storage compartment
›
Raise the armrest in the direction of the arrow
1
until it stops » Fig. 98.
›
Fold the armrest in the opposite direction of the arrow
1
.
Storage compartment for the tablet
›
Pull on the loop
A
in the direction of the arrow » Fig. 99.
›
Place the tablet in the storage compartment, directed with the cord upwards
or sideways.
Air supply operation
The air supply can be operated by turning the rotary switch in the direction of
arrow
2
as far as the stop » Fig. 98.
Opening
Closing
When the air inlet is opened, and the air-conditioning system is switched on
the air flows in the storage compartment corresponding to the control dial set-
tings on the air conditioning, depending on the outer climate conditions.
Opening the air inlet when the air conditioning system is on causes fresh or in-
terior air to flow into the storage compartment.
Note
If not using the air supply in the storage compartment we recommend that you
leave the air supply closed.94Using the system

Glasses compartmentFig. 100
Opening the glasses storage box
Read and observe on page 90 first.
The maximum permissible load of the glasses compartment is 250 g.
Opening
›
Press the button
A
» Fig. 100 .
The box closes in the direction of the arrow.
Closing
›
Swivel the box in the opposite direction to that of the arrow » Fig. 100 until it
audibly clicks in place.
WARNINGThe compartment must only be opened when removing or inserting the
glasses and is otherwise kept closed - it could cause a restricted view to
the outside or to an injury!
CAUTION
■ Do not put any heat-sensitive objects in the glasses storage box - with high
temperatures there is risk of damage.■
The box must be closed before leaving and locking the vehicle – risk of im-
pairment to the functions of the anti-theft alarm system.
Storage compartment on the front passenger sideFig. 101
Open storage compartment / close storage compartment and
open air supply
Read and observe
on page 90 first.
A pen holder is provided in the stowage compartment.
The storage compartment is equipped with an inner light that illuminates
when opening and closing the storage compartment.
Opening
›
Press the button
A
» Fig. 101 .
The cover folds in the arrow direction
1
.
Closing
›
Swing the cover in the direction of the arrow
2
, until it audibly clicks into
place.
Air supply operation
The air supply can be operated by turning the rotary switch in the direction of
arrow
B
as far as the stop » Fig. 101.
Opening
Closing
Opening the air supply when the air conditioning system is switched on allows
cooled air to flow into the storage compartment.
Opening the air inlet when the air conditioning system is on causes fresh or in-
terior air to flow into the storage compartment. 
95Transporting and practical equipment

Storage compartment in the rear centre consoleFig. 107
Open storage compartment,
open lockable storage compart-
ments
Read and observe on page 90 first.
In the rear centre console there is an equipment-dependent open storage
compartment
A
and a lockable storage compartment
B
» Fig. 107 .
The compartment
B
is equipped with an interior light which illuminates when
the parking or dipped head lights are on.
Compartment
B
open / close
›
Pull the handle on the upper section of the recess and open out the com-
partment in the direction of the arrow » Fig. 107.
Closing takes place in reverse order.
WARNINGNever use the storage compartment as an ashtray - risk of fire!
Storage compartment in the rear armrest
Fig. 108
Open storage compartment / interior of the compartment
Read and observe on page 90 first.
In the storage compartment there is a cup holder
B
, storage compartment for
the multimedia holder
C
as well as a pen holder
D
» Fig. 108 .
Open/close
›
Grasp the lid to the recess
A
» Fig. 108 .
›
Unfold the cover to the stop in the direction of arrow.
Closing takes place in reverse order.
Removable through-loading bag
Fig. 109
Tighten ribbon / secure through-loading bag
Read and observe
on page 90 first.
The removable through-loading bag (hereinafter referred to as a through-load-
ing bag) is used exclusively for transporting skis.
Stowing through-loading bag and skis
›
Open the tailgate.
›
Fold the rear armrest and the cover in the seat backrest downwards
» page 86 .
›
Place the empty through-loading bag in such a way that the end of the bag
with the zip is in the boot.
›
Push the skis into the through-loading bag from the boot » .
›
Close the through-loading bag.
Securing through-loading bag and skis
›
Tighten the strap
A
on the free end around the skis in front of the bindings
» Fig. 109 .
›
Fold the seat backrest a little forward. 

98Using the system

›Guide the securing strap B through the opening in the seat backrest around
the upper part of the seat backrest.›
Then push the seat backrest back into the upright position until the unlock-
ing button clicks into place - check by pulling on the seat backrest.
›
Insert the securing strap
B
into the lock
C
until it clicks into place.
WARNING■ After placing skis into the through-loading bag, you must secure the bag
with the securing strap B » Fig. 109 .■
The strap
A
must hold the skis tight.
■
Make sure that the strap
A
holds all skis in front of the binding (see also
the text on the through-loading bag).
■
The total weight of the skis which are transported must not exceed 24
kg.
CAUTION
■ Never fold and stow the through-loading bag wet - risk of damaging the
through-loading bag.■
The through-loading bag is designed for the transportation of up to four
pairs of skis.
■
Place the skis with the tips facing to the front and the sticks with the tips
facing to the rear. into the through-loading bag.
AUX and USB inputs
Fig. 110
Installation locations of the USB port in the centre console,
front/rear
Fig. 111
Installation location if the AUX
input
Read and observe on page 90 first.
The USB input is in the storage compartment of the front centre console and
the rear console, it is identified with the symbol 
» Fig. 110 .
The AUX input can be found in the stowage compartment of the front centre
console » Fig. 111 .
Additional information » Owner´s Manual Infotainment .
Electrical sockets and cigarette lighter

Introduction
This chapter contains information on the following subjects:
12 volt socket in front centre console
100
12 volt socket in the rear centre console
100
12 volt socket in luggage compartment
101
230-volt socket
101
Cigarette lighter
102WARNINGInstructions for devices connected to the outlets.■Safely stow away all devices during the journey to prevent them from be-
ing thrown around the interior in the event of a sudden braking manoeuvre
or an accident – risk of death!■
The devices may warm up during operation – risk of injury or fire! If the
device becomes too hot, switch it off and disconnect it from the power sup-
ply immediately. 
99Transporting and practical equipment

12 volt socket in luggage compartmentFig. 115
Cover of the 12 volt power outlet
Read and observe and on page 99 first.
Use
›
Open the socket cover » Fig. 115.
›
Connect the plug for the electrical appliance to the socket.
230-volt socket
Fig. 116
Open the cover of the 230 volt outlet / 230 volt outlet
Read and observe
and on page 99 first.
The 230-volt socket (hereinafter referred to as a socket) is provided for the
connection of approved electrical accessories with a two-pin 230-volt plug and
a total power consumption of up to 150 watts.
The socket is located in the rear centre console » Fig. 116.
Use
›
Open the cover in the direction of the arrow » Fig. 116.
›
Connect the plug for the electrical appliance to the socket.
When plugging in the connector the child safety lock is unlocked and the out-
let is activated.
The outlet works in the following cases ▶ The engine is running.
▶ In STOP mode with vehicles that have the START-STOP system.
▶ After about 10 minutes after stopping the engine, unless a consumer was
connected to the outlet before stopping the engine.
Warning lightDisplay indicator lightMeaningIlluminates greenThe power socket is activated.Flashes greenThe socket remains activated for about 10 mi-
nutes after the engine has stopped.Flashes redThe power socket is temporarily deactivated.
An automatic deactivation of the socket can take place, for example, for the
following reasons. ▶ Excessive current.
▶ Low state of charge of the battery.
▶ High outlet temperature.
If disabling reasons no longer exist, the automatic activation of the socket can
be done. Then re-activate connected devices which are switched on »
.
Should no automatic activation take place, the connected devices must be dis-
connected from the power outlet and reconnect after a short time.
WARNING■ Improper use can lead to serious injury or fire. When leaving the vehicle,
never leave persons who are not completely independent, such as children,
unattended in the vehicle.■
Do not pour liquids into the power socket – risk of death! If fluid does
manage to get into the power socket, completely dry out the socket before
reuse.
■
The child lock on the power socket is unlocked when using adapters and
extension cables which carry volts – risk of injury!
■
Do no insert any conductive objects into the contacts of the power sock-
et, e.g. knitting needs – risk of death! 
101Transporting and practical equipment

CAUTION■The power socket can only be used for connecting approved electrical acces-
sories with a two-pin 230V plug, with a total power uptake of up to 150 watt.■
Place the connector on the electrical device into the power socket as far as it
can go to create a connection between the contacts.
■
If the connector of the electrical device is not inserted fully into the power
socket, the child safety lock might release, and the power socket be activated.
The electrical device is still not supplied with power.
■
To use the function in which the outlet is operational for about 10 minutes
after switching off the engine, a consumer must be connected to the power
outlet before stopping the engine.
■
Do not connect any lamps with neon filaments to the power socket - risk of
damaging the lamp.
■
A larger current surge may arise in some power supplies (e.g. for notebooks)
when connecting them to the power socket- this will automatically deactivate
the power socket. In this case, disconnect the power supply from the consum-
er and connect the power supply to the power socket first, followed by the
consumer.
■
The connected appliances may behave differently to when connected to the
mains.
Cigarette lighter
Fig. 117
Front centre console: Open storage compartment / cigarette
lighter
Fig. 118
Centre console at rear: Open storage compartment / cigarette
lighter
Read and observe
and on page 99 first.
Use
›
Open the storage compartment by pressing on the edge of the cover in the
direction of the arrow » Fig. 117.
Or
›
Open the storage compartment in the direction of the arrow » Fig. 118.
›
Press the igniter in as far as the stop.
›
Wait until the igniter pops out.
›
Remove the glowing igniter and use immediately.
›
Place the igniter back into the socket.
›
Close the storage compartment by pressing on the edge of the cover in the
direction of the arrow » Fig. 117.
The lid closes automatically in the opposite direction of the arrow.
Or
›
Close the storage compartment in the opposite direction of the arrow
» Fig. 118 .
WARNING■
The cigarette lighter also works if the ignition is switched off. When leav-
ing the vehicle, never leave persons who are not completely independent,
such as children, unattended in the vehicle. These could operate the lighter
and get burned, start a fire or damage the interior.■
Take care when using the cigarette lighter! Improper usage can case
burns. 
102Using the system

Removable ashtrayFig. 121
Removing ashtray
Read and observe on page 103 first.
Removing/inserting
›
When removing, do not hold the ashtray on the cover.
›
Pull out the ashtray in the direction of the arrow » Fig. 121.
Insertion takes place in reverse order.
Tablet holder
 Introduction
This chapter contains information on the following subjects:
Attach behind the head restraint
104
Mount in the storage compartment in the rear armrest
105
Handling the holder
105
External devices (e.g. tablet, smartphone etc.) measuring min. 122 mm and
max. 195 mm can be secured in the holder.
The maximum permissible load of the compartment is 750 g.
CAUTION
Never exceed the maximum permissible load of the holder - there is a risk of
damage or functional impairment.Attach behind the head restraintFig. 122
Positioning the adapter/installing the holder
Fig. 123
Removing the holder/removing the adapter
Read and observe
on page 104 first.
Fitting
›
Attach the opened adapter to the guide rods of the front headrest » Fig. 122.
›
Clip in the adapter in the direction of arrow
1
» .
›
Clip in the holder in the direction of arrow
2
into the adapter.
Removing
›
Pull on the locking strap
A
in the direction of the arrow
3
» Fig. 123 .
›
Take out the holder out of the holder in the direction of arrow
4
.
›
Press the adapter and remove in the direction of the arrow
5
from the guide
rods of the headrest.
WARNINGClip in the adapter carefully - there is a risk of injuring your finger.104Using the system

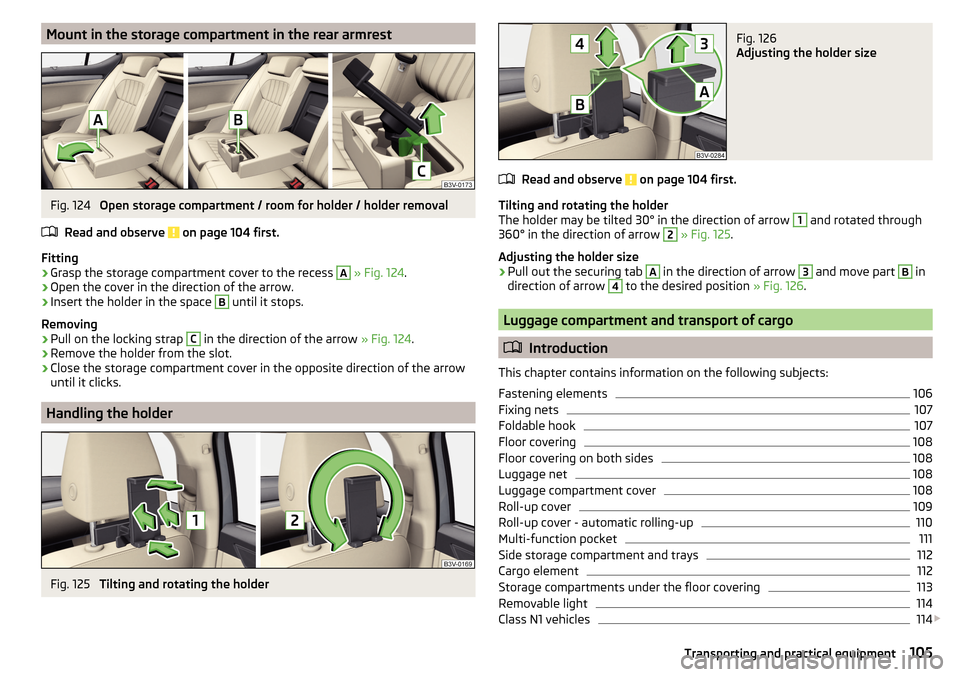

Mount in the storage compartment in the rear armrestFig. 124
Open storage compartment / room for holder / holder removal
Read and observe
on page 104 first.
Fitting
›
Grasp the storage compartment cover to the recess
A
» Fig. 124 .
›
Open the cover in the direction of the arrow.
›
Insert the holder in the space
B
until it stops.
Removing
›
Pull on the locking strap
C
in the direction of the arrow » Fig. 124.
›
Remove the holder from the slot.
›
Close the storage compartment cover in the opposite direction of the arrow
until it clicks.
Handling the holder
Fig. 125
Tilting and rotating the holder
Fig. 126
Adjusting the holder size
Read and observe on page 104 first.
Tilting and rotating the holder
The holder may be tilted 30° in the direction of arrow
1
and rotated through
360° in the direction of arrow
2
» Fig. 125 .
Adjusting the holder size
›
Pull out the securing tab
A
in the direction of arrow
3
and move part
B
in
direction of arrow
4
to the desired position » Fig. 126.
Luggage compartment and transport of cargo

Introduction
This chapter contains information on the following subjects:
Fastening elements
106
Fixing nets
107
Foldable hook
107
Floor covering
108
Floor covering on both sides
108
Luggage net
108
Luggage compartment cover
108
Roll-up cover
109
Roll-up cover - automatic rolling-up
110
Multi-function pocket
111
Side storage compartment and trays
112
Cargo element
112
Storage compartments under the floor covering
113
Removable light
114
Class N1 vehicles
114

105Transporting and practical equipment
