SKODA YETI 2009 1.G / 5L Owner's Manual

Intelligent Technology

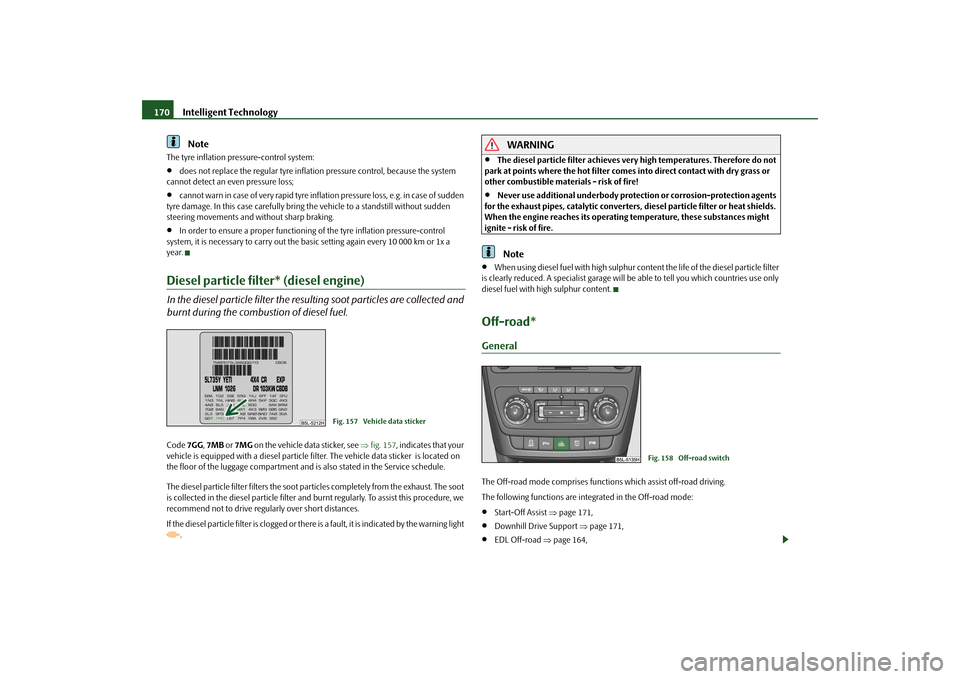

170
Note
The tyre inflation pressure-control system:•
does not replace the regular tyre inflatio
n pressure control, because the system
cannot detect an even pressure loss;•
cannot warn in case of very rapid tyre inflation pressure loss, e.g. in case of sudden
tyre damage. In this case carefully bring the vehicle to a standstill without sudden steering movements and without sharp braking.•
In order to ensure a proper functioning
of the tyre inflation pressure-control
system, it is necessary to carry out the basic setting again every 10 000 km or 1x a year.Diesel particle filter* (diesel engine)In the diesel particle filter the resu
lting soot particles are collected and
burnt during the combustion of diesel fuel.Code
7GG
, 7MB
or 7MG
on the vehicle data sticker, see
⇒fig. 157
, indicates that your
vehicle is equipped
with a diesel particle filter. The ve
hicle data sticker is located on
the floor of the luggage compartment and is also stated in the Service schedule. The diesel particle filter filters the soot particles completely from the exhaust. The soot is collected in the diesel particle filter and
burnt regularly. To assist this procedure, we
recommend not to drive regu
larly over short distances.
If the diesel particle filter is clogged or there
is a fault, it is indicated by the warning light

.
WARNING
•
The diesel particle filter
achieves very high temp
eratures. Therefore do not
park at points where the hot filter comes into direct contact with dry grass or other combustible materials - risk of fire!•
Never use additional underbody protection or corrosion-protection agents
for the exhaust pipes, catalytic converters,
diesel particle filter
or heat shields.
When the engine reaches its operating
temperature, these
substances might
ignite - risk of fire.
Note
•
When using diesel fuel with high sulphur cont
ent the life of the diesel particle filter
is clearly reduced. A specialist garage will
be able to tell you which countries use only
diesel fuel with high sulphur content.Off-road*GeneralThe Off-road mode comprises functions which assist off-road driving. The following functions are integrated in the Off-road mode:•
Start-Off Assist
⇒page 171,
•
Downhill Drive Support
⇒page 171,
•
EDL Off-road
⇒page 164,
Fig. 157 Vehicle data sticker
Fig. 158 Off-road switch
sgg.6.book Page 170 Thursday, September 24, 2009 2:32 PM

Intelligent Technology
171
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
•
TCS Off-road
⇒page 165,
•
ABS Off-road
⇒page 167.
Switch on Off-road The Off-road mode is switched on by pressing the button
⇒page 170, fig. 158
. The
warning light in the button lights up. The wa
rning light lights up in the instrument
cluster if the system is switched on
 ⇒page 38.
Switch off Off-road The Off-road mode is switched off by repe
ated pressing of the button. The warning
light in the button goes out. When switching
off the ignition, the Off-road mode is also
switched off and can be switched on again, if necessary, after switching on the ignition. If the engine is switched off by accident an
d restarted within 30 seconds, the Off-road
mode remains switched on. All four wheels must be fitted with the same tyres in order to achieve proper operation of the Off-road mode. Differing rolling circum
ferences of the tyres can lead to an unde-
sirable reduction in the engine output.
WARNING
•
Always adjust your speed to suit weat
her, road and traffic conditions. The
increased safety must not tempt you to take a greater safety risk than otherwise - risk of accident!•
The Off-road equipment can also not overcome the physical limits of your
vehicle.•
The effect of the Off-road equipm
ent depends as well on the tyres.
•
The Off-road equipment
is not designed for the use on common roads.
Start-Off Assist*The Start-Off Assist enhances the driving comfort and can be used when starting off, in particular on a slope. When the vehicle is stationary, the Start-Off Assist is activated after switching it on using the button for the Off-road mode
⇒page 170, fig. 158
.
Operating principle When depressing the accelerator pedal fully, the engine speed required for the start- up procedure of the stationary vehicle is restricted. The overspeed trip unit is automat-ically deactivated after terminating the start-up procedure. As part of the Assist System, the accelerator pedal is adapted in its characteristics for an easier start-off on slippery and loose soil.Downhill Drive Support*Operating principle The Downhill Drive Support maintains a cons
tant speed on a steep downhill section
when driving forwards and backwards by
automatically intervening in the brake
system of all wheels. It prevents the wheels locking because the ABS remains active. The warning light
 in the information display of the instrument cluster indicates that
the Downhill Drive Support is available
⇒page 38.
The vehicle speed, which is maintained by the Assist System, is selected by the driver while driving on a downhill section as of the
moment the first intervention of the Assist
System is performed or else, while driving on a downhill section, the driver must control the vehicle speed until the Assist System intervenes for the first time. When the Assist System actively intervenes, this is indicated by the warning light flashing or by a pulsating movement of the brake pedal,
similar to the intervention of the ABS.
The Downhill Drive Support is available in the speed range of 2 km/h up to 30 km/h. If the gear is engaged and the clutch pedal is
not pressed, the lower limit of the idling
speed corresponds to the respective gear which is engaged. You can increase or reduce the speed, even when no gear is engaged, by operating the accelerator or brake pedal. Thus the function
is always interrupted and is reactivated
afterwards. The Downhill Drive Support is activated auto
matically if the following conditions are
met:•
the Off-road mode is switched on and the warning light
 lights up in the instru-
ment cluster,•
the engine of the vehicle is running and either the 1st, 2nd, 3rd gear, the reverse
gear or no gear is engaged,•
the speed is less than 30 km/h,
sgg.6.book Page 171 Thursday, September 24, 2009 2:32 PM

Intelligent Technology
172
•
the downhill gradient is at least 10% (w
hen driving over sleepers the limit can
briefly drop to 8%),•
neither the accelerator nor the brake pedal is operated.
It is however a requirement that the vehicle
has sufficient grip on the soil. The Downhill
Drive Support cannot properly fulfil its functi
on on slushy soil due to physical reasons
(ice or mud). The Downhill Drive Support is deactivated wh
en braking or accelerating or if the
downhill gradient is less than 10%.
Note
•
During an intervention of the Downhill Drive Support, the brake lights do not light
up.•
Do not switch off the Off-road mode during an intervention of the Assist System.
sgg.6.book Page 172 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
173
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Driving and the EnvironmentThe first 1 500 kilometres and then afterwardsA new engine The engine has to be run in du
ring the first 1 500 kilometres.
Up to 1 000 kilometres– Do not drive faster than 3/4 of the maximum speed of the gear in use, that is 3/4 of
the maximum permissi
ble engine speed.
– Do not use full throttle. – Avoid high engine revolutions.– Do not tow a trailer.From 1 000 up to 1 500 kilometres– Increase the power output of the engine
gradually
up to the full speed of the gear
engaged, that is up to the maxi
mum permissible engine revolutions.
During the first operating hours the engine ha
s higher internal friction than later until
all of the moving parts have harmonized. Th
e driving style which you adopt during the
first approx.1 500 kilometres plays a decisive
part in the success of running in your
vehicle. You should not drive at unnecessarily
high engine revolutions
even after the
running-in period is complete
. The maximum permissible en
gine speed is marked by
the beginning of the red zone on the scale of the revolutions counter. Shift up into the next higher gear on a vehi
cle fitted with manual gear
box before the red zone is
reached.
Extremely
high engine revolutions are automatically governed, by the way.
For a vehicle fitted with a manual gearbox the
converse situation also applies: Do not
drive at engine revolutions which are
too low
. Shift down as soon as the engine is no
longer running smoothly.
Caution
All the speed and engine revolution figures ap
ply only when the engine is at its normal
operating temperature. Never rev up an engine which is cold, neither when the vehicle is stationary nor when driving in individual gears.
For the sake of the environment
Not driving at unnecessari
ly high engine revolutions and
shifting to a higher gear as
early as possible are ways to minimise fu
el consumption and op
erating noise levels
and protects the environment.New tyresNew tyres have to be “run in” since they do
not offer optimal grip at first. You should
take account of this fact for the first 500
kilometres and drive pa
rticularly carefully.
New brake padsAllow for the fact that new brake pads do no
t achieve their full braking efficiency until
approximately 200 kilometres. New brake pads must be first “run in” before they develop their optimal friction force. You ca
n, however, compensate for this slightly
reduced braking force by increasing the pressure on the brake pedal. This guideline also applies to any new brake pads installed at a future date.During the running-in pe
riod, you should avoi
d excessive stre
sses on the brakes. This
includes, for example, violent braking, part
icularly from very high speeds, and also
when crossing mountain passes.
sgg.6.book Page 173 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
174
Catalytic converterProper operation of the emission cont
rol system (catalytic converter) is
of major significance for driving your vehicle in an environmentally conscious way.Please refer to the following guidelines: – For vehicles with petrol engine only refuel with unleaded petrol
⇒page 200,
“Grades of petrol”.
– Never run the fuel tank completely empty.– Do not switch off the ignition while you are driving the vehicle. – Do not pour too much oil into the engine
⇒page 206, “Replenishing engine oil”.
– Do not tow-start the vehicle over a distance of more than 50 metres
⇒page 230,
“Tow-starting and towing vehicle”.
If you drive your vehicle in a country in
which unleaded petrol is not available, you
must have the catalytic converter replaced la
ter when driving the ve
hicle into a country
in which use of a catalyti
c converter is mandatory.
WARNING
•
In view of the high temperatures which may be produced in the catalytic
converter, one should always park a vehicle in such a way that the catalytic converter cannot come into contact with easily flammable materials below the vehicle - a risk of fire!•
Never use additional underbody protection or corrosion-protection agents
for the exhaust pipes, catalytic converters or heat shields. Such substances might ignite when driving - risk of fire!
Caution
•
On vehicles fitted with a catalytic converte
r, never let the fuel tank run completely
empty. An irregular fuel supply can result in poor ignition or misfiring. Unburnt fuel may get into the exhaust system an
d damage the cata
lytic converter.
•
Filling the tank even only once with lead
ed petrol will result in the catalytic
converter being destroyed.•
If you detect misfir
ing, a drop in performance or
irregular engine running when
driving, reduce your speed immediately and have the vehicle inspected by the nearest specialist garage. The symptoms described ma
y be caused by a fault in the ignition
system. Unburnt fuel may get into the exhaust system and damage the catalytic converter.
For the sake of the environment
Even if the exhaust system is operating pr
operly, a sulphur-like exhaust odour may be
produced under certain oper
ating conditions of the en
gine. This de
pends on the
sulphur content of the fuel. It is often sufficient to refuel with unleaded premium-grade petrol of a different brand or at a different filling station.Driving in an economical and environmentally conscious mannerGeneral Your personal style of driving is a major factor.Your fuel consumption, any pollution of
the environmental and the wear-and-tear to
the engine, brakes and tyres, depend essentially on three factors:•
your personal style of driving,
•
the conditions under which
your vehicle is operated,
•
technical aspects.
You can easily improve your fuel economy by
10 - 15 percent by driving in an econom-
ical way with foresight. This section is intended to provide you with a number of tips on how to protect the environment and at the same time save money. The fuel consumption can naturally also be
influenced by factors which are beyond the
driver's control. It is, for example, normal
for the fuel consumption to increase in
winter and under worsened cond
itions such as poor road conditions, towing a trailer,
etc.
sgg.6.book Page 174 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
175
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The technical requirements for low fuel usage and economic efficiency of the vehicle have already been built into the vehicle at
the works. Special atte
ntion has been given
to minimising nega
tive effects on the environment. It
is necessary to take note of the
guidelines given in this chapter in order to
make best use of these characteristics and
to maintain their effectiveness. The optimal engine speed should be obtained
when accelerating, in order to avoid a
high fuel consumption and
resonance of the vehicle.
Looking ahead when driving A vehicle's highest fuel consumption occurs it accelerates.Avoid accelerating and braking unnecessarily.
If you drive with forsight you will not
need to brake so often and will also then
not have to accelerate so much. Let your
vehicle coast to a stop, for example, if this is possible, when you see that the next set of traffic lights is at red.Shifting gears and saving energy Shifting up early saves on fuel.Fig. 159 Fuel consumption in litres/100 km. and speed in km/h.Manual gearbox– Drive no more than about one length of your vehicle in first gear. – Shift up into the next higher gear at approx. 2 000 to 2 500 revs.
Automatic gearbox– Depress the accelerator pedal
slowly
. Do not depress it beyond the kickdown
position, however.
An effective way of achieving good fuel economy is to shift up
early
. You will consume
more fuel if you drive at unnecessaril
y high revolutions in any given gear.
The
⇒fig. 159
shows the ratio of fuel consumption
to the speed of your vehicle in the
relevant gear. Fuel consumption in 1st gear
is the highest. The consumption is the
lowest in the highest gear. You will achieve good fuel economy by shif
ting up early and shifting down late.
Shift recommendation
for changing gears*
An information for the engaged gear
⇒fig. 159
is shown in the display of the
instrument cluster. In order to minimise the fuel consumptio
n, a recommendation for shifting into
another gear is indicated in the display. If the control unit recognises
that it is appropriate to change the gear, an arrow is
shown in the display. The arrow points up or down, depending on whether it is recom- mended to shift into a higher or lower gear. At the same time, the recommended gear is indicated instead of the currently engaged gear .
Note
Also use the information supplied by the multi-functional indicator*
⇒page 20.
AA
AB
AA
sgg.6.book Page 175 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
176
Avoiding full throttle Driving more slowly means saving fuel.Sensitive use of the accelerator will not only
significantly reduce fuel consumption but
also positively influence environmenta
l pollution and wear of your vehicle.
You should avoid exploiting the top speed
of your vehicle wherever possible. Fuel
consumption, pollutant emissions and vehicle noises increase disproportionally at high speeds. The
⇒fig. 160
shows the ratio between the fuel
consumption and the speed of your
vehicle. You will cut your fuel consumption by
half if you only make use three-quarters
of the possible top speed of your vehicle.Reducing idling Idling also costs fuel.It is worthwhile switching off the engine in
a traffic jam or when waiting at a level
crossing or at traffic lights with a lengthy red phase. Even after just 30 - 40 seconds you will have saved more fuel th
an that is needed when you start the engine up again.
If an engine is only idling it takes much
longer for it to reach its normal operating
temperature. Wear-and-tear and pollutant emis
sions, though, are particularly high in
the warming-up phase. This is why you should drive off right after starting the engine. Do avoid high engine revolu
tions at this time, however.
Regular servicing A poorly tuned engine consumes an unnecessarily high amount of fuel.Having your vehicle serviced regularly at a specialist garge enables you to satisfy
one

of the requirements for economical motoring
even before you set off on your journey.
Keeping your vehicle properly serviced not on
ly has a positive effect on the safety of
your vehicle and maintaining its value, but also saves on
fuel
.
A poorly tuned engine can result in a fuel consumption which is 10% higher than normal. The foreseen maintenance work should be undertaken exactly according to the Service schedule by a specialist garage. Also check the
oil level
after refueling.
Oil consumption
is dependent to a consider-
able extent on the load and speed of the en
gine. Oil consumption could be as high as
0.5 litres/1 000 km depending on your style of driving. It is quite normal that a ne
w engine has a higher oil cons
umption at first, and reaches
its lowest level only after a certain running
in time. It is therefore not possible to
correctly assess the oil consumption of a ne
w vehicle until after you have driven about
5 000 km.
For the sake of the environment
•
You can achieve additional
improvements in your fuel economy by using high-
lubricity oils.•
Check the ground below your vehicle at regular intervals to detect any leakages in
good time. Please have your vehicle inspec
ted by a specialist garge if you find any
stains caused by oil or other fluids on the floor.
Fig. 160 Fuel consumption in litres/100 km. and speed in km/h.
sgg.6.book Page 176 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
177
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Avoid driving short distances Short distances result in an above-average high fuel consumption.– Avoid driving a distance of no more
than 4 km if the engine is cold.
The engine and catalytic converter mu
st first have reached their optimal
operating
temperature
in order to effectively reduce fuel consumption and pollutant emissions.
The cold engine vehicle consumes approx. 15 - 20 litres/100 km of fuel immediately after starting. Fuel consumption drops to 10
litres/100 km after just 1 kilometre. The
engine reaches its operating temperat
ure (outside temperature and engine
dependent) only after about
4 to 10
kilometres and the fuel
consumption then stabi-
lizes. You should therefore avoid driving short distances whenever possible. An important factor in this connection is also the
ambient temperature
⇒fig. 161
. It
shows the fuel consumption after driving a
certain distance, on the one hand at a
temperature of +20°C and on the other hand
at a temperature of -10°C. Your vehicle
has a higher fuel consumption in winter than in summer.Checking tyre inflation pressures Tyres which are correctly inflated save fuel.Always ensure that your tyres are inflated to the correct pressure at all times. The rolling resistance will be increased if the tyre filling pressure is too low. This will not only increase fuel consumption but also tyre we
ar and the driving behaviour will worsen.
Always check the inflation pr
essure of the tyres when
cold
.
Do not drive with
winter tyres
all year round for this costs about 10 % more fuel. They
are also louder and have poorer handling
characteristics and higher wear at tempera-
tures more than 10°C.No unnecessary ballast Transporting ballast costs fuel.The fact that every kilogram of extra
weight
increases your fuel consumption means
that it is worth taking a look in the luggage compartment to avoid transporting any unnecessary ballast. It is particularly in town traffic, when on
e is accelerating quite often, that the vehicle
weight will have a significant effect upon th
e fuel consumption. A rule of thumb here
is that an increase in weight of 100 kilogr
ams will cause an increase in fuel consump-
tion of about 1 litre/100 kilometres. You may frequently also leave a
roof rack fitted
on just out of convenience, although
you no longer need it. The in
creased aerodynamic drag of yo
ur vehicle causes it to use
about 10% more fuel than normal at a speed of 100 - 120 km/h, even when you are not carrying a load on the roof.Saving electricity Generating electricity costs fuel.– Switch off electrical components as
soon as you no longer need them.
When the engine is running,
the alternator generates and
supplies electrical power.
The greater the load on the alternator as a result of having a large number of electrical components switched on, the more fuel
will be consumed for operating the
alternator.Keeping a log of your fuel consumptionIf you really wish to keep a close check on your
fuel consumption
, it is best to enter
the figures in a logbook. This does not take much time but is a very worthwhile exer- cise. It enables you to detect any change (p
ositive and negative) at an early stage and
to take any appropriate action.
Fig. 161 Fuel consumption in litres/100 km at different temperatures
sgg.6.book Page 177 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
178
If you find that your fuel
consumption is too high, you sh
ould reflect on how, where
and in what conditions you have driven
the vehicle since you last refuelled.
Environmental compatibilityEnvironmental protection has played a major
role in the design, selection of materials
and manufacture of your new Škoda. Particul
ar emphasis has been
paid to a number
of aspects, including: Design measures•
Joints designed to be easily detached.
•
Simplified disassembly due to the modular structure system.
•
Improved purity of different classes of materials.
•
Identification of all plastic parts in
accordance with VDA Recommendation°260.
•
Reduced fuel consumption and exhaust emission CO
2.
•
Minimum fuel leakage during accidents.
•
Reduced noise.
Choice of materials•
Extensive use of recyclable material.
•
Air conditioning filled with CFC-free refrigerant.
•
No cadmium.
•
No asbestos.
•
Reduction in the “vapor
isation” of plastics.
Manufacture•
Solvent-free cavity protection.
•
Solvent-free protection of the vehicle for
transportation from the production plant
to the customer.•
The use of solvent-free adhesives.
•
No CFCs used in the production process.
•
Without use of mercury.
•
Use of water-soluble paints.
Trade-in and recycling of old cars Škoda Auto meets the requirements of the brand and its products regarding environ- ment and ressource protection. All new Škoda
vehicles can be utilized up to 95% and
always
13) be returned. In a lot of countries suff
icient trade-in networks have been
created, where you can trade-in your vehicle.
After you trade-in yo
ur vehicle, you will
receive a confirmation stating the recycling
in accordance with environmental regula-
tions. Vehicles with special built-on types Technical documents regarding changes carried
out on the vehicle must be kept by the
vehicle user, in order to hand
over later to the old car user. This ensures the recycling
in accordance with environmental regulations.Motoring abroadGeneral Other circumstances may exist abroad.It is also possible, in certain countries, that the Škoda Service Partner network is limited or has not been established yet. This is the reason why obtaining certain spare parts may be somewhat complicated and specialist
garage personnel may only be able to
make limited repairs. Škoda Auto in the Czech Republic and relevant importers are happy to provide information about technical
aspects of the vehicle, required mainte-
nance work and possibilities for getting repairs done.Unleaded petrolA vehicle fitted with a petrol engine must
always be refuelled
with unleaded petrol
⇒ page 174. The automobile associations can provide you with information regarding the locations of filling stations which offer unleaded petrol.13)Subject to fulfilment of the national legal requirements.
sgg.6.book Page 178 Thursday, September 24, 2009 2:32 PM

Driving and the Environment
179
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
HeadlightThe low beam of your headlights is set asymmetrically. It illuminates the side of the road on which you are driving to a greater ex
tent. If you drive abroad on the other side
of the road, you will
dazzle oncoming traffic.
In order to prevent the dazzling of oncoming traffic, it is necessary that an adjustment of the headlights is carried out by a specialist garage. The adaptation of the headlights with Xenon
lights* (applies only to
vehicles which are
designed for driving on the right and on the left) is performed in the menu
Setup

Tr a v e l m o d e
in the main menu of the Information display*
⇒page 24.
Note
You can obtain further information regarding masking over the headlights from a specialist garage.Avoiding damage to your vehicleWhen driving on poor roads and lanes or
when driving over kerbstones, steep ramps
etc., you must pay particular attention to
ensuring that any low-slung parts of the
vehicle, such as spoiler and exhaust,
do not touch the ground and get damaged.
This particularly applies to
models with a lowered suspen
sion (sport suspension) and
also when your vehicle is fully laden.Driving through bodies of water on roads
In order to avoid damage to the vehicle wh
en driving through bodies of water (e.g.
flooded roads), observe the following:•
Determine the depth of the water when driv
ing through bodies of water. The water
can reach at the maximum the web on the lower sill of the vehicle
⇒fig. 162
.
•
Drive no more than at walking speed. At a higher speed, a water wave can form in
front of the vehicle which can cause water to
penetrate into the air induction system of
the engine or into other parts of the vehicle.•
Never let the vehicle stand in the water,
never drive backwards and do not switch
off the engine.
WARNING
•
Driving through water, mud, sludge etc. can reduce the braking power and
extend the braking distance - risk of accident!•
Avoid sudden and severe braking manoeuvres immediately after driving
through bodies of water.•
After driving through bodies of water, the brakes must be cleaned and dried
as soon as possible by intermittent braking. Only apply the brakes for the purpose of drying and cleaning the brake
discs if the traffic conditions permit
this. Do not place any other road users in jeopardy.
Caution
•
When driving through bodies of water, pa
rts of the vehicle such as the engine,
gearbox, catalytic converter, chassis
or electrics can be severely damaged.
•
Oncoming vehicles can gene
rate water waves which ca
n exceed the permissible
water level for your vehicle.•
Potholes, mud or rocks can be
hidden under the water making it difficult or impos-
sible to drive through the body of water.•
Do not drive through salt water. The salt
can lead to corrosion. Immediately rinse
all the parts of the vehicle, which came into
contact with the salt water, with fresh
water.
Fig. 162 Crossing bodies of water
sgg.6.book Page 179 Thursday, September 24, 2009 2:32 PM
