SKODA YETI 2011 1.G / 5L Owner's Manual
Manufacturer: SKODA, Model Year: 2011, Model line: YETI, Model: SKODA YETI 2011 1.G / 5LPages: 252, PDF Size: 3.61 MB
Page 1 of 252
SIMPLY CLEVER
ŠKODA Yeti
OWNER'S MANUAL
Page 2 of 252
Page 3 of 252

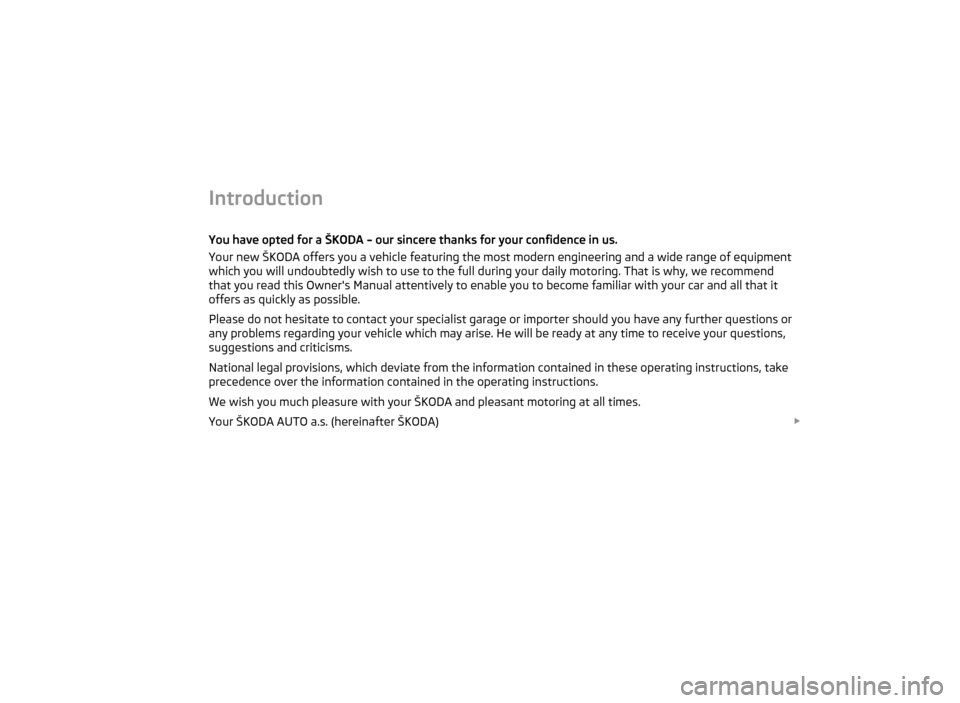

Introduction
You have opted for a ŠKODA – our sincere thanks for your confidence in us.
Your new ŠKODA offers you a vehicle featuring the most modern engineering and a wide range of equipment
which you will undoubtedly wish to use to the full during your daily motoring. That is why, we recommend
that you read this Owner's Manual attentively to enable you to become familiar with your car and all that it
offers as quickly as possible.
Please do not hesitate to contact your specialist garage or importer should you have any further questions or
any problems regarding your vehicle which may arise. He will be ready at any time to receive your questions,
suggestions and criticisms.
National legal provisions, which deviate from the information contained in these operating instructions, take
precedence over the information contained in the operating instructions.
We wish you much pleasure with your ŠKODA and pleasant motoring at all times.
Your ŠKODA AUTO a.s. (hereinafter ŠKODA) £
Page 4 of 252

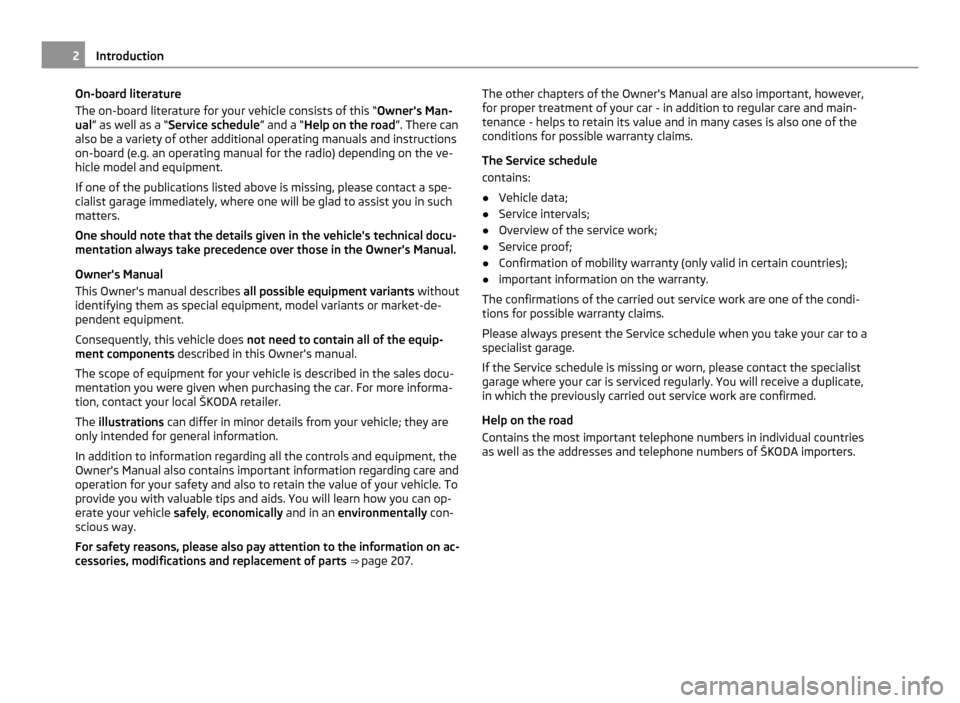

On-board literature
The on-board literature for your vehicle consists of this
“Owner's Man-
ual ” as well as a “Service schedule” and a “ Help on the road”. There can
also be a variety of other additional operating manuals and instructions
on-board (e.g. an operating manual for the radio) depending on the ve-
hicle model and equipment.
If one of the publications listed above is missing, please contact a spe-
cialist garage immediately, where one will be glad to assist you in such
matters.
One should note that the details given in the vehicle's technical docu-
mentation always take precedence over those in the Owner's Manual.
Owner's Manual
This Owner's manual describes all possible equipment variants without
identifying them as special equipment, model variants or market-de-
pendent equipment.
Consequently, this vehicle does not need to contain all of the equip-
ment components described in this Owner's manual.
The scope of equipment for your vehicle is described in the sales docu-
mentation you were given when purchasing the car. For more informa-
tion, contact your local ŠKODA retailer.
The illustrations can differ in minor details from your vehicle; they are
only intended for general information.
In addition to information regarding all the controls and equipment, the
Owner's Manual also contains important information regarding care and
operation for your safety and also to retain the value of your vehicle. To
provide you with valuable tips and aids. You will learn how you can op-
erate your vehicle safely, economically and in an environmentally con-
scious way.
For safety reasons, please also pay attention to the information on ac-
cessories, modifications and replacement of parts ⇒ page 207. The other chapters of the Owner's Manual are also important, however,
for proper treatment of your car - in addition to regular care and main-
tenance - helps to retain its value and in many cases is also one of the
conditions for possible warranty claims.
The Service schedule
contains:
● Vehicle data;
● Service intervals;
● Overview of the service work;
● Service proof;
● Confirmation of mobility warranty (only valid in certain countries);
● important information on the warranty.
The confirmations of the carried out service work are one of the condi-
tions for possible warranty claims.
Please always present the Service schedule when you take your car to a
specialist garage.
If the Service schedule is missing or worn, please contact the specialist
garage where your car is serviced regularly. You will receive a duplicate,
in which the previously carried out service work are confirmed.
Help on the road
Contains the most important telephone numbers in individual countries
as well as the addresses and telephone numbers of
ŠKODA importers.2
Introduction
Page 5 of 252

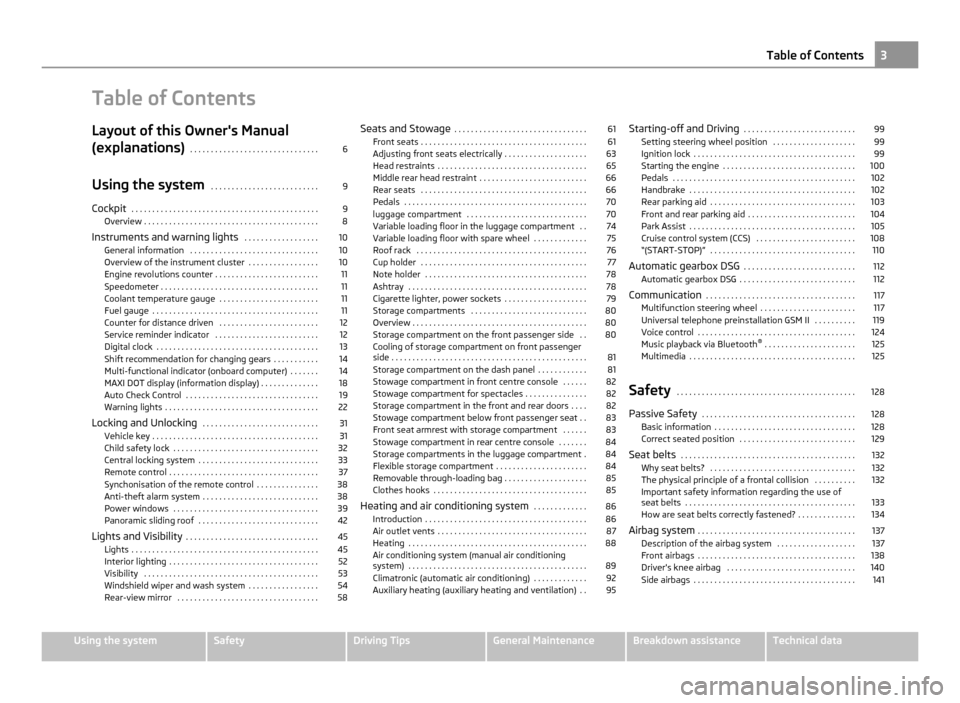

Table of Contents

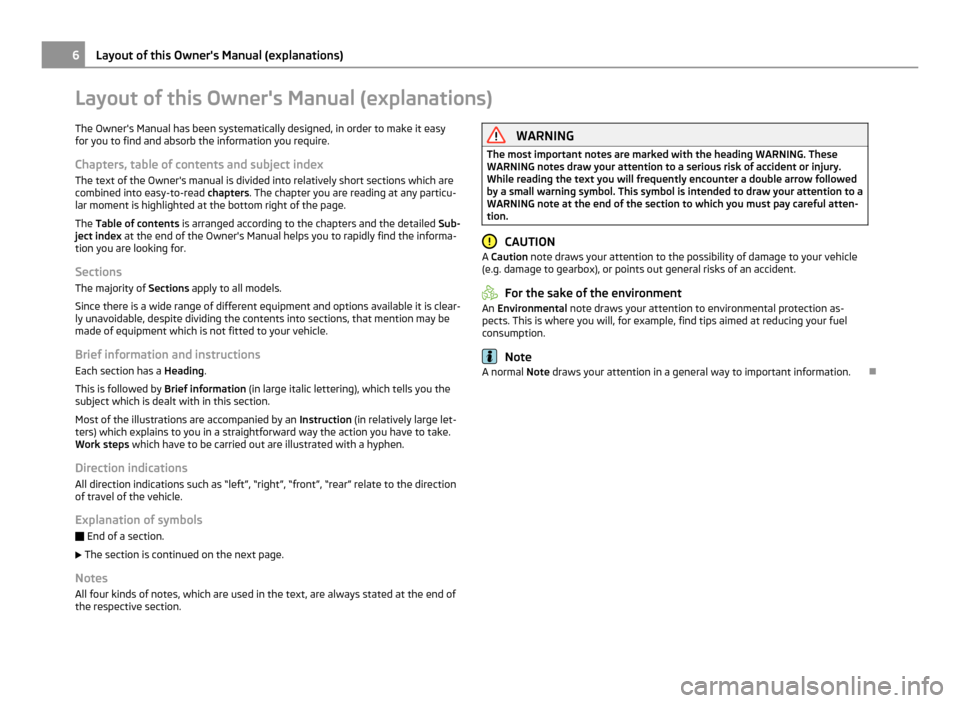

Layout of this Owner's Manual
(explanations)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the system . . . . . . . . . . . . . . . . . . . . . . . . . . 9

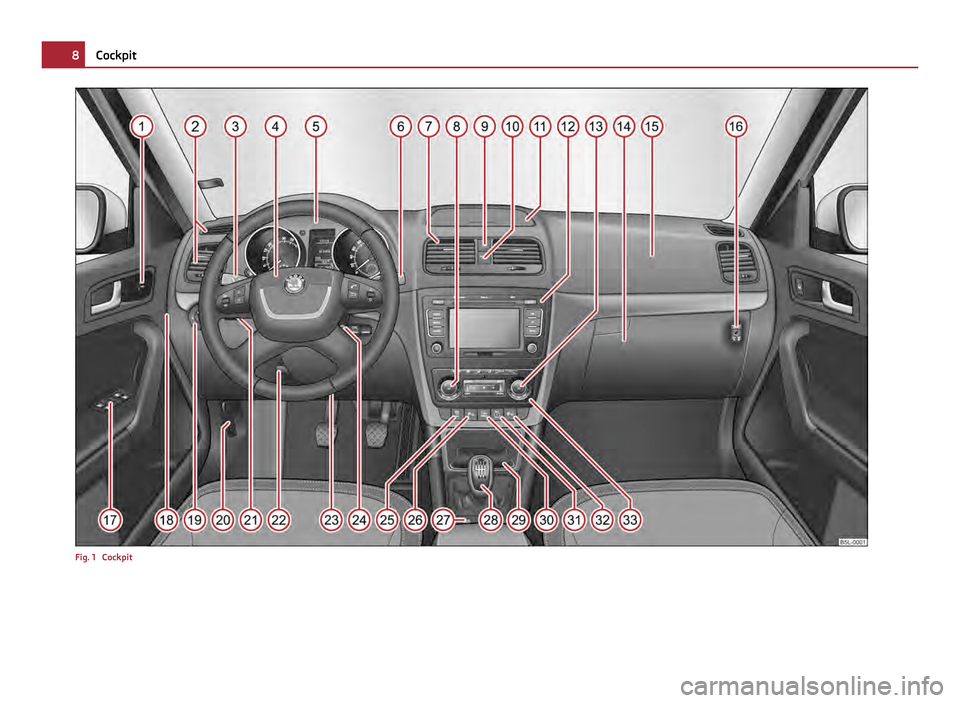

Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Instruments and warning lights . . . . . . . . . . . . . . . . . . 10
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Overview of the instrument cluster . . . . . . . . . . . . . . . . . 10
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . . . . . . 11
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . . . . . 11
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Counter for distance driven . . . . . . . . . . . . . . . . . . . . . . . . 12
Service reminder indicator . . . . . . . . . . . . . . . . . . . . . . . . . 12
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Shift recommendation for changing gears . . . . . . . . . . . 14
Multi-functional indicator (onboard computer) . . . . . . . 14
MAXI DOT display (information display) . . . . . . . . . . . . . . 18
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Locking and Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Synchonisation of the remote control . . . . . . . . . . . . . . . 38
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Panoramic sliding roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Windshield wiper and wash system . . . . . . . . . . . . . . . . . 54
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Seats and Stowage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Adjusting front seats electrically . . . . . . . . . . . . . . . . . . . . 63
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Middle rear head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Variable loading floor in the luggage compartment . . 74
Variable loading floor with spare wheel . . . . . . . . . . . . . 75
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cigarette lighter, power sockets . . . . . . . . . . . . . . . . . . . . 79
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Storage compartment on the front passenger side . . 80
Cooling of storage compartment on front passenger
side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Storage compartment on the dash panel . . . . . . . . . . . . 81
Stowage compartment in front centre console . . . . . . 82
Stowage compartment for spectacles . . . . . . . . . . . . . . . 82
Storage compartment in the front and rear doors . . . . 82
Stowage compartment below front passenger seat . . 83
Front seat armrest with storage compartment . . . . . . 83
Stowage compartment in rear centre console . . . . . . . 84
Storage compartments in the luggage compartment . 84
Flexible storage compartment . . . . . . . . . . . . . . . . . . . . . . 84
Removable through-loading bag . . . . . . . . . . . . . . . . . . . . 85
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Heating and air conditioning system . . . . . . . . . . . . . 86
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Air conditioning system (manual air conditioning
system)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Climatronic (automatic air conditioning) . . . . . . . . . . . . . 92
Auxiliary heating (auxiliary heating and ventilation) . . 95 Starting-off and Driving
. . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Setting steering wheel position . . . . . . . . . . . . . . . . . . . . 99
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Front and rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Cruise control system (CCS) . . . . . . . . . . . . . . . . . . . . . . . . 108
“(START-STOP)” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Automatic gearbox DSG . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Automatic gearbox DSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Multifunction steering wheel . . . . . . . . . . . . . . . . . . . . . . . 117
Universal telephone preinstallation GSM II . . . . . . . . . . 119
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Music playback via Bluetooth ®
. . . . . . . . . . . . . . . . . . . . . . 125
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Basic information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Why seat belts? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
The physical principle of a frontal collision . . . . . . . . . . 132
Important safety information regarding the use of
seat belts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
How are seat belts correctly fastened? . . . . . . . . . . . . . . 134
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Description of the airbag system . . . . . . . . . . . . . . . . . . . 137
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Driver's knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 3
Table of Contents Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 6 of 252

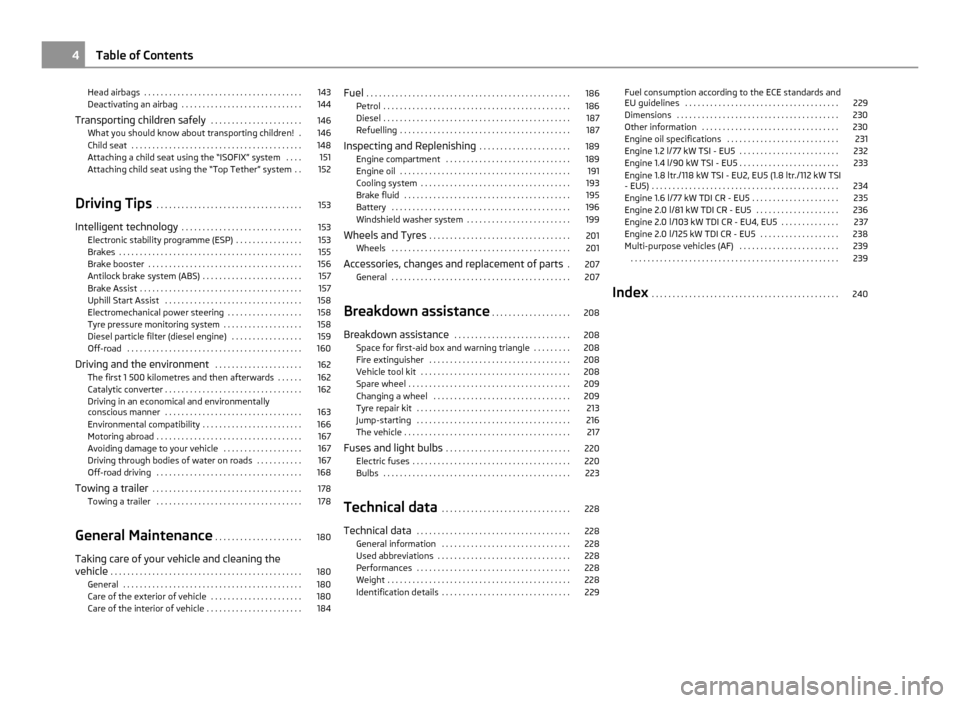

Head airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Transporting children safely . . . . . . . . . . . . . . . . . . . . . . 146
What you should know about transporting children! . 146
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Attaching a child seat using the “ISOFIX” system . . . . 151
Attaching child seat using the “Top Tether” system . . 152
Driving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Intelligent technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Electronic stability programme (ESP) . . . . . . . . . . . . . . . . 153
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Antilock brake system (ABS) . . . . . . . . . . . . . . . . . . . . . . . . 157
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Uphill Start Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Electromechanical power steering . . . . . . . . . . . . . . . . . . 158
Tyre pressure monitoring system . . . . . . . . . . . . . . . . . . . 158
Diesel particle filter (diesel engine) . . . . . . . . . . . . . . . . . 159
Off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Driving and the environment . . . . . . . . . . . . . . . . . . . . . 162
The first 1 500 kilometres and then afterwards . . . . . . 162
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Driving in an economical and environmentally
conscious manner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Environmental compatibility . . . . . . . . . . . . . . . . . . . . . . . . 166
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Avoiding damage to your vehicle . . . . . . . . . . . . . . . . . . . 167
Driving through bodies of water on roads . . . . . . . . . . . 167
Off-road driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
General Maintenance . . . . . . . . . . . . . . . . . . . . . 180
Taking care of your vehicle and cleaning the
vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Care of the exterior of vehicle . . . . . . . . . . . . . . . . . . . . . . 180
Care of the interior of vehicle . . . . . . . . . . . . . . . . . . . . . . . 184 Fuel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Inspecting and Replenishing . . . . . . . . . . . . . . . . . . . . . . 189
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Windshield washer system . . . . . . . . . . . . . . . . . . . . . . . . . 199
Wheels and Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Accessories, changes and replacement of parts . 207
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Breakdown assistance . . . . . . . . . . . . . . . . . . . 208
Breakdown assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Space for first-aid box and warning triangle . . . . . . . . . 208
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
The vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Fuses and light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Electric fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Used abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Performances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Identification details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229 Fuel consumption according to the ECE standards and
EU guidelines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Other information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Engine oil specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Engine 1.2 l/77 kW TSI - EU5 . . . . . . . . . . . . . . . . . . . . . . . . 232
Engine 1.4 l/90 kW TSI - EU5 . . . . . . . . . . . . . . . . . . . . . . . . 233
Engine 1.8 ltr./118 kW TSI - EU2, EU5 (1.8 ltr./112 kW TSI
- EU5)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Engine 1.6 l/77 kW TDI CR - EU5 . . . . . . . . . . . . . . . . . . . . . 235
Engine 2.0 l/81 kW TDI CR - EU5 . . . . . . . . . . . . . . . . . . . . 236
Engine 2.0 l/103 kW TDI CR - EU4, EU5 . . . . . . . . . . . . . . 237
Engine 2.0 l/125 kW TDI CR - EU5 . . . . . . . . . . . . . . . . . . . 238
Multi-purpose vehicles (AF) . . . . . . . . . . . . . . . . . . . . . . . . 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2404
Table of Contents
Page 7 of 252
5
Table of Contents Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 8 of 252
Layout of this Owner's Manual (explanations)
The Owner's Manual has been systematically designed, in order to make it easy
for you to find and absorb the information you require.
Chapters, table of contents and subject index
The text of the Owner's manual is divided into relatively short sections which are
combined into easy-to-read chapters. The chapter you are reading at any particu-
lar moment is highlighted at the bottom right of the page.
The Table of contents is arranged according to the chapters and the detailed Sub-
ject index at the end of the Owner's Manual helps you to rapidly find the informa-
tion you are looking for.
Sections The majority of Sections apply to all models.
Since there is a wide range of different equipment and options available it is clear-
ly unavoidable, despite dividing the contents into sections, that mention may be
made of equipment which is not fitted to your vehicle.
Brief information and instructions Each section has a Heading.
This is followed by Brief information (in large italic lettering), which tells you the
subject which is dealt with in this section.
Most of the illustrations are accompanied by an Instruction (in relatively large let-
ters) which explains to you in a straightforward way the action you have to take.
Work steps which have to be carried out are illustrated with a hyphen.
Direction indications
All direction indications such as
“left”, “right”, “front”, “rear” relate to the direction
of travel of the vehicle.
Explanation of symbols End of a section.
£ The section is continued on the next page.
Notes
All four kinds of notes, which are used in the text, are always stated at the end of
the respective section. WARNING
The most important notes are marked with the heading WARNING. These
WARNING
notes draw your attention to a serious risk of accident or injury.
While reading the text you will frequently encounter a double arrow followed
by a small warning symbol. This symbol is intended to draw your attention to a
WARNING note at the end of the section to which you must pay careful atten-
tion. CAUTION
A Caution note draws your attention to the possibility of damage to your vehicle
(e.g. damage to gearbox), or points out general risks of an accident. For the sake of the environment
An Environmental note draws your attention to environmental protection as-
pects. This is where you will, for example, find tips aimed at reducing your fuel
consumption. Note
A normal Note draws your attention in a general way to important information. 6
Layout of this Owner's Manual (explanations)
Page 9 of 252
7
Layout of this Owner's Manual (explanations) Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 10 of 252
Fig. 1 Cockpit8
Cockpit
