SKODA YETI 2012 1.G / 5L Manual PDF

CAUTION
■ Only use roof rack systems approved by ŠKODA.
■ If other roof rack systems are used or if the roof bars are not fitted correctly,
any resulting damage to the vehicle is not covered by the warranty. It is therefore
essential that the supplied fitting instructions for the roof rack system are ob-
served.
■ On vehicles with a panoramic sunroof, make sure that the tilted panorama roof
does not strike any items which are transported. ■ Ensure that the boot lid does not hit the roof load when opened. For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption. ÐRoof load
First read and observe the introductory information and safety warn-
ings on page 68.
The maximum permissible roof load (including roof rack system) of
100 kg and the
maximum permissible total weight of the vehicle should not be exceeded.
The full permissible roof load cannot be used if a roof rack system with a lower
load carrying capacity is used. In this case, the roof rack system must only be loa-
ded up to the maximum weight limit specified in the fitting instructions. ÐCup holder
ä
Introduction
This chapter contains information on the following subjects:
Cup holder in front centre console 69
Cup holder in rear centre console 70
ä WARNING
■ Never put hot beverage containers in the cup holder. If the vehicle moves,
they may spill - risk of scalding!
■ Do not use any cups or beakers which are made of brittle material (e.g. glass,
porcelain). This could lead to injuries in the event of an accident. CAUTION
■ Do not leave open beverage containers in the cup holder during the journey.
There is a risk of spilling e.g. when braking which may cause damage to the elec-
trical components or seat upholstery.
■ The cup holder in the rear part of the centre console must be closed (otherwise
it could get damaged) before folding forward the rear middle seat. Ð Cup holder in front centre console
Fig. 65
Front centre console: Cup holder
First read and observe the introductory information and safety warn-
ings on page 69.
Two beverage containers can be placed into the recesses
» Fig. 65.Ð
ä
69
Seats and Stowage

Cup holder in rear centre console
Fig. 66
Centre console at rear: Cup hold-
er
First read and observe the introductory information and safety warn-
ings on page 69.
›
Press on the panel in the area A
» Fig. 66 - the cup holder comes out.
› Pull the cup holder out as far as the stop.
› Adjust the cup holder by moving the locking plate B
.
ÐAshtray
Front ashtray
Fig. 67
Centre console: Front ashtray
Removing
› Pull out the ashtray
» Fig. 67 upwards.
Install
› Insert the ashtray vertically.
ä WARNING
Never place flammable objects in the ashtray - risk of fire! CAUTION
When removing do not hold the ashtray at the cover - risk of breakage. Ð Rear ashtray
Fig. 68
Rear ashtray - low centre console/high centre console
Opening the ashtray on the low centre console
› Grasp the ashtray cover at the lower edge A
and fold it open in the direction of
arrow » Fig. 68 .
Remove the ashtray from the low centre console
› Grasp the ashtray at the handle B
» Fig. 68
and remove from above.
Removing the ashtray from the low centre console
› Place the ashtray insert into the console and press it in.
Opening the ashtray on the high centre console
› Press on the top part of the ashtray cover in area C
» Fig. 68
.
Removing the ashtray from the high centre console
› Carefully push the ashtray cover downwards as far as the stop.
› Grasp the ash tray insert at the cover D
» Fig. 68
and remove.
Inserting the ashtray into the high centre console
› Place the ashtray insert in the mount and press it in.
£
70 Using the system

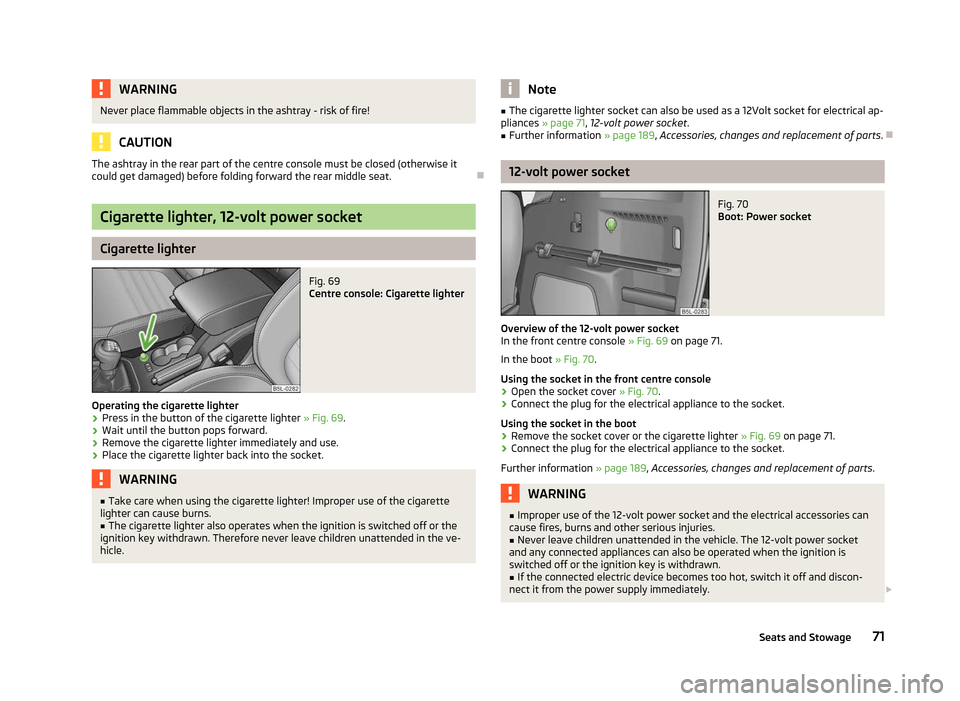

WARNING
Never place flammable objects in the ashtray - risk of fire! CAUTION
The ashtray in the rear part of the centre console must be closed (otherwise it
could get damaged) before folding forward the rear middle seat. ÐCigarette lighter, 12-volt power socket
Cigarette lighter
Fig. 69
Centre console: Cigarette lighter
Operating the cigarette lighter › Press in the button of the cigarette lighter
» Fig. 69.
› Wait until the button pops forward.
› Remove the cigarette lighter immediately and use.
› Place the cigarette lighter back into the socket. WARNING
■ Take care when using the cigarette lighter! Improper use of the cigarette
lighter can cause burns. ■ The cigarette lighter also operates when the ignition is switched off or the
ignition key withdrawn. Therefore never leave children unattended in the ve-
hicle. Note
■ The cigarette lighter socket can also be used as a 12Volt socket for electrical ap-
pliances » page 71 , 12-volt power socket.
■ Further information » page 189, Accessories, changes and replacement of parts .Ð 12-volt power socket
Fig. 70
Boot: Power socket
Overview of the 12-volt power socket
In the front centre console » Fig. 69 on page 71.
In the boot » Fig. 70.
Using the socket in the front centre console
› Open the socket cover
» Fig. 70.
› Connect the plug for the electrical appliance to the socket.
Using the socket in the boot
› Remove the socket cover or the cigarette lighter
» Fig. 69 on page 71.
› Connect the plug for the electrical appliance to the socket.
Further information » page 189, Accessories, changes and replacement of parts . WARNING
■ Improper use of the 12-volt power socket and the electrical accessories can
cause fires, burns and other serious injuries.
■ Never leave children unattended in the vehicle. The 12-volt power socket
and any connected appliances can also be operated when the ignition is
switched off or the ignition key is withdrawn.
■ If the connected electric device becomes too hot, switch it off and discon-
nect it from the power supply immediately. £
71
Seats and Stowage

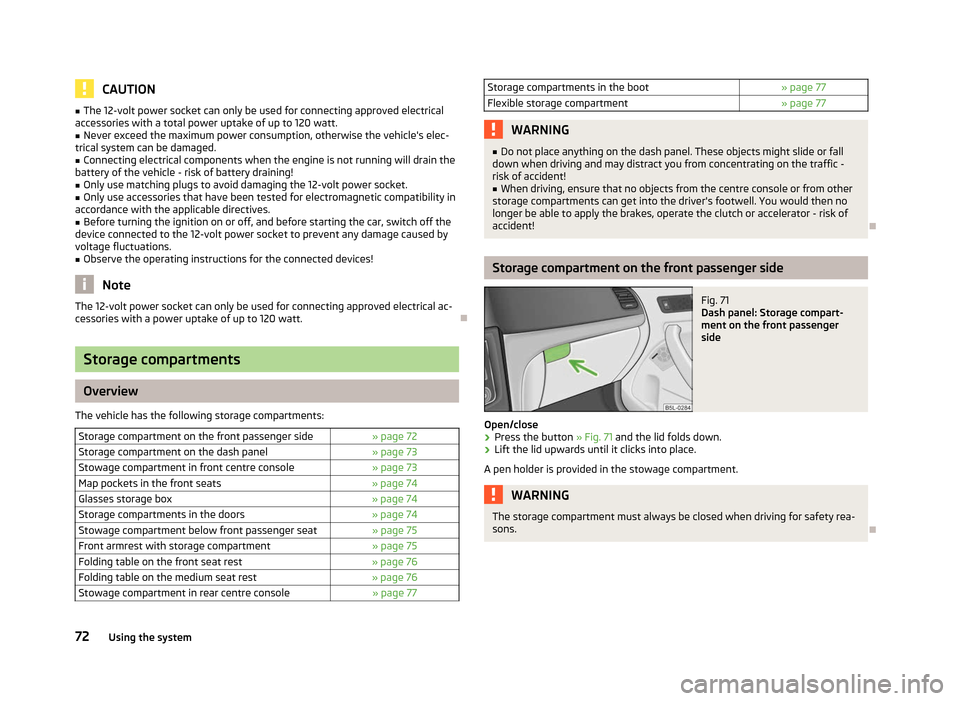

CAUTION
■ The 12-volt power socket can only be used for connecting approved electrical
accessories with a total power uptake of up to 120
watt.
■ Never exceed the maximum power consumption, otherwise the vehicle's elec-
trical system can be damaged.
■ Connecting electrical components when the engine is not running will drain the
battery of the vehicle - risk of battery draining! ■ Only use matching plugs to avoid damaging the 12-volt power socket.
■ Only use accessories that have been tested for electromagnetic compatibility in
accordance with the applicable directives.
■ Before turning the ignition on or off, and before starting the car, switch off the
device connected to the 12-volt power socket to prevent any damage caused by
voltage fluctuations.
■ Observe the operating instructions for the connected devices! Note
The 12-volt power socket can only be used for connecting approved electrical ac-
cessories with a power uptake of up to 120
watt.ÐStorage compartments
Overview
The vehicle has the following storage compartments: Storage compartment on the front passenger side » page 72
Storage compartment on the dash panel » page 73
Stowage compartment in front centre console » page 73
Map pockets in the front seats » page 74
Glasses storage box » page 74
Storage compartments in the doors » page 74
Stowage compartment below front passenger seat » page 75
Front armrest with storage compartment » page 75
Folding table on the front seat rest » page 76
Folding table on the medium seat rest » page 76
Stowage compartment in rear centre console » page 77 Storage compartments in the boot
» page 77
Flexible storage compartment » page 77 WARNING
■ Do not place anything on the dash panel. These objects might slide or fall
down when driving and may distract you from concentrating on the traffic -
risk of accident!
■ When driving, ensure that no objects from the centre console or from other
storage compartments can get into the driver's footwell. You would then no
longer be able to apply the brakes, operate the clutch or accelerator - risk of
accident! Ð Storage compartment on the front passenger side
Fig. 71
Dash panel: Storage compart-
ment on the front passenger
side
Open/close
› Press the button
» Fig. 71 and the lid folds down.
› Lift the lid upwards until it clicks into place.
A pen holder is provided in the stowage compartment. WARNING
The storage compartment must always be closed when driving for safety rea-
sons. Ð
72 Using the system

Cooling the storage compartment on the front passenger side
Fig. 72
Storage compartment: Using
cooling system
› Open the air supply by pulling the lever in the direction of the arrow
» Fig. 72.
› The air supply is closed by pressing the lever.
Opening the air supply when the air conditioning system is switched on allows
cooled air to flow into the storage compartment.
Opening the air inlet when the air conditioning system is on causes fresh or inte-
rior air to flow into the storage compartment.
We recommend closing the air supply if it is operated in heating mode or the cool-
ing system for the storage compartment is not being used. ÐStorage compartment on the dash panel
Fig. 73
Dash panel: Stowage compart-
ment
› Press on the button
» Fig. 73 in direction of arrow, the cover then folds up-
wards.
Certain models do not have a storage compartment lid. WARNING
■ The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire!
■ The storage compartment must always be closed when driving for safety
reasons.
■ Do not put any highly inflammable objects or objects which are sensitive to
heat (e.g. lighters, sprays, spectacles, carbonated drinks) in the storage com-
partment. Ð Stowage compartment in front centre console
Fig. 74
Front centre console: Stowage
compartment
The open storage compartment in the centre console is designed for the storage
of small objects. WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire! Ð
73
Seats and Stowage

Map pockets in the front seats
Fig. 75
Front seat rests: Map pockets
Map pockets are located on the rear of the seat backrests » Fig. 75.
The map pockets are intended for storage of maps, magazines, etc. WARNING
Never put heavy items in the map pockets - risk of injury! CAUTION
Never put large objects into the map pockets, e.g. bottles or objects with sharp
edges - risk of damaging the pockets and seat coverings. ÐGlasses storage box
Fig. 76
Detail of the headliner: Glasses
storage box
› Press the button A
» Fig. 76 and the compartment folds down. CAUTION
■ Do not put any heat-sensitive objects in the glasses storage box - they may be
damaged.
■ The compartment must only be opened when removing or inserting the specta-
cles and otherwise must be kept closed.
■ On vehicles that are fitted with an anti-theft alarm system, the opened glasses
storage box reduces the effectiveness of the sensors for the interior monitor. Ð Storage compartments in the doors
Fig. 77
Storage compartment: in the front door/in the rear door
In the area B
» Fig. 77
of the storage compartment of the front doors and in the
area D
of the storage compartment of the rear doors is a bottle holder.
WARNING
Use the area A
» Fig. 77
of the storage compartment only for storing objects
which do not project so that the effectiveness of the side airbag is not im-
paired. Ð
74 Using the system

Stowage compartment below front passenger seat
Fig. 78
Front passenger seat: Stowage
compartment
› To open the lid, pull the handle
» Fig. 78.
› When closing the lid, hold the handle until the compartment is closed. CAUTION
The storage compartment is designed for storing small objects of up to 1.5 kg. in
weight. ÐFront armrest with storage compartment
Fig. 79
Armrest: Storage compartment/cooling of storage compartment
The armrest is adjustable for height and length.
Opening the storage compartment
› Open the lid of the armrest in the direction of the arrow 1
» Fig. 79.
Closing storage compartment
› Open the lid to the stop, only then can it be folded downwards. Setting height
› First of all fold the cover downwards and then lift it in the direction of the ar-
row 1
» Fig. 79 into one of the 4 fixed positions.
Adjusting in the forward/back direction
› Push the cover into the desired position.
Opening air inlet
› Pull the lock A
» Fig. 79 upwards.
Closing air inlet
› Carefully push the lock A
» Fig. 79 downwards until it stops.
On vehicles fitted with air conditioning, the storage compartment is equipped
with a lockable inlet for thermally treated (warmed-up) air.
When the air vent is opened, the air flows into the stowage compartment with a
temperature corresponding to the control dial settings on the A/C unit, depending
on the outer climate conditions.
The air inlet in the storage compartment is connected to position  through ad-
justment of the control dial for air distribution. This setting causes the maximum
amount of air to flow into the storage compartment (depending on the rotary reg-
ulator position for the fan).
The storage compartment can, for example, be used to temper drinks cans, etc.
If you do not use the air inlet in the storage compartment, the inlet should al-
ways be kept closed. Note
Push the armrest cover all the way back to the stop before applying the hand-
brake. Ð
75
Seats and Stowage

Folding table on the front seat rest
Fig. 80
Folding table on the front seat
rest
› Fold the table into the horizontal position by pulling in the direction of ar-
row » Fig. 80 .
› Pushing against the direction of the arrow folds the table back into the vertical
position. WARNING
■ The folding table must not be in the horizontal position while driving - risk
of injury.
■ Do not put any hot drinks in the cup holder in the folding table - risk of
scalding! ■ Do not use any cups or beakers which are made of brittle material (e.g. glass,
porcelain) - risk of injury. CAUTION
The folding table on the seat backrest of the front passenger seats is designed to
hold smaller objects up to a maximum total weight of 10 kg. Ð Folding table on the medium seat rest
Fig. 81
Rear seats: Armrest
The medium seat rest can be used after folding the » page 61, Folding the seat
backrest forwards and folding the seat fully forwards armrest forward or the ta-
ble with the cup holder » Fig. 81.
Two beverage containers can be placed into the recesses. WARNING
■ Never put hot beverage containers in the cup holder. If the vehicle moves,
they may spill - risk of scalding!
■ Do not use any cups or beakers which are made of brittle material (e.g. glass,
porcelain). This could lead to injuries in the event of an accident. CAUTION
■ Do not leave open beverage containers in the cup holder during the journey.
There is a risk of spilling e.g. when braking which may cause damage to the elec-
trical components or seat upholstery.
■ If the middle rear seat backrest should be folded forward for lengthy periods,
then make sure that the belt locks are not located below it - this can warp the
upholstery or fabric. Ð
76 Using the system

Stowage compartment in rear centre console
Fig. 82
Centre console at rear: Stowage
compartment
The storage compartment is equipped with a removable insert. › Open the storage compartment by pulling on the upper edge of the storage
compartment A
in the direction of arrow
» Fig. 82. WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire! CAUTION
The storage compartment in the rear part of the centre console must be closed
(otherwise it could get damaged) before folding forward the rear middle seat. ÐStorage compartments in the boot
Fig. 83
Boot: Storage compartments The cover for the side compartment A
» Fig. 83can be removed, thus enlarging
the boot.
› Grasp the top part of the cover A
and carefully remove it in the direction of the
arrow » Fig. 83. CAUTION
■ The removable storage compartment A
» Fig. 83 on the left side is suitable for
stowing small objects weighing up to 1.5 kg.
■ The storage compartment B
» Fig. 83 on the right side is suitable for stowing
small objects weighing up to 0.5 kg. Ð Flexible storage compartment
Fig. 84
Flexible storage compartment
The flexible storage compartment can be built into the right-hand side of the
boot.
Install
› Insert both ends of the flexible storage compartment into the openings of the
right side trim panel of the boot and push it downwards until it locks.
Removing
› Grasp the flexible storage compartment on the two upper corners.
› Press the upper corners inwards and release the storage compartment by pull-
ing upwards.
› Remove by pulling towards you. CAUTION
The storage compartment is designed for storing small objects with a maximum
total weight of 8 kg. Ð
77
Seats and Stowage

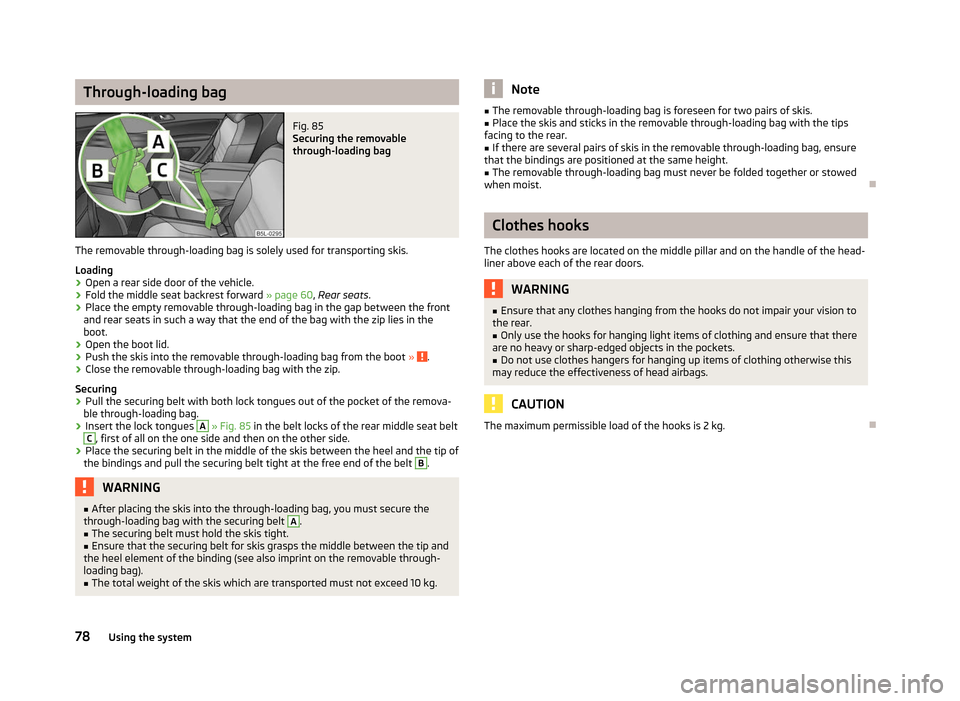

Through-loading bag
Fig. 85
Securing the removable
through-loading bag
The removable through-loading bag is solely used for transporting skis.
Loading
› Open a rear side door of the vehicle.
› Fold the middle seat backrest forward
» page 60, Rear seats.
› Place the empty removable through-loading bag in the gap between the front
and rear seats in such a way that the end of the bag with the zip lies in the
boot.
› Open the boot lid.
› Push the skis into the removable through-loading bag from the boot
» .
› Close the removable through-loading bag with the zip.
Securing
› Pull the securing belt with both lock tongues out of the pocket of the remova-
ble through-loading bag.
› Insert the lock tongues A
» Fig. 85 in the belt locks of the rear middle seat belt
C
, first of all on the one side and then on the other side.
› Place the securing belt in the middle of the skis between the heel and the tip of
the bindings and pull the securing belt tight at the free end of the belt B
.
WARNING
■ After placing the skis into the through-loading bag, you must secure the
through-loading bag with the securing belt A
.
■ The securing belt must hold the skis tight.
■ Ensure that the securing belt for skis grasps the middle between the tip and
the heel element of the binding (see also imprint on the removable through-
loading bag). ■ The total weight of the skis which are transported must not exceed 10 kg. Note
■ The removable through-loading bag is foreseen for two pairs of skis.
■ Place the skis and sticks in the removable through-loading bag with the tips
facing to the rear. ■ If there are several pairs of skis in the removable through-loading bag, ensure
that the bindings are positioned at the same height.
■ The removable through-loading bag must never be folded together or stowed
when moist. Ð Clothes hooks
The clothes hooks are located on the middle pillar and on the handle of the head-
liner above each of the rear doors. WARNING
■ Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.
■ Only use the hooks for hanging light items of clothing and ensure that there
are no heavy or sharp-edged objects in the pockets.
■ Do not use clothes hangers for hanging up items of clothing otherwise this
may reduce the effectiveness of head airbags. CAUTION
The maximum permissible load of the hooks is 2 kg. Ð
78 Using the system
