Above the storage compartment the input marked with the   text
MDI » page 127 input.WARNINGThe storage compartment is not a substitute for the ashtray and must also
not be used for such purposes – risk of fire!
Cup holders
Fig. 78
Cup holders: in the center console, front / on the folding table in
the center backrest
Fig. 79
Open cup holder in the central console / adjust holder size
Read and observe
on page 86 first.
Cup holders » Fig. 78 and » Fig. 79
Cup holder in front centre console
Cup holder on the folding table
Location for opening
ABCCup holder in rear centre console
Fuse plate
Open holder in the rear center console›
Press in the cup holder in area
C
» Fig. 79 .
The holder slides out.
›
Pull the holder until it stops in the arrow direction
1
.
›
Adjust the bracket by sliding the locking plate
E
in the direction of arrow
2
.
Close holder in the rear center console
›
Remove the waste container in the opposite direction to the arrow
1
» Fig. 79 .
WARNING■
Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). This could lead to injuries in the event of an accident.■
Never put hot beverage containers in the cup holder. If the vehicle moves,
they may spill – risk of scalding!
CAUTION
■ Do not leave open beverage containers in the cup holder during the journey.
There is a risk of spilling e.g. when braking which may cause damage to the
electrical components or seat upholstery.■
Before folding the rear center seat cup holder
D
» Fig. 79 must be closed -
there is risk of damage.
Note
A 1.5 litre bottle (max. capacity) can be stored in the drinks holder D » Fig. 79 .DE88Using the system

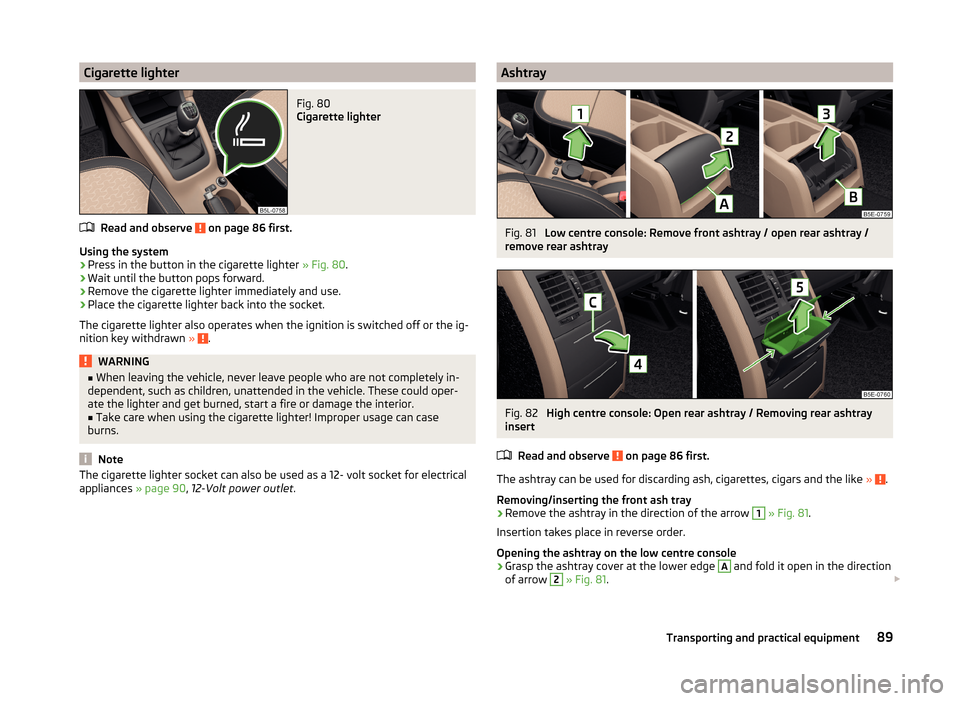

Cigarette lighterFig. 80
Cigarette lighter
Read and observe on page 86 first.
Using the system
›
Press in the button in the cigarette lighter » Fig. 80.
›
Wait until the button pops forward.
›
Remove the cigarette lighter immediately and use.
›
Place the cigarette lighter back into the socket.
The cigarette lighter also operates when the ignition is switched off or the ig-
nition key withdrawn »
.
WARNING■
When leaving the vehicle, never leave people who are not completely in-
dependent, such as children, unattended in the vehicle. These could oper-
ate the lighter and get burned, start a fire or damage the interior.■
Take care when using the cigarette lighter! Improper usage can case
burns.
Note
The cigarette lighter socket can also be used as a 12- volt socket for electrical
appliances » page 90, 12-Volt power outlet .AshtrayFig. 81
Low centre console: Remove front ashtray / open rear ashtray /
remove rear ashtray
Fig. 82
High centre console: Open rear ashtray / Removing rear ashtray
insert
Read and observe
on page 86 first.
The ashtray can be used for discarding ash, cigarettes, cigars and the like » .
Removing/inserting the front ash tray
›
Remove the ashtray in the direction of the arrow
1
» Fig. 81 .
Insertion takes place in reverse order.
Opening the ashtray on the low centre console
›
Grasp the ashtray cover at the lower edge
A
and fold it open in the direction
of arrow
2
» Fig. 81 . 
89Transporting and practical equipment

Remove the ashtray from the low centre console›Open the ashtray .›
Grasp the ashtray at the handle
B
and remove in direction of arrow
3
» Fig. 81 .
Removing the ashtray from the low centre console
›
Place the ashtray insert into the console and press it in.
Opening the ashtray on the high centre console
›
Press in the cup holder in area
C
» Fig. 82 .
The ashtray opens out in the direction of the arrow
4
.
Removing the ashtray from the high centre console
›
Open the ashtray .
›
Press the cover carefully to the stop in the direction of arrow
4
» Fig. 82 .
›
Grasp the ashtray insert in the area of arrow and remove it in the direction of
arrow
5
.
Inserting the ashtray into the high centre console
›
Place the ashtray insert into the receiver opposite the direction of arrow
5
and press.
WARNINGNever place flammable objects in the ashtray – risk of fire!
CAUTION
■ When removing do not hold the ashtray at the cover on the front – risk of
breakage.■
The ashtray in the rear part of the central console must be closed (otherwise
it could get damaged) before folding forward the rear middle seat.
12-Volt power outletFig. 83
12-Volt power outlet in the front centre console / in the boot
Read and observe
on page 86 first.
Overview of the 12-volt power socket » Fig. 83
In the front centre console
In the luggage compartment
Use
›
Remove the cover on the power socket » Fig. 83 -
 or open the cover on
the power socket as appropriate » Fig. 83 -
 .
›
Connect the plug for the electrical appliance to the socket.
The power socket and any connected appliances can also be operated when
the ignition is switched off or the ignition key is withdrawn »
.
WARNING■
Improper use of the power sockets and the electrical accessories can
cause fires, burns and other serious injuries. Therefore, when leaving the
vehicle, never leave people who are not completely independent, such as
children, unattended in the vehicle.■
If the connected electric device becomes too hot, switch it off and discon-
nect it from the power supply immediately.
CAUTION
■ The power socket can only be used for connecting approved electrical acces-
sories with a total power uptake of up to 120 watt.■
Never exceed the maximum power consumption, otherwise the vehicle's
electrical system can be damaged. 
90Using the system

■Connecting appliances when the engine is not running will drain the battery
of the vehicle!■
Only use matching plugs to avoid damaging the power sockets.
■
Only use accessories that have been tested for electromagnetic compatibility
in accordance with the applicable directives.
■
Switch off the devices connected to the power sockets before you switch
the ignition on or off and before starting the engine, to avoid damage from
voltage fluctuations.
■
Observe the operating instructions for the connected devices!

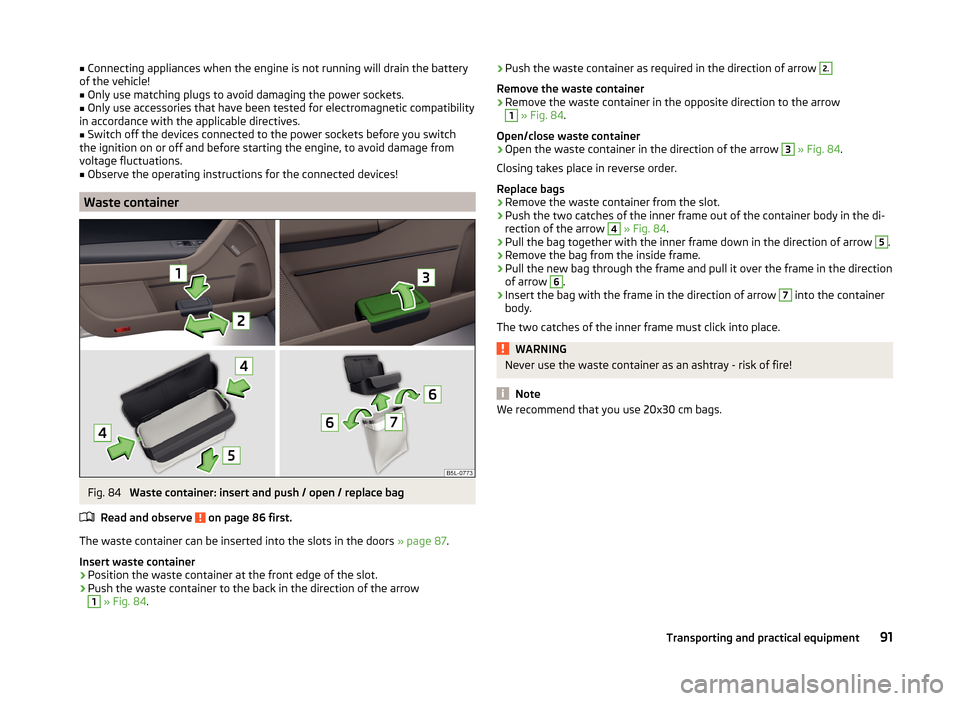

Waste container
Fig. 84
Waste container: insert and push / open / replace bag
Read and observe
on page 86 first.
The waste container can be inserted into the slots in the doors » page 87.
Insert waste container
›
Position the waste container at the front edge of the slot.
›
Push the waste container to the back in the direction of the arrow
1
» Fig. 84 .
›Push the waste container as required in the direction of arrow 2.
Remove the waste container
›
Remove the waste container in the opposite direction to the arrow
1

» Fig. 84 .
Open/close waste container
›
Open the waste container in the direction of the arrow
3
» Fig. 84 .
Closing takes place in reverse order.
Replace bags
›
Remove the waste container from the slot.
›
Push the two catches of the inner frame out of the container body in the di-
rection of the arrow
4
» Fig. 84 .
›
Pull the bag together with the inner frame down in the direction of arrow
5
.
›
Remove the bag from the inside frame.
›
Pull the new bag through the frame and pull it over the frame in the direction
of arrow
6
.
›
Insert the bag with the frame in the direction of arrow
7
into the container
body.
The two catches of the inner frame must click into place.
WARNINGNever use the waste container as an ashtray - risk of fire!
Note
We recommend that you use 20x30 cm bags.91Transporting and practical equipment

Storage compartment under the front arm restFig. 85
Open storage compartment / open air supply
Read and observe
on page 86 first.
Opening the storage compartment
›
Lift the armrest in the direction of arrow
A
» Fig. 85 .
Closing storage compartment
›
Open the armrest to the stop, only then can it be folded downwards and against the direction of the arrow
A
» Fig. 85 .
Open the air supply
›
Pull the handle in the direction of the arrow
B
» Fig. 85 .
Close air supply
›
Push the shutter against the arrow
B
to the stop » Fig. 85.
When the air inlet is opened, the air flows into the storage compartment with
a temperature corresponding to the control dial settings on the A/C unit, de-
pending on the outer climate conditions.
The air inlet in the storage compartment is connected to position  through
adjustment of the control dial for air distribution. This setting causes the maxi-
mum amount of air to flow into the storage compartment (depending on the
rotary regulator position for the fan).
Note
If not using the air feed in the storage compartment we recommend that you
leave the air supply closed.storage net in the front centre consoleFig. 86
Storage net
Read and observe on page 86 first.
The storage net » Fig. 86 can be used for storage of e.g. maps, magazines etc.
WARNINGOnly store soft objects with a total weight of 0.5 kg in the storage net.
Heavy objects are not secured sufficiently – risk of injury!
CAUTION
Do not place any sharp objects into the net – risk of net damage.
Glasses compartment
Fig. 87
Opening the glasses storage box
Read and observe on page 86 first.
Opening
›
Press the button » Fig. 87.
The box folds in the direction of the arrow. 
92Using the system

Closing›Swivel the lid on the storage box against the direction of the arrow» Fig. 87
until it is heard to lock.WARNINGThe compartment must only be opened when removing or inserting the
spectacles. Otherwise it must be kept closed.
CAUTION
■ Do not place any heat-sensitive objects in the eyeglasses - risk of damage.■The box must be closed before leaving and locking the vehicle – risk of im-
pairment to the functions of the anti-theft alarm system!
Storage compartment on the front passenger side
Fig. 88
Open storage compartment / open air supply
Read and observe
on page 86 first.
Opening
›
Press the button » Fig. 88 - 
.
The cover folds in the arrow direction.
Closing
›
Lift the lid upwards until it clicks into place.
Air supply into the storage compartment
›
Open the air supply by pulling the lever to the stop in the direction of the ar-
row » Fig. 88 - 
.
›
The air supply is closed by the lever being pushed to the stop against the di-
rection of the arrow.
Opening the air supply when the air conditioning system is switched on allows
cooled air to flow into the storage compartment.
Opening the air supply when the air conditioning system is switched on allows
cooled air to flow into the storage compartment.WARNINGThe storage compartment must always be closed when driving for safety
reasons.
Note
■ If not using the air feed in the storage compartment we recommend that you
leave the air supply closed.■
A pen holder is provided in the stowage compartment.
Storage compartment under the passenger seat
Fig. 89
Opening the storage compart-
ment
Read and observe on page 86 first.
Opening
›
Pull the handle to position
1
» Fig. 89 in the direction of the arrow.
›
Remove the wiper blade in the direction of the arrow
2
.
Closing
›
Close compartment (opposite to arrow direction)
2
» Fig. 89 until you hear it
click.
WARNINGThe storage compartment must always be closed when driving for safety
reasons. 93Transporting and practical equipment

CAUTIONThe storage compartment is designed for storing small objects of up to 1.5 kg.
in weight.
Clothes hook
Read and observe
on page 86 first.
The clothes hooks are located on the middle door pillars of the vehicle and onthe handle of the headliner above each of the rear doors.
WARNING■ Only hang light items of clothing on the hooks. Never leave any heavy or
sharp-edged objects in the pockets of the items of clothing.■
Do not use clothes hangers for hanging up items of clothing otherwise
this may reduce the effectiveness of head airbags.
■
Ensure that any clothes hanging from the hooks do not impair your vision
to the rear.
CAUTION
The maximum permissible load of the hooks is 2 kg.
Storage pockets on the front seats
Fig. 90
Map pockets
Read and observe on page 86 first.
The storage pockets » Fig. 90 are intended for the storage of maps, maga-
zines, etc.
WARNINGNever put heavy items in the map pockets – risk of injury!CAUTIONNever put large objects into the map pockets, e.g. bottles or objects with sharp
edges - risk of damaging the pockets and seat coverings.
Storage compartment in the rear centre console
Fig. 91
Opening the storage compart-
ment
Read and observe on page 86 first.
Open/close
›
Pull the top edge and open the compartment in the arrow direction » Fig. 91.
Closing takes place in reverse order.
WARNINGThe storage compartment is not a substitute for the ashtray and must also
not be used for such purposes – risk of fire!
CAUTION
Before folding forward, the rear center seat storage compartment must be
closed - there is a risk of damage to the storage compartment.94Using the system

Folding table on front seat backrestFig. 92
Fold down the folding table
Read and observe on page 86 first.
Folding up/folding down
›
Fold the table into the horizontal position by pulling in the direction of ar-
row » Fig. 92 .
›
Pushing against the direction of the arrow folds the table back into the verti-
cal position.
WARNING■ The folding table must not be in the horizontal position while driving -
risk of injury.■
Do not put any hot drinks in the cup holder in the folding table - risk of
scalding!
■
Do not use any vessels made of brittle materials (e.g. glass, porcelain) -
risk of injury.
CAUTION
The folding table on the seat backrest of the front passenger seats is designed
to hold smaller objects up to a maximum total weight of 10 kg.folding table at the centre backrestFig. 93
Middle seat backrest already fol-
ded forward
Read and observe on page 86 first.
The centre seat back can be used after folding forwards » page 84, Fold seat
backrest forwards and fold down seat completely as an armrest or ta-
ble » Fig. 93 with cup holders by folding it forwards » Fig. 78 on page 88 .
CAUTION
If the middle rear seat backrest should be folded forward for lengthy periods,
then make sure that the belt locks are not located below it - this can warp the
upholstery or fabric.
Removable through-loading bag
Fig. 94
Securing the removable through-
loading bag
Read and observe on page 86 first.
The removable through-loading bag (hereinafter referred to only as a through- loading bag) is used exclusively for transporting skis.
Stowing through-loading bag and skis
›
Open a rear side door of the vehicle.
›
Fold the middle seat backrest forward » page 83, Rear seats . 
95Transporting and practical equipment

›Place the empty through-loading bag in the gap between the front and rear
seats in such a way that the end of the bag with the zip lies in the boot.›
Open the tailgate.
›
Push the skis into the through-loading bag from the boot » .
›
Close the through-loading bag.
Securing through-loading bag and skis
›
Pull the securing belt with both lock tongues out of the pocket of the
through-loading bag.
›
Insert the lock tongues
A
» Fig. 94 in the belt locks of the rear middle seat
belt
C
, first on the one side and then on the other side.
›
Place the securing belt in the middle of the skis between the heel and the tip
of the bindings and pull the securing belt tight at the free end of the belt
B
.
WARNING■ After placing the skis into the through-loading bag, you must secure the
through-loading bag with the securing belt.■
The securing belt must hold the skis tight.
■
Ensure that the securing belt for skis grasps the middle between the tip
and the heel element of the binding (see also marking on the through-load-
ing bag).
■
The total weight of the skis which are transported must not exceed 10 kg.
CAUTION
■ Never fold and stow the through-loading bag wet - risk of damaging the
through-loading bag.■
The through-loading bag is designed to hold max. two pairs of skis.
■
Place the skis and sticks in the through-loading bag with the tips facing to
the rear.
Luggage compartment
 Introduction
This chapter contains information on the following subjects:
Fastening elements
97
Fixing nets
97
Foldable hook
98
Fastening bar with sliding hook
98
Flexible storage compartment
98
Floor covering on both sides
99Luggage compartment cover99Net partition100
Storage compartments
100
Removable storage box
101
Removable light
101
Class N1 vehicles
102
Please observe the following for the purpose of maintaining good handling
characteristics of your vehicle:
›
Distribute loads as evenly as possible.
›
Place heavy objects as far forward as possible.
›
Attach the items of luggage to the lashing eyes or by using the fixing
nets » page 97 .
In the event of an accident, even small and light objects gain so much kinetic
energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the
vehicle is travelling and the weight of the object.
Example: In the event of a frontal collision at a speed of 50 km/h, an object
with a weight of 4.5 kg produces an energy, which corresponds to 20 times its
own weight. This means that it results in a weight of approx. 90 kg “ ”.
WARNING■ Always store transported objects in the boot and attach them to the lash-
ing eyes.■
Loose objects can be thrown forward during a sudden manoeuvre or in
case of an accident and can injure the occupants or other road users.
■
Loose objects could hit a deployed airbag and injure occupants – danger
of death!
■
Please note that transporting heavy objects alters the handling proper-
ties of the vehicle due to the displacement of the centre of gravity – risk of
accident! The speed and style of driving must be adjusted accordingly.
■
If the items of luggage or objects are attached to the lashing eyes with
unsuitable or damaged lashing straps, injuries can occur in the event of
braking manoeuvres or accidents. To prevent items of luggage from moving
around, always use suitable lashing straps which must be firmly attached
to the lashing eyes. 
96Using the system

WARNING (Continued)■The transported items must be stowed in such a way that no objects are
able to slip forward on sudden driving or braking manoeuvres – risk of in-
jury!■
When transporting objects in the luggage compartment that has been en-
larged by folding the rear seats forward, ensure the safety of the passen-
gers transported on the other rear seats » page 11, Correct seated position
for the passengers in the rear seats .
■
If the rear seat next to the folded forward seat is occupied, ensure maxi-
mum safety, e.g. by placing the goods to be transported in such a way that
the seat is prevented from folding back in case of a rear collision.
■
Do not drive with the luggage compartment lid fully opened or slightly
ajar otherwise exhaust gases may get into the interior of the vehicle – risk
of poisoning!
■
Do not exceed the permissible axle loads and permissible gross weight of
the vehicle – risk of accident!
■
Do not transport people in the boot!
CAUTION
■ Please ensure that the heating elements for the rear window heater are not
damaged as a result of abrasive objects.■
Tyre pressure must be adjusted to the load » page 191.
Fastening elements
Fig. 95
Fasteners: Version 1/version 2
Read and observe and on page 96 first.
Overview of the fasteners » Fig. 95
Lashing eyes for fastening items of luggage and fixing nets
Fastening elements only for fastening fixing nets
Mounting bar with integrated hooks only for fixing mounting networks.
CAUTION
The maximum permissible static load of the individual lashing eyes A is 3.5 kN
(350 kg).
Fixing nets
Fig. 96
Fastening examples for nets
Read and observe
and on page 96 first.
Fastening examples for nets » Fig. 96
Horizontal pocket
Floor net
Vertical pocket
WARNINGDo not exceed the maximum permissible load of the fixing nets. Heavy ob-
jects are not secured sufficiently – risk of injury!
CAUTION
■ The maximum permissible load of the fixing nets is 1.5 kg.■Do not place any sharp objects in the nets – risk of net damage.ABCABC97Transporting and practical equipment
