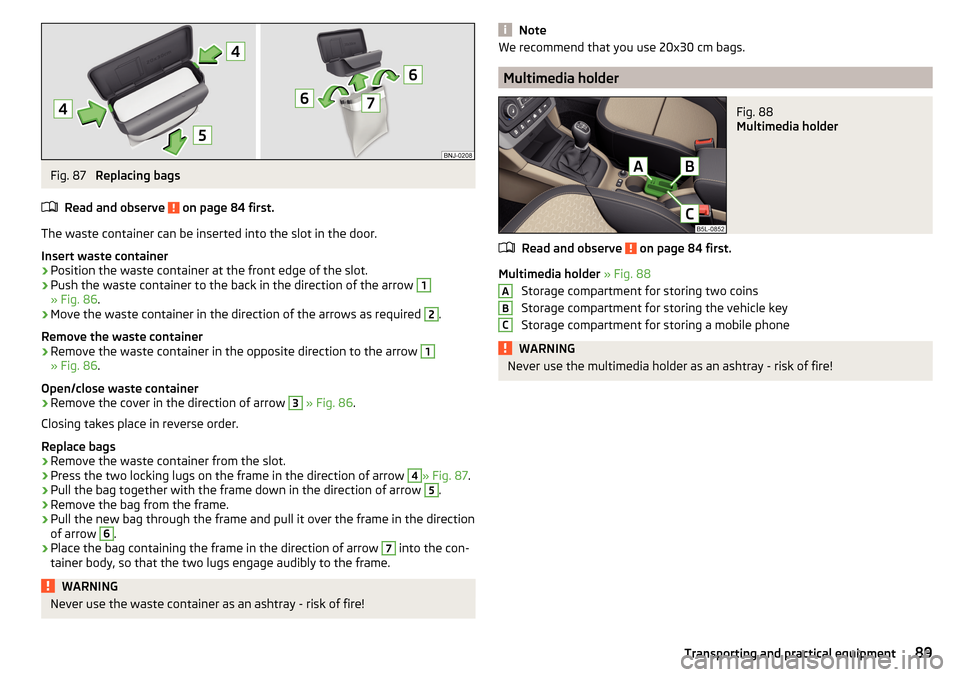

Fig. 87
Replacing bags
Read and observe
on page 84 first.
The waste container can be inserted into the slot in the door.
Insert waste container
›
Position the waste container at the front edge of the slot.
›
Push the waste container to the back in the direction of the arrow
1
» Fig. 86 .
›
Move the waste container in the direction of the arrows as required
2
.
Remove the waste container
›
Remove the waste container in the opposite direction to the arrow
1
» Fig. 86 .
Open/close waste container
›
Remove the cover in the direction of arrow
3
» Fig. 86 .
Closing takes place in reverse order.
Replace bags
›
Remove the waste container from the slot.
›
Press the two locking lugs on the frame in the direction of arrow
4
» Fig. 87 .
›
Pull the bag together with the frame down in the direction of arrow
5
.
›
Remove the bag from the frame.
›
Pull the new bag through the frame and pull it over the frame in the direction
of arrow
6
.
›
Place the bag containing the frame in the direction of arrow
7
into the con-
tainer body, so that the two lugs engage audibly to the frame.
WARNINGNever use the waste container as an ashtray - risk of fire!NoteWe recommend that you use 20x30 cm bags.
Multimedia holder
Fig. 88
Multimedia holder
Read and observe on page 84 first.
Multimedia holder » Fig. 88
Storage compartment for storing two coins
Storage compartment for storing the vehicle key
Storage compartment for storing a mobile phone
WARNINGNever use the multimedia holder as an ashtray - risk of fire!ABC89Transporting and practical equipment
Page 92 of 232
Storage compartment under the front arm restFig. 89
Open storage compartment / open air supply
Read and observe
on page 84 first.
Opening the storage compartment
›
Lift the armrest in the direction of arrow
A
» Fig. 89 .
Closing storage compartment
›
Open the armrest to the stop, only then can it be folded downwards and
against the direction of the arrow
A
» Fig. 89 .
Open the air supply
›
Pull the handle in the direction of the arrow
B
» Fig. 89 .
Close air supply
›
Push the shutter against the arrow
B
to the stop » Fig. 89.
When the air inlet is opened, the air flows into the storage compartment with
a temperature corresponding to the control dial settings on the A/C unit, de-
pending on the outer climate conditions.
The air inlet in the storage compartment is connected to position through
adjustment of the control dial for air distribution. This setting causes the maxi-
mum amount of air to flow into the storage compartment (depending on the
rotary regulator position for the fan).
Note
If not using the air feed in the storage compartment we recommend that you
leave the air supply closed.storage net in the front centre consoleFig. 90
Storage net
Read and observe on page 84 first.
The storage net » Fig. 90 can be used for storage of e.g. maps, magazines etc.
The maximum permissible load of the net is 0.5 kg.
WARNINGNever exceed the maximum permissible load of the net. If heavy objects
have not been suitably secured, there is a risk of injury!
CAUTION
Do not place any sharp objects into the net – risk of net damage.
Glasses compartment
Fig. 91
Opening the glasses storage box
Read and observe on page 84 first.
Opening
›
Press the button » Fig. 91.
The box folds in the direction of the arrow.
90Using the system
Page 93 of 232
Closing›Swivel the lid on the storage box against the direction of the arrow» Fig. 91
until it is heard to lock.WARNINGThe compartment must only be opened when removing or inserting the
spectacles. Otherwise it must be kept closed.
CAUTION
■ Do not put any heat-sensitive objects in the glasses storage box – there is
risk of damage at high temperatures.■
The box must be closed before leaving and locking the vehicle – risk of im-
pairment to the functions of the anti-theft alarm system.
Storage compartment on the front passenger side
Fig. 92
Open storage compartment / open air supply
Read and observe
on page 84 first.
A pen holder is provided in the stowage compartment.
Opening
›
Press the button » Fig. 92 -
.
The cover folds in the arrow direction.
Closing
›
Lift the lid upwards until it clicks into place.
Air supply into the storage compartment
›
Open the air supply by pulling the lever to the stop in the direction of the ar-
row » Fig. 92 -
.
›The air supply is closed by the lever being pushed to the stop against the di-
rection of the arrow.
Opening the air supply when the air conditioning system is switched off allows un-cooled air to flow into the storage compartment.
Opening the air supply when the air conditioning system is switched on allows cooled air to flow into the storage compartment.WARNINGThe storage compartment must always be closed when driving for safety
reasons.
Note
If not using the air feed in the storage compartment we recommend that you
leave the air supply closed.
Storage compartment under the passenger seat
Fig. 93
Opening the storage compart-
ment
Read and observe on page 84 first.
The maximum permissible load of the storage compartment is 1.5 kg.
Opening
›
Pull the handle to position
1
» Fig. 93 in the direction of the arrow.
›
Remove the wiper blade in the direction of the arrow
2
.
Closing
›
Close compartment (opposite to arrow direction)
2
» Fig. 93 until you hear it
click.
91Transporting and practical equipment
Page 94 of 232
WARNINGThe storage compartment must always be closed when driving for safety
reasons.
Clothes hook
Fig. 94
Clothes hooks
Read and observe on page 84 first.
The clothes hooks are located on the middle door pillars of the vehicle and on the handle of the headliner above each of the rear doors » Fig. 94.
The maximum permissible load of each of the hooks is 2 kg.
WARNING■ Do not leave any heavy or sharp-edged objects in the pockets of the
items of clothing hung up.■
Do not use hangers to hang up the clothes - there is a risk of limiting the
effectiveness of the head airbags.
■
Ensure that any clothes hanging from the hooks do not impair your vision
to the rear.
Storage pockets on the front seatsFig. 95
Map pockets
Read and observe on page 84 first.
The storage pockets » Fig. 95 are intended for the storage of maps, maga-
zines, etc.
WARNINGNever put heavy items in the map pockets – risk of injury!
CAUTION
Never put large objects into the map pockets, e.g. bottles or objects with sharp
edges - risk of damaging the pockets and seat coverings.
Storage compartment in the rear centre console
Fig. 96
Opening the storage compart-
ment
Read and observe on page 84 first.
Open/close
›
Pull the top edge and open the compartment in the arrow direction » Fig. 96.
Closing takes place in reverse order.
92Using the system
Page 95 of 232
WARNINGThe storage compartment is not a substitute for the ashtray and must also
not be used for such purposes – risk of fire!
CAUTION
Before folding forward, the rear centre seat storage compartment must be
closed - there is a risk of damage to the storage compartment.
Folding table on front seat backrest
Fig. 97
Fold down the folding table
Read and observe on page 84 first.
Folding up/folding down
›
Fold the table into the horizontal position by pulling in the direction of arrow
» Fig. 97 .
›
Pushing against the direction of the arrow folds the table back into the verti-
cal position.
The maximum permissible load for the table is 10 kg.
WARNING■ The table must not be in the horizontal position while driving - risk of in-
jury.■
Do not put any hot drinks in the cup holder in the folding table. If the ve-
hicle moves, they may spill – risk of scalding!
■
Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). This could lead to injuries in the event of an accident.
folding table at the centre backrestFig. 98
Middle seat backrest already fol-
ded forward
Read and observe on page 84 first.
The centre seat back can be used after folding forwards » page 81, Fold seat
backrest forwards and fold down seat completely as an armrest or table
» Fig. 98 with cup holders by folding it forwards » Fig. 80 on page 85 .
CAUTION
If the middle rear seat backrest should be folded forward for lengthy periods,
then make sure that the belt locks are not located below it - this can warp the
upholstery or fabric.
Removable through-loading bag
Fig. 99
Securing the removable through-
loading bag
Read and observe on page 84 first.
The removable through-loading bag (hereinafter referred to as a through-load-
ing bag) is used exclusively for transporting skis.
Stowing through-loading bag and skis
›
Open a rear side door of the vehicle.
›
Fold the middle seat backrest forward » page 80, Rear seats .
93Transporting and practical equipment
Page 96 of 232
›Place the empty through-loading bag in the gap between the front and rear
seats in such a way that the end of the bag with the zip lies in the boot.›
Open the boot lid.
›
Push the skis into the through-loading bag from the boot » .
›
Close the through-loading bag.
Securing through-loading bag and skis
›
Pull the securing belt with both lock tongues out of the pocket of the
through-loading bag.
›
Insert the lock tongues
A
» Fig. 99 in the belt locks of the rear middle seat
belt
C
, first on the one side and then on the other side.
›
Place the securing belt in the middle of the skis between the heel and the tip
of the bindings and pull the securing belt tight at the free end of the belt
B
.
WARNING■ After placing the skis into the through-loading bag, you must secure the
through-loading bag with the securing belt.■
The securing belt must hold the skis tight.
■
Ensure that the securing belt for skis grasps the middle between the tip
and the heel element of the binding (see also marking on the through-load-
ing bag).
■
The total weight of the skis which are transported must not exceed 10 kg.
CAUTION
■ Never fold and stow the through-loading bag wet - risk of damaging the
through-loading bag.■
The through-loading bag is designed for the transportation of a maximum of
two pairs of skis.
■
Place the skis and sticks in the through-loading bag with the tips facing to
the rear.
AUX, USB and MDI inputsFig. 100
AUX input under the armrest
Fig. 101
Installation locations of the AUX, USB and MDI inputs
Read and observe
on page 84 first.
Depending on the equipment, the vehicle may have AUX- USB- or MDI inputs
for connecting external sources.
The MDI input is above the storage compartment in the front centre console
» Fig. 101 -
and is identified with the labelling
and by the symbol
.
The MDI input is above the storage compartment in the front centre console
» Fig. 101 -
and is identified with the labelling
on the covering cap.
The AUX input is marked with the labelling
and depending on equipment is
at the locations listed below. ▶ Under the armrest » Fig. 100.
▶ Above the storage box of the front centre console » Fig. 101 –
.
Additional information » Owner´s Manual Infotainment .
94Using the system
Page 97 of 232
Multimedia holder
Introduction
This chapter contains information on the following subjects:
Install/remove
95
Handle holder
95
External devices (e.g. tablet, smartphone, etc.) measuring min. 122 mm and
max. 195 mm can be secured in the support.
The maximum permissible load of the compartment is 750 g.
CAUTION
Never exceed the maximum permissible load of the holder - there is a risk of
damage or functional impairment.
Install/remove
Fig. 102
Position adapter/install holder
Fig. 103
Remove holder/remove adapter
Read and observe
on page 95 first.
Fitting
›
Attach the opened adapter to the guide rods of the headrest » Fig. 102.
›
Clip in the adapter in the direction of arrow
1
» .
›
Clip the holder in the direction of arrow
2
into the adapter.
Removing
›
Pull on the locking strap
A
in the direction of arrow
3
» Fig. 103 .
›
Remove the holder from the bracket in the direction of arrow
4
.
›
Press the adapter and remove from the guide rods of the headrest in the di-
rection of arrow
5
.
WARNINGCarefully clip in the adapter - there is a risk of injuring your finger.
Handle holder
Fig. 104
Tilt and rotate holder
95Transporting and practical equipment
Page 98 of 232
Fig. 105
Adjust holder size
Read and observe on page 95 first.
Tilt and rotate holder
The holder may be tilted 30° in the direction of arrow
1
and rotated through
360° in the direction of arrow
2
» Fig. 104 .
Adjust holder size
›
Pull out the securing tab
A
in the direction of arrow
3
and move part
B
in
direction of arrow
4
to the desired position » Fig. 105.
Luggage compartment and transport of cargo
Introduction
This chapter contains information on the following subjects:
Fastening elements
97
Fixing nets
97
Multifunction pocket
98
Foldable hook
98
Fastening bar with sliding hook
98
Flexible storage compartment
99
Floor covering on both sides
99
Luggage compartment cover
99
Net partition
100
Storage compartments
101
Removable storage box
101
Removable light
101
Class N1 vehicles
102When transporting cargo, the following instructions must be adhered to ▶ When transporting heavy objects, the driving characteristics change due to
the shift in the centre of gravity. The speed and style of driving must be ad-
justed accordingly.
▶ The cargo should be stowed in the luggage compartment. To prevent it from
moving, it should be secured with suitable lashing straps to the lashing eyes
or secured with fixing nets.
▶ Distribute loads as evenly as possible.
▶ Place heavy objects as far forward as possible.
▶ The transported items must be stowed in such a way that no objects are able
to slip forward on sudden driving or braking manoeuvres – risk of injury!
▶ Tyre pressure should be adjusted for the load.
▶ When transporting loads in the luggage compartment that has been en-
larged by folding one of the rear seats forward, care should be taken to en-
sure the safety of passengers transported on the other rear seat.
In the event of an accident, even small and light objects gain so much kinetic
energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the
vehicle is travelling and the weight of the object.
Example: In the event of a frontal collision at a speed of 50 km/h, an object
with a weight of 4.5 kg produces an energy, which corresponds to 20 times its
own weight. This means that it results in a weight of approx. 90 kg “ ”.WARNING■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks, etc., as heavy objects are not sufficiently secured - there is a
risk of injury!■
If the cargo is tied down with unsuitable or damaged lashing straps, inju-
ries can occur in the event of braking manoeuvres or accidents.
■
Loose cargo can be thrown forward during a sudden manoeuvre or in the
event of an accident and can injure the occupants or other road users.
■
Loose cargo could hit a deployed airbag and injure occupants – danger of
death!
CAUTION
■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks, etc. - these could be damaged.■
Please ensure that the heating elements for the rear window heater are not
damaged as a result of abrasive objects.
96Using the system
Page 99 of 232
Fastening elementsFig. 106
Fasteners: Version 1/version 2
Fig. 107
Fasteners: variant 3
Read and observe and on page 96 first.
Overview of the fastening elements » Fig. 106 and » Fig. 107
Lashing eyes for securing items of luggage, fastening nets and multifunc-
tion pocket
Fasteners for securing fastening nets and multifunction pocket
Fastening strip with integrated hook for attaching fastening nets and mul-
tifunction pocket
Lashing eyes for securing fastening nets
The maximum permissible load of the individual lashing eyes
A
is 350 kg.
The maximum permissible load of the individual lashing eyes
D
is 150 kg.
ABCDFixing netsFig. 108
Fastening examples for nets
Read and observe
and on page 96 first.
Fastening examples for nets » Fig. 108
Horizontal pocket
Floor net
Vertical pocket
The maximum permissible load of each of the nets is 1.5 kg.
CAUTION
Do not place any sharp objects in the nets – risk of net damage.ABC97Transporting and practical equipment
Page 100 of 232
Multifunction pocketFig. 109
Securing the multifunction pocket
Read and observe
and on page 96 first.
The pocket » Fig. 109can be secured to the fastening elements
A
,
B
and
C
» Fig. 106 on page 97 .
The maximum permissible load for the bag attached to the fastening element
is 3 kg.
CAUTION
In vehicles with a variable loading floor, it is not possible to attach the bag to
the fastening elements.
Foldable hook
Fig. 110
Fold down hooks
Read and observe and on page 96 first.
One foldable hook for attaching small items of luggage, such as bags etc., is
provided on each side of the luggage compartment.
The maximum permissible load for the hook is 7.5 kg.›
Press on the lower portion of the hook
A
and then fold it in direction of the
arrow » Fig. 110 .
Fastening bar with sliding hook
Fig. 111
Sliding hook on the mounting bar / removing hook
Read and observe
and on page 96 first.
A fastening bar is located on both sides of the luggage compartment with two moveable hooks each, in order to attach small items of luggage, such as bags,
etc.
The maximum permissible load for the hook is 7.5 kg.
Moving the hook
›
Fold up the hook in direction of arrow
1
» Fig. 111 until an angle of approx.
45° is reached.
›
Move the hook in the direction of the arrow
2
into the desired position and
fold down the hook as far as the stop in direction of arrow
3
.
Removing the hook
The hook can be removed only in the rear region of the attachment bar.
›
Fold the hook in the direction of the arrow
4
» Fig. 111 until it slackens.
›
Remove the hook in the direction of the arrow
5
.
Installing the hook
›
Position the hook on the fastening strip in a vertical position in direction of
arrow
5
» Fig. 111 and lightly press it on.
›
Fold the hook down in the opposite direction of the arrow
4
until it locks
fully.
98Using the system
