›Fold down the rear armrest.
Move›
Move the cover into the desired position in the direction of the arrow
B
» Fig. 65 .
Note
Push the armrest cover all the way back to the stop before applying the hand-
brake.
Folding front passenger seat
Fig. 66
Folding the front passenger seat
forward
The front passenger seat can be folded forward into a horizontal position.
Folding forward
›
Place the lever in position
1
» Fig. 66 .
›
Remove the cover in the direction of the arrow
2
.
The locking mechanism must audibly snap into place.
Folding backwards
›
Place the lever in position
1
» Fig. 66 .
›
Fold the seat backrest in the opposite direction of the arrow
2
.
The locking mechanism must audibly snap into place.
WARNING■ The front passenger airbag should be switched off when transporting ob-
jects on the seat which was folded forwards » page 20, Deactivating the
front passenger airbag .■
Adjust the seat backrest only when the vehicle is stationary.
■
When moving the seat backrest, make sure the seat backrest has been
properly secured – check by pulling on the seat backrest.
WARNING (Continued)■ If the seat backrest is folded, passengers may only be transported on the
outer seat behind the driver.■
When moving the seat backrest, keep limbs out of the area between the
seat and seat backrest – risk of injury!
■
Never transport the following items on the seat backrest when folded
forwards. ■Objects that could restrict the driver's view.
■ Objects which make it impossible for the driver to control the vehicle,
e.g. if they roll under the pedals, or could protrude into the driver's zone. ■ Objects which could lead to injury to passengers due to a change of di-
rection or braking manoeuvre when accelerating sharply.
Head restraints
 Introduction
This chapter contains information on the following subjects:
Adjusting the height, installing and removing the headrests
80
Rear centre head restraints
80WARNINGPlease note the following points about the headrest settings » page 8, Cor-
rect and safe seated position .
CAUTION
Store the removed headrests in a clean and secure place (to avoid damage or
soiling).
Note
The position of the front and rear outer head restraints is adjustable in height.
The middle rear head restraint is only adjustable in two positions.79Seats and head restraints

Adjusting the height, installing and removing the headrestsFig. 67
Head restraint: Move up / move down
Read and observe
and on page 79 first.
Setting the height
›
Grasp the restraint and move upwards in the direction of
1
» Fig. 67 .
›
In order to push the headrests downward, press and hold the safety button
A
in the direction of arrow
2
.
›
Press in the support in the direction of arrow
3
.
Removing/installing
›
Pull the head restraint out of the seat backrest as far as the stop.
›
Press the locking button
A
in the direction of the arrow
2
» Fig. 67 and pull
the head restraint out.
›
To re-insert the headrest, push it far enough down in the direction of arrow
3
into the seat backrest until the locking button clicks into place.
Rear centre head restraintsFig. 68
Rear centre headrest: removing/installing
Read and observe
and on page 79 first.
Applies to vehicles using the TOP TETHER system.
Removing/installing
›
Pull the head restraint out of the seat backrest as far as the stop.
›
Press the locking button
A
in the direction of arrow
1
» Fig. 68 , while at
the same time using a flat screwdriver with a max. width of 5 mm to press
the securing button in opening
B
in the direction of arrow
2
.
›
Remove the restraint in the direction of arrow
3
.
›
To re-insert the head restraint, push it far enough down in the direction of
arrow
4
into the seat backrest until the locking button clicks into place.
Rear seats
 Introduction
This chapter contains information on the following subjects:
Setting theSetting the seats in the longitudinal direction
81
inclination of the seat backrest
81
Fold seat backrest forwards and fold down seat completely
81
Unlocking and removing seats
82
Setting outer seat in the transverse direction
82
Fold back seats
8280Using the system

Setting theSetting the seats in the longitudinal directionFig. 69
Adjusting seats in forward/back
direction
›
Pull lever
A
in the direction of arrow
1
and move the seat to the desired po-
sition in the direction of arrow
2
» Fig. 69 .
inclination of the seat backrest
Fig. 70
Adjusting the seat backrest
›
Pull lever
A
on the lower portion in the direction of arrow
1
» Fig. 70 .
›
Adjust the desired inclination of the seat back in the direction of arrow
2.WARNINGCheck for yourself that the seat backrest is engaged by pulling on it.Fold seat backrest forwards and fold down seat completelyFig. 71
Safety position of seat belt / folding the seat completely forward
Fig. 72
Lock forward folded seats
Folding the seat backrest forwards
›
Insert the seat belt buckle
A
» Fig. 71 in the hole in the side panel - security
position.
›
Remove the head restraint from the rear middle seat » page 80.
›
Push the outer rear seats towards the rear as far as they will go
» page 81,
Setting theSetting the seats in the longitudinal direction .
›
Pull the lever
A
» Fig. 70 on page 81 and fold the seat backrests of the outer
rear seats onto the seat cushion as far as the stop.
›
Fold the rear centre seat backrest forwards in the same way.
›
Then pull the lever
A
» Fig. 70 on page 81 again and push the seat back
down until it clicks into place in a lower position.
Folding seats fully forwards and locking them
›
If the outer rear seat is fully folded forward, push it towards the rear as far as
it can go.
›
Pull the lever
B
» Fig. 71 in the direction of the arrow
1
and push the seat
completely forward in the direction of arrow
2
. 
81Seats and head restraints

›Secure the folded forward seat with the aid of the fixing belt B to a guide rod
of the head restraint in the front seat » Fig. 72.WARNINGImmediately lock the folded forward seat to a guide rod on the front head
restraint using the fixing belt - risk of injury.
CAUTION
■ Before folding the rear middle seat forward, make sure that the storage com-
partment, the ashtray and the cup holder in the rear part of the centre console
are closed - risk of damage.■
Only keep the seats in the folded forward position for as long as necessary to
transport cargo - there is a risk of damaging the front seat backrests. The
seats must be folded back once the cargo has been transported.
■
If the outer seat is not in the rear end position when folding forward, damage
can occur to the locking bolts when unlocking the seat.
Unlocking and removing seats
Fig. 73
Unlocking the folded forward
seat and carrying handles on the
seat surface
›
Fold the seat forward » page 81, Fold seat backrest forwards and fold down
seat completely .
›
Unlock the folded seat by pressing seat locks
A
in the direction of arrow
» Fig. 73 .
›
Remove the seat using the carrying handles
B
or
C
.
WARNINGThe following guidelines must be observed » page 10, Correct seated posi-
tion for the passengers in the rear seats .NoteThe outer seats are not mutually interchangeable. In the rear area the left seat
is marked with the letter L and the right seat with the letter R.
Setting outer seat in the transverse direction
Fig. 74
Locking seats
›
Remove the middle seat » page 82, Unlocking and removing seats .
›
Fold the outer seat forwards » page 81 and unlock » Fig. 73 on page 82 .
›
Move the folded forward and unlocked seat on the guide towards the middle
of the vehicle up to the stop.
›
Lock the folded forward seat by pressing the seat locks
A
in the direction of
arrow » Fig. 74 .
Folding back into the starting position is accomplished in the reverse order.
Fold back seats
Fig. 75
Folding the seat backrest back
into position
›
If the seat has been removed, first position it on the guide and lock it in place
using seat locking
A
» Fig. 74 on page 82 .
›
Pull the seat upwards to ensure that the seat is locked correctly.
›
Fold the seat in the horizontal position until it audibly click in place.
›
Check for yourself that the seat can no longer be lifted by pulling it up. 
82Using the system

›Press the lever in direction of arrow 1
» Fig. 75 and fold back the seat back-
rest in the direction of arrow 2.›
Check for yourself that the seat backrest is engaged by pulling on it.
›
Remove the tongue of the lock from the safety position.
WARNING■ After folding back the seat, the seat belts must be ready for use.■The seat backrests must be securely engaged so that objects from the
boot cannot slip into the passenger compartment on sudden braking – risk
of injury!■
When folding the seat backrest always make sure that it has safely
locked into position, this is confirmed by the position and a visible marking
on the cover of the lever.
Transporting and practical equipment
Useful equipment
 Introduction
This chapter contains information on the following subjects:
Car park ticket holder
84
Storage compartment on the dash panel
84
stowage compartments in the doors
85
Storage compartment in the front centre console
85
Cup holders
85
Cigarette lighter
86
Ashtray
87
12-Volt power outlet
88
Waste container
88
Multimedia holder
89
Storage compartment under the front arm rest
90
storage net in the front centre console
90
Glasses compartment
90
Storage compartment on the front passenger side
91
Storage compartment under the passenger seat
91
Clothes hook
92
Storage pockets on the front seats
92
Storage compartment in the rear centre console
92
Folding table on front seat backrest
93
folding table at the centre backrest
93
Removable through-loading bag
93
AUX, USB and MDI inputs
94

83Transporting and practical equipment

WARNING■Do not place anything on the dash panel. These objects might slide or fall
down when driving (when accelerating, cornering or following a bad ma-
noeuvre) and may distract you from concentrating on the traffic – there is a
risk of an accident!■
When driving, ensure that no objects from the centre console or from oth-
er storage compartments can get into the driver's footwell. You would not
be able to brake, operate the clutch pedal or accelerate - danger of causing
an accident!
■
No objects should be placed in the storage compartments nor in the
drinks holders; the vehicle occupants could be endangered if there is sud-
den braking or the vehicle collides with something.
■
Ash, cigarettes, cigars and the like. may only be placed in the ashtray!
Car park ticket holder
Fig. 76
Parking ticket holder
Read and observe on page 84 first.
The parking ticket holder » Fig. 76 is designed e.g. for securing car park tickets.
WARNINGThe ticket should always be removed before starting off so that the driver's
vision is not impaired.Storage compartment on the dash panelFig. 77
Opening the storage compart-
ment
Read and observe on page 84 first.
Opening
›
Press the button » Fig. 77.
The cover folds in the arrow direction.
Closing
›
Fold back the storage compartment lid in the opposite direction to that of
the arrow » Fig. 77 until it clicks.
Certain models do not have a storage compartment lid.
WARNING■ The storage compartment is not a substitute for the ashtray and must al-
so not be used for such purposes – risk of fire!■
The storage compartment must always be closed when driving for safety
reasons.
■
Do not put any highly inflammable objects or objects which are sensitive
to heat (e.g. lighters, sprays, spectacles, etc.) in the storage compartment.
84Using the system

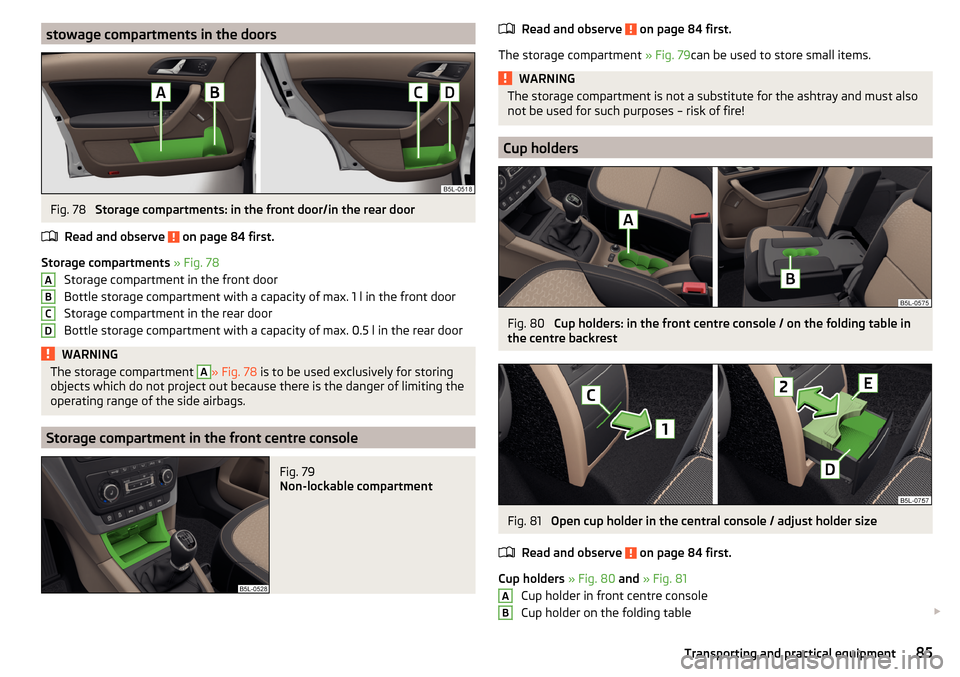

stowage compartments in the doorsFig. 78
Storage compartments: in the front door/in the rear door
Read and observe
on page 84 first.
Storage compartments » Fig. 78
Storage compartment in the front door
Bottle storage compartment with a capacity of max. 1 l in the front door
Storage compartment in the rear door
Bottle storage compartment with a capacity of max. 0.5 l in the rear door
WARNINGThe storage compartment A» Fig. 78 is to be used exclusively for storing
objects which do not project out because there is the danger of limiting the
operating range of the side airbags.
Storage compartment in the front centre console
Fig. 79
Non-lockable compartment
ABCDRead and observe on page 84 first.
The storage compartment » Fig. 79can be used to store small items.
WARNINGThe storage compartment is not a substitute for the ashtray and must also
not be used for such purposes – risk of fire!
Cup holders
Fig. 80
Cup holders: in the front centre console / on the folding table in
the centre backrest
Fig. 81
Open cup holder in the central console / adjust holder size
Read and observe
on page 84 first.
Cup holders » Fig. 80 and » Fig. 81
Cup holder in front centre console
Cup holder on the folding table 

AB85Transporting and practical equipment

Location for opening
Cup holder in rear centre console
Fuse plate
Open holder in the rear centre console›
Press the holder in area
C
» Fig. 81 .
The holder slides out.
›
Pull the holder until it stops in the arrow direction
1
.
›
Adjust the bracket by sliding the locking plate
E
in the direction of arrow
2
.
Close holder in the rear centre console
›
Remove the holder in the opposite direction to the arrow
1
» Fig. 81 .
WARNING■
Do not use any cups or beakers which are made of brittle material (e.g.
glass, porcelain). This could lead to injuries in the event of an accident.■
Never put hot cups in the cup holders. If the vehicle moves, they may spill
– risk of scalding!
■
No objects should be placed in the holders that might endanger the vehi-
cle's occupants if the vehicle brakes suddenly or the vehicle is in collision.
CAUTION
■ Do not leave open beverage containers in the cup holders during the journey.
There is a risk of spilling e.g. when braking which may cause damage to the
electrical components or seat upholstery.■
Before folding the rear centre seat, holder
D
» Fig. 81 must be closed - there
is risk of damage.
Note
A 1.5 litre bottle (max. capacity) can be stored in the holder D » Fig. 81 .CDECigarette lighterFig. 82
Cigarette lighter
Read and observe on page 84 first.
Use
›
Press the lighter in as far as the stop
» Fig. 82.
›
Wait until the lighter pops out.
›
Remove the glowing lighter and use immediately.
›
Place the cigarette lighter back into the socket.
WARNING■
The cigarette lighter also works if the ignition is switched off. When leav-
ing the vehicle, never leave people who are not completely independent,
such as children, unattended in the vehicle. These could operate the lighter
and get burned, start a fire or damage the interior.■
Take care when using the cigarette lighter! Improper usage can case
burns.
Note
The cigarette lighter socket can also be used as a 12 volt socket.86Using the system

AshtrayFig. 83
Low centre console: Remove front ashtray / open rear ashtray /
remove rear ashtray
Fig. 84
High centre console: Open rear ashtray / Removing rear ashtray
insert
Read and observe
on page 84 first.
The ashtray can be used for discarding ash, cigarettes, cigars and the like » .
Removing/inserting the front ash tray
›
When removing, do not hold the ashtray by its cover.
›
Remove the ashtray in the direction of the arrow
1
» Fig. 83 .
Insertion takes place in reverse order.
Opening the ashtray on the low centre console
›
Grasp the ashtray cover at the lower edge
A
and fold it open in the direction
of arrow
2
» Fig. 83 .
Remove the ashtray from the low centre console›Open the ashtray .›
Grasp the ashtray at the handle
B
and remove in direction of arrow
3
» Fig. 83.
Removing the ashtray from the low centre console
›
Place the ashtray insert into the console and press it in.
Opening the ashtray on the high centre console
›
Press in the ashtray in area
C
» Fig. 84 .
The ashtray opens out in the direction of the arrow
4
.
Removing the ashtray from the high centre console
›
Open the ashtray .
›
Press the cover carefully to the stop in the direction of arrow
4
» Fig. 84 .
›
Grasp the ashtray insert in the area of arrow and remove it in the direction of
arrow
5
.
Inserting the ashtray into the high centre console
›
Place the ashtray insert into the receiver opposite the direction of arrow
5
and press.
WARNINGNever place hot or flammable objects in the ashtray – risk of fire!
CAUTION
The ashtray in the higher central console must be closed (otherwise it could
get damaged) before folding forward the rear middle seat.87Transporting and practical equipment

12-Volt power outletFig. 85
Cover for the 12-volt socket: in the front centre console / in the
luggage compartment
Read and observe
on page 84 first.
Overview of the 12-volt socket » Fig. 85
In the front centre console
In the luggage compartment
Use
›
Remove the cover on the power socket » Fig. 85 -
 or open the cover on
the power socket as appropriate » Fig. 85 -
 .
›
Connect the plug for the electrical appliance to the socket.
WARNINGInstructions for devices connected to the sockets.■Safely stow all devices during the journey to prevent them from being
thrown around the interior in the event of a sudden braking manoeuvre or
an accident – risk of death!■
The devices may warm up during operation – risk of injury or fire! If the
device becomes too hot, switch it off immediately and disconnect it from
the power supply.
WARNINGWhen using the 12-volt sockets, the following notes are to be observed.■The socket also works if the ignition is switched off. When leaving the ve-
hicle, never leave persons who are not completely independent, such as
children, unattended in the vehicle.■
Improper use of the power sockets and the electrical accessories can
cause fires, burns and other serious injuries.
CAUTION
■ The socket can only be used for the connection of approved electrical acces-
sories with a total power consumption of up to 120 watts, otherwise the elec-
trical system of the vehicle may be damaged.■
Connecting appliances when the engine is not running will drain the battery
of the vehicle!
■
Switch off the devices connected to the power sockets before you switch
the ignition on or off and before starting the engine, to avoid damage from
voltage fluctuations.
Waste container
Fig. 86
Waste container: inserting and moving/opening 
88Using the system
