SSANGYONG KORANDO 1997 Service Repair Manual

M161 ENGINE CONTROLS 1F2 -- 73
D AEW OO M Y_2000
A/C COMPRESSOR RELAY
KAB1F290
Failure
CodeDescriptionTrouble AreaMaintenance Hint
228A/C compressor relay
short circuit to battery
WhenmalfunctionofA/C
DMonitoring the actual operation
through scan tool
DInspection the Engine Control Module
(ECM)pin44aboutshortcircuitor
229
A/c compressor relay
short circuit to ground or
open
When malfunction ofA/C
compressor control
(ECM)pin44aboutshortcircuitor
open with bad contact
DInspection the relay short circuit or
open
DInspection the ECM
Circuit Description
When the ECM detects that A/C has been requested, the ECMwill activated the A/C clutch relay. When the relay has
been activated, voltage should be present at both the A/C clutch relay and A/C switch circuit at ECM.

1F2 -- 74 M161 ENGINE CONTROLS
D AEW OO M Y_2000
CRUISE CONTROL SWITCH
KAB1F300
Failure
CodeDescriptionTrouble AreaMaintenance Hint
129
Cruise control “OFF”
due to message counter
failureCruise control system
Message counter fault
130Vehicle speed signal
failureWhen malfunction of
auto-- cruise systemDMonitoring the actual recognition
status and vehicle speed signal
throughscantool
131Vehicle speed signal
failure
autocruisesystem
Implausible condition of
vehicle speed signal.through scan tool
DInspection the Engine Control Module
(ECM)pin52,53,54,55,57about
132Cruise control lever
failureCruise control lever defective
(ECM)pin52,53,54,55,57about
short circuit or open with bad contact
DInspection the CAN and ABS
133Cruise control
acceleration failureCruise control system
Implausible condition of
acceleration signal
InspectiontheCANandABS
DInspection the cruise control lever
switch
DInspection the ECM
134Cruise control
deceleration failureCruise control system
Implausible condition of
deceleration signal
p
Circuit Description
Cruise control is an automatic speed control system that maintain a desired driving speed without using the accelerator
pedal. The vehicle speed must be greater than 40 km/h to engage cruise control.

M161 ENGINE CONTROLS 1F2 -- 75
D AEW OO M Y_2000
TRACTION CONTROLSYSTEM (TCS)
KAB1F310
Failure
CodeDescriptionTrouble AreaMaintenance Hint
150TCS input signal short
circuit to batteryTCS short circuit to powerDInspection the Engine Control Module
(ECM) pin 45 about short circuit or
openwithbadcontact
151TCS input signal short
circuit to ground or openTCS short circuit to ground or
open
openwithbadcontact
DInspection the TCS lamp of I/P cluster.
DInspection the ECM
Circuit Description
Battery voltage is supplied to the TCS warning lamp with the ignition in ON and START. The warning lamp can be
activated only by the Electrical Brake Control Module (EBCM) internally supplying ground to terminal 32. If the TCS
input circuit is open or short, this failure codewill be set.

1F2 -- 76 M161 ENGINE CONTROLS
D AEW OO M Y_2000
STOP LAMP SWITCH
KAB1F320
Failure
CodeDescriptionTrouble AreaMaintenance Hint
135Stop lamp switch failure
When malfunction of stop
lamp switch – implausible
condition of stop lamp signal
input
DMonitoring the actual operational
status and vehicle speed signal
through scan tool
DInspection the Engine Control Module
(ECM) pin 49 about short circuit or
open with bad contact
DInspection the contact condition of
stop lamp switch
DInspection the ECM
Circuit Description
The stop lamp switch is normally opened. When the ignition switch ON and brake ON, the battery voltage is supplied to
the ECM. A scan tool should display ON when brake pedal is depressed and should read OFF with brake pedal rele-
ased.

M161 ENGINE CONTROLS 1F2 -- 77
D AEW OO M Y_2000
ENGINE RPM
KAB1F330
Failure
CodeDescriptionTrouble AreaMaintenance Hint
32
Engine rpm output
circuit short circuit to
battery
When short circuit to battery
DMonitoring the actual rpm in cluster
DInspection the Engine Control Module
(ECM) pin 60 about short circuit or
open
33
Engine rpm output
circuit short circuit to
ground or openWhen short circuit to ground
or open
open
DInspection the cluster panel board
circuit
DInspection the ECM

1F2 -- 78 M161 ENGINE CONTROLS
D AEW OO M Y_2000
EXHAUST SYSTEM
CATALYTIC CONVERTER
The purpose of the catalytic converter is to convert the three pollutants of carbon monoxide (CO), hydrocarbons (HC)
and oxides of nitrogen (NOx) contained in the exhaust of gasoline engines, into the harmless compounds of water
(H2O), carbon dioxide (CO2) and nitrogen (N2).
The catalytic converter contains a catalyst, a word coming from the Greek and which designates the element essential
for catalyst which triggers chemical reactions without itself being consumed.
These catalysts in the 3 -- way catalytic converter are the rare metals platinum (Pt) and rhodium (Rh).
The catalytic converter consists essentially of three main elements. The exhaust gases flow through the catalytic con-
verter and, in so doing, coming into contact with rare metals (Pt and Rh).
The following chemical reaction are produced.
CO + O2→CO2
HC + O2→CO2 + H2O
NOx→N2 + O2

M161 ENGINE CONTROLS 1F2 -- 79
D AEW OO M Y_2000
BLANK

1F2 -- 80 M161 ENGINE CONTROLS
D AEW OO M Y_2000
OXYGEN SENSOR
YAA1F650
The oxygen sensor is unique among the engine control sensors because is acts like a battery and is able to generate
its own low voltage signal. It is located the exhaust system and monitors the amount of oxygen in the exhaust stream
and provides feedback to the Engine Control Module (ECM).
The electrically heated oxygen sensor warms up quickly and remains hot, even at idle when the exhaust manifold may
cool down.
The ECM applies a reference voltage of 450 mv to the
oxygen sensor, the ECM compares this reference volt-
age with the voltage generated by oxygen sensor. The
amount of voltage the oxygen sensor generates is pro-
portionate to the difference between the amount of oxy-
gen in the outside air and the exhaust gases. The
atmosphere contains about 21% oxygen. The exhaust
from a rich air/fuel ratio contains almost no oxygen. With
a large difference between the amounts of oxygen con-
taining the two surface, the sensor generates less volt-
age. When the exhaust gas is rich (below 14.7:1), the
voltage output is high, above 450 mv. When the exhaust
gas is lean (above 14.7:1 air/fuel ratio), the sensor ’s
voltage output is low, below 450 mv.
The ECM uses oxygen sensor information for:
DOpen loop / closed loop criteria
DIdeal air / fuel ratio
YAA1F660

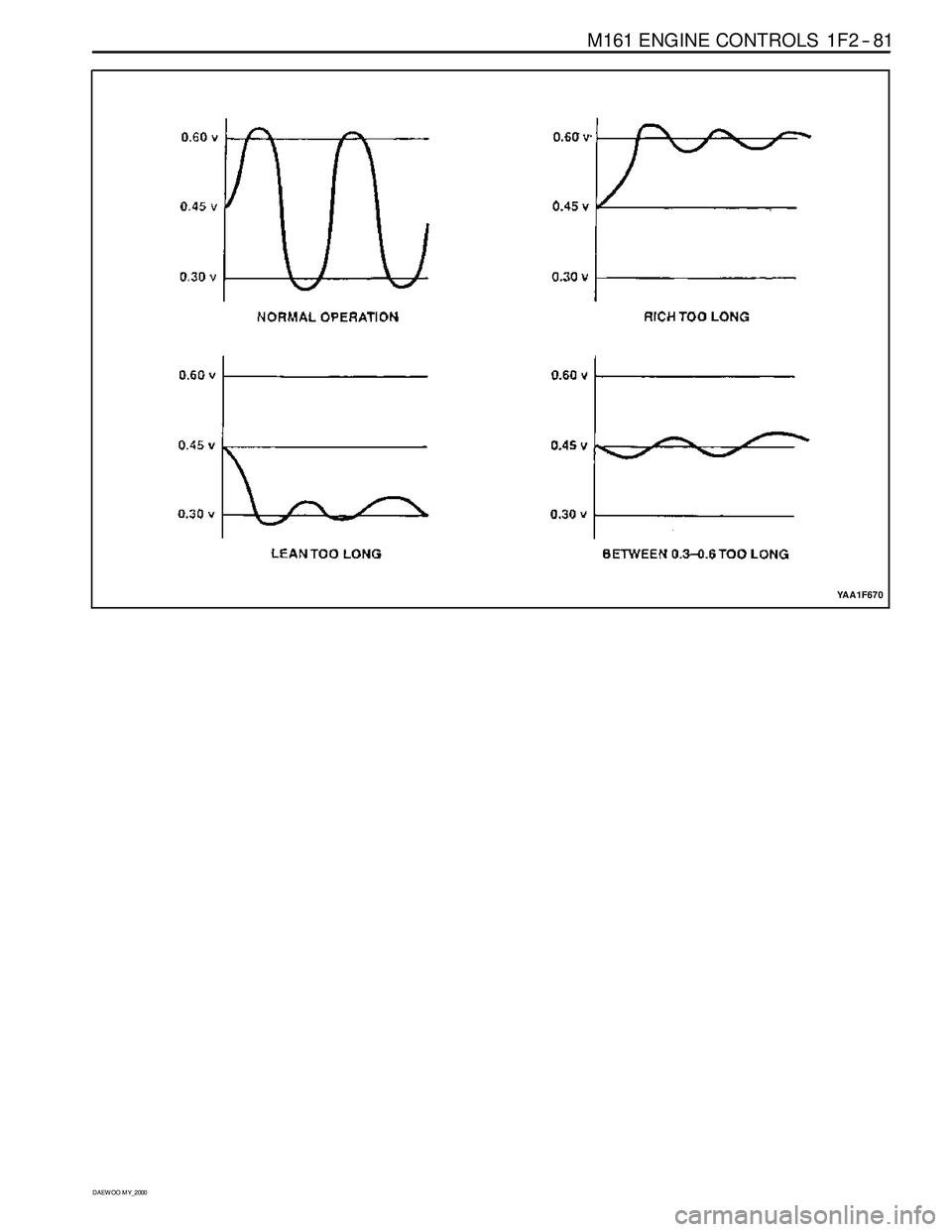

M161 ENGINE CONTROLS 1F2 -- 81
D AEW OO M Y_2000
YAA1F670

1F2 -- 82 M161 ENGINE CONTROLS
D AEW OO M Y_2000
KAB1F340
Failure
CodeDescriptionTrouble AreaMaintenance Hint
80Oxygen sensor high
voltage
When recognition the output
that more than nominal
threshold, malfunction of
sensing voltage.
89Oxygen sensor low
voltage
When recognition the output
that more than nominal
threshold, malfunction of
sensing voltage.DMonitoring the actual output signal
through scan tool
DInspection the ECM pin 16, 17 about
htiitithbdtt
82Oxygen sensor no
activity detectedWhen recognition the output
that not active the sensor etc.short circuit or open with bad contact
DInspection the oxygen sensor
DInspectiontheECM
83
Oxygen sensor not lean
after overrun fuel
shut -- offWhen recognition the output
that no lean signal after
overrun fuel shut -- offDInspectiontheECM
84Oxygen sensor slow
responseWhen slow response of
sensor signal
85Oxygen sensor heater
failureWhen recognition the heating
circuitDMonitoring the heating status through
scantool
86Oxygen sensor heater
short circuit to battery
When recognition the heating
currents that more or less
than set values (less than 0.2
Aormorethan2A)scantool
DInspection the ECM pin 9 about short
circuit or open with bad contact
DInspection the heating power source
DInspectiontheheatingcircuitof
87
Oxygen sensor heater
short circuit to ground or
openWhen recognition the heating
voltages than less than set
values (less than 2 v)DInspectiontheheating circuitof
oxygen sensor
DInspection the ECM
