01-8
3. RECOMMENDED FLUIDS AND LUBRICANTS
Descriptions Capacity Specifications
Engine OilDiesel 2.0≒ 6.0ℓ Quality class: Ssangyong genuine engine oil
(Total Quartz INEO ECS 5W 30, SK ZIC SY
5W 30 or oil Approved by MB 229.51 SAE 5W30)
Engine Coolant Diesel 2.0≒ 8.5ℓ Ssangyong genuine coolant
Anti-Freeze: SYC-1025
Manual Transaxle
Fluid6-speed≒ 1.6ℓ Ssangyong genuine oil (HD MTF 75W/85
(SHELL) or HK MTF 75W/85(SK))
Transfer Case Fluid
4WD ≒ 0.58ℓ Ssangyong genuine oil
(IDEMITSU LW 80W/90)
Rear Axle Oil 4WD ≒ 0.7ℓ Ssangyong genuine oil
(SAE 80W/90, API GL-5)
Brake / Clutch Fluid As required Ssangyong genuine oil (DOT4)
Power Steering Fluid≒ 1.0ℓ Ssangyong genuine oil (ATF DEXRON II)
* TOTAL FLUIDE DA (Extreme cold condition
only)
Use only Ssangyong genuine fluids. Use of non-recommended products could cause damage to
the unit
Keep the specified capacity and service interval. -
-

14-170000-00
2. OPERATING PROCESS
System diagram ▶
Operation ▶
EEM monitors the electric loads and battery conditions and controls the voltage to improve the fuel
economy and battery charging efficiency.
EBS on “-“ terminal of battery sends the battery information (voltage, current, tem
perature and
SOC) to engine ECU with LIN communication.
Engine ECU outputs the information from EBS and regulating control signal (PWM) according to the
<008c0095008e00900095008c0047009300960088008b0047008a00960095008b0090009b009000960095009a0047009b0096004702c8007302c90047009b008c009900940090009500880093004700960095004700880093009b008c009900950088009b00
9600990055>
Engine ECU controls the magnetic resistance between stator coil and rotor coil by controlling the
current in rotor coil according to PWM duty value.
The alternating voltage induced to stator coil is converted to direct voltage by rectifier. And, EBS
<0096009c009b0097009c009b009a0047009b008f008c0047008a008f00880099008e00900095008e0047009d00960093009b0088008e008c0047009b0096004702c8006902c90047009b008c00990094009000950088009300470096009500470088009300
9b008c009900950088009b009600990055> -
-
-
-
-

01-50000-00

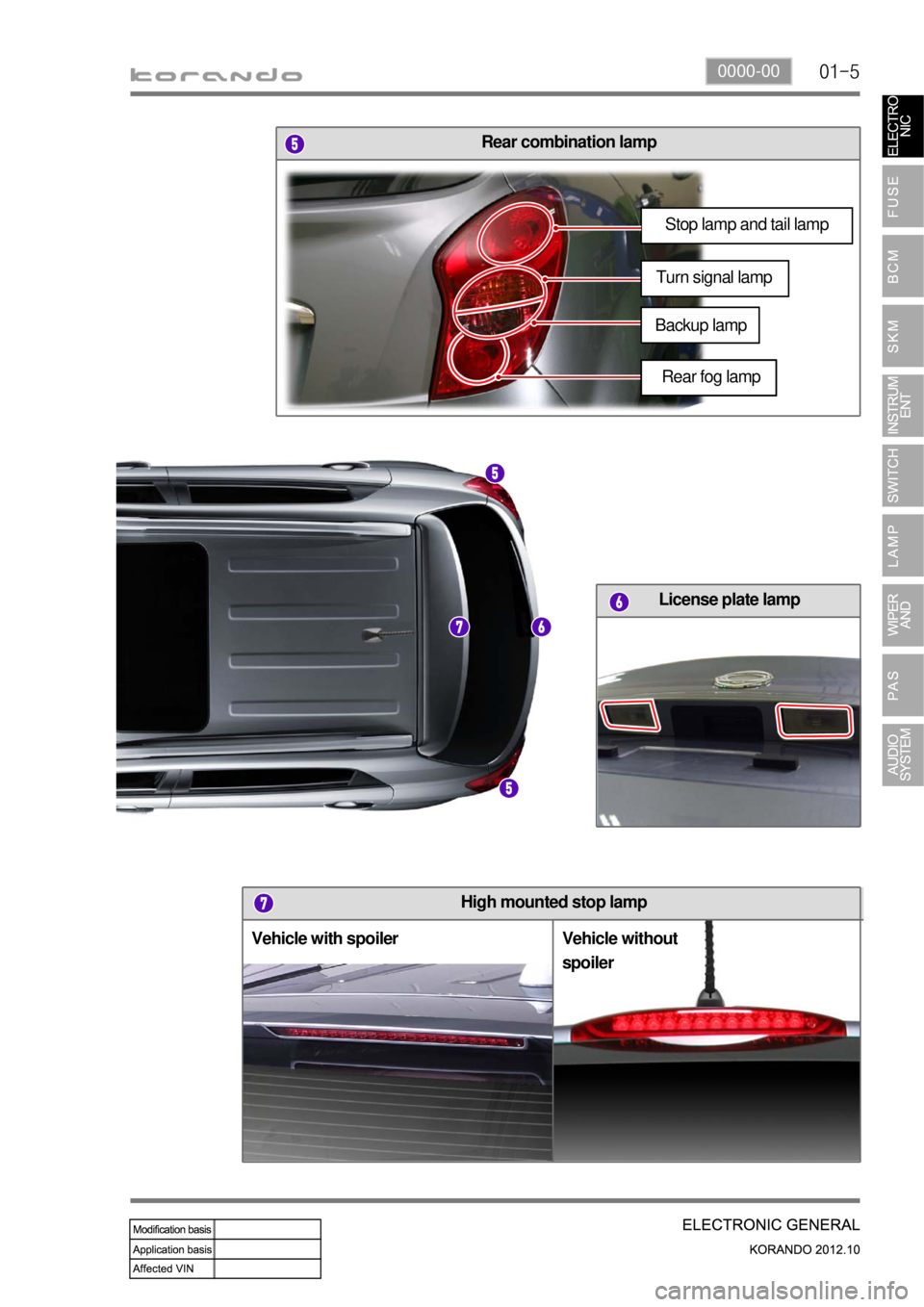

High mounted stop lamp
Rear combination lamp
Vehicle without
spoiler Vehicle with spoiler
License plate lamp
Stop lamp and tail lamp
Rear fog lamp
Turn signal lamp
Backup lamp

05-138010-01
Indicator
(amber)
ESP ▶
ESP OFF indicator ▶
Engine check warning lamp ▶
Indicator
(amber)
Indicator
(amber)
Indicator (red)
Battery charge warning lamp ▶
Indicator (red)
Engine oil level warning lamp ▶This lamp comes on if any sensor or device related to the engine control is
defective.
This lamp comes on when the start switch is ON or when the battery level is
low.
(For EEM, warning lamp is controlled according to CAN signal)
This lamp comes on when the ignition switch is turned to "ON" position,
and then goes off if the engine oil level is normal.
If the engine oil level warning lamp comes on while driving, check the
engine oil level and oil leakage. -
- This indicator comes on when the ESP system is faulty.
This indicator comes on when pressing the ESP OFF switch.

05-48
Pin No.Message
Operating condition
Domestic Export
Cruise control This message comes on when the ECO cruise mode
is deactivated.
EMSThis message comes on when the engine is faulty.
LampThis message comes on when the tail lamps are ON
with the ignition in the "OFF" or "ACC" position.
SUNROOF
SYSTEMFor the vehicle with SKM, this message comes on
when the sunroof is open with the ignition in the "OFF"
or "ACC" position. For the vehicle without SKM, this
comes on when the sunroof is open with the ignition in
the "OFF" position and the key removed.
Low fuel level This message comes on when the remaining fuel is
insufficient.
ESP checkThis message comes on when the ESP system is
faulty.
ABS check This message comes on when the ABS system is
faulty.
Engine oil level
checkThis message comes on when the engine oil level is
low. Pin No. Message Operating condition

06-318510-00
Multifunction wiper switches
2) Multifunction Switch
Multifunction light switches
Light switch
Front wiper switch
Wiper speed dial
Rear wiper switch Front fog lamp switch
Front auto washer switch The multifunction switch contains the auto washer and wiper switch, front fog lamp switch and auto
hazard warning flasher switch. For the vehicle with air bag, since the contact coil is fitted to the upper part
of the multifunction switch and ESP steering wheel angle sensor is fitted to upper part of the contact coil,
pay attention to when removing and fitting or checking the wiring.

07-2
1. LAMP SPECIFICATIONS
1) Exterior Lamps
Item Type Amount
Front lampHeadlamp (high beam/low beam) BULB: H4 2 EA
Turn signal lamp BULB: PY21W 2 EA
Position lamp BULB: W5W 2 EA
Fog lamp BULB: H27W/2 2 EA
Rear lamp
Stop lamp and tail lampBULB: 12V27/8W (Korea)
P21/5W (Other countries)2 EA
Turn signal lampBULB: 12V27W (Korea)
P21W (Other countries)2 EA
Backup lampBULB: 12V27W (Korea)
P21W (Other countries)2 EA
Stop lamp/Rear fog lamp
(Other countries)BULB: 12V27W (Korea)
P21W (Other countries)2 EA
High-mounted stop lamp LED
(Without spoiler)
(With spoiler)12 EA
24 EA
License plate lamp BULB: W5W 2 EA
Side lampSide repeater lamp LED 5 EA
Puddle lamp LED 2 EA
2) Interior Lamps
Item Type Amount
Front room lampBULB (10W-FESTOON) 2 EA
Center room lampBULB (10W-FESTOON) 1 EA
Luggage lampBULB (10W-FESTOON) 1 EA
Sun visor lampBULB (5W-FESTOON) 1 EA
Glove box lampBULB (5W-FESTOON) 1 EA
Door courtesy lampBULB (5W-WEDGGE) 1 EA
Item Type Amount
Front lampHeadlamp (high beam/low beam) BULB: H4 2 EA
Turn signal lamp BULB: PY21W 2 EA
Position lamp BULB: W5W 2 EA
Fog lamp FRT BULB: H27W/2 2 EA
RR BULB: H21W/2 2 EA

07-58310-00
Rear combination lamp
Vehicle without
spoiler Vehicle with spoiler
License plate lamp
Stop lamp and tail lamp
Rear fog lamp
Turn signal lamp
Backup lamp
High mounted stop lamp

08-10
Rain sensor unit
3. SYSTEM LAYOUT (INCLUDING RAIN SENSOR)
Wiper
Front wiper
Rear wiper
Rear washer hose and nozzle
For vehicles with
rear spoilerFor vehicles without rear
spoiler
WIPER AND WASHER SWITCH

01-10
A/T assembly
Automatic transmission is available as 4WD- and 2WD-type,
and provides 6 speeds for forward travel and 1 reverse
travel. It is also equipped with the torque converter with inner
lock-up clutch and electronically controlled solenoid which
controls all hydraulic functions.
3. CHASSIS COMPONENT LAYOUT
PTU (Power Transfer Unit)
The PTU is a device that transfers the power
generated from the engine to the rear axle through
propeller shaft and E-coupling by changing the power
<008d00930096009e0047008b00900099008c008a009b0090009600950047008900a000470060005700b60047009000950047009b008f008c0047008d009900960095009b0047009e008f008c008c00930047008b00990090009d008c0047009b00a0009700
8c0047>
4WD vehicle.
Rear axle assembly
The rear axle installed in this car is a removable
axle, called IRDA (Independent Rear Differential
Axle). The rear differential carrier is installed
directly on the sub frame, and there is an
independent suspension that allows each wheel
on the same axle to move vertically independentl
y
of each other with the universal joint and the slip
joint.
E-coupling control unit (E-Coupling ECU)
The E-coupling unit is a control unit which determines
the magnetic force by considering CAN signals (wheel
speed, engine torque, pedal opening, ABS/ESP CAN
signals, etc.) from other ECUs.
Inhibitor switch
Torque converter Oil pan
E-coupling sideRear axle side
Propeller shaft
1) 4WD Vehicle With Automatic Transmission
GSLDSLInhibitor switch
Torque converter Oil pan
