SSANGYONG KORANDO 2013 Service Manual

2) The chassis number
(KPTA0B1SSAP012345) is stamped on the righ
t
side in the engine compartment (passenger
side).
3) The certification label is affixed on the bottom
of driver side B-pillar. (30 psi)
1) The engine number (671 950 0 2 5000001) is
stamped on the lower area of cylinder block in
exhaust manifold side.
2) Identifications

0000-00
VIN NO.
Engine NO.

2. SPECIFICATION* ( ) option

0000-00

3. RECOMMENDED FLUIDS AND LUBRICANTS
Use only Ssangyong genuine fluids. Use of non-recommended products could cause damage to
the unit
Keep the specified capacity and service interval. -
-

0000-00

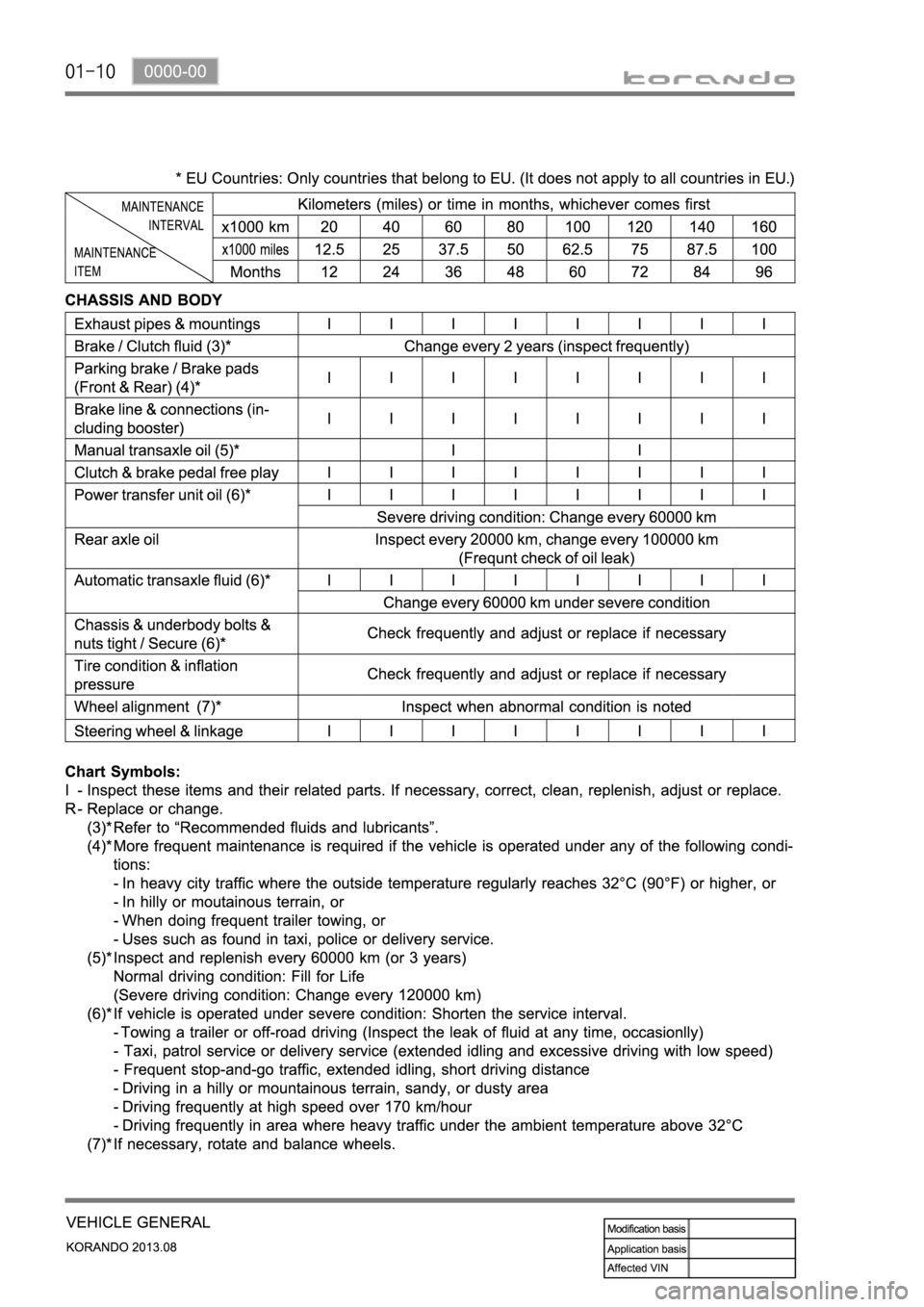

4. SCHEDULED MAINTENANCE SERVICES

0000-00

0000-00
1. SPECIFICATIONS
System Unit Description Specification
Intake
systemAir cleaner elementFiltering type Dry, filter element
Filtering area
Service intervalEU: Change every 20,000 km
(But, shorten the service
interval under severe
conditions)
GEN: Clean every 7,500 km,
change every 15,000 km (But,
shorten the service interval
under severe conditions)
Air cleaner assemblyWeight 1.5kg
Operating temperature
Capacity 8L
IntercoolerCore material Aluminum
Size 510X122X67(WxHxT)
Tank materialPlastic (Molding)
Efficiency 80%
Exhaust
systemTurbocharger assemblyMax. temperature of turbine
housing
Diameter of turbine housing
Diameter of compressor
housing
Cooling type Air cooled type
