SSANGYONG KORANDO 2013 Service Manual

8910-05
2. CAUTIONS AND WARNING FOR SAFETY
This mark indicates potentially hazardous situation which, if not observed, may result in serious
injury and material damage.
Ssangyong is not liable for any personal injury and material damage, caused by violation of traffic
regulations or neglect of observing actual traffic and driving situations.
Colors on display figures in this manual may differ from actual display due to publication concerns. -
-
-
This mark indicates situation which, if not observed, may result in an accident or system
malfunction.
Do not disassemble or modify this system.
If doing so, it may cause an accident, fire or electric shock.
Do not use the system if it is malfunctioning (sound or video output problem).
Doing so may lead to an accident or electric shock.
Please contact a Ssangyong service dealer immediately.
The system should be used only when the engine is started.
Using the system for an extended period of the with the engine off may discharge the battery.
Do not leave beverages or foreign materials around the system.
If they enter the system, they may cause a fire.
The system may break down if a disc not supported by this system is inserted.
Do not apply impact to or drop this system.
It might cause malfunction.
Never leave the system in a hot or cold place for an extended period of time. Therefore, do not
-
-
-
-
-
-
-
-

LCD display digital clock
LCD resolution
- LCD display resolution increased
Audio head unit
- Audio head unit design changed
3. MAJOR CHANGES
Audio head unit
Digital clock

8910-05
USB & AUX jack
- USB & AUX jack switch arrangement changed
- iPod support function added to USB terminal
USB & AUX jack
USB cable
USB cable length changed due to new instrument panel -
Front & rear feeder cables
Front and rear feeder cables length changed due to new instrument panel -

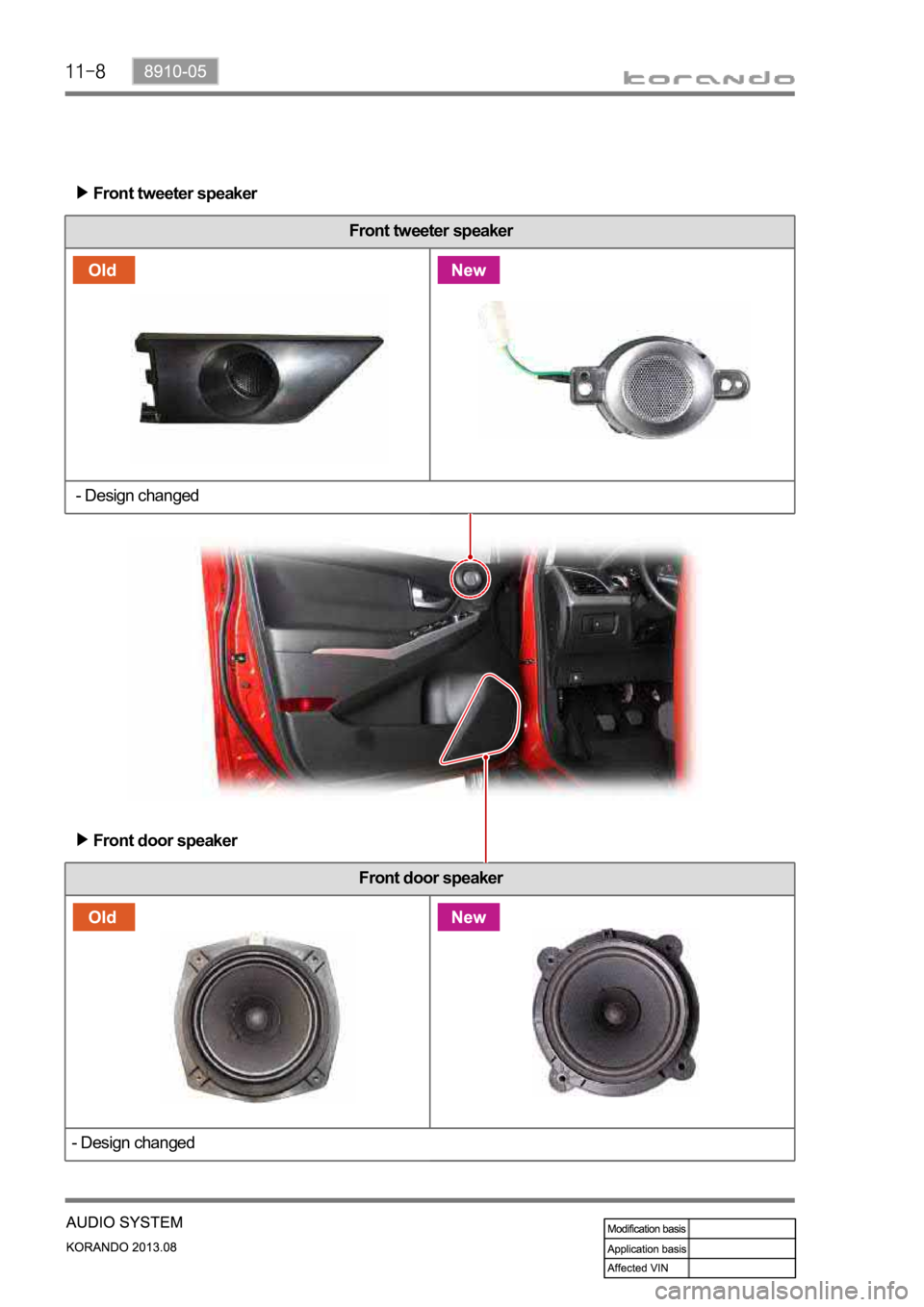

Front tweeter speaker
- Design changed
Front door speaker
- Design changed
Front tweeter speaker
Front door speaker

8910-05

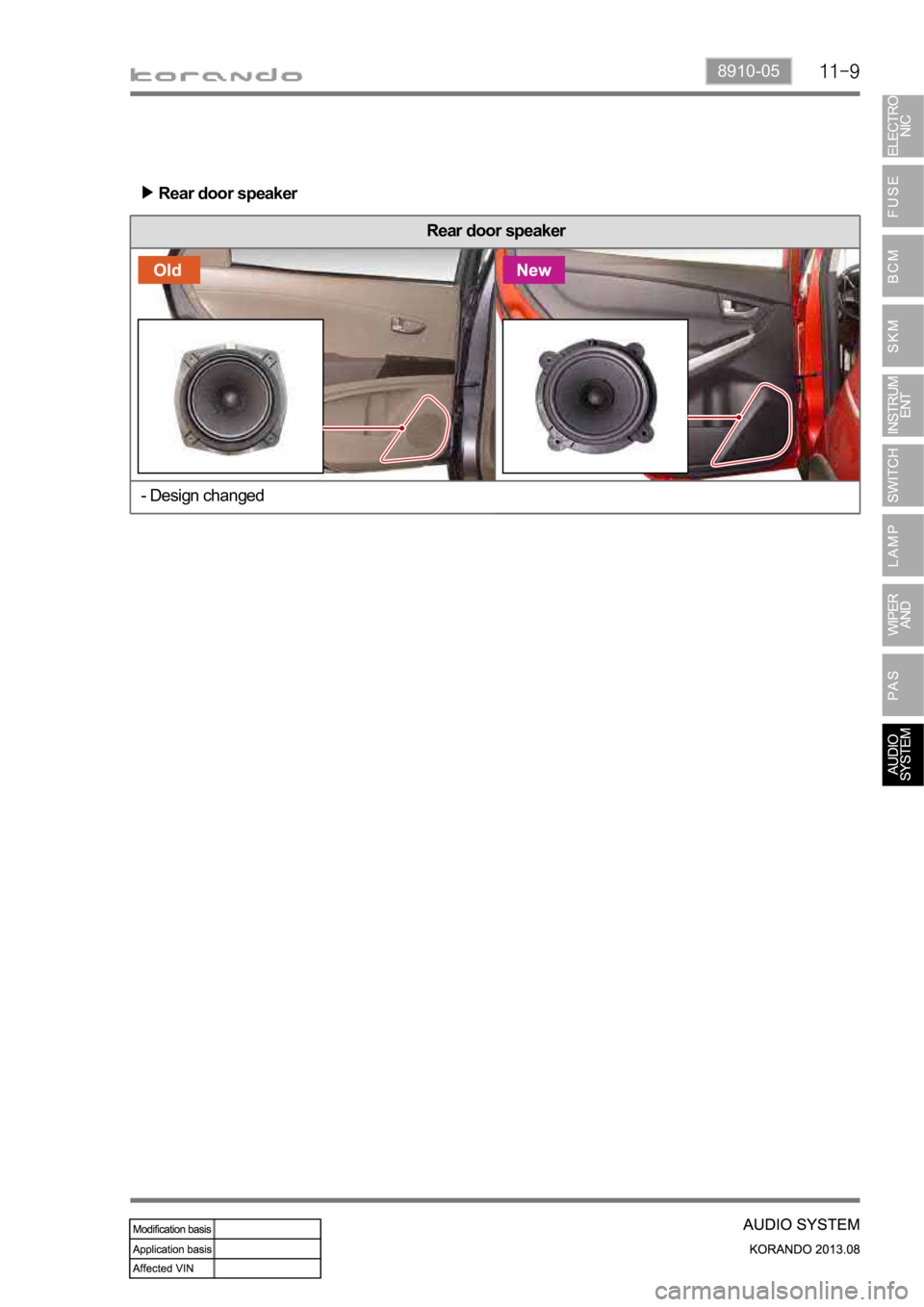

Rear door speaker
Rear door speaker
- Design changed

1. OVERVIEW
The audio head unit is fitted with the Bluetooth handsfree for convenience. It has a micro pole antenna
and its own integrated amplifier to improve the radio frequency reception rate and to provide the high-
quality sound. The iPod function also has been added to the USB terminal.
Front door speakerAudio remote
control switch
Audio head unit USB & AUX jack
assemblyBluetooth (hands
-free)microphone
Front door tweeter
speaker

8910-05
Micro pole antennaRear door speaker
Bluetooth (hands-free)
microphone
Audio remote
control switch
USB/AUX jack assembly
Audio head unit

Bluetooth (hands-free)
microphone
It sends the transmission tone
signal to the head unit and outputs
the receiving tone and navigation
guidance sound to the driver's door
speaker during hands-free calling.
Audio head unit
The audio system plays a
various types of music
such as radio, MP3, CD,
USB and iPod. It has a
built-in high output
amplifier, allowing to
provide the high-quality
sound.
Micro pole antenna
Micro pole radio antenna is fitted
to ensure the high sensitivity.Bluetooth (hands-free)
Once the pairing is complete, after
searching for the Bluetooth phone, you
can use a various functions and contents
in the phone via Bluetooth.
Audio remote control switch
Outputs the signal when
power, mode, volume
up/down, handsfree, seek
up/down, mute switch is
operated.USB/AUX jack assembly
Sends USB signal, AUX
(stereo) and iPod output
signals.

8910-05
Door speaker FL
Door speaker RL
Door speaker FR
Door speaker RR
Tweeter speaker FL
Tweeter speaker FR

1) Audio Head Unit
4. SWITCH OPERATION AND FUNCTION
No. Name Description
1 Display window Displays operation status and various information
2 [BAND/AS] button Briefly press: Switching between AM and FM radio
Press and hold: Registering and storing station with good
reception automatically
3 [SCAN/INF] button Briefly press: Scanning receivable stations or displaying
other information of music currently playing
Press and hold: Displaying data table of music currently
playing
4 [MEDIA] button Playing connected external device such as
USB/iPod/Bluetooth/AUX
5 [SET] button Enter into setting mode
6 Adjustment button
7 Dial button Briefly press: Receive a phone call
Press and hold: Connect to Bluetooth phone
8 End button Briefly press: End a call
Press and hold: Disconnect Bluetooth phone
Radio mode
Briefly press: Search broadcasting frequency
Press and hold: Search receivable frequency
MP3/CD/USB/iPod mode
Briefly press: Move to previous/next song
Press and hold: Fast forwarding/rewarding -
-
