SSANGYONG MUSSO 2003 Service Manual

DOORS 9P-3
MAINTENANCE AND REPAIRON-VEHICLE SERVICE
FRONT DOOR
Removal & Installation Procedure
1. Remove the pin from the center hinge of the door.
2. Remove the upper/lower hinge bolts from the body and remove the door assembly.
3. Installation should follow the removal procedure in the reverse order.

9P-4 DOORS REAR DOOR
Removal & Installation Procedure
1. Remove the pin from the center hinge of the door.
2. Remove the upper/lower hinge bolts from the body andremove the door assembly.
3. Installation should follow the removal procedure in the reverse order.

DOORS 9P-5
TAIL GATE
Removal & Installation Procedure
1. Remove the shock absorber mounting bolts.
2. Disconnect the tailgate wiring harness.
3. Remove the tailgate by removing the tailgate bracket bolts.
4. Installation should follow the removal procedure in thereverse order.

9P-6 DOORS
Adjustment Procedure
1. Adjust the striker in forward / rearward and left / rightdirections. Adjust striker height by increasing / decreasing the shims.

2. Adjust the position of the striker as described above.
3. Adjust the position of the safety hook as described above.

SECTION 9Q
ROOF
TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9Q-2 Sun Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Q-2
Maintenance and Repair . . . . . . . . . . . . . . . 9Q-3 On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . .
9Q-3
Sun Roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Q-3

9Q-2 ROOF
SUN ROOF
SCHEMATIC AND ROUTING DIAGRAMS

ROOF 9Q-3
MAINTENANCE AND REPAIRON-VEHICLE SERVICE
SUN ROOF
1 Inner Sliding Sun Roof Assembly
2 Sun Roof Body Mounting Bracket
3 Drain Hose Rear Grommet
4 Sun Roof Motor Spanner
5 Mounting Clip 6 Mounting Bracket
7 Mounting Bracket Assembly
8 Sun Roof Mounting Bracket
11 Sun Roof Module Assembly

9Q-4 ROOF

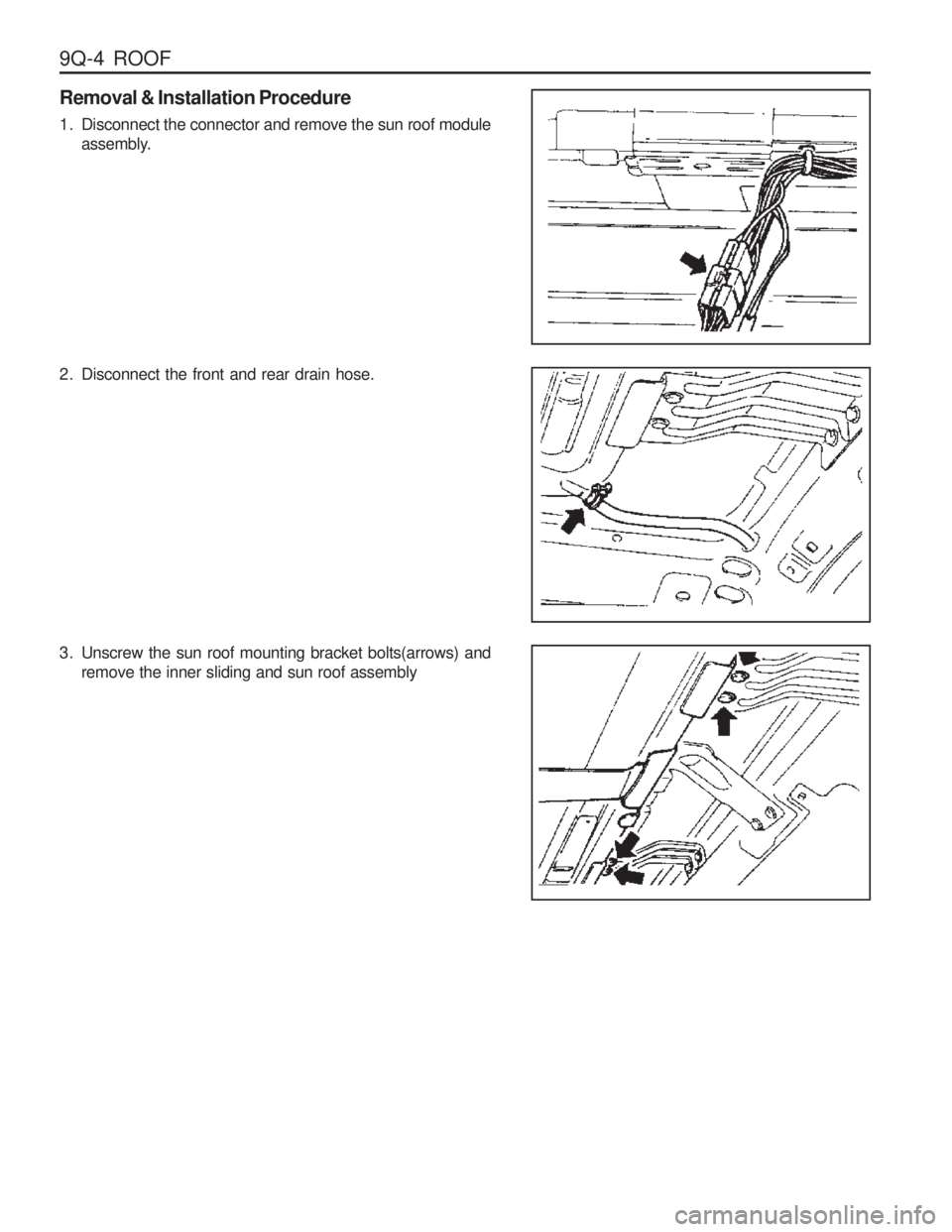

Removal & Installation Procedure
1. Disconnect the connector and remove the sun roof moduleassembly.
2. Disconnect the front and rear drain hose.
3. Unscrew the sun roof mounting bracket bolts(arrows) and remove the inner sliding and sun roof assembly

SECTION 9R
BODY FRONT END
TABLE OF CONTENTS
Maintenance and Repair . . . . . . . . . . . . . . . 9R-2
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . . 9R-2 Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9R-2
Fender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9R-5

9R-2 BODY FRONT ENDMAINTENANCE AND REPAIR
ON-VEHICLE SERVICE
HOOD
1 Hood
2 Sping3 Hood Hinge Assembly
4 Bolt
