SSANGYONG NEW REXTON 2012 Service Manual

VEHICLE GENERAL
1. DIMENSIONS........................................
2. SPECIFICATIONS.................................
3. VEHICLE IDENTIFICATION...................
4. MAINTENANCE ....................................
5. RECOMMENDED FLUIDS AND
LUBRICANTS........................................
6. JACK POINTS.......................................
7. PIN ARRANGEMENT OF DIAGNOSTIC
CONNECTOR........................................
8. ELECTRIC COMPONENTS AND
LAYOUT................................................
9. TIGHTENING TORQUE OF
STANDARD BOLTS...............................3
4
6
7
19
20
21
22
24

0000-00

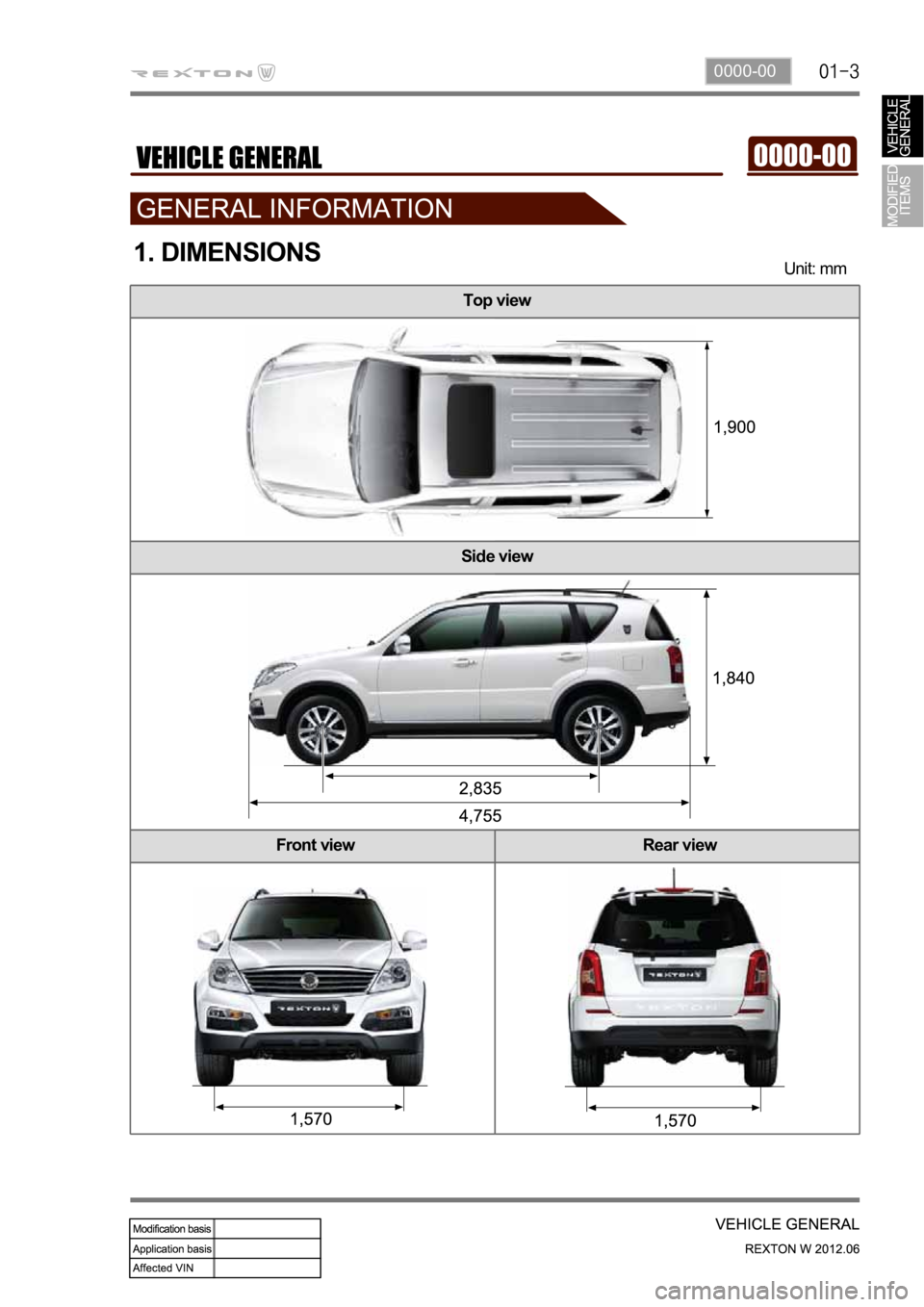

Top view
Side view
Front view Rear view
Unit: mm1. DIMENSIONS

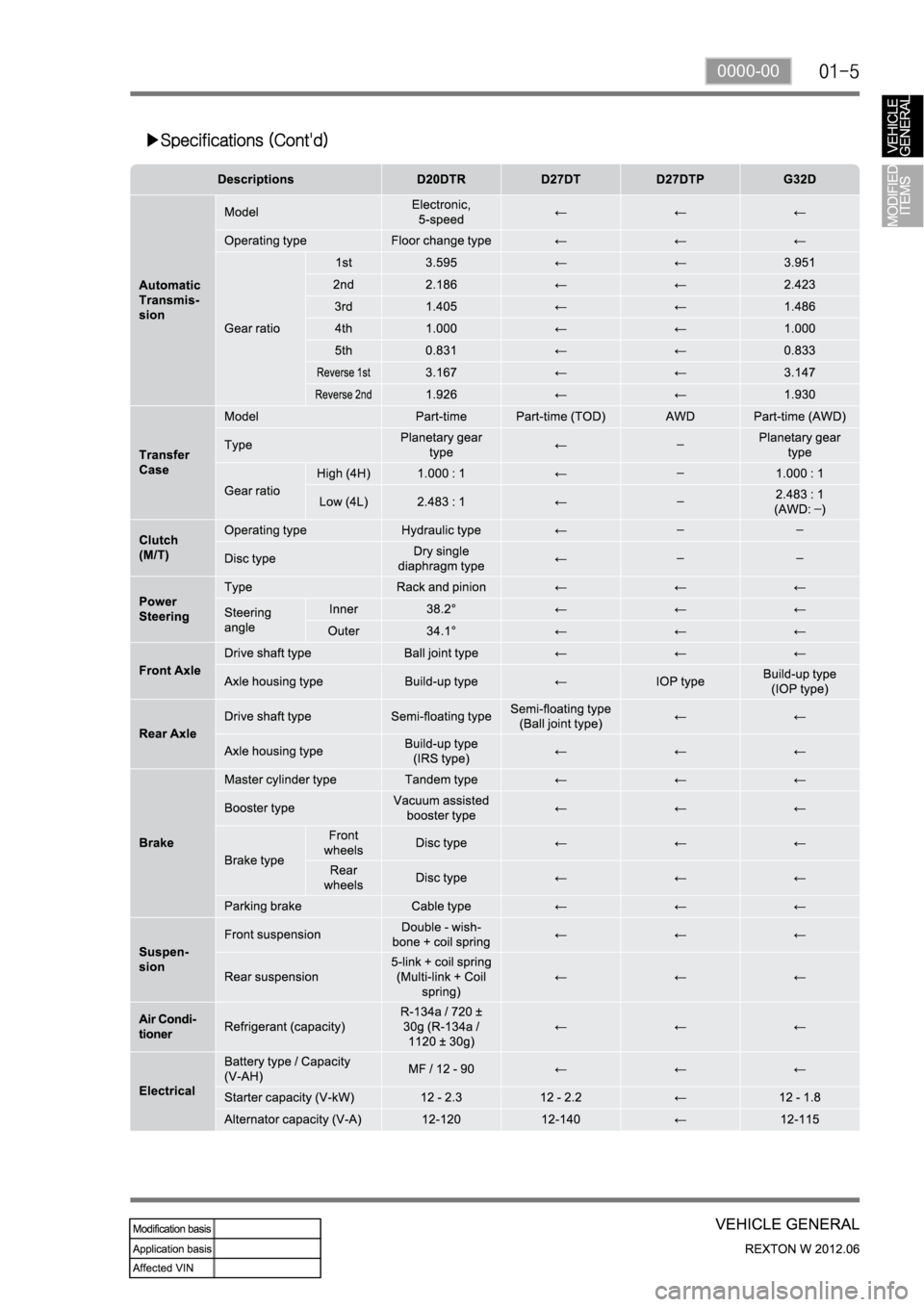

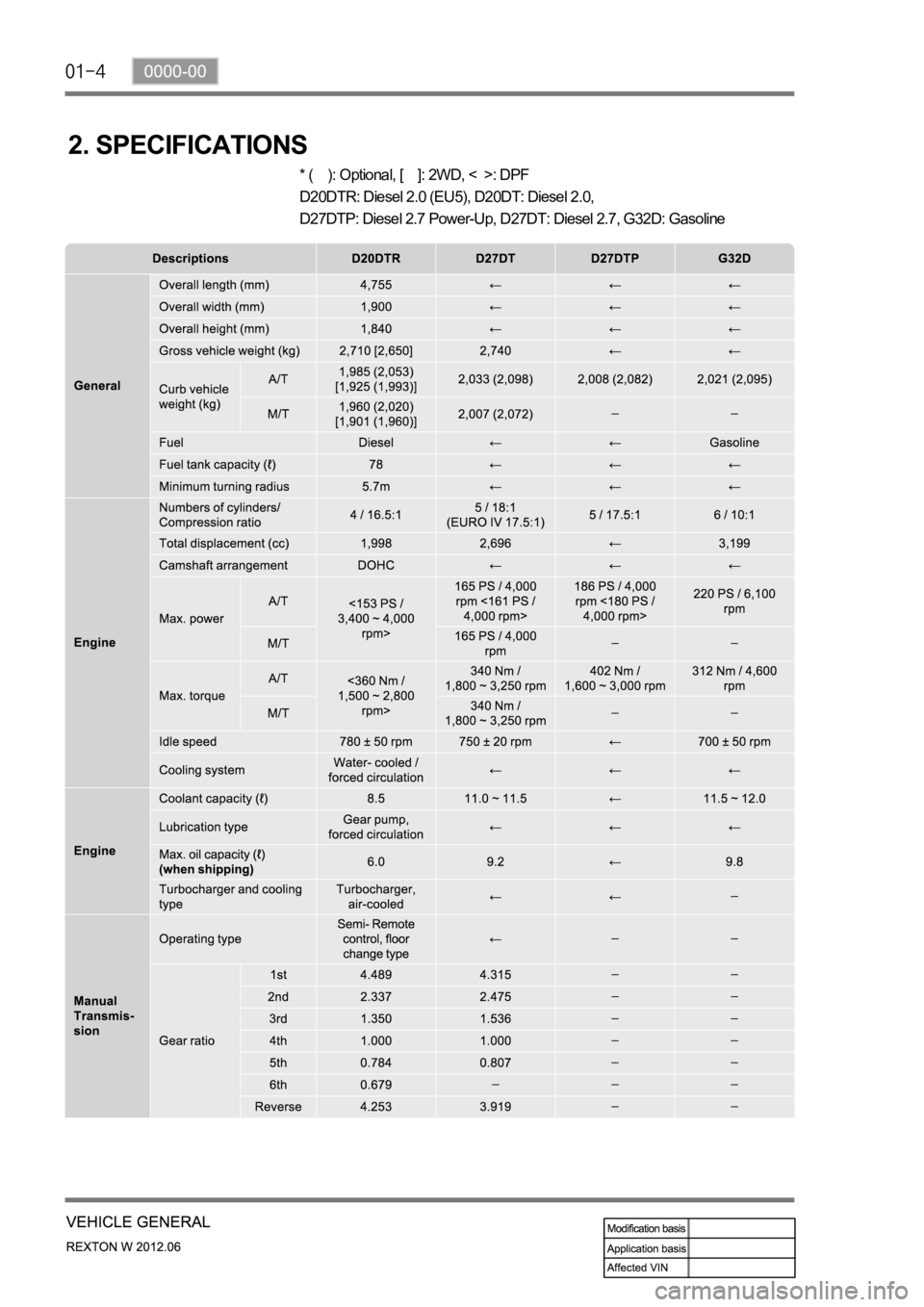

2. SPECIFICATIONS
* ( ): Optional, [ ]: 2WD, < >: DPF
D20DTR: Diesel 2.0 (EU5), D20DT: Diesel 2.0,
D27DTP: Diesel 2.7 Power-Up, D27DT: Diesel 2.7, G32D: Gasoline

0000-00

3. VEHICLE IDENTIFICATION
Engine Number
Gasoline Engine: The
engine number is stamped
on the lower area of
cylinder block in exhaust
manifold side.Vin LabelChassis Number
The chassis number is
stamped on the frame
behind the front right tire.
D20DTR D27DT D27DTP
Diesel Engine (D20DTR, D27DT, D27DTP): The engine number is stamped on the lower area
of cylinder block behind the Intake manifold.
Certification Label
The certification label is
sill.
