SSANGYONG NEW REXTON 2012 Service Manual

5720-03 Fender Panel &
Side Repeater Lamp
- Changed the fender panel design
according to the changes of head lamp
and front bumper.
- Moved the side repeater lamp to the
outside rearview mirror.
7930-11 Door Garnish
- Deleted the front and rear door garnishes.
7931-20 Side Lower Step
- Changed the side lower step design.
Side repeater lamp
Side
7110-10 Door Outside Handle
- Changed the door outside handle design.
7931-06 Front Wheel Arch Garnish
- Changed the front wheel arch garnish
design.

0000-00
7931-09 Rear Wheel Arch Garnish
- Changed the rear wheel arch garnish
design.
4170-34 Wheel
- Added the wheel types (sputtering type &
diamond cut type). Standard wheel: Alloy
wheel
- Unify the wheel & tire specification
(255/60R18)
7931-01 Side Sill Garnish
- Changed the garnish design (from
independent type to integrated type).Diamond cut typeSputtering type
5210-18 Side Outer Rear Panel
- Changed the side outer rear panel design
according to the changes of rear combination
lamp.

7881-01 Rear Bumper and Rear PAS Sensor
- Changed the rear bumper design.
Rear PAS sensorRear PAS sensor
Rear Side
7950-39 Quarter Badge
- Installed the brand logo on LH rear quarter
panel (Rexton W).
8912-26 Audio Antenna
- Changed the antenna type from shark type to pole
type.

0000-00
7940-02 Spoiler
- Added the wing type rear spoiler.
7880-13 Reflex Reflector
- Changed the reflex reflector according to
the changes of rear bumper.7940-34 Tailgate Lower Garnish
- Changed the tailgate lower garnish design.
Tail/Stop lampStop lamp
Turn signal lamp
Back-up
lamp
Tail lamp
Tail lamp
Turn signal
lamp
Back-up
lamp
Stop
lamp
8320-01 Rear Combination Lamp
- Changed the rear combination lamp design and functions.
- Changed the stop lamp and tail lamp to LED type.

2. INTERIOR
Center fascia upper panel
Center fascia
lower panel
Steering wheel
Center fascia upper panel
Center fascia
lower panel
Steering wheel
7610-01 Steering Wheel and Center Fascia Panel
- Changed the center fascia panel design.
- Changed the color of steering wheel wood grain.
Multi station switch
Hazard switch
Windshield heated
wire switchRear glass/outside rearview mirror
heated wire switch
PAS OFF switch PAS OFF switch
Hazard switch
HDC switch
ESP OFF switch
Windshield heated
wire switchRear glass heated
wire switch
8511-50 Center Fascia Switch and Bezel
- Changed the center fascia design, switches and
location.
- Changed to independent type switch from integrated
type switch.
- Introduced the ESP OFF and HDC switch.

0000-00
7632-00 Console Upper Fascia &
Console Armrest
- Changed the color of console upper fascia and
console armrest wood grain.
Digital Clock
- Deleted the multi-station and added the
digital clock.8912-01 Audio
- Changed the audio type
(added Bluetooth hands-free function).
8510-30 Power Outlet Socket
- For audio type, the power outlet is added on the top
of center fascia panel.
AV typeAudio type
Console
upper fascia
Console
armrest

7410-03 Front Seat
- Changed the seatback and seat cushion design.
7115-01 Door Panel
- Changed the front headrest design.
- Changed the color of front/rear door panel wood grain.
7410-12 Front Headrest
- Changed the front headrest design.
- Changed the tilting type from swing type to sliding type.

0000-00

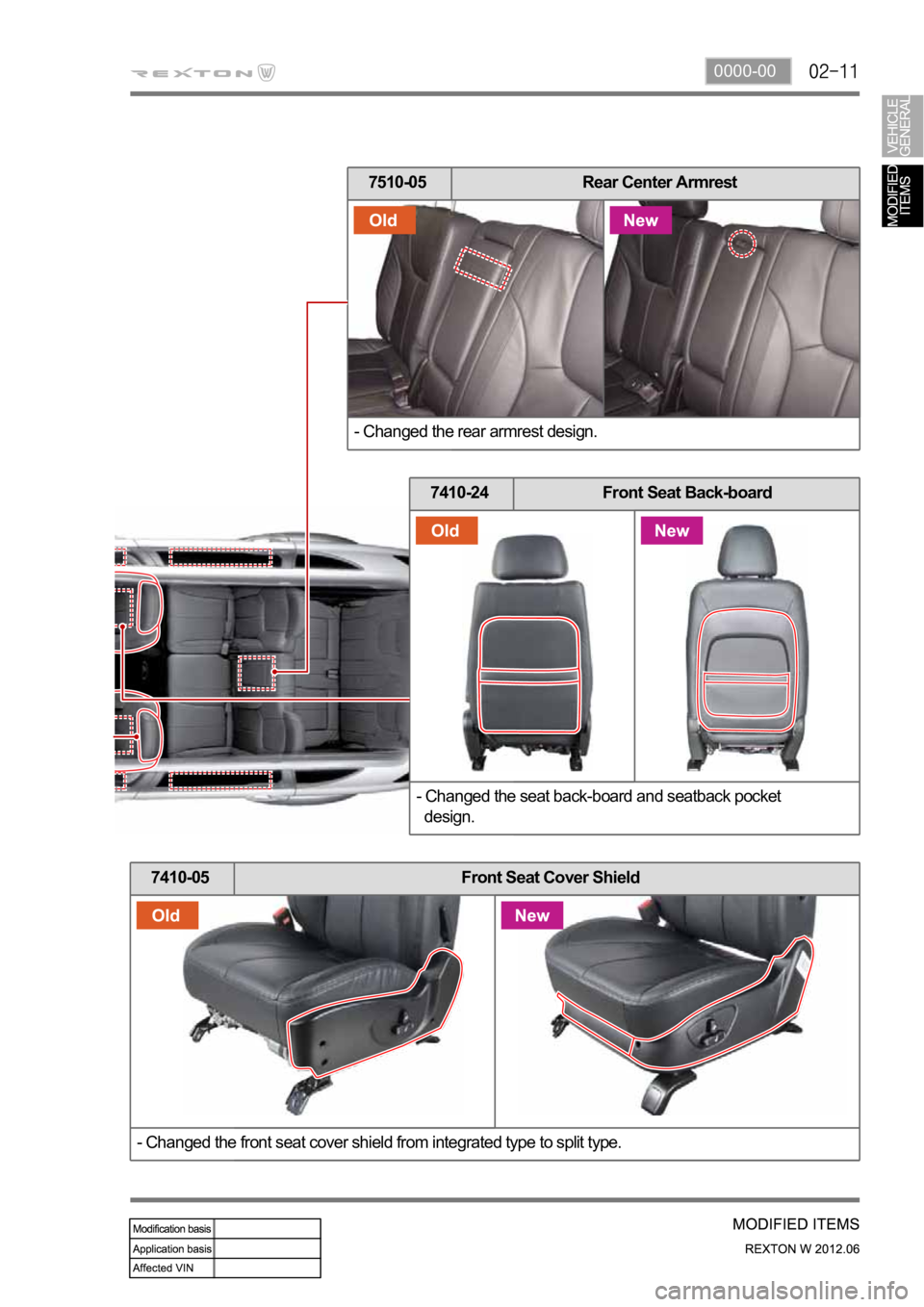

7410-24 Front Seat Back-board
- Changed the seat back-board and seatback pocket
design.
7510-05 Rear Center Armrest
- Changed the rear armrest design.
7410-05 Front Seat Cover Shield
- Changed the front seat cover shield from integrated type to split type.

8410-32 ICM Box
- Deleted the hazard lamp relay and added some
relays (rear side seat warmer, blower, rear
washer/wiper)
8010-01 Instrument Cluster
- Added TPMS related warning lamp and indicator.
3. ELECTRIC SYSTEM
7010-03 Blanking Key
- Changed mechanical key design.

0000-00
8790-03 PAS Sensor
- Changed the locking type from spring type to holder type.
8790-01 PAS Unit
- Changed the PAS sensor operating voltage
center).
