SSANGYONG REXTON 2006 Service Manual

undefined
8710-08
RKSTICS
When the washer switch is turned on for more than 0.6 seconds during the wiper operation
by AUTO switch, the wiper operates three times. When it is turned on for a certain period o
f
time (0.1 to 0.59 seconds), the wiper operates once. 3.

RKSTICS
undefined
8710-08
Auto Washer and Wiper Switch
When the auto washer switch is turned on with the ignition switch "ON" and the AUTO
switch "OFF", the washer motor output gets ON for 1 second. If the system recognizes the
output signal, the wiper relay output gets ON during 4 cycles and the washer motor output
gets ON for 1 second. Then, the wiper relay output gets OFF after 3 cycles. 1.

undefined
8710-08
RKSTICS
The auto washer switch output is overridden during the washer coupled wiper operation.
The auto washer switch input is overridden during the auto washer coupled wiper operation.
The auto washer switch input is overridden during the rain sensor coupled wiper or vehicle
speed sensitive AUTO wiper operation.
When the AUTO switch input is received during the auto washer operation, the auto washe
r
operation stops and the auto INT operation is activated. 2.
3.
4.
5.

RKSTICS
undefined
8710-08
Rain Sensor Coupled Wiper and Auto Light Control
If equipped with RKSTICS rain sensor, it has following operation system.
System layout

undefined
8710-08
RKSTICS
Auto Switch Position Reminder (Power-Up Reminder Wiper)
When turning off and on the IGN2 switch with the auto switch on, the system drives the
wiper motor through LOW relay one cycle regardless of communication with rain sensor.
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when changing the
auto switch from "OFF" to "ON" position regardless of communication with rain sensor(while
the ignition key is in the "ON" position).
When the auto switch is turned to the "ON" position again from the "OFF" position, the
system drives the wiper motor through LOW relay one cycle only when the rain senso
r
detects the "Rain Detected" signal. 1.
2.

RKSTICS
undefined
8710-08
Multifunction wiper switch:
AUTO and sensitivity controlRain sensing unit
(auto light integrated type)
A sensor that emits infrared rays through
LED and then detects the amount of rain
drops by receiving reflected rays against
sensing section (rain sensor mounting
section on the windshield) with photodiode
(auto light sensor integrated type)AUTO: Wiper operates automatically by
rain sensor FAST
SLOW: Auto
delay/Auto speed control. A position that
can control sensitivity against rains in the
windshield and transmits wiping demand
signal accordingly

undefined
8710-08
RKSTICS
Washer Coupled Wiper in Rain Sensing Mode
The washer coupled wiper is operated when receiving the washer switch input with the
ignition switch "ON" and the AUTO switch "ON" in the rain sensing mode. At this moment,
the communication with the rain sensor is overridden. However, the washer switch input is
overridden during the continuous operation.
The operation data is sent to the rain sensor even during the washer coupled wiper's
operation. 1.
2.
Rain Sensing Sensitivity Control
The wiper LOW relay is turned on and the wiper motor runs one cycle when the volume
sensitivity is increased (while the ignition key is in the "ON" position, the AUTO switch is in
the "ON" position, and the wiper motor is in "Parked" position). However, the wiper moto
r
can be operated only when the rain sensor detects the "Rain Detected" signal. 1.
If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper moto
r
runs only one cycle. *

RKSTICS
undefined
8710-08

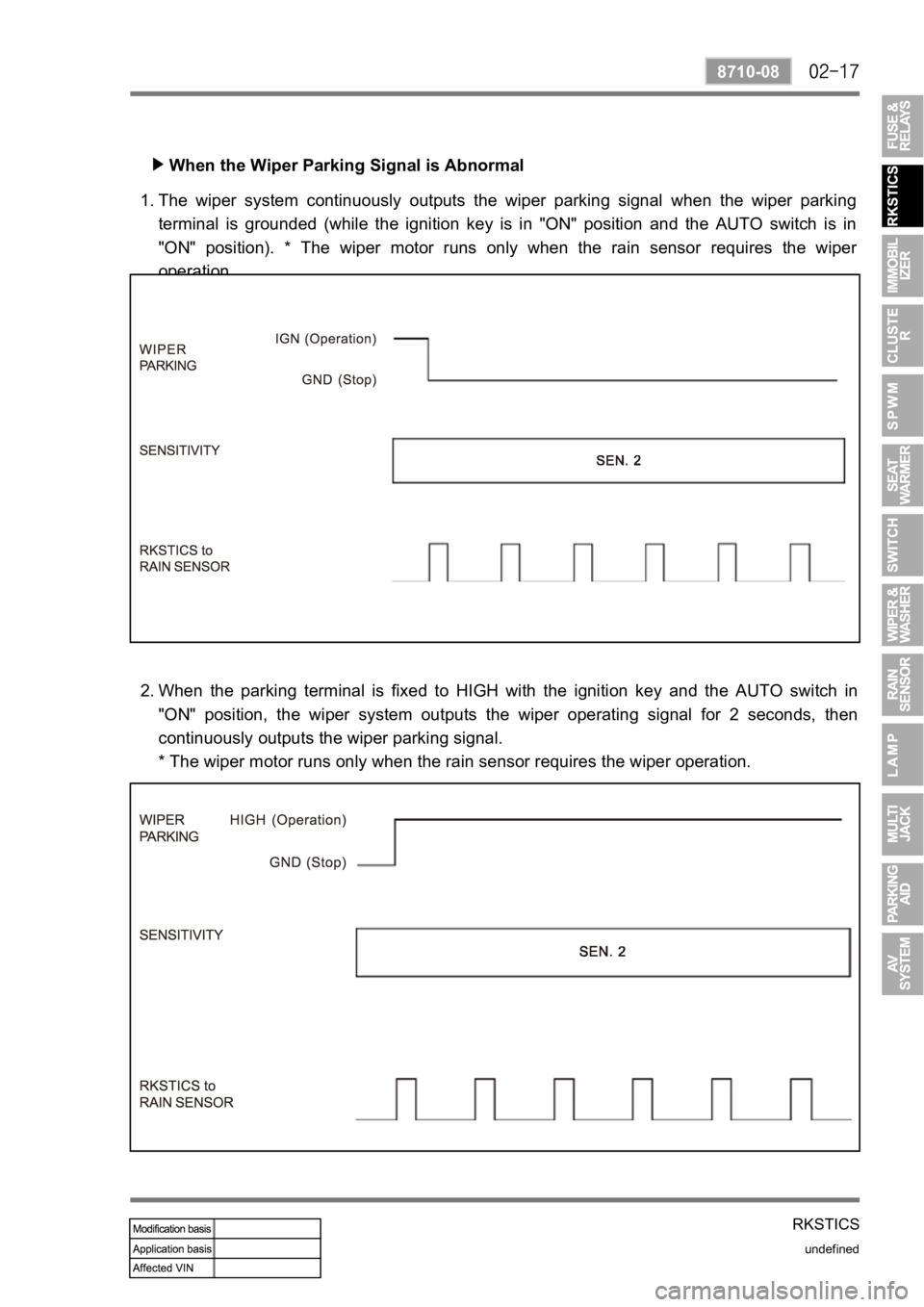

When the Wiper Parking Signal is Abnormal
The wiper system continuously outputs the wiper parking signal when the wiper parking
terminal is grounded (while the ignition key is in "ON" position and the AUTO switch is in
"ON" position). * The wiper motor runs only when the rain sensor requires the wipe
r
operation. 1.
When the parking terminal is fixed to HIGH with the ignition key and the AUTO switch in
"ON" position, the wiper system outputs the wiper operating signal for 2 seconds, then
continuously outputs the wiper parking signal.
* The wiper motor runs only when the rain sensor requires the wiper operation. 2.

undefined
8710-08
RKSTICS
Defective Rain Sensor
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 2 from 3 during receiving the malfunction signal from the rain
sensor (while the ignition key is in "ON" position and the AUTO switch is in "ON" position). 1.
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 3 from 4 during receiving the malfunction signal from the rain senso
r
(while the ignition key is in "ON" position and the AUTO switch is in "ON" position). 2.

RKSTICS
undefined
8710-08
Auto Light Control
The tail lamps and headlamps can be controlled by the communication with the rain sensor
only when the auto light switch is in "AUTO" position with the ignition switch "ON". 1.
Rain detected headlamp: If it rains heavy which requires the highest AUTO speed, the
headlamps are turned on automatically (while the light switch is in "AUTO" position and the
wiper switch is in "AUTO" position).
Night detected wiping: When the auto light control turns on the headlamps and the rain
sensor detects the rain, the wiper sensitivity is automatically increased by one level. (i.e. the
AUTO wiper switch is at the 3rd level, but the wiper operates at the 4th level.) 2.
3.
Emitter lense
The emitter lens located at bottom of
rain sensing unit guides the infrared
rays from the LED to the target point.
Auto light sensor Auto light sensor (Vertical)
Auto light sensor (Horizon)
