SSANGYONG RODIUS 2006 Service Manual

NO DATA

06-3
BODY EXTERIOR
RODIUS 2007.07
7115-01
7115-01BODY EXTERIOR

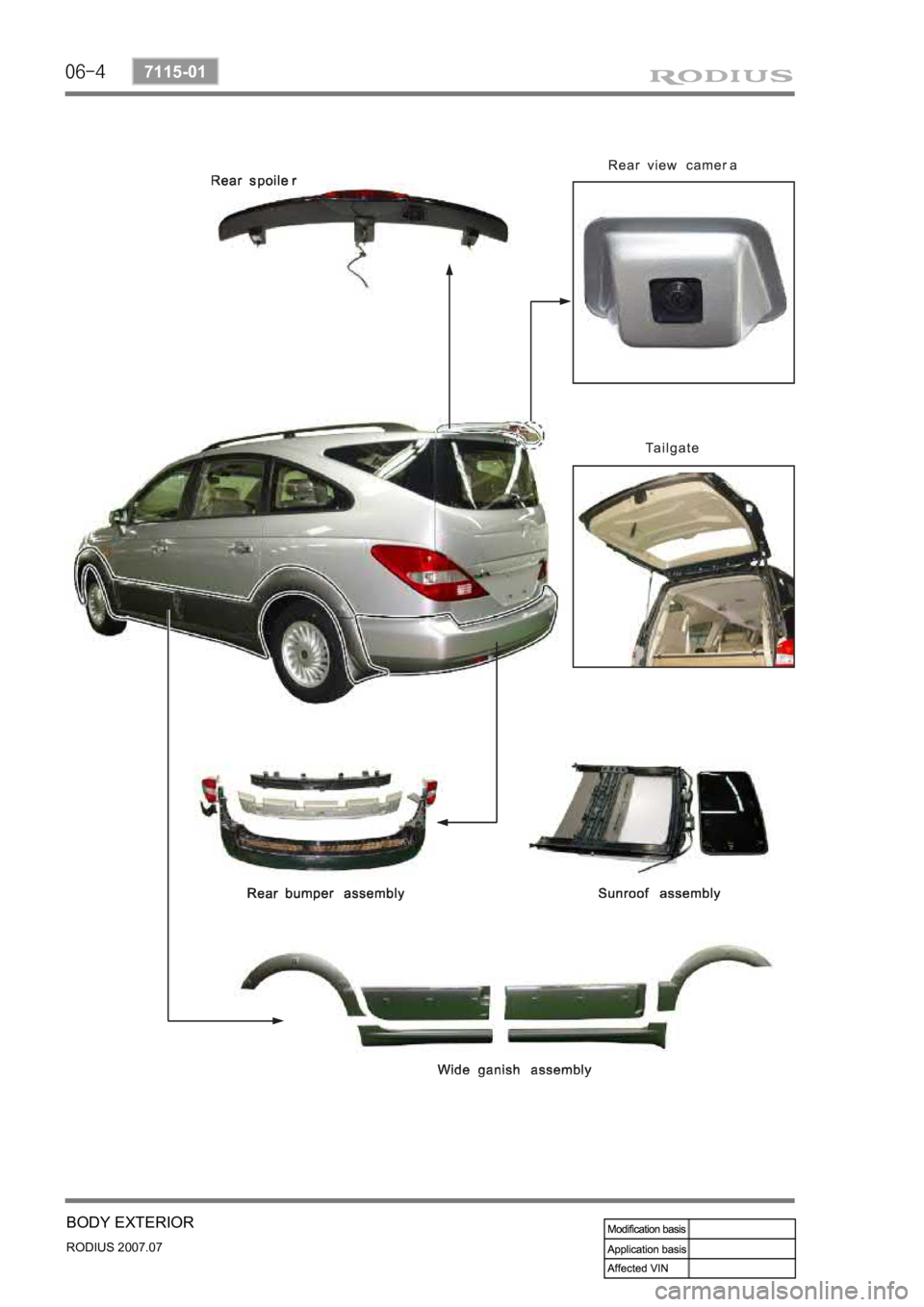

1. COMPONENTS AND LOCATION OF EXTERIOR

06-4
RODIUS 2007.07
7115-01
BODY EXTERIOR

06-5
BODY EXTERIOR
RODIUS 2007.07
7115-01

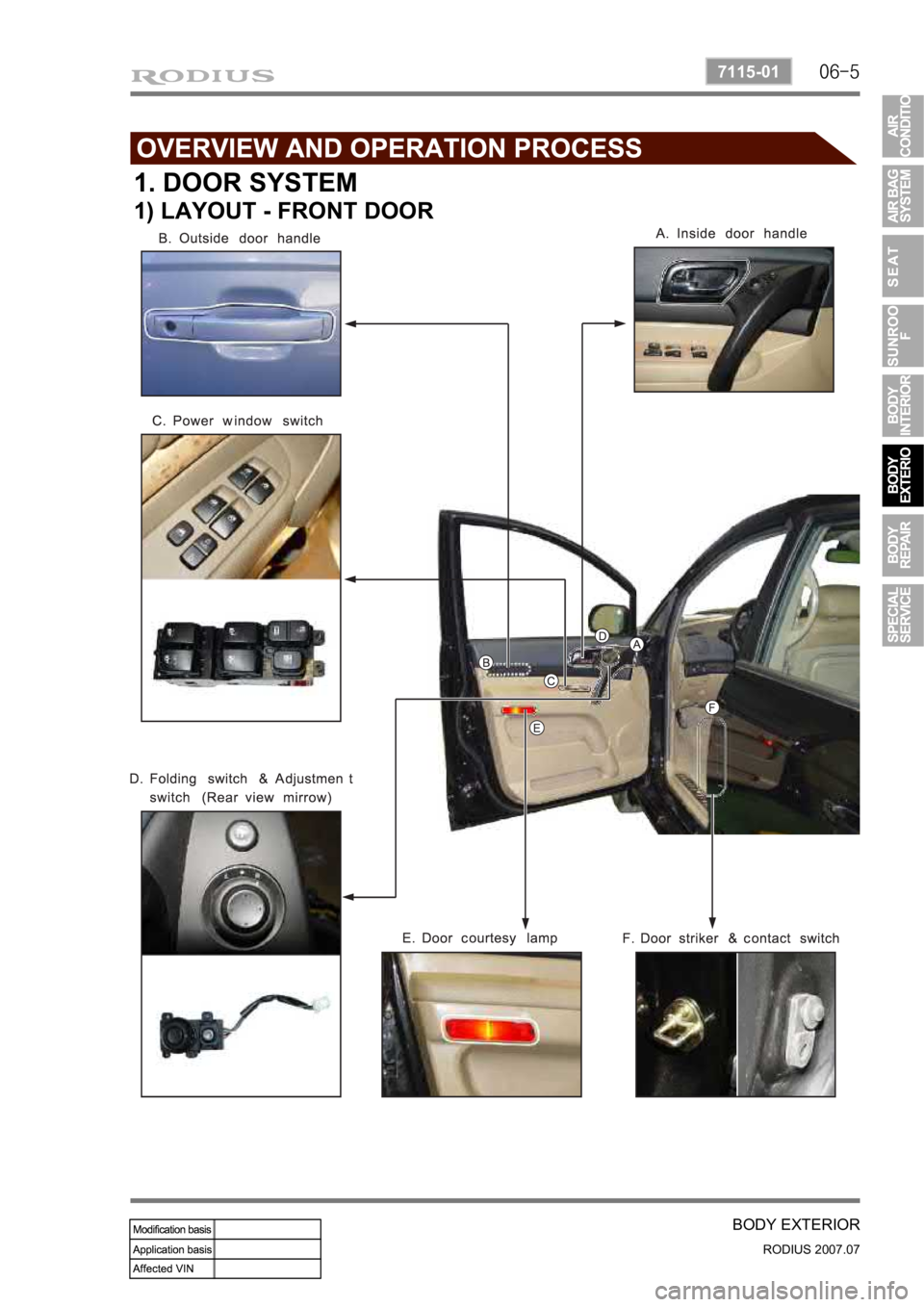

1. DOOR SYSTEM
1) LAYOUT - FRONT DOOR

06-6
RODIUS 2007.07
7115-01
BODY EXTERIOR

06-7
BODY EXTERIOR
RODIUS 2007.07
7115-01
2) LAYOUT - REAR DOOR

06-8
RODIUS 2007.07
7115-01
BODY EXTERIOR
3) OPERATION - WINDOW
(1) Operating Process
Power window motor (1) which is controlled by the window switch draws up and down the
window regulator (2) and operating cable. The window glass move up and down with the
window regulator.Window regulator
Window motorRegulator operating cable Guide rail

06-9
BODY EXTERIOR
RODIUS 2007.07
7115-01
4) OPERATION - DOOR LOCK / UNLOCK
(1) Front Door
Connecting rod - key cylinder Door key cylinder Outside door handle
Lock / Unlock cable
Connecting rod
- outside handle
Door latch Operating cable - Inside handle
Lock / Unlock Inside door handle

06-10
RODIUS 2007.07
7115-01
BODY EXTERIOR
▶Operating Process
Operation of lock button Operating cable Latch lock / Unlock
Operation of Inside handle Operating cable Latch open mode
Operation of outside handle Connecting rod - outside handle Latch open mode Insert key & operation Connecting rod - key cylinder Latch lock / Unlock Lock / Unlock (Inside door handle)
Inside handle
Outside handle Key cylinder

06-11
BODY EXTERIOR
RODIUS 2007.07
7115-01
(2) Rear Door
Outside door handle Connecting rod - Outside handle Rock / Unlock cable
Operating cable - Inside handle
CHILD / SAFETY mode Lock / Unlock
Inside door handle
