SSANGYONG RODIUS 2006 Service Manual

0-2
RODIUS 2007.07
7410-01
SEAT
Belt type buckle
Front seat belt
7410-01SEAT
1. SEAT OVERVIEW
Fixed type buckle
Front seat Driver’s
Passenger’s

0-3
SEAT
RODIUS 2007.07
7410-01
Rear 1st seat Rear 2nd seat Rear 3rd seat
Swivel seat (Rear 1st seat)
Rear 1st seat Rear 2nd seat Rear 3rd seat

0-4
RODIUS 2007.07
7410-01
SEAT
Back flat adjust lever
Seat warmer switch
Sliding adjust lever
Seat control switch
Sliding control
1. COMPONENTS OF SEAT
Seat position control Seat height control Reclining control
Back supporter (Driver’s seat)

0-5
SEAT
RODIUS 2007.07
7410-01
Seat sliding adjust lever Seat swivel control lever
Rear 3rd seat back folding adjust lever
Back folding adjust leverHead rest

0-6
RODIUS 2007.07
7410-01
SEAT
â–¶ Rear 1st row (3 point + 2 point)
â–¶ Rear 2nd row (3 point + 2 point)
â–¶ Rear 3rd row (3 point + 2 point)
â–¶ Front Seat Belt (3 point)
2. COMPONENTS OF SEAT BELT
1) 11 Passengers

0-7
SEAT
RODIUS 2007.07
7410-01
2) 9 Passengers
â–¶ Front Seat Belt (3 point)
â–¶ Rear 1st row (3 point)
â–¶ Rear 2nd row (3 point)
â–¶ Rear 3rd row (3 point + 2 point)

0-8
RODIUS 2007.07
7410-01
SEAT
3) 7 Passengers
â–¶ Front Seat Belt (3 point)
â–¶ Rear 2nd row (3 point + 2 point)
â–¶ Rear 1st row (3 point)

0-9
SEAT
RODIUS 2007.07
7410-01
3. SEAT LAYOUT
1) Layout - 11 Passengers
Front seat : Move 36 mm from the far end to the front
Rear 1st seat : Movable
Rear 2nd seat: Movable
Rear 3rd seat : Fixed ·
·
·
·

0-10
RODIUS 2007.07
7410-01
SEAT
2) Layout - 9 Passengers
Front seat : Move 36 mm from the far end to the front
Rear 1st seat : Movable
Rear 2nd seat: Movable
Rear 3rd seat : Fixed ·
·
·
·

0-11
SEAT
RODIUS 2007.07
7410-01

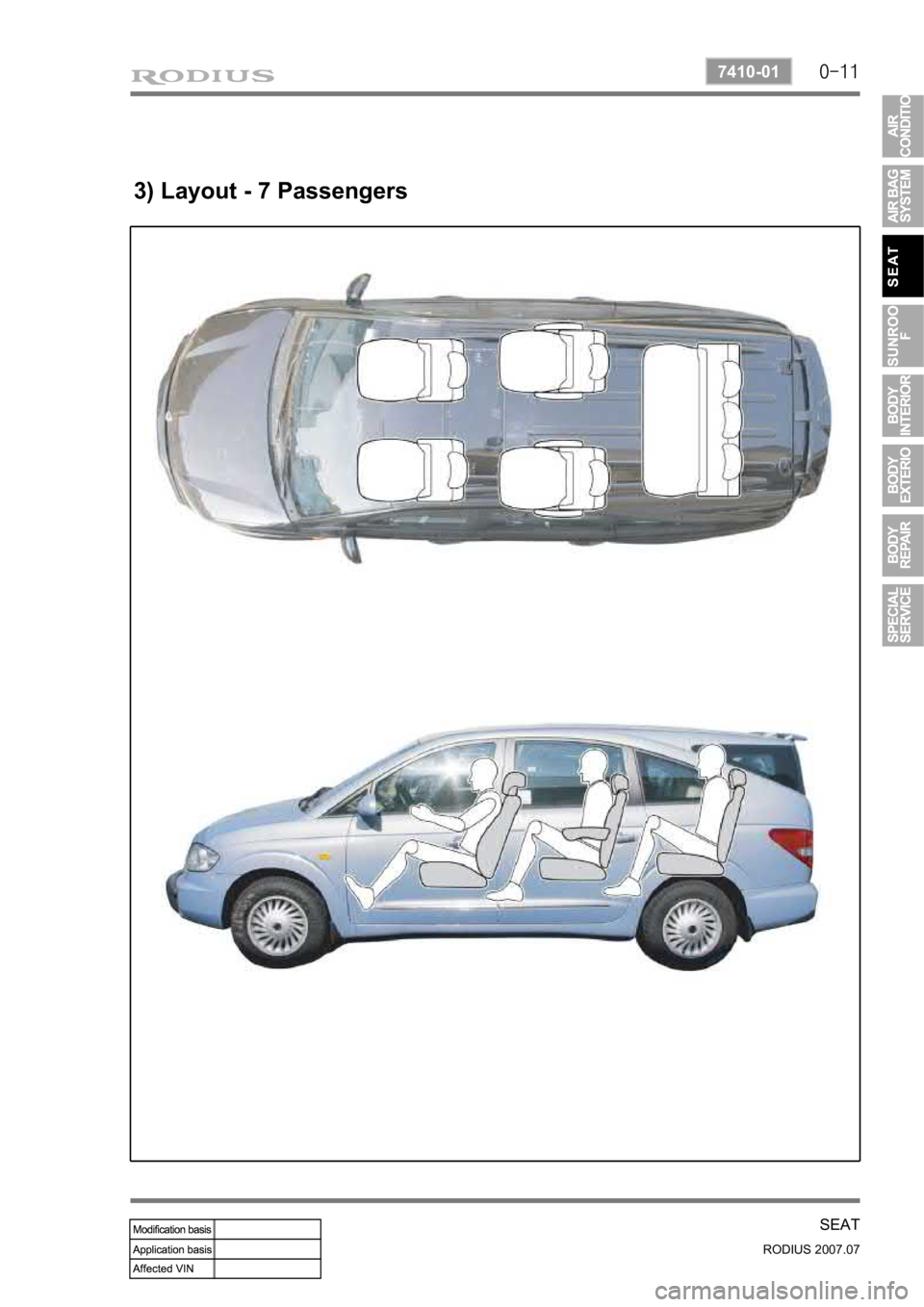

3) Layout - 7 Passengers
