SEAT
4) Operation of center seat
- Pull up the center seat when to jump
- Push down the center seat when to seat
5) Removal and installation of center seat (jumping seat)
- Unscrew 4 mounting nuts to remove the center seat
When seating
When jumping

0-23
SEAT
RODIUS 2007.07
7410-01
5. OPERATION OF REAR SEAT
1) Rear 1st seat (swivel seat)
Seat back folding cable
Sliding cable
Seat back flat cable
Jumping
mechanism
Swivel lever Sliding lever

0-24
RODIUS 2007.07
7410-01
SEAT

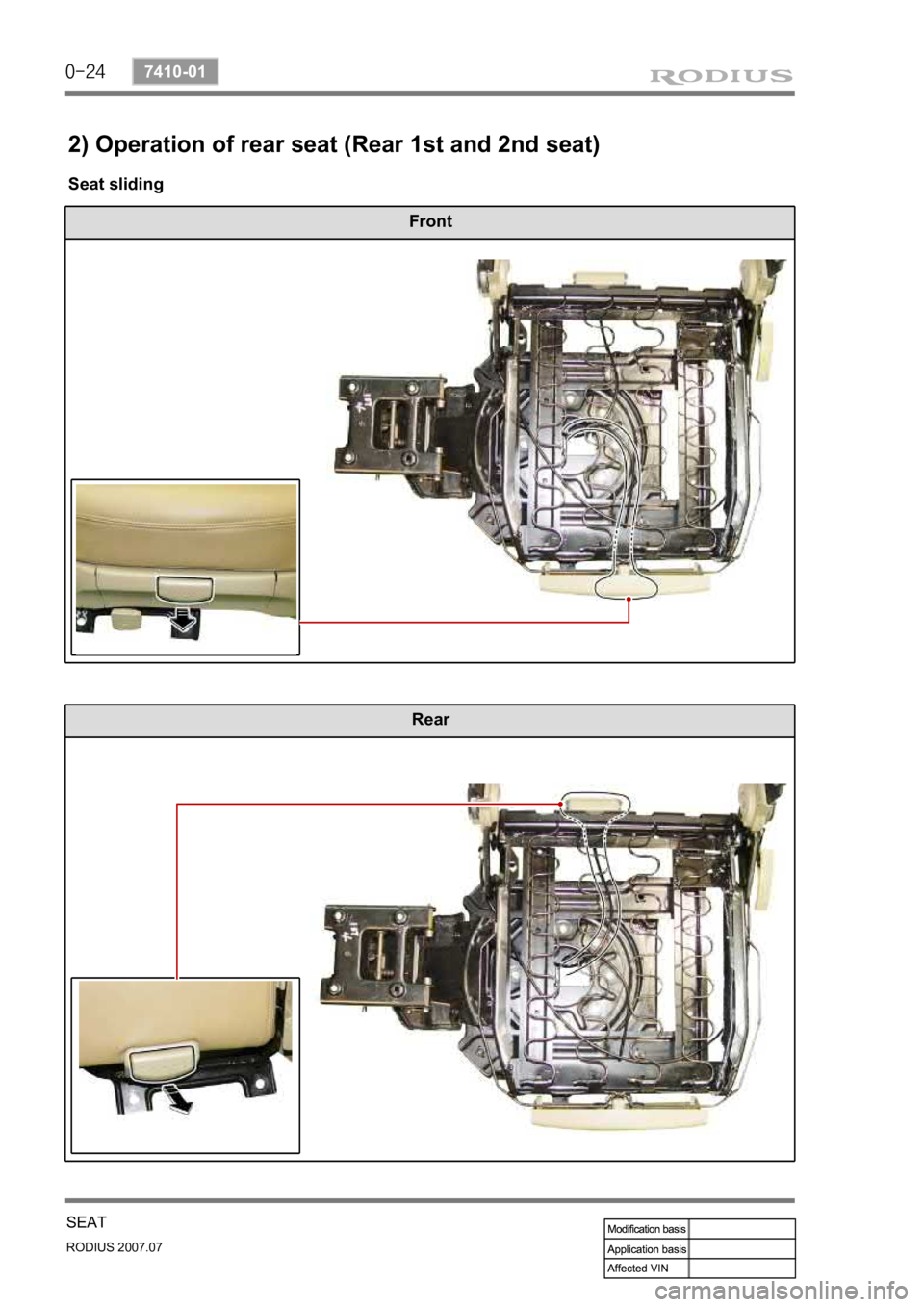

2) Operation of rear seat (Rear 1st and 2nd seat)
Seat sliding
Front
Rear

0-25
SEAT
RODIUS 2007.07
7410-01

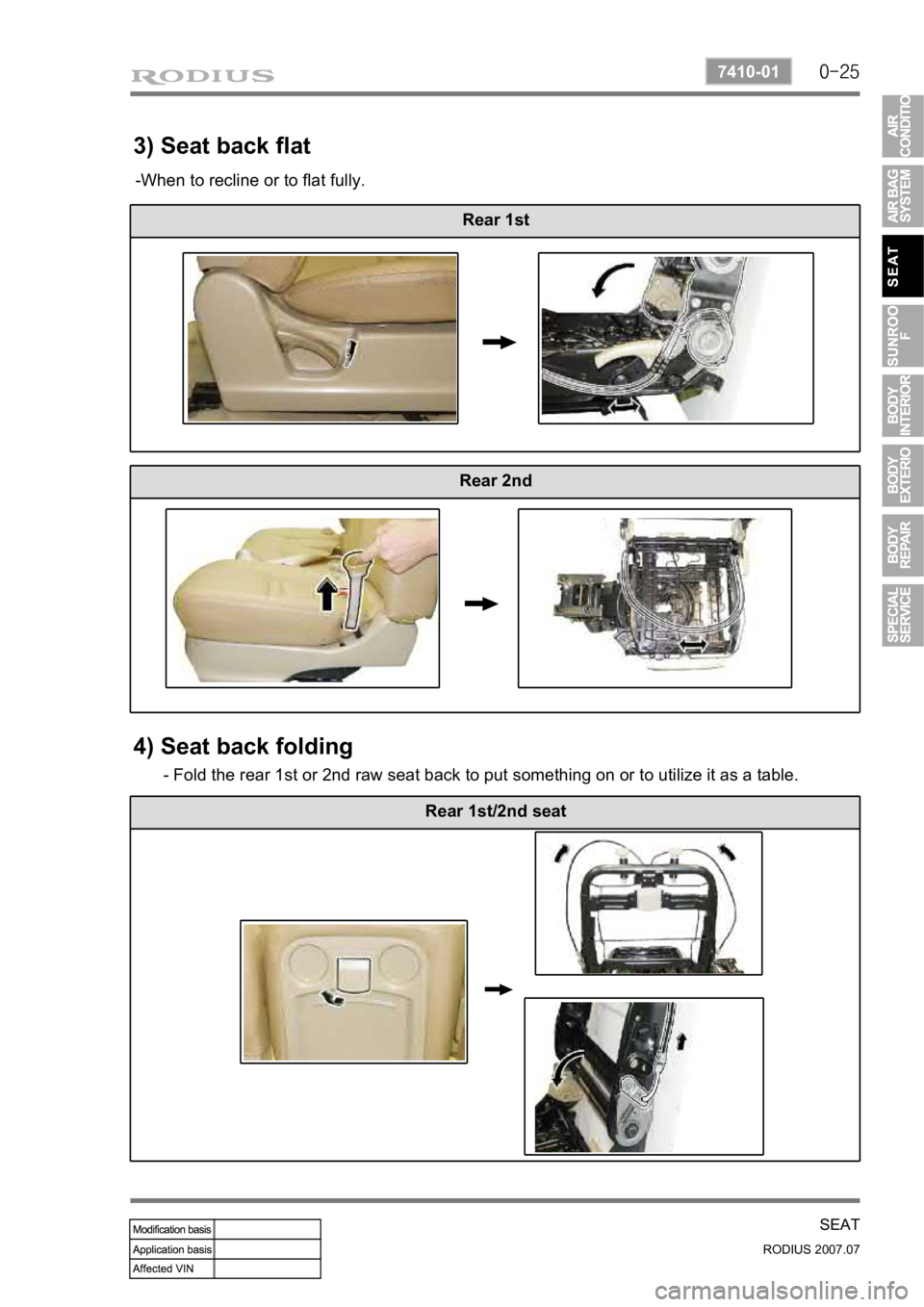

3) Seat back flat
Rear 1st
Rear 2nd
4) Seat back folding
- Fold the rear 1st or 2nd raw seat back to put something on or to utilize it as a table.
Rear 1st/2nd seat
-When to recline or to flat fully.

0-26
RODIUS 2007.07
7410-01
SEAT

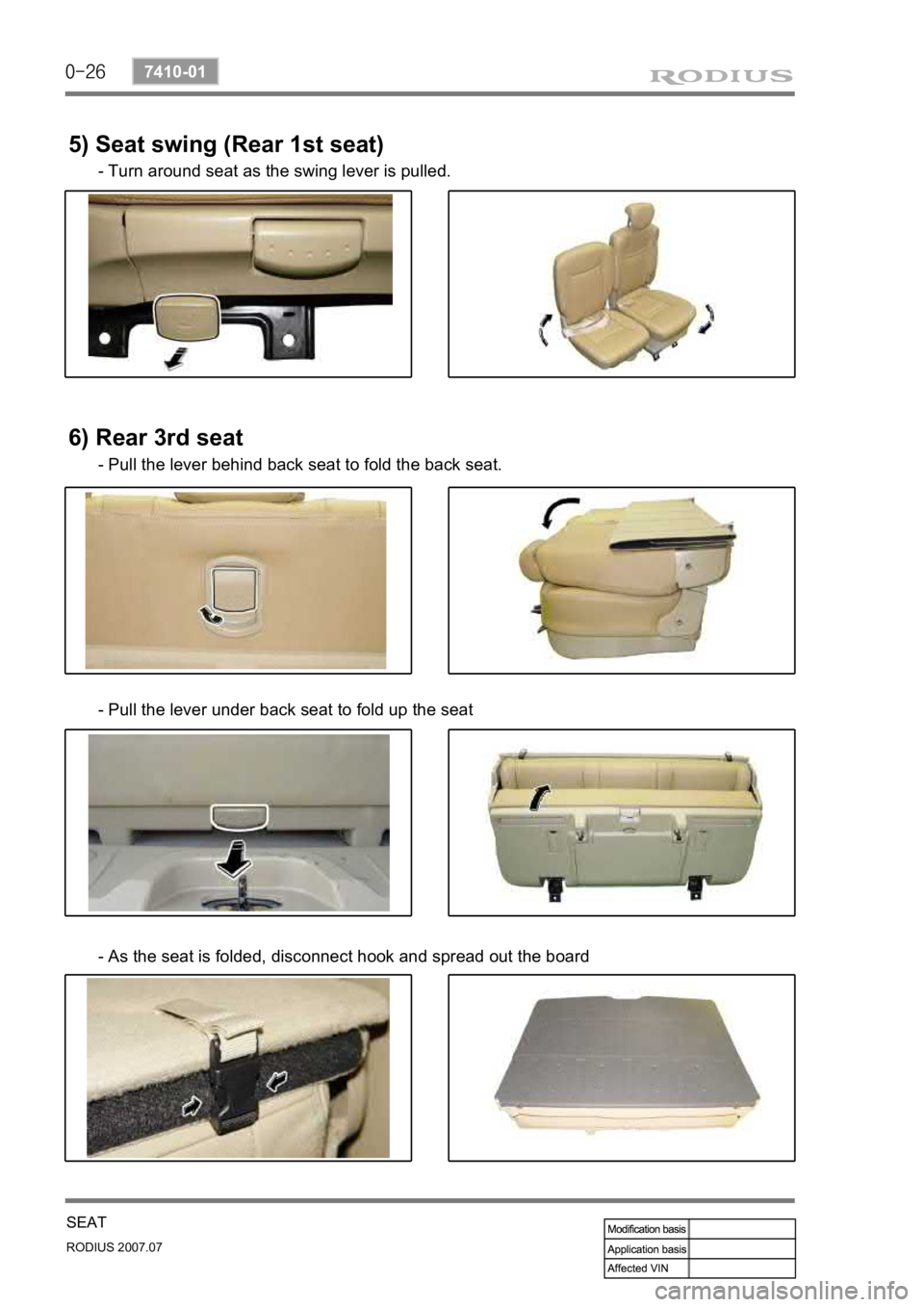

5) Seat swing (Rear 1st seat)
- Turn around seat as the swing lever is pulled.
6) Rear 3rd seat
- Pull the lever behind back seat to fold the back seat.
- Pull the lever under back seat to fold up the seat
- As the seat is folded, disconnect hook and spread out the board

0-3
SUNROOF
RODIUS 2007.07
7340-01
7340-01SUN ROOF
1. SUNROOF LAYOUT

0-4
RODIUS 2007.07
7340-01
SUNROOF
2. COMPONENTS OF SUNROOF

0-5
SUNROOF
RODIUS 2007.07
7340-01
Drain hose Control switch Sun shade & glass
Control unit Sun roof motor
3. COMPONENTS AND LOCATIONS

0-6
RODIUS 2007.07
7340-01
SUNROOF
4. SUNROOF OPERATION
1) Tilting
Push the front side of the button when the glass
is closed then, mtor actuate the operating
cable to lift up the glass.
Push the rear side of the button to put down the
glass.
Motor actuates the operating cable
Mechanical equipment lifts up & down the glass

0-7
SUNROOF
RODIUS 2007.07
7340-01
2) Sliding
push the rear side of the button to slide the
door back.
Motor actuates the operating cable
Mechanical equipment slides the glass back and
forth
