3. CIRCUIT DIAGRAM
▶SB1~SB4, C/FAN (HI,LO) REALY, F/HEATER RELAY, C/FAN (SUB) RELAY
1) Engine Room Fuse and Relay Box

01-8
▶SB5~SB8, Ef5, Ef6, 2ND A/PUMP RELAY, ENG MAIN RELAY, START RELAY

01-98410-02
▶SB9~SB11, Ef10, Ef23, RR BLOWER RELAY, DEFOGGER RELAY

01-10
▶Ef2~Ef4, Ef19, Ef20, B/HORN RELAY, H/LAMP (LO,HI) RELAY, COMP RELAY

01-118410-02
▶Ef7~Ef9, Ef21, FRT FOG LAMP RELAY, TAIL LAMP RELAY

01-12
▶Ef11~Ef16, POWER WINDOW RELAY

01-138410-02
▶Ef17, Ef18, Ef22, Ef24~Ef26, FUEL PUMP RELAY

01-14
2) Interior Fuse and Relay Box
▶F1 ~ F5

01-158410-02

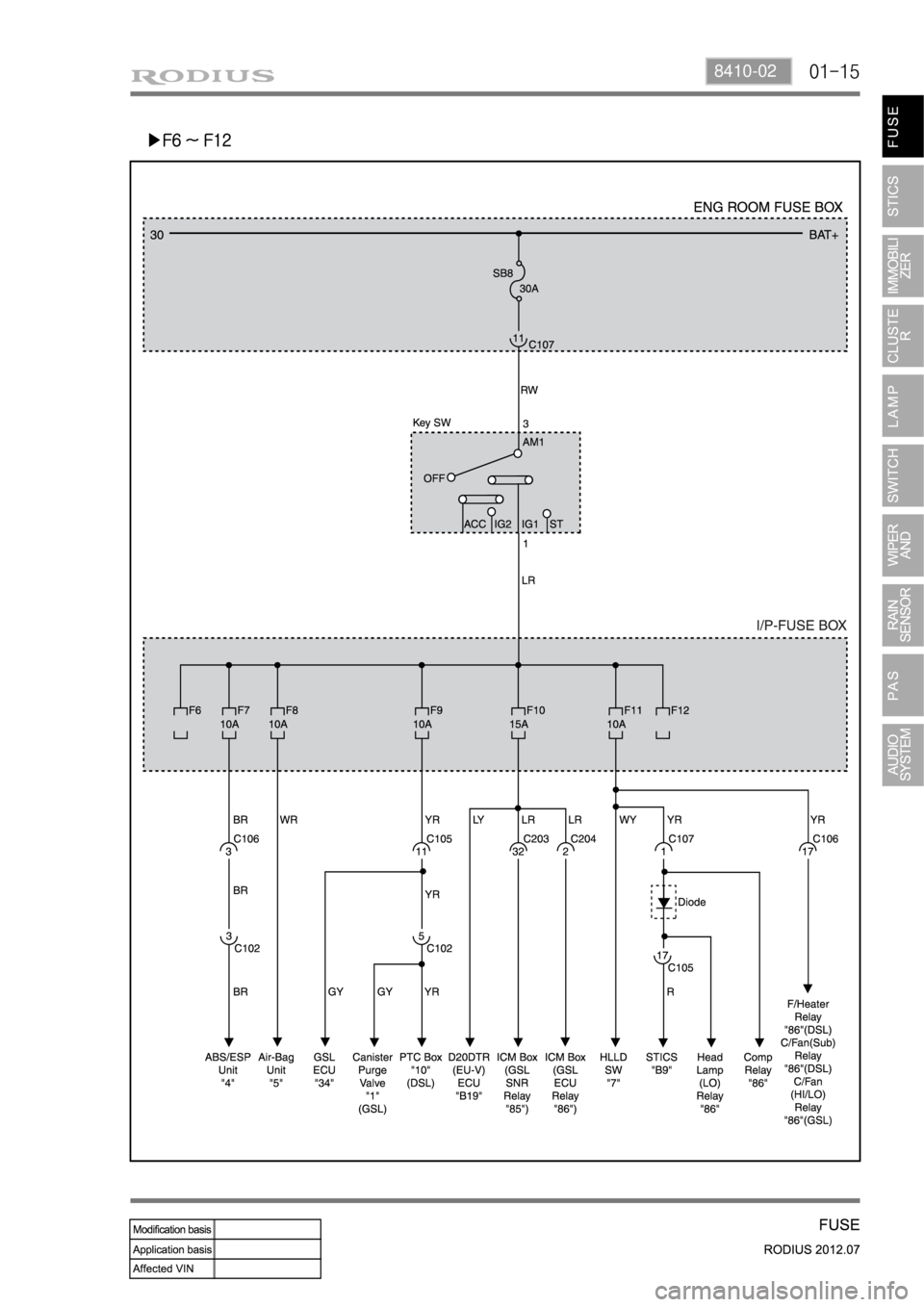

▶F6 ~ F12

01-16

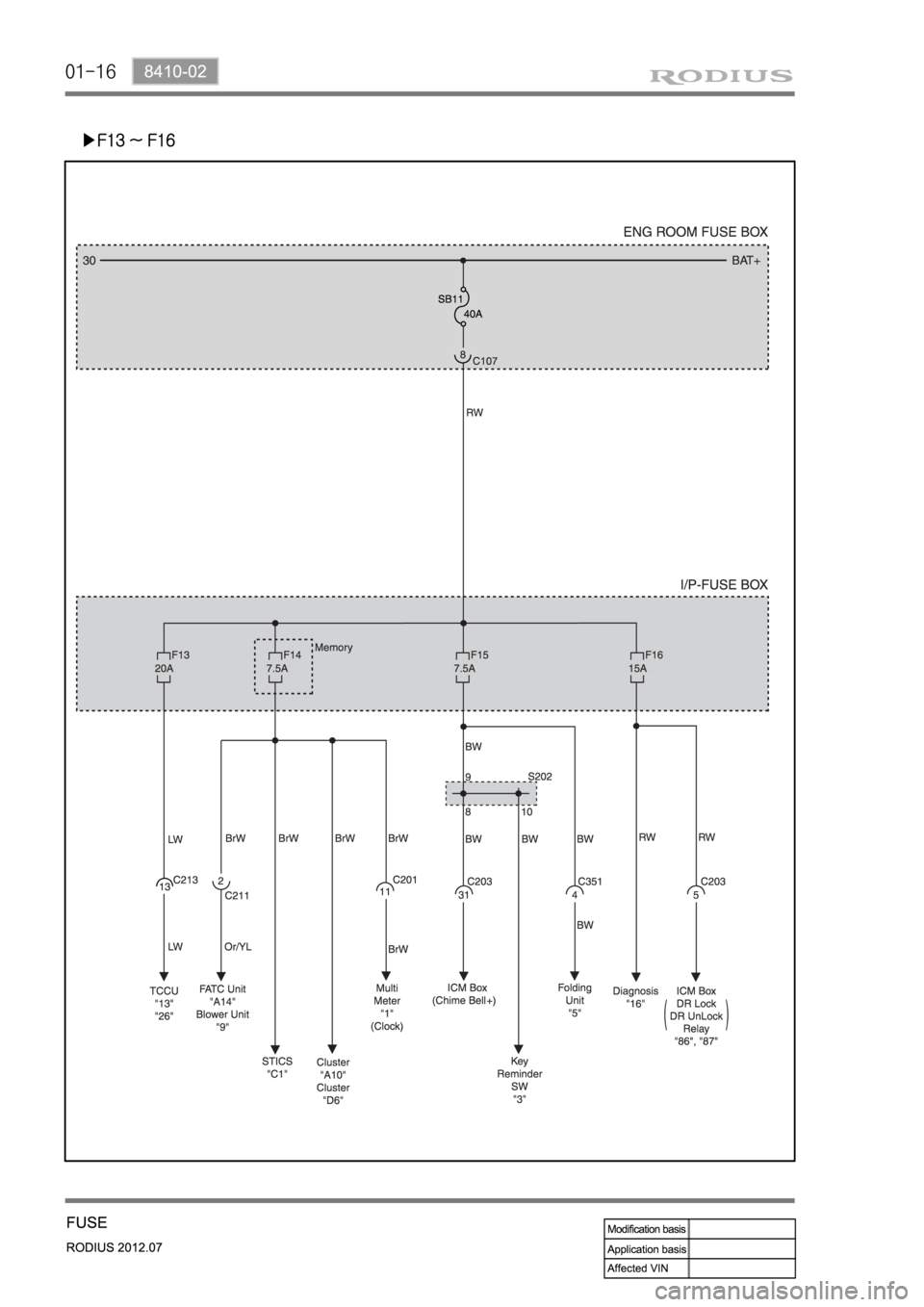

▶F13 ~ F16
