Page 711 of 715

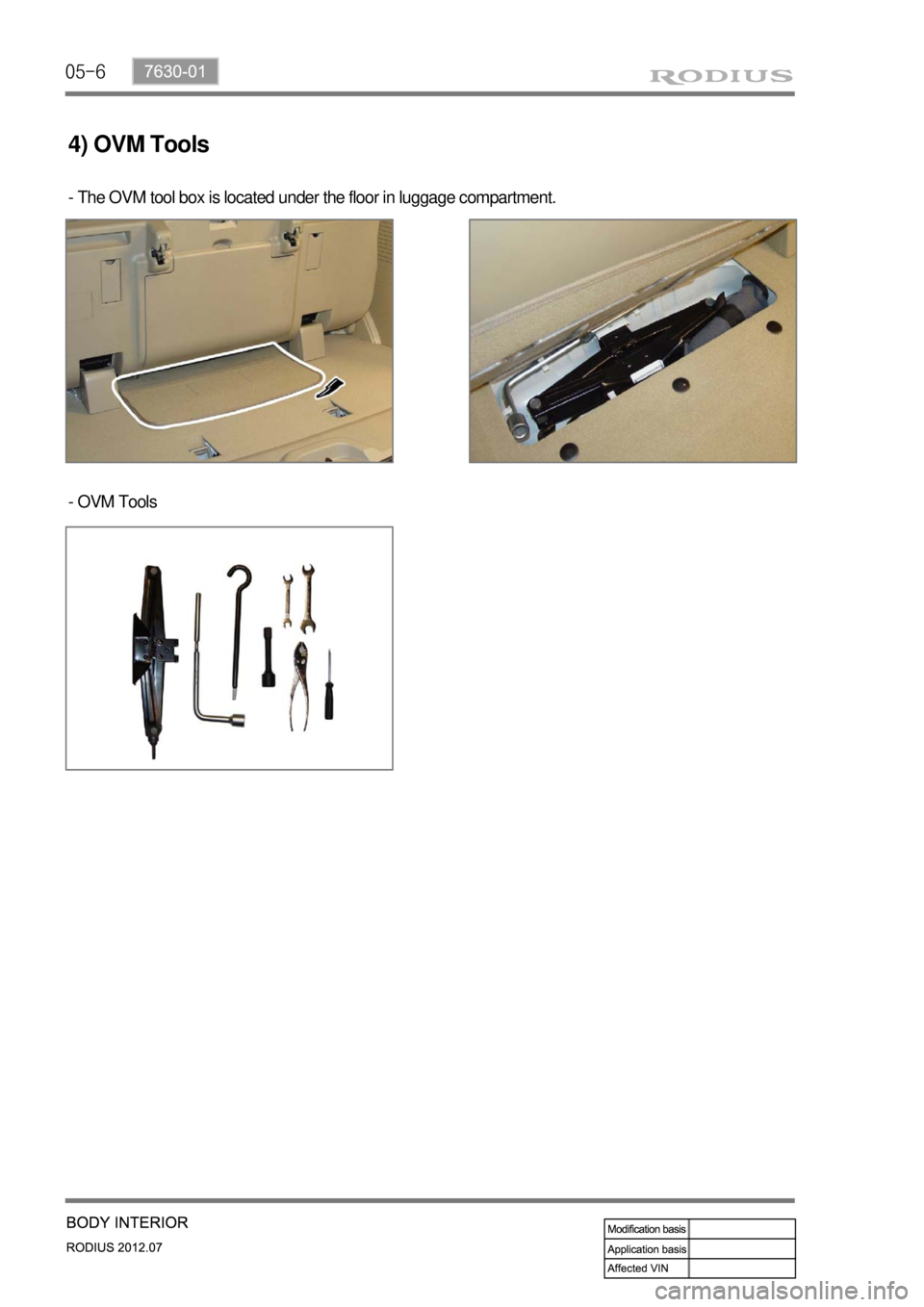

SSANGYONG RODIUS 2012 Service Manual 05-6 - The OVM tool box is located under the floor in luggage compartment. - OVM Tools 4) OVM Tools

Page 712 of 715

SSANGYONG RODIUS 2012 Service Manual 06-37870-01 Outside Rearview Mirror Front Bumper Assembly 1. LAYOUT AND COMPONENTS Hood AssemblyRoof Rack Front Door Rear Door

Page 713 of 715

SSANGYONG RODIUS 2012 Service Manual 06-4 Tailgate Rear Bumper Assembly Rear Spoiler Sunroof Assembly

Page 714 of 715

SSANGYONG RODIUS 2012 Service Manual 07-35110-01 Top View Side View Front View Rear View 1. MAJOR EXTERNAL DIMENSIONS

Page 715 of 715

SSANGYONG RODIUS 2012 Service Manual 07-4 2. JACK POINTS * Rear jack point * Front jack point Be sure to lift the vehicle only on the designated jack point otherwise, the vehicle could be body damaged. -
