Specification SSANGYONG TURISMO 2013 Workshop Manual

04-34120-01
1. SPECIFICATIONS
Front Axle ▶
Rear Axle ▶
Description Specification
Drive shaft type CV joint
Axle housing type Build up
DifferentialType Conventional type
Gear type Hypoid Gear
Final gear reduction ratioEngine + M/T 4.55
Engine + A/T 3.54
OilCapacity 1.2 L
Specification SAE 80W / 90, API GL-5
Description Specification
Axle shaft type Semi-floating
Axle housing type Build up
DifferentialType Conventional type
Gear type Hypoid Gear
Final gear reduction ratioEngine + M/T 4.55
Engine + A/T 3.54
OilCapacity 1.5 L
Specification TOTAL-ISU EP-B 85W/90

05-33240-01
Weight 32.4 kg (including oil)
Oil capacity 1.4 L
Oil type ATF DEXRON II or III
Location Transfer case
Major element Housing Part-time
Bolt 11EA, M8 x 1.25
Input shaft A/T: outer spline
Description Specifications
Total length 343 mm
1. SPECIFICATIONS

06-33310-01
1. SPECIFICATIONS
Description Specification
StructureUniversal joint with yoke arm and spider and CV joint
Front propeller shaft (4WD) One universal joint and one CV joint
Rear propeller shaft Two universal joint and one CV joint
Run-out below 0.4 mm
UnbalanceMax. 18g·cm / 4,500rpm
Length of front propeller
shaft4WD A/T 531.2 ± 1.0 mm
Length of rear propeller
shaft2WD M/T 1892.1 ± 2.0 mm
A/T 1975.1 ± 2.0 mm
4WD A/T 1593.1 ± 2.0 mm

06-4

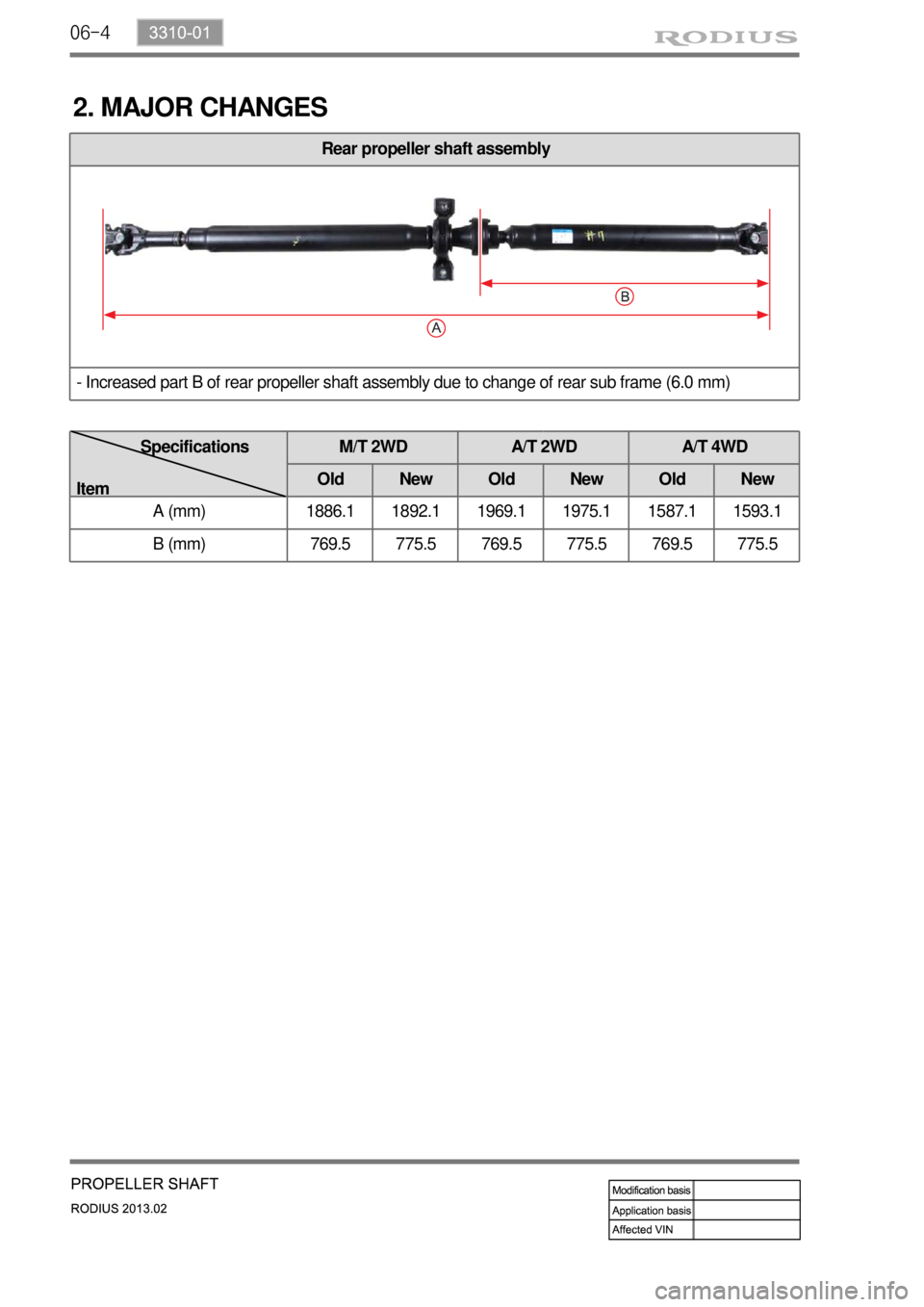

2. MAJOR CHANGES
Rear propeller shaft assembly
- Increased part B of rear propeller shaft assembly due to change of rear sub frame (6.0 mm)
Specifications
ItemM/T 2WD A/T 2WD A/T 4WD
Old New Old New Old New
A (mm) 1886.1 1892.1 1969.1 1975.1 1587.1 1593.1
B (mm) 769.5 775.5 769.5 775.5 769.5 775.5

07-34411-01
1. SPECIFICATIONS
DescriptionSpecification
Front Suspension Rear Suspension
Suspension typeDouble wishbone Multi-link type
Spring typeCoil spring Coil spring
Shock absorber typeReciprocating cylindrical type
(gas type)Reciprocating cylindrical type
(gas type)
Stabilizer bar typeTorsion bar type Torsion bar type
2. WHEEL ALIGNMENT
Front Wheel
AlignmentToe-in0.˚±0.10˚
Camber-0.12˚±0.50˚
Caster4.80˚±0.50˚
Rear Wheel
AlignmentToe-in0.48˚±0.15˚
Camber-1.20˚±0.50˚
Caster-

07-12
3. WHEEL ALIGNMENT
Wheel alignment (adjustment of Camber, Caster and Toe) is part of standard automobile maintenance
that consists of adjusting the angles of the wheels so that they are set to the specification. The purpose
of these adjustments is to reduce tire wear, and to ensure that vehicle travel is straight and true (without
"pulling" to one side). Alignment angles can also be altered beyond the specifications to obtain a specific
handling characteristic.
When viewed from the top, the distance between the tire centers is smaller in the front than in
the rear. ▶
Side slip protection
Parallel front wheels rotation (straight ahead driving is ensured by toe-in to prevent the wheels from tilting
outwards by the camber while driving)
Prevention of uneven (outward) tire wear Prevention of toe-out from wearing of steering linkage -
-
-
1) Toe-in
The difference of measured distances between the front ends of the tires (A) and the rear ends of the
tires (B) along the same axle when viewed the wheels from the top.
Toe-inFront0.˚±0.10˚
Rear0.48˚±0.15˚
Necessity for Wheel Alignment ▶
Wheel alignment consists of adjusting the angles of the wheels so that they are perpendicular to the
ground and parallel to each other. The purpose of these adjustments is maximum tire life and a vehicle
that tracks straight and true when driving along a straight and level road.
The symptoms of a vehicle that is out of alignment are:
Uneven or rapid tire wear
Pulling or drifting away from a straight line
Wandering on a straight level road
Spokes of the steering wheel off to one side while driving on a straight and level road.

08-34850-03
Brake oil Grade DOT 4
Service interval Replace every 2 years
1. SPECIFICATIONS
Description Specification
Front brake Type Ventilated disc
Rear brake Type Ventilated disc
Master cylinder Type Step feed bore tandem, double cylinder
Brake booster Type Tandem type (integrated level sensor)
Operating type Foot operated type

09-34891-01
1. SPECIFICATIONS
1) Pressure Sensor
UnitDescription
Location
ABS ESP
HECU
(Hydraulic &
Electronic Control
Unit) CPU:MCU60 (32bit)
Clock Frequency:
28 MHz
Memory: 128~256 KB CPU:MCU60 (32bit)
Clock Frequency:
28 MHz
Memory:256~512 KB Under the front washer
reservoir
Wheel Speed
SensorActive type wheel speed
sensorActive type wheel speed
sensorOn each wheel
Front air gap:
0.3 ~ 1.3mm,
Rear air gap:
0.3 ~ 1.3 mm
Steering Wheel
Angle SensorN/AMaximum angular speed:
1500°/sec
Operating voltage:
9~16 VUnder the steering
wheel
Sensor ClusterN/AIntegrated with yaw rate
sensor and lateral sensorUnder the audio
assembly
Pressure Sensor
N/A Analog outputUnder the master
cylinder
Description Specification
Supplying voltage approx. 5 V (4.75~5.25 V)
Max. pressure 350 bar

09-4
2) Sensor Cluster
3) Steering Wheel Angle Sensor
Air gap between sensor and rotorFront 0.3 ~ 1.3 mm
Rear 0.3 ~ 1.3 mm
Current (at 2.75 km/h)IHIGH : 14 mA
ILOW : 7 mA
Voltage (when turning the steering wheel one turn per second) 7.5 ~ 20 V
4) Active Wheel Speed Sensor
Operating voltage 9~16 V
Maximum output current 10 mA
Max. current consumption100 ma
Maximum detection angle speed 1500˚/s
Operating temperature -30~75℃
Supplying voltage 9 to 16 V (battery voltage)
Description Specification
Description Specification
Description Specification
Supplying voltage approx. 5 V (4.75~5.25 V)
Output voltage while in stationary approx. 2.5 V (Ignition ON)
Output range 0.2~4.8 V
Operating start speed4˚/s

11-34610-00
1. SPECIFICATIONS
Description Specification
Steering wheelType 4-spoke type
Outer diameter (mm) 390
Steering gear boxType Rack and pinion type
Steering angleInner36.4°
Outer31.5°
Steering oil pumpType Vane type
Maximum pressure (kgf/cm2) 93.3 ~ 100.4
Pulley size (mm)Ø115
Operating temperature-40℃ ~ 150℃
Steering oilType S-PSF3
Capacity (L) approx. 1.1
Lower shaftType Universal joint
Angle(°) 38°
ConfigurationUniversal joint(top/bottom)
rubber coupling
Minimum turning radius (m) 6.09
Steering column shaft Tilting angle±2°
Steering wheel heating
indicatorPower consumption Below 95 W
Rated voltage13.5 ± 0.1 V
Usable voltage 9~16 V
Low voltage7.5 ± 0.5 V
High voltage18.0 ± 0.5 V
Rated voltage Max. 12.4 A
MemoryLast switch ON/OFF mode
memorized
