Specification SSANGYONG TURISMO 2013 Repair Manual

12-34170-01
1. SPECIFICATION
Description Specification
Tire 16 inch 225/65R16
17 inch 235/60R17
Tire inflation pressure 35 psi
Wheel 16 inch 6.5JX16
17 inch 7.0JX17
Balance weight Inner: Clip-on type
Outer: Tape type
Tightening torques of wheel bolt 127.4 to 156.8 Nm
Wheel offset 2WD 38 mm
4WD 50 mm

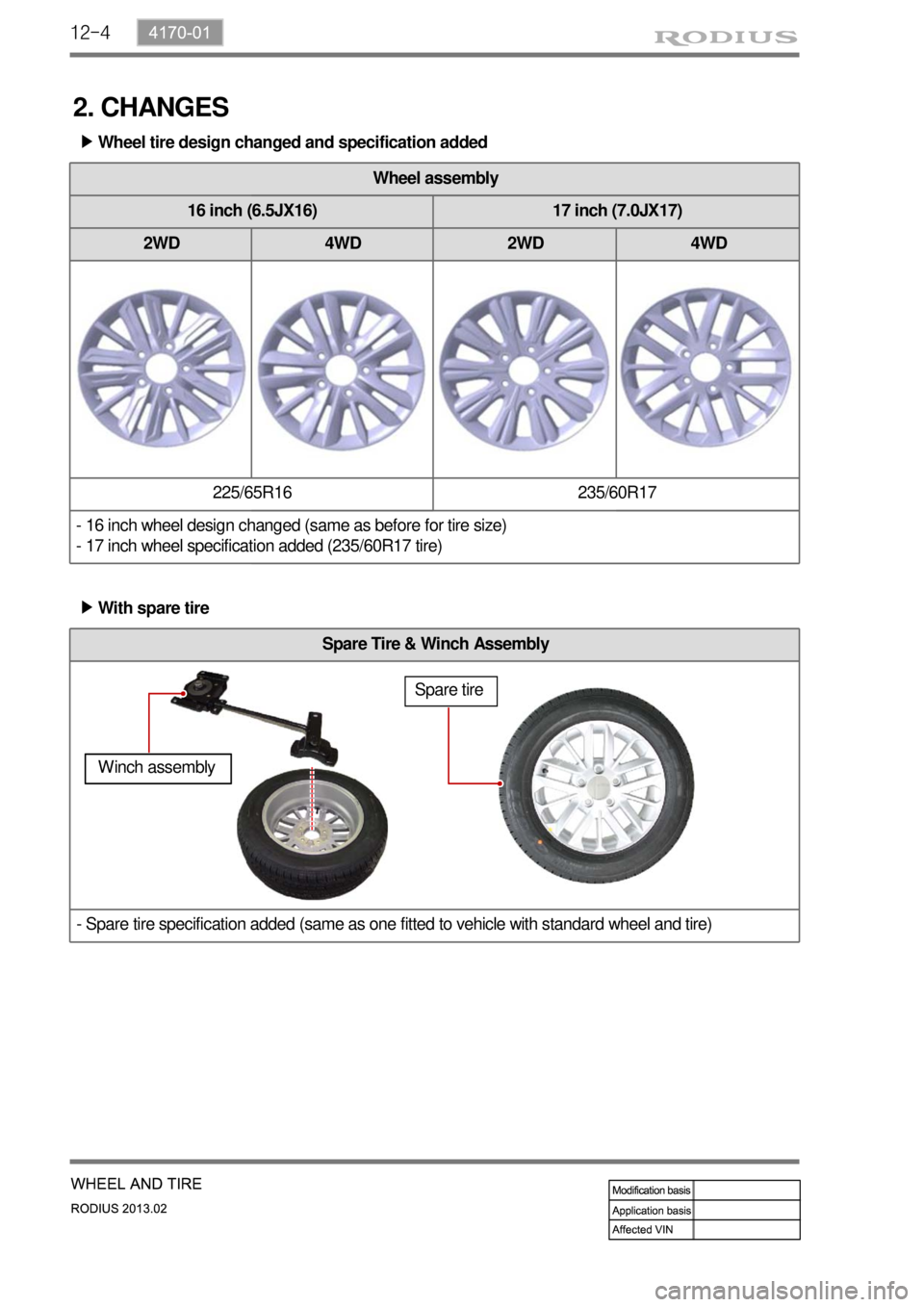

12-4
Spare Tire & Winch Assembly
- Spare tire specification added (same as one fitted to vehicle with standard wheel and tire)
Wheel assembly
16 inch (6.5JX16) 17 inch (7.0JX17)
2WD 4WD 2WD 4WD
225/65R16 235/60R17
- 16 inch wheel design changed (same as before for tire size)
- 17 inch wheel specification added (235/60R17 tire)
2. CHANGES
Wheel tire design changed and specification added ▶
With spare tire ▶
Spare tire
Winch assembly

01-36810-30
1. SPECIFICATION
Item FATC Manual
A/C controllerRated voltage DC 12 V DC 12 V
Operating voltage DC 9 to 16 V DC 9 to 16 V
Current consumption 2 A 2.5 A
Operating temperature-30~75℃ -30~80℃
Dark current 2 mA or less -
A/C compressorDiameter of pulley 120 mm
Rated voltage DC 12 V
Current consumption 2.2 A
Refrigerant fluid PAG RL 897 150cc
CondenserSize 655.8wX485.6hX16.0t
Receiver drierMoisture absorbent XH-9
Pressure switch Refrigerant pressure sensor
Front heater &
A/C moduleHeating capacity 7000 Kcal/hr
Cooling capacity 6200 Kcal/hr
Expansion valve Block type
Rear heater &
A/C moduleHeating capacity 4300 Kcal/hr
Cooling capacity 3200 Kcal/hr
Refrigeranttype R134a
Volume1050g ± 30g
PTC heaterMaterial barium titanate (BaTiO3)
Power consumption 1,000 W

02-38810-03
1. SPECIFICATIONS
Description Item Specification
Air bag unit
(SDM)Operating voltage 10.0 V to 16.5 V
Voltage for diagnosis and self-
diagnosis8.0 V to 16.5 V
Operating temperature-40℃ ~ 85℃
Storage temperature-40℃ ~ 90℃
Overvoltage protection 24 V
Ground resistance100 mΩ or less
Driver/passenger
air bag moduleOperating voltage 8.0 V to 16.5 V
Seat air bag moduleOperating voltage 10.0 V to 16.5 V
Side impact sensor voltage 8.0 V to 16.5 V
Seat belt pretensioner Operating voltage 10.0 V to 16.5 V
If you measure the air bag module using a multitester, the air bag module may be deployed,
causing a personal injury.
Never use the multitester to check the air bag module.

03-37410-01
1. SPECIFICATION
Item Front SeatRear 1st
Row SeatRear 2nd
Row SeatRear 3rd
Row Seat
Headrest Tilt25°---
Up/down60 mm
(20 mmx3)100 mm
(20 mmx5)120 mm
(20 mmx6)120 mm
(20 mmx6)
SeatReclining80°
(2°x40)76°
(2°x38)76°
(2°x38)-
Folding -105° 105° 103°
Sliding228 mm
(192+36 mm)380 mm
(140+240 mm)340 mm
(100+240 mm)-
Seat warmer - - -
2. WARNINGS FOR POWER SEAT
Adjust the driver's seat before driving.
Make sure that the seat is firmly secured after adjusting.
Never drive the vehicle with the head restraint removed or lowered excessively. Otherwise, your
neck, spine or other parts of the body can be severely injured in the event of an accident.
If you recline the seatback excessively, you could slide under the seat belt and be injured severely
in a collision.
Do not put any object that could damage the seat on the seat.
The front and rear seats are equipped with the heated wire (seat warmer) system. Using the seat
warmer system excessively may cause minor burns. The following occupants should exercise
special care when using the heated wire seat. 1.
2.
3.
4.
5.
6.
Infant, child, old or handicapped person
Person with sensitive skin
Exhausted person
Persons who is drunk or took medicine which causes drowsiness such as sleeping pills, cold
tablets, etc. -
-
-
-
Do not place anything on the seat that insulates against the heat, such as a blanket or cushion.
Make sure that the head restraints are in place and secured properly. Never drive the vehicle with the
head restraint removed.
To minimize the injuries in a collision or an abrupt stop, make sure the seatback is in the upright
position before driving. If the seatback is reclined too much, the occupant could slide under the seat
belt in a collision or an abrupt stop and cannot be protected properly by the airbag system. 7.
8.
9.

04-37340-00
1. SPECIFICATIONS
Item Specification Details
Operating voltage 9 ~ 16 V
Stand by currentMax. 125 mA IGN ON
Max. 3 mA Sleep mode
Load current6 A Normal operation
25 A Max. load current
Operating temperature-30 ~ 85℃
Storage temperature-40 ~ 90℃
Operating timeOpen, close: max. 9 sec
Open, close: max. 15 sec-20℃
Tilt: max. 1.5 sec
Tilt: max. 4 sec-20℃
Glass open level1st step sliding open: 326 ± 5 mm
2nd step sliding open: 376 ± 5 mm
Tilt up & open: 43.5 ± 3 mm
Glass thickness4 ± 0.2 mm
Displacement 2L / min
