SUBARU BAJA 2005 1.G Owners Manual

5-20
Audio
V
Tone control
The volume control dial (1) normally function as vol-
ume control. The dial become a control for Bass,
Midrange or Treble when you select the appropriate
tone control mode.
Choose desired volume level for each mode by turning
the volume control dial. The control function returns to
volume control mode after about 5 seconds.
To change control modes: Each brief press of the
“AUDIO” button (2) changes control modes in the fol-
lowing sequence starting from bass control mode.
(When the radio is first turned on, the control mode is
in the volume control.) V Fader and balance control
The volume control dial (1) normally function as vol-
ume control. The dial become the controls for Fader or
Balance when you select the appropriate fader and
balance control mode.
Choose desired setting for each mode by turning the
volume control dial. The control function returns to vol-
ume control mode after about 5 seconds.
To change control modes: Each brief press of the “BAL” button (3) changes control modes in the follow-
ing sequence starting from fader control mode. (When
the radio is turned on, the control mode is in the vol-
ume control.) V
Display illumination dimness cancellation (BRIGHT)
The brightness of the radio display dims when the light
switch is in the “ ” or “ ” positions. If this
makes the display difficult to read, press the volume
dial for more than 1.5 seconds to return the display to
original brightness.
Subsequently pressing the volume dial again for more
than 1.5 seconds or if you can safely do so, turning the
light switch to the OFF position and back to the
“ ” or “ ” position makes the radio display
dim again. T FM/AM selection button
V FM button
Press the “FM” button (4) for FM reception. The radio
will toggle between FM1 and FM2 settings each time
the “FM” button (4) is subsequently pressed.
Volume
Bass Midrange Treble
Volume
Fader Balance

5-21
Audio
– CONTINUED –
VAM button
Press the “AM” button (5) for AM reception. T Stereo indicator
The stereo indicator “ST” will come on when an FM
stereo broadcast is received. T Manual tuning (TUNE)
V Manual tuning for AM and FM
Push the “ ” side of the tuning button (7) to in-
crease the tuning frequency and press the “ ” side
of the button to decrease it.
Each time the button is pressed, the frequency chang-
es 10 KHz in the AM waveband and 0.2 MHz in the FM
waveband. V Seek tuning (SEEK)
If the tuning button (7) is pressed for longer than half
of a second, the radio will begin to automatically
search for receivable frequencies and will stop at the
first one found. This function may not be available,
however, when radio signals are weak. In such a situ-
ation, perform manual tuning to select the desired sta- tion. T Automatic tuning (SCAN)
Press the “SCAN” button (8) to change the radio to the SCAN mode. In this mode, the radio scans through the
radio band until a station is found. The radio will stop
at the station for five seconds while displaying the fre-
quency, after which scanning will continue until the en-
tire band has been scanned from the low end to the
high end.
Press the “SCAN” button again to cancel the SCAN
mode and to stop on any displayed frequency.
When the “SCAN” button is pressed for automatic tun-
ing, stations are scanned in the direction of low fre-
quencies to high frequencies only.
Automatic tuning may not function properly if the sta-
tion reception is weakened by distance from the sta-
tion or proximity to tall buildings and hills. T
Selecting preset stations
Presetting a station with a “Preset” button (6) allows
you to select that station in a single operation. Up to
six AM, FM1 and FM2 stations each may be preset. T How to preset stations
1. Press the “FM/AM” selection button to select AM,
FM1 or FM2 reception.
2. Press the “SCAN” button (8) or tune the radio man-
ually until the desired station frequency is displayed.
3. Press one of the “Preset” buttons (6) for at least 1.5
seconds to store the frequency. The frequency of the
station will flash once on the display at this time. If the

5-22
Audio
button is pressed for less than 1.5 seconds, the pre-
ceding selection will remain in memory.
NOTE y
If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons. y If a mobile telephone is placed near the radio, it
may cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault.

5-23
Audio
– CONTINUED –

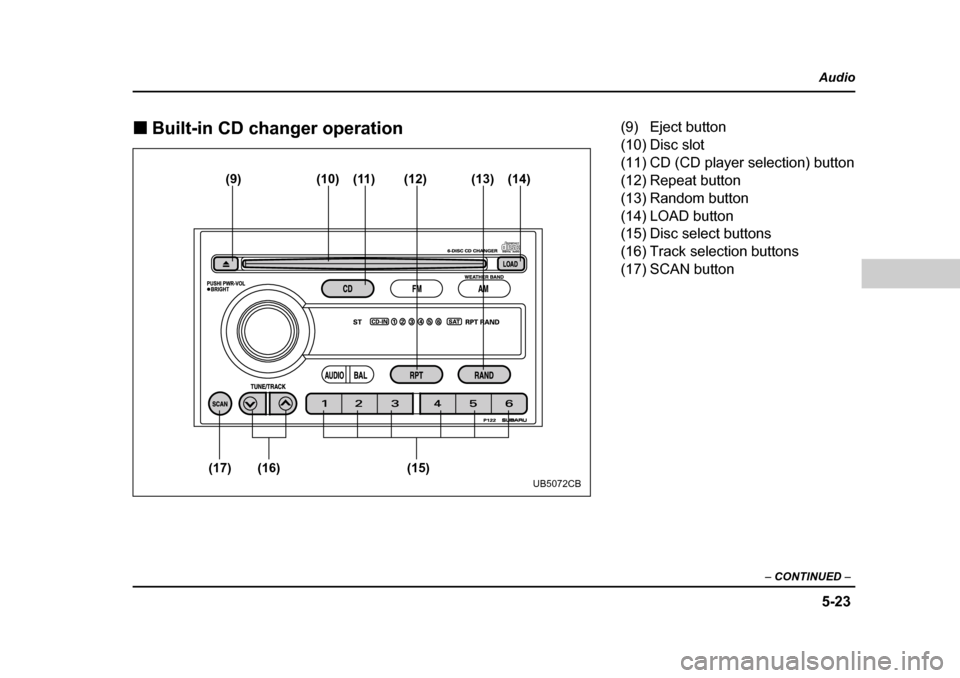

„Built-in CD changer operation
(9) (10) (11) (12)
(15)
(16)
(17) (13) (14)
UB5072CB
(9) Eject button
(10) Disc slot
(11) CD (CD player selection) button
(12) Repeat button
(13) Random button
(14) LOAD button
(15) Disc select buttons
(16) Track selection buttons
(17) SCAN button

5-24
Audio
NOTE
Make sure to always insert a disc with the label
side up. If a disc is inserted with the label side
down, it might be ejected or the player might shut off. T
How to insert a CD(s)
V Inserting a CD
1. Press “LOAD” button (14). If the magazine in the
player has an idle position where you can insert a disc,
the “DISC” indicator associated with the idle position
will blink.
If no indicator blinks, it means that there is no idle po- sition in the magazine.
2. As soon as the “DISC” indicator begins to blink, the
“IN” will appear on display for a period of 15 seconds.
Insert a disc during the period. The disc will be then
automatically drawn in, and the player will begin to
play back the first track of the disc. y To insert more discs in succession, repeat Steps 1
and 2. The magazine will be loaded with discs in the
ascending order of position number.
If you do not insert any disc in 15 seconds after you
have pressed the “LOAD” button, the player will begin
to play back the first track of the last disc you have in- serted. y
The disc indicator steadily lights up if a disc is al-
ready inserted in the corresponding position of themagazine. y While the player is in the loading mode, if you press
the “FM” button (4) or “AM” button (5), the player will
enter the standby mode. Press the “CD” button (11) to
start playback. V Inserting a disc in a desired position
1. Press the “LOAD” button. If the magazine in the
player has an idle position where you can insert a disc,
the “DISC” indicator associated with the idle position
will blink.
The positions in the magazine the indicator of which
steadily lights up are already loaded with discs.
2. Press the “Disc select” button (15) at the position
where you want to insert a disc. The associated
“DISC” indicator will blink, and the “IN” will be dis-
played.
3. If you insert a disc during the 15-second period
while the “IN” is on display, the disc will be automati-
cally drawn in, and the player will start playback of the
disc, beginning with the first track. y To insert more discs in succession, repeat Steps 1
and 2. y While the player is in the loading mode, if you press
the “FM” button (4) or “AM” button (5), the player will

5-25
Audio
– CONTINUED –
enter standby mode. Press the “CD” button to start
playback. VLoading all the magazine (Full disc loading
mode)
1. If you continue to press the “LOAD” button for more
than 1.5 seconds, the player will produce beep sound
and will enter the full disc loading mode.
2. A “DISC” indicator will blink, and the “IN” will be on
display for a period of 15 seconds. If a disc is success-
fully loaded during this period, the “DISC” indicator will
stop blinking and will steadily light.
3. When the loading of a disc is complete, the next
“DISC” indicator will blink. Then repeat Step 2.
4. When the magazine is filled with discs by repeating
Steps 2 and 3, the player will start playback of the
discs, beginning with the one inserted first.
If you fail to insert any disc during each 15 seconds in-
terval, the full disc loading mode will be canceled, and
the player will start playback of the disc inserted first. T How to play back a CD or make a pause
V When there is no CD inserted:
Insert a CD by referring to “How to insert a CD(s)”.
When a CD is loaded, the player will start playback of
the CD, beginning with the first track. V
When there are CDs loaded:
Press a desired one of the “Disc select” buttons (15)
the “DISC” indicator of which steadily lights up. The
player will then start playback of the selected CD, be-
ginning with the first track. T To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the button (16) to skip to
the beginning of the next track. Each time the button is
pressed, the indicated track number will increase. V Backward direction
Briefly press the “ ” side of the button (16) to skip to
the beginning of the current track. Each time the but-
ton is pressed, the indicated track number will de-crease. T Fast-forwarding and fast-reversing
V Fast-forwarding
Press the “ ” side of the button (16) continuously for
more than 0.5 second to fast-forward the disc.
Release the button to stop fast-forwarding. V Fast-reversing
Press the “ ” side of the button (16) continuously for
more than 0.5 second to fast-reverse the disc.

5-26
Audio
Release the button to stop fast-reversing. T
Repeat playback
Press the “RPT” button (12) while a song is playing to
play the song repeatedly. The “RPT” indicator will
come on and the song will be played continuously. To
cancel the repeat mode, press the button again. Then
the “RPT” indicator goes out, and normal playback
mode is restored. T Random playback
Press the “RAND” button (13) while a disc is being
played back to play all songs on the disc in a random
order. The “RAND” indicator will come on and all
songs on the disc will be played in a random order.
To cancel the random mode, press the button again.
Then the “RAND” indicator goes out, and normal play-
back mode is restored. T Scan
When the “SCAN” button (17) is pressed while the disc
is being played back, you can hear the first 10 seconds
of each track to search for the desired program. To
continue listening to the program, press the “SCAN”
button again. After all tracks on the disc have been
scanned, normal playback mode is restored. T
How to unload CDs from the player
V Ejecting a CD from the player
Of the discs loaded, you can select and remove only
one disc.
1. Press the “Disc select” button (15) of the disc
whose “DISC” indicator is ON.
2. Press the “Eject” button (9). Then the “DISC” indi-
cator associated with the disc you have selected will
blink, and the disc will be ejected.
To remove more discs in succession, repeat Steps 1
and 2. V Ejecting all discs from the player (All disc ejec- tion mode)
1. If you continue to press the “Eject” button (9), the
player will produce beep sound and will enter the all
disc ejection mode.
2. Remove the disc that has been ejected. The other
discs loaded will then be ejected one after another. If
you do not remove the disc that has been ejected, the
“All disc ejection mode” will be canceled.
NOTE
Avoid driving the vehicle with a CD sticking out,
because vibration might make it fall out.

5-27
Audio
– CONTINUED –

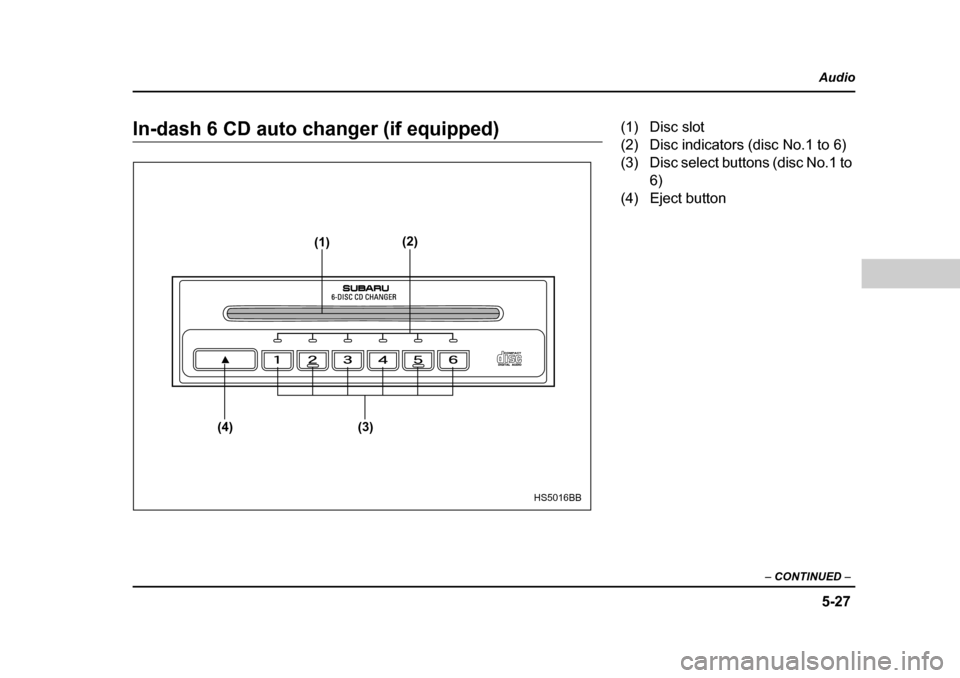

In-dash 6 CD auto changer (if equipped)
(1) (2)
(3)
(4)
HS5016BB
(1) Disc slot
(2) Disc indicators (disc No.1 to 6)
(3) Disc select buttons (disc No.1 to
6)
(4) Eject button

5-28
Audio
y
Do not attempt to insert two or more discs
into the slot at a time. Doing so can cause me-
chanical damage to the CD changer. y Use only music CDs identified by
am ark .
y Do not use CDs listed below which could
cause damage to the CD player.
y3 inch (8 cm) compact disc.
y Any disc with a peel-off or seal on it.
y Any disc with scratches and/or dust.
y Bent disc.
y Cleaning disc.
y CD accessory. (E.g., 3 inch (8 cm) disc
adapter)
y Do not insert or remove any disc when the
automatic transmission selector lever is in the
park position; the selector lever in that position
can interfere with disc insertion or removal,
causing scratches on the disc surface (for AT
vehicles).
T To insert a disc
1. Press one of the “Disc select” buttons (3) (num-
bered from 1 to 6) for which the disc indicator light (2) is “OFF”.
The Disc indicator lights are located directly above the
corresponding “Disc select” buttons.
2. The indicator will begin blinking. The blinking will last for 15 seconds.
During this period, insert a desired disc, and the disc
will begin to play. (If any disc is not inserted during this
period, the “Disc slot” (1) door will close. Repeat Step
1.)
Be sure to hold a disc with the label side (the side
where titles are printed) up.
3. To insert another disc, repeat Steps 1 and 2 choos-
ing a different disc select button. T
To insert six discs at a time
1. Press and hold the “Disc select” button number 1
until all disc indicators begin blinking (about 1.5 sec-
onds).
2. The indicators will blink for 15 seconds. During this
period, insert desired six discs.
3. When all discs are loaded, the first disc will begin to
play. (If no disc is inserted within this 15 seconds, the
entire disc load sequence will be canceled.) T To remove a disc
1. Press the desired one of the “Disc select” buttons
(3) (numbered from 1 to 6) for which the disc indicator
light is on.

5-29
Audio
– CONTINUED –
2. Press the “Eject” button (4). The selected disc will
be ejected and the indicator light will begin blinking.
3. To remove another disc, repeat Steps 1 and 2
choosing a different “Disc select” button.
(To remove discs when the ignition switch is in the
“Lock” position, press the “Eject” button, and the first
disc will be ejected. Press the “Eject” button again,
and the next disc will be ejected and so on. At this
time, the “Disc select” buttons are disabled.) TTo remove all discs at one time
1. Press and hold the “Eject” button (4) until all “Disc”
indicators begin blinking (about 1.5 seconds), and the
first disc will be ejected.
2. When the disc is removed, the next one will be
ejected, and so on. T To replace a playing disc with another
Simply press the desired one of “Disc select” buttons
(3) (numbered from 1 to 6) or press the “DISC UP” or
“DISC DOWN” button on the radio unit to select the
desired disc, and the disc will begin to play. T Disc indicators
Lit: when the corresponding storage tray is occupied
by a disc.
Blinking: Disc player is either in loading, eject or
changing mode. OFF: No disc is loaded or the ignition switch is in the
“LOCK” position. T
Function control
Refer to CD player control operating instructions de-
scribed in the “AM/FM radio with CD player” section.
