SUBARU BAJA 2005 1.G Owners Manual

5-10
Audio
seconds to store the frequency. At this time, there will
momentarily be no sound from the radio. If the button
is pressed for less than 2 seconds, the preceding se-
lection will remain in memory.
NOTE y
If the connection between the radio and battery
is broken for any reason such as vehicle mainte-
nance or radio removal, all stations stored in the
preset buttons are cleared. If this occurs, it is nec-
essary to reset the preset buttons. y If a mobile telephone is placed near the radio, it
may cause the radio to emit noise when it receives
calls. This noise does not indicate a radio fault.

5-11
Audio
– CONTINUED –

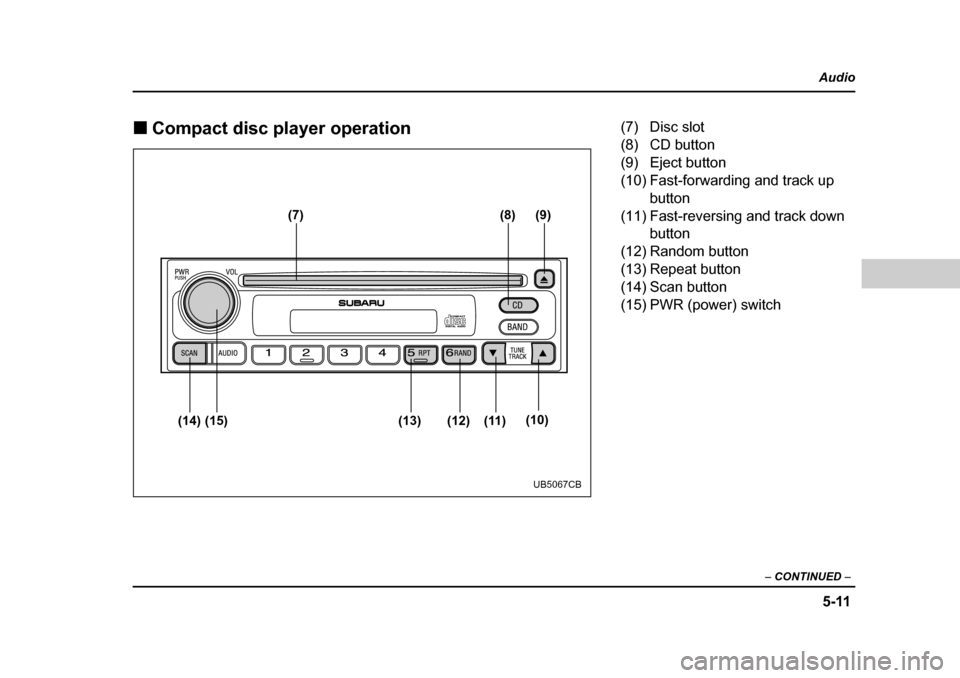

„Compact disc player operation
(8)
(7) (9)
(14) (15) (13) (12) (11) (10)
UB5067CB
(7) Disc slot
(8) CD button
(9) Eject button
(10) Fast-forwarding and track up
button
(11) Fast-reversing and track down
button
(12) Random button
(13) Repeat button
(14) Scan button
(15) PWR (power) switch

5-12
Audio
T
To playback a compact disc
V When CD is not in the player
Hold a disc with a finger in the center hole while grip-
ping the edge of the disc, then insert it in to the slot
(with the label side up) and the player will automatical-
ly pull the disc into position.
A 8 cm/3 inch CD may also be used without any adapt- er.
NOTE y DO NOT INSERT TWO DISCS INTO THE DISC IN-
SERTION SLOT AT A TIME. y Make sure to always insert a disc with the label
side up. If a disc is inserted with the label side
down, it might be ejected or the player might shut off.y After the last song finishes, the player will auto-
matically return to track 1 (the first song on the
disc). V When CD is in the player
When the “CD” button (8) is pressed, the player will
start playback.
NOTE
After the last song finishes, the player will auto-
matically return to track 1 (the first song on the disc). T
To stop playback of a CD
When the “PWR” button (15) is pressed during play-
back of a CD, the CD stops playing temporarily. To let
the CD resume playing, press the button again. T To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the button (10) to skip
to the beginning of the next track. Each time this side
of the button is pressed, the indicated track number
will increase. V Backward direction
Briefly press the “ ” side of the button (11) to skip
to the beginning of the current track. Each time this
side of the button is pressed, the indicated track num-
ber will decrease. T Fast-forwarding and fast-reversing
V Fast-forwarding
Press the “ ” side of the button (10) continuously
for more than 0.5 second to fast-forward the disc.
Release the button to stop fast-forwarding.

5-13
Audio
– CONTINUED –
VFast-reversing
Press the “ ” side of the button (11) continuously
for more than 0.5 second to fast-reverse the disc.
Release the button to stop fast-reversing. T Repeat playback
Use this to play a certain track repeatedly. During
playback, press the “RPT” button (13) and release it in
less than 2 seconds. The “RPT” indicator will come on
and the song will be played continuously. To cancel
the repeat mode, press the button again. Then the
“RPT” indicator goes out, and normal playback mode
is restored. T Random playback
Use this to play the tracks on the disc in random order.
During playback, press the “RAND” button (12) and
hold it in for more than 2 seconds. The “RAND” indica-
tor will come on and all songs on the disc will be
played in a random order.
To cancel the random mode, press the button again.
Then the “RAND” indicator goes out, and normal play-
back mode is restored. T Scan
Press the “SCAN” button (14) and release it in less
than 2 seconds, and you can hear the first 10 seconds
of each track to search for the desired program. To continue listening to the program, press the “SCAN”
button again. After all tracks on the disc has been
scanned, normal playback mode is restored. T
To eject a disc from the player
When a disc is being played back or when a disc is in
the player, press the “Eject” button “ ” (9). The disc
will be ejected.
The disc may be removed even when the ignition
switch is in the “LOCK” position.
NOTE y Avoid driving the vehicle with a CD sticking out,
because vibration might make it fall out. y To protect the disc, the disc is automatically
loaded if it is left in the ejected position for more
than approximately 15 seconds (Auto Reload). In
this case, the disc is not played. „ CD changer control (if optional in dash
CD changer is connected)
An optional CD changer can be connected to this au-
dio unit. See your SUBARU dealer for more informa-
tion. For procedures for loading and unloading CDs,
refer to “In-dash 6 CD auto changer (Optional audio
unit – if equipped)” in this chapter.

5-14
Audio

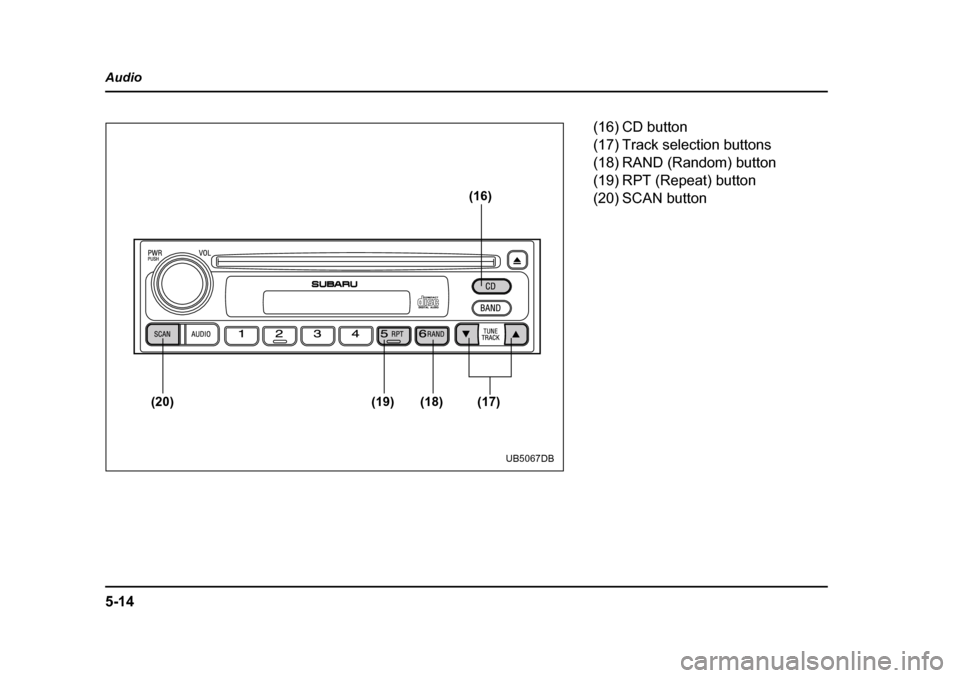

(16)
(20) (19) (18) (17)
UB5067DB
(16) CD button
(17) Track selection buttons
(18) RAND (Random) button
(19) RPT (Repeat) button
(20) SCAN button

5-15
Audio
– CONTINUED –
TTo start playback
Press the “CD” button (16). The “CD” indicator will
come on and the disc number will appear on the dis-
play and the CD changer will start playback.
NOTE y If the “CD” button is pressed during a radio
broadcast, the CD changer will interrupt the
broadcast. y At the end of the disc, playback automatically
continues with the next disc. y After playback on the last disc finishes, the play-
er will automatically return to the first disc. y If you have loaded fewer than 6 discs, any miss-
ing disc is automatically skipped. T Selection of a desired disc
Discs cannot be selected using the main audio unit. To
select a disc, press one of the “Disc select” buttons
(these are numbered from 1 to 6) on the CD changer
unit. The disc will begin to play. T To select a song from its beginning
Briefly press the “ ” side of the track selection but-
ton (17) to skip to the beginning of the next track and
briefly press the “ ” side of the button to skip to the
beginning of the current track. T
Fast-forwarding and fast-reversing
Press the “ ” side of the track selection button (17)
continuously for more than a half second to fast-for-
ward the disc.
Press the “ ” side of the button continuously for
more than a half second to fast-reverse the disc.
Release the button to stop fast-forwarding or fast-re- versing. T Repeat playback
Press the “RPT” button (19) while a song is playing to
play the song repeatedly. The “RPT” indicator will
come on and the song will be played continuously. To
cancel the repeat mode, press the button again. Then
the “RPT” indicator goes out, and normal playback mode is restored. T Random playback
Press the “RAND” button (18) while a disc is being
played back to play all songs on the disc in a random
order. The “RAND” indicator will come on and all
songs on the disc will be played in a random order.
To cancel the random mode, press the button again.
Then the “RAND” indicator goes out, and normal play-
back mode is restored.

5-16
Audio
T
Scan (a convenient way to become familiar with
a disc)
1. Press the “SCAN” button (20). – The display shows “SCAN” and the track number
being scanned.
– You hear the first 10 seconds of each track.
– The operation is automatically cleared after play-
ing all programs. Then, normal playback starts.
2. Press the “SCAN” button again when you hear a
track you like. – Normal playback resumes.
T To stop playback
To stop playback and switch over to the radio mode,
press the “BAND” button.

5-17
Audio
– CONTINUED –
Type B audio set (if equipped)

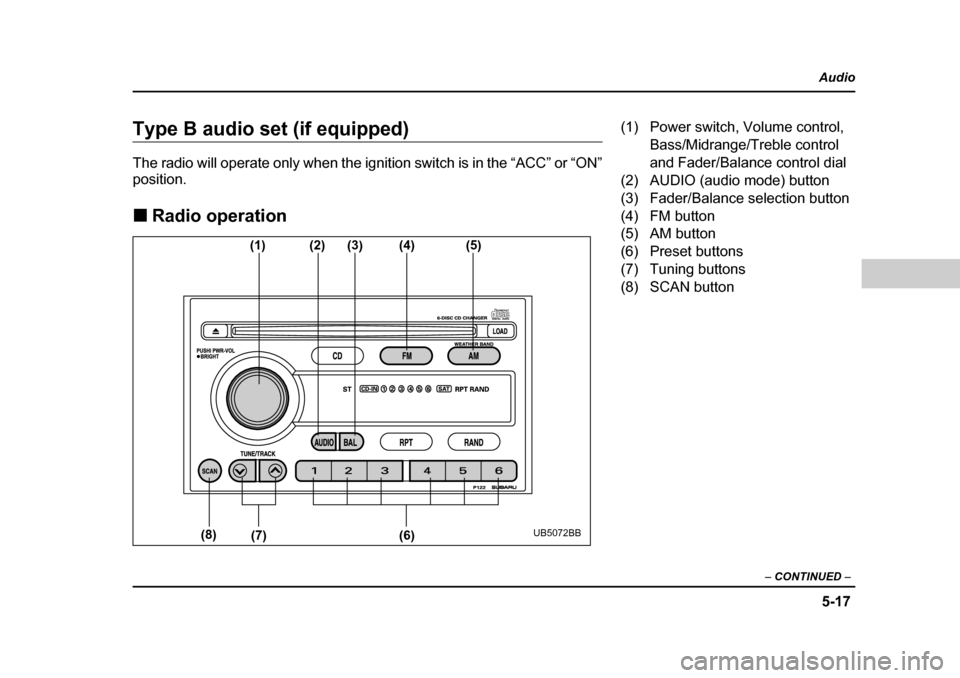

The radio will operate only when the ignition switch is in the “ACC” or “ON” position. „Radio operation
(1) (2)(3)(4) (5)
(6)
(7)
(8)
UB5072BB
(1) Power switch, Volume control,
Bass/Midrange/Treble control
and Fader/Balance control dial
(2) AUDIO (audio mode) button
(3) Fader/Balance selection button
(4) FM button
(5) AM button
(6) Preset buttons
(7) Tuning buttons
(8) SCAN button

5-18
Audio
T
Power switch and volume/bass/treble/fader/
balance control (PWR/VOL)
The dial (1) is used for both power (ON/OFF) and vol-
ume control. The radio is turned ON and OFF by push-
ing the dial and the volume is controlled by turning the
dial.
This dial is used for bass/midrange/treble controls
when the “AUDIO” button (2) is in the depressed posi-
tion. It is also used for fader/balance controls when the
“BAL” button (3) is in the depressed position.

5-19
Audio
– CONTINUED –

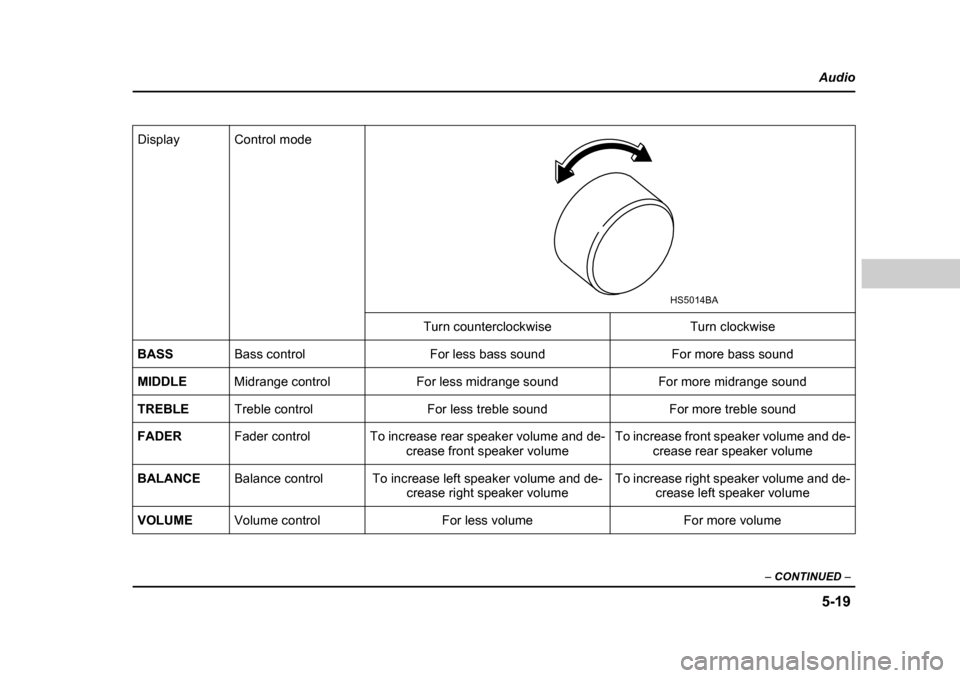

Display Control mode
Turn counterclockwise Turn clockwise
BASS Bass control For less bass sound For more bass sound
MIDDLE Midrange control For less midrange sound For more midrange sound
TREBLE Treble control For less treble sound For more treble sound
FADER Fader control To increase rear speaker volume and de-
crease front speaker volume To increase front speaker volume and de-
crease rear speaker volume
BALANCE Balance control To increase left speaker volume and de-
crease right speaker volume To increase right speaker volume and de-
crease left speaker volume
VOLUME Volume control For less volume For more volume
HS5014BA
