SUBARU BAJA 2005 1.G Owners Manual

11 - 6 0
Maintenance and service

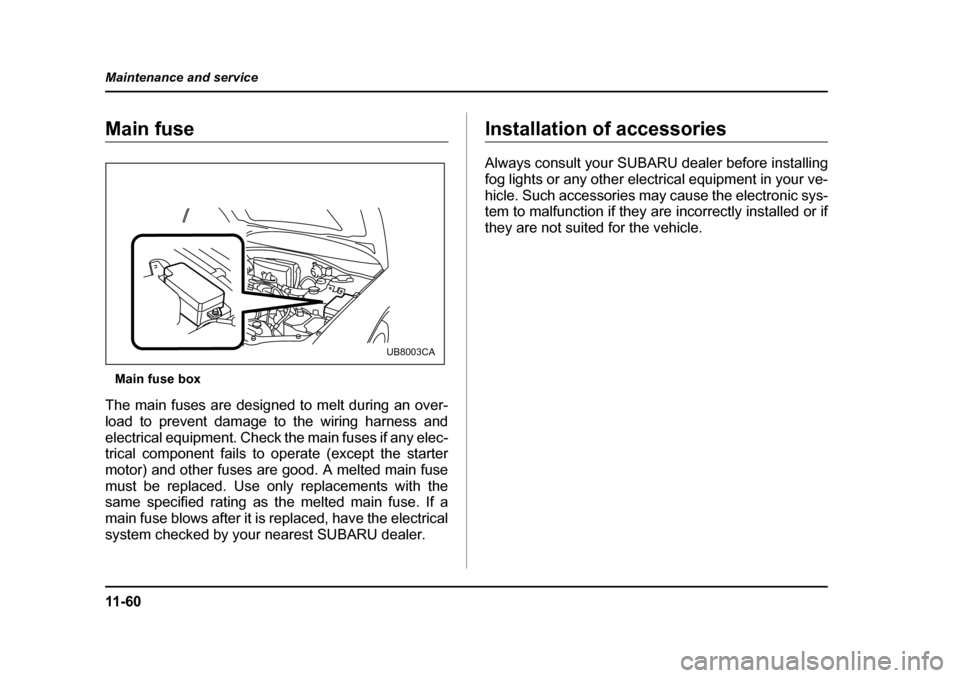

Main fuse
Main fuse box
The main fuses are designed to melt during an over-
load to prevent damage to the wiring harness and
electrical equipment. Check the main fuses if any elec-
trical component fails to operate (except the starter
motor) and other fuses are good. A melted main fuse
must be replaced. Use only replacements with the
same specified rating as the melted main fuse. If a
main fuse blows after it is replaced, have the electrical
system checked by your nearest SUBARU dealer.Installation of accessories
Always consult your SUBARU dealer before installing
fog lights or any other electrical equipment in your ve-
hicle. Such accessories may cause the electronic sys-
tem to malfunction if they are incorrectly installed or if
they are not suited for the vehicle.
UB8003CA

11 -6 1
Maintenance and service
– CONTINUED –

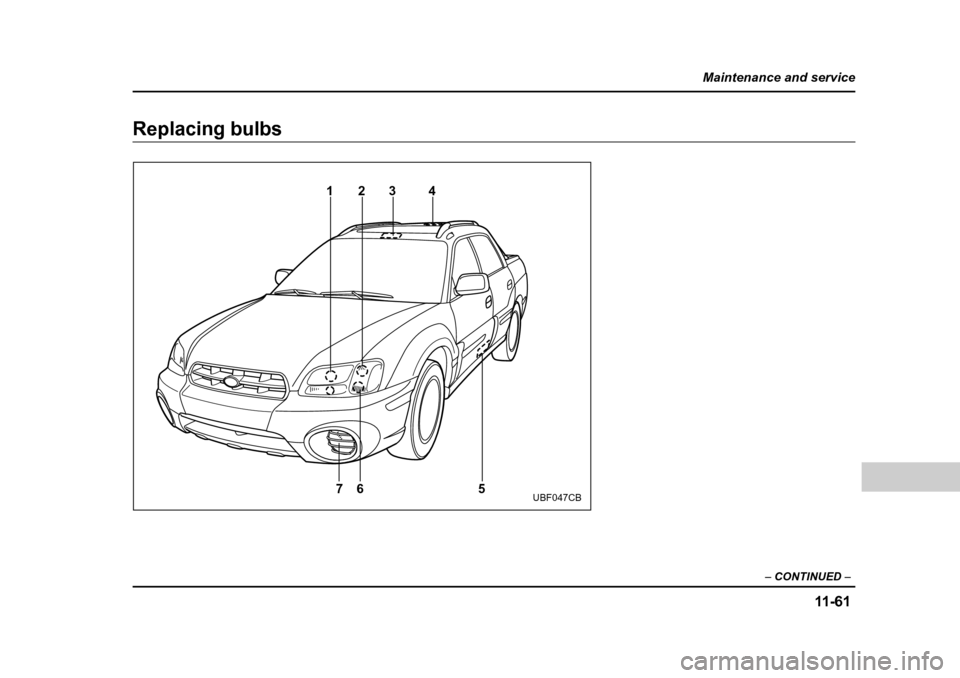

Replacing bulbs
76
14
23
5UBF047CB

11 - 6 2
Maintenance and service
Wattage Bulb No.
1) Headlight BAJA-S 12V-65/ 55W9007 (HB5)
BAJA, BAJA-B Low beam 12V-55W H1
High beam 12V-60W 9005 (HB3)
2) Front turn signal 12V-27W 1156NA (Amber)
3) Map light 12V-8W –
4) Dome light 12V-8W –
5) Door step light 12V-3.4W –
6) Front turn signal light/ parking and front side marker light 12V-27/8W
1157NA
(Amber)
7) Front fog light 12V-51W 9006 (HB4)

11 -6 3
Maintenance and service
– CONTINUED –

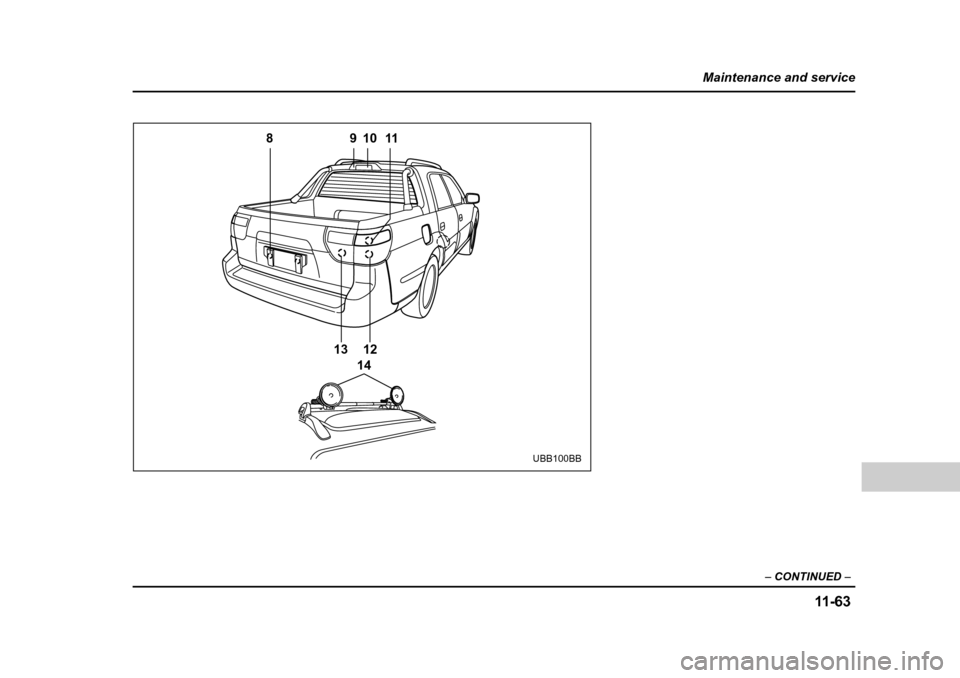

1412
13
89
10 11
UBB100BB

11 - 6 4
Maintenance and service
„
Headlight
Halogen headlight bulbs become very hot while
in use. If you touch the bulb surface with bare
hands or greasy gloves, finger prints or grease
on the bulb surface will develop into hot spots
and cause the bulb to break. If there are finger
prints or grease on the bulb surface, wipe them
away with a soft cloth moistened with alcohol.
NOTE
If headlight aiming is required, consult your
SUBARU dealer for proper adjustment of the head-
light aim.
Wattage Bulb No.
8) License plate light 12V-5W 168
9) Cargo light 12V-13W 912
10) High mount stop light 12V-13W 912
11) Backup light 12V-21W 7440
12) Brake rear turn signal/ tail light 12V-21/ 5W7443
13) Tail light 12V-5W 168
14) Sports activity lights 12V-55W H3

11 -6 5
Maintenance and service
– CONTINUED –
TBAJA-Sport

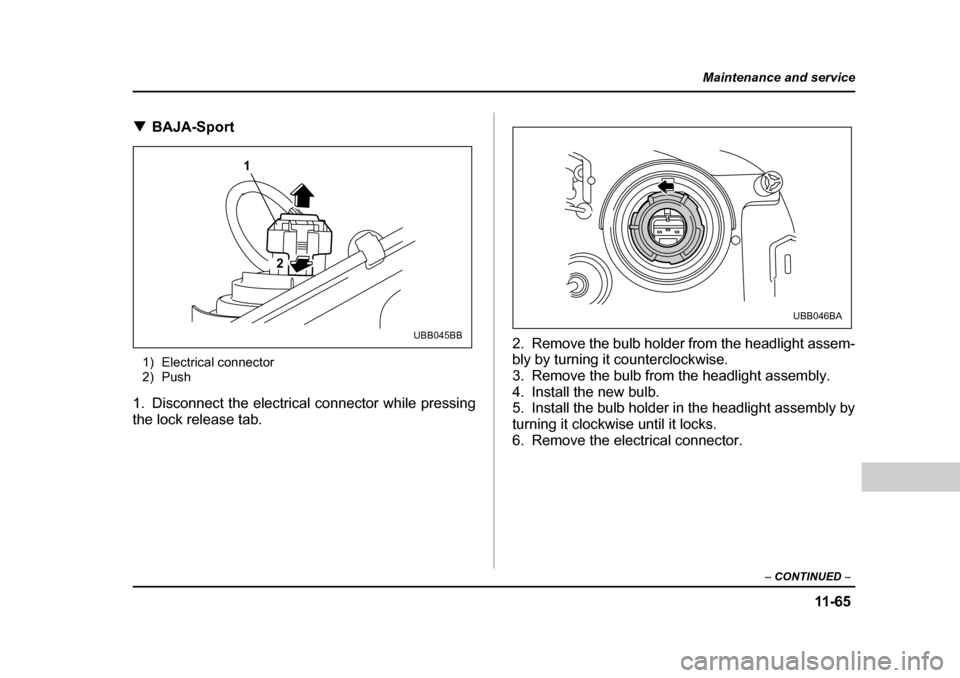

1) Electrical connector
2) Push
1. Disconnect the electrical connector while pressing
the lock release tab. 2. Remove the bulb holder from the headlight assem-
bly by turning it counterclockwise.
3. Remove the bulb from the headlight assembly.
4. Install the new bulb.
5. Install the bulb holder in the headlight assembly by
turning it clockwise until it locks.
6. Remove the electrical connector.
1
2
UBB045BB
UBB046BA

11 - 6 6
Maintenance and service
T
BAJA, BAJA-Turbo

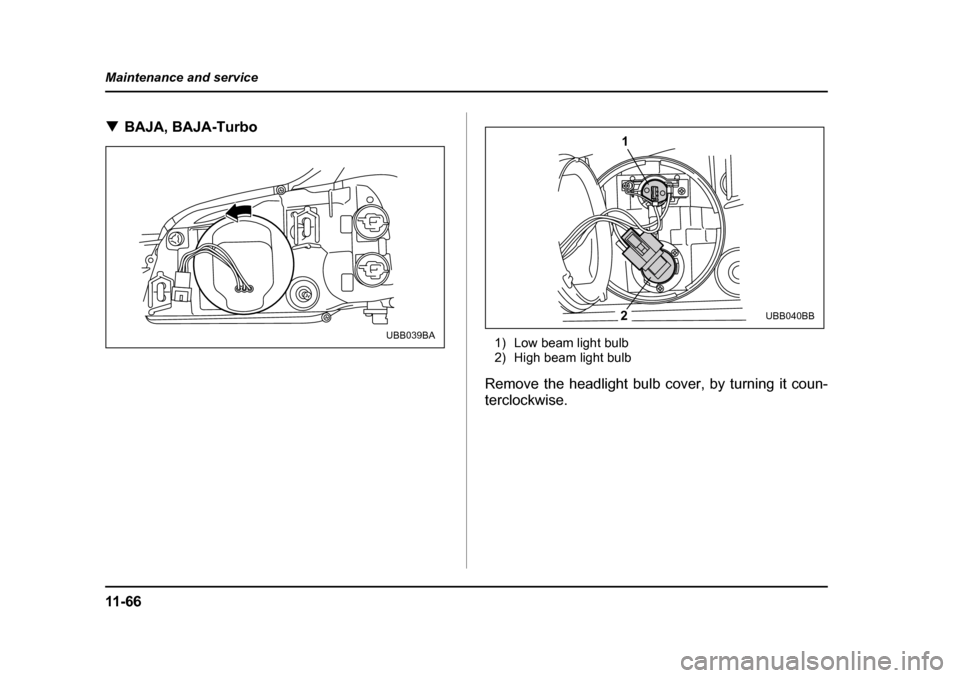

1) Low beam light bulb
2) High beam light bulb
Remove the headlight bulb cover, by turning it coun-
terclockwise.
UBB039BA
1
2UBB040BB

11 -6 7
Maintenance and service
– CONTINUED –

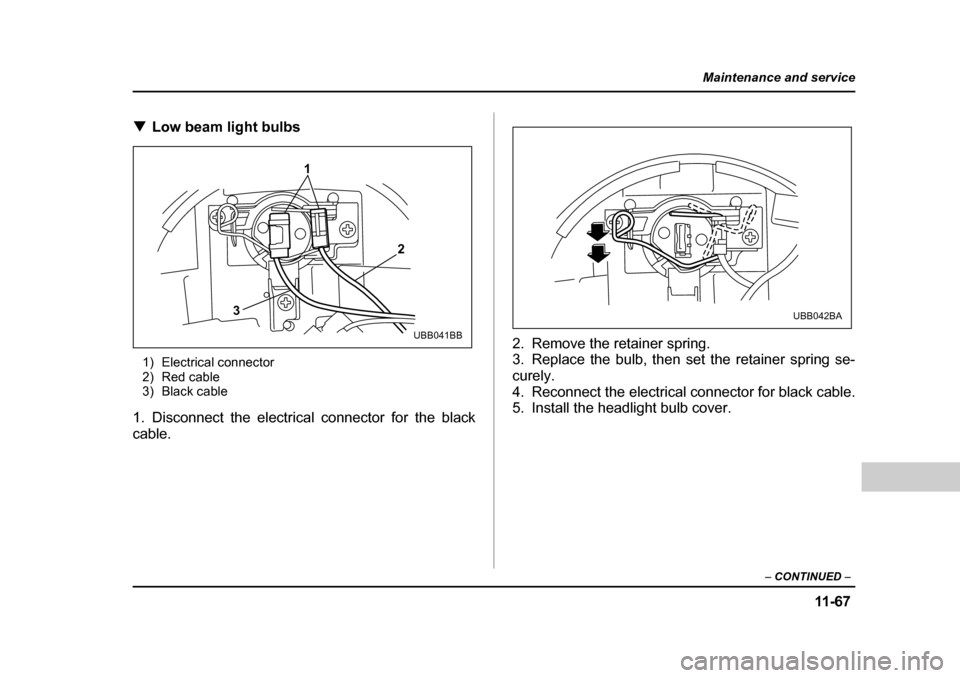

TLow beam light bulbs0
1) Electrical connector
2) Red cable
3) Black cable
1. Disconnect the electrical connector for the black
cable. 2. Remove the retainer spring.
3. Replace the bulb, then set the retainer spring se- curely.
4. Reconnect the electrical connector for black cable.
5. Install the headlight bulb cover.
1
2
3
UBB041BB
UBB042BA

11 - 6 8
Maintenance and service
T

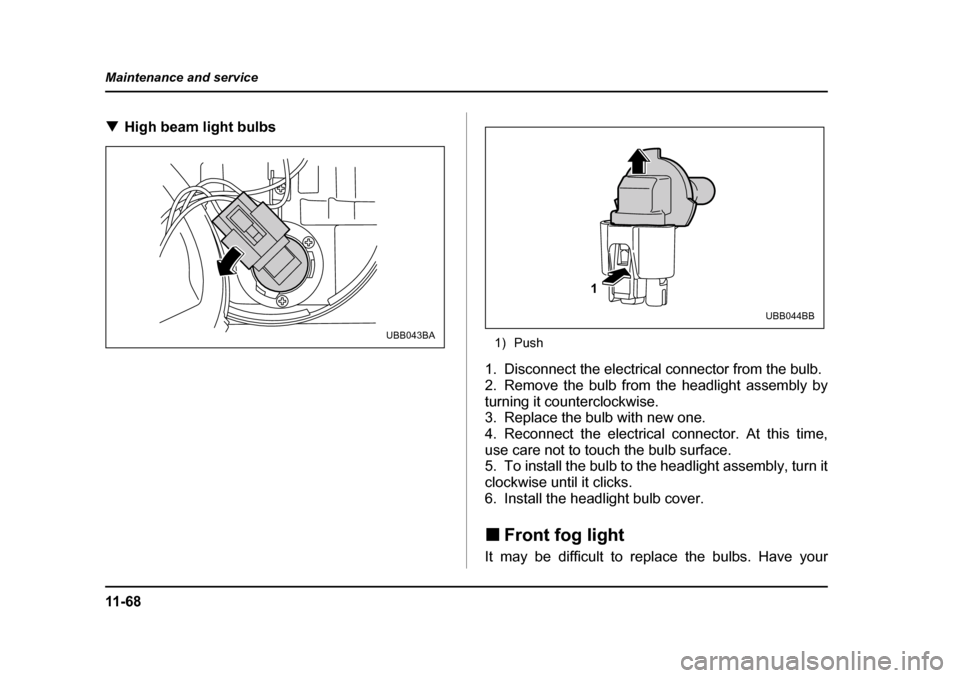

High beam light bulbs0
1) Push
1. Disconnect the electrical connector from the bulb.
2. Remove the bulb from the headlight assembly by
turning it counterclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At this time,
use care not to touch the bulb surface.
5. To install the bulb to the headlight assembly, turn it
clockwise until it clicks.
6. Install the headlight bulb cover. „ Front fog light
It may be difficult to replace the bulbs. Have yourUBB043BA
1
UBB044BB

11 -6 9
Maintenance and service
– CONTINUED –
SUBARU dealer replace the bulbs if necessary. „Front turn signal light, parking light
and side marker light
The headlight assembly must be removed before the
front turn signal light and parking light bulbs can be re-
placed. When the headlight assembly has been re-
moved and then reinstalled, it may become necessary
to make a headlight aiming adjustment. After a bulb
has been replaced, it is recommended that the head-
light aiming adjustment be made at a SUBARU dealer.

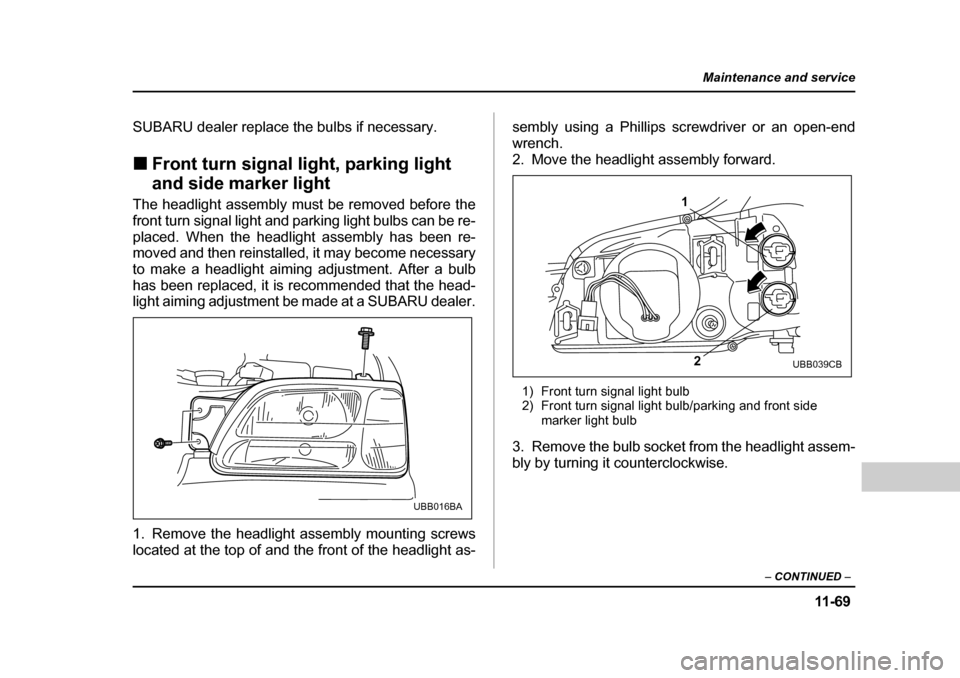

1. Remove the headlight assembly mounting screws
located at the top of and the front of the headlight as- sembly using a Phillips screwdriver or an open-end
wrench.
2. Move the headlight assembly forward.
1) Front turn signal light bulb
2) Front turn signal light bulb/parking and front side marker light bulb
3. Remove the bulb socket from the headlight assem-
bly by turning it counterclockwise.
UBB016BA
1
2
UBB039CB
