2-32
Keys and doors
Switchback doorSwitchback door
With the switchback door ope
n, you can increase the
usable cargo space and can carry long objects.
Secure long objects properly to prevent them
from sliding forward and causing serious injury
during a sudden stop or sharp cornering. Tie
long objects down with a rope or something
equivalent.
Pay attention that your fingers do not get
pinched with the switchback door when open-
ing and closing it.
To open the switchback door:
1. Pull up the rear seat cushion. Refer to “Rear seats”
section in chapter 1 for operating details.
UB2052BA
UB1172BA
Page 122 of 487

2-33
Keys and doors
– CONTINUED –
1) Red
A) LOCK
B) UNLOCK 2. Unlock the rear seatback by pulling up on the knob
and fold down the rear seatback. Confirm that the pins
located at the bottom of the seat cushion is inserted
into the slots at the top of the seatback.
1
AB
UB1112CBUB1113BA
Page 123 of 487

2-34
Keys and doors
3. Fold down the switchback door by releasing the
lock knob. Then you can have a flat and larger cargo
space.
4. Place the long object on the cargo bed through the
switchback door opening.
Be sure all items are secured in place.
NOTE y
When opening the switchback door in snow, ac-
cumulated snow in the cargo bed may enter the
passenger compartment which could result in
dampness in the passenger compartment. Prior to
opening of the switchback door, brush off the
snow completely. y Close the switchback door whenever you leave
the vehicle to prevent unauthorized entry.
The switchback door should be kept complete-
ly shut when the vehicle is idling in an enclosed
or partially enclosed area to avoid the possibil-
ity of exhaust gas entering the passenger com-
partment. Engine exhaust gas contains carbon
monoxide, a colorless and odorless gas which
is extremely dangerous, or even lethal if in-
haled. To ensure that exhaust gas cannot pen-
etrate the switchback door, make certain that
there are no obstructions between the door and
UB1114BA
UB1115BA
Page 124 of 487

2-35
Keys and doors
– CONTINUED –
the vehicle body that prevent the door from ful-
ly closing or that crimp the weather strip
around the door.
To close the switchback door, firmly push it upward
until it latches.
Return the seatback and seat cushion to their original
positions and make sure they are securely locked.
After returning the seatback to its original posi-
tion, make sure that the rear seatback has been
securely locked. When securely locked, the red
marks on the locking knobs are no longer visi-
ble. „
Switchback door indicator light
„
Switchback door indicator light
While the ignition switch is in the “ON” position, the
switchback door indicator light comes on when the
switchback door is open.
While the ignition switch is in the “LOCK” or “ACC” po-
sition, the switchback door indicator light flashes for
approximately 20 seconds and goes off when the
switchback door is open.
UB7023EA
Page 125 of 487

2-36
Keys and doors
Moonroof (if equipped)Moonroof
Never let anyone’s hands, arms, head or any
objects protrude from the moonroof. A person
could be seriously injure
d if the vehicle stops
suddenly or turns sharply or if the vehicle is in-
volved in an accident.
To avoid serious personal injury caused by en-
trapment, you must do the following. y Before closing the mo onroof, make sure that
no one’s hands, arms, neck, head or other ob-
jects will be a ccidentally caught in the moon-
roof. y Before leaving the vehicle, always remove
the key from the ignition switch for safety and
never allow an unattended child to remain in
the vehicle. Failure to follow this procedure
could result in injury to a child operating the
moonroof.
y Do not sit on the edge of the open moonroof. y
Do not operate the moonroof if falling snow
or extremely cold conditions have caused it to
freeze shut.
„ Tilting/sliding moonroof
The moonroof has both tilt ing and sliding functions.
The moonroof operates only when the ignition switch
is in the “ON” position.

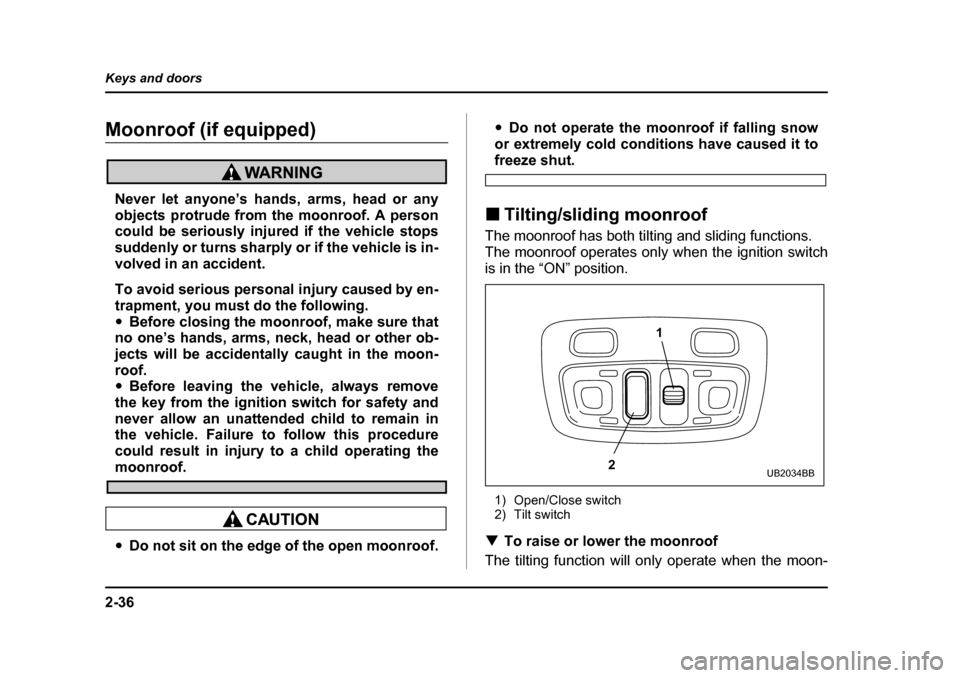

1) Open/Close switch
2) Tilt switch
T To raise or lower the moonroof
The tilting function will only operate when the moon-
1
2
UB2034BB
Page 126 of 487

2-37
Keys and doors
– CONTINUED –
roof is fully closed.
Push the rear side of the “Tilt” switch to raise the
moonroof.
Push the front side of the “Tilt” switch to lower the
moonroof.
Release the switch afte r the moonroof has been
raised or has been lowered completely. Pushing the
switch continuously may cause damage to the moon-roof. T To open or close the moonroof
Push the “Open/Close” switch rearward to open the
moonroof. The sun shade will also be opened together
with the moonroof.
Push the “Open/Close” swit ch forward to close the
moonroof. The moonroof will stop halfway if you con-
tinue to press on the switch.
Release the switch once and push it again to close the
moonroof completely.
After washing the vehicle or after it rains, wipe away
water on the roof prior to opening the moonroof to pre-
vent drops of water from falling into the passenger
compartment. „
Sun shade „
Sun shades

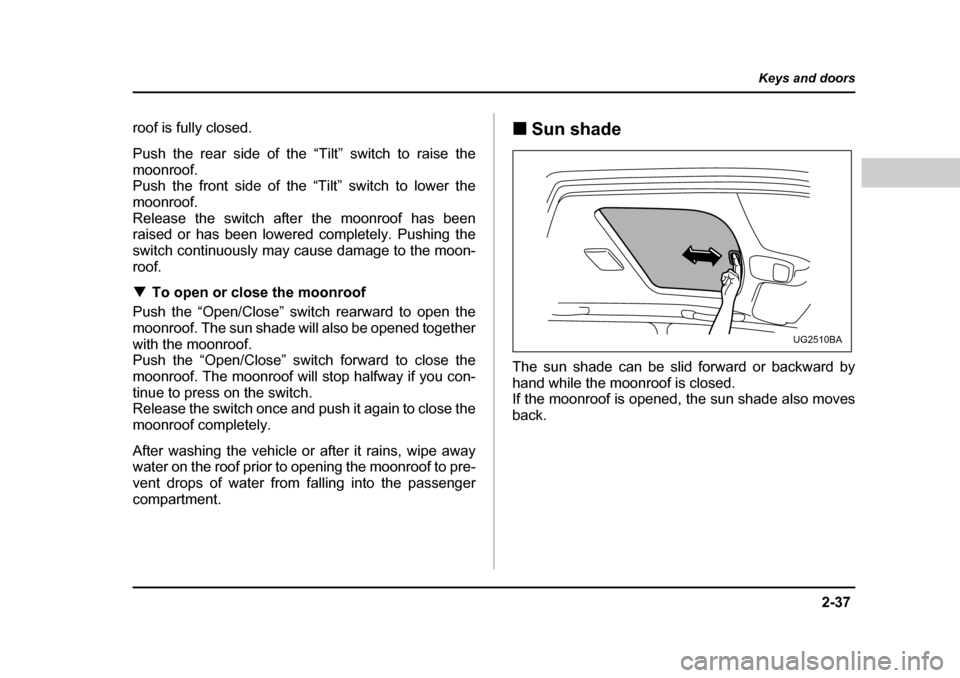

The sun shade can be slid forward or backward by
hand while the moonroof is closed.
If the moonroof is opened, the sun shade also moves
back.
UG2510BA
Page 127 of 487

Page 128 of 487
