The indicator light located on the button will come on
when the outside mirror defogger heater in operation.
To turn it off, push the button again.Tilt steering wheelTilt steering wheel
Do not adjust the steering wheel tilt position
while driving. This may cause loss of vehicle
control and result in personal injury.

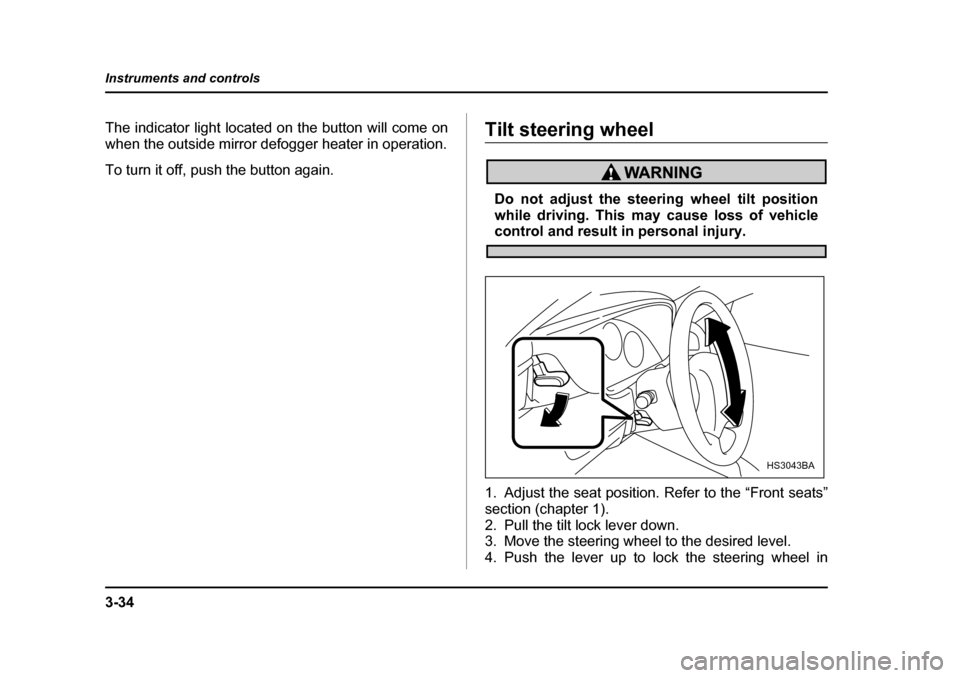

1. Adjust the seat position. Refer to the “Front seats”
section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired level.
4. Push the lever up to lock the steering wheel in
HS3043BA

3-35
Instruments and controls
– CONTINUED –
place.
5. Make sure that the steering wheel is securely
locked by moving it up and down.HornHorn

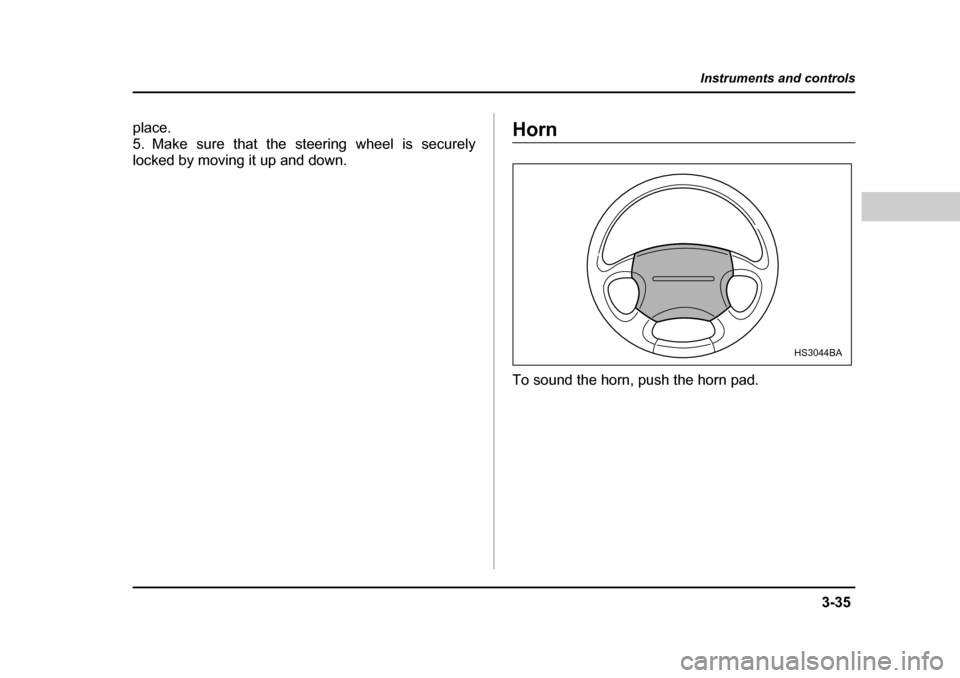

To sound the horn, push the horn pad.
HS3044BA

4-1
4
Climate control
Ventilator ....................................................... 4-2 Driver’s side ventilators ................................... 4-2
Center ventilators ............................................. 4-2
Front passenger’s side ventilators ................. 4-3
Air flow selection .............................................. 4-4
Manual heating and air conditioning system ........................................................ 4-5Control panel ..................................................... 4-5
Heater operation ............................................... 4-7
Air conditioner operation ................................. 4-10
Operating tips for heater and air conditioner ................................................. 4-11
Air filtration system (if equipped) ................ 4-13

4-2
Climate control
Climate controlVentilator „
Driver’s side ventilators
1) Open
2) Close

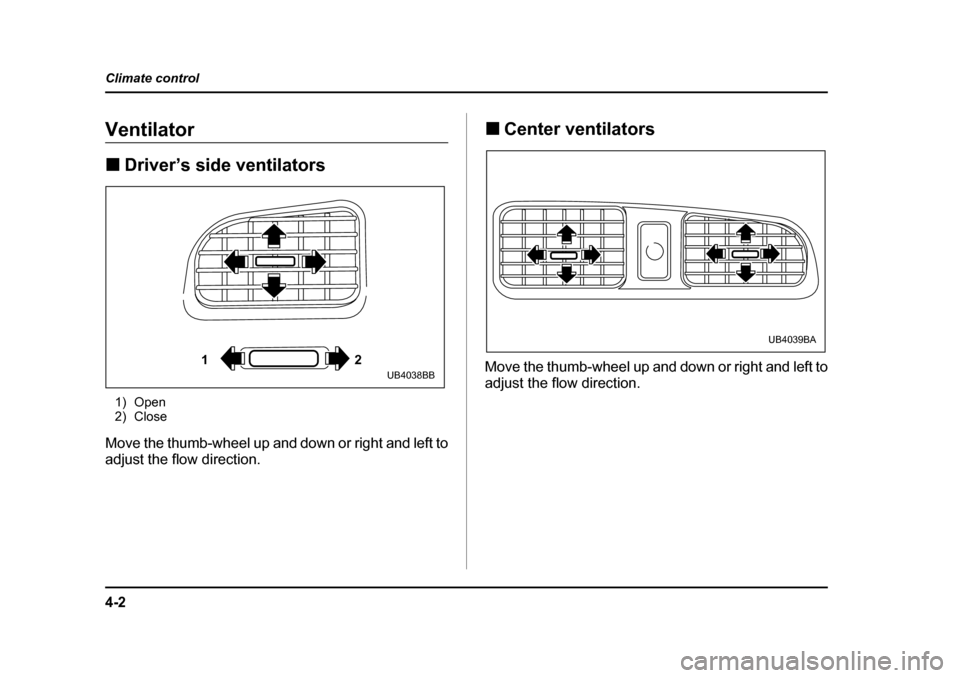

Move the thumb-wheel up and down or right and left to
adjust the flow direction. „
Center ventilators

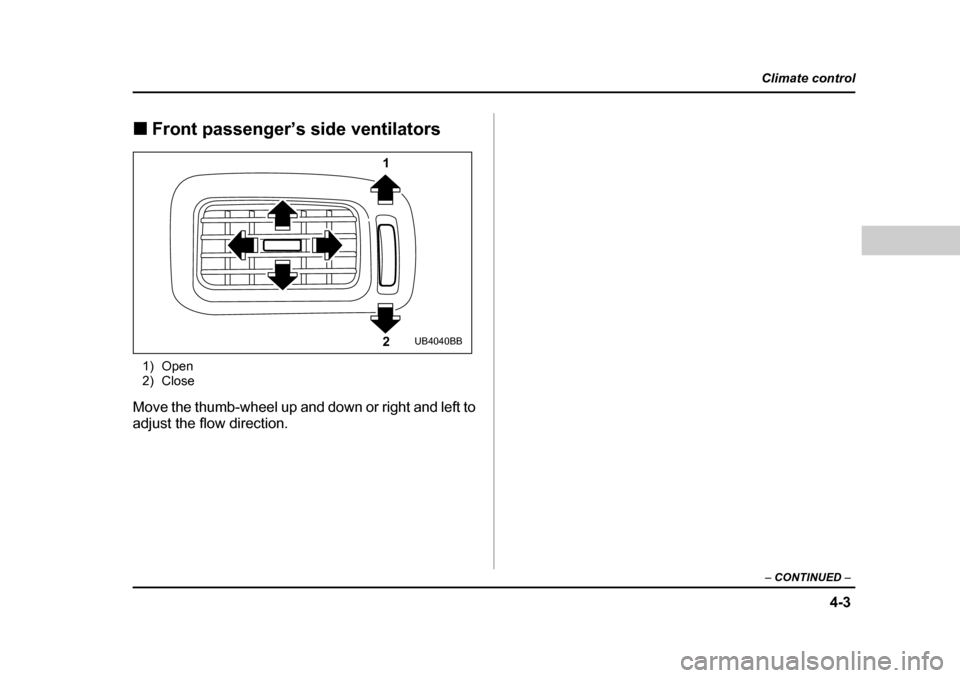

Move the thumb-wheel up and down or right and left to
adjust the flow direction.
12UB4038BB
UB4039BA

4-3
Climate control
– CONTINUED –
„Front passenger’s side ventilators
1) Open
2) Close
Move the thumb-wheel up and down or right and left to
adjust the flow direction.
1
2
UB4040BB

4-4
Climate control „

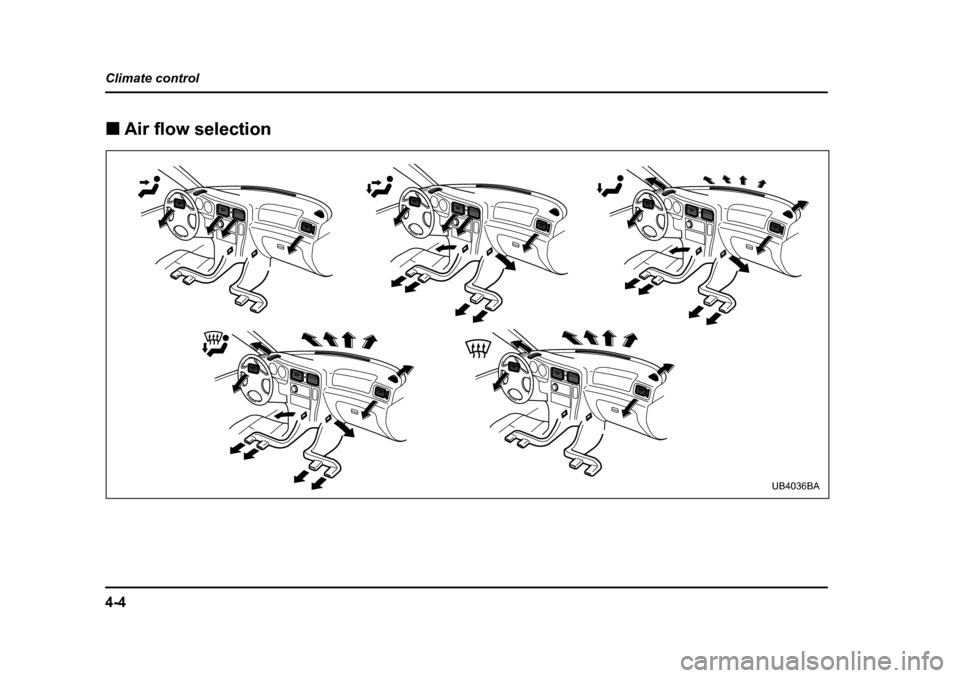

Air flow selection
UB4036BA

4-5
Climate control
– CONTINUED –
Manual heating and air conditioning
system „Control panel

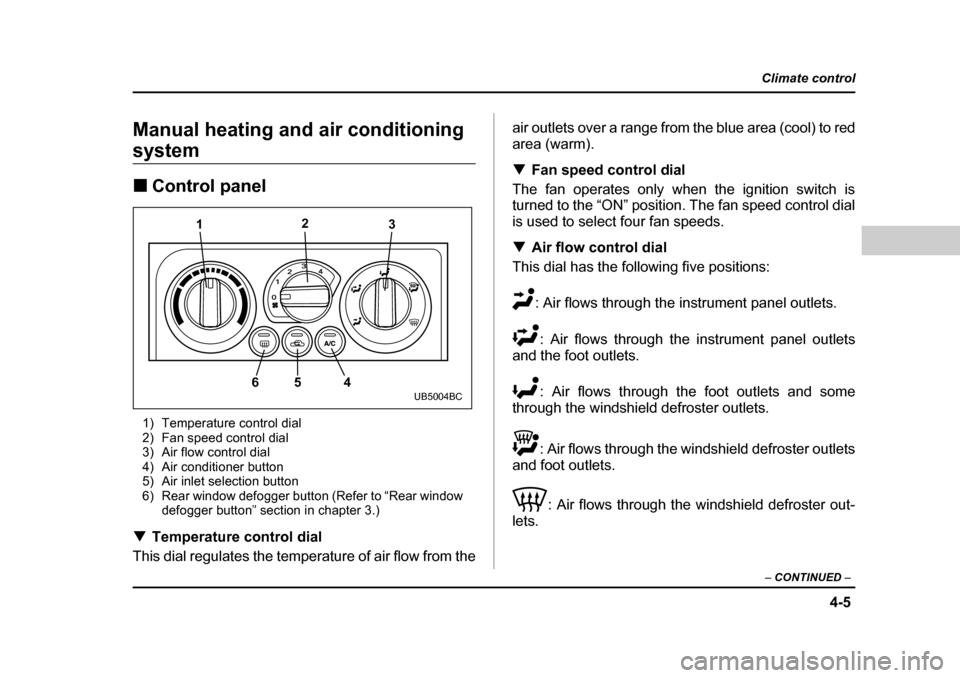

1) Temperature control dial
2) Fan speed control dial
3) Air flow control dial
4) Air conditioner button
5) Air inlet selection button
6) Rear window defogger button (Refer to “Rear window defogger button” section in chapter 3.)
T Temperature control dial
This dial regulates the temperature of air flow from the air outlets over a range from the blue area (cool) to red
area (warm). T
Fan speed control dial
The fan operates only when the ignition switch is
turned to the “ON” position. The fan speed control dial
is used to select four fan speeds. T Air flow control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.: Air flows through the instrument panel outlets
and the foot outlets.
: Air flows through the foot outlets and some
through the windshield defroster outlets.
: Air flows through the windshield defroster outlets
and foot outlets.
: Air flows through the windshield defroster out-
lets.
1
65 42
3
UB5004BC

4-6
Climate control
NOTE
When the dial is placed in the “ ” or “ ” po-
sition, the air conditioner compressor operates
automatically regardless of the position of the air
conditioner button to defog the windshield quick-
ly. At the same time, the air inlet selection is auto-
matically set to “Outside air” mode.
In this state, you cannot select “recirculation”
mode by manually pressing the air inlet selectionbutton. T
Air conditioner button

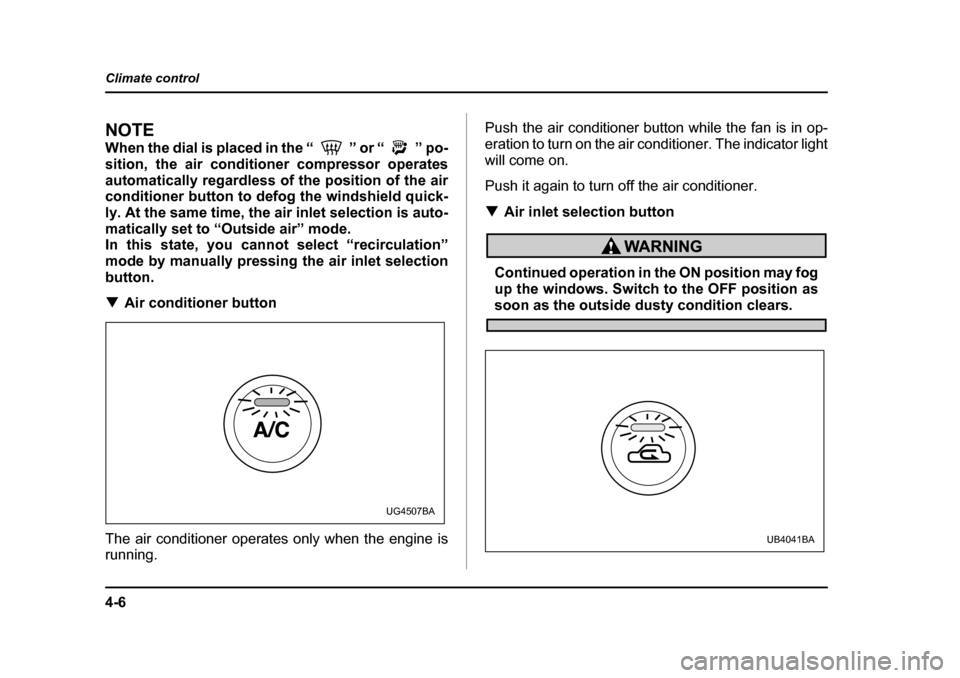

The air conditioner operates only when the engine is
running. Push the air conditioner button while the fan is in op-
eration to turn on the air conditioner. The indicator light
will come on.
Push it again to turn off the air conditioner. T
Air inlet selection button
Continued operation in the ON position may fog
up the windows. Switch to the OFF position as
soon as the outside dusty condition clears.
UG4507BA
UB4041BA

4-7
Climate control
– CONTINUED –
ON position (Recirculation): Interior air is recirculat-
ed inside the vehicle. Push the air inlet selection but-
ton to the ON position. The indicator light will come on.
Push the air inlet selectio n button to the ON position
for fast cooling with the air conditioner or when driving
on a dusty road.
OFF position (Outside Air): Outside air is drawn into
the passenger compartment. Push the air inlet selec-
tion button again to the OFF position. The indicator
light will go off.
Push the air inlet selection button to the OFF position
when the interior has cooled to a comfortable temper-
ature and the road is no longer dusty. „
Heater operation
T Defrosting or defogging the windshield

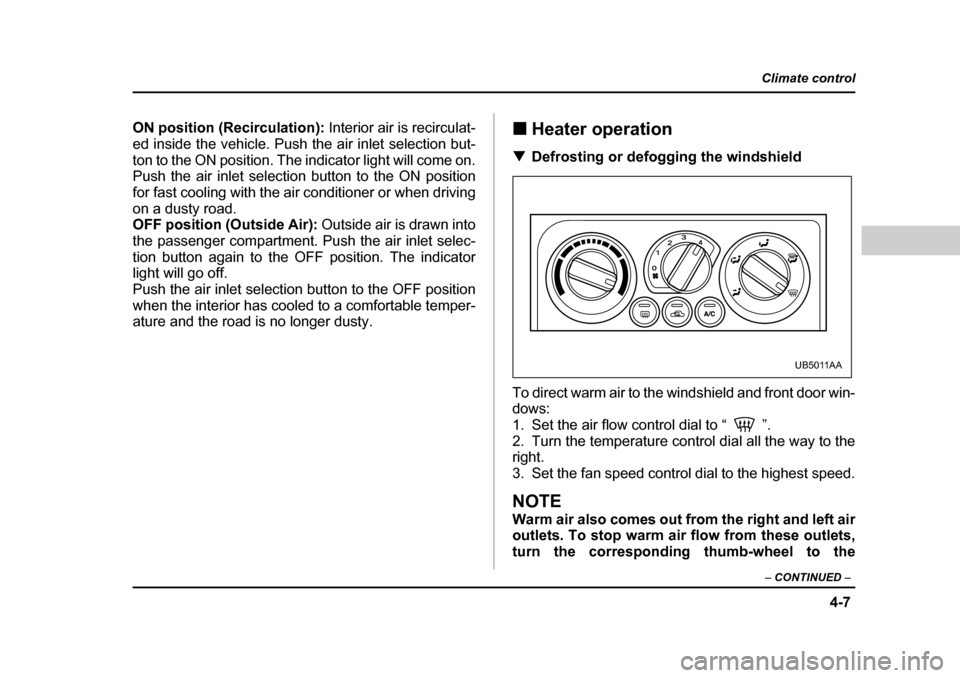

To direct warm air to the windshield and front door win-
dows:
1. Set the air flow control dial to “ ”.
2. Turn the temperature control dial all the way to the right.
3. Set the fan speed control dial to the highest speed.
NOTE
Warm air also comes out from the right and left air
outlets. To stop warm ai r flow from these outlets,
turn the corresponding thumb-wheel to the
UB5011AA
