SUBARU BAJA 2006 1.G Owners Manual

5-24
Audio
NOTE
Make sure to always insert a disc with the label
side up. If a disc is inserted with the label side
down, it might be ejected or the player might shut off. T
How to insert a CD(s)
V Inserting a CD
1. Press “LOAD” button (14). If the magazine in the
player has an idle position where you can insert a disc,
the “DISC” indicator associated with the idle position
will blink.
If no indicator blinks, it means that there is no idle po- sition in the magazine.
2. As soon as the “DISC” indicator begins to blink, the
“IN” will appear on display for a period of 15 seconds.
Insert a disc during the period. The disc will be then
automatically drawn in, and the player will begin to
play back the first track of the disc. y To insert more discs in succession, repeat Steps 1
and 2. The magazine will be loaded with discs in the
ascending order of position number.
If you do not insert any disc in 15 seconds after you
have pressed the “LOAD” button, the player will begin
to play back the first track of the last disc you have in-
serted. y
The disc indicator steadily lights up if a disc is al-
ready inserted in the corresponding position of the magazine. y While the player is in the loading mode, if you press
the “FM” button (4) or “AM” button (5), the player will
enter the standby mode. Press the “CD” button (11) to
start playback. V Inserting a disc in a desired position
1. Press the “LOAD” button. If the magazine in the
player has an idle position where you can insert a disc,
the “DISC” indicator associ ated with the idle position
will blink.
The positions in the magazine the indicator of which
steadily lights up are already loaded with discs.
2. Press the “Disc select” bu tton (15) at the position
where you want to insert a disc. The associated
“DISC” indicator will blink, and the “IN” will be dis-
played.
3. If you insert a disc during the 15-second period
while the “IN” is on display, the disc will be automati-
cally drawn in, and the player will start playback of the
disc, beginning with the first track. y To insert more discs in succession, repeat Steps 1
and 2. y While the player is in the loading mode, if you press
the “FM” button (4) or “AM” button (5), the player will

5-25
Audio
– CONTINUED –
enter standby mode. Press t he “CD” button to start
playback. V Loading all the magazine (Full disc loading
mode)
1. If you continue to press the “LOAD” button for more
than 1.5 seconds, the player will produce beep sound
and will enter the full disc loading mode.
2. A “DISC” indicator will blink, and the “IN” will be on
display for a period of 15 se conds. If a disc is success-
fully loaded during this period, the “DISC” indicator will
stop blinking and will steadily light.
3. When the loading of a disc is complete, the next
“DISC” indicator will blink. Then repeat Step 2.
4. When the magazine is filled with discs by repeating
Steps 2 and 3, the player will start playback of thediscs, beginning with the one inserted first.
If you fail to insert any disc during each 15 seconds in-
terval, the full disc loading mode will be canceled, and
the player will start playback of the disc inserted first. T How to play back a CD or make a pause
V When there is no CD inserted:
Insert a CD by referring to “How to insert a CD(s)”.
When a CD is loaded, the player will start playback of
the CD, beginning with the first track. V
When there are CDs loaded:
Press a desired one of the “Disc select” buttons (15)
the “DISC” indicator of which steadily lights up. The
player will then start playback of the selected CD, be-
ginning with the first track. T To select a song from its beginning
V Forward direction
Briefly press the “ ” side of the button (16) to skip to
the beginning of the next track. Each time the button is
pressed, the indicated track number will increase. V Backward direction
Briefly press the “ ” side of the button (16) to skip to
the beginning of the current track. Each time the but-
ton is pressed, the indicated track number will de- crease. T Fast-forwarding and fast-reversing
V Fast-forwarding
Press the “ ” side of the bu tton (16) continuously to
fast-forward the disc.
Release the button to stop fast-forwarding. V Fast-reversing
Press the “ ” side of the bu tton (16) continuously to
fast-reverse the disc.

5-26
Audio
Release the button to stop fast-reversing. T
Repeat playback
Press the “RPT” button (12) while a song is playing to
play the song repeatedly. The “RPT” indicator will
come on and the song will be played continuously. To
cancel the repeat mode, press the button again. Then
the “RPT” indicator goes out, and normal playback
mode is restored. T Random playback
Press the “RAND” button (13) while a disc is being
played back to play all songs on the disc in a random
order. The “RAND” indicator will come on and all
songs on the disc will be played in a random order.
To cancel the random mode, press the button again.
Then the “RAND” indicator goes out, and normal play-
back mode is restored. T Scan
When the “SCAN” button (17) is pressed while the disc
is being played back, you c an hear the first 10 seconds
of each track to search for the desired program. To
continue listening to the program, press the “SCAN”
button again. After all tracks on the disc have been
scanned, normal playback mode is restored. T
How to unload CDs from the player
V Ejecting a CD from the player
Of the discs loaded, you can select and remove only
one disc.
1. Press the “Disc select” button (15) of the disc
whose “DISC” indicator is ON.
2. Press the “Eject” button (9). Then the “DISC” indi-
cator associated with the disc you have selected will
blink, and the disc will be ejected.
To remove more discs in succession, repeat Steps 1
and 2. V Ejecting all discs from the player (All disc ejec- tion mode)
1. If you continue to press the “Eject” button (9), the
player will produce beep sound and will enter the all
disc ejection mode.
2. Remove the disc that has been ejected. The other
discs loaded will th en be ejected one after another. If
you do not remove the disc that has been ejected, the
“All disc ejection mode” will be canceled.
NOTE
Avoid driving the vehicle with a CD sticking out,
because vibration might make it fall out.

5-27
Audio
– CONTINUED –

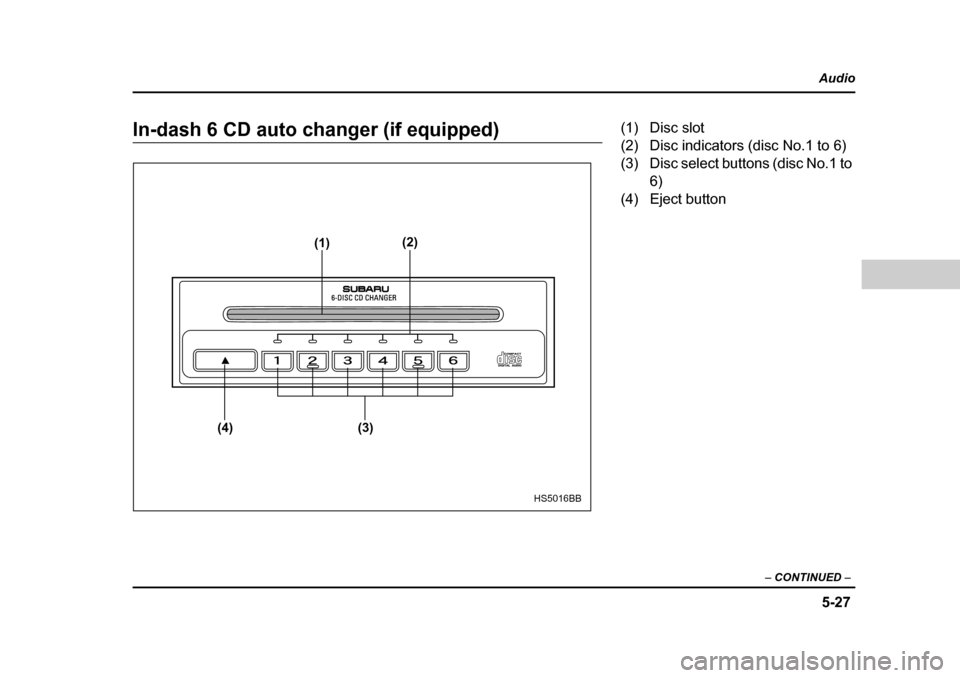

In-dash 6 CD auto changer (if equipped)
(1) (2)
(3)
(4)
HS5016BB
(1) Disc slot
(2) Disc indicators (disc No.1 to 6)
(3) Disc select buttons (disc No.1 to
6)
(4) Eject button

5-28
Audio
y
Do not attempt to in sert two or more discs
into the slot at a time. Doing so can cause me-
chanical damage to the CD changer. y Use only music CDs identified by
am ark .
y Do not use CDs listed in the following which
could cause damage to the CD player. y3 inch (8 cm) compact disc.
y Any disc with a peel-off or seal on it.
y Any disc with scratches and/or dust.
y Bent disc.
y Cleaning disc.
y CD accessory. (E.g., 3 inch (8 cm) disc
adapter)
y Do not insert or remove any disc when the
automatic transmission selector lever is in the
park position; the selector lever in that position
can interfere with disc insertion or removal,
causing scratches on the disc surface (for AT
vehicles).
T To insert a disc
1. Press one of the “Disc select” buttons (3) (num-
bered from 1 to 6) for which the disc indicator light (2) is “OFF”.
The Disc indicator lights are located directly above the
corresponding “Disc select” buttons.
2. The indicator will begin blinking. The blinking will last for 15 seconds.
During this period, insert a desired disc, and the disc
will begin to play. (If any disc is not inserted during this
period, the “Disc slot” (1) door will close. Repeat Step
1.)
Be sure to hold a disc with the label side (the side
where titles are printed) up.
3. To insert another disc, repeat Steps 1 and 2 choos-
ing a different disc select button. T
To insert six discs at a time
1. Press and hold the “Disc select” button number 1
until all disc indicators begin blinking (approximately
1.5 seconds).
2. The indicators will blink for 15 seconds. During this
period, insert desired six discs.
3. When all discs are loaded, the first disc will begin to
play. (If no disc is inserted within this 15 seconds, the
entire disc load sequence will be canceled.) T To remove a disc
1. Press the desired one of the “Disc select” buttons
(3) (numbered from 1 to 6) for which the disc indicator
light is on.

5-29
Audio
– CONTINUED –
2. Press the “Eject” button (4). The selected disc will
be ejected and the indicator light will begin blinking.
3. To remove another disc, repeat Steps 1 and 2
choosing a different “Disc select” button.
(To remove discs when the ig nition switch is in the
“Lock” position, press the “Eject” button, and the first
disc will be ejected. Press the “Eject” button again,
and the next disc will be ejected and so on. At this
time, the “Disc select” buttons are disabled.) T To remove all discs at one time
1. Press and hold the “Eject” button (4) until all “Disc”
indicators begin blinking (approximately 1.5 seconds),
and the first disc will be ejected.
2. When the disc is removed, the next one will be
ejected, and so on. T To replace a playing disc with another
Simply press the desired one of “Disc select” buttons
(3) (numbered from 1 to 6) or press the “DISC UP” or
“DISC DOWN” button on the ra dio unit to select the
desired disc, and the disc will begin to play. T Disc indicators
Lit: when the corresponding storage tray is occupied
by a disc.
Blinking: Disc player is either in loading, eject or
changing mode. OFF: No disc is loaded or the ignition switch is in the
“LOCK” position. T
Function control
Refer to CD player control operating instructions de-
scribed in the “AM/FM radio with CD player” section.

5-30
Audio
Precautions to observe when han-
dling a compact disc
Use only compact discs (CDs) that have the mark
shown in the following illustration. CD-RWs cannot be
used. Also, some CD-Rs cannot be played.
yYou cannot use a DualDisc in the CD player. If you
insert a DualDisc into the player, the disc may not
come out again, possibly causing the player to mal-
function. y In cold and/or rainy weather, dew can form inside
the CD player, preventing normal operation. If this
happens, eject the CD and wait for the player to dry
out. y Skipping may occur when the CD player is subject-
ed to severe vibration (for example, when the vehicle
is driven on a rough surface).y To remove a disc from the case, press the center of
the case and hold both edges of the disc. If the disc
surface is touched directly, contamination could cause
HS5017AA
TM
DualDisc
500253

5-31
Audio
– CONTINUED –
poor tone quality. Do not touch the disc surface.
y Use a clean disc whenever possible. If there are de-
posits, wipe the disc surface from the center outward with a dry, soft cloth. Be sure not to use a hard cloth,
thinner, benzene, alcohol, etc. y Do not use any disc that is scratched, deformed, or
cracked. Also, do not use any disc that has a non-stan-
dard shape (for example, a heart shape). Malfunctions
or problems might result. y A disc is vulnerable to heat. Never keep it either in
places exposed to direct sunlight, near heaters or in
vehicles parked in the sun or on hot days.
HS5018BA

6-1
6
Interior and exterior equipments
Interior light .................................................. 6-2 Dome light ......................................................... 6-2
Map light ........................................................ 6-3
Sun visors ..................................................... 6-3 Vanity mirror (if equipped) ............................... 6-4
Storage compartment .................................. 6-4 Glove box ........................................................... 6-5
Center console .................................................. 6-5
Rear center console .......................................... 6-6
Coin compartment ............................................ 6-6
Cup holder .................................................... 6-7 Front cup holder ............................................... 6-7
Rear passenger’s cup holder ........................... 6-8
Accessory power outlet . .............................. 6-8
Cigarette lighter socket .. .............................. 6-9
Use with a cigarette lighter .............................. 6-10
Using as an accessory power outlet ............... 6-11
Ashtray .......................................................... 6-12
Convenience hook ....................................... 6-13 Coat hook .......................................................... 6-13
Cargo net hooks ................................................ 6-13
Floor mat (if equipped) ................................. 6-15
Cargo bed ...................................................... 6-16 Cargo tie-down hooks ...................................... 6-17
Bed extender (if equipped) .......................... 6-17 Operation ........................................................... 6-18
Bed extender removal ...................................... 6-19
Cargo lamp .................................................... 6-20
Soft bed cover (if equipped) ........................ 6-21 Securing the cover ........................................... 6-21
Cover removal ................................................... 6-22
Cover reinstallation .......................................... 6-23
Hard bed cover (if equipped) ....................... 6-24 Locking and unlocking the bed cover ............ 6-25
Internal hard bed cover release handle .......... 6-27
Opening and closing the hard bed cover ....... 6-28
Removal and installation of the hard bed cover ................................................................ 6-32
Roof rail and crossbar .................................. 6-36 Installing carrying attachments on the crossbars ........................................................ 6-37
Removal and installation of the crossbars .... 6-37
Sport activity lights (if equipped) ................ 6-42
