SUBARU BAJA 2006 1.G Owners Manual

9-2
In case of emergency
In case of emergencyIf you park your vehicle in an emer-
gency
The hazard warning flasher should be used in day or
night to warn other drivers when you have to park your
vehicle under emergency conditions.
Avoid stopping on the road. It is best to safely pull off
the road if a problem occurs.
The hazard warning flasher can be activated regard-
less of the ignition switch position.
Turn on the hazard warning by pushing the hazard
warning flasher switch. Turn it off by pushing the
switch again.
NOTE
When the hazard warning flasher is on, the turn
signals do not work.
UB8002BA

9-3
In case of emergency
– CONTINUED –
Jack and tools
The jack supplied with the vehicle is designed only for
changing a tire.
Before using the jack, see the “Flat tires” section in this
chapter for instructions and precautions. „Location of jack and tools
The jack and tool bag are located in the left side rear
quarter pocket at the back si de of the rear seatback. A wheel nut wrench, jack drive tube, tire holding rod,
tire holding retainer, screwdriver and two belts are in-
cluded in the tool bag. „
Removing jack and tool bag
Before folding down the seatback, check that
there is nothing in the seatback pocket. If there
is something in the pocket, it could be damaged
or cause damage to the seatback and rear cen-
ter console when the seatback is folded.
UB9091BA
900276

9-4
In case of emergency
0
1) Red
A) LOCK
B) UNLOCK
1. Pull the rear seatback locks up and fold down the
rear seatback to gain access to the rear quarter pock-
ets at both sides. 2. Open the left-hand pocket lid by turning the knob.
3. Take the tool bag out of the pocket.
1
AB
UB1109BBUB9074BA

9-5
In case of emergency
– CONTINUED –
4. Loosen the jack holding screw by turning counter-
clockwise and remove the jack from the pocket.
NOTE yBe careful not to lose the jack holding screw af-
ter removing it. y Make sure the jack is well lubricated before us-
ing it. „
Restoring jack and tools
0
1. Strap the wheel nut wrench, jack drive tube, and
tire holding rod together using the two belts, then re-
turn them to the tool bag together with the other tools.
2. Contract the jack by turning the jack screw counter-
clockwise to the end.
UB9075BA
900277

9-6
In case of emergency
3. Place the jack onto the bracket in the pocket.
4. Securely fix the jack with the jack holding screw by
turning it clockwise.
5. Install the left-hand pocket lid and lock it by turning
the knob.
NOTE
Confirm no looseness exists after securing the
jack. Looseness may cause a rattle while the vehi-
cle is moving.
After the jack and the tool bag have been re-
stored in the rear quarter pocket, make sure
that the rear seatback has been securely
locked. When securely locked, the red marks
on the locking knobs are no longer visible.
UB9076BA
UB9075CA

9-7
In case of emergency
– CONTINUED –
Spare tire

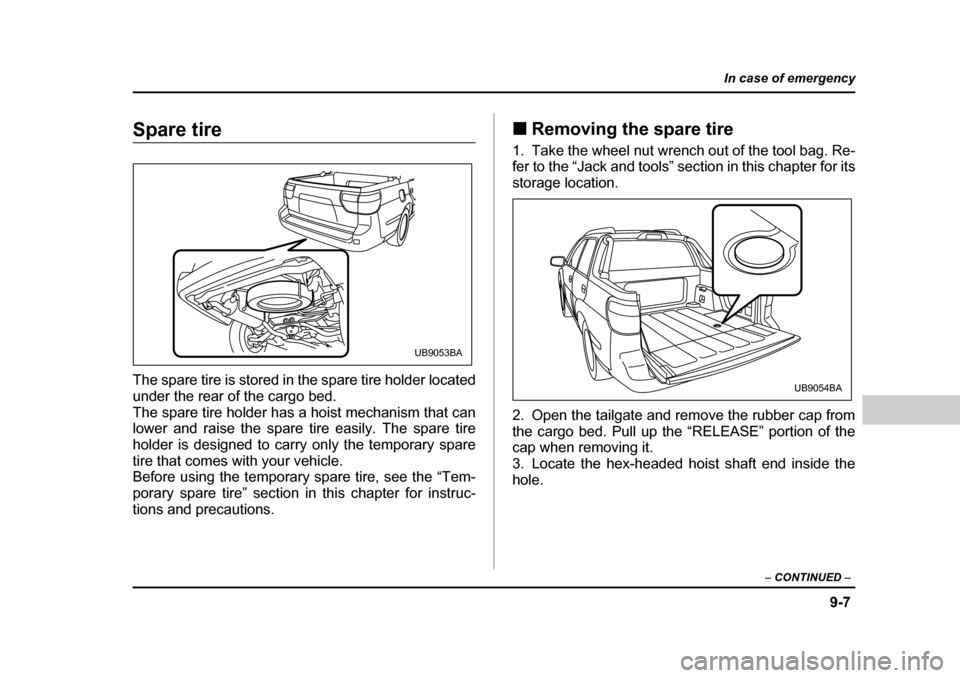

The spare tire is stored in the spare tire holder located
under the rear of the cargo bed.
The spare tire holder has a hoist mechanism that can
lower and raise the spare tire easily. The spare tire
holder is designed to carry only the temporary spare
tire that comes wi th your vehicle.
Before using the temporary spare tire, see the “Tem-
porary spare tire” section in this chapter for instruc-
tions and precautions. „
Removing the spare tire
1. Take the wheel nut wrench out of the tool bag. Re-
fer to the “Jack and tools” se ction in this chapter for its
storage location.
2. Open the tailgate and remove the rubber cap from
the cargo bed. Pull up the “RELEASE” portion of the
cap when removing it.
3. Locate the hex-headed hoist shaft end inside the
hole.
UB9053BA
UB9054BA

9-8
In case of emergency
4. Turn the hoist shaft end counterclockwise with the
wheel nut wrench until the temporary spare tire is on
the ground with enough cable slack to allow you to pull
it out from under the vehicle.
Do not put your fingers
into the center hole of
the temporary spare tire while you pulling it out,
because they might be pinched in between the
wheel and the retainer. 5. Tilt the retainer at the end of the cable and pull it
through the center of the temporary spare tire.
6. After the temporary spare tire is removed from the
cable, the cable must be wound up completely by turn-
ing the hoist nut shaft clockwise until you hear a click-
ing sound. Also visually inspect the cable to make cer-
tain that there is no longer any slack present.y
When using the spare tire hoist:
After the temporary spare tire is removed from
the cable, wind the cable up completely until
the retainer at end of the cable sits against the
UB9055BAUB9056AA

9-9
In case of emergency
– CONTINUED –
underside of the vehicle. Driving with the cable
not retracted fully could r esult in damage to the
adjacent under floor parts and lead to a serious
accident. y The spare tire holder is designed to carry
only the smaller temporary spare tire. Never store a full size tire (fl at or otherwise) in the
spare tire holder. Doing so can result in dam-
age to adjacent under floor parts and can lead
to a serious accident.
When using the spare tire hoist:
Do not use air tools or power tools to turn the
spare tire hoist shaft end. If you do, it could re-
sult in severe mechanical damage to the spare
tire hoist.
„ Re-storage of spare tire
1. Turn the spare tire hoist shaft end counterclock-
wise with the wheel nut wrench to loosen the cable
sufficiently enough to allow the cable end retainer go
through center hole of the temporary spare tire.
2. Insert the retainer through the center hole of the temporary tire (with the outside of the tire facing up).
3. Turn the hoist shaft en
d clockwise with the wheel
nut wrench to wind the cable up completely until you
hear a few clicking sounds. Confirm that the temporary
spare tire holding cable has been wound up complete-
ly by shaking the temporary tire.
If the temporary spare tire is not stored secure-
ly, it could damage adjacent areas of the vehi-
cle and make an abnormal noise.
4. Put the rubber cap on the hoist shaft end hole.
5. Place the wheel nut wrench back into the tool bag
and store the jack and tool bag in their storage loca-
tions.

9-10
In case of emergency
Temporary spare tire „
Using the temporary spare tire
Never tow a trailer when the temporary spare
tire is used. The temporary spare tire is not de-
signed to sustain the towing load. Use of the
temporary spare tire when towing can result in
failure of the spare tire and/or less stability of
the vehicle and may lead to an accident.
Never use any temporary spare tire other than
the original. Using other sizes may result in se-
vere mechanical damage to the drive train of
your vehicle.
The temporary spare tire is smaller and lighter than a
conventional tire and is designed for emergency use
only. Remove the temporary spare tire and re-install
the conventional tire as soon as possible because the
spare tire is designed only for temporary use. Check the inflation pressure of the temporary spare
tire periodically to keep the tire ready for use. The cor-
rect pressure is
60 psi (420 kPa, 4.2 kgf/cm 2
).
When using the temporary spare tire, note the follow-
ing.y Do not exceed 50 mph (80 km/h).
y Do not put a tire chain on the temporary spare tire.
Because of the smaller tire size, a tire chain will not fit
properly. y Do not use two or more temporary spare tires at the
same time. y Do not drive over obstacles. This tire has a smaller
diameter, so road clearance is reduced.

9-11
In case of emergency
– CONTINUED –

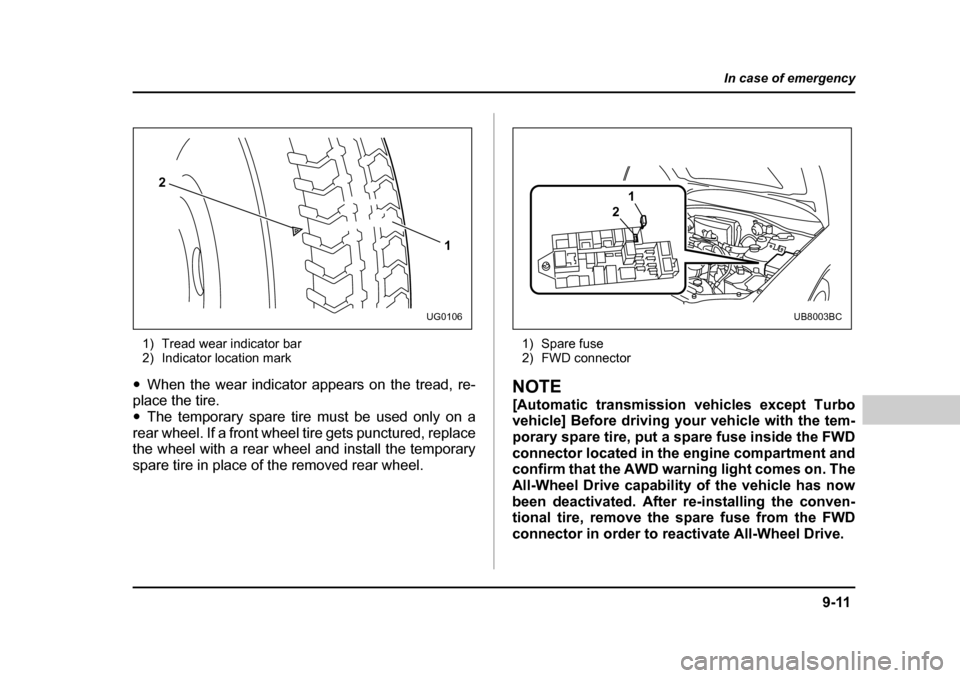

1) Tread wear indicator bar
2) Indicator location mark
y When the wear indicator appears on the tread, re-
place the tire. y The temporary spare tire must be used only on a
rear wheel. If a front wheel tire gets punctured, replace
the wheel with a rear wheel and install the temporary
spare tire in place of the removed rear wheel. 1) Spare fuse
2) FWD connector
NOTE
[Automatic transmission vehicles except Turbo
vehicle] Before driving your vehicle with the tem-
porary spare tire, put a spare fuse inside the FWD
connector located in the engine compartment and
confirm that the AWD warning light comes on. The
All-Wheel Drive capability of the vehicle has now
been deactivated. After
re-installing the conven-
tional tire, remove the spare fuse from the FWD
connector in order to reactivate All-Wheel Drive.
1
2
UG0106
1
2
UB8003BC
