SUBARU BAJA 2006 1.G Owners Manual

9-22
In case of emergency
Confirm that the cooling fan is turning. If the fan is not
turning, immediately turn off the engine and contact
your authorized dealer for repair.
3. After the engine coolant temperature has dropped,
turn off the engine.
If the temperature gauge
stays at the overheated
zone, turn off the engine.
4. After the engine has fully cooled down, check the
coolant level in the reserve tank.
If the coolant level is below the “MIN” mark, add cool-
ant up to the “MAX” mark.
5. If there is no coolant in the reserve tank, add cool-
ant to the reserve tank. Then remove the radiator cap
and fill the radiator with coolant.
If you remove the radiator cap from a hot radiator, first
wrap a thick cloth around the radiator cap, then turn
the cap counterclockwise slowly without pressing
down until it stops. Releas e the pressure from the ra-
diator. After the pressure has been fully released, re-
move the cap by pressing down and turning it.Towing
Never tow AWD vehicles (both AT and MT) with
the front wheels raised o ff the ground while the
rear wheels are on the ground, or with the rear
wheels raised off the ground while the front
wheels are on the ground. This will cause the
vehicle to spin away due to the operation or de-
terioration of the center differential.
If towing is necessary, it is best done by your SUBARU
UB9064BA

9-23
In case of emergency
– CONTINUED –
dealer or a commercial towing service. Observe the
following procedures for safety. „Towing and tie-down hooks
The towing hooks should be used only in an emergen-
cy (e.g., to free a stuck vehicle from mud, sand or snow).
y Use only specified towing hooks and tie-
down hooks. Never use suspension parts or
other parts of the body for towing or tie-down
purposes. y Never use the tie-down hook closest to the
muffler under the vehicle for towing purposes. y To prevent deformation to the front bumper
and the towing hook, do not apply excessive
lateral load to the towing hooks. 1) Towing hook cover
2) Towing hook
The front towing hook is located on the inside of the
towing hook cover below the right-hand headlight.
2 1UB9065BB

9-24
In case of emergency

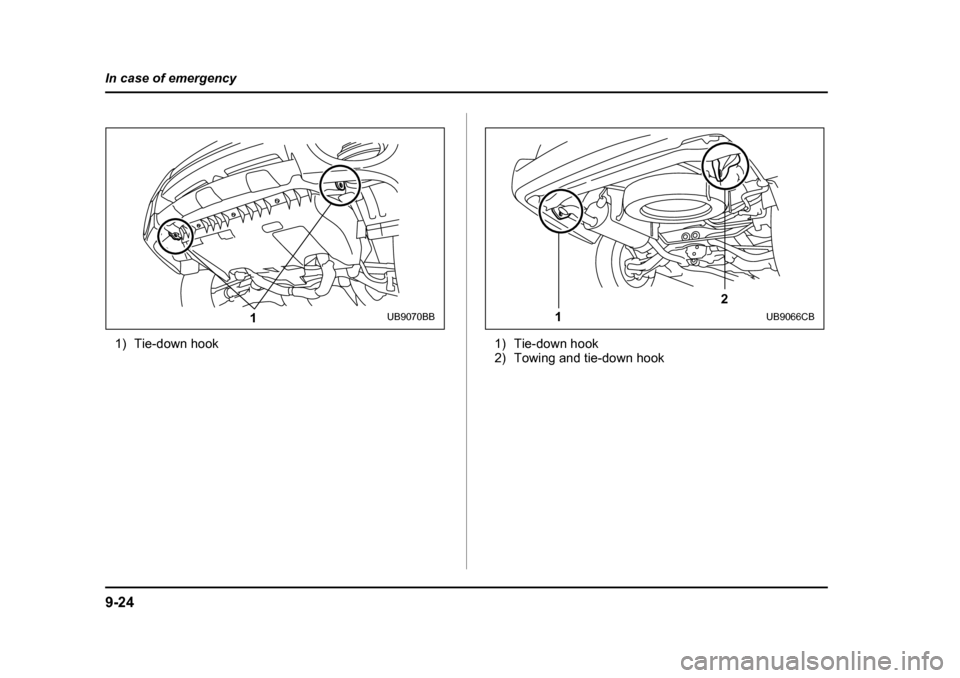

1) Tie-down hook
1) Tie-down hook
2) Towing and tie-down hook
1UB9070BB
2
1
UB9066CB

9-25
In case of emergency
– CONTINUED –

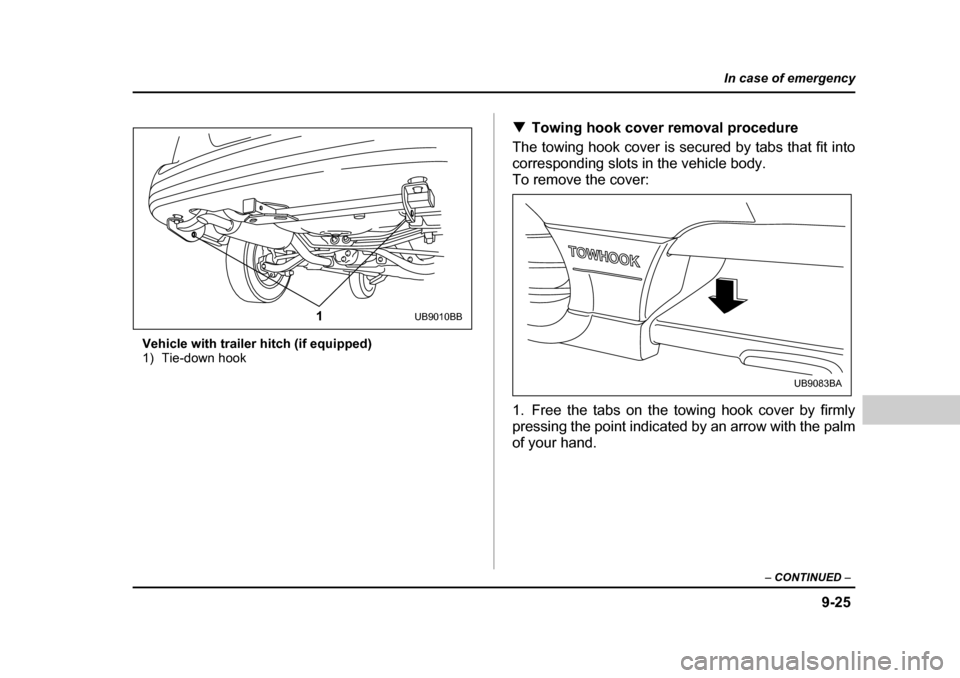

Vehicle with trailer hitch (if equipped)
1) Tie-down hook T
Towing hook cover removal procedure
The towing hook cover is secured by tabs that fit into
corresponding slots in the vehicle body.
To remove the cover:
1. Free the tabs on the towing hook cover by firmly
pressing the point indicated by an arrow with the palm
of your hand.
1UB9010BB
UB9083BA

9-26
In case of emergency

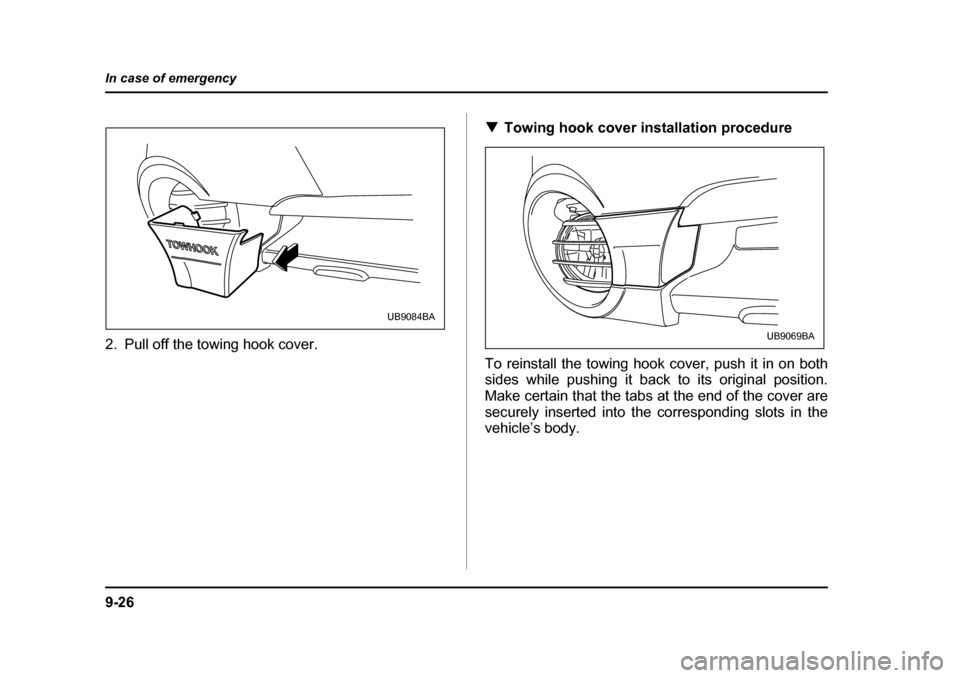

2. Pull off the towing hook cover.
T
Towing hook cover installation procedure
To reinstall the towing hook cover, push it in on both
sides while pushing it back to its original position.
Make certain that the tabs at the end of the cover are
securely inserted into the corresponding slots in the vehicle’s body.
UB9084BA
UB9069BA

9-27
In case of emergency
– CONTINUED –
„Using a flat-bed truck
This is the best way to transport your vehicle. Use the
following procedures to ensure safe transportation.
1. Shift the selector lever into the “P” position for au-
tomatic transmission vehi cles or “1st” for manual
transmission vehicles.
2. Pull up the parking brake lever firmly.
3. Secure the vehicle onto the carrier properly with
safety chains. Each safety chain should be equally
tightened and care must be taken not to pull the chains
so tightly that the suspension bottoms out. „
Towing with all wheels on the ground
yNever turn the ignition switch to the “LOCK”
position while the vehicle is being towed be-
cause the steering wheel and the direction of
the wheels will be locked.y Remember that the brake booster and power
steering do not function when the engine is not
running. Because the engine is turned off, it will
take greater effort to operate the brake pedal
and steering wheel.
UB9072AAUB9071AA

9-28
In case of emergency
y
If transmission failure occurs, transport your
vehicle on a flat-bed truck. y Do not run the engine while the vehicle is be-
ing towed using this method. Transmission
damage could result if the vehicle is towed with
the engine running. y For vehicles with automatic transmission,
the traveling speed must be limited to less than
20 mph (30 km/h) and the traveling distance to
less than 31 miles (50 km). For greater speeds
and distances, transport your vehicle on a flat-
bed truck.
1. Check the transmission and differential oil levels
and add oil to bring it to the upper level if necessary.
2. Release the parking brake and put the transmis-
sion in neutral.
3. The ignition switch should be in the “ACC” position
while the vehicle is being towed.
4. Take up slack in the towline slowly to prevent dam-
age to the vehicle.

10-1
10
Appearance care
Exterior care .................................................. 10-2 Washing ............................................................. 10-2
Waxing and polishing ....................................... 10-3
Cleaning aluminum wheels .............................. 10-4
Cleaning front fog light lens ............................ 10-4
Corrosion protection .................................... 10-5 Most common causes of corrosion ................ 10-5
To help prevent corrosion ............................... 10-5
Cleaning the interior ..................................... 10-6 Seat fabric ......................................................... 10-6
Leather seat materials ...................................... 10-7
Synthetic leather upholstery ........................... 10-7
Climate control panel, audio panel, instrument panel, console panel, switches, combination
meter, and other plastic surfaces ................. 10-7

10-2
Appearance care
Appearance careExterior care „
Washing
yWhen washing the vehicle, the brakes may
get wet. As a result, the brake stopping dis-
tance will be longer. To dry the brakes, drive the
vehicle at a safe speed while lightly pressing
the brake pedal to heat up the brakes. y Do not wash the engine compartment and ar-
eas adjacent to it. If water enters the engine air
intake, electrical parts or the power steering flu-
id reservoir, it will cause engine trouble or
faulty power steering respectively.
NOTE y Before having your vehicle washed in an auto-
matic car wash, retract the pillar mounted antenna
or remove the roof mounted antenna to prevent it
from being damaged.y When having your vehicle washed in an auto-
matic car wash, make sure beforehand that the car
wash is of suitable type.
The best way to preserve your vehicle’s beauty is fre- quent washing. Wash the vehicle at least once a
month to avoid contamination by road grime.
Wash dirt off with a wet sponge and plenty of luke-
warm or cold water. Do not wash the vehicle with hot
water and in direct sunlight.
Salt, chemicals, insects, tar, soot, tree sap, and bird
droppings should be washed of
f by using a light deter-
gent, as required. If you use a light detergent, make
certain that it is a neutra l detergent. Do not use strong
soap or chemical detergents. All cleaning agents
should be promptly flushed from the surface and not
allowed to dry there. Rinse the vehicle thoroughly with
plenty of lukewarm water. Wipe the remaining water
off with a chamois or soft cloth. T Washing the underbody
Chemicals, salts and gravel used for deicing road sur-
faces are extremely corrosive , accelerating the corro-
sion of underbody components, such as the exhaust
system, fuel and br ake lines, brake cables, floor pan
and fenders, and suspension.
Thoroughly flush the underbody and inside of the
fenders with lukewarm or cold water at frequent inter-
vals to reduce the harmful effects of such agents.
Mud and sand adhering to the underbody components may accelerate their corrosion.

10-3
Appearance care
– CONTINUED –
After driving off-road or muddy or sandy roads, wash
the mud and sand off the underbody.
Carefully flush the suspension and axle parts, as they
are particularly prone to mud and sand buildup. Do not
use a sharp-edged tool to remove caked mud.
NOTE
Be careful not to damage brake hoses, sensor har-
nesses, and other parts when washing suspen-
sion components. TUsing a warm water washer
y Keep a good distance of 12 in (30 cm) or more be-
tween the washer nozzle and the vehicle. y Do not wash the same area continuously.
y If a stain will not come out easily, wash by hand.
Some warm water washers are of the high tempera-
ture, high pressure type, and they can damage or de-
form the resin parts such as mouldings, or cause wa-
ter to leak into the vehicle. „ Waxing and polishing
Always wash and dry the vehicle before waxing and
polishing.
Use a good quality polish and wax and apply them ac-
cording to the manufacturer’s instructions. Wax or pol-
ish when the painted surface is cool. Be sure to polish and wax the chrome trim, as well as
the painted surfaces. Loss of
wax on a painted surface
leads to loss of the original luster and also quickens
the deterioration of the surface. It is recommended
that a coat of wax be applied at least once a month, or
whenever the surface no longer repels water.
If the appearance of the paint has diminished to the
point where the luster or tone cannot be restored,
lightly polish the surface with a fine-grained com-
pound. Never polish just the affected area, but include
the surrounding area as well. Always polish in only
one direction. A No. 2000 grain compound is recom-
mended. Never use a coarse-grained compound.
Coarser grained compounds have a smaller grain-size
number and could damage t he paint. After polishing
with a compound, coat with wax to restore the original
luster. Frequent polishing with a compound or an in-
correct polishing technique will result in removing the
paint layer and exposing the undercoat. When in
doubt, it is always best to contact your SUBARU deal-
er or an auto paint specialist.
NOTE
Be careful not to damage brake hoses, sensor har-
nesses, and other parts when washing suspen-
sion components.
