SUBARU BRZ 2016 1.G Navigation Manual

Audio and Visual 219
Audio Operations
■Repeating the same track
1Touch (Settings).
2Touch (On) in Repeat.
• Repeat playback is set for the currently playing track.
• When (On) in Repeat is touched, the repeat playback of
the track continues until the function is canceled.
• Touch (Off ) in Repeat to cancel the repeat playback of the
track.
• Touch to return to the previous screen.NOTE
When On is selected in Repeat, is displayed in the top right of the screen as
confirmation that the function is on.
■Playing tracks randomly
1Touch (Settings).
2Touch (On) in Random.
• All tracks from the currently playing CD are played randomly.
• When (On) in Random is touched, the random playback
of the tracks continues until the function is canceled.
• Touch (Off ) in Random to cancel the random playback of
the tracks.
Settings
On
On
Off
Settings
On
On
Off

220 Audio and Visual
Audio Operations
• Touch to return to the previous screen.
NOTE
When On is selected in Random, is displayed in the top right of the screen
as confirmation that the function is on.
■Scrolling title information
If the Disc, Track or Artist information cannot be fully displayed because
it is too long, you can scroll the display.
1Touch on the item that you want to scroll.
• The selected title information scrolls to the left.
• Touch to stop the scrolling and return to the start of the
title.
• If driving is detected while the display is being scrolled, the
scrolling stops and returns to the start of the title.
• When the end of the title information is displayed, the scrolling
stops.

Audio and Visual 221
Audio Operations
Using the MP3/WMA Player
Using the MP3/WMA Player
(1) Title information scroll buttons*
(2) Settings button
(3) Search button
(4) Folder selection buttons
(5) AUDIO button
(6) File up/down and fast forward (fast reverse) buttons
* The full title will be displayed unless it is too lengthy. If the length of the
information is too long, title information scroll buttons will be displayed.
■Listening to an MP3/WMA file
Insert a CD-R/RW that contains MP3/WMA files into the disc slot, and it
will start playing.
1Press .
2To u c h ( C D ) .
• The playback starts.
• The usual playing order is J J J J J . (See
Page 228.)
• If multiple MP3/WMA files and folders are located in the same
hierarchy, they are played in the ascending order of folder name
and file name.
• If you try to play a non-MP3/WMA format file, “No support.” is
displayed.(1)
(2) (3) (4) (5)(6)
CD

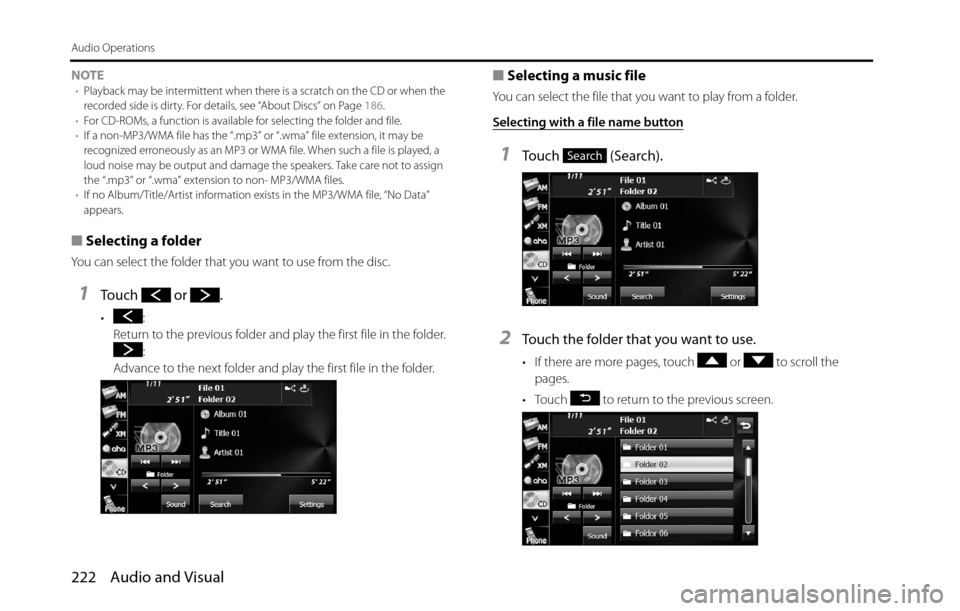

222 Audio and Visual
Audio Operations
NOTE•Playback may be intermittent when there is a scratch on the CD or when the
recorded side is dirty. For details, see “About Discs” on Page 186.
•For CD-ROMs, a function is available for selecting the folder and file.
•If a non-MP3/WMA file has the “.mp3” or “.wma” file extension, it may be
recognized erroneously as an MP3 or WMA file. When such a file is played, a
loud noise may be output and damage the speakers. Take care not to assign
the “.mp3” or “.wma” extension to non- MP3/WMA files.
•If no Album/Title/Artist information exists in the MP3/WMA file, “No Data”
appears.
■Selecting a folder
You can select the folder that you want to use from the disc.
1Touch or .
•:
Return to the previous folder and play the first file in the folder.
:
Advance to the next folder and play the first file in the folder.
■Selecting a music file
You can select the file that you want to play from a folder.
Selecting with a file name button
1Touch (Search).
2Touch the folder that you want to use.
• If there are more pages, touch or to scroll the
pages.
• Touch to return to the previous screen.
Search

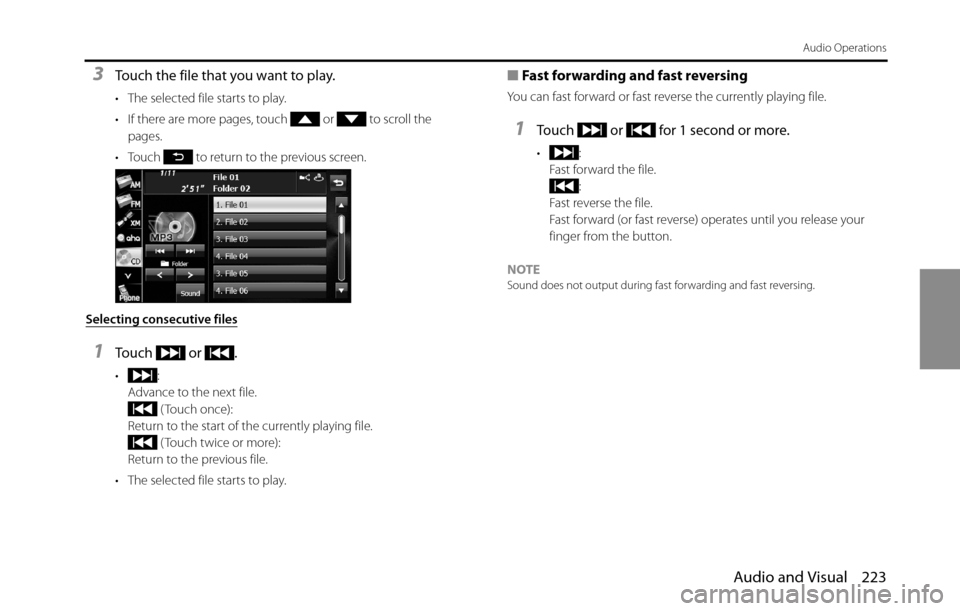

Audio and Visual 223
Audio Operations
3Touch the file that you want to play.
• The selected file starts to play.
• If there are more pages, touch or to scroll the
pages.
• Touch to return to the previous screen.
Selecting consecutive files
1Touch or .
•:
Advance to the next file.
( Touch once):
Return to the start of the currently playing file.
( Touch twice or more):
Return to the previous file.
• The selected file starts to play.
■Fast forwarding and fast reversing
You can fast forward or fast reverse the currently playing file.
1Touch or for 1 second or more.
•:
Fast forward the file.
:
Fast reverse the file.
Fast forward (or fast reverse) operates until you release your
finger from the button.
NOTE
Sound does not output during fast forwarding and fast reversing.

224 Audio and Visual
Audio Operations
■Repeating the music file
1Touch (Settings).
2Touch (File) or (Folder) in Repeat.
• Repeat playback is set for the currently playing file or folder.
• To cancel, touch (Off ) in Repeat.
• Touch to return to the previous screen.
NOTE
When the file repeat or folder repeat function is selected, or is
displayed in the top right of the screen as confirmation that the function is on.
■Playing randomly
1Touch (Settings).
2 Touch (ALL) or (Folder) in Random.
• Folder random playback:
The files in the currently playing folder are played randomly.
All random playback:
The files in all folders are played randomly.
• Touch (File) in Repeat during random playback to repeat
the currently playing file. Touch (Off ) in Repeat to return
to random playback.
• To cancel, touch (Off ) in Random.
Settings
FileFolder
Off
Settings
ALLFolder
File
Off
Off

Audio and Visual 225
Audio Operations
• Touch to return to the previous screen.
NOTE
When the folder random or all random function is selected, or is
displayed in the top right of the screen as confirmation that the function is on.
■Scrolling title information
If the Album, Title or Artist information cannot be fully displayed
because it is too long, you can scroll the display.
1Touch on the item that you want to scroll.
• The selected title information scrolls to the left.
• Touch to stop the scrolling and return to the start of the
title.
• If driving is detected while the display is being scrolled, the
scrolling stops and returns to the start of the title.
• When the end of the title information is displayed, the scrolling
stops.

226 Audio and Visual
Audio Operations
About MP3/WMA
MP3 (MPEG Audio Layer 3) is a standard format for audio compression. By
using MP3, a file can be compressed to about 1/10 of the original size.
WMA ( Windows Media Audio) is Microsoft's audio compression technology.
WMA files can be compressed to a size even smaller than MP3 files.
This unit only supports certain MP3/WMA file standards, recorded media
and formats. Take note of the following when writing MP3/WMA files onto a
disc.
■About the supported MP3 file standards
•Supported standards:
MPEG1/2/2.5 Audio Layer 3
•Supported sampling frequencies (kHz):
-MP3 (MPEG1 Audio Layer 3): 32, 44.1, 48
-MP3 (MPEG2 Audio Layer 3): 16, 22.05, 24
-MP3 (MPEG2.5 Audio Layer 3): 8, 11.025, 12
•Supported bit rates (kbps):-MP3 (MPEG1 Audio Layer 3): 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224,
256, 320
-MP3 (MPEG2/2.5 Audio Layer 3): 8, 16, 24, 32, 40, 48, 56, 64, 80, 96, 112, 128,
144, 160
* Supports VBR ( Variable Bit Rate).
* Does not support Audio Layer 1/2.
* Emphasis supports only 50/15ms.
* Does not support free format.
* Does not support DRM (Digital Rights Management).
•Supported channel modes:
Stereo, Joint Stereo, Dual channels, Monaural
■About the supported WMA file standards
•Supported standards:
WMA Ver. 7 to 9
•Supported sampling frequencies (kHz):
22.05, 24, 32, 44.1, 48
•Supported bit rates (kbps):
-WMA Ver. 7, 8: 48, 64, 80, 96, 128, 160, 192
-WMA Ver. 9: 48, 63, 64, 80, 95, 96, 127, 128, 160, 191, 192, 256, 320
* Supports 2-channel play only.
* Supports VBR ( Variable Bit Rate).
* Does not support WMA9 Professional/Lossless/Voice.
* Does not support DRM (Digital Rights Management).
•Supported channel modes:
Stereo, Monaural
■About ID3/WMA tags
In MP3/WMA files, you can enter textual attribute information known as
ID3 tags/WMA tags to save information such as track titles and artist
names.
This unit supports ID3v.1.0, 1.1, 2.2, 2.3 and 2.4 tags. This unit supports
the ISO 8859-1, 2, 5 and 7 codes only. Use only the ISO 8859-1, 2, 5 or 7
codes to record tags. If characters not included in ISO 8859-1, 2, 5 or 7
codes are recorded, they may not be readably displayed.
This unit supports the WMA tag ASF revision (v1.20.02). WMA tags using
only Unicode are supported. Always use Unicode characters to enter
the information.
* When Ver. 1.x and Ver. 2.x of the ID3 tags both exist, precedence is given to
Ver. 2.x.

Audio and Visual 227
Audio Operations
■About the supported media types
You can play MP3/WMA files recorded on a CD-ROM, CD-R or CD-RW
disc. Compared to the CD-ROM media commonly used for music discs,
CD-R and CD-RW discs are fragile in high temperature and high
humidity environments. It may not be possible to play some CD-R/
CD-RW discs. Fingerprints or scratches on a disc may prevent playback
or cause skipping during playback.
Some CD-R/CD-RW discs may deteriorate if left inside a vehicle for a
long time.
We recommend that you store UV-sensitive CD-R and CD-RW discs in
shield cases.
■About the supported disc formats
You can use media in the following formats.
•CD-ROM formats:
CD-ROM MODE 1, CD-ROM XA MODE 2 Form 1
•File formats:
ISO9660 Level 1 or Level 2
ROMEO system, JOLIET system
MP3/WMA files recorded in a format other than those described
above may result in files that cannot be played normally or file
names and folder names that do not display properly.
In addition to these standards, the following limitations apply.
•Maximum number of directory layers:
8 layers
•Supported characters for folder and file names:
A to Z, 0 to 9, and underscore (_)
•Number of files that can be stored on a single disc:
999
•Number of folders that can be stored on a single disc:
255

228 Audio and Visual
Audio Operations

■About the file names
Only a file with the “.mp3” or “.wma” extension is recognized as an MP3
or WMA file. Always save an MP3/WMA file with the “.mp3” or “.wma”
extension.
The “.mp3” or “.wma” file extension must be single-byte lower case
letters.
NOTE
If a non-MP3/WMA file has the “.mp3” or “.wma” file extension, it may be
recognized erroneously as an MP3 or WMA file. When such a file is played, a loud
noise may be output and damage the speakers. Do not save a non-MP3/WMA
file with the “.mp3” or “.wma” extension.
■Multi-sessions
Multi-sessions are supported and CD-R/RW with recorded MP3/WMA
files can be played.
However, when writing with Track-At-Once, be sure to finalize the disc
with session close or write protect.
■About MP3/WMA playback
When you load a disc containing MP3/WMA files, the system first
checks all files recorded on the disc. If the disc has many files and
folders, the system may take a while to check them.
While the system is checking the disc, the music that was playing
continues to play.
To allow quick checking of files, we recommend that you do not save
non-MP3/WMA files or create unnecessary folders on the disc.
Also, we recommend that you write the all data in a single session
because the system takes longer to read the CD control information of
a multi-session disc.
■About the MP3/WMA playing time display
It is possible that the playing time will not be correct, depending on the
writing condition of the MP3/WMA file.
* It is possible that the playing time will not be correct when VBR ( Variable
Bit Rate) Fast Up/Down is operated.
Folder
MP3/WMA audio file or text file
1
st level 2nd level Root directory
A total of 999 files can be created within a single disc.
Files aside from MP3/WMA files (Example: 004.txt)
also count as single files.
