SUBARU BRZ 2016 1.G Navigation Manual

Audio and Visual 249
How to Operate Portable Audio Devices
•To connect an iPod, first purchase a connection cord.
•For details on the iPod functions, see the iPod's instruction manual.
•For the iPod types (generations) supported by this unit, see “About the
Supported iPods” on Page 254.
•When the ignition switch is in the “ACC” or “ON” position, the battery of the
connected iPod is charged. However, it may take some time until the iPod is
turned on, depending on the remaining power in the battery.
•Disconnect headphones and other accessories from the iPod before
connecting it to this unit. Failure to do so may make it impossible to operate
the iPod from this unit.
•If the iPod's equalizer has been customized, the sound output may be
distorted when it is connected to the optional dedicated connection cable.
•If this unit does not support the language used in the iPod, album names,
titles, and artist names are displayed as blank.
•iPod may not be recognized in ACC OFF/ON. In this case, remove the iPod and
reconnect it.
•When you connect your iPod, the music file starts playing from the previous
position. Also, if you switch the power of the iPod off and on, the music file
starts playing from the previous position. But if the unit cannot detect the file
that was playing previously, it will start playing from the first music file.
•If there are multiple music files stored on your iPod or iPhone, it may take
some time until the playback starts.
•If the iPod is set to Shuffle Songs and is connected to this unit, is not
shown on the display.■Playing an iPod
1Connect an iPod that contains music files to the iPod
connector.
2Press .
3To u c h .
• The playback starts.
iPod

250 Audio and Visual
How to Operate Portable Audio Devices
■Fast forwarding and fast reversing
You can fast forward or fast reverse the currently playing music file.
1Touch or for 1 second or more.
•:
Fast forward the file.
:
Fast reverse the file.
Fast forward (or fast reverse) operates until you release your
finger from the button.
■Selecting a music file
You can select the music file that you want to play.
1Touch or .
•:
Advance to the next file.
( Touch once):
Return to the start of the currently playing file.
( Touch twice or more):
Return to the previous file.
• The selected music file starts to play.
■Finding a music file
1To u c h .
2Touch (Search).
3To select a file or program to play, touch
(Playlists), (Albums), (Artists),
(Songs) or (Others).
• The list screen for the selected mode appears.
• Touch to return to the previous screen.
iPod
Search
Playlists
AlbumsArtistsSongs
Others

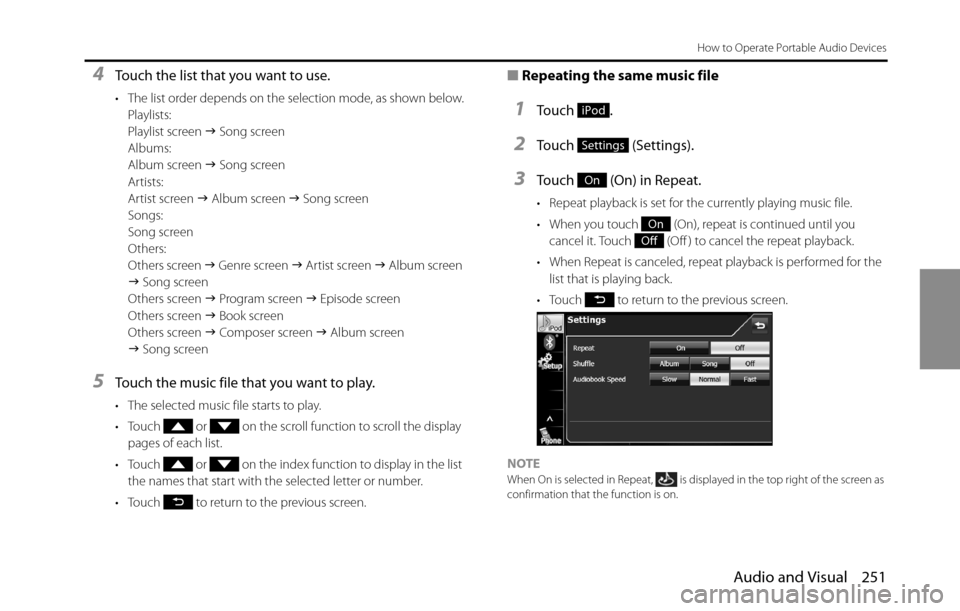

Audio and Visual 251
How to Operate Portable Audio Devices
4Touch the list that you want to use.
• The list order depends on the selection mode, as shown below.
Playlists:
Playlist screen J Song screen
Albums:
Album screen J Song screen
Artists:
Artist screen J Album screen J Song screen
Songs:
Song screen
Others:
Others screen J Genre screen J Artist screen J Album screen
J Song screen
Others screen J Program screen J Episode screen
Others screen J Book screen
Others screen J Composer screen J Album screen
J Song screen
5Touch the music file that you want to play.
• The selected music file starts to play.
• Touch or on the scroll function to scroll the display
pages of each list.
• Touch or on the index function to display in the list
the names that start with the selected letter or number.
• Touch to return to the previous screen.
■Repeating the same music file
1To u c h .
2Touch (Settings).
3Touch (On) in Repeat.
• Repeat playback is set for the currently playing music file.
• When you touch (On), repeat is continued until you
cancel it. Touch (Off ) to cancel the repeat playback.
• When Repeat is canceled, repeat playback is performed for the
list that is playing back.
• Touch to return to the previous screen.
NOTE
When On is selected in Repeat, is displayed in the top right of the screen as
confirmation that the function is on.
iPod
Settings
On
On
Off

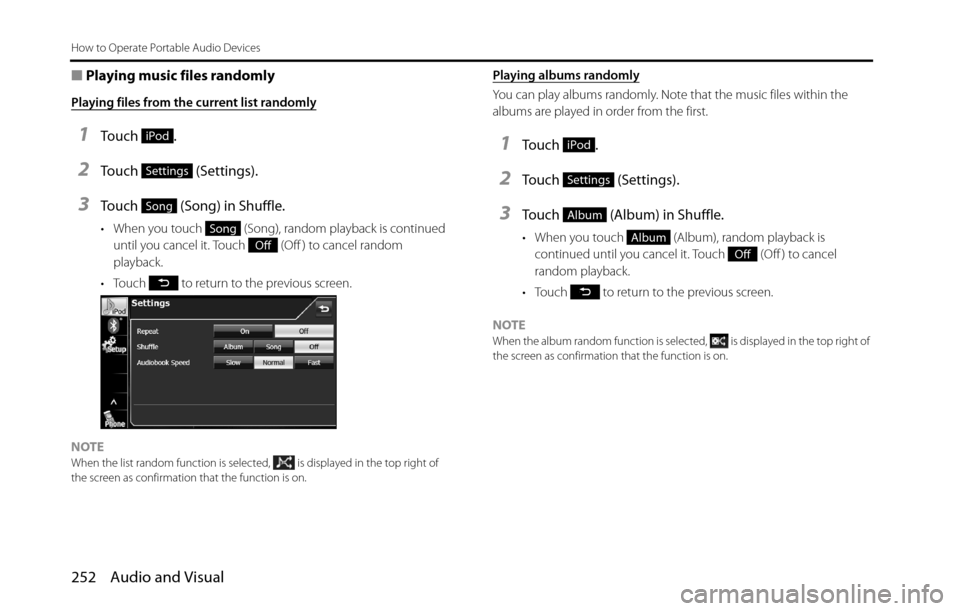

252 Audio and Visual
How to Operate Portable Audio Devices
■Playing music files randomly
Playing files from the current list randomly
1To u c h .
2Touch (Settings).
3Touch (Song) in Shuffle.
• When you touch (Song), random playback is continued
until you cancel it. Touch (Off ) to cancel random
playback.
• Touch to return to the previous screen.
NOTE
When the list random function is selected, is displayed in the top right of
the screen as confirmation that the function is on.
Playing albums randomly
You can play albums randomly. Note that the music files within the
albums are played in order from the first.
1To u c h .
2Touch (Settings).
3Touch (Album) in Shuffle.
• When you touch (Album), random playback is
continued until you cancel it. Touch (Off ) to cancel
random playback.
• Touch to return to the previous screen.
NOTE
When the album random function is selected, is displayed in the top right of
the screen as confirmation that the function is on.
iPod
Settings
Song
Song
Off
iPod
Settings
Album
Album
Off

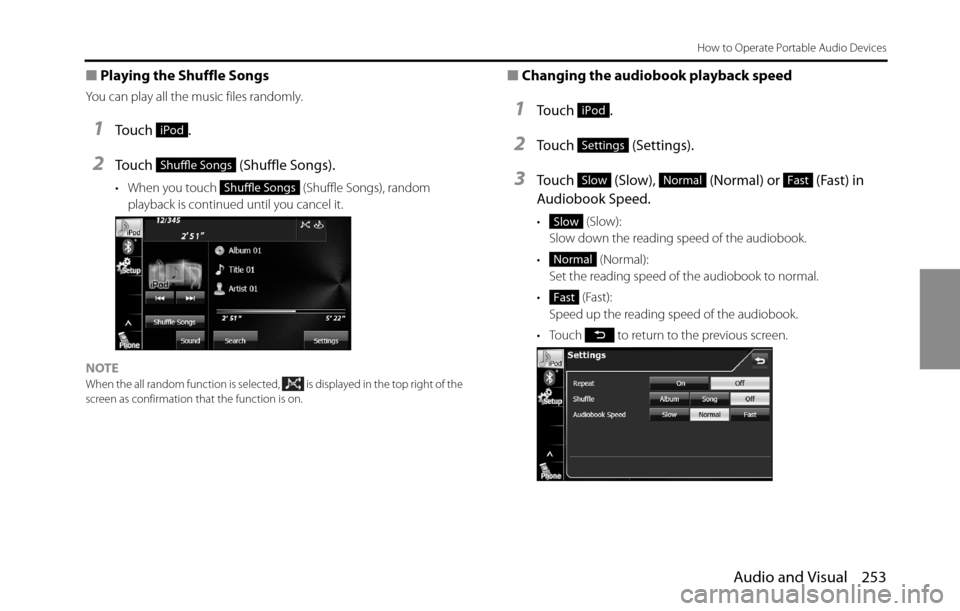

Audio and Visual 253
How to Operate Portable Audio Devices
■Playing the Shuffle Songs
You can play all the music files randomly.
1To u c h .
2Touch (Shuffle Songs).
• When you touch (Shuffle Songs), random
playback is continued until you cancel it.
NOTE
When the all random function is selected, is displayed in the top right of the
screen as confirmation that the function is on.
■Changing the audiobook playback speed
1To u c h .
2Touch (Settings).
3Touch (Slow), (Normal) or (Fast) in
Audiobook Speed.
• (Slow):
Slow down the reading speed of the audiobook.
• (Normal):
Set the reading speed of the audiobook to normal.
• (Fast):
Speed up the reading speed of the audiobook.
• Touch to return to the previous screen.
iPod
Shuffle Songs
Shuffle Songs
iPod
Settings
SlowNormalFast
Slow
Normal
Fast

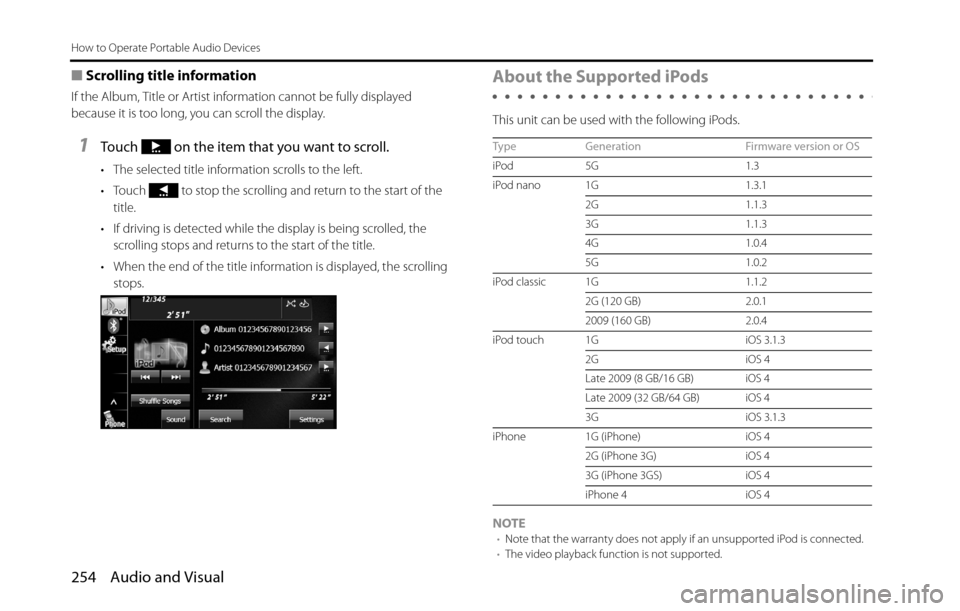

254 Audio and Visual
How to Operate Portable Audio Devices
■Scrolling title information
If the Album, Title or Artist information cannot be fully displayed
because it is too long, you can scroll the display.
1Touch on the item that you want to scroll.
• The selected title information scrolls to the left.
• Touch to stop the scrolling and return to the start of the
title.
• If driving is detected while the display is being scrolled, the
scrolling stops and returns to the start of the title.
• When the end of the title information is displayed, the scrolling
stops.
About the Supported iPods
This unit can be used with the following iPods.
NOTE
•Note that the warranty does not apply if an unsupported iPod is connected.
•The video playback function is not supported.
Type Generation Firmware version or OS
iPod 5G 1.3
iPod nano 1G 1.3.1
2G 1.1.3
3G 1.1.3
4G 1.0.4
5G 1.0.2
iPod classic 1G 1.1.2
2G (120 GB) 2.0.1
2009 (160 GB) 2.0.4
iPod touch 1G iOS 3.1.3
2G iOS 4
Late 2009 (8 GB/16 GB) iOS 4
Late 2009 (32 GB/64 GB) iOS 4
3G iOS 3.1.3
iPhone 1G (iPhone) iOS 4
2G (iPhone 3G) iOS 4
3G (iPhone 3GS) iOS 4
iPhone 4 iOS 4

Audio and Visual 255
How to Operate Portable Audio Devices
Using Bluetooth Audio
Before Using Bluetooth Audio
A Bluetooth-supporting portable audio player (“portable device”
hereafter) can be used as a source for this unit by utilizing the Bluetooth
wireless communication technology. To use a Bluetooth-supporting
portable device with this unit, it is necessary to perform Bluetooth
registration and connection settings.
WA R N I N G
Do not register a portable device while driving. Be sure to park
the vehicle in a safe location and apply the parking brake
before registering a device.
CAUTION
•Certain functions (such as touch panel operation and/or
video image) offered by this unit may not be used while
driving.
•The frequency band used by this unit is the same band that is
used by industrial, scientific and medical devices such as
microwave ovens, facility wireless stations used for identifying
moving objects in factory production lines and other
locations (wireless station that requires a license), special low
output wireless stations (wireless station that does not require
a license), and amateur radios (wireless station that requires a
license). (The 3 types of wireless stations above are hereafter
called “other wireless stations”.) Before operating this unit,
make sure that no “other wireless stations” are operating
nearby. If the unit causes harmful radio wave interference in
“other wireless stations”, immediately change the location to
stop the radio wave interference.
•The frequency band used by this unit is the 2.4 GHz band.
•The FH-SS modulation scheme is used.
•The estimated distance in which interference may occur is
less than 10 m.
•This unit uses the full band, making it possible to avoid the
band of devices that identify moving objects.
•This unit complies with the standards specified by the Radio
Act and Telecommunications Business Act in Japan. The
stickers attached to the product certify this. Do not remove
the stickers.
Disassembling or modifying this unit is punishable by law.

256 Audio and Visual
How to Operate Portable Audio Devices
The Bluetooth-supporting portable device connected to this unit must
support the following specifications. Be aware that the available
functions may vary depending on the type of portable device.
•Supported Bluetooth Specifications
-Bluetooth Specification Ver. 1.1 or higher ( Ver. 2.0 + EDR or higher is
recommended)
•Supported Profiles-A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher
-AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher ( Ver. 1.4 or
higher is recommended)
NOTE•For details of Bluetooth operations, see the portable device or cell phone
instruction manual.
•Factors in the surrounding environment may negatively affect the connection
status and prevent Bluetooth audio operations on the unit.
•Bluetooth audio feature is subject to portable devices or cell phone
compatibility.
•Bluetooth is a short-range wireless technology for connecting cell phones,
computers and other such devices.
■Registering a portable device
You can register portable devices on this unit. Up to 5 portable devices
can be registered on the unit. The order of registration precedence is
always 1 to 5. When a portable device is added or deleted, the order of
precedence is updated.
1Press .
2To u c h .
• If is not displayed, touch .
3To u c h .
4Touch (Registered Devices).
Setup
Setup
Bluetooth
Registered Devices

Audio and Visual 257
How to Operate Portable Audio Devices
5Touch (Add New).
6Operate the portable device to enter the passcode
(passkey) of the unit.
• The name of the unit is CAR MULTIMEDIA.
• The initial setting for the passcode (passkey) is 0000.
• Operate the portable device while the Registered Devices
screen is displayed.

7When the registration is complete, “Connection
completed.” appears.
• The portable device registration is complete.
• After the registration completed message is displayed,
“Connection successfully established.” appears.
NOTE
•If the registration fails, “Connection failed.” appears on the screen. If this
happens, perform the registration operation again.
•For details of operations on the portable device, see the portable device's
instruction manual.
■Deleting a portable device registration
You can delete portable devices that are registered on the unit.
1Press .
2To u c h .
• If is not displayed, touch .
Add New
Setup
Setup

258 Audio and Visual
How to Operate Portable Audio Devices
3To u c h .
4Touch (Registered Devices).
5Select the portable device that you want to delete.
6Touch (Delete).
• “Are you sure you want to delete this device?” appears on the
screen. Touch (Yes) or (No).
7After touching (Yes), when the deletion is complete,
“Completed.” appears.
• The portable device deletion is complete.
■Connecting a portable device
You can connect portable devices that are registered on the unit.
•Make the preparations necessary for connecting to the unit, for
example by setting the portable device's Bluetooth standby to On.
For details of operations on the portable device, see the portable
device's instruction manual.
1Press .
2To u c h .
• If is not displayed, touch .
Bluetooth
Registered Devices
Delete
YesNo
Yes
Setup
Setup
